Transmission Assembly: Removal

  1. Disconnect battery ground cable.
  2. Remove rear propeller shaft and front propeller shaft (4x4).
    NOTE: Apply alignment marks on the flange at both front and rear sides.

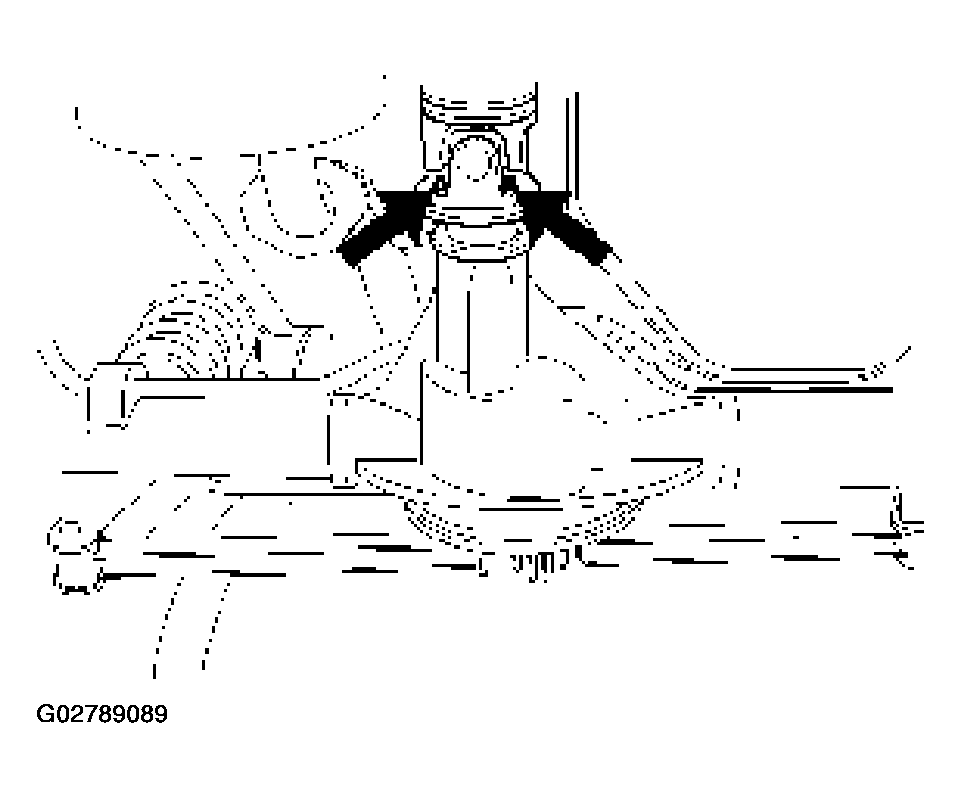

    Fig 1: Removing Front Propeller Shaft (4x4)
    G02789089Courtesy of ISUZU MOTOR CO.

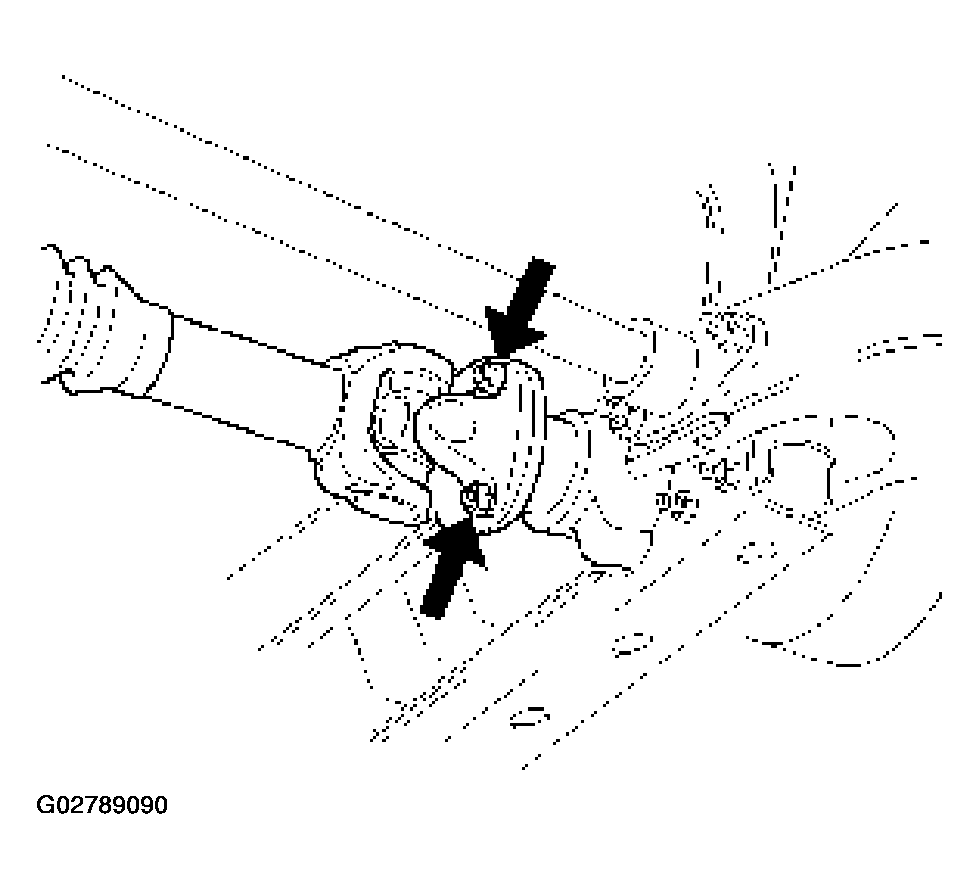

    Fig 2: Removing Rear Propeller Shaft (4x4)
    G02789090Courtesy of ISUZU MOTOR CO.
  3. Loosen the nuts fixing front exhaust pipe to exhaust manifold but do not remove the nuts.

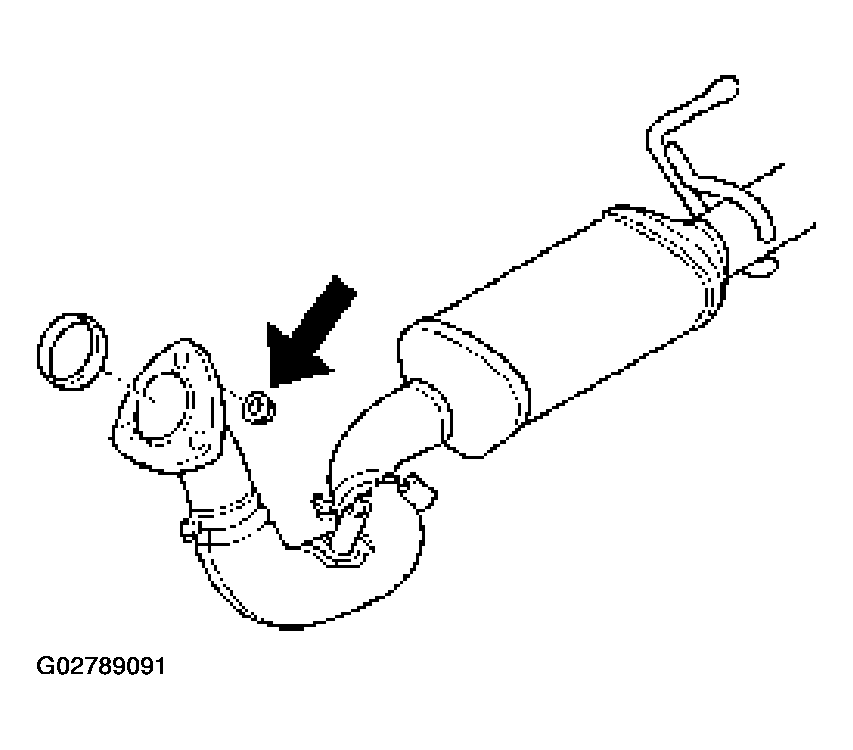

    Fig 3: Loosening Nuts Fixing Front Exhaust Pipe
    G02789091Courtesy of ISUZU MOTOR CO.
  4. Remove fuel pipe heat protector and clip.

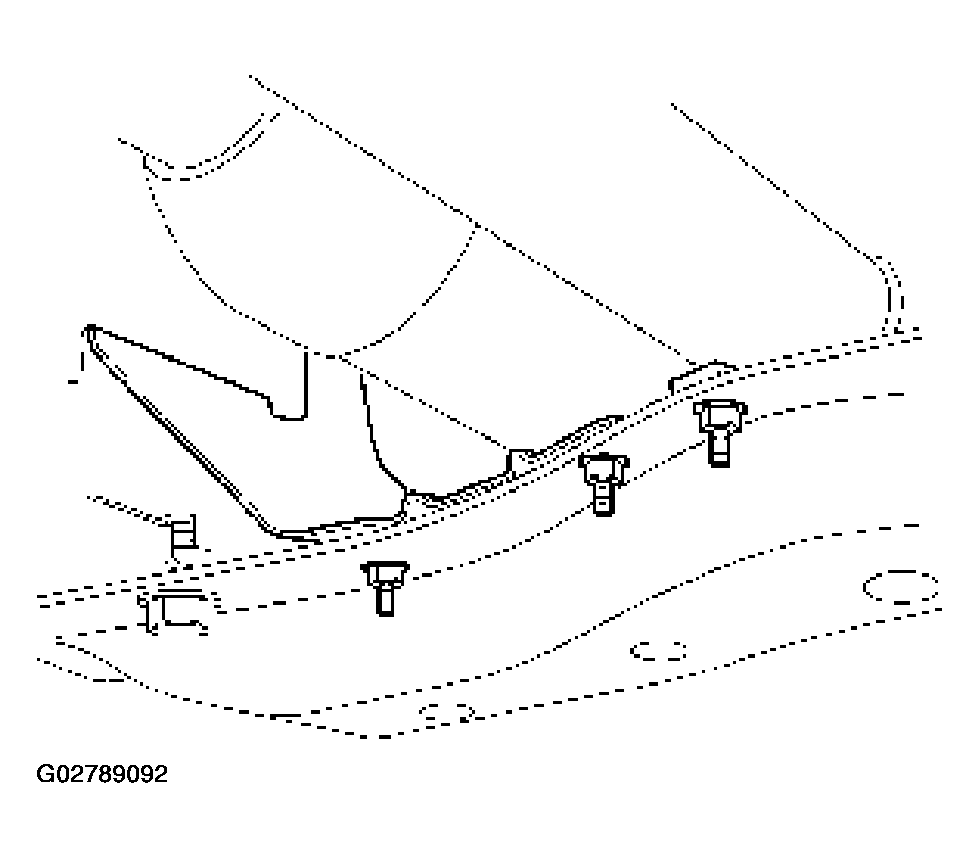

    Fig 4: Removing Fuel Pipe Heat Protector & Clip
    G02789092Courtesy of ISUZU MOTOR CO.
  5. Disconnect fuel pipe bracket from transmission side.
    Fig 5: Disconnecting Fuel Pipe Bracket From Transmission Side
    G02789093Courtesy of ISUZU MOTOR CO.

    Fuel hose connector removal procedure

    If removal of the fuel hose connector is required for transmission servicing and/or replacement, follow the steps below.

    NOTE:
    • An O-ring is used as a seal between the fuel pipe and the connector. Take care not to damage the contact surfaces during the removal procedure. Do not allow the surface to become contaminated with dirt or other foreign material.

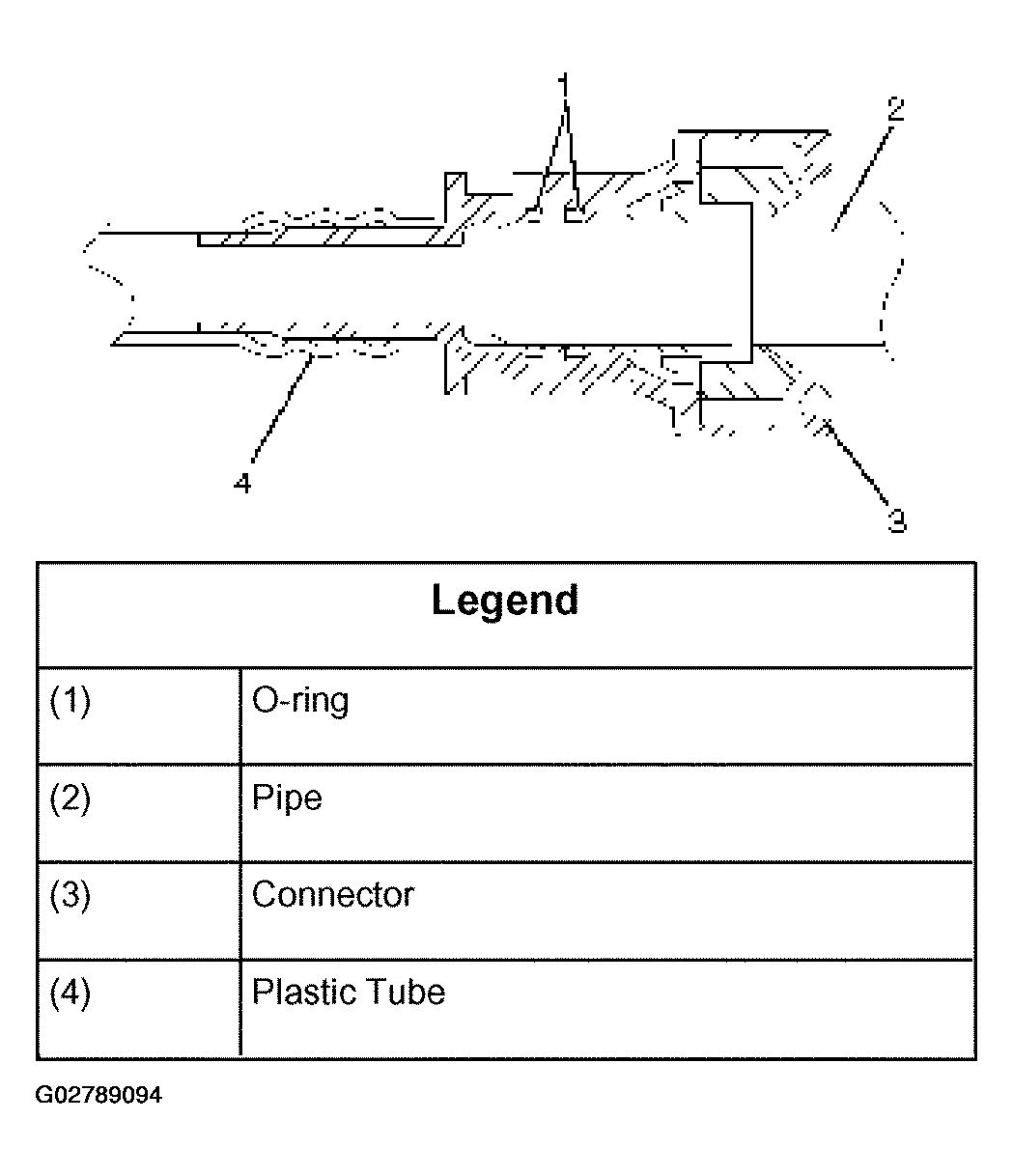

    Fig 6: Removing Fuel Hose Connector
    G02789094Courtesy of ISUZU MOTOR CO.
    • Perform the entire removal procedure with your hands. Do not use tools.

    Separating the connector and fuel pipe

    1. Clean the fuel pipe and connector to remove mud and other dirt.
    2. For removal of the quick connector, hold the quick connector in one hand, and pull out the connector with the other hand while pressing the square relieve button of the connector, as illustrated.

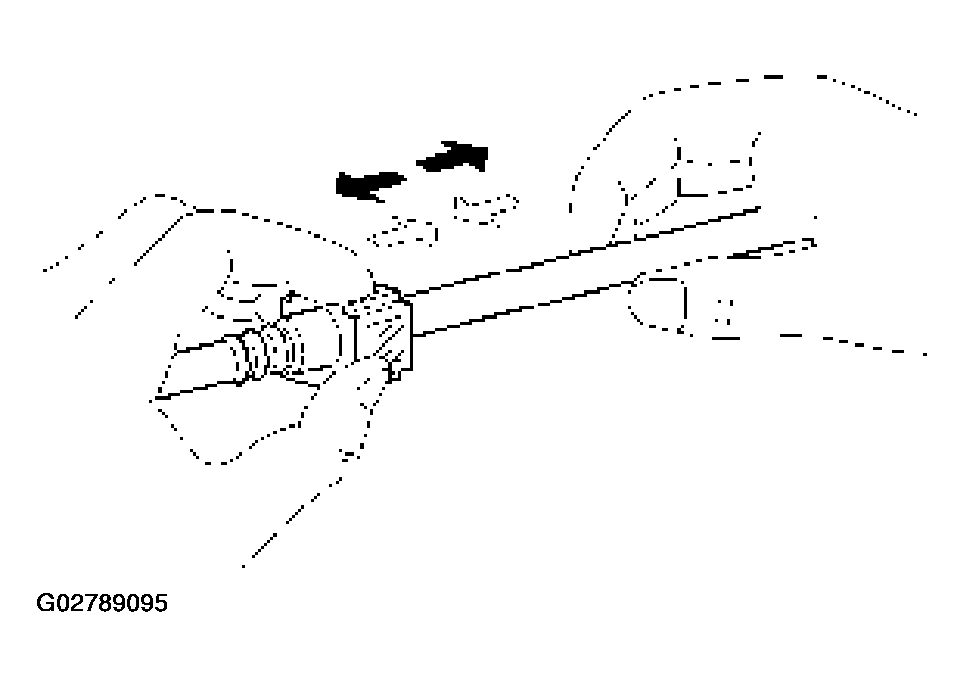

    Fig 7: Identifying Quick Connector
    G02789095Courtesy of ISUZU MOTOR CO.
    NOTE: Do not use tools of any kind. Only use bare hands when disconnecting the connector. Use a lubricant (light oil) and/or push and pull the connector until the pipe is disconnected.
    Cover the connectors that was removed with a plastic bag, to prevent dust or rain water from entering.

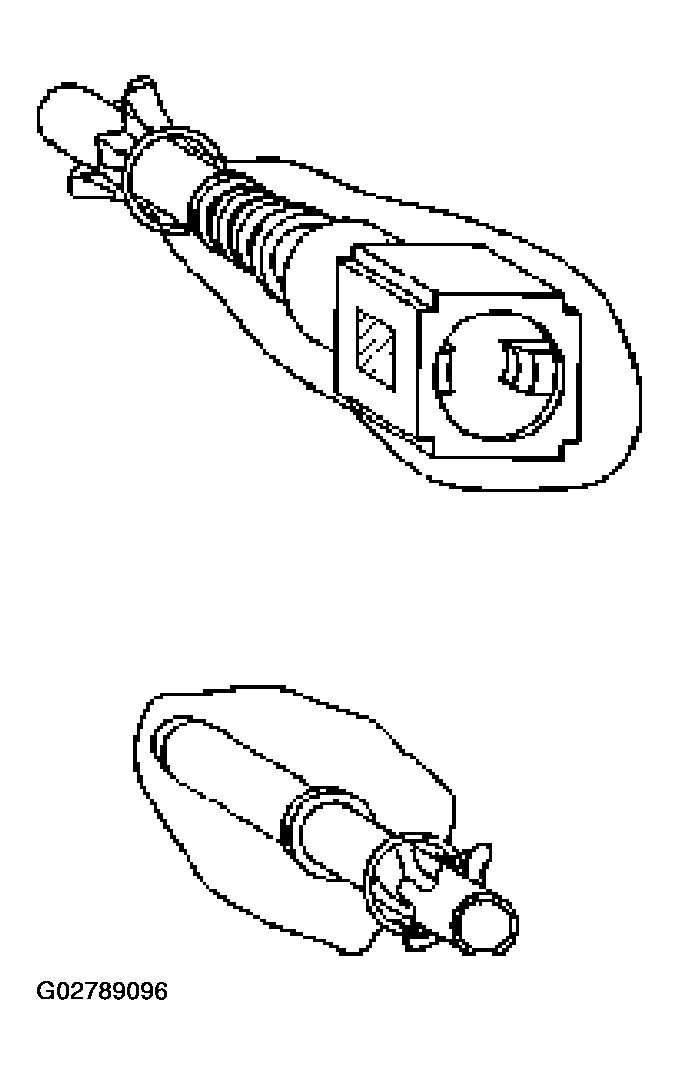

    Fig 8: Covering Connectors With Plastic Bag
    G02789096Courtesy of ISUZU MOTOR CO.

    Reuse of Quick-Connector

    • Replace the port and connector if scratch, dent or crack is found.
    • Remove any dirt build up on the port when installing the connector. Replace the connector, if there is any forms of rust, dent, scratch.
    • After cleaning the port, insert it straight into the connector until it clicks. After it clicks, try pulling it out to make sure that it is not drawn and is securely locked.

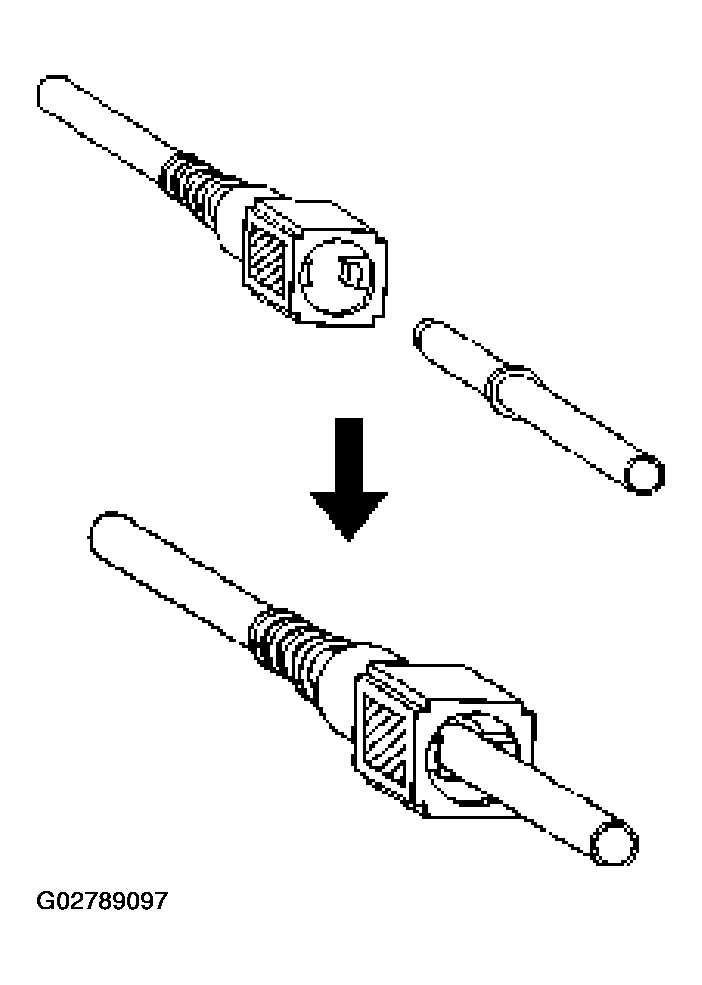

    Fig 9: Reusing Quick-Connector
    G02789097Courtesy of ISUZU MOTOR CO.

    Assembling Advice

    By applying engine oil or light oil to the pipe, port makes pipe assembly easier. The pipe assembly should take place immediately after applying oil (to prevent dust from sticking to the pipe surface - which may decrease sealing ability).

  6. Disconnect transmission harness and ECGI harness connector and clip.

    Connector: Output revolution sensor, input revolution sensor, transmission wire, neutral start switch (mode switch), H-L neutral switch (4x4), oil temperature sensor, 4WD switch (4x4), motor actuator (4x4) and car speed sensor.

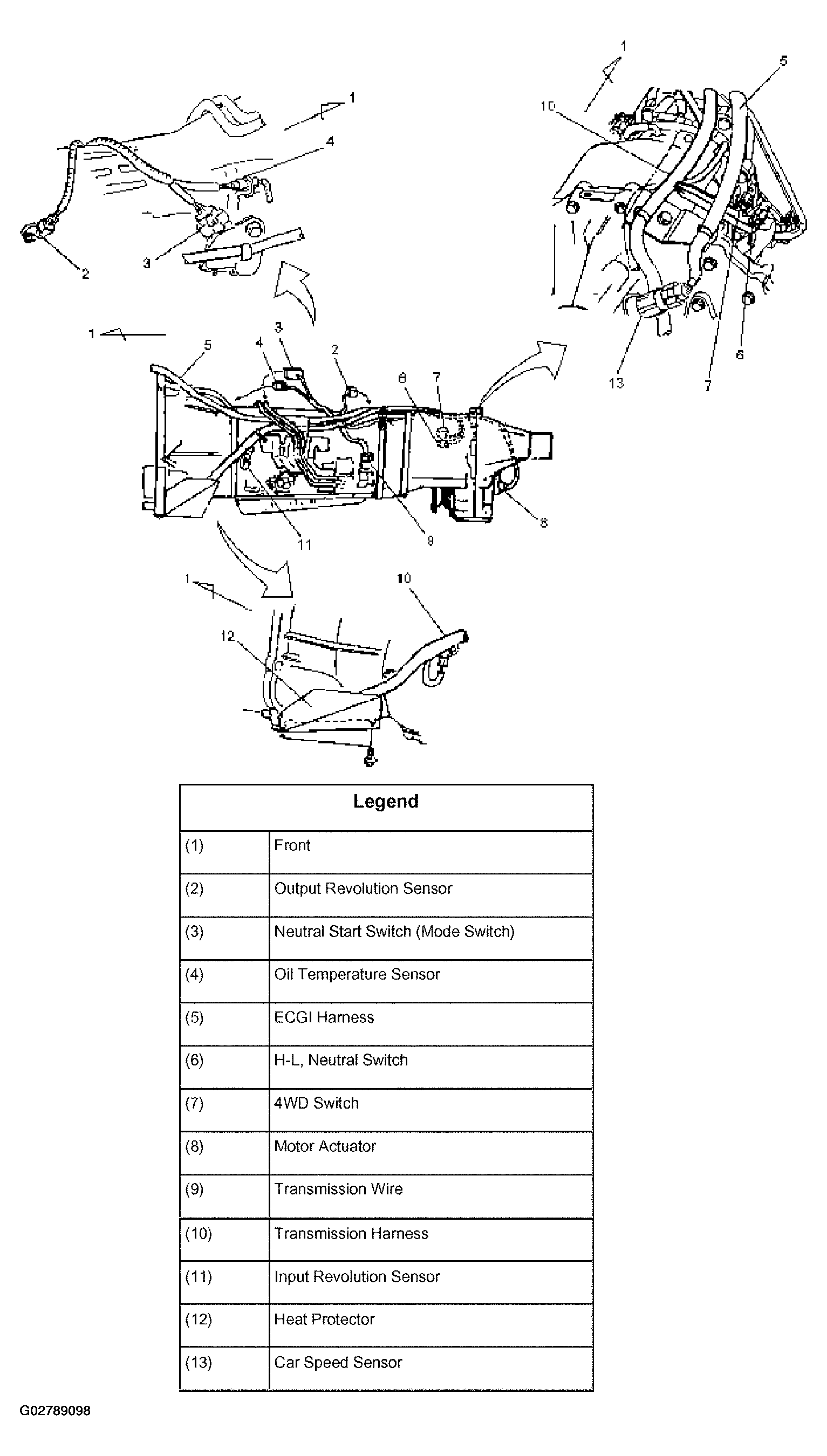

    Fig 10: Disconnecting Transmission Harness & ECGI Harness Connector & Clip
    G02789098Courtesy of ISUZU MOTOR CO.
  7. Remove harness heat protector.

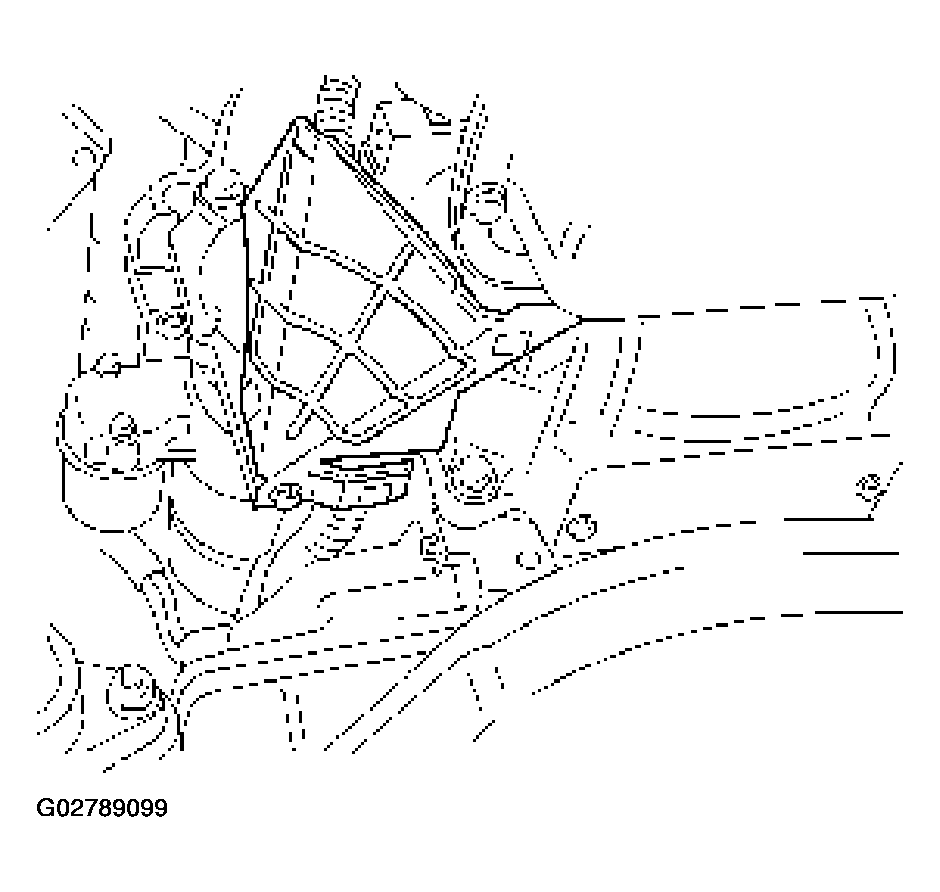

    Fig 11: Removing Harness Heat Protector
    G02789099Courtesy of ISUZU MOTOR CO.
  8. Remove transfer case assembly from transmission.
    • Disconnect breather hose from transfer case assembly.

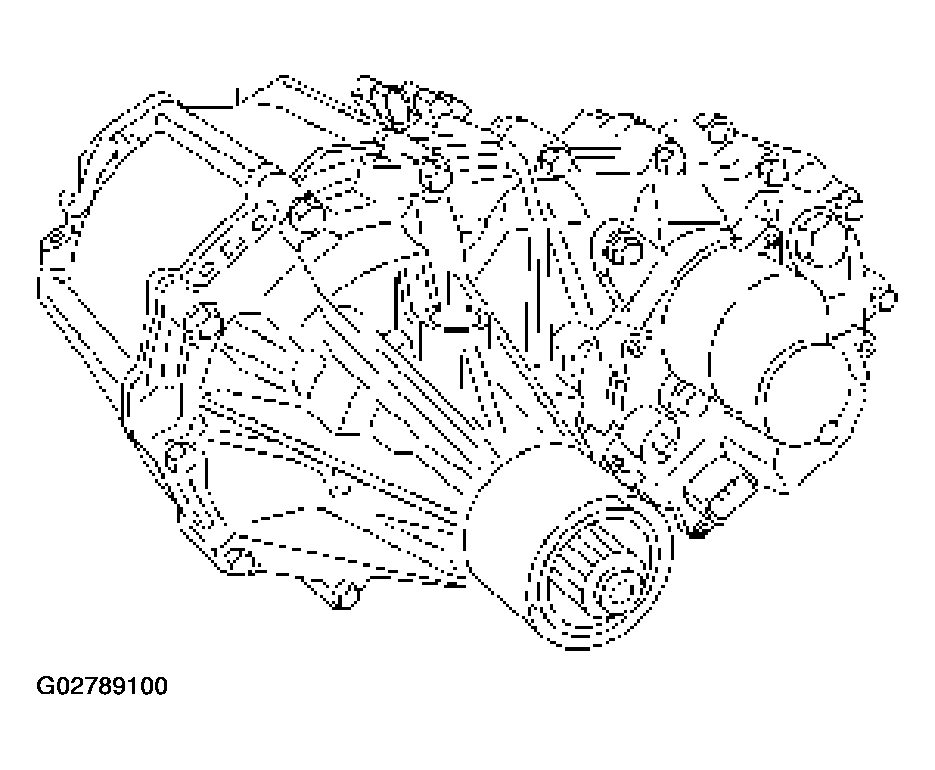

    Fig 12: Removing Transfer Case Assembly From Transmission
    G02789100Courtesy of ISUZU MOTOR CO.
  9. Support transmission with a jack. Remove rear mount nuts from transmission crossmember.

    4x2

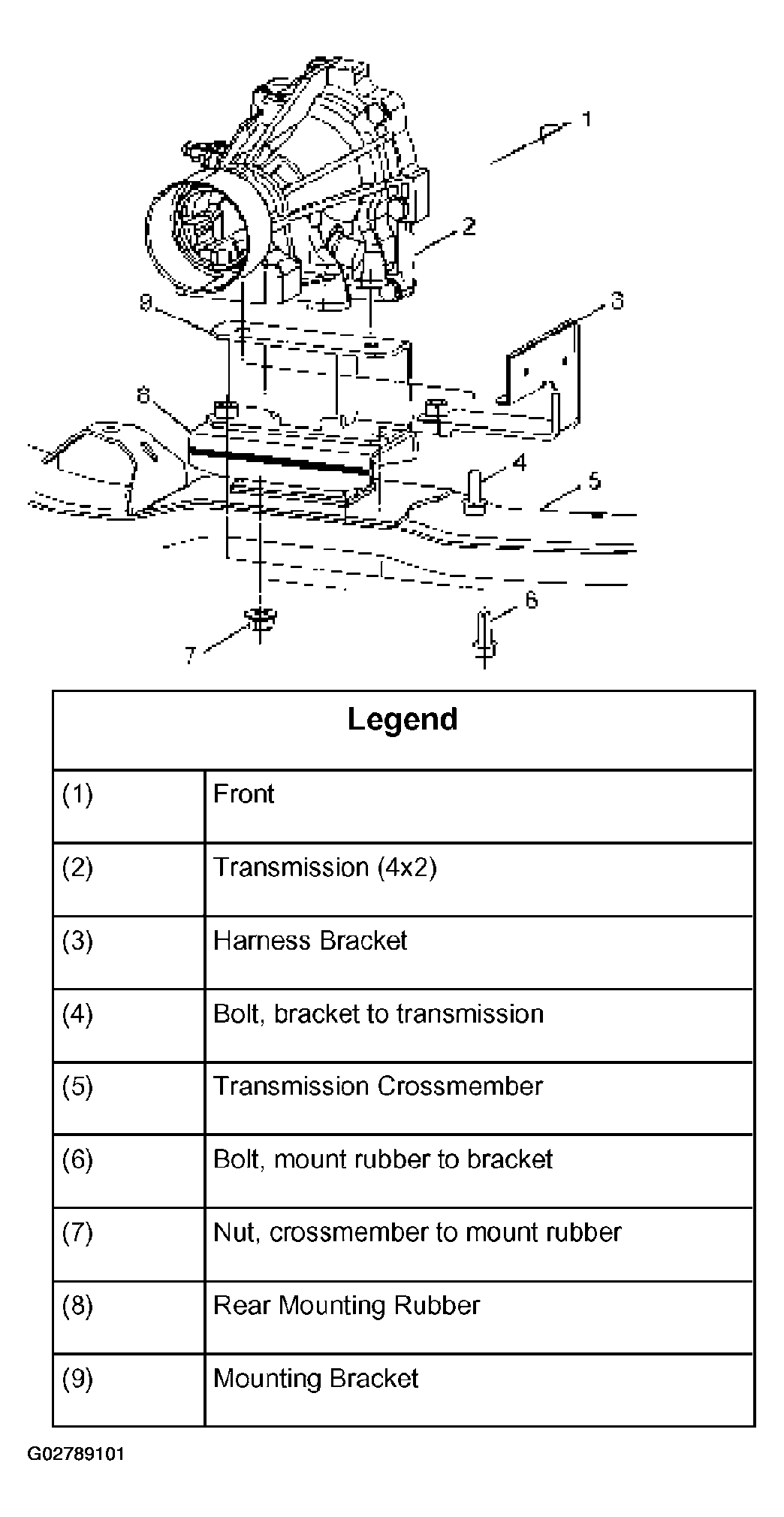

    Fig 13: Removing Rear Mount Nuts From Transmission Crossmember (4x2)
    G02789101Courtesy of ISUZU MOTOR CO.

    4x4

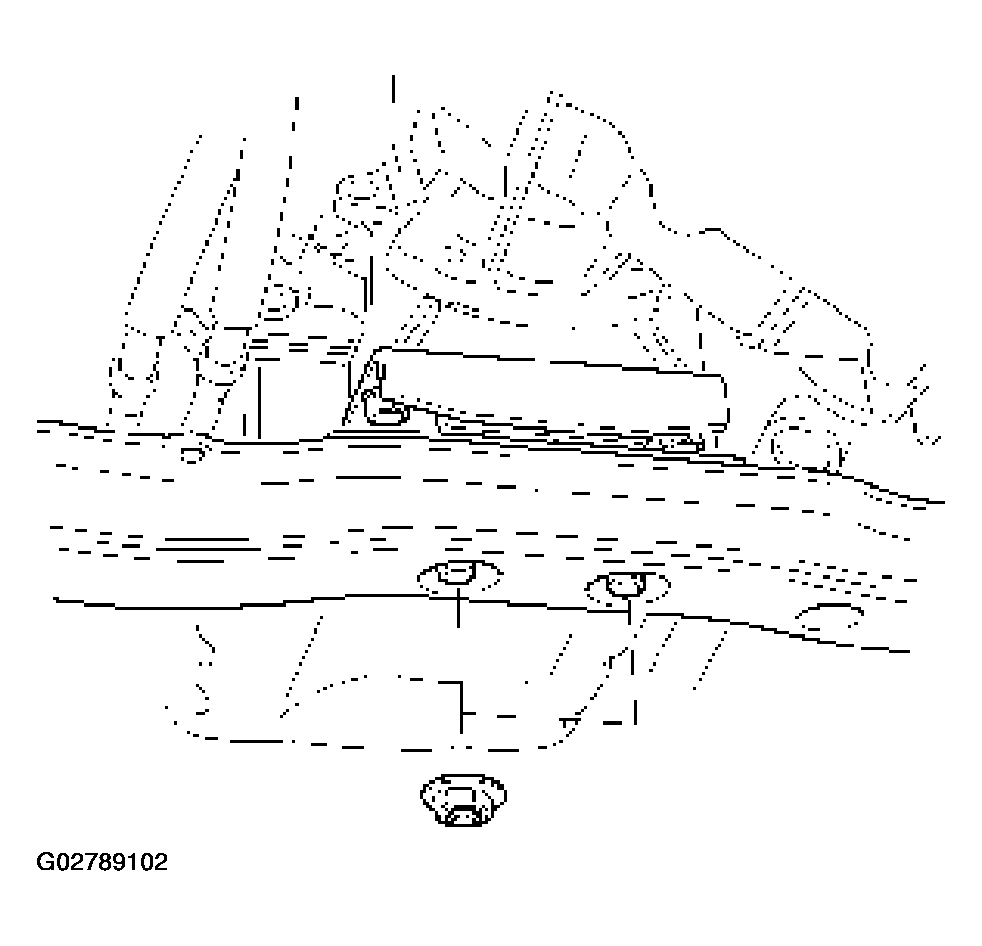

    Fig 14: Removing Rear Mount Nuts From Transmission Crossmember (4x4)
    G02789102Courtesy of ISUZU MOTOR CO.
  10. Remove transmission crossmember.

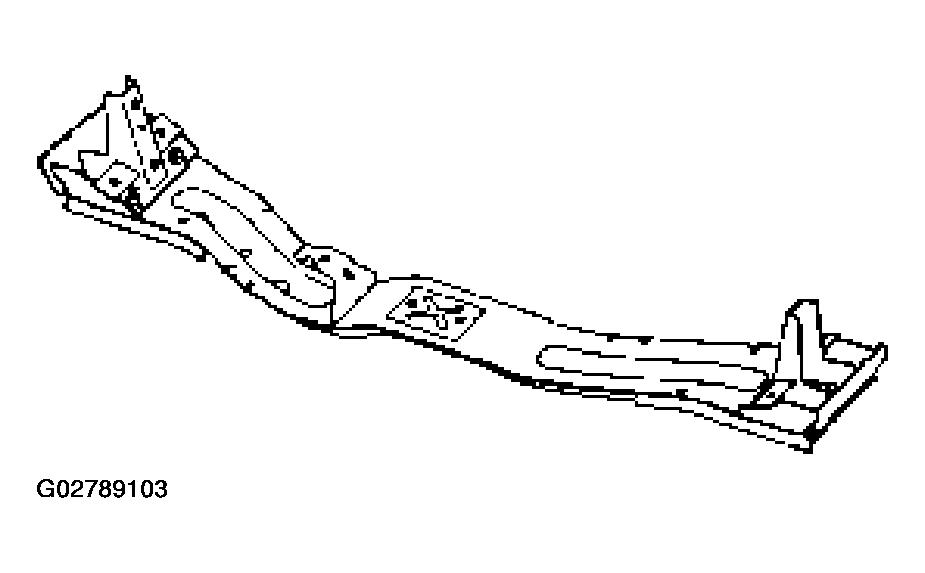

    Fig 15: Removing Transmission Crossmember
    G02789103Courtesy of ISUZU MOTOR CO.
  11. Disconnect transmission oil cooler pipes from A/T side.
  12. Remove oil pipe clamp and bracket from the converter housing.

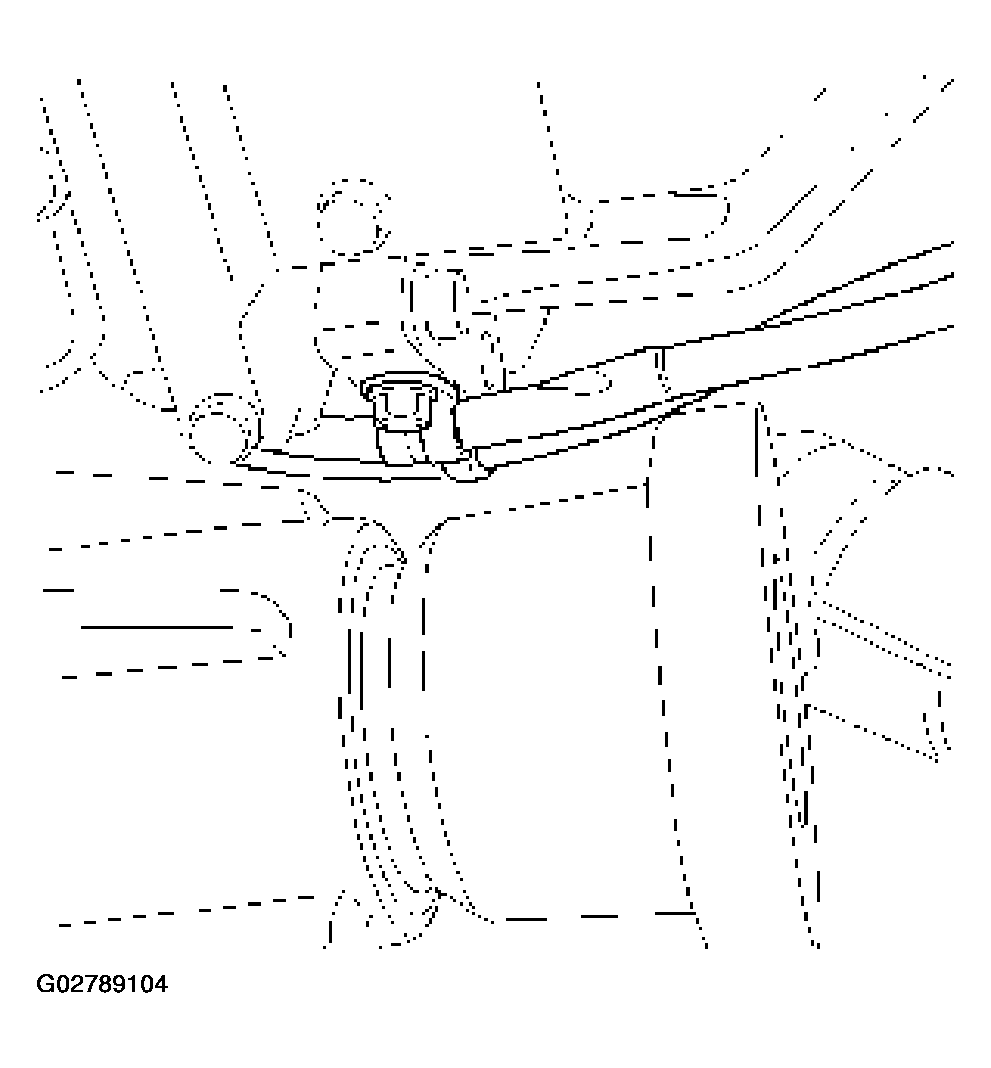

    Fig 16: Removing Oil Pipe Clamp & Bracket
    G02789104Courtesy of ISUZU MOTOR CO.
  13. Loosen oil cooler pipe clamp bolt at the engine mount side.
  14. Remove select cable by disconnecting inner cable from select lever and removing outer cable with bracket.

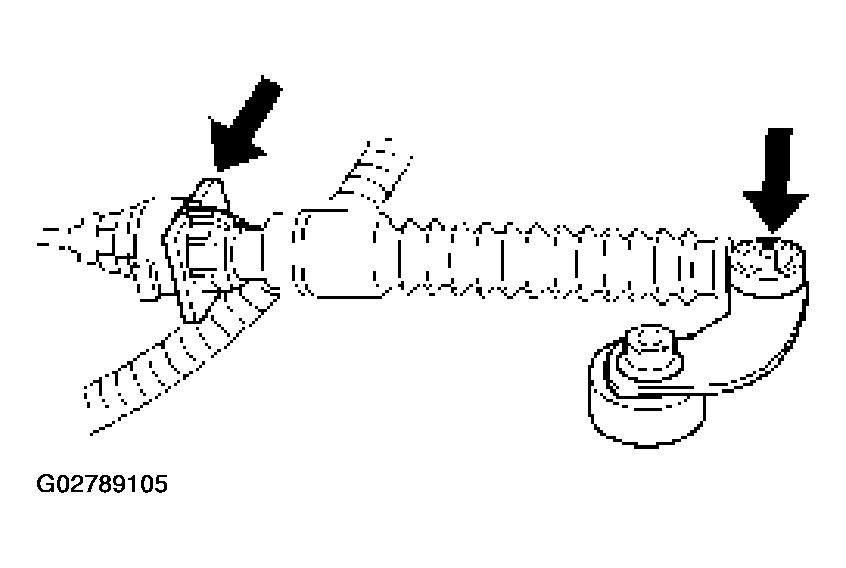

    Fig 17: Removing Outer Cable With Bracket
    G02789105Courtesy of ISUZU MOTOR CO.
  15. Pull out oil level gage and remove filler tube.
  16. Remove starter.
  17. Remove under covers from the transmission and engine.

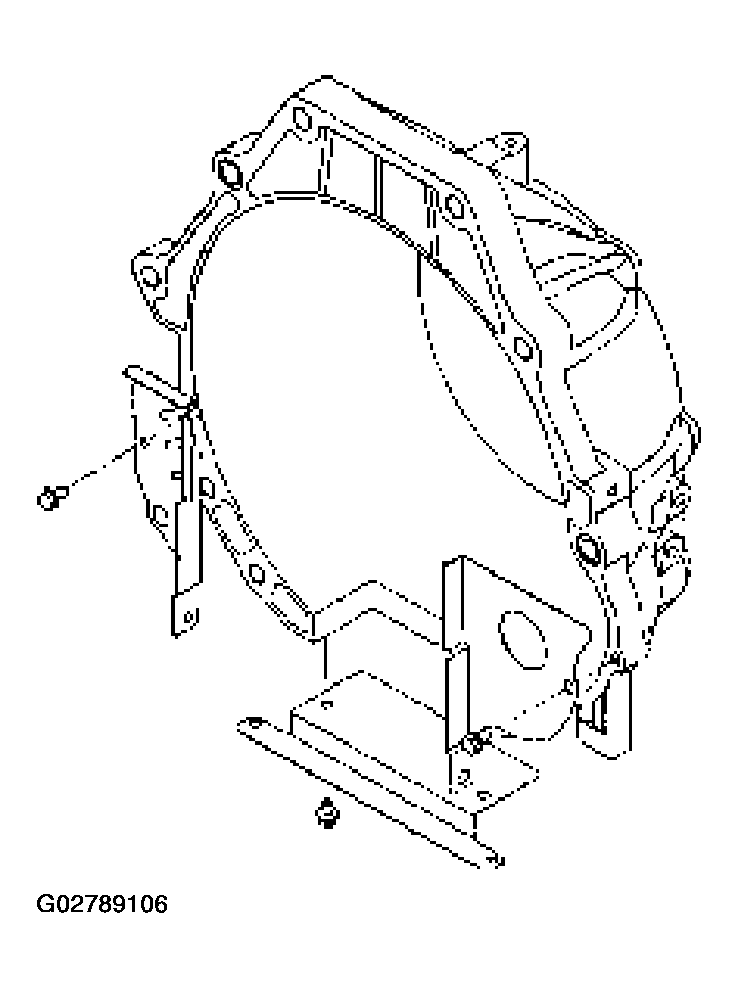

    Fig 18: Removing Under Covers
    G02789106Courtesy of ISUZU MOTOR CO.
  18. Remove flex plate torque converter fixing bolts (6 pieces) by turning crankshaft.
    NOTE: Replace used bolts with new fixing bolts for reassembly.

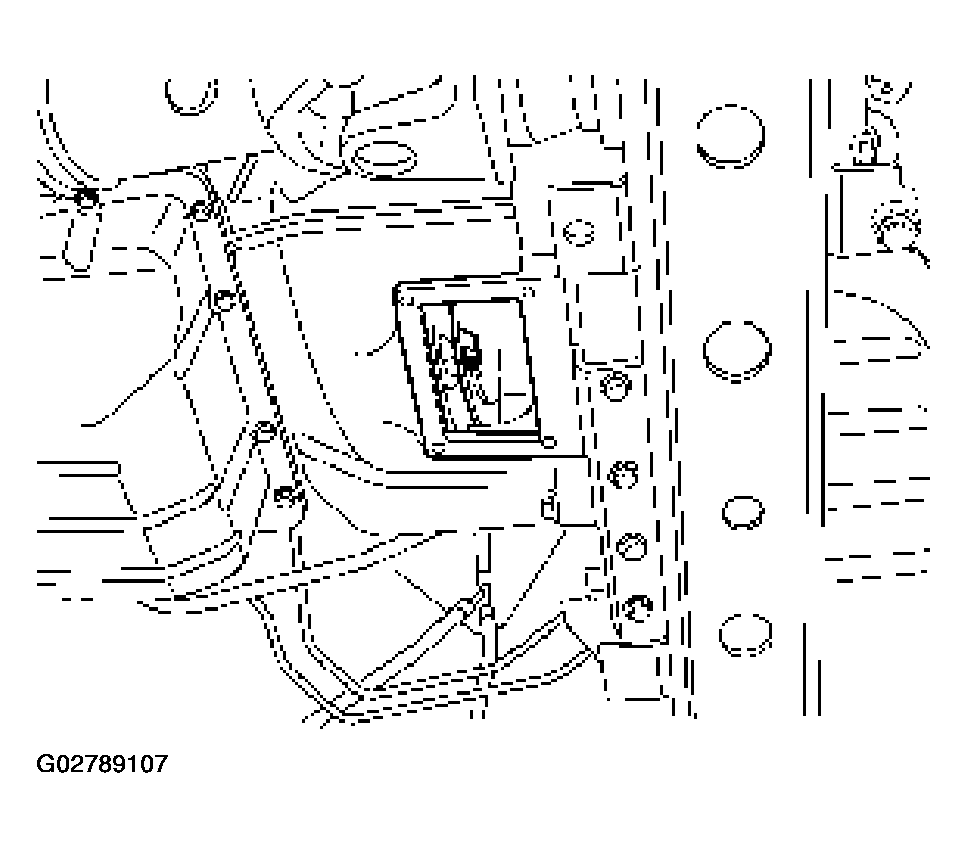

    Fig 19: Removing Flex Plate Torque Converter Fixing Bolts
    G02789107Courtesy of ISUZU MOTOR CO.
  19. Remove engine transmission fixing bolts.
    • Disconnect the breather hose.
  20. Pull out transmission from the engine.
    NOTE: Keep the oil pan downward. Be careful not to let torque converter slide out.
  21. Remove the rear mounting rubber.
