General Description
>>
TCM Point Table
TCM Point Table

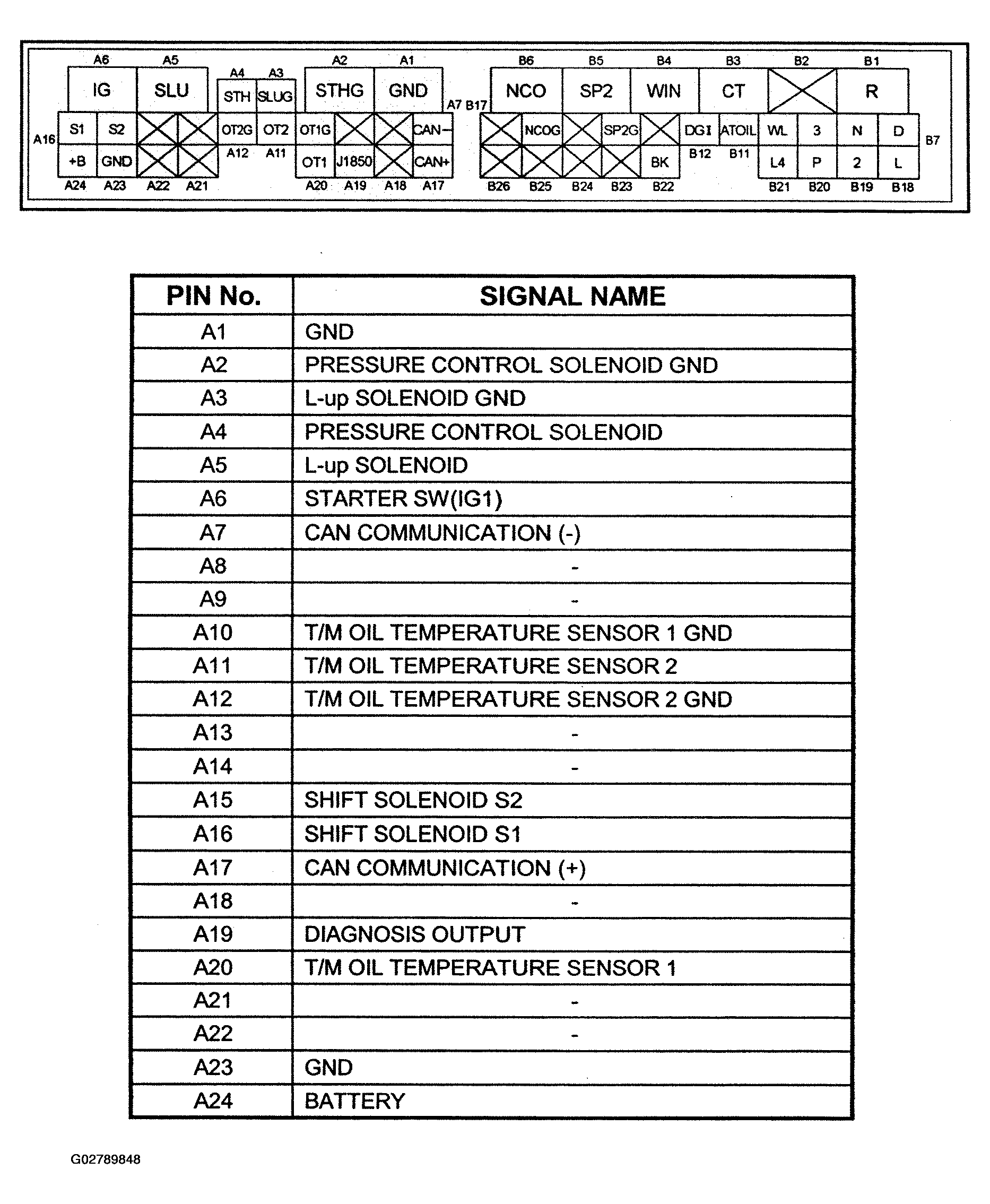

Fig 1: TCM Point Table (1 Of 2)
Courtesy of ISUZU MOTOR CO.

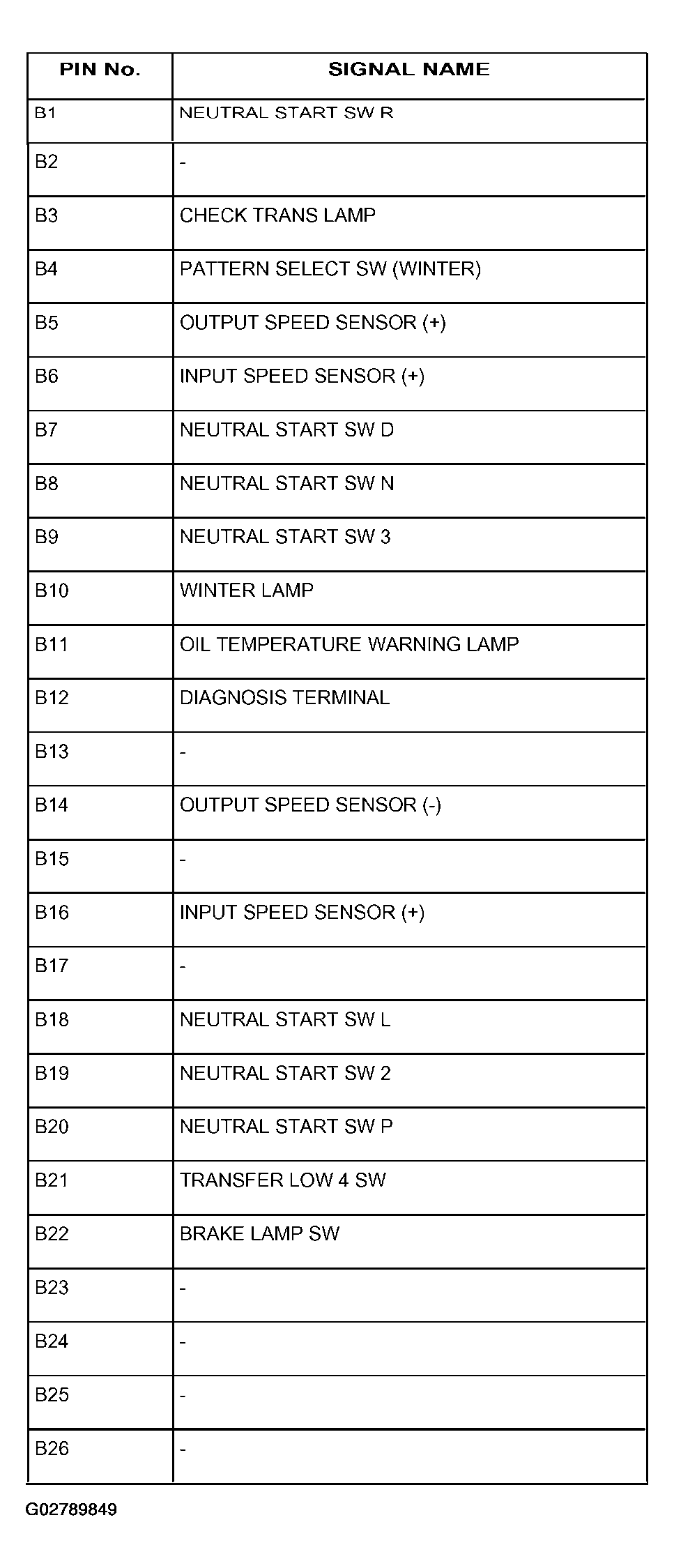

Fig 2: TCM Point Table (2 Of 2)
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
Courtesy of ISUZU MOTOR CO.
