Motor Position and Encoder Position Code

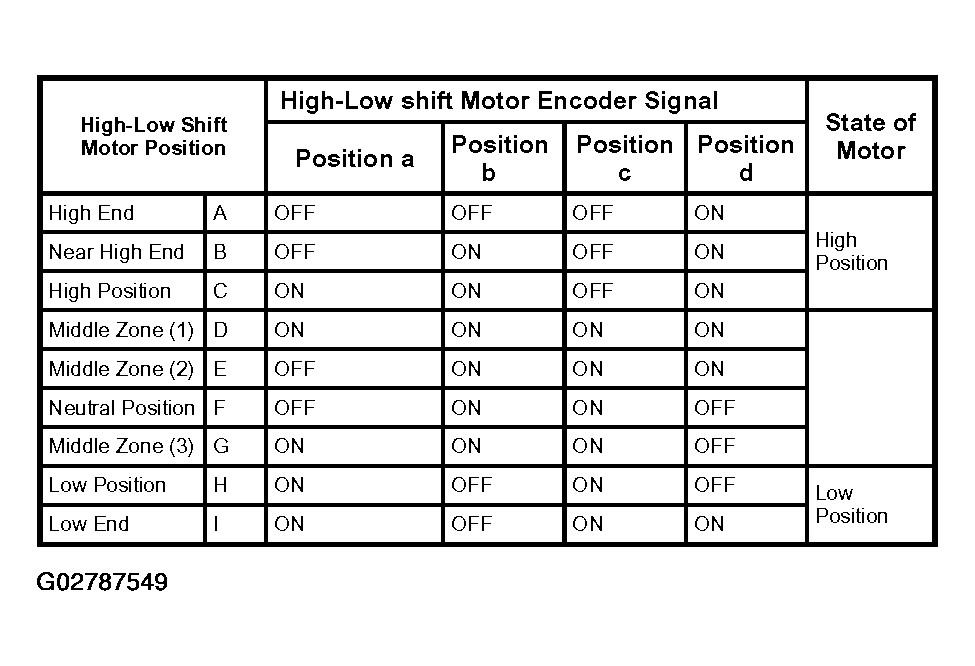

Fig 1: Motor Position And Encoder Position Code Chart

G02787549

Courtesy of ISUZU MOTOR CO.
