Transfer Cover Assembly: Disassembly

1. Using a precision screwdriver or a suitable tool, push down the lock to unlatch the terminal for the coil assembly, and pull the terminal out.
   NOTE: Use care to prevent damage to harness terminal and connector.

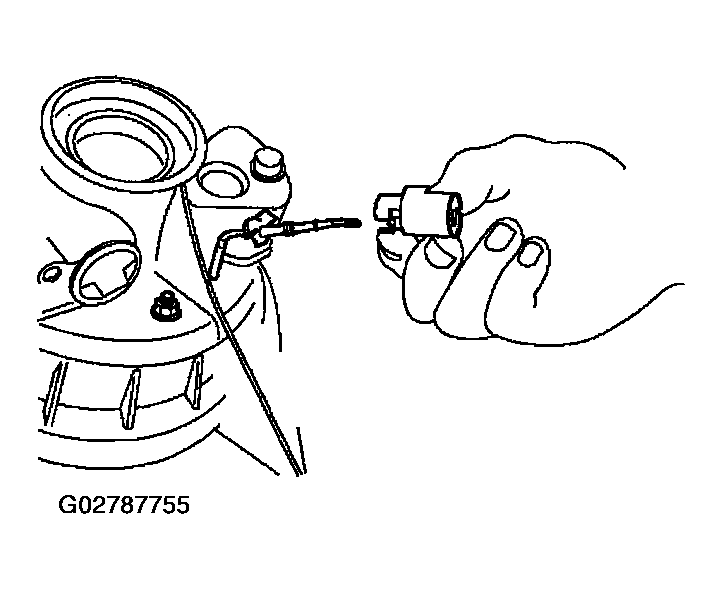

   Fig 1: Removing Terminal Out

   Courtesy of ISUZU MOTOR CO.
2. Remove the coil assembly set nuts (3 pieces) and coil assembly from the transfer cover.
   Fig 2: Removing Coil Assembly

   Courtesy of ISUZU MOTOR CO.
3. Using snap ring pliers, remove the snap ring from the transfer cover.

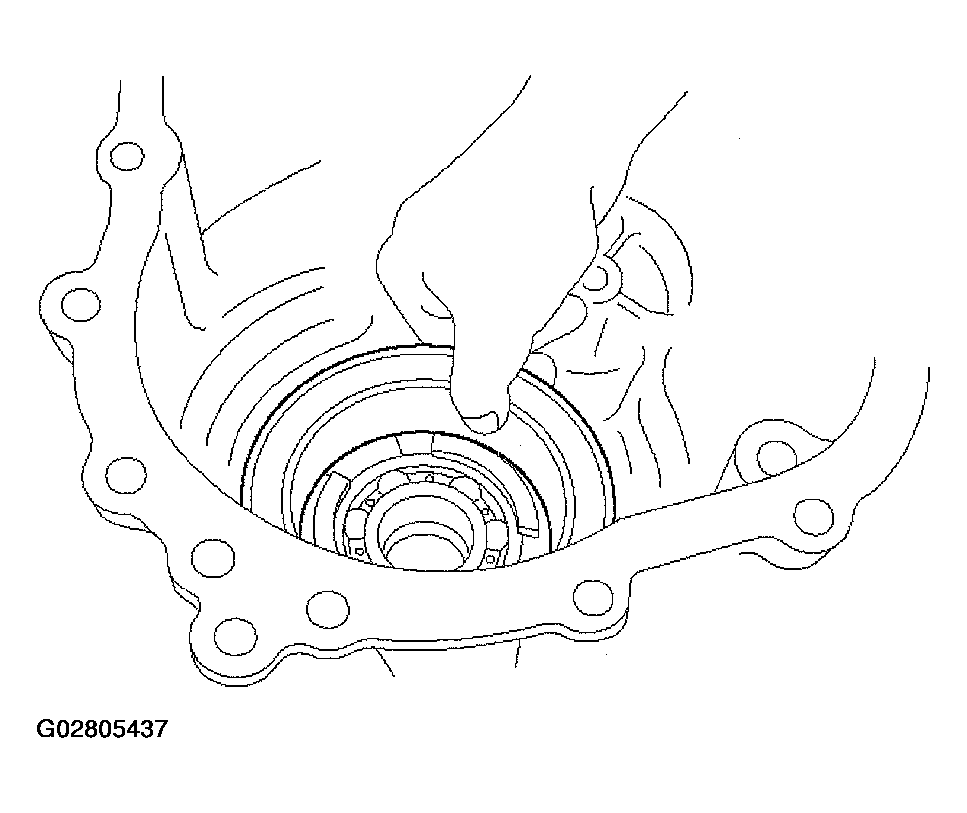

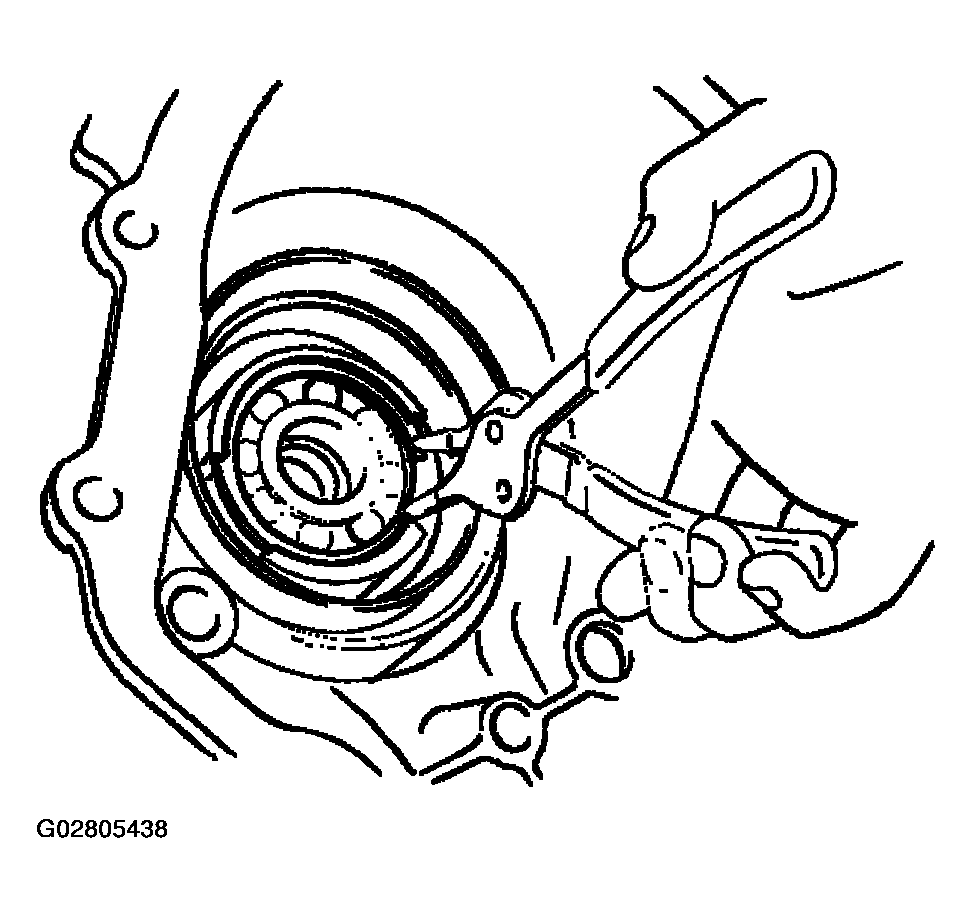

   Fig 3: Removing Snap Ring From Transfer Cover

   Courtesy of ISUZU MOTOR CO.
4. Strike the speed gear and tone wheel with a rod or other appropriate tool from the rear side of the transfer cover assembly, and remove the ball bearing, speed gear and tone wheel.
   NOTE: Use care to prevent damage to the speed gear teeth.

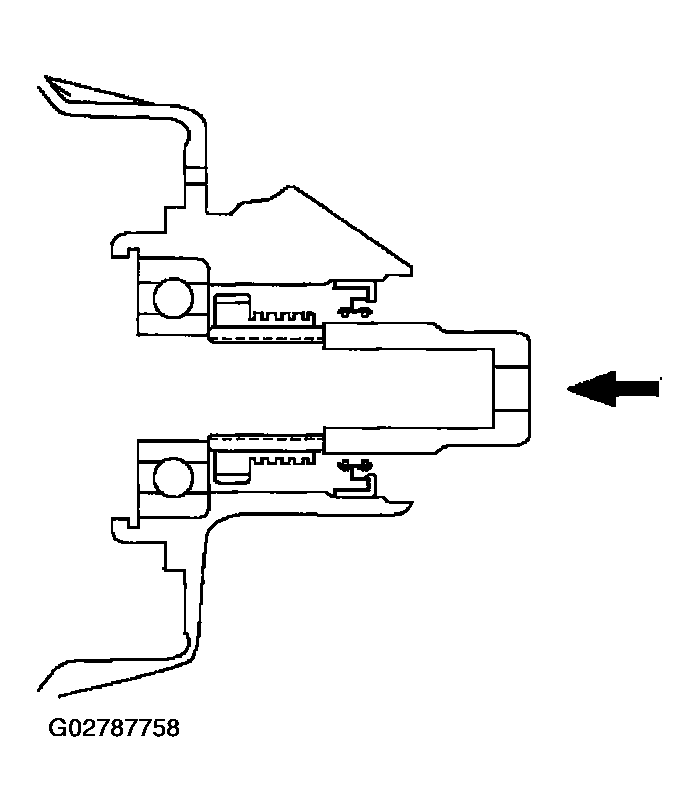

   Fig 4: Striking Speed Gear And Tone Wheel With A Rod

   Courtesy of ISUZU MOTOR CO.
5. Using the bearing remover J-42805 and slide hammer J-2619-01, remove the ball bearing of the front output shaft from the transfer cover.

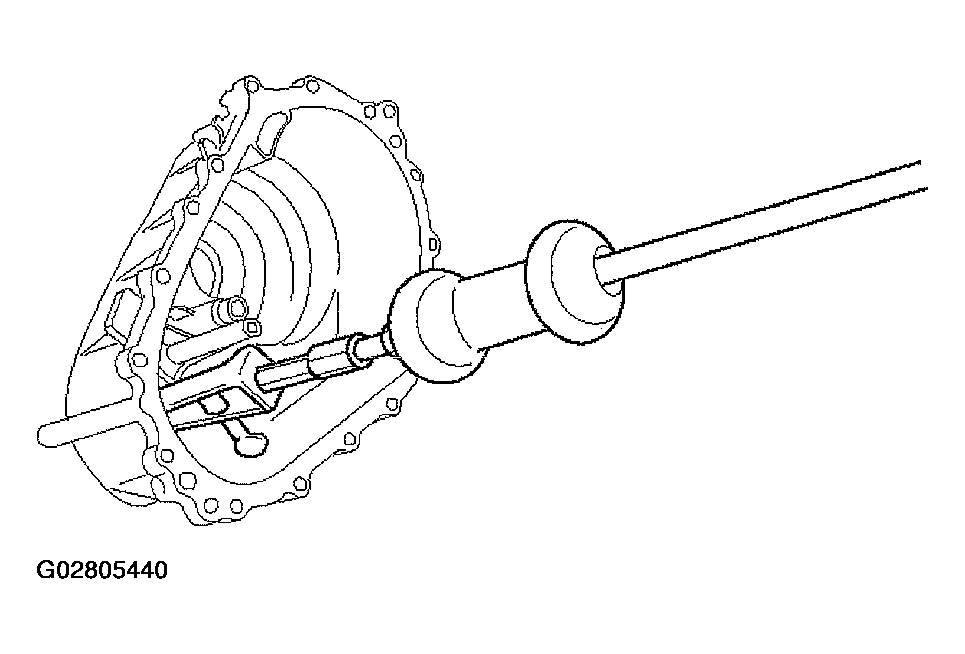

Fig 5: Removing Ball Bearing Of Front Output Shaft From Transfer Cover

Courtesy of ISUZU MOTOR CO.
