2004
>>
Rodeo 3.2 W, RWD, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

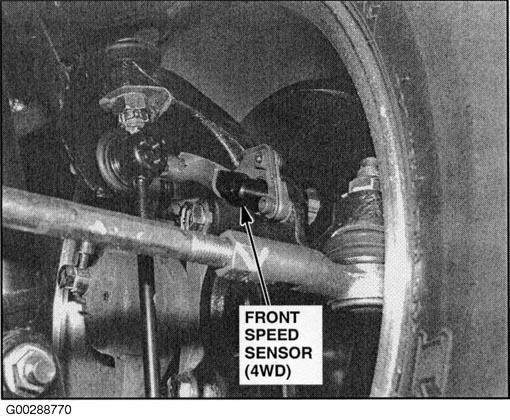

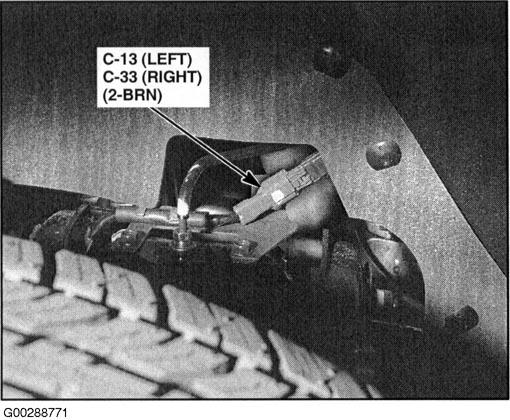

Fig 1: Behind Left Front Wheel (4WD) (Right Wheel Similar)
Courtesy of ISUZU MOTOR CO.

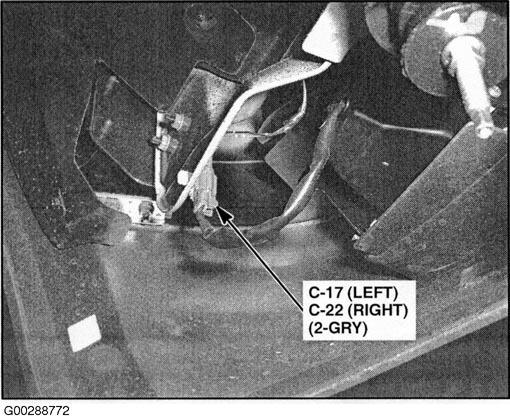

Fig 2: Behind Left Front Wheel (Right Wheel Similar)
Courtesy of ISUZU MOTOR CO.

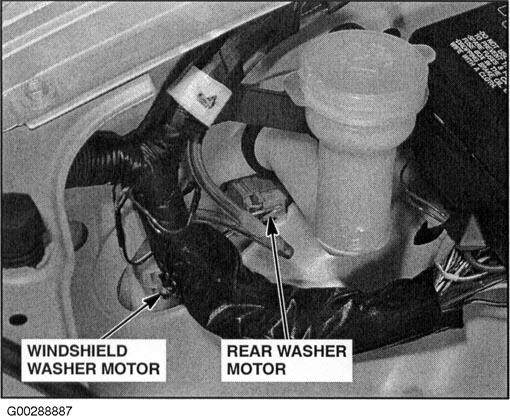

Fig 3: Behind Left Side Of Front Bumper (Right Similar)
Courtesy of ISUZU MOTOR CO.

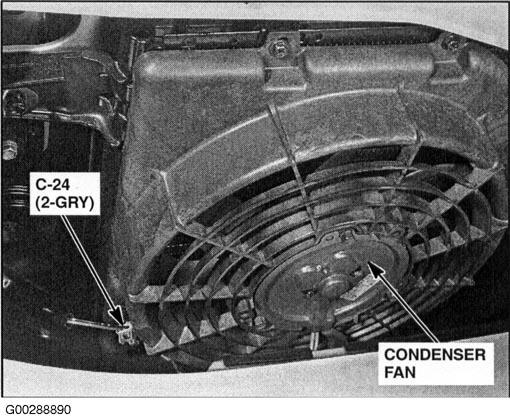

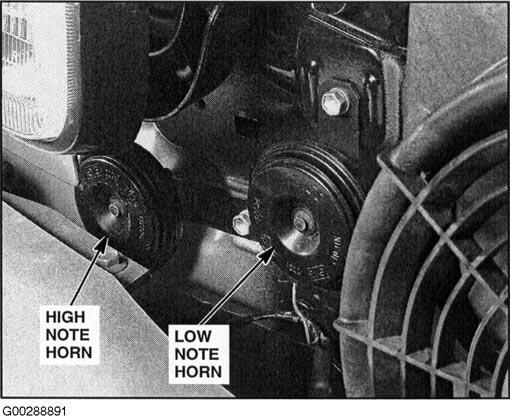

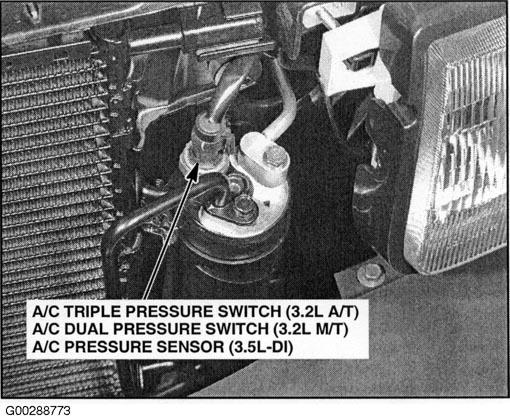

Fig 4: Behind Left Side Of Grille
Courtesy of ISUZU MOTOR CO.

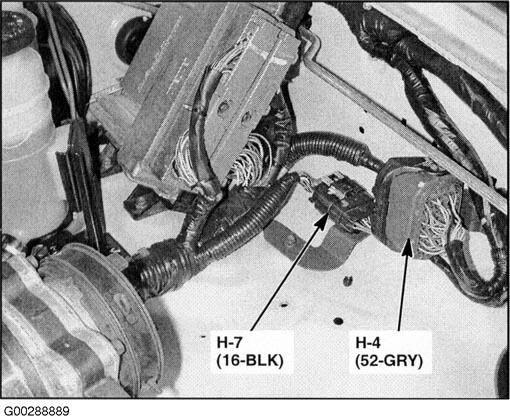

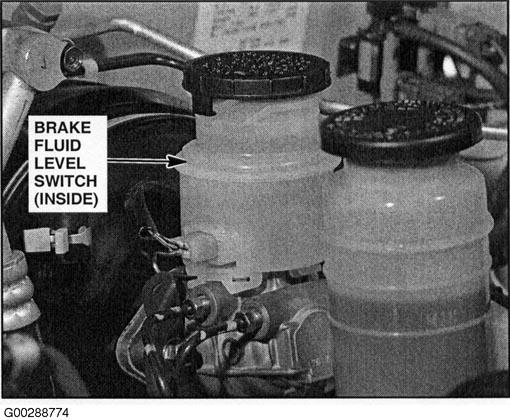

Fig 5: Left Side Of Engine Compartment
Courtesy of ISUZU MOTOR CO.
Fig 6: Left Side Of Engine
Courtesy of ISUZU MOTOR CO.

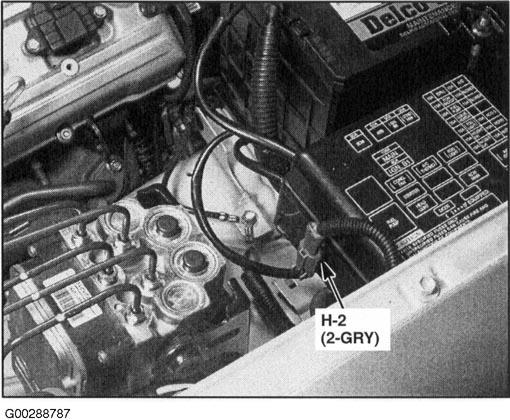

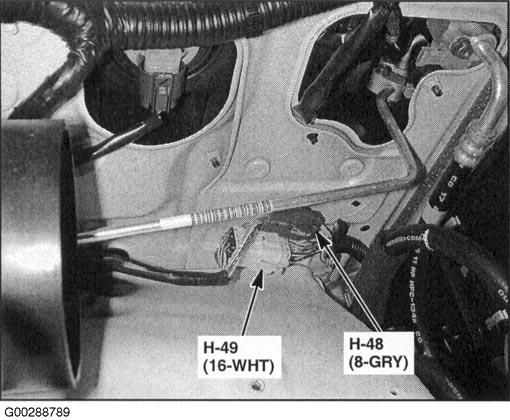

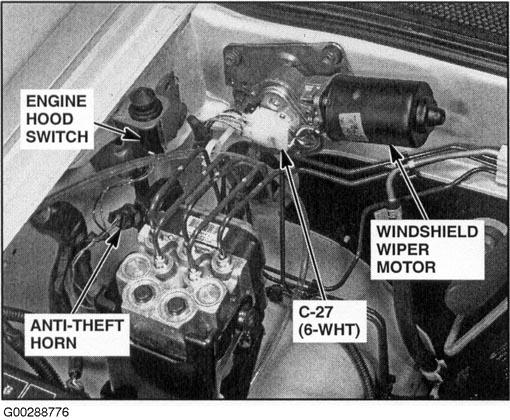

Fig 7: Right Rear Of Engine Compartment
Courtesy of ISUZU MOTOR CO.
Fig 8: Right Side Of Engine Compartment
Courtesy of ISUZU MOTOR CO.

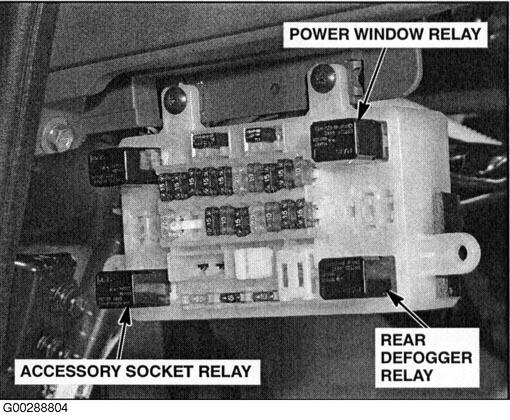

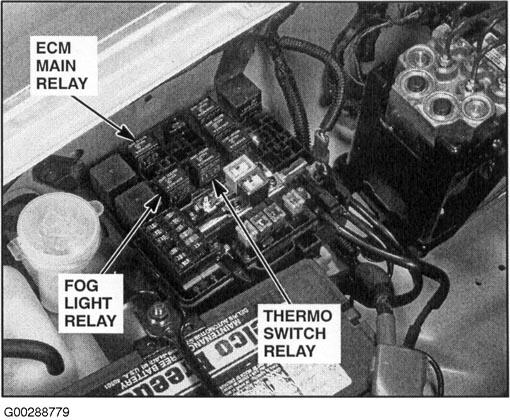

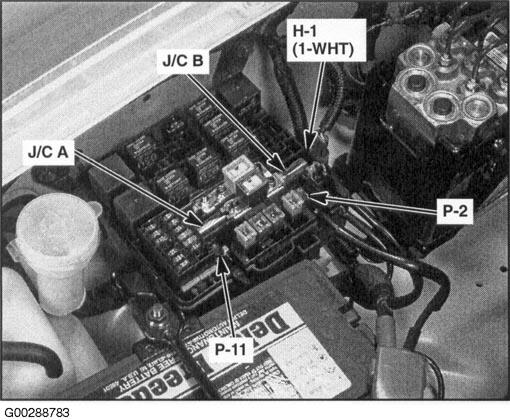

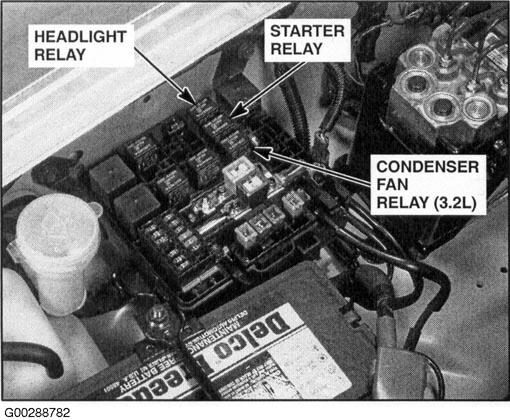

Fig 9: Fuse/Relay Box (Cover Removed)
Courtesy of ISUZU MOTOR CO.
Fig 10: Fuse/Relay Box (Cover Removed)
Courtesy of ISUZU MOTOR CO.

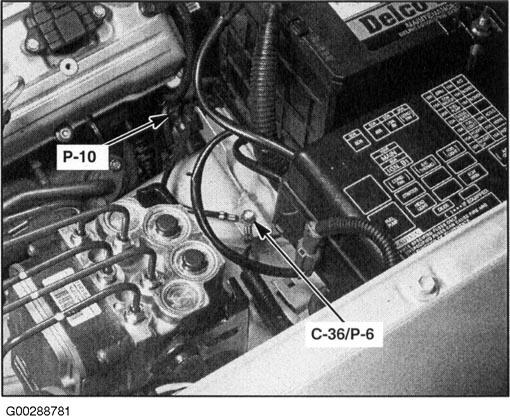

Fig 11: Right Rear Corner Of Engine Compartment
Courtesy of ISUZU MOTOR CO.
Fig 12: Right Side Of Engine Compartment
Courtesy of ISUZU MOTOR CO.
Fig 13: Fuse/Relay Box (Cover Removed)
Courtesy of ISUZU MOTOR CO.
Fig 14: Fuse/Relay Box (Cover Removed)
Courtesy of ISUZU MOTOR CO.

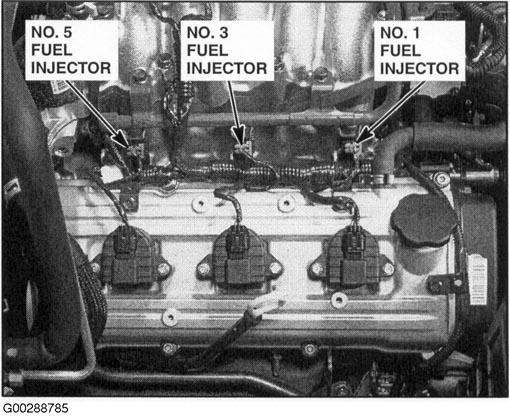

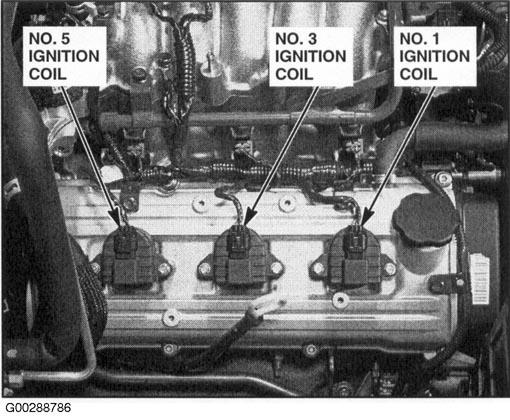

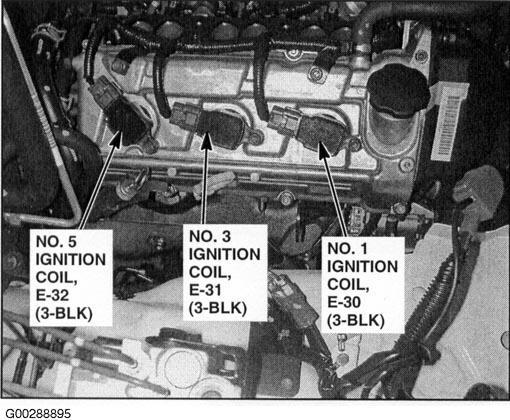

Fig 15: Right Side Of Engine (3.2L)
Courtesy of ISUZU MOTOR CO.
Fig 16: Right Side Of Engine (3.2L)
Courtesy of ISUZU MOTOR CO.
Fig 17: Right Side Of Engine (3.2L)
Courtesy of ISUZU MOTOR CO.
Fig 18: Right Side Of Engine Compartment
Courtesy of ISUZU MOTOR CO.

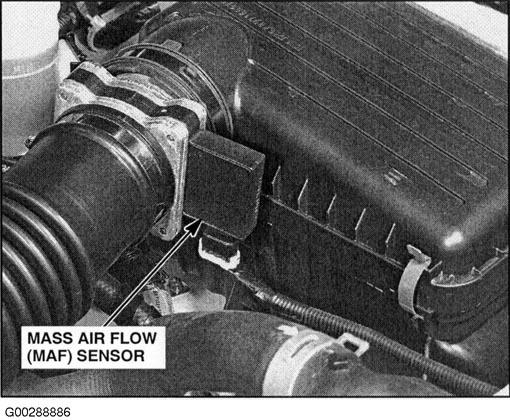

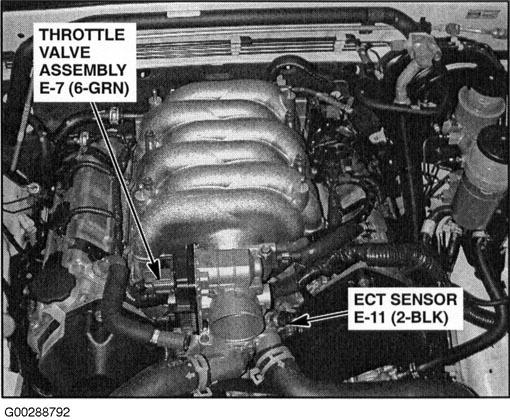

Fig 19: Front Of Engine (3.2L)
Courtesy of ISUZU MOTOR CO.

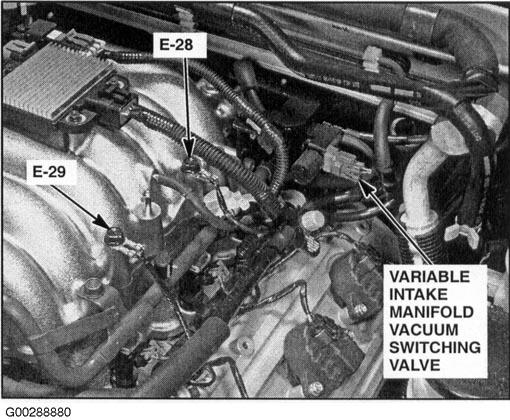

Fig 20: Top Rear Of Engine (3.2L)
Courtesy of ISUZU MOTOR CO.

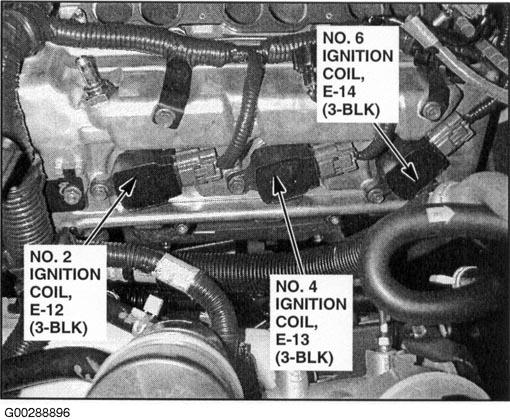

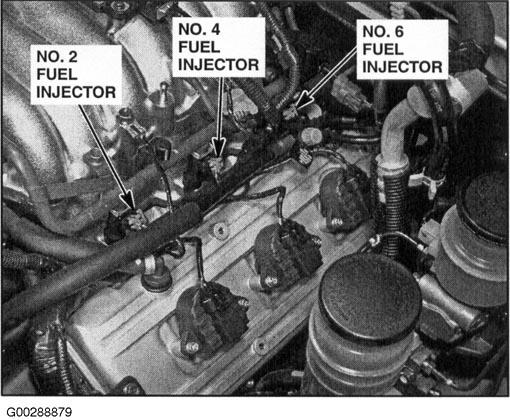

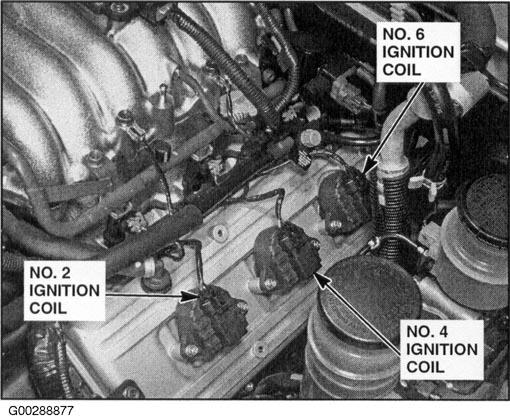

Fig 21: Left Side Of Engine (3.2L)
Courtesy of ISUZU MOTOR CO.

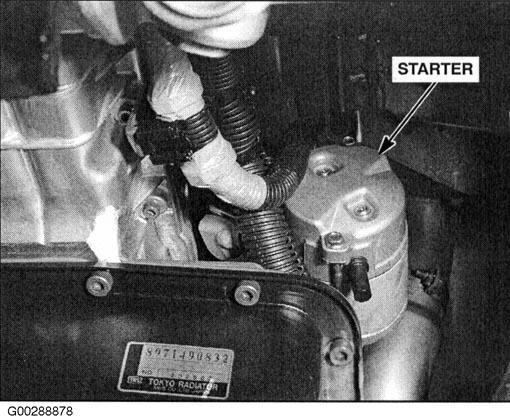

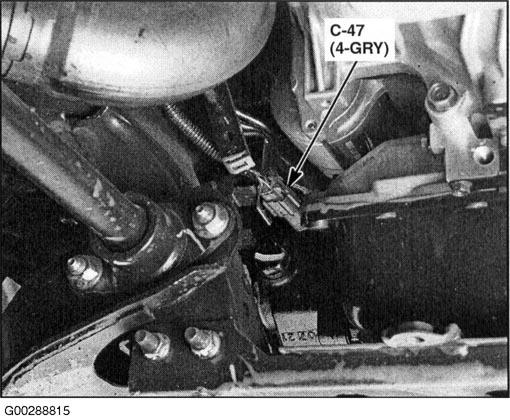

Fig 22: Bottom Left Side Of Engine
Courtesy of ISUZU MOTOR CO.
Fig 23: Left Side Of Engine (3.2L)
Courtesy of ISUZU MOTOR CO.
Fig 24: Left Side Of Engine (3.2L)
Courtesy of ISUZU MOTOR CO.

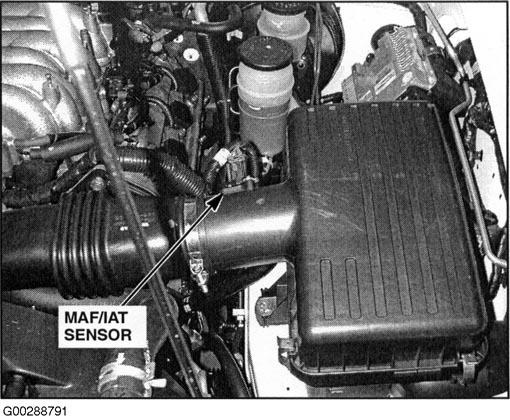

Fig 25: Left Side Of Engine Compartment (3.2L)
Courtesy of ISUZU MOTOR CO.
Fig 26: Left Side Of Engine Compartment (3.2L)
Courtesy of ISUZU MOTOR CO.
Fig 27: Bottom Center Front Of Engine
Courtesy of ISUZU MOTOR CO.

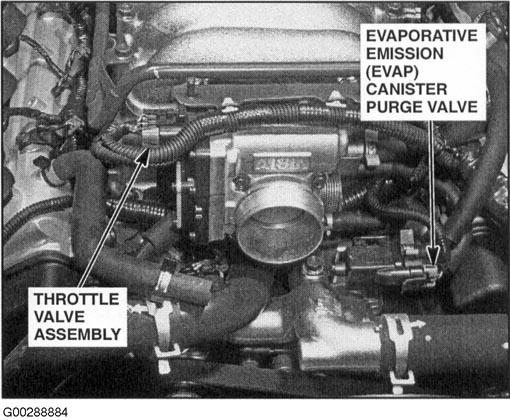

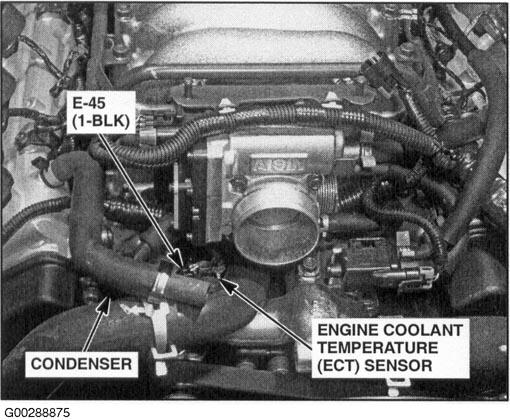

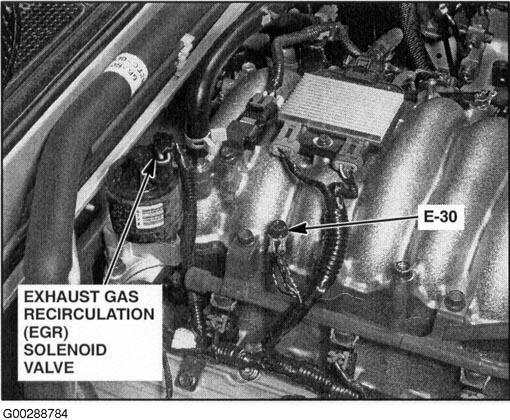

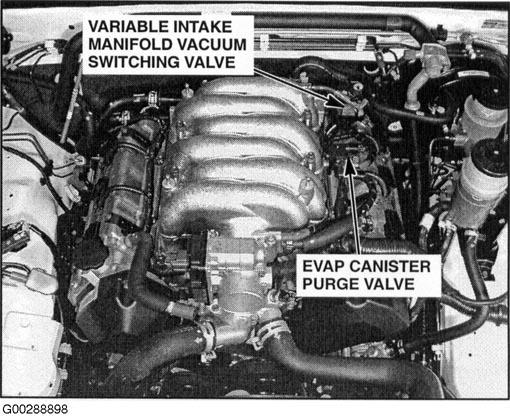

Fig 28: Top Front Of Engine (3.2L)
Courtesy of ISUZU MOTOR CO.
Fig 29: Left Front Of Engine (3.2L)
Courtesy of ISUZU MOTOR CO.
Fig 30: Left Front Of Engine (3.2L)
Courtesy of ISUZU MOTOR CO.
Fig 31: Right Front Of Engine Compartment (Coolant Reservoir Removed)
Courtesy of ISUZU MOTOR CO.

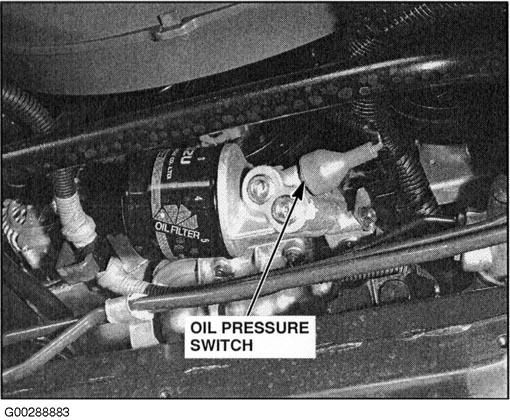

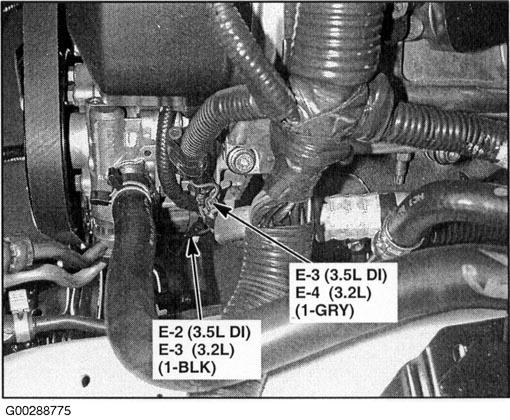

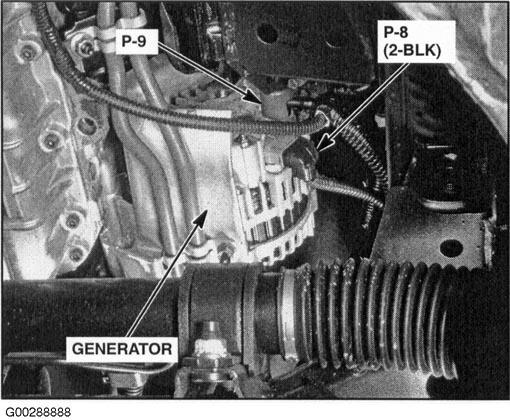

Fig 32: Lower Right Front Of Engine
Courtesy of ISUZU MOTOR CO.
Fig 33: Left Side Of Engine Compartment (3.2L)
Courtesy of ISUZU MOTOR CO.
Fig 34: Behind Right Side Of Grille
Courtesy of ISUZU MOTOR CO.
Fig 35: Behind Right Side Of Grille
Courtesy of ISUZU MOTOR CO.

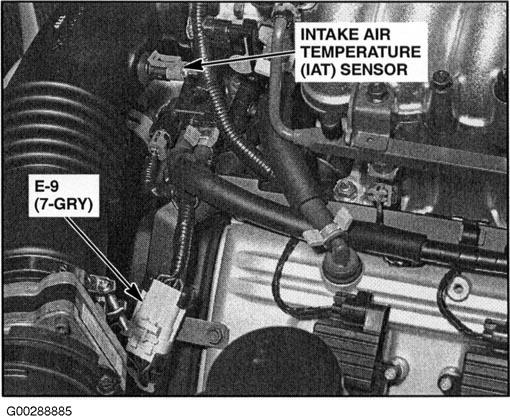

Fig 36: Left Front Of Engine Compartment (3.2L)
Courtesy of ISUZU MOTOR CO.

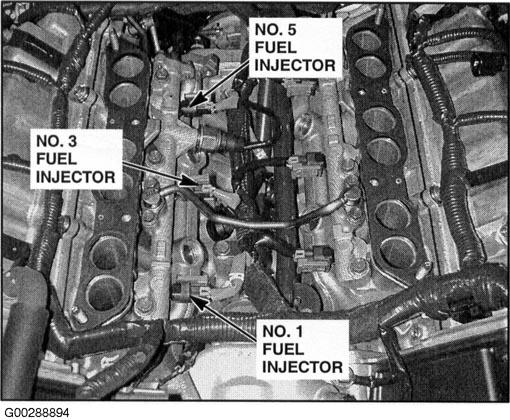

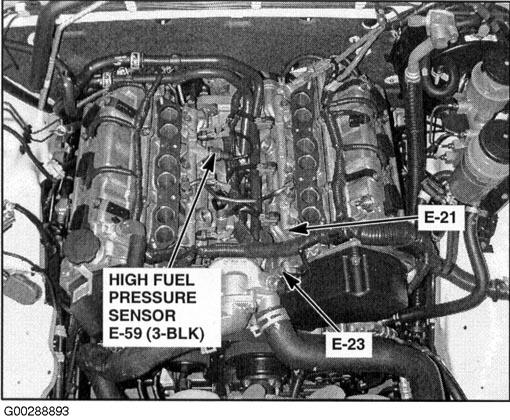

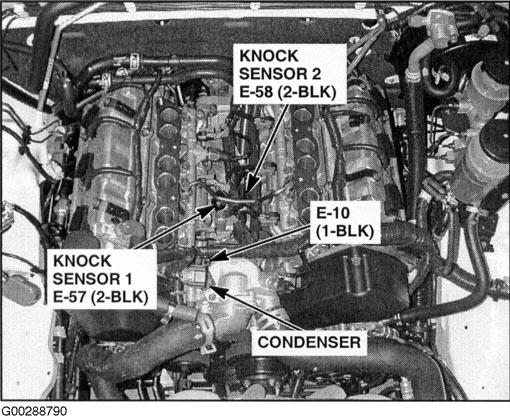

Fig 37: Top Of Engine (Common Chamber Removed) (3.5L DI)
Courtesy of ISUZU MOTOR CO.

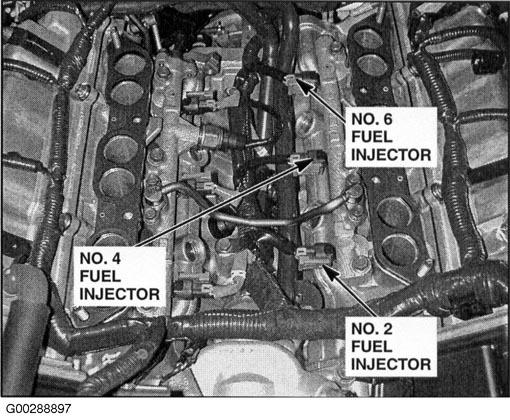

Fig 38: Top Of Engine (Common Chamber Removed) (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 39: Right Side Of Engine (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 40: Left Side Of Engine (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 41: Top Of Engine (Common Chamber Removed) (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 42: Left Side Of Engine (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 43: Left Side Of Engine Compartment (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 44: Left Front Of Engine Compartment (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 45: Top Of Engine (Common Chamber Removed) (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 46: Left Front Of Engine Compartment (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 47: Front Of Engine (3.5L DI)
Courtesy of ISUZU MOTOR CO.

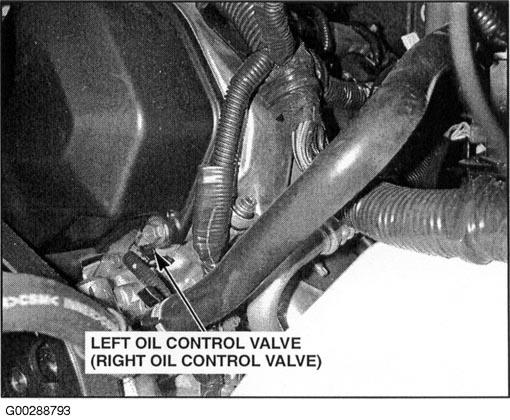

Fig 48: Front Of Left Cylinder Head (Right Similar) (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 49: Left Front Exhaust Downpipe (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 50: Rear Of Left Catalytic Converter (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 51: Right Front Exhaust Pipe (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 52: Rear Of Right Catalytic Converter (3.5L DI)
Courtesy of ISUZU MOTOR CO.

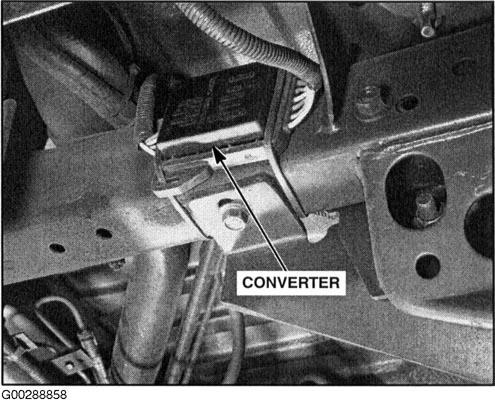

Fig 53: Left Rear Frame Rail (Spare Tire Removed) (3.5L DI)
Courtesy of ISUZU MOTOR CO.

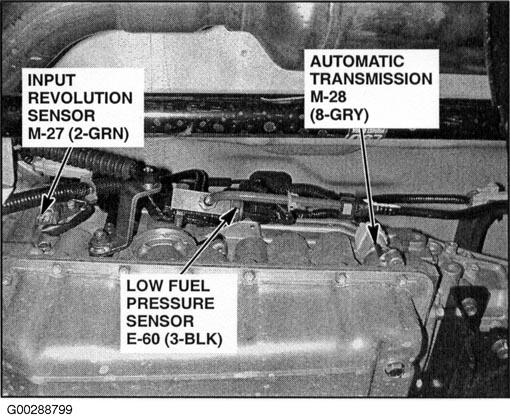

Fig 54: Left Side Of Transmission (3.5L DI)
Courtesy of ISUZU MOTOR CO.
Fig 55: Right Side Of Engine Compartment
Courtesy of ISUZU MOTOR CO.
Fig 56: Bottom Right Side Of Engine
Courtesy of ISUZU MOTOR CO.

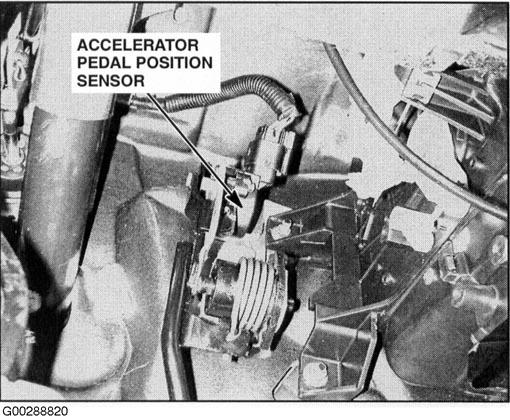

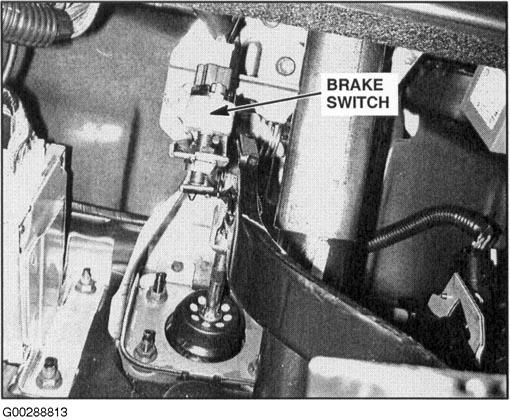

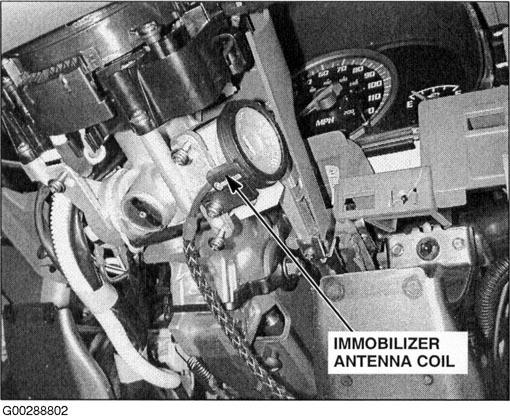

Fig 57: Under Steering Column
Courtesy of ISUZU MOTOR CO.
Fig 58: Left Side Of Dash
Courtesy of ISUZU MOTOR CO.
Fig 59: Dash Fuse Box
Courtesy of ISUZU MOTOR CO.
Fig 60: Dash Fuse Box
Courtesy of ISUZU MOTOR CO.
Fig 61: Left Side Of Dash
Courtesy of ISUZU MOTOR CO.

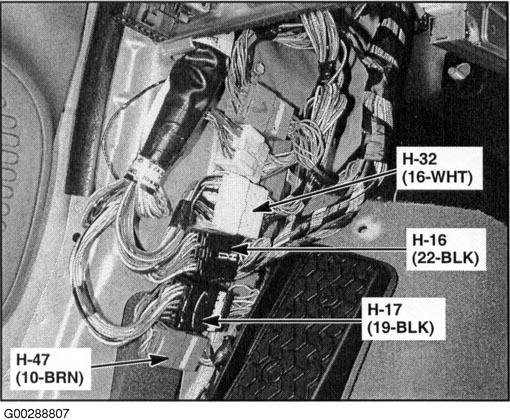

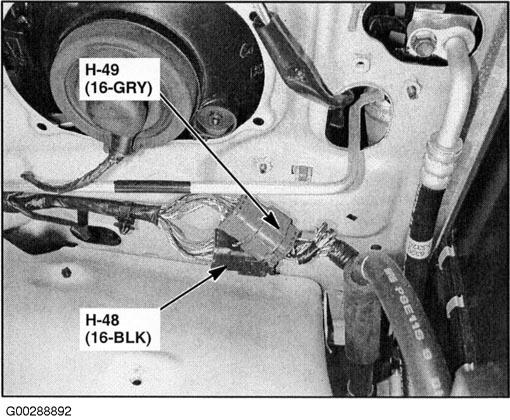

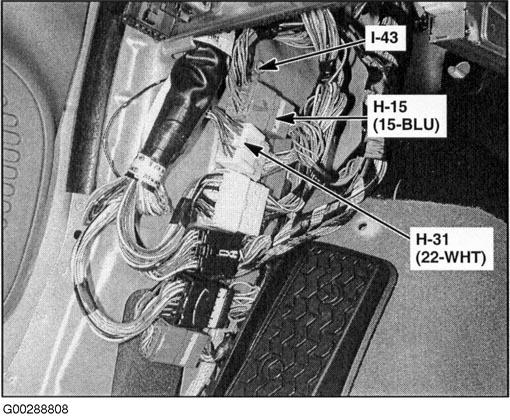

Fig 62: Behind Left Kick Panel
Courtesy of ISUZU MOTOR CO.
Fig 63: Behind Left Kick Panel
Courtesy of ISUZU MOTOR CO.

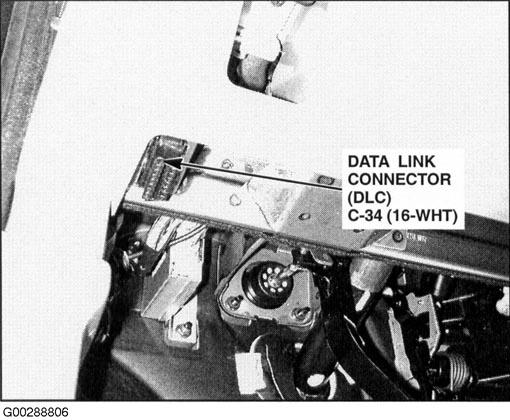

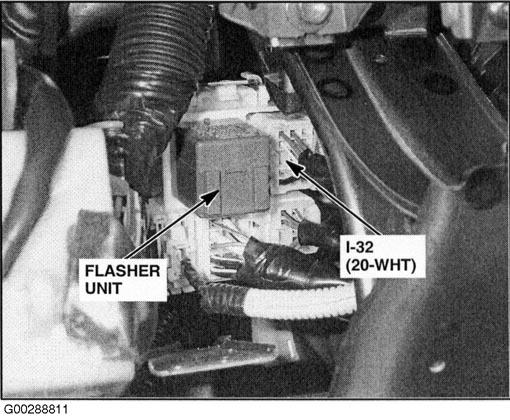

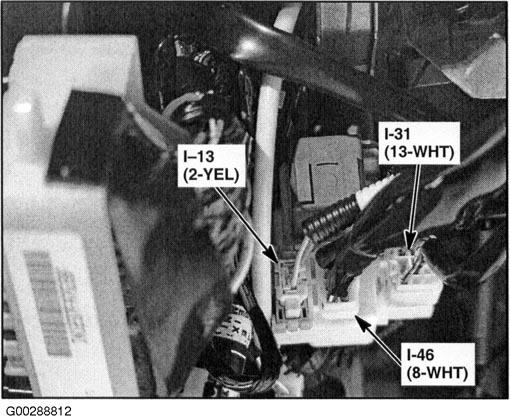

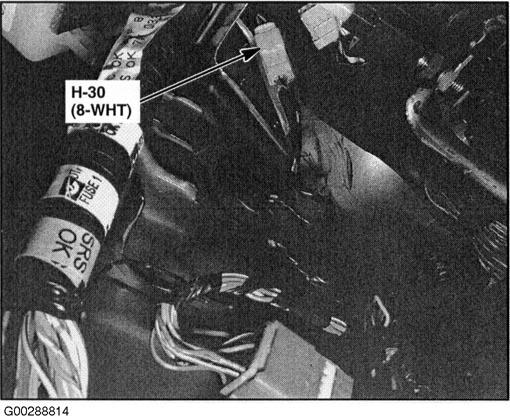

Fig 64: Under Left Side Of Dash
Courtesy of ISUZU MOTOR CO.

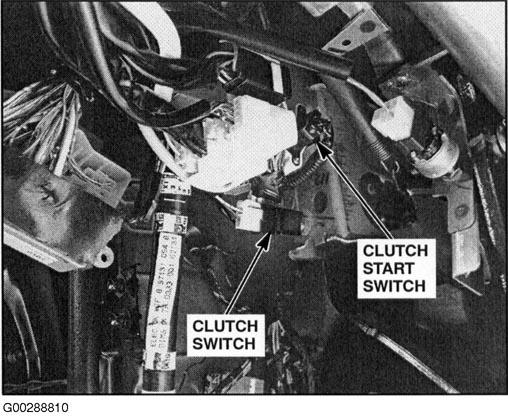

Fig 65: Under Left Side Of Dash (M/T)
Courtesy of ISUZU MOTOR CO.
Fig 66: Below Left Side Of Dash
Courtesy of ISUZU MOTOR CO.
Fig 67: Under Left Side Of Dash
Courtesy of ISUZU MOTOR CO.
Fig 68: Under Left Side Of Dash
Courtesy of ISUZU MOTOR CO.
Fig 69: Behind Left Side Of Dash
Courtesy of ISUZU MOTOR CO.

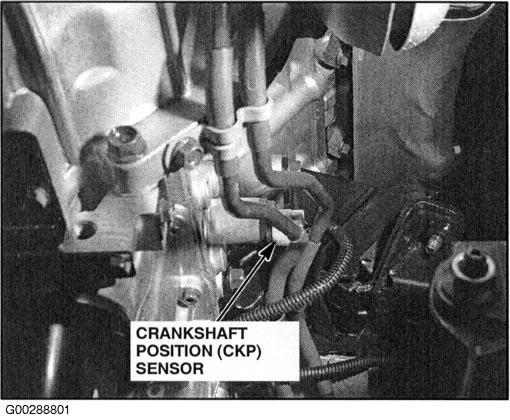

Fig 70: Lower Left Rear Of Engine (3.2L)
Courtesy of ISUZU MOTOR CO.

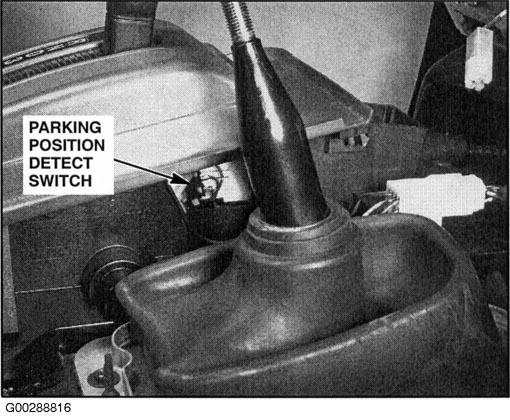

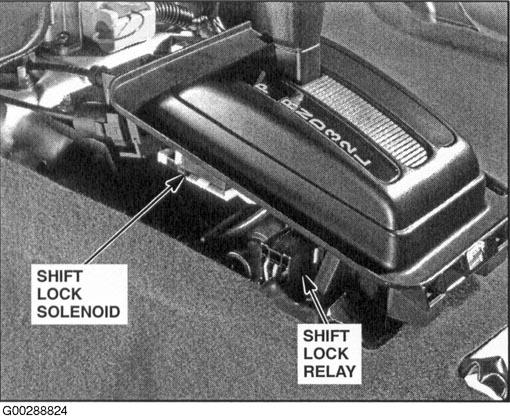

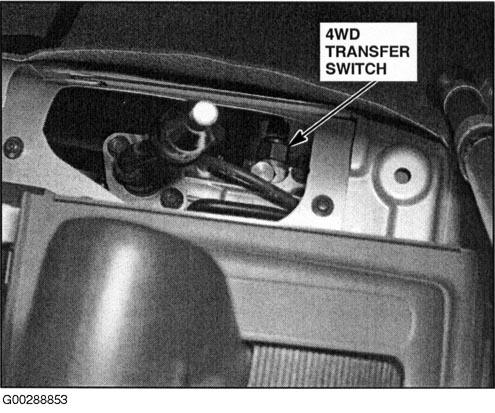

Fig 71: Right Side Of Gear Selector
Courtesy of ISUZU MOTOR CO.
Fig 72: Below Driver's Seat
Courtesy of ISUZU MOTOR CO.

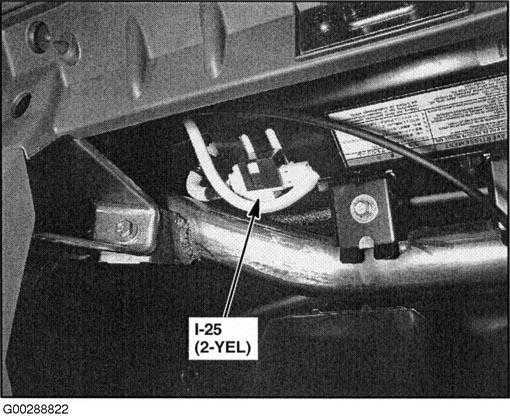

Fig 73: Under Left Side Of Dash
Courtesy of ISUZU MOTOR CO.

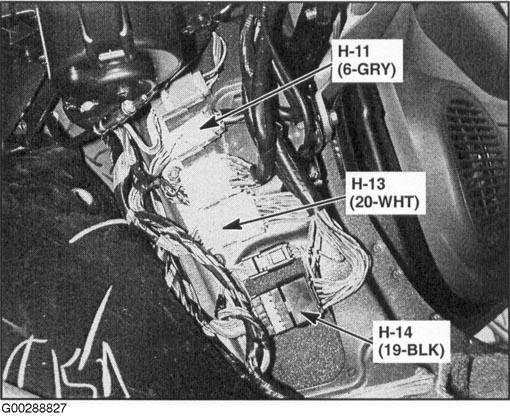

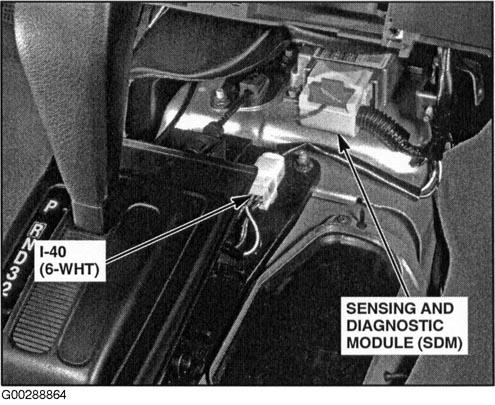

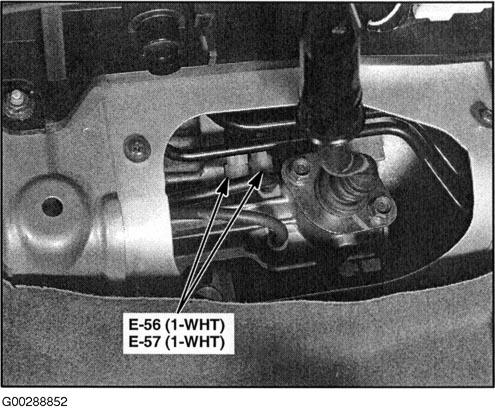

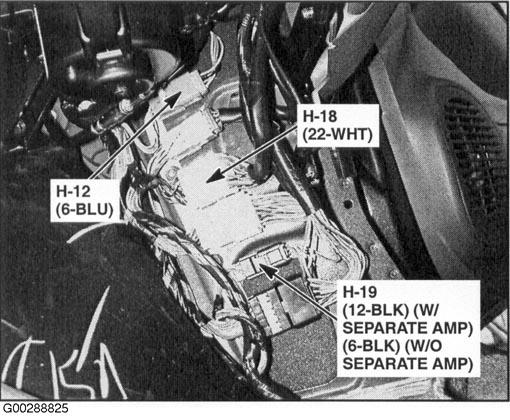

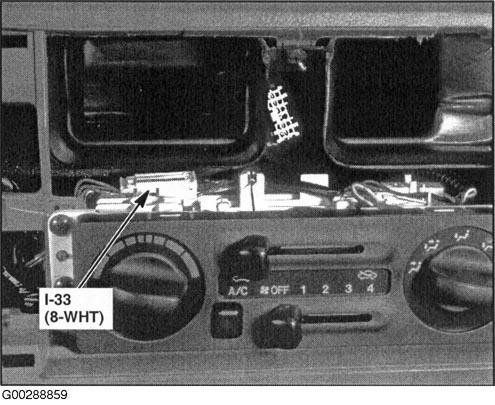

Fig 74: Below Center Of Dash (Console Removed)
Courtesy of ISUZU MOTOR CO.
Fig 75: Under Left Side Of Dash
Courtesy of ISUZU MOTOR CO.

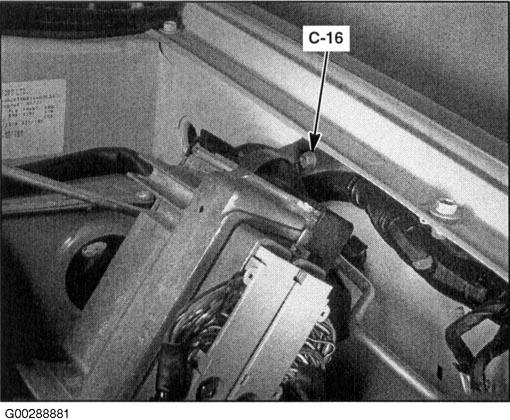

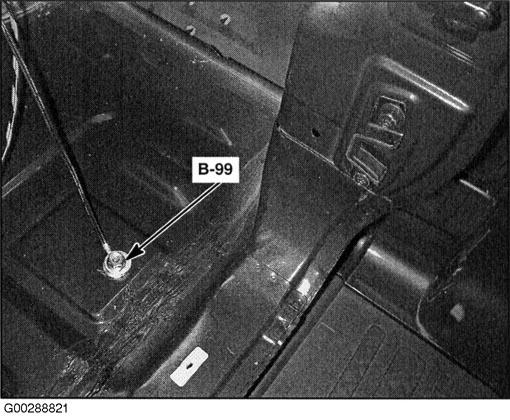

Fig 76: Right Floor Of Cargo Area
Courtesy of ISUZU MOTOR CO.
Fig 77: Right Side Of Dash (Glove Box Removed)
Courtesy of ISUZU MOTOR CO.
Fig 78: Right Side Of Dash (Glove Box Removed)
Courtesy of ISUZU MOTOR CO.
Fig 79: Under Center Console
Courtesy of ISUZU MOTOR CO.
Fig 80: Behind Right Kick Panel
Courtesy of ISUZU MOTOR CO.
Fig 81: Below Center Console
Courtesy of ISUZU MOTOR CO.
Fig 82: Behind Right Kick Panel
Courtesy of ISUZU MOTOR CO.
Fig 83: Center Of Roof (Headliner Removed)
Courtesy of ISUZU MOTOR CO.
Fig 84: Front Of Roof (Headliner Removed)
Courtesy of ISUZU MOTOR CO.
Fig 85: Top Of Left "A" Pillar
Courtesy of ISUZU MOTOR CO.

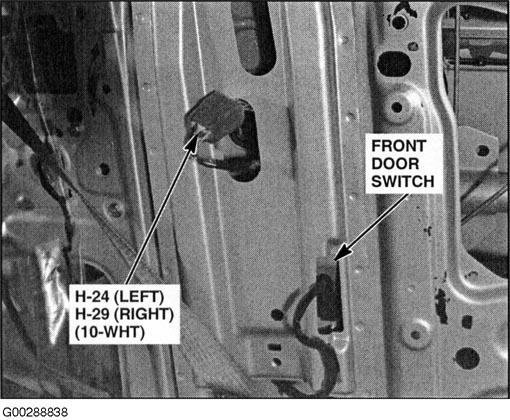

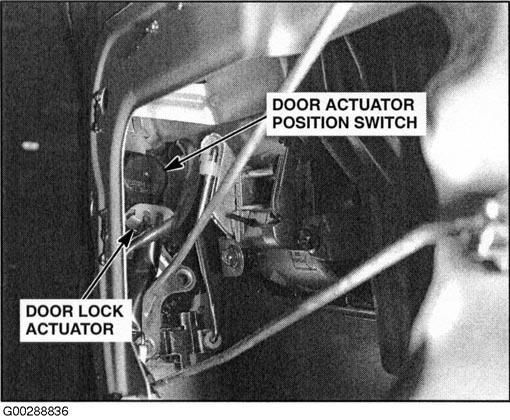

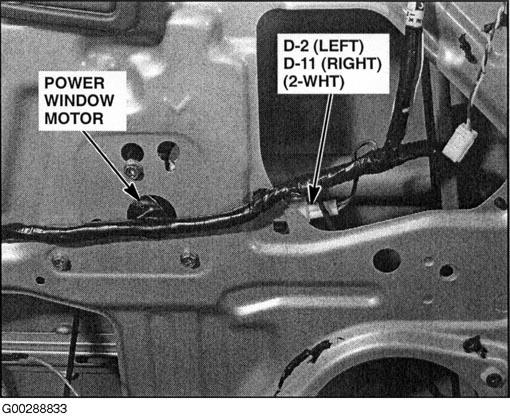

Fig 86: Left Front Door (Right Similar)
Courtesy of ISUZU MOTOR CO.

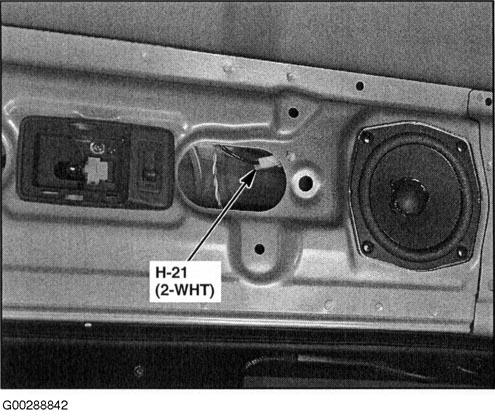

Fig 87: Left Front Door (Right Similar)
Courtesy of ISUZU MOTOR CO.

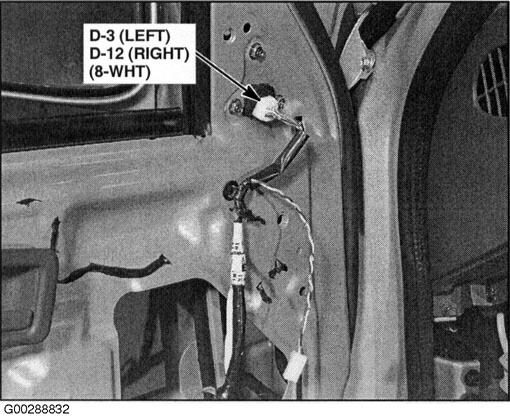

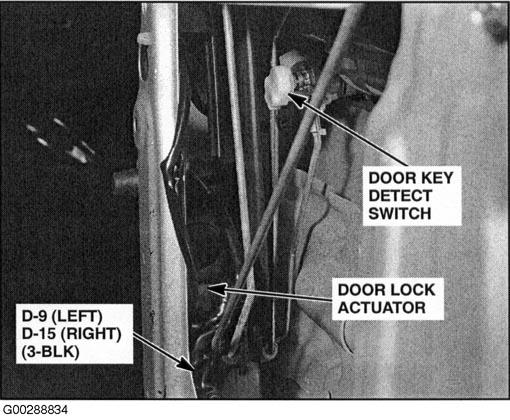

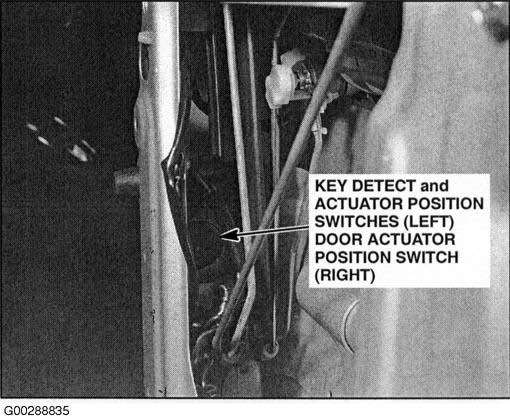

Fig 88: Rear Of Left Front Door (Right Similar)
Courtesy of ISUZU MOTOR CO.
Fig 89: Rear Of Left Front Door (Right Similar)
Courtesy of ISUZU MOTOR CO.

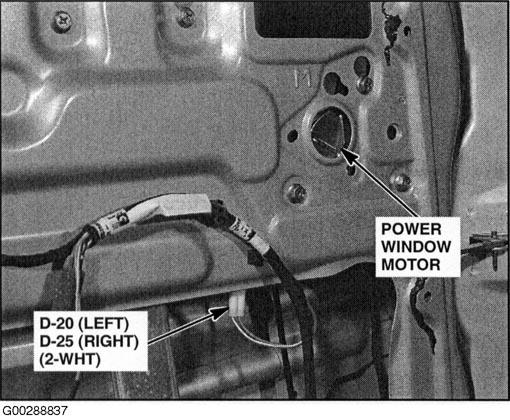

Fig 90: Left Rear Door (Right Similar)
Courtesy of ISUZU MOTOR CO.
Fig 91: Left Rear Door (Right Similar)
Courtesy of ISUZU MOTOR CO.

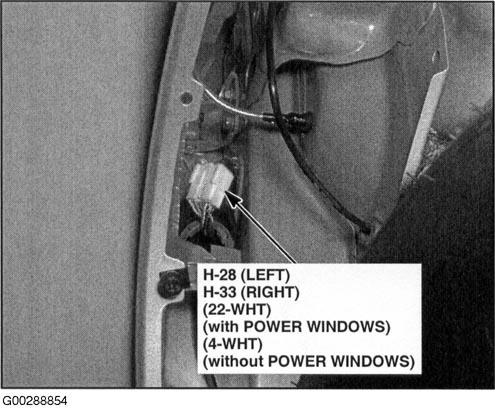

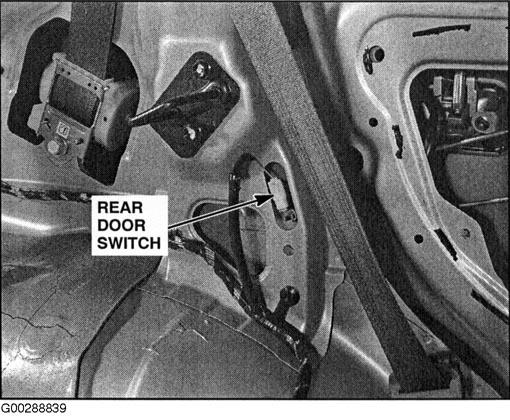

Fig 92: Left "B" Pillar (Right Similar)
Courtesy of ISUZU MOTOR CO.
Fig 93: Left "C" Pillar (Right Similar)
Courtesy of ISUZU MOTOR CO.

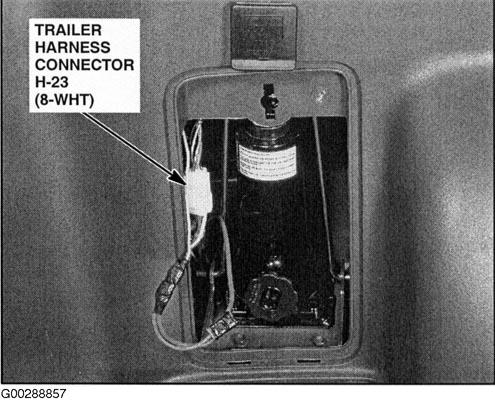

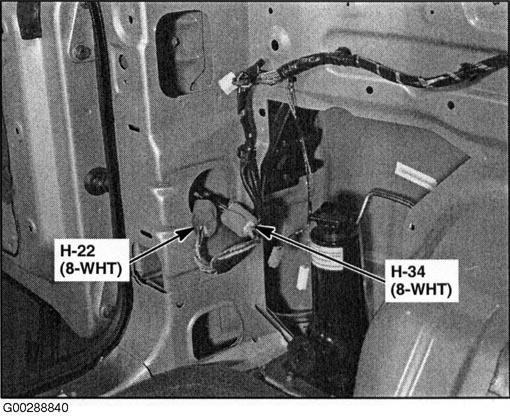

Fig 94: Left Rear Cargo Compartment
Courtesy of ISUZU MOTOR CO.

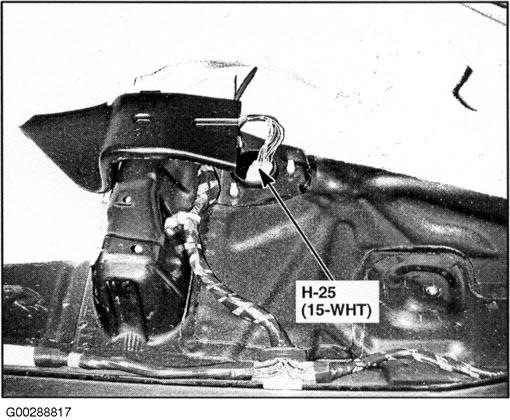

Fig 95: Left Rear Side Of Roof
Courtesy of ISUZU MOTOR CO.
Fig 96: Right Rear Side Of Roof
Courtesy of ISUZU MOTOR CO.

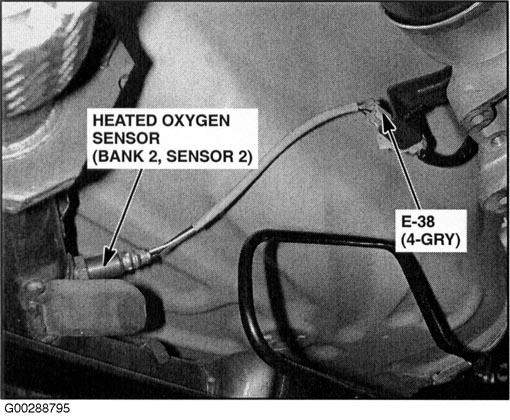

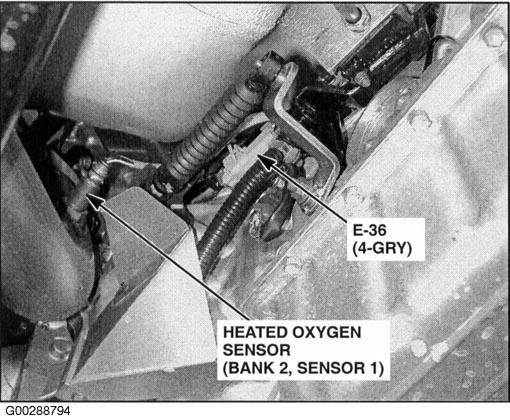

Fig 97: Left Front Exhaust Downpipe (3.2L)
Courtesy of ISUZU MOTOR CO.

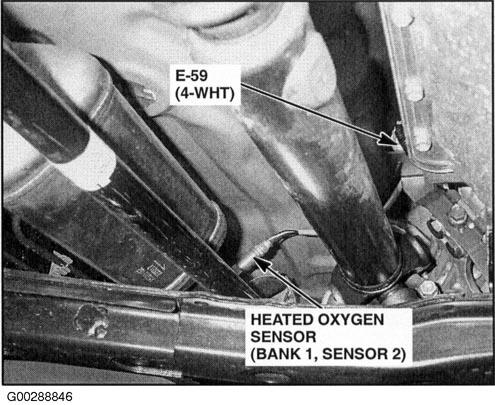

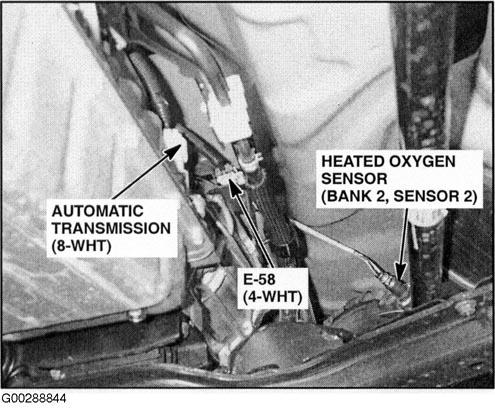

Fig 98: Rear Of Left Catalytic Converter (3.2L)
Courtesy of ISUZU MOTOR CO.
Fig 99: Right Front Exhaust Downpipe (3.2L)
Courtesy of ISUZU MOTOR CO.

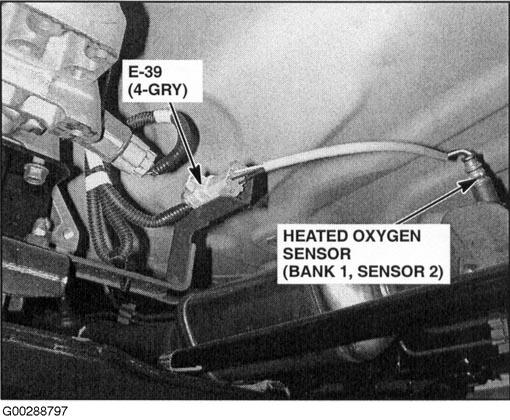

Fig 100: Rear Of Right Catalytic Converter (3.2L)
Courtesy of ISUZU MOTOR CO.

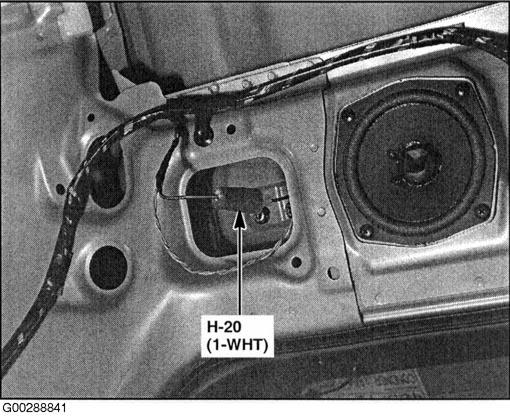

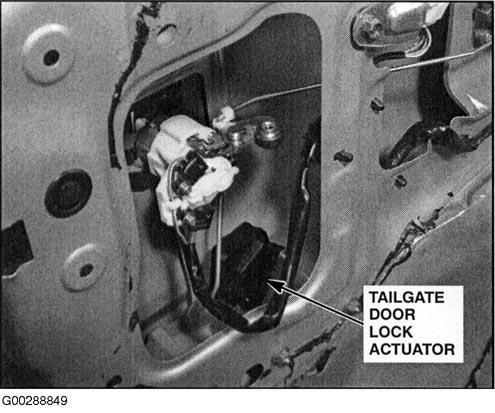

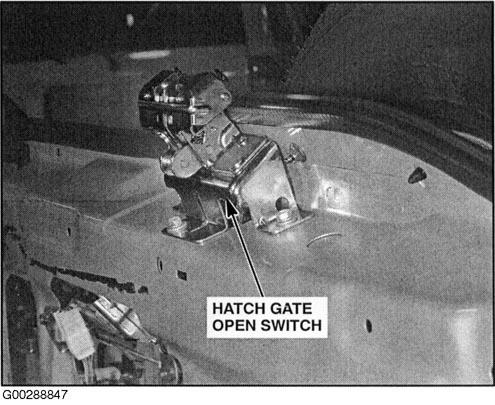

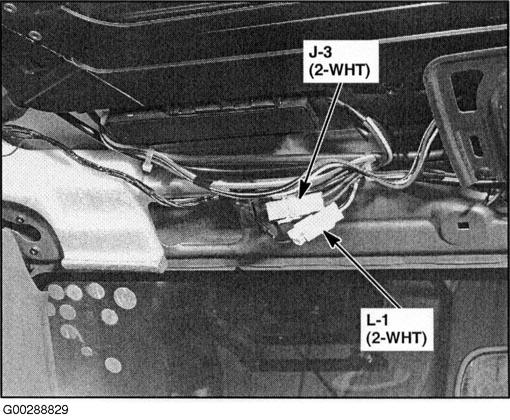

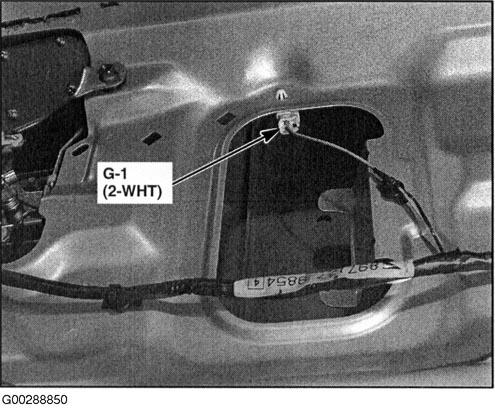

Fig 101: Top Of Tailgate (Trim Removed)
Courtesy of ISUZU MOTOR CO.

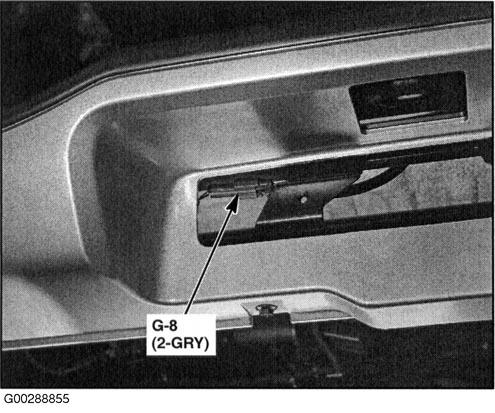

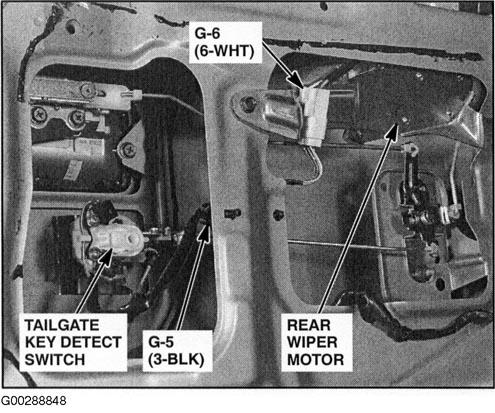

Fig 102: Center Of Tailgate
Courtesy of ISUZU MOTOR CO.
Fig 103: Lower Rear Of Tailgate
Courtesy of ISUZU MOTOR CO.
Fig 104: Front Of Tailgate
Courtesy of ISUZU MOTOR CO.

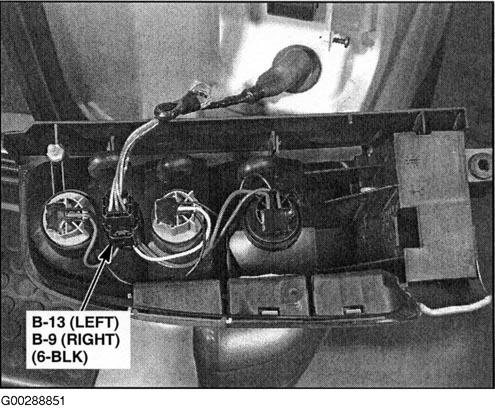

Fig 105: Behind Right Taillight (Left Similar)
Courtesy of ISUZU MOTOR CO.

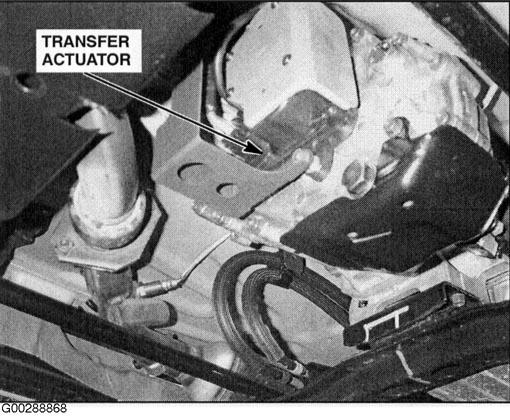

Fig 106: Top Right Side Of Transfer Case
Courtesy of ISUZU MOTOR CO.

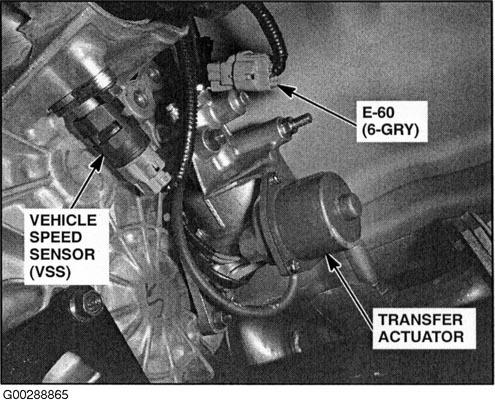

Fig 107: Right Side Of Transfer Case
Courtesy of ISUZU MOTOR CO.

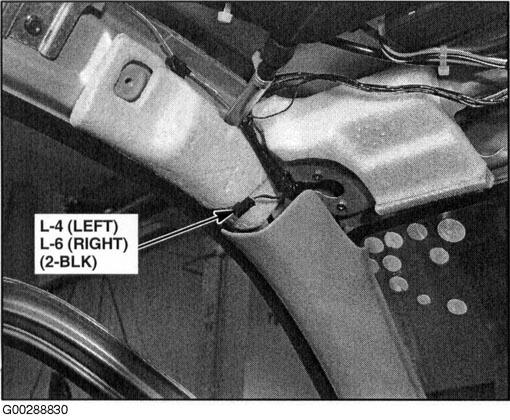

Fig 108: Rear Of Right Front Inner Wheel Well (Left Similar)
Courtesy of ISUZU MOTOR CO.
Fig 109: Behind Right Side Of Rear Bumper
Courtesy of ISUZU MOTOR CO.

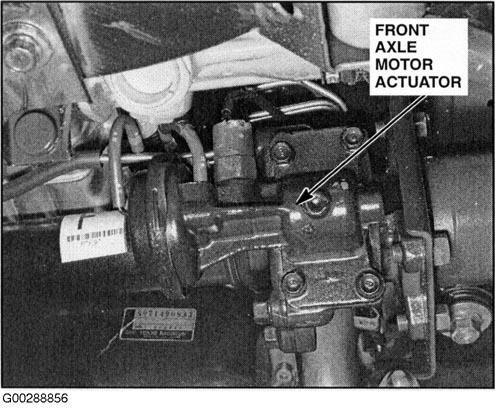

Fig 110: Left Side Of Front Axle (4WD)
Courtesy of ISUZU MOTOR CO.
Fig 111: Left Rear Of Cargo Compartment
Courtesy of ISUZU MOTOR CO.

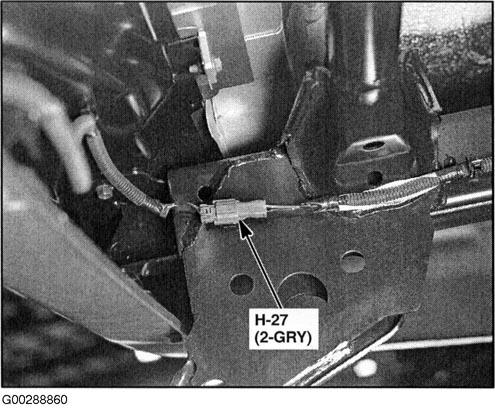

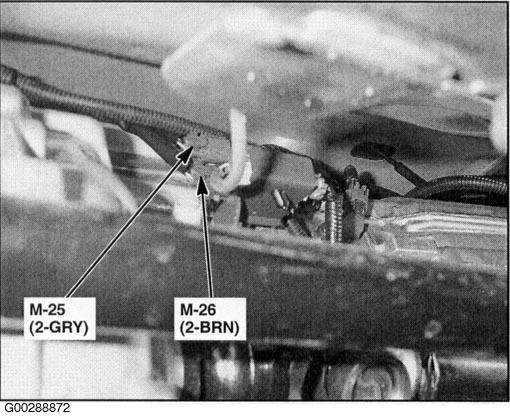

Fig 112: Under Vehicle, Behind Left Rear Wheel
Courtesy of ISUZU MOTOR CO.
Fig 113: Below Center Of Dash (Console Removed)
Courtesy of ISUZU MOTOR CO.
Fig 114: Behind Left Side Of Rear Bumper
Courtesy of ISUZU MOTOR CO.

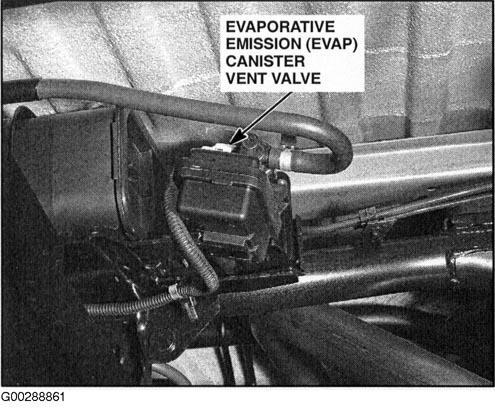

Fig 115: Rear Underside Of Vehicle
Courtesy of ISUZU MOTOR CO.

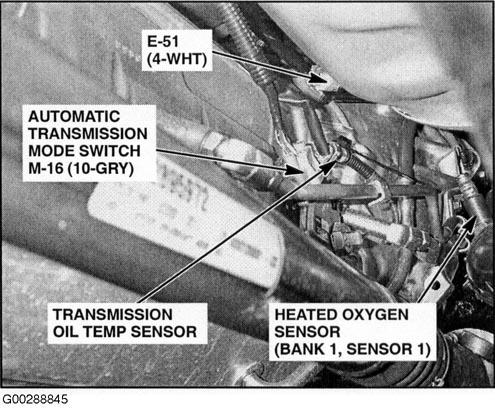

Fig 116: Right Side Of Transmission
Courtesy of ISUZU MOTOR CO.

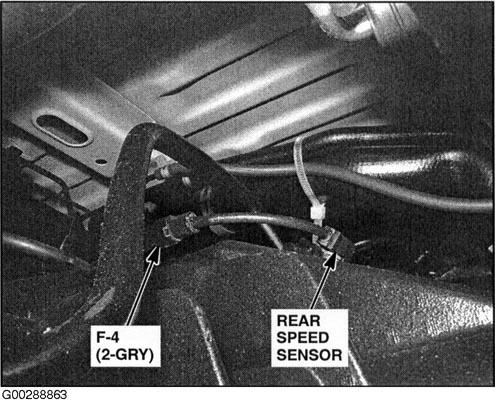

Fig 117: Under Rear Of Vehicle, On Differential
Courtesy of ISUZU MOTOR CO.
Fig 118: Below Center Of Dash (Console Removed)
Courtesy of ISUZU MOTOR CO.
Fig 119: Rear Of Manual Transmission (3.2L)
Courtesy of ISUZU MOTOR CO.

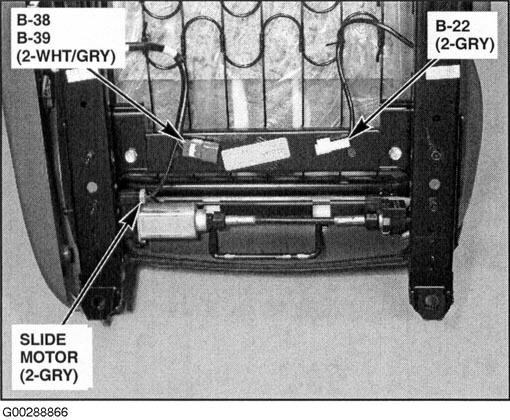

Fig 120: Under Driver's Seat (Passenger's Similar)
Courtesy of ISUZU MOTOR CO.

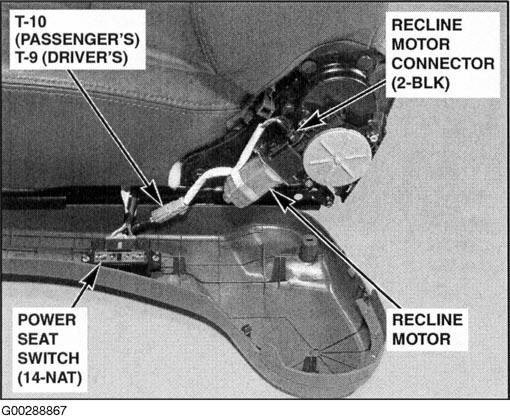

Fig 121: Left Side Of Driver's Seat (Passenger's Similar)
Courtesy of ISUZU MOTOR CO.

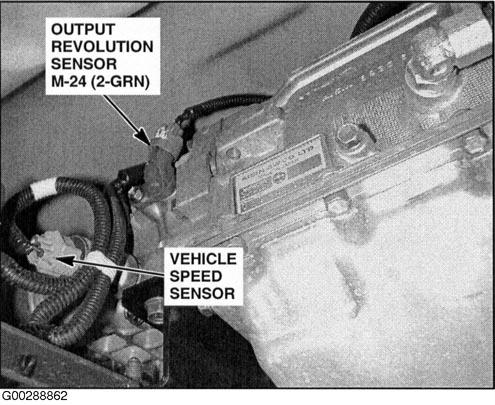

Fig 122: Rear Of Automatic Transmission
Courtesy of ISUZU MOTOR CO.

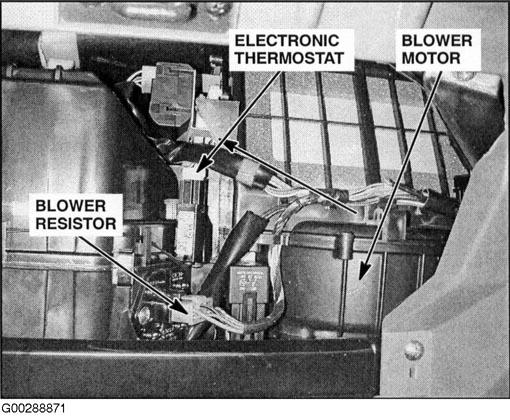

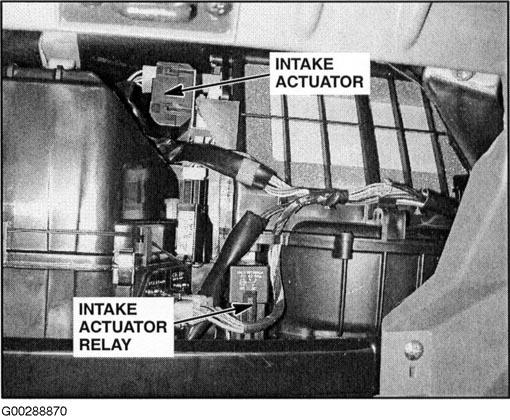

Fig 123: Behind Glove Box
Courtesy of ISUZU MOTOR CO.
Fig 124: Behind Glove Box
Courtesy of ISUZU MOTOR CO.

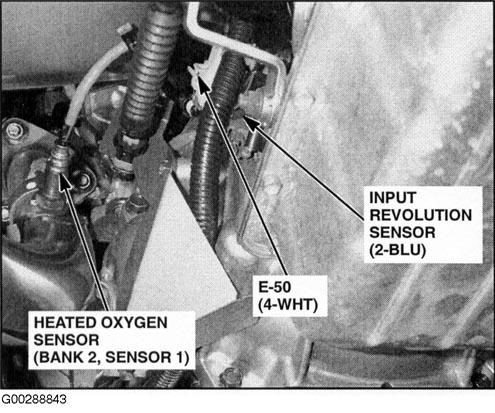

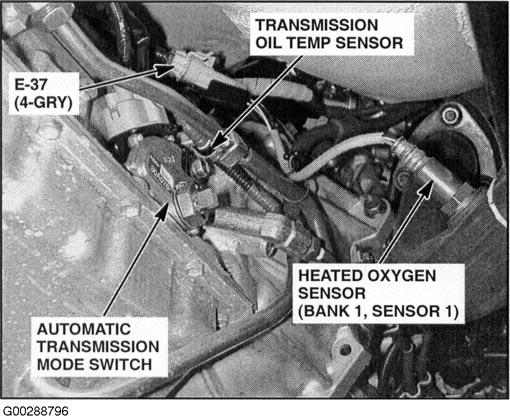

Fig 125: Right Side Of Automatic Transmission
Courtesy of ISUZU MOTOR CO.

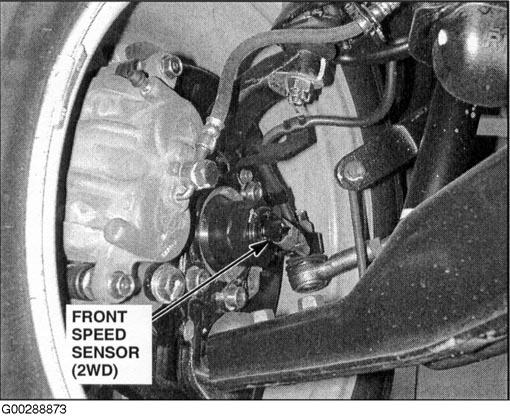

Fig 126: Behind Left Front Wheel (2WD) (Right Wheel Similar)
Courtesy of ISUZU MOTOR CO.
Fig 127: Under Rear Console Compartment
Courtesy of ISUZU MOTOR CO.
