Circuit Protection Devices
CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location |
|---|---|

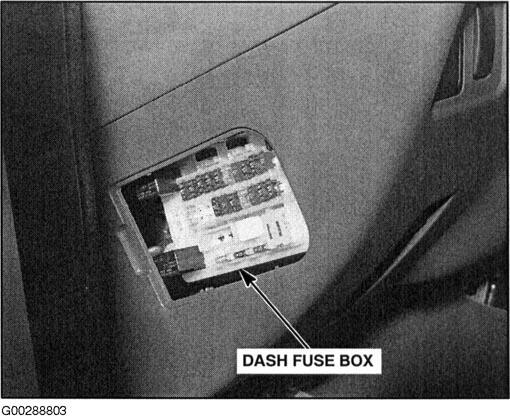

| Dash Fuse Box | Behind left side of dash, behind panel. See Figure . |

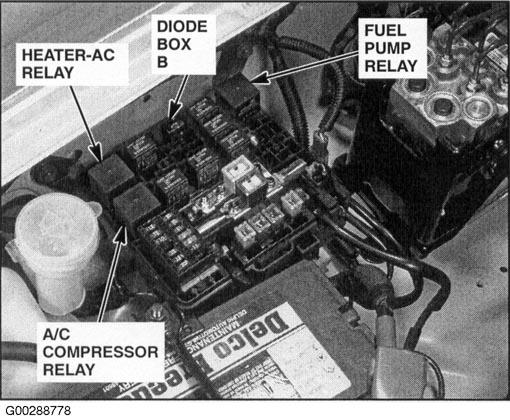

| Diode Box "B" | In fuse/relay box. See Figure . |

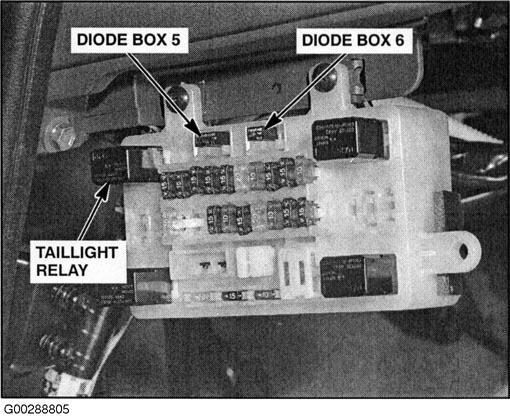

| Diode Box No. 5 | In dash fuse box. See Figure . |
| Diode Box No. 6 | In dash fuse box. See Figure . |

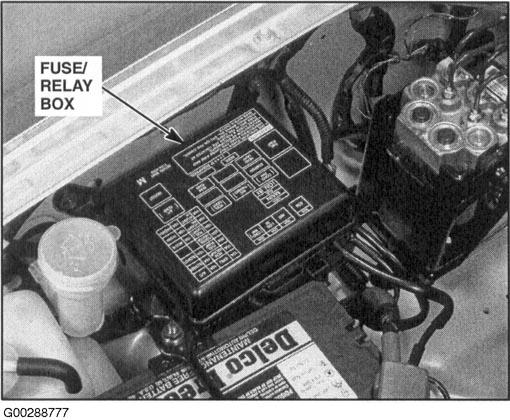

| Fuse/Relay Box | On right side of engine compartment. See Figure . |
| Option Box | At right side of engine compartment. See Figure . |
