Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

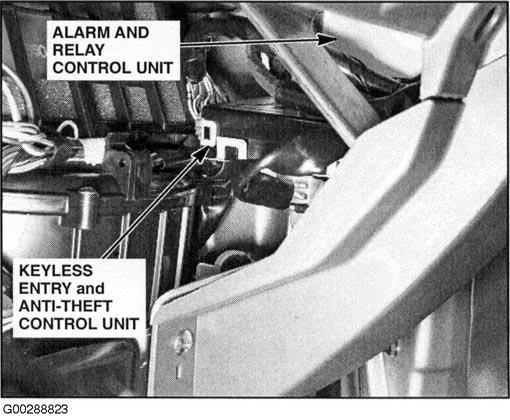

| Alarm & Relay Control Unit | Behind right side of dash, above right kick panel. See Figure . |

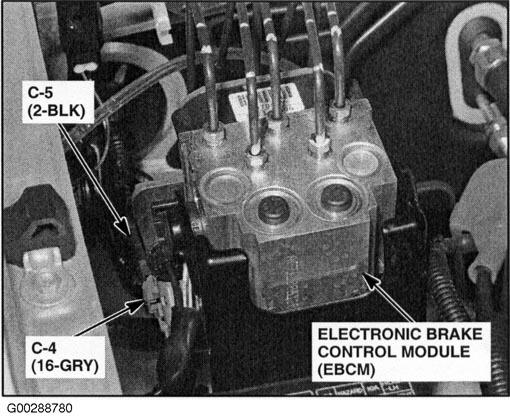

| Electronic Brake Control Module (EBCM) | On right rear corner of engine compartment. See Figure . |

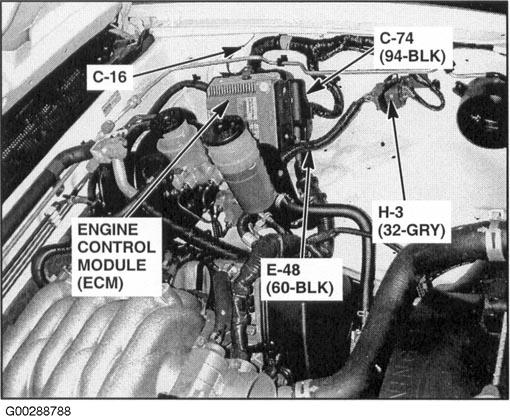

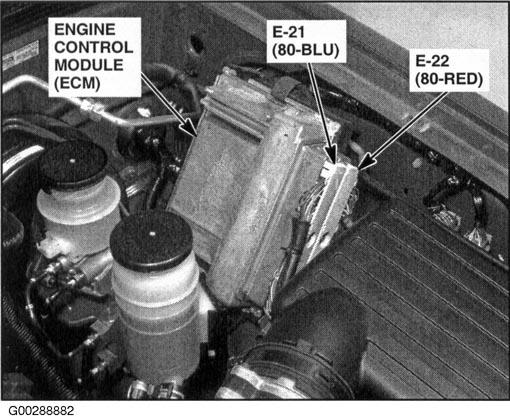

| Engine Control Module (ECM) (3.2L) | Left rear of engine compartment. See Figure . |
| Engine Control Module (ECM) (3.5L DI) | Left side of engine compartment. See Figure . |

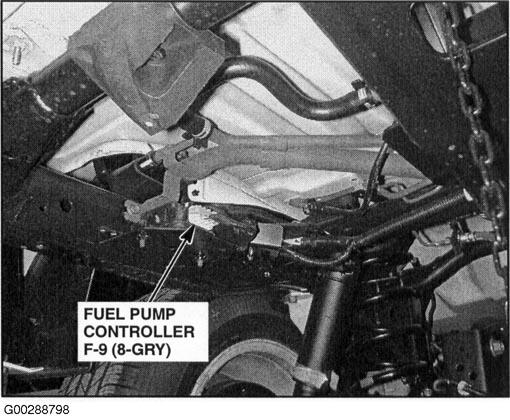

| Fuel Pump Controller | Left rear frame rail. See Figure . |
| Immobilizer Control Unit | Below center of dash. See Figure . |

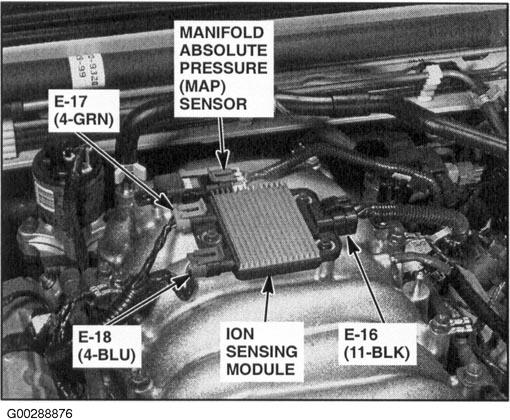

| Ion Sensing Module (3.2L) | On top of intake manifold. See Figure . |
| Keyless Entry & Anti-Theft Control Unit | Behind right side of dash, above kick panel. See Figure . |

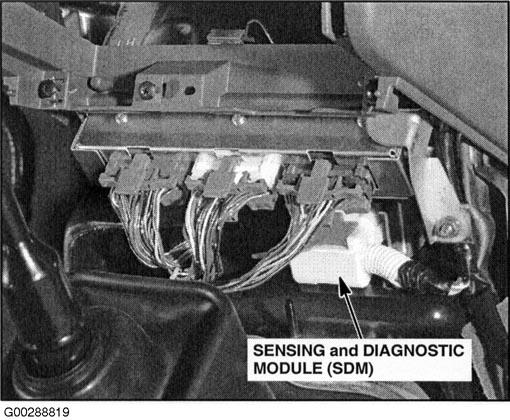

| Sensing & Diagnostic Module | Below center of dash. See Figure . |

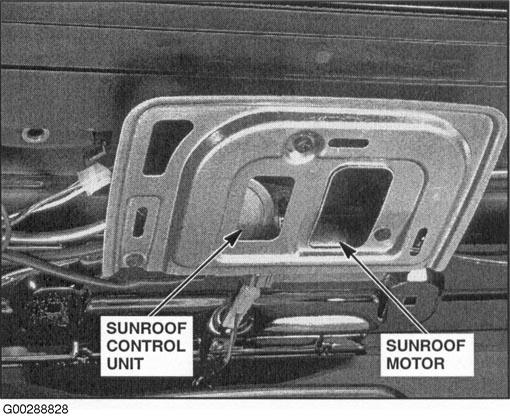

| Sunroof Control Unit | Center front of roof, behind headliner. See Figure . |

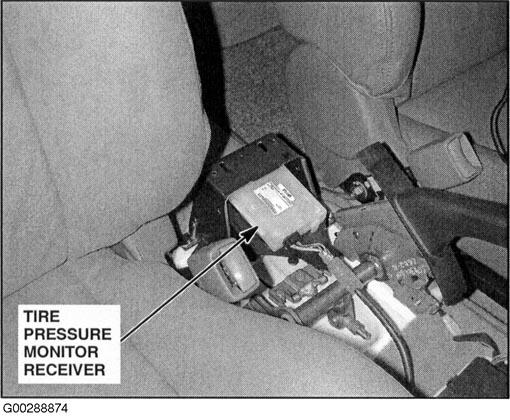

| Tire Pressure Monitor Receiver | Under rear of console. See Figure . |

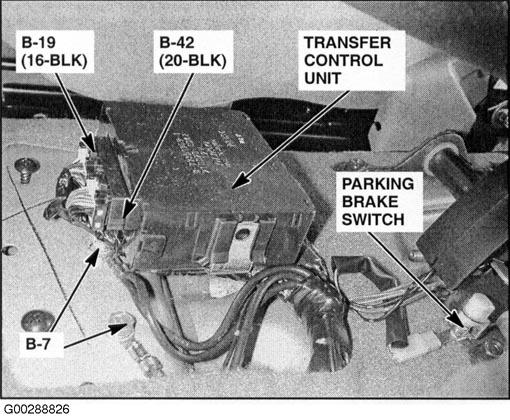

| Transfer Control Unit | Below center console. See Figure . |

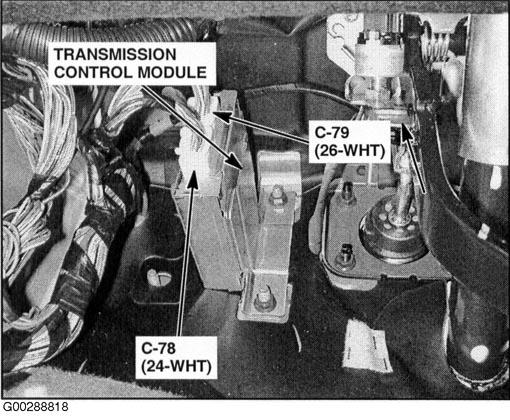

| Transmission Control Module | Under left side of dash. See Figure . |
