Engine Controls Component Views

Fig 1: Engine Control Module (ECM)
GM1488862Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Control Module (ECM)
2 Engine Control Module (ECM) C3
3 Engine Control Module (ECM) C2
4 Engine Control Module (ECM) C1
Fig 2: Camshaft Position (CMP) Sensor
GM1488863Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Camshaft Position (CMP) Sensor
2 Camshaft Position (CMP) Sensor Jumper Harness
3 C110
4 Engine Harness
5 Engine
Fig 3: Upper Left Side of the Engine
GM1488867Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Injector 1
2 Evaporative Emission (EVAP) Canister Purge Solenoid
3 Fuel Injector 3
4 Manifold Absolute Pressure (MAP) Sensor
5 Fuel Injector 5
6 Fuel Injector 7
7 Engine
8 Ignition Coil 7
9 Ignition Coil 5
10 Ignition Coil Harness
11 C109
12 Ignition Coil 3
13 Ignition Coil 1
Fig 4: Lower Left Side of Engine - Rear
GM1488868Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 G107
2 Knock Sensor (KS) 1 - Left
3 Engine
4 G109
5 Engine Harness
Fig 5: Upper Right Side of the Engine
GM1488864Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine
2 Fuel Injector 8
3 Fuel Injector 6
4 Fuel Injector 4
5 Fuel Injector 2
6 Throttle Body
7 Ignition Coil 2
8 Ignition Coil 4
9 Ignition Coil Harness
10 C108
11 Ignition Coil 6
12 Ignition Coil 8
Fig 6: Upper Right Side of the Engine - Front
GM1488865Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine
2 Engine Harness
3 Air Duct
4 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
Fig 7: Lower Right Side of the Engine - Rear
GM1488866Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Crankshaft Position (CKP) Sensor
2 Knock Sensor (KS) 2 - Right
3 Engine Harness
4 Starter
5 Engine

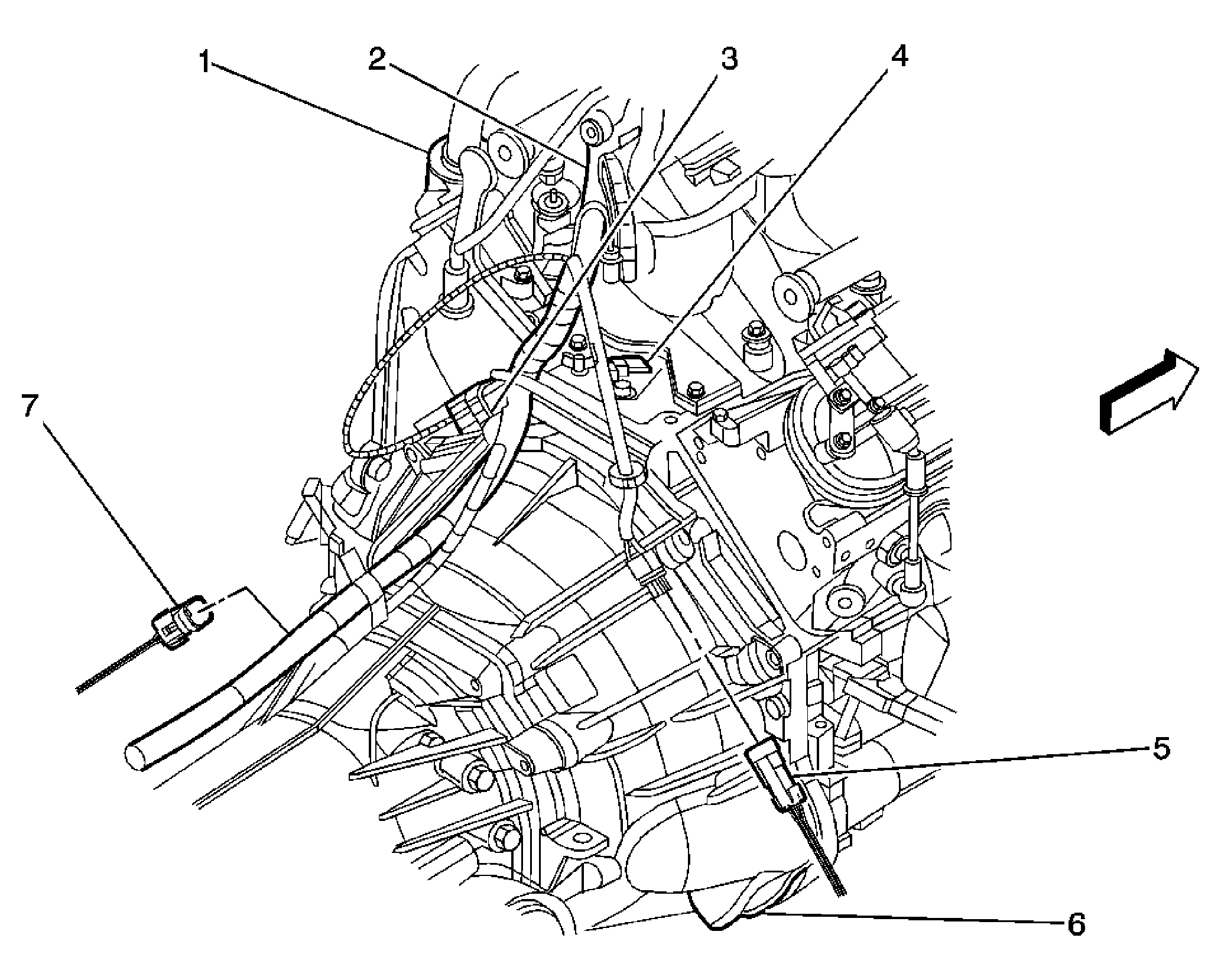

Fig 8: Rear of the Engine
GM1488873Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine
2 Engine Harness
3 Engine Oil Pressure (EOP) Sensor
4 Valve Lifter Oil Manifold (VLOM) Assembly (DOD)
5 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
6 Transmission
7 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
Fig 9: Right Side of the Transmission
GM1488874Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Vehicle Speed Sensor (VSS)
2 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
3 Transmission
4 C175
5 Engine Harness
Fig 10: Rear of the Transmission
GM1488877Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
2 Transmission Crossmember
3 Transmission
4 Engine Harness

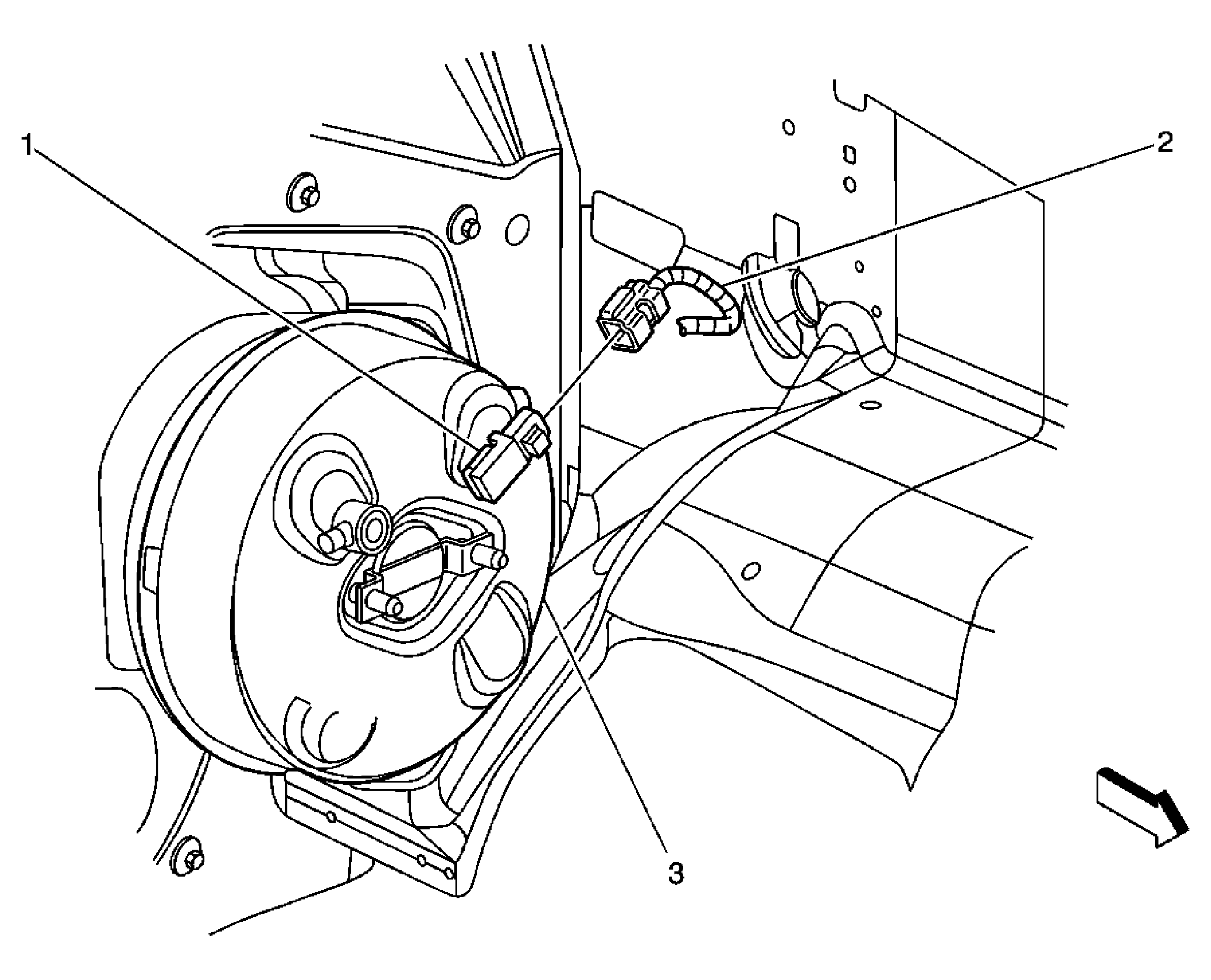

Fig 11: Power Brake Booster (DOD)
GM1489044Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Brake Booster Vacuum Sensor
2 Engine Harness
3 Power Brake Booster
Fig 12: Accelerator and Brake Pedals
GM1488336Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Instrument Panel Harness
2 Accelerator Pedal Position (APP) Sensor
3 Accelerator Pedal
4 Brake Pedal
5 Stop Lamp Switch
Fig 13: Fuel Tank (Short Wheel Base)
GM1490767Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Tank Pressue (FTP) Sensor
2 Fuel Pump and Sender Assembly
3 Chassis Harness
4 Fuel Tank
5 Evaporative Emission (EVAP) Canister Vent Solenoid

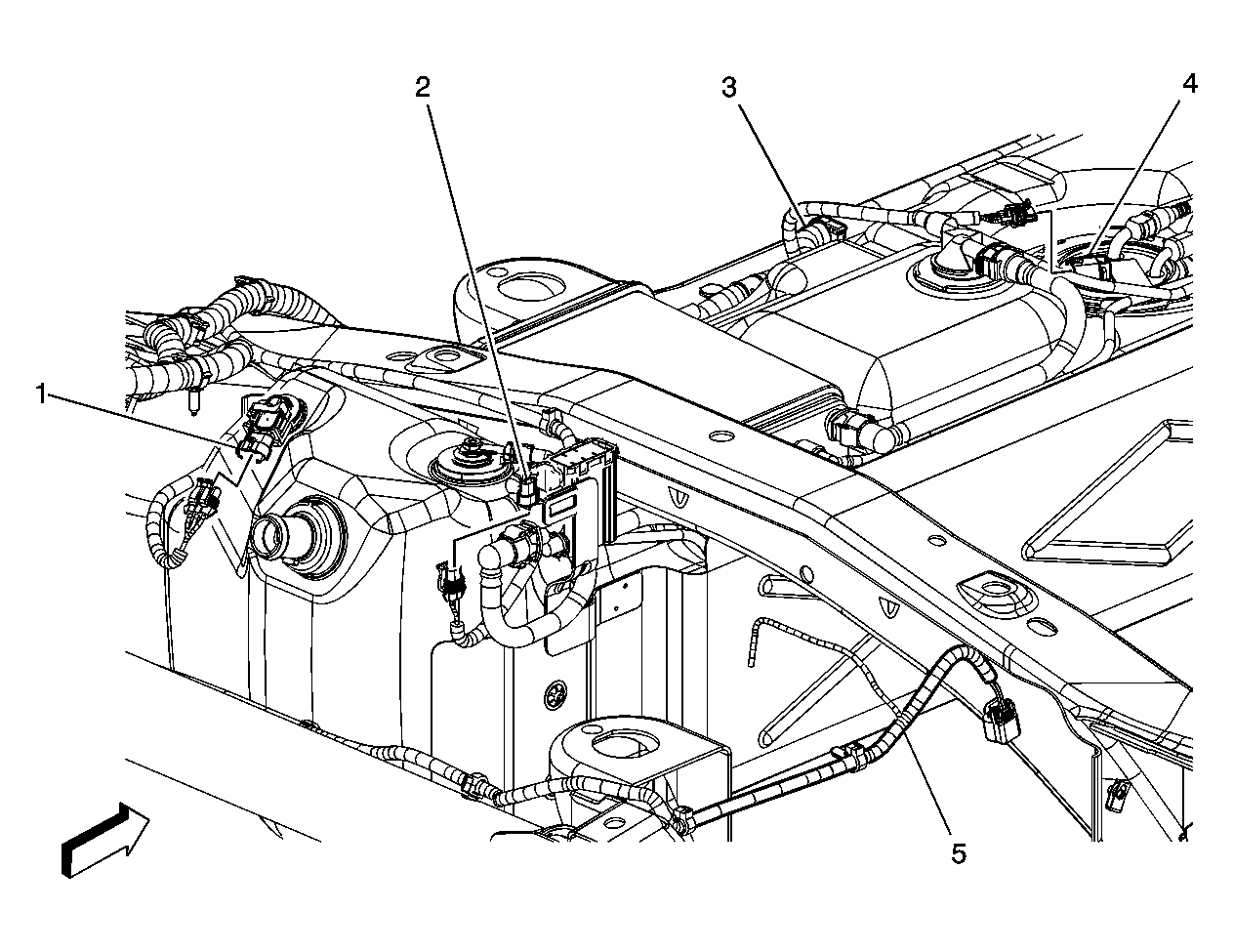

Fig 14: Fuel Tank (Long Wheel Base)
GM1490769Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Fuel Tank Pressue (FTP) Sensor
2 Evaporative Emission (EVAP) Canister Vent Solenoid
3 Chassis Harness
4 Fuel Pump and Sender Assembly
5 Fuel Tank
