Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

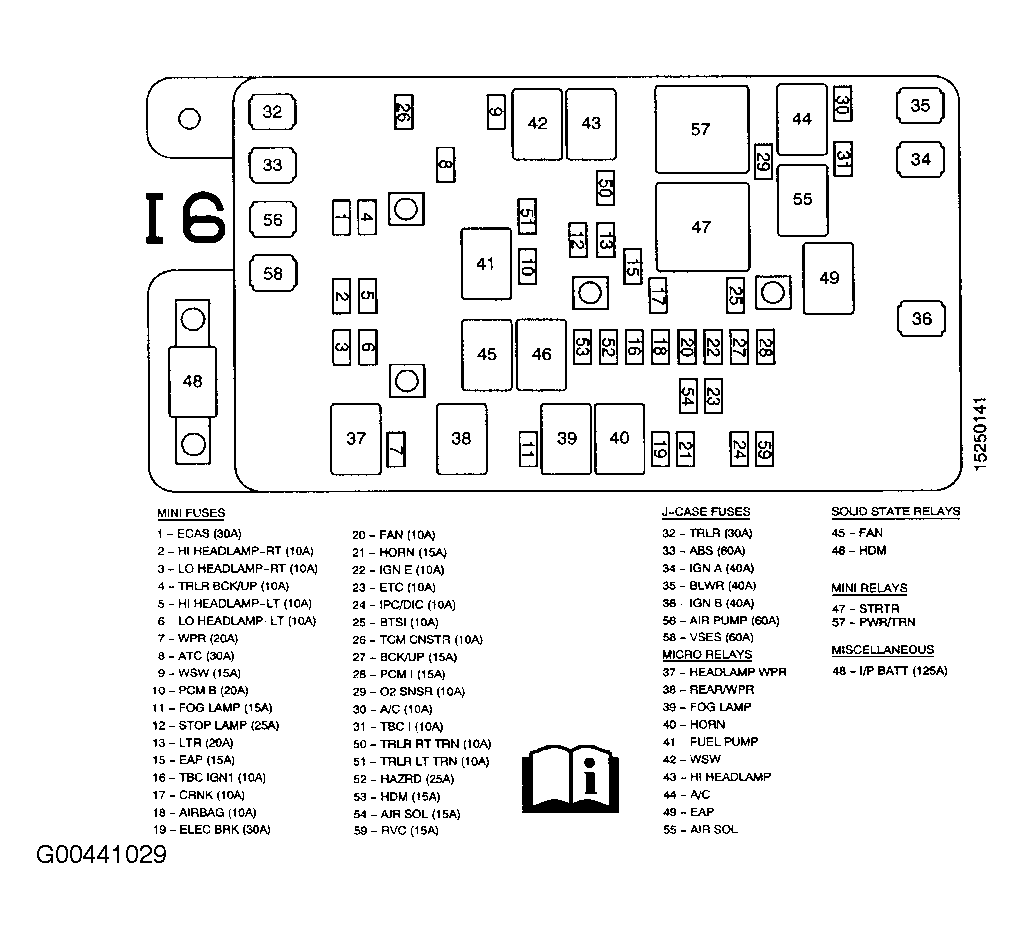

Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.
Fig 2: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

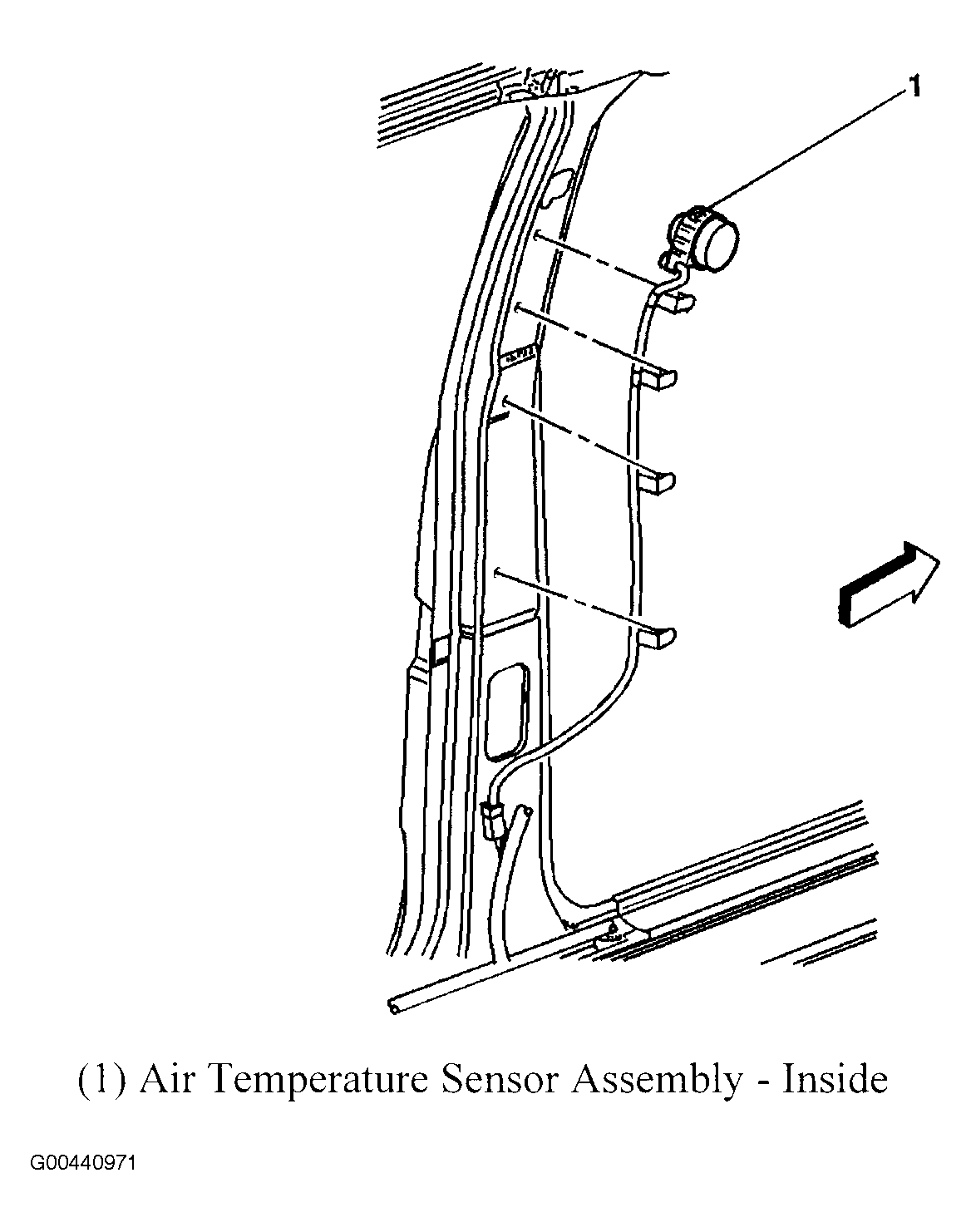

Fig 3: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 4: Left Frame Rail
Courtesy of GENERAL MOTORS CORP.

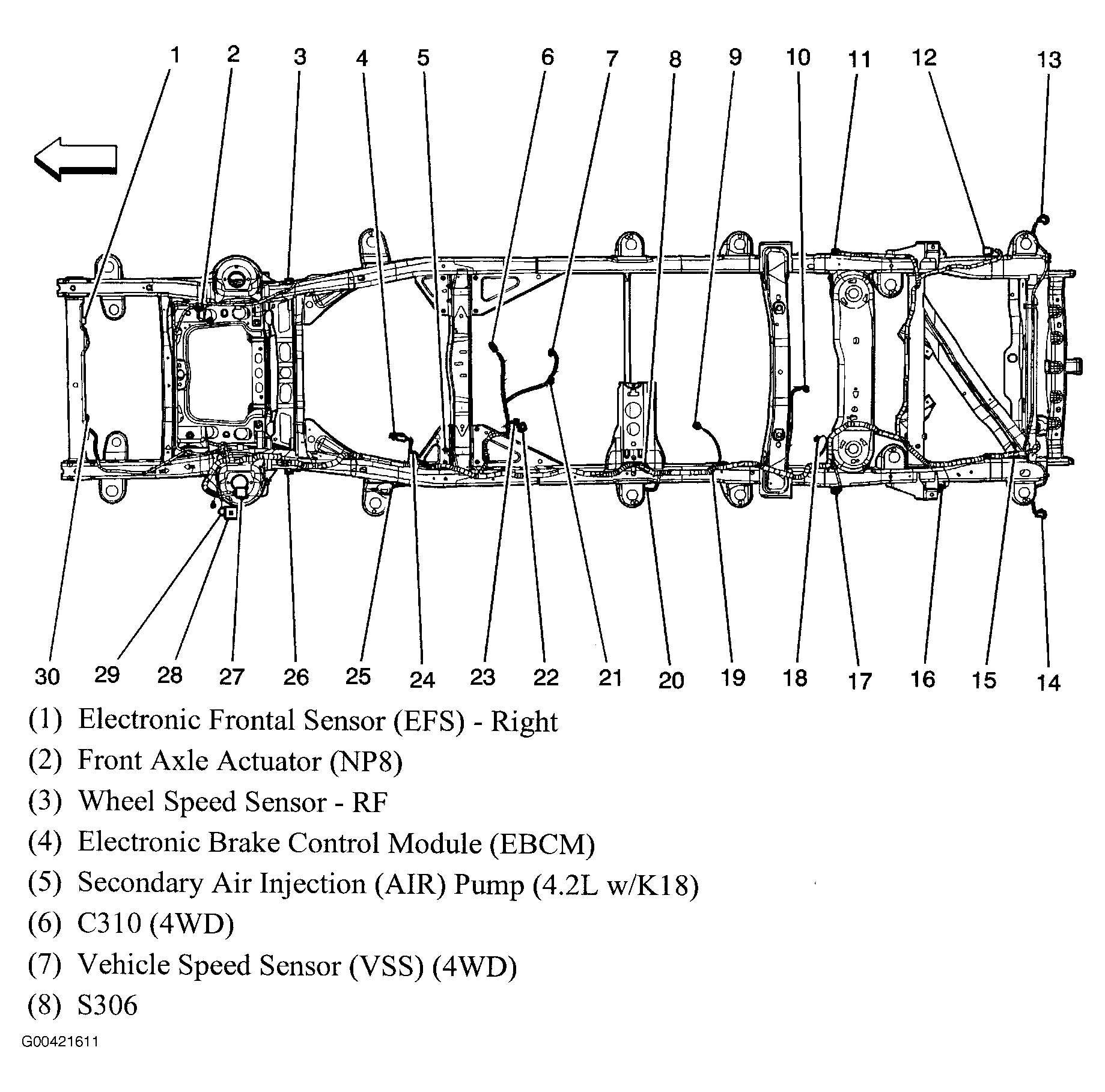

Fig 5: Vehicle Frame
Courtesy of GENERAL MOTORS CORP.
Fig 6: Left & Right Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.

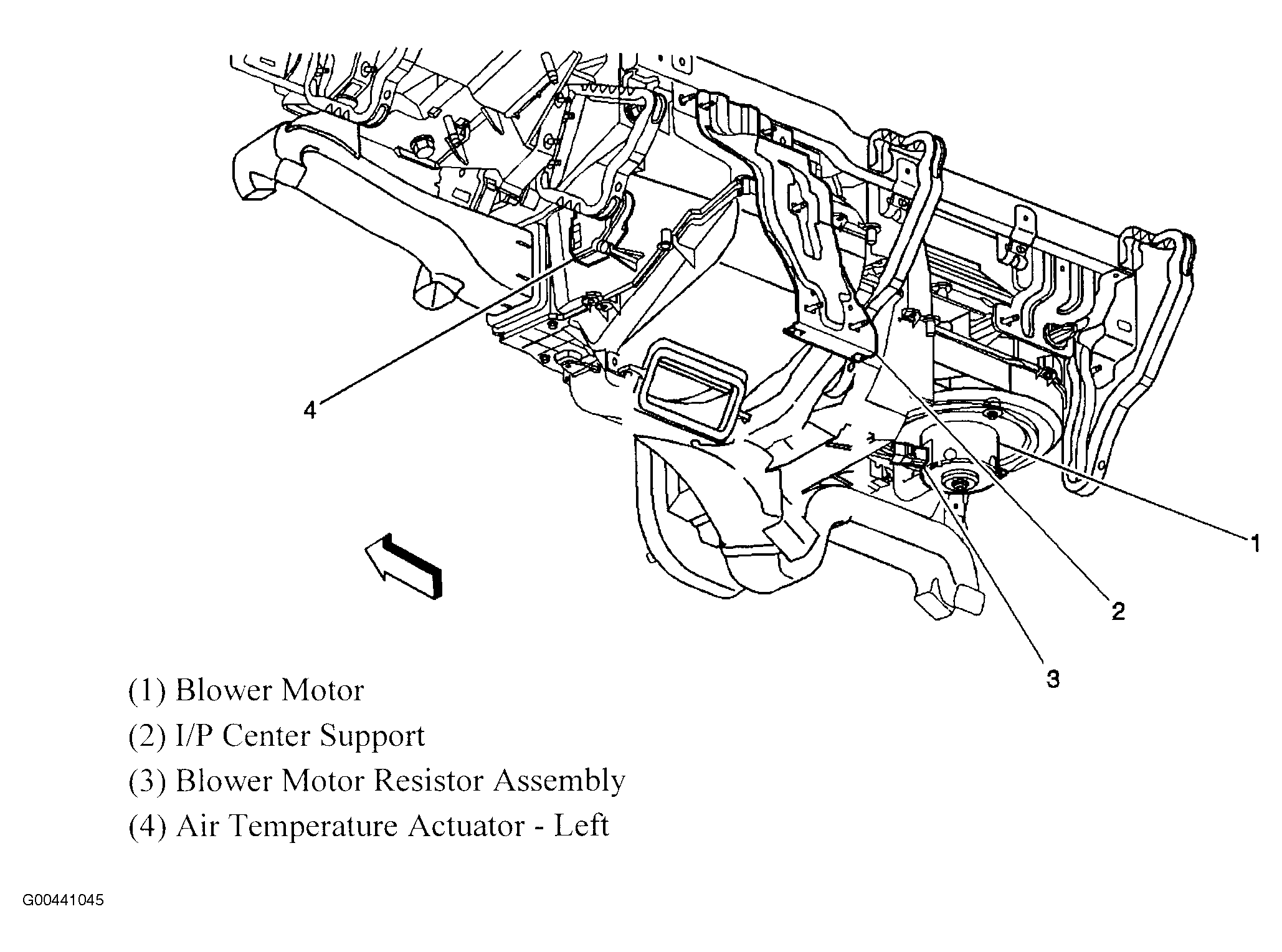

Fig 7: Dash Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 8: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

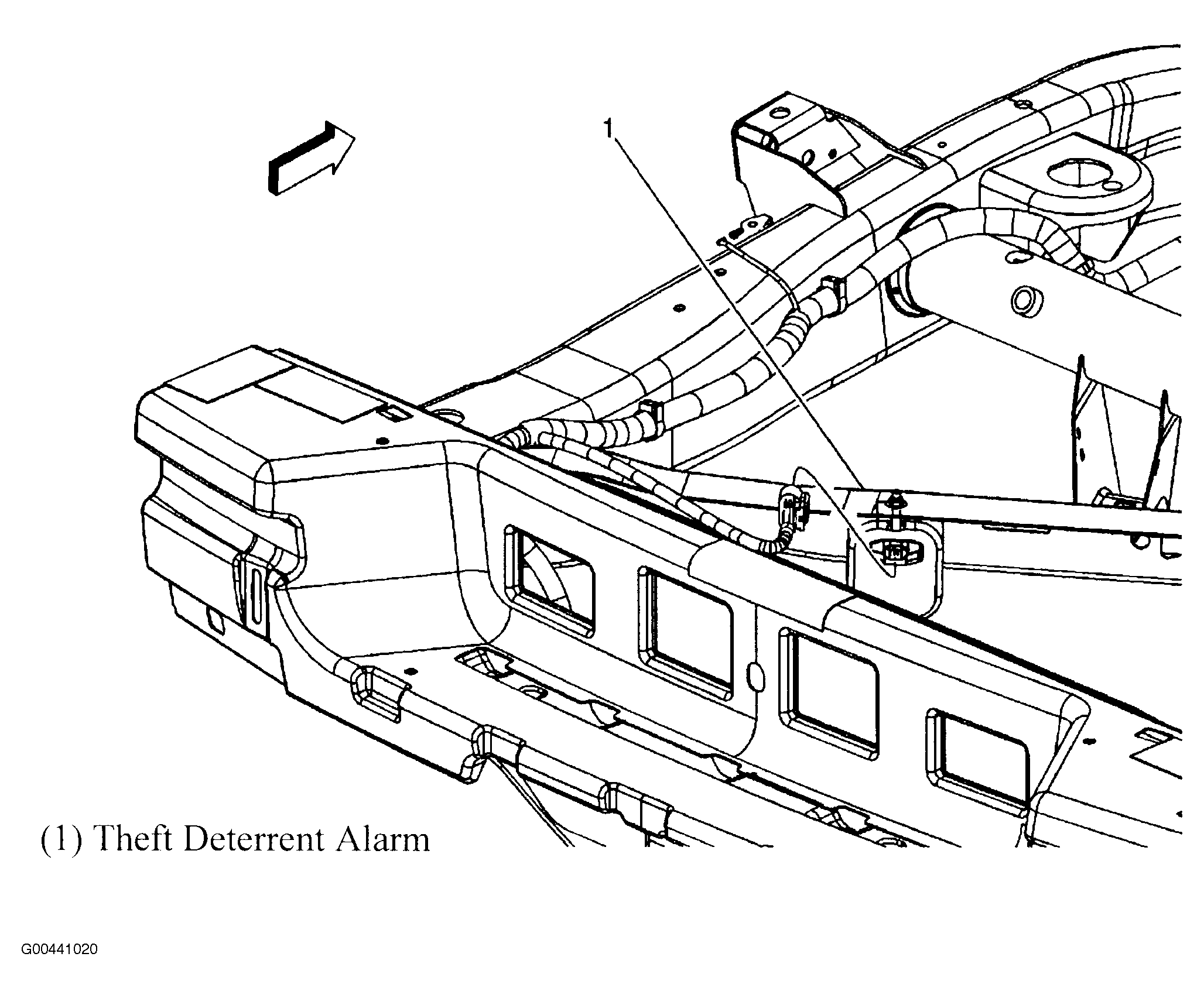

Fig 9: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 10: Rear Frame & Underbody
Courtesy of GENERAL MOTORS CORP.

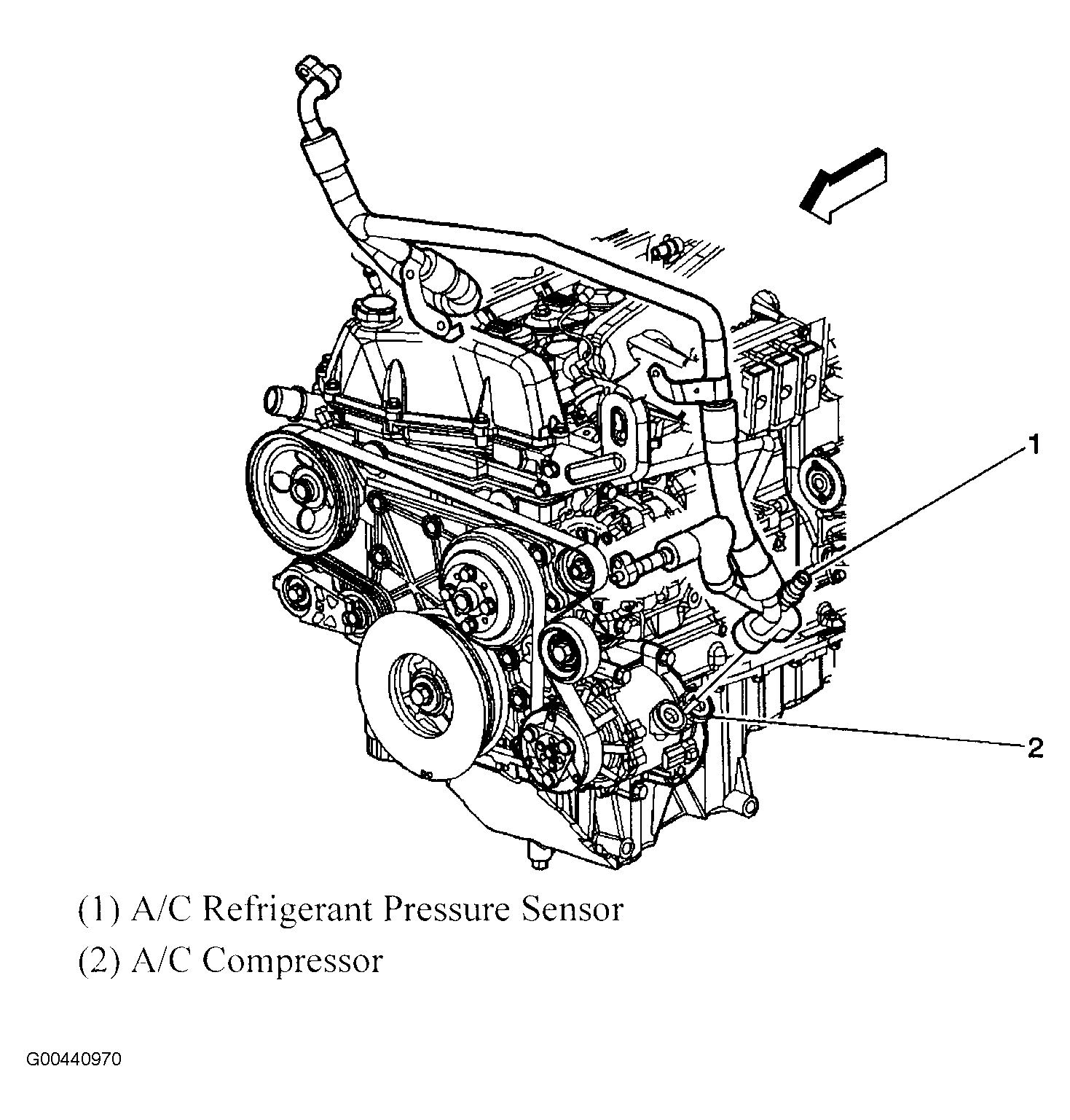

Fig 11: Right Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 12: Center Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 13: Front Hubs & Rotors
Courtesy of GENERAL MOTORS CORP.

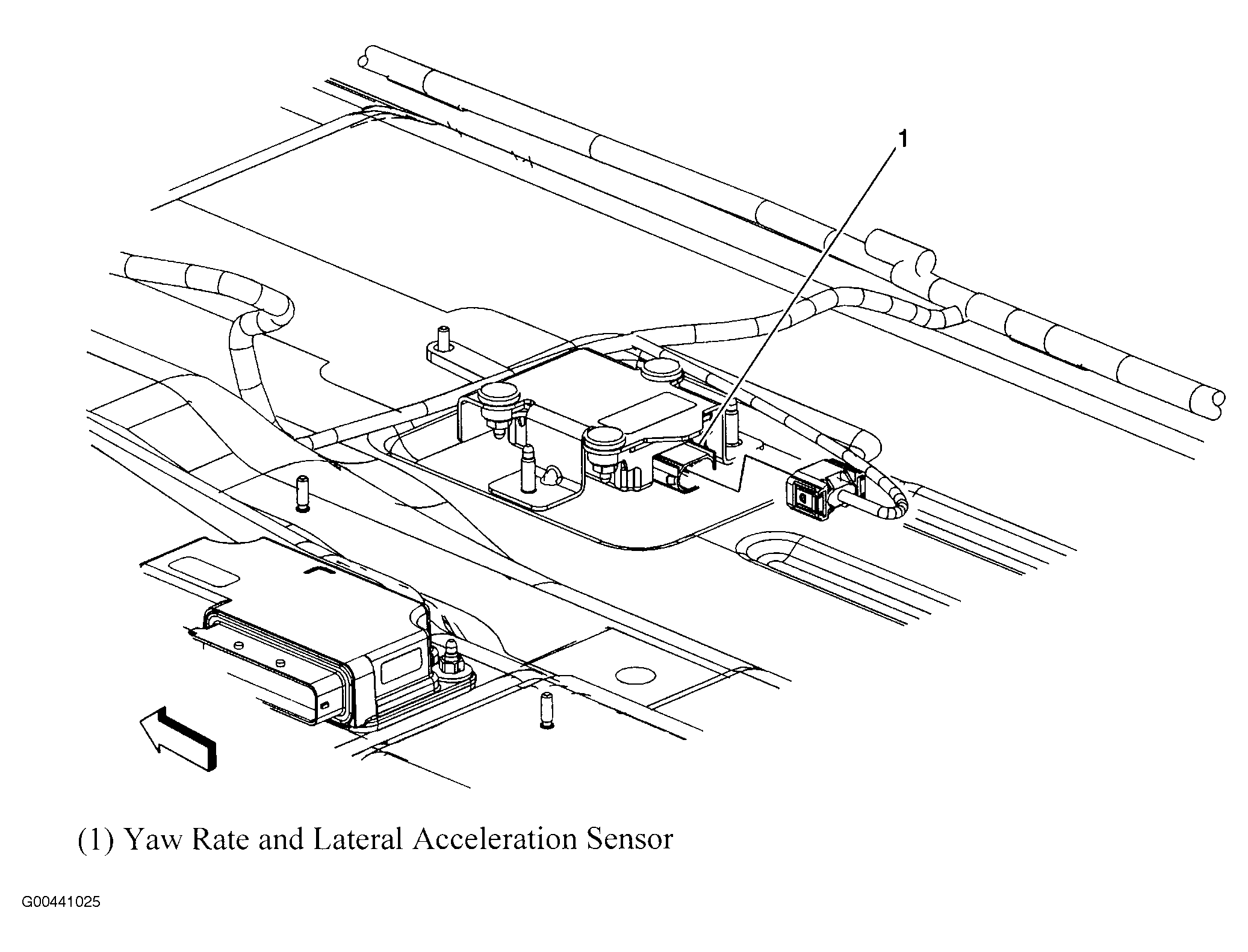

Fig 14: Center Of Floor Pan
Courtesy of GENERAL MOTORS CORP.

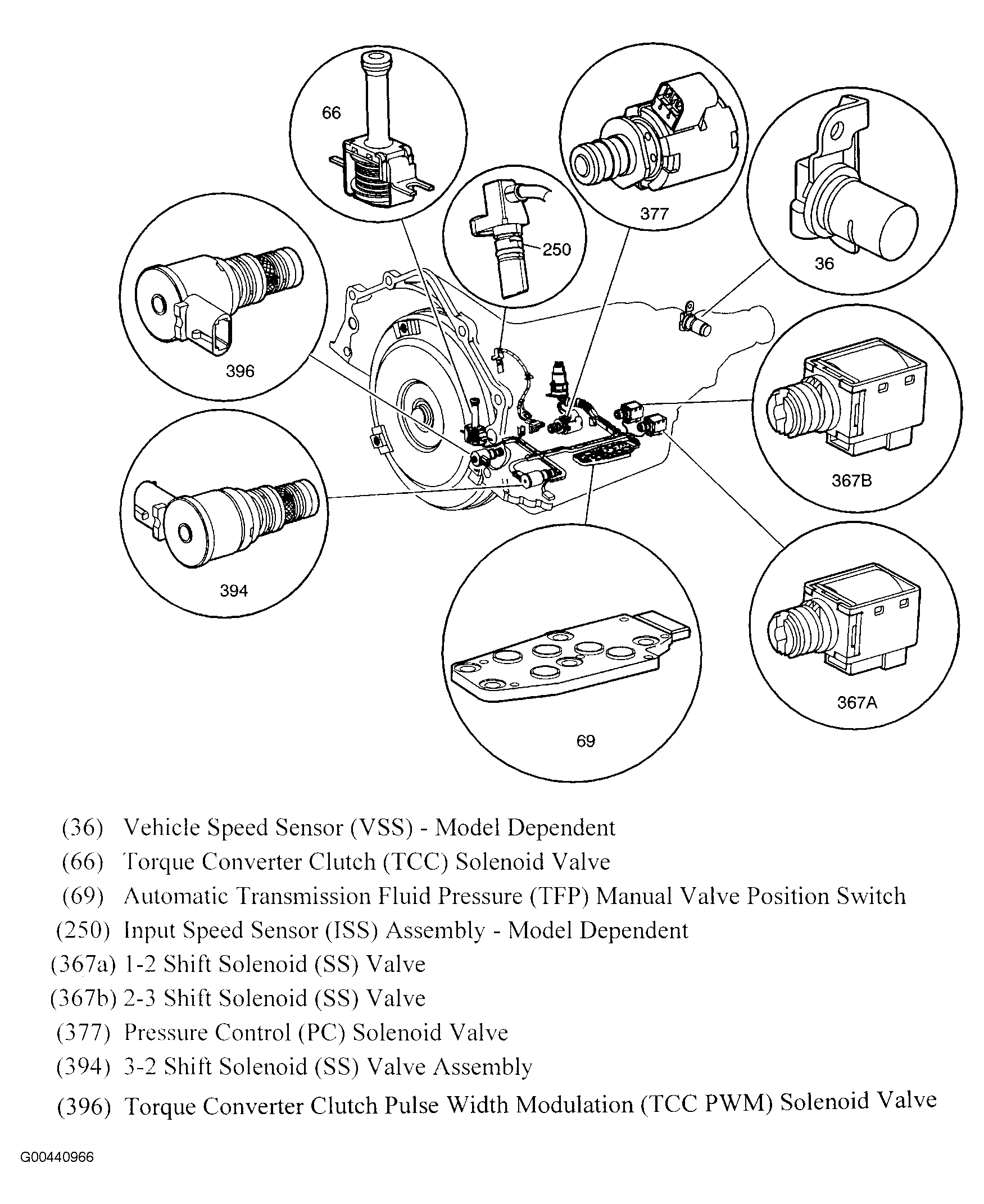

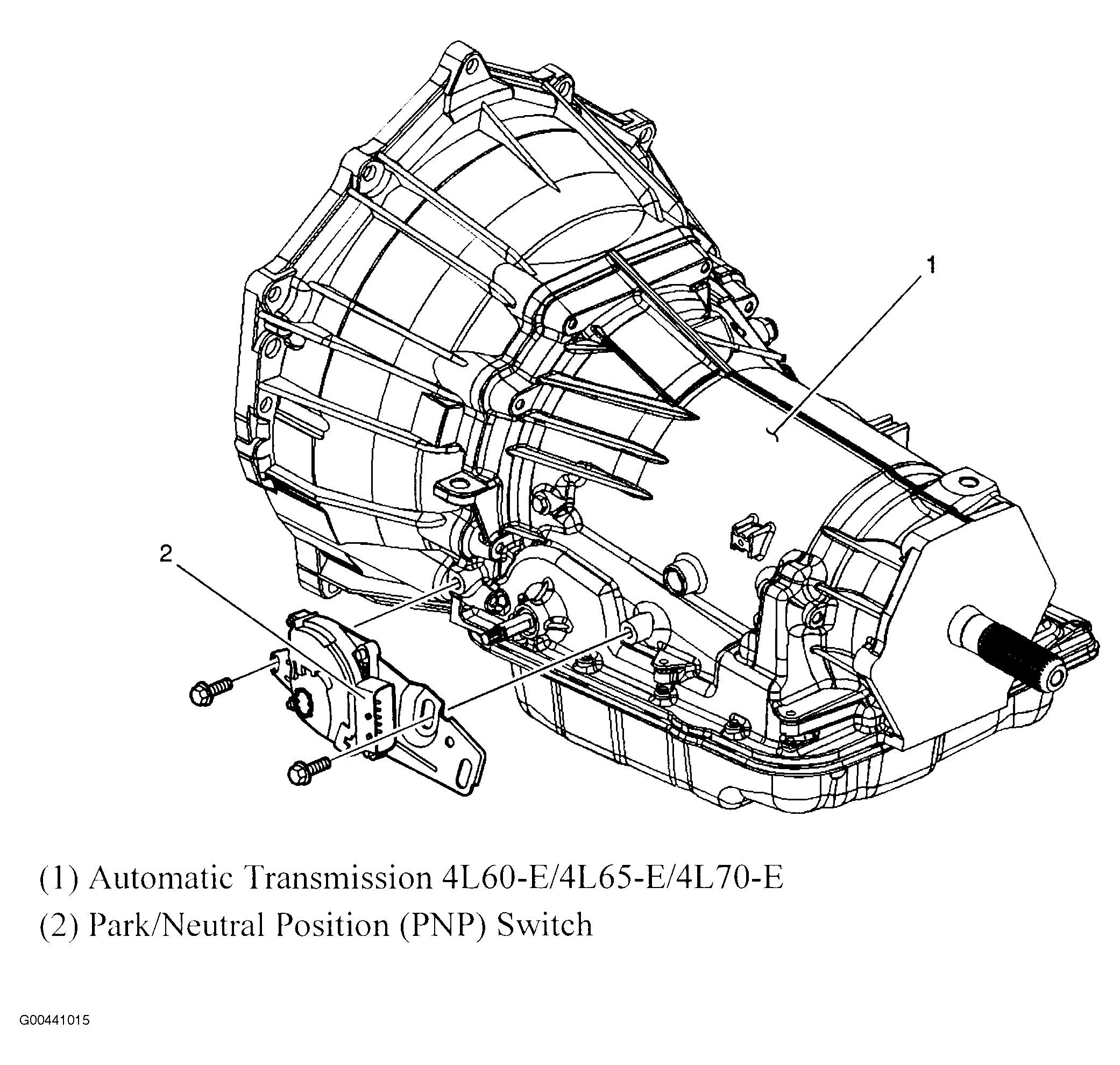

Fig 15: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.

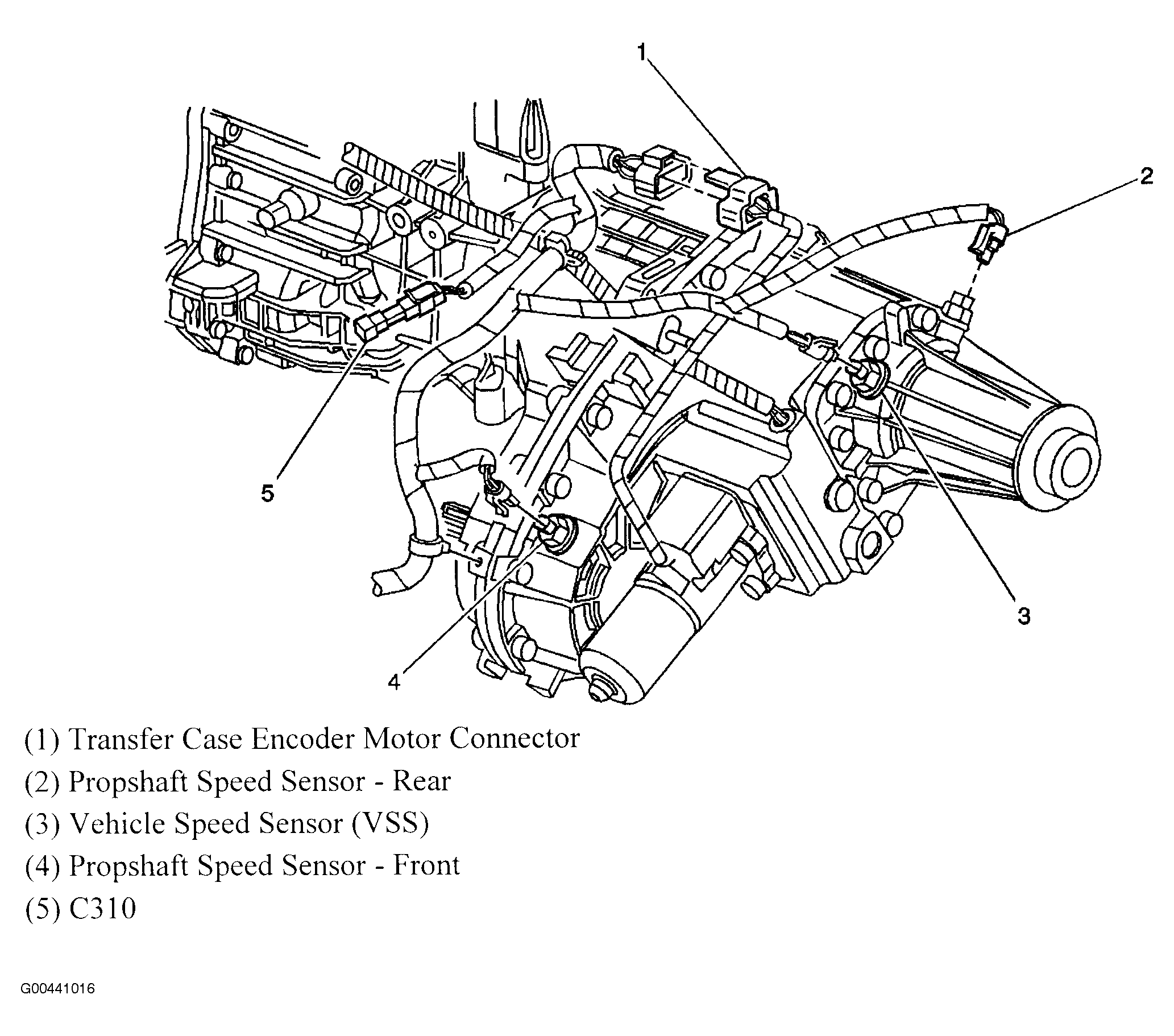

Fig 16: Transfer Case
Courtesy of GENERAL MOTORS CORP.

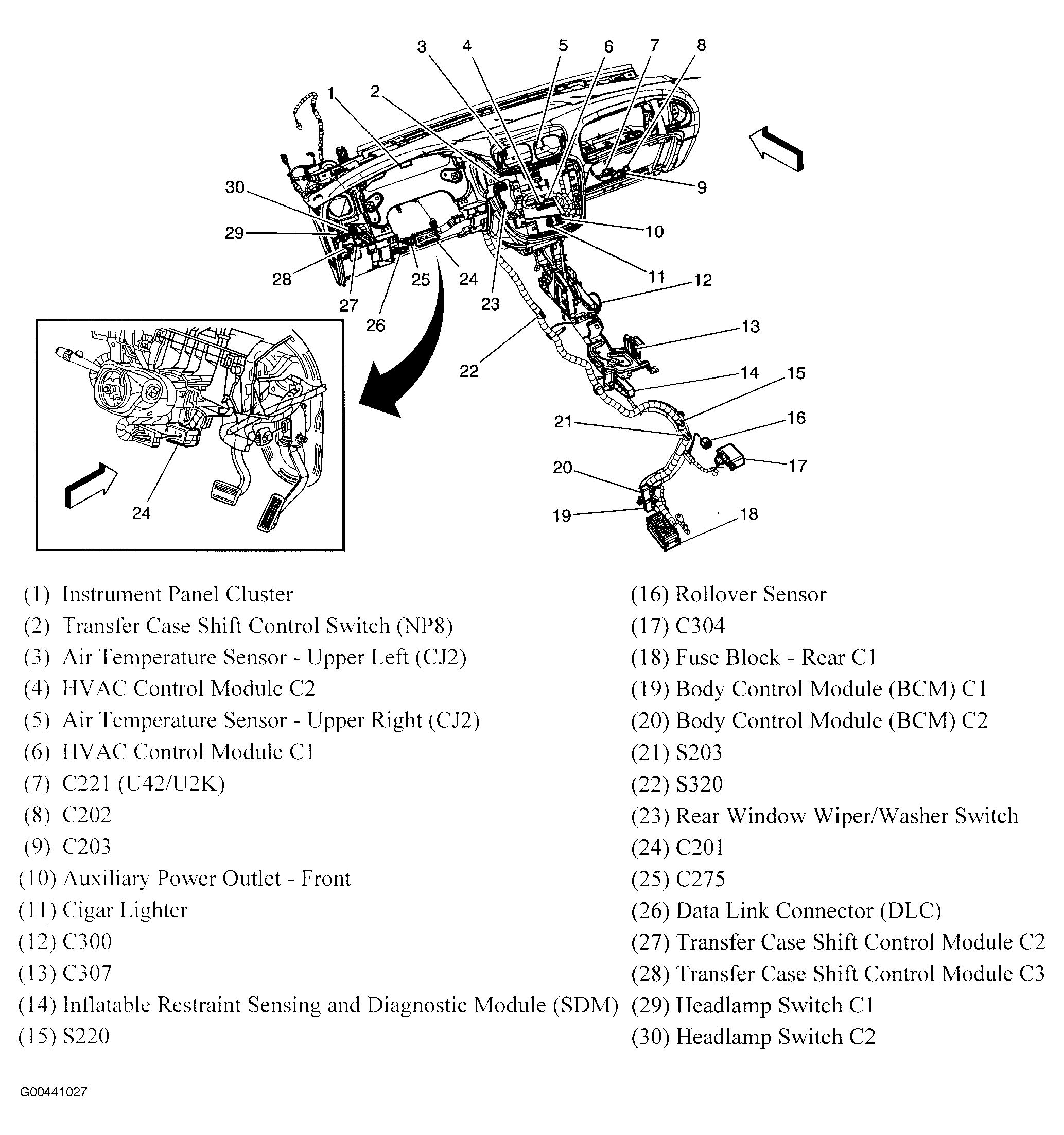

Fig 17: Dash Assembly
Courtesy of GENERAL MOTORS CORP.

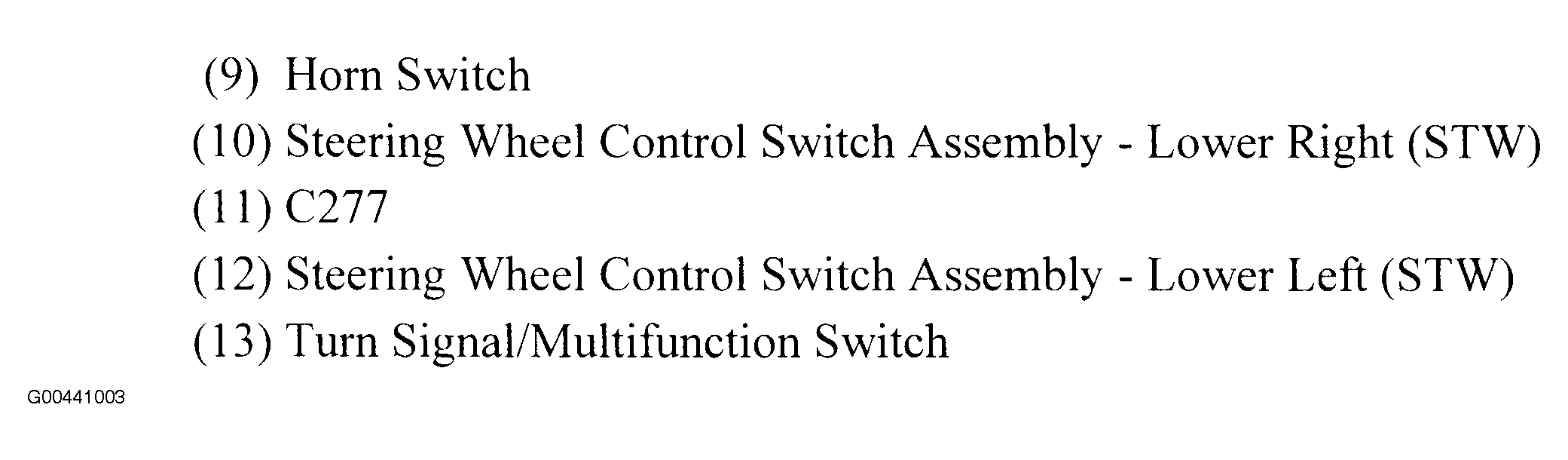

Fig 18: Steering Wheel Assembly
Courtesy of GENERAL MOTORS CORP.

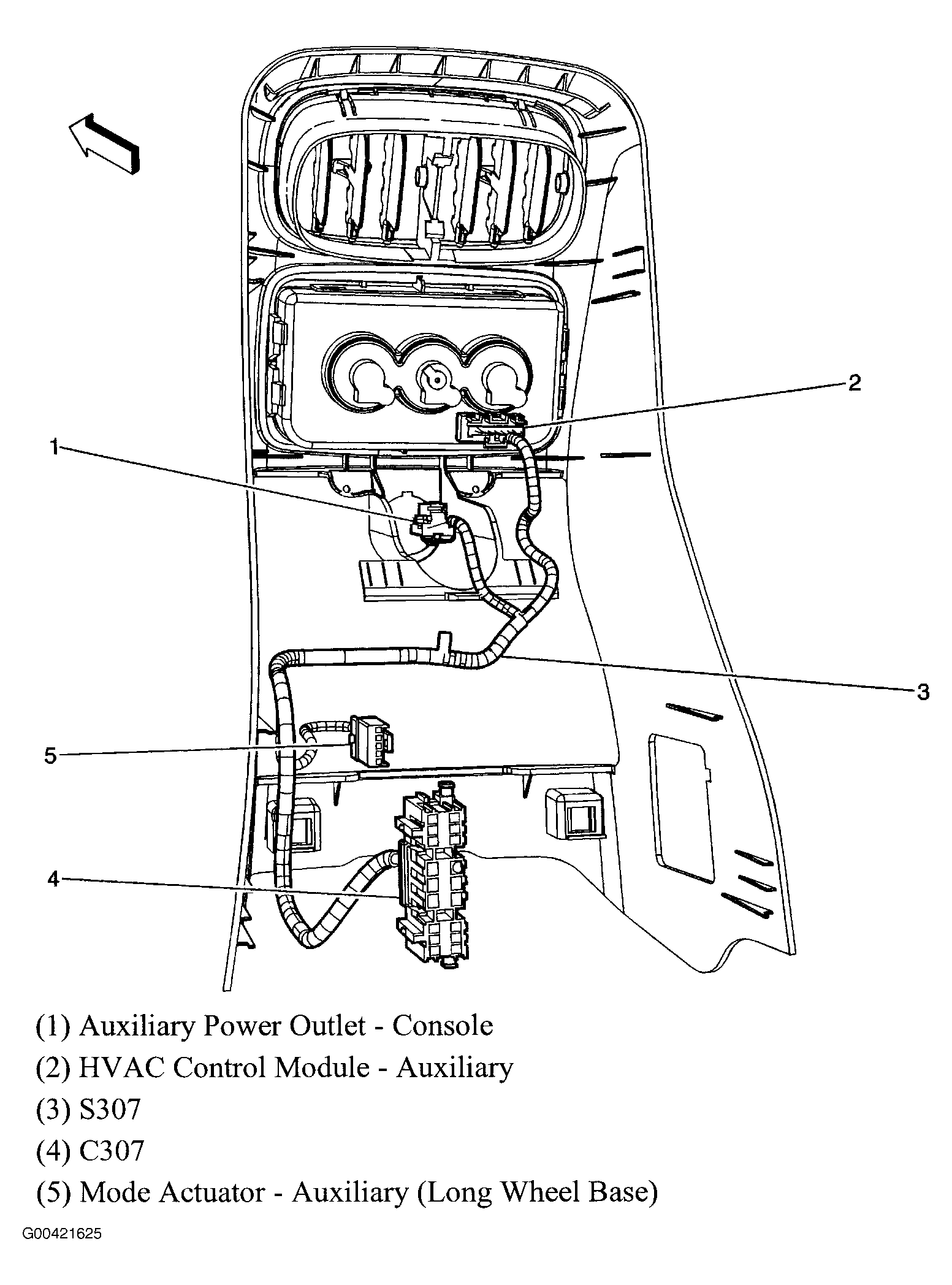

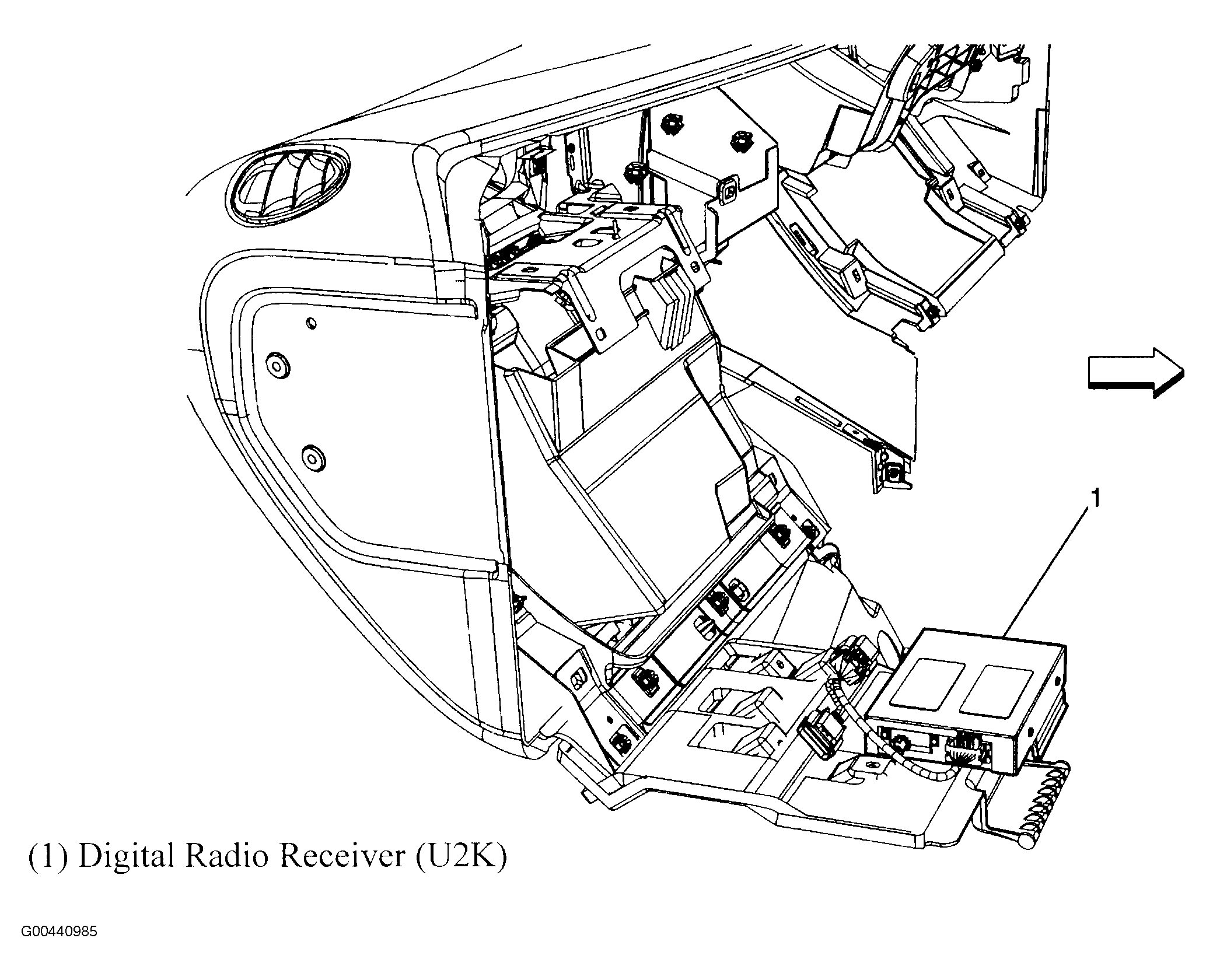

Fig 19: Lower Console
Courtesy of GENERAL MOTORS CORP.

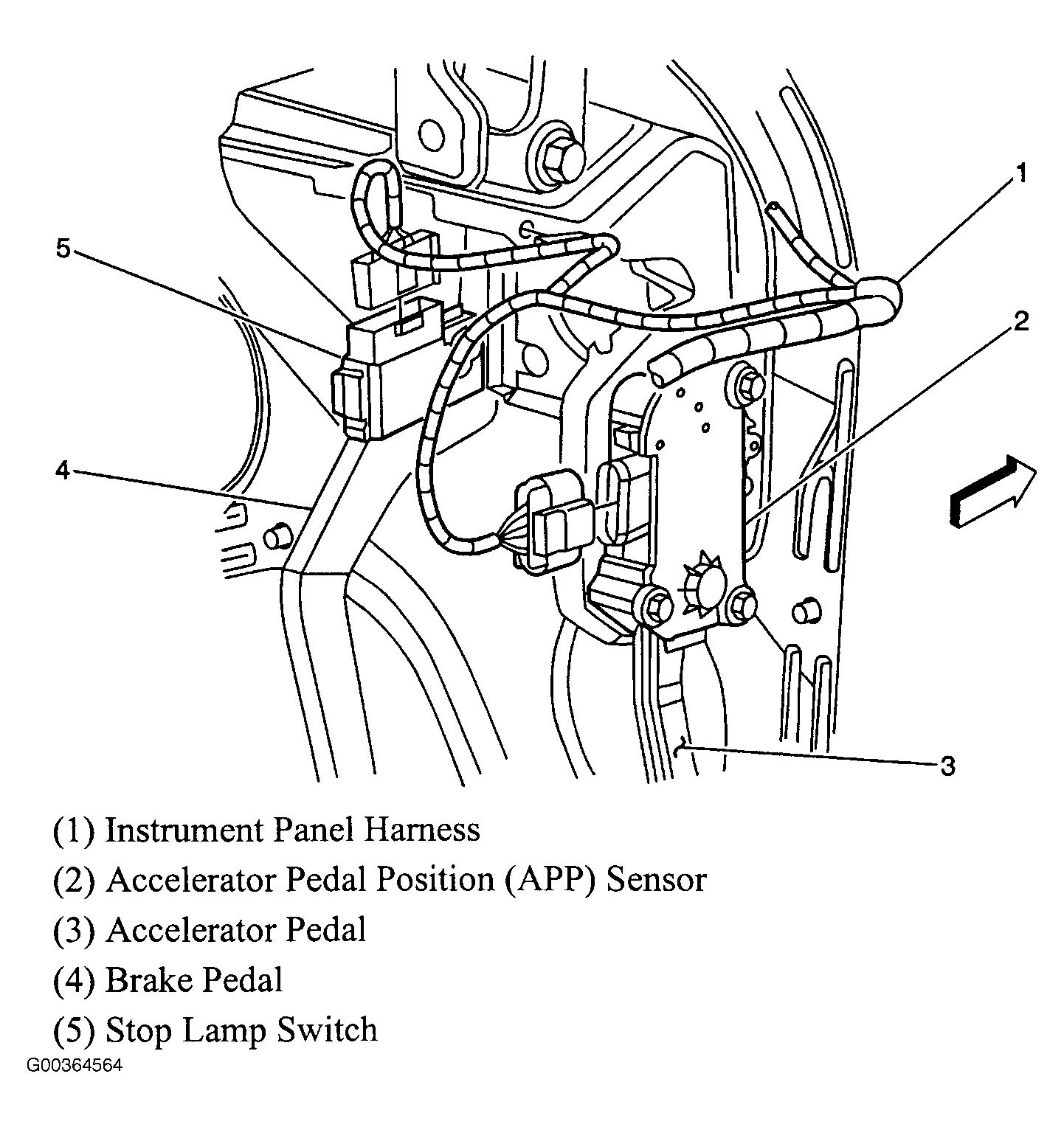

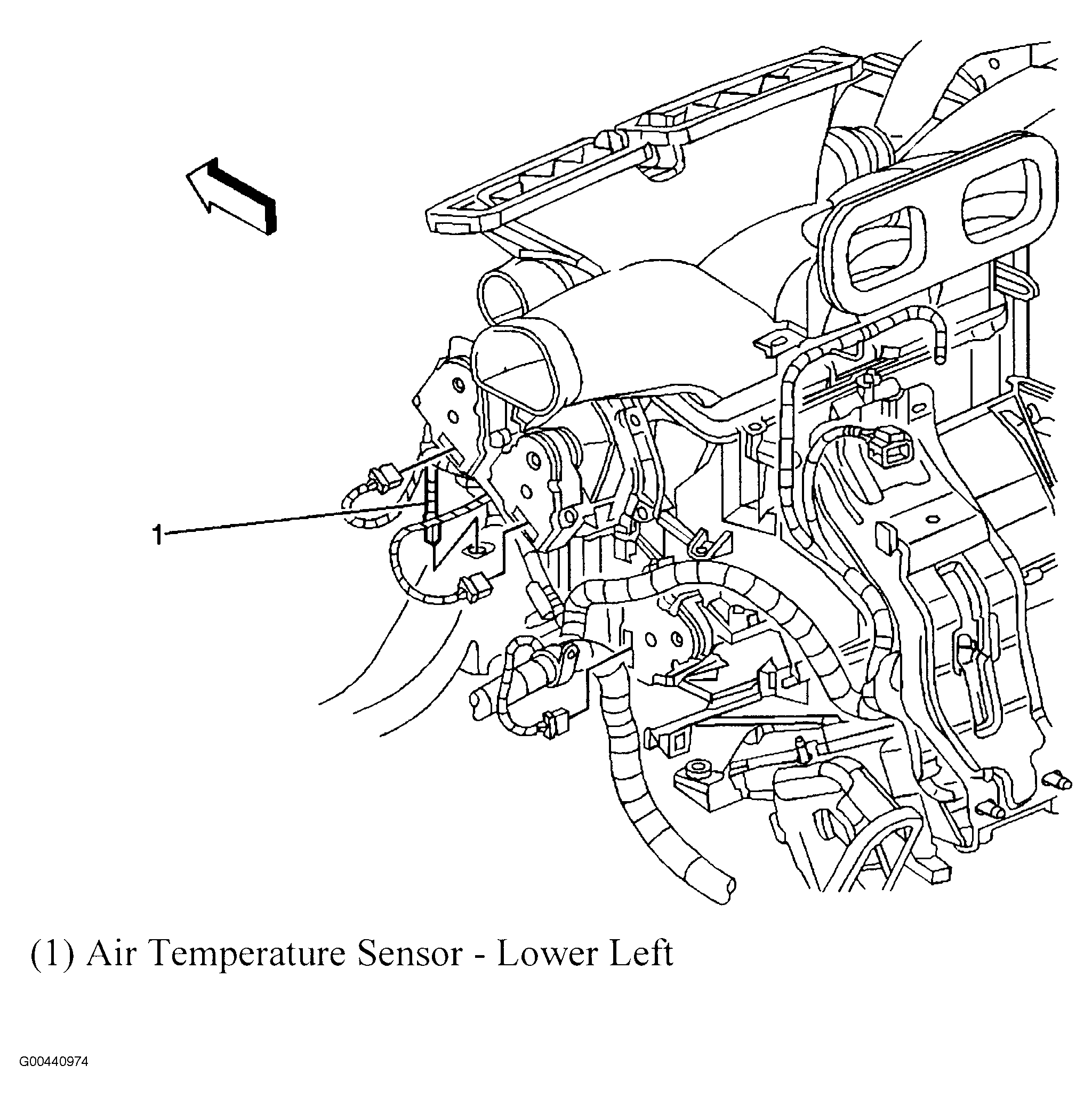

Fig 20: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

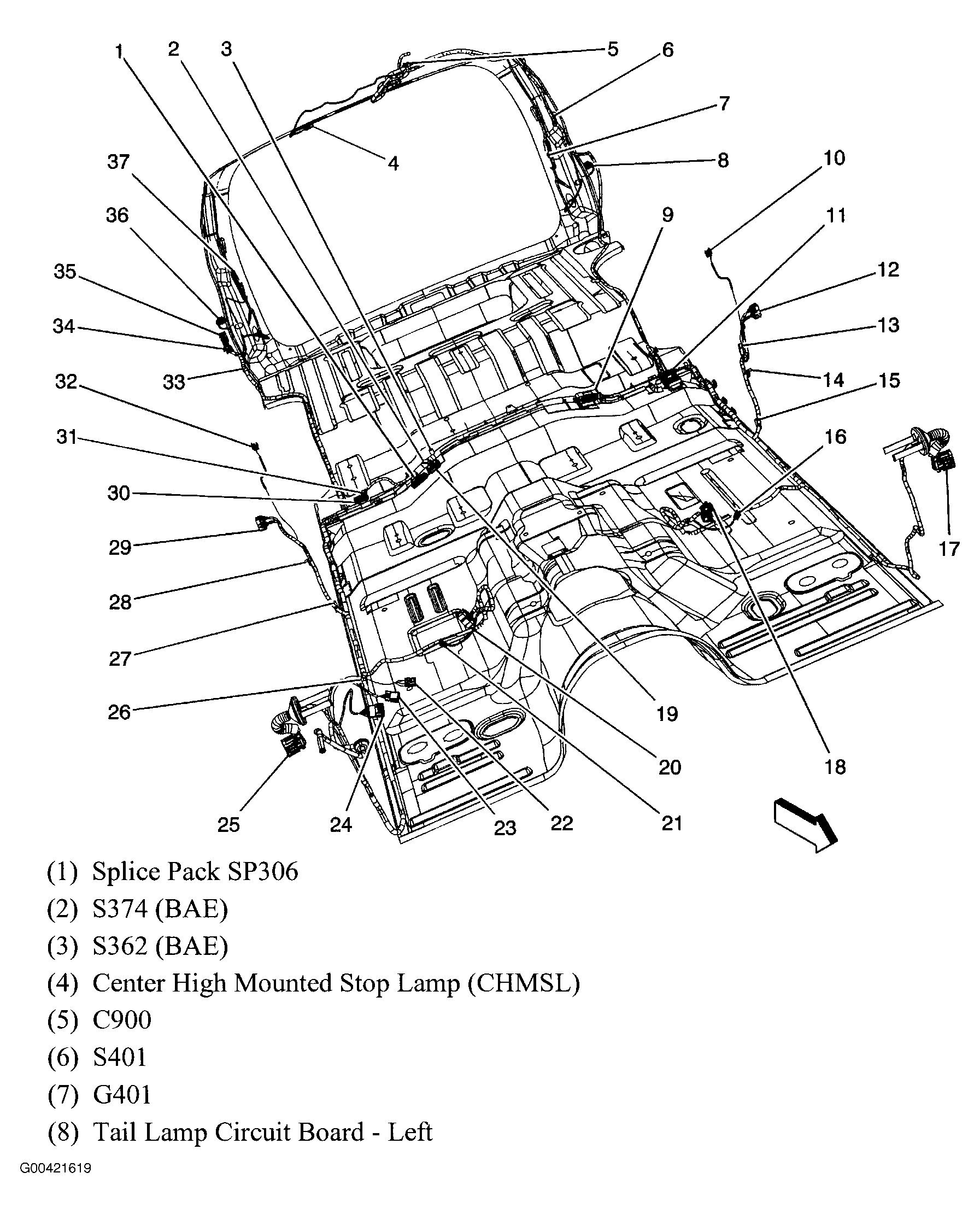

Fig 21: Rear Floor Panel
Courtesy of GENERAL MOTORS CORP.
Fig 22: Right Body Side Inner Lower Panel
Courtesy of GENERAL MOTORS CORP.
Fig 23: Liftgate
Courtesy of GENERAL MOTORS CORP.
Fig 24: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 25: Center Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

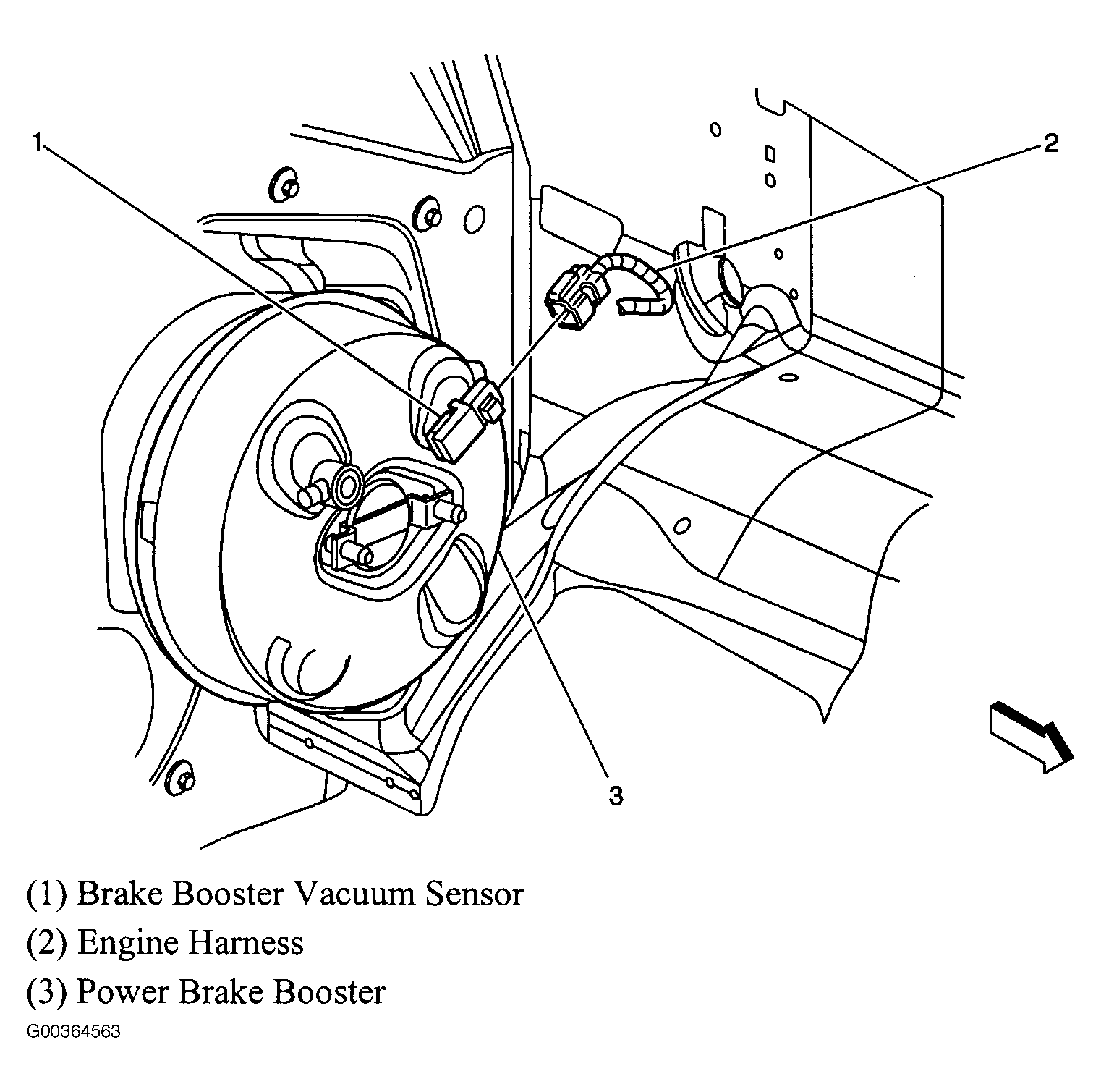

Fig 26: Power Brake Booster
Courtesy of GENERAL MOTORS CORP.
Fig 27: Under Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 28: Fuel Tank
Courtesy of GENERAL MOTORS CORP.

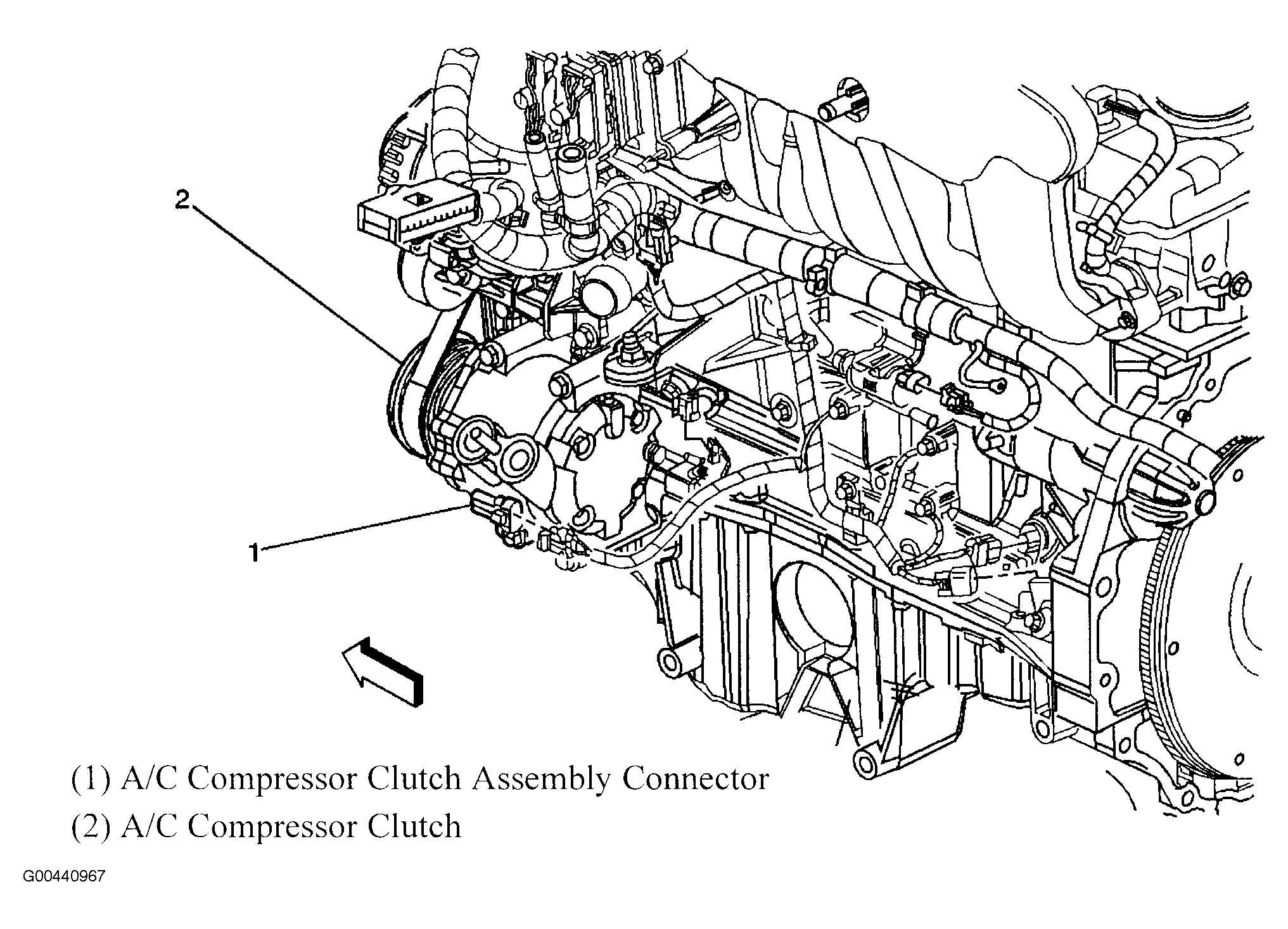

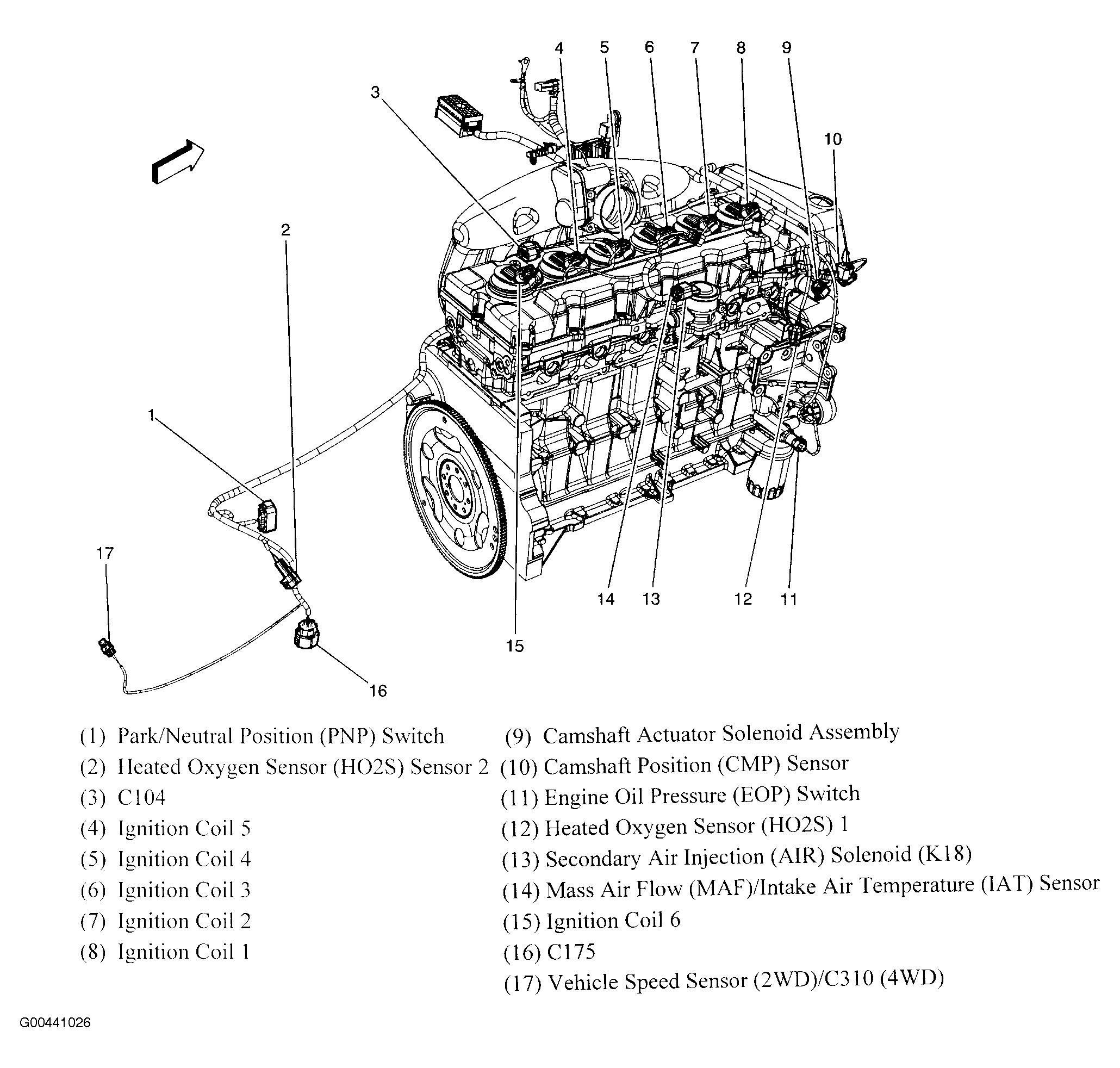

Fig 29: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

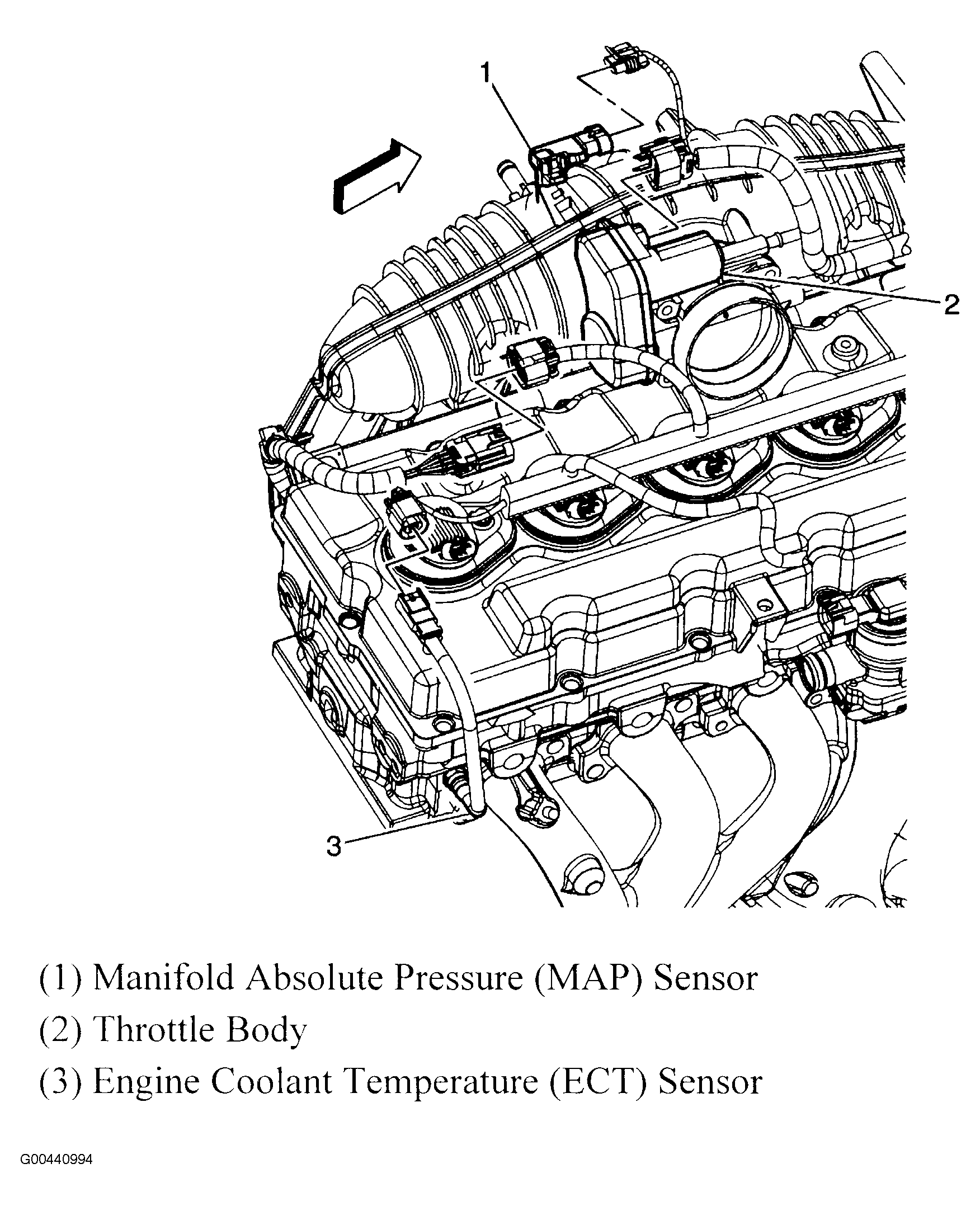

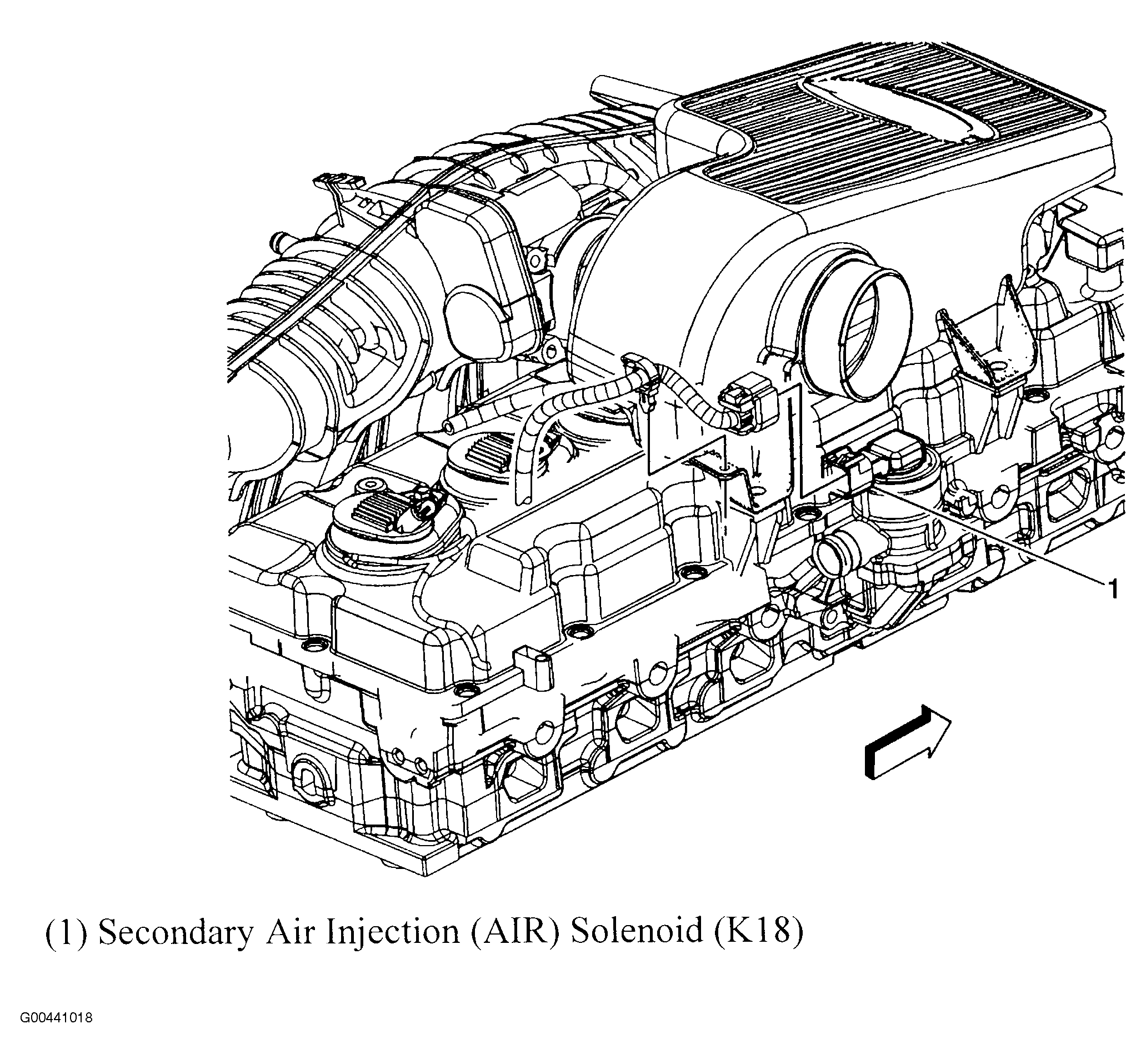

Fig 30: Top Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 31: Right Side Of Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 32: Left Front Of Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 33: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 34: Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

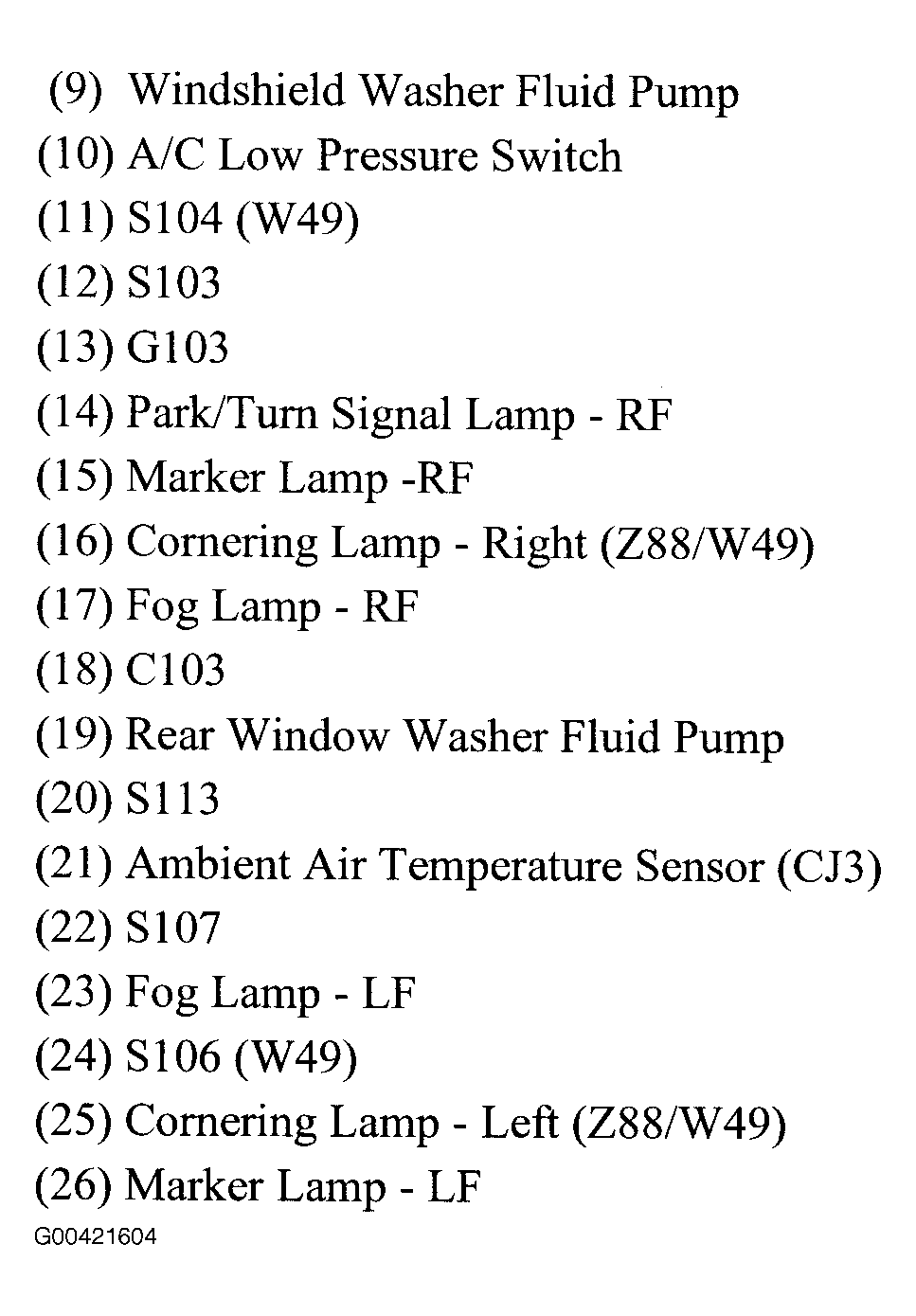

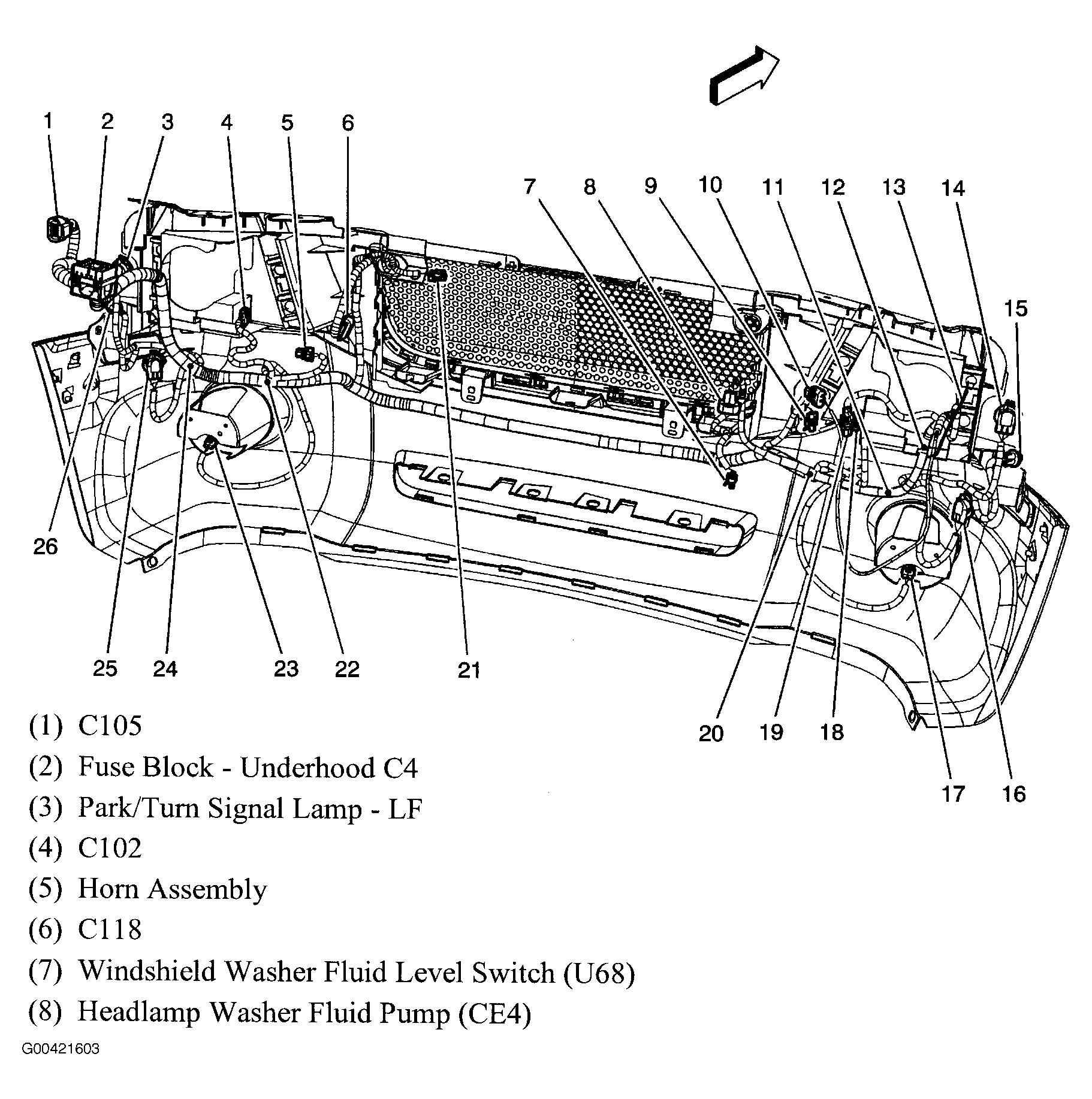

Fig 35: Rear Of Front Fascia (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Rear Of Front Fascia (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

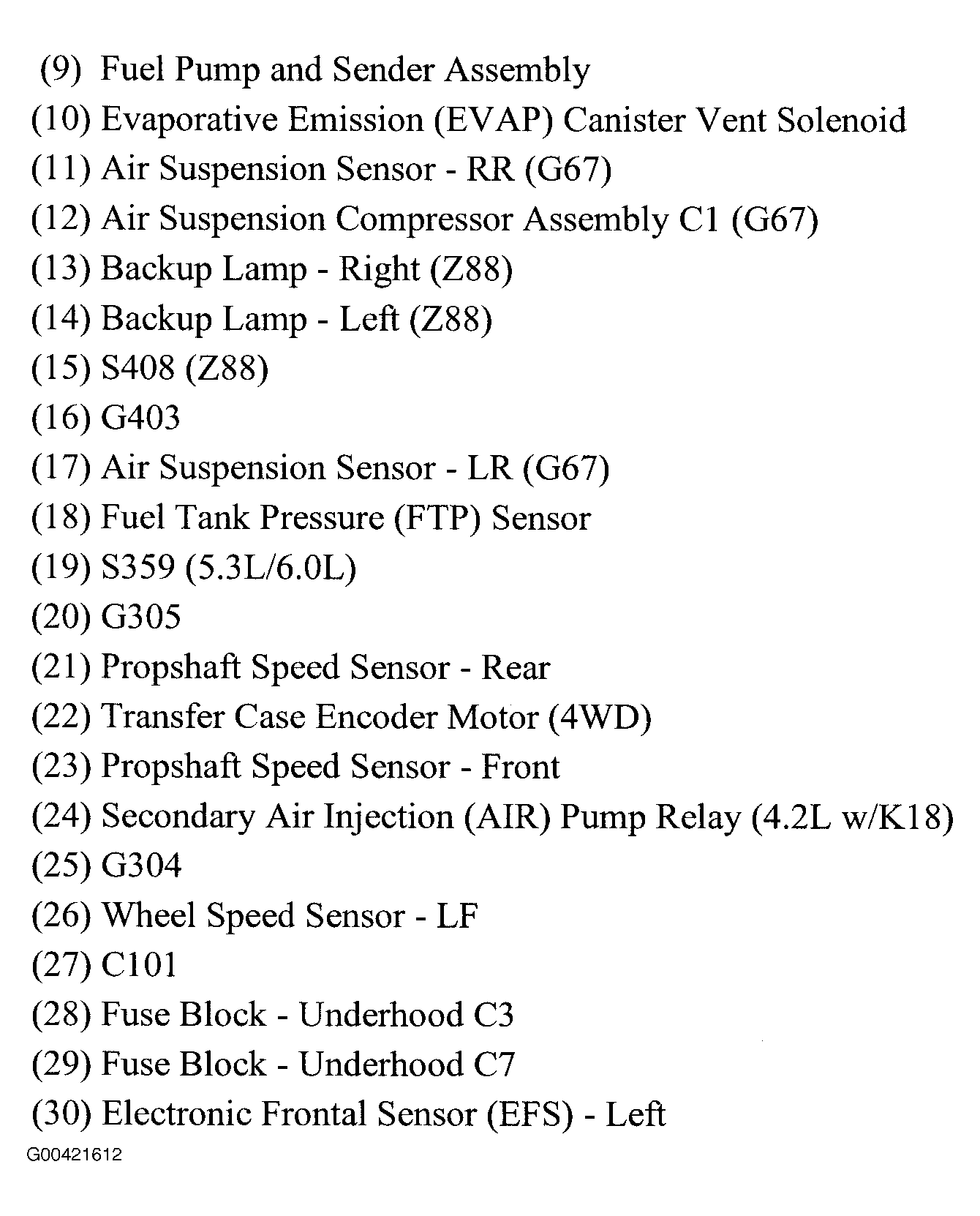

Fig 37: Chassis (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 38: Chassis (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

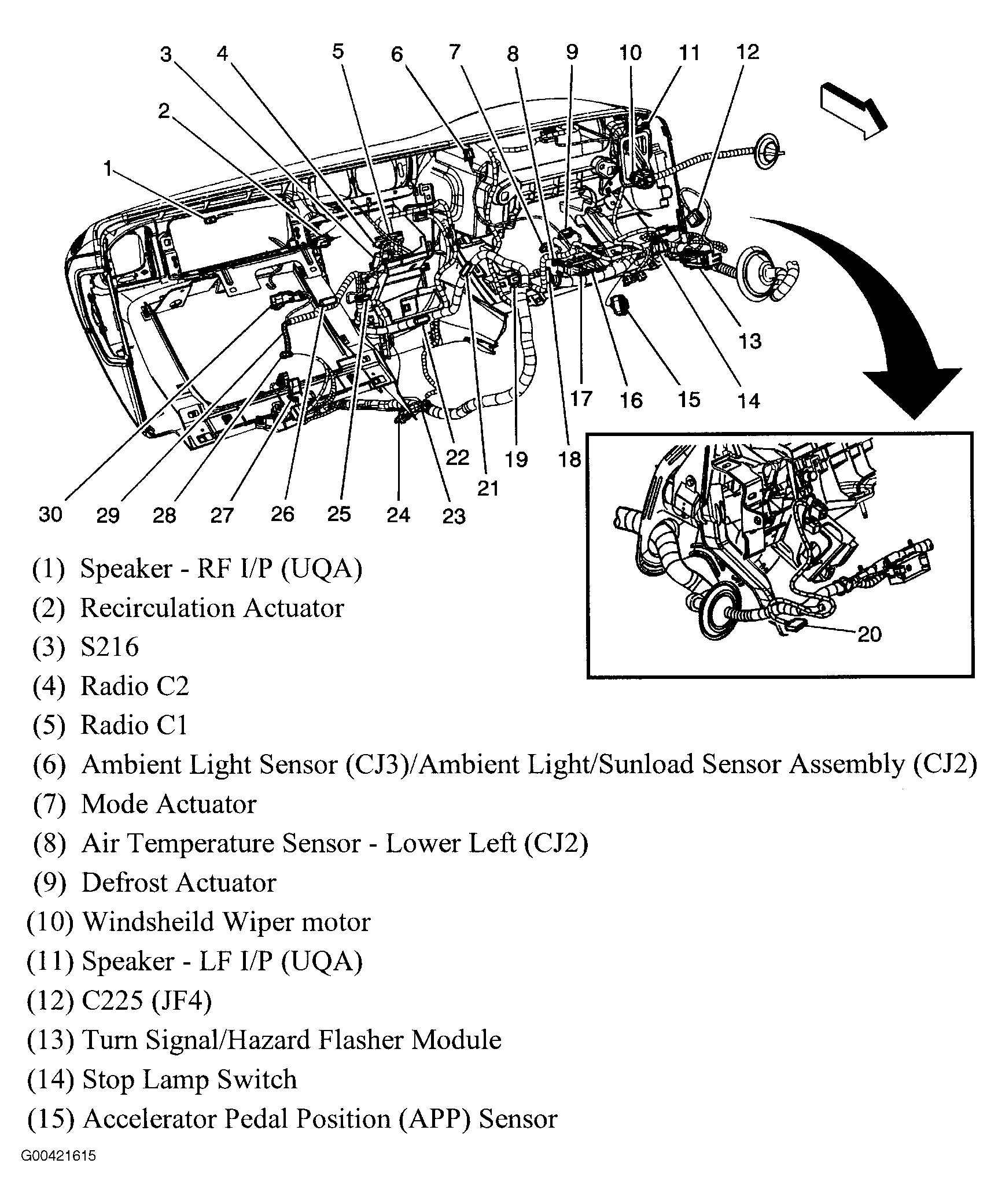

Fig 39: Rear Of Dash (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

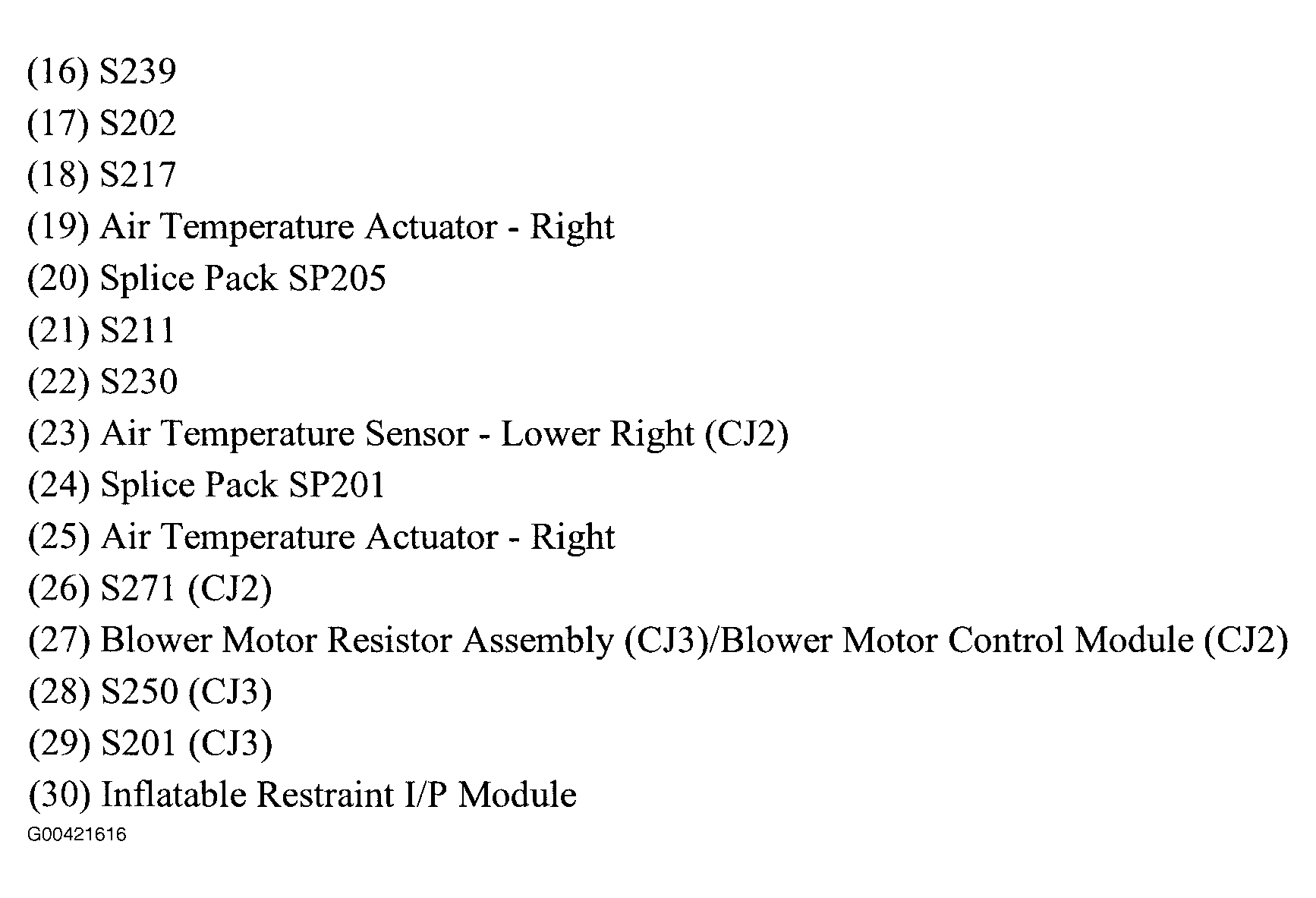

Fig 40: Rear Of Dash (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Passenger Compartment (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

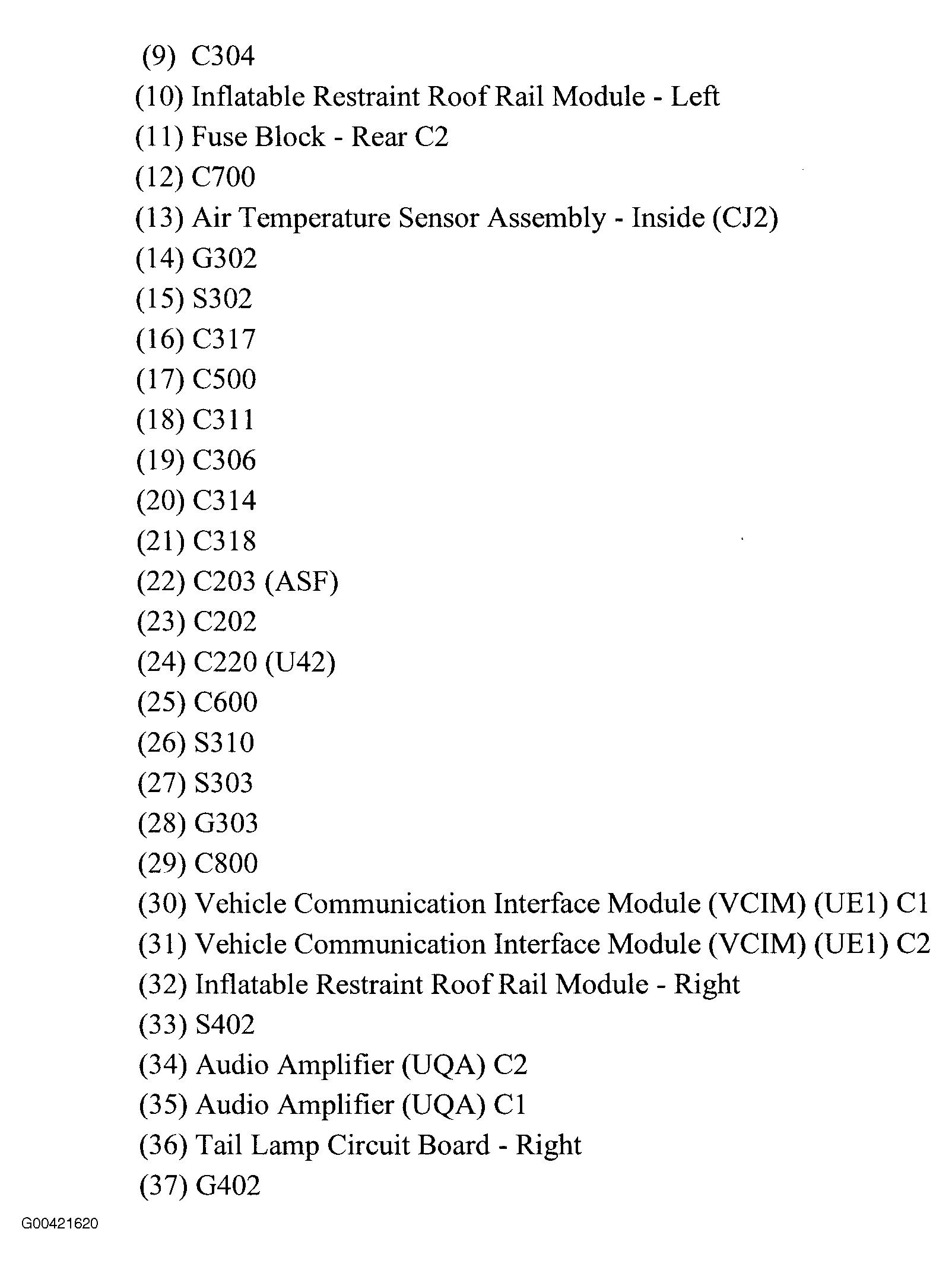

Fig 42: Passenger Compartment (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

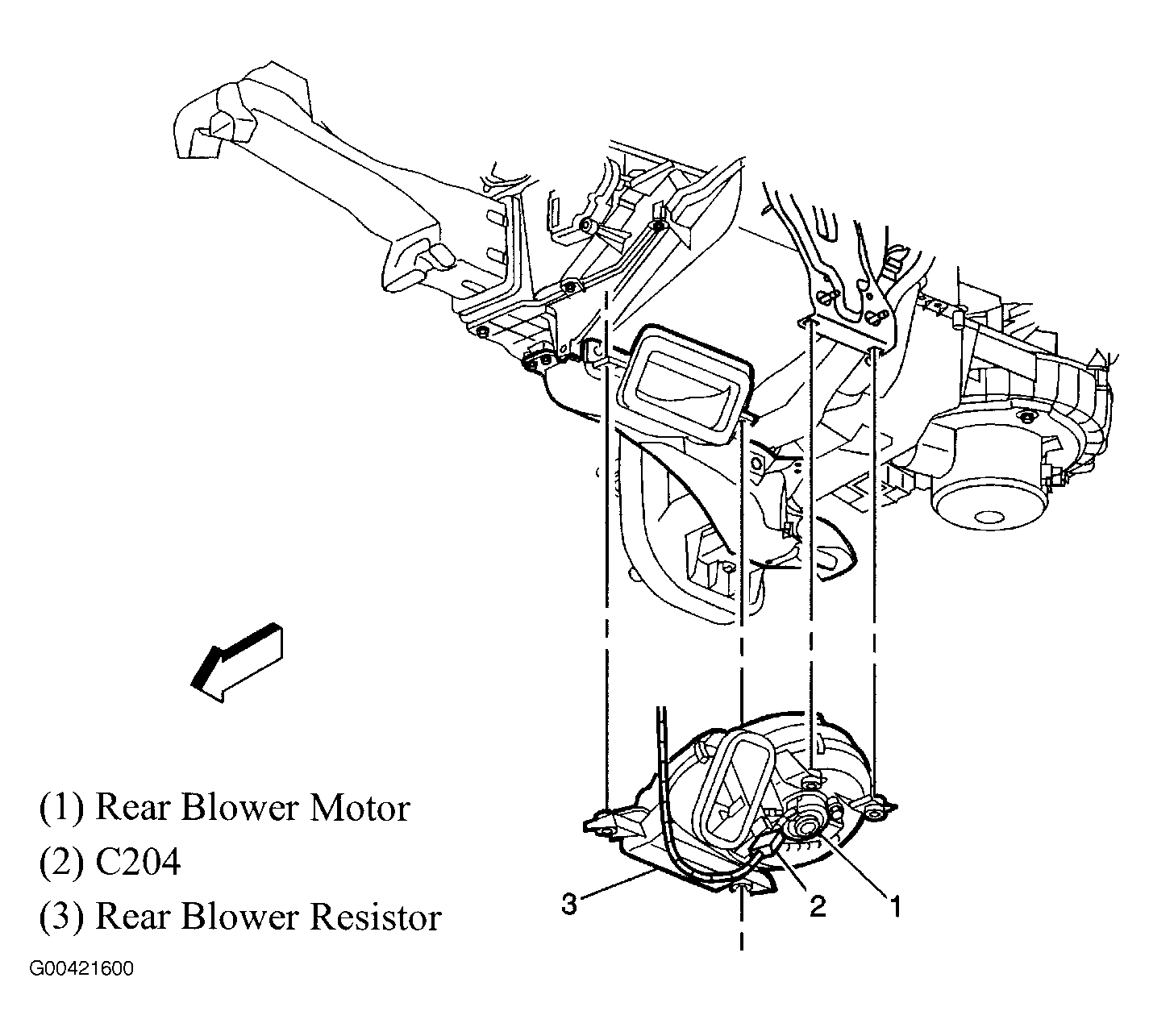

Fig 43: Under Floor Console
Courtesy of GENERAL MOTORS CORP.
Fig 44: Electronic Components
Courtesy of GENERAL MOTORS CORP.
Fig 45: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

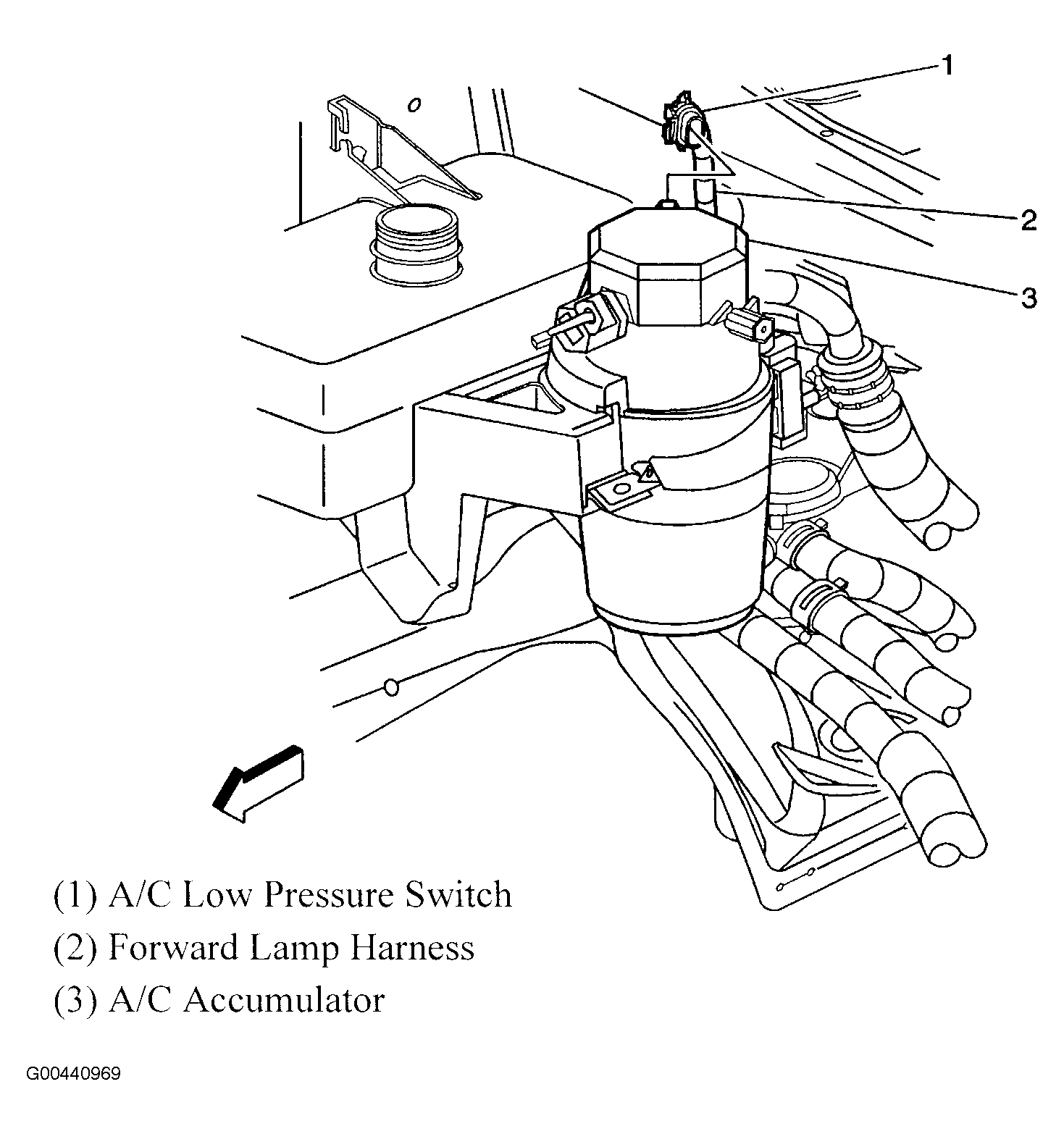

Fig 46: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 47: Left Front Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 48: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 49: Right Side Of Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.

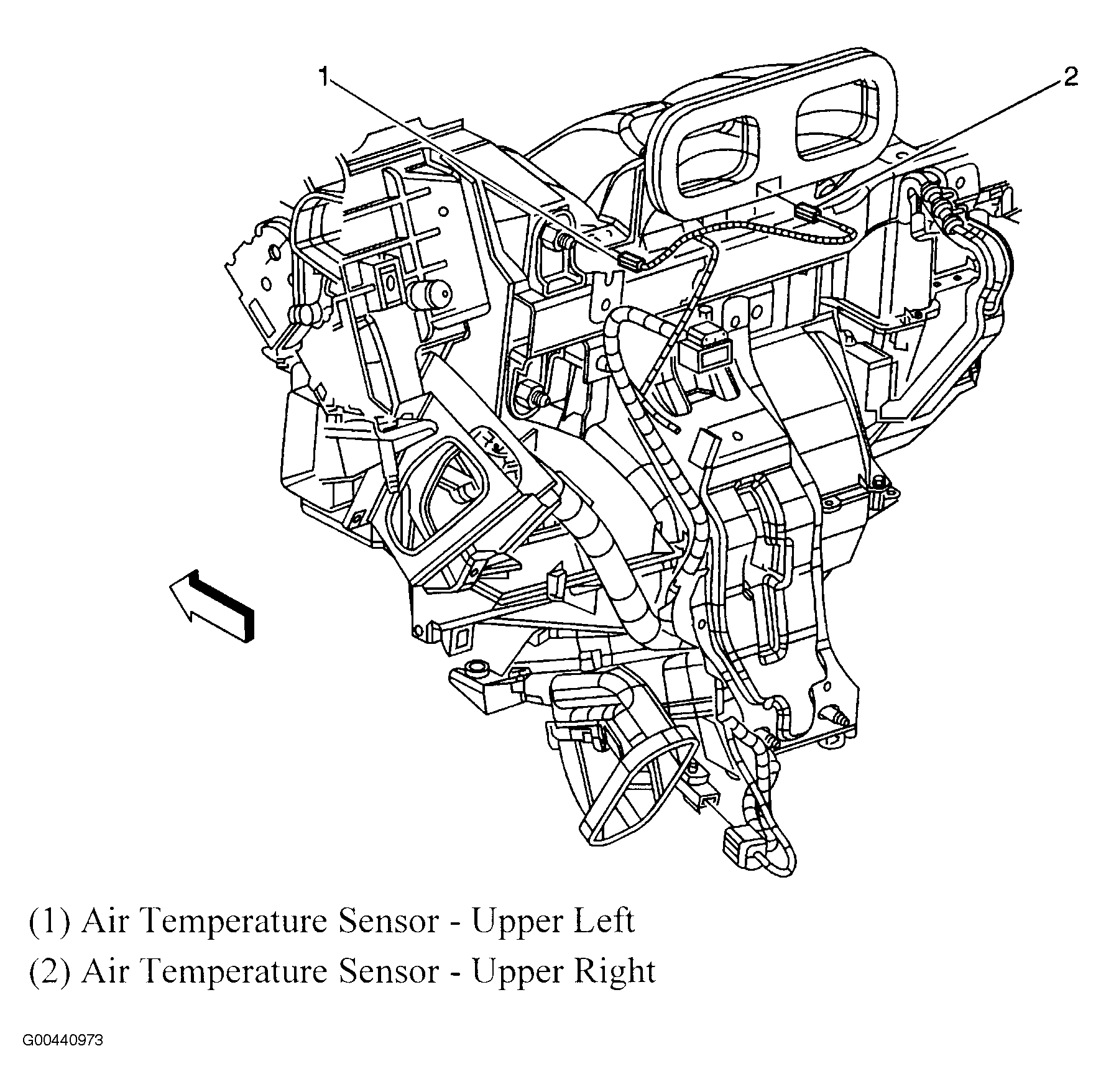

Fig 50: Air Duct In Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 51: Center Section Of Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 52: Dash Panel
Courtesy of GENERAL MOTORS CORP.
Fig 53: Battery
Courtesy of GENERAL MOTORS CORP.

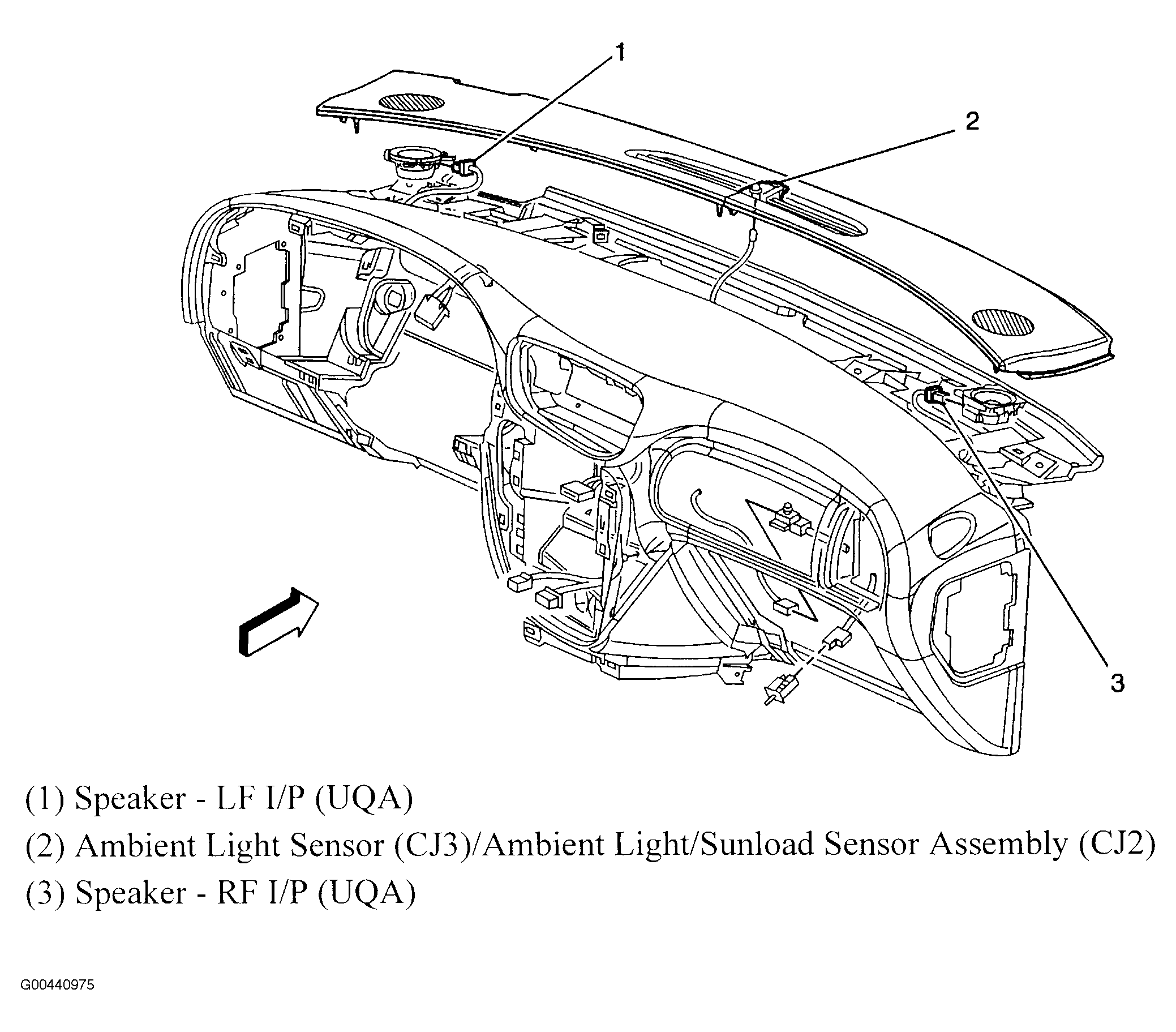

Fig 54: Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.

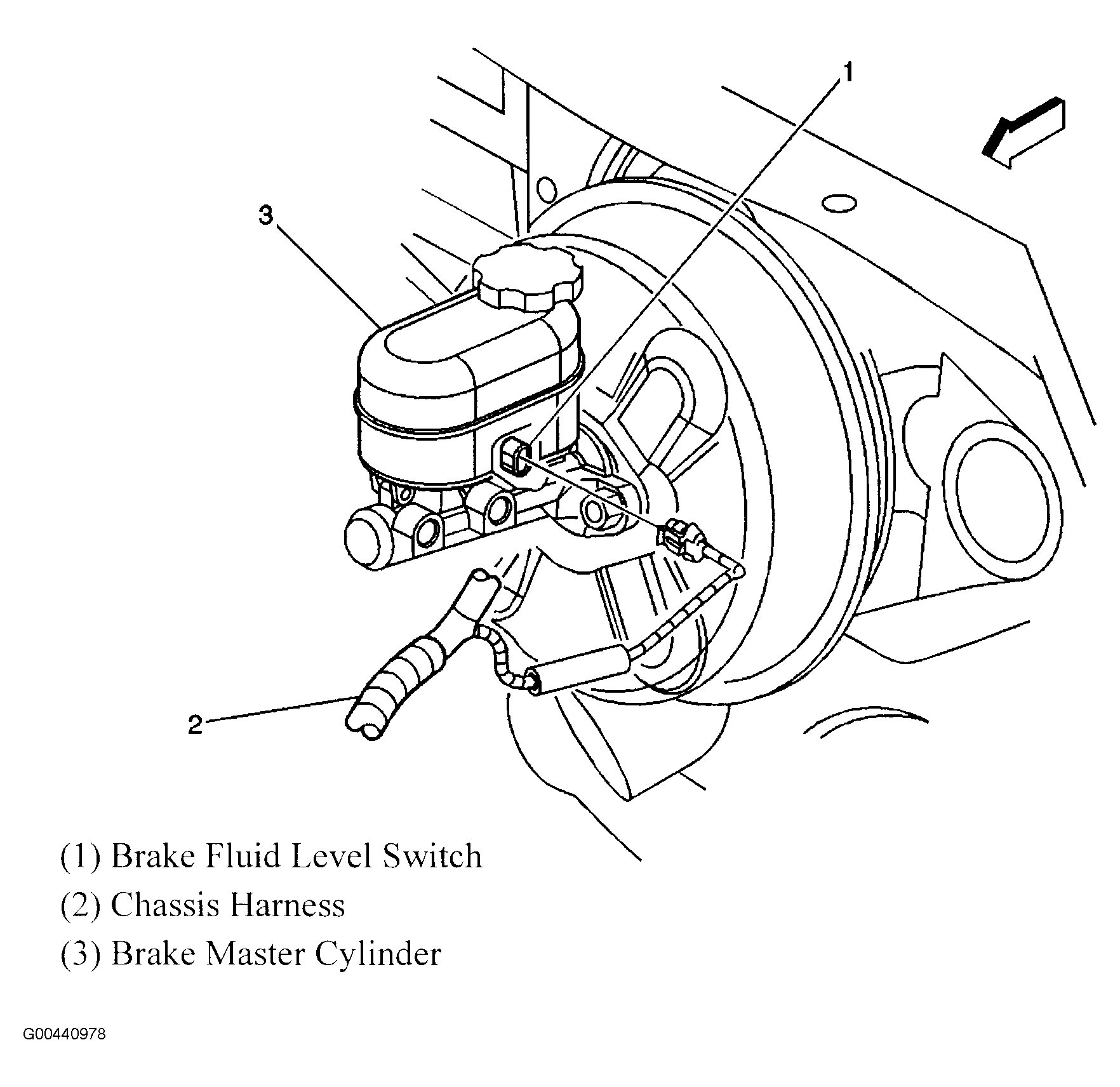

Fig 55: Brake Fluid Level Switch
Courtesy of GENERAL MOTORS CORP.
Fig 56: Right Front Side Of Engine
Courtesy of GENERAL MOTORS CORP.

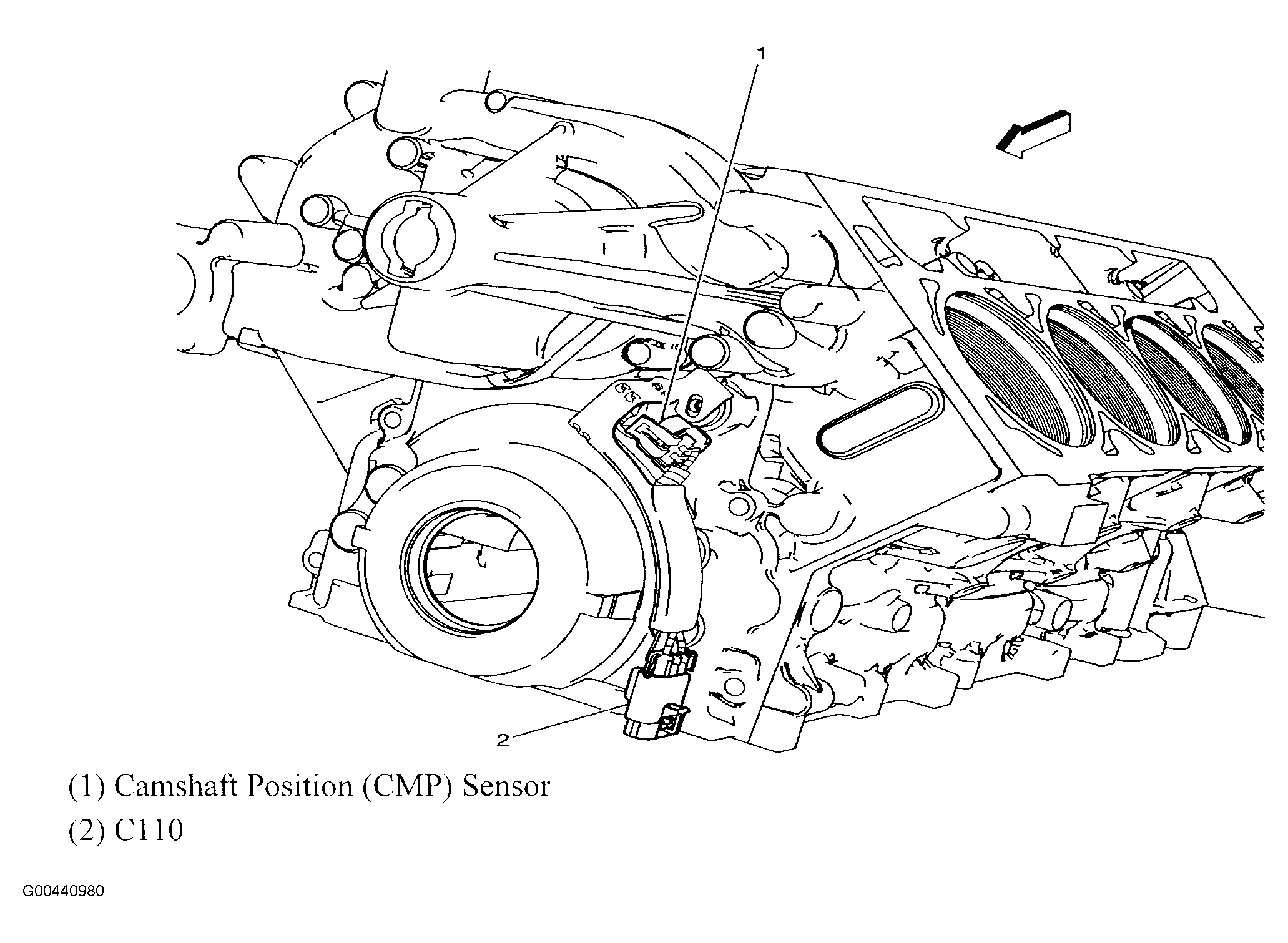

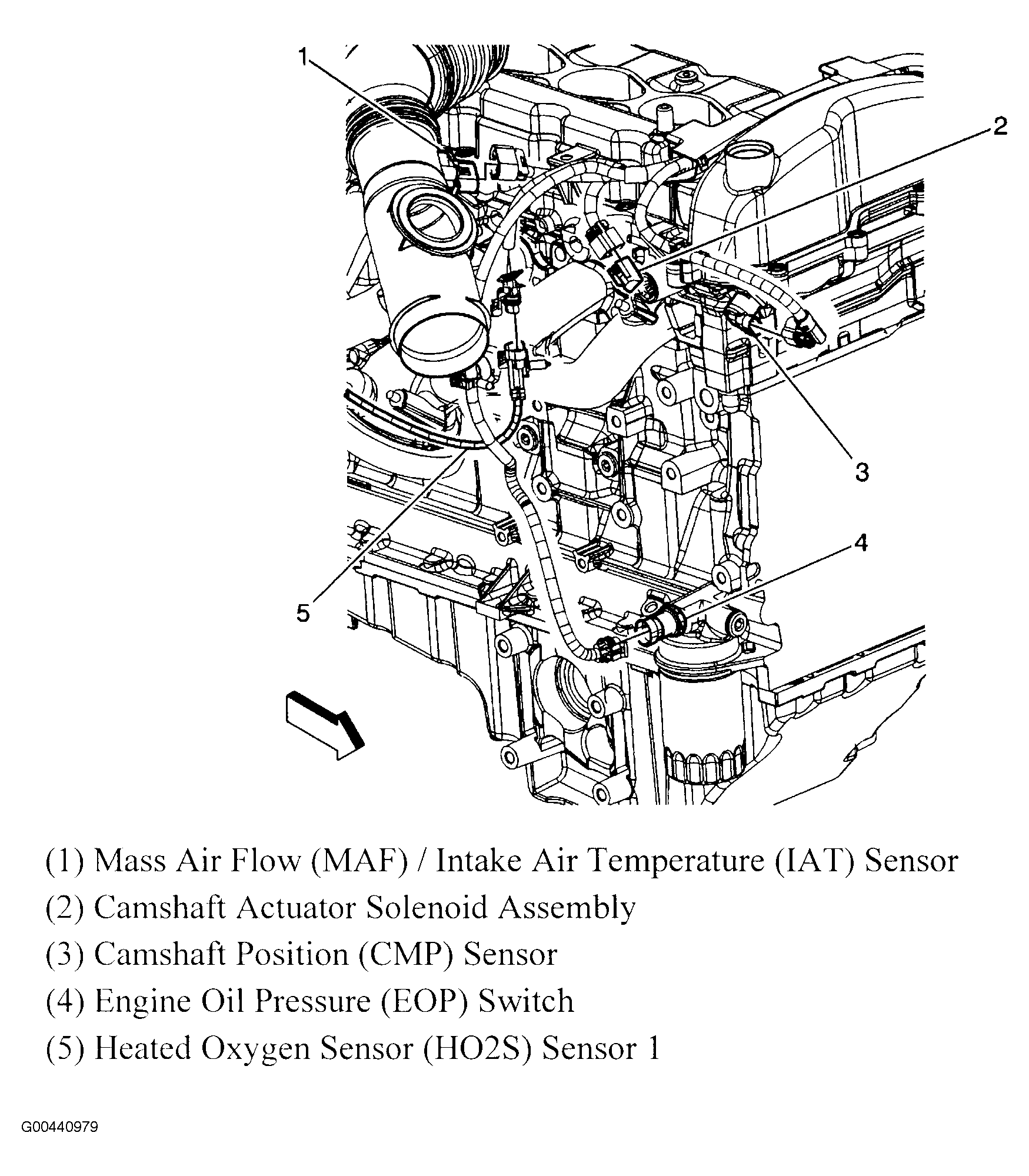

Fig 57: Camshaft Position (CMP) Sensor
Courtesy of GENERAL MOTORS CORP.

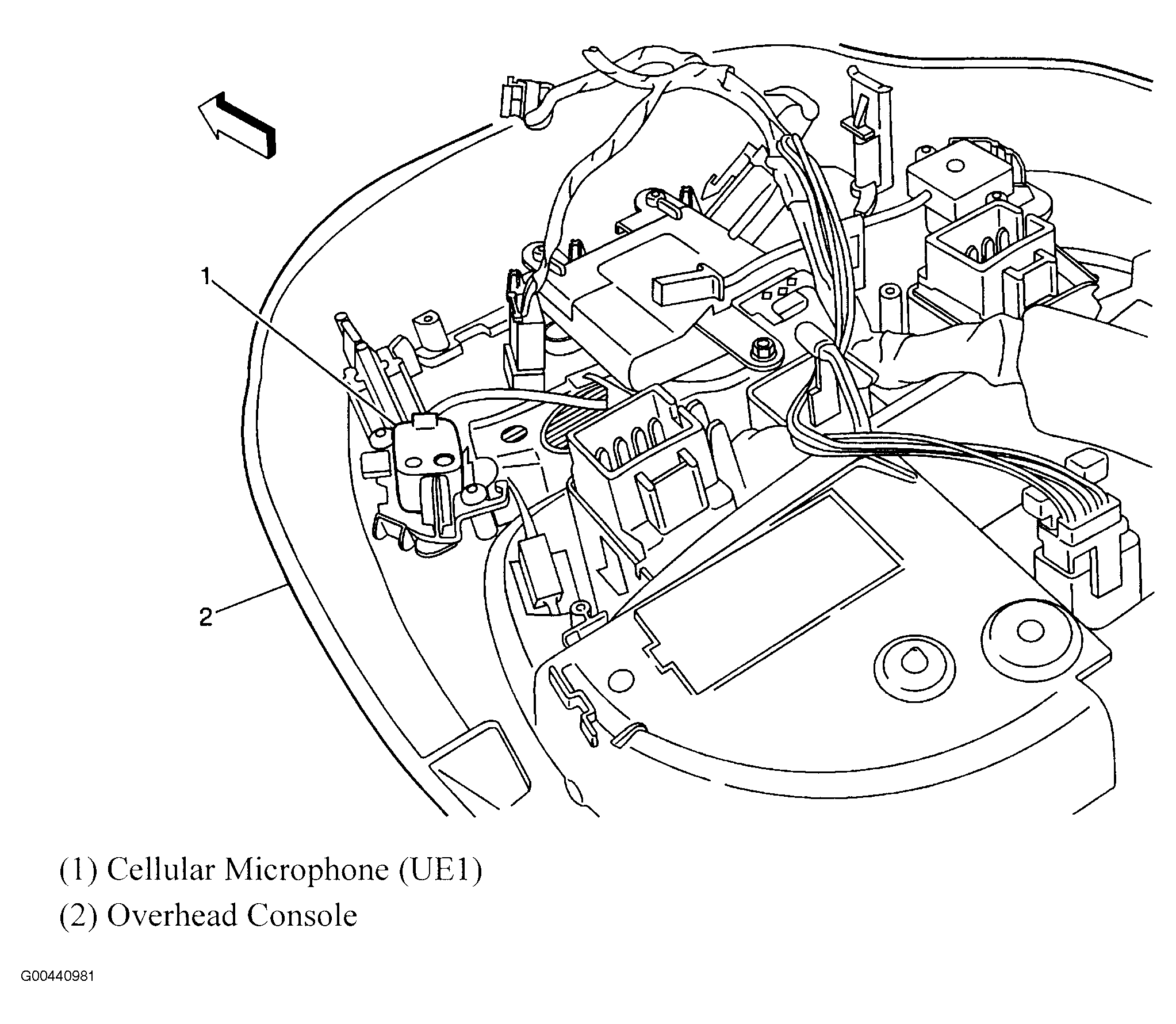

Fig 58: Overhead Console
Courtesy of GENERAL MOTORS CORP.
Fig 59: Lower Console
Courtesy of GENERAL MOTORS CORP.

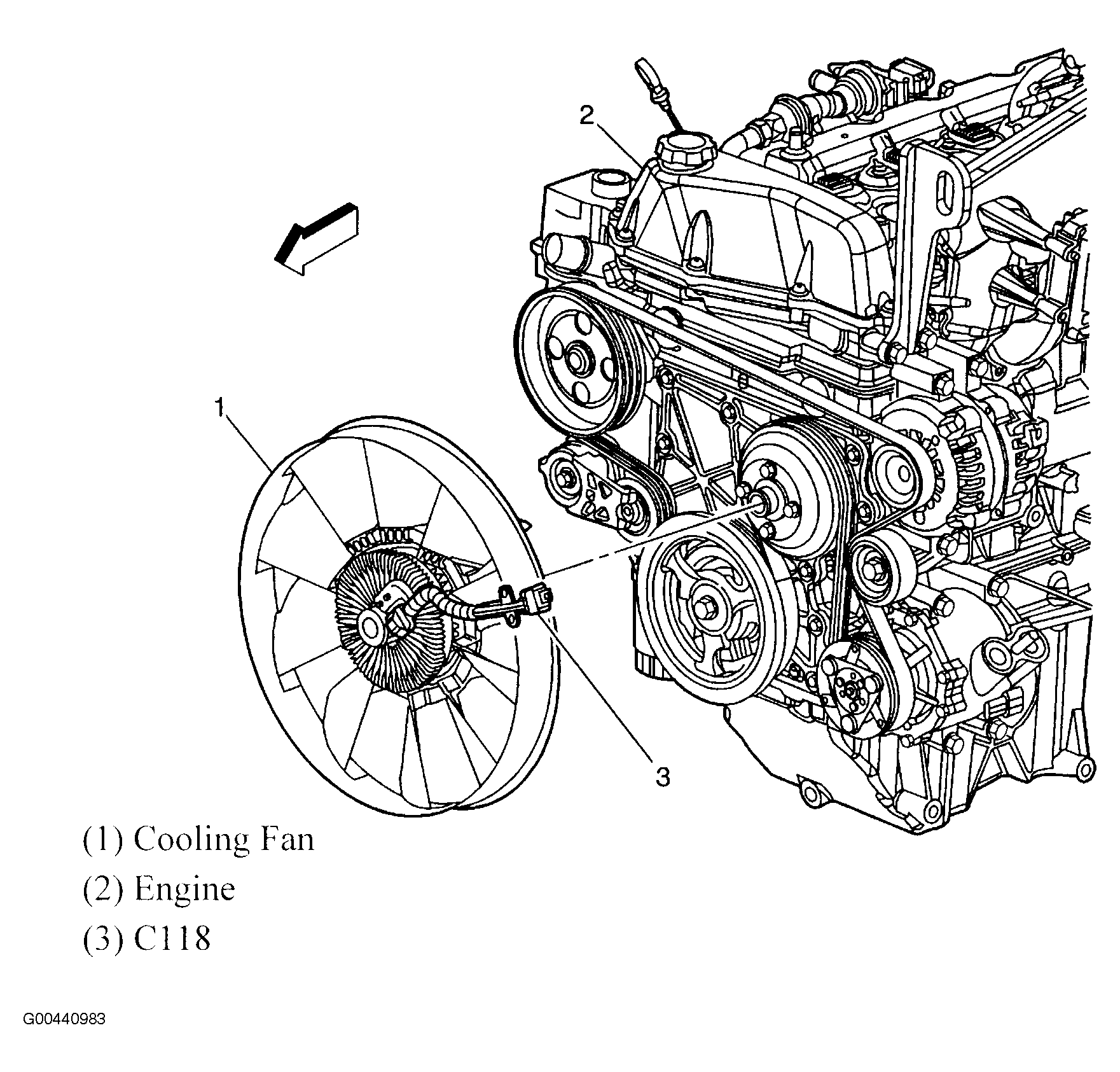

Fig 60: Engine Cooling Fan
Courtesy of GENERAL MOTORS CORP.
Fig 61: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

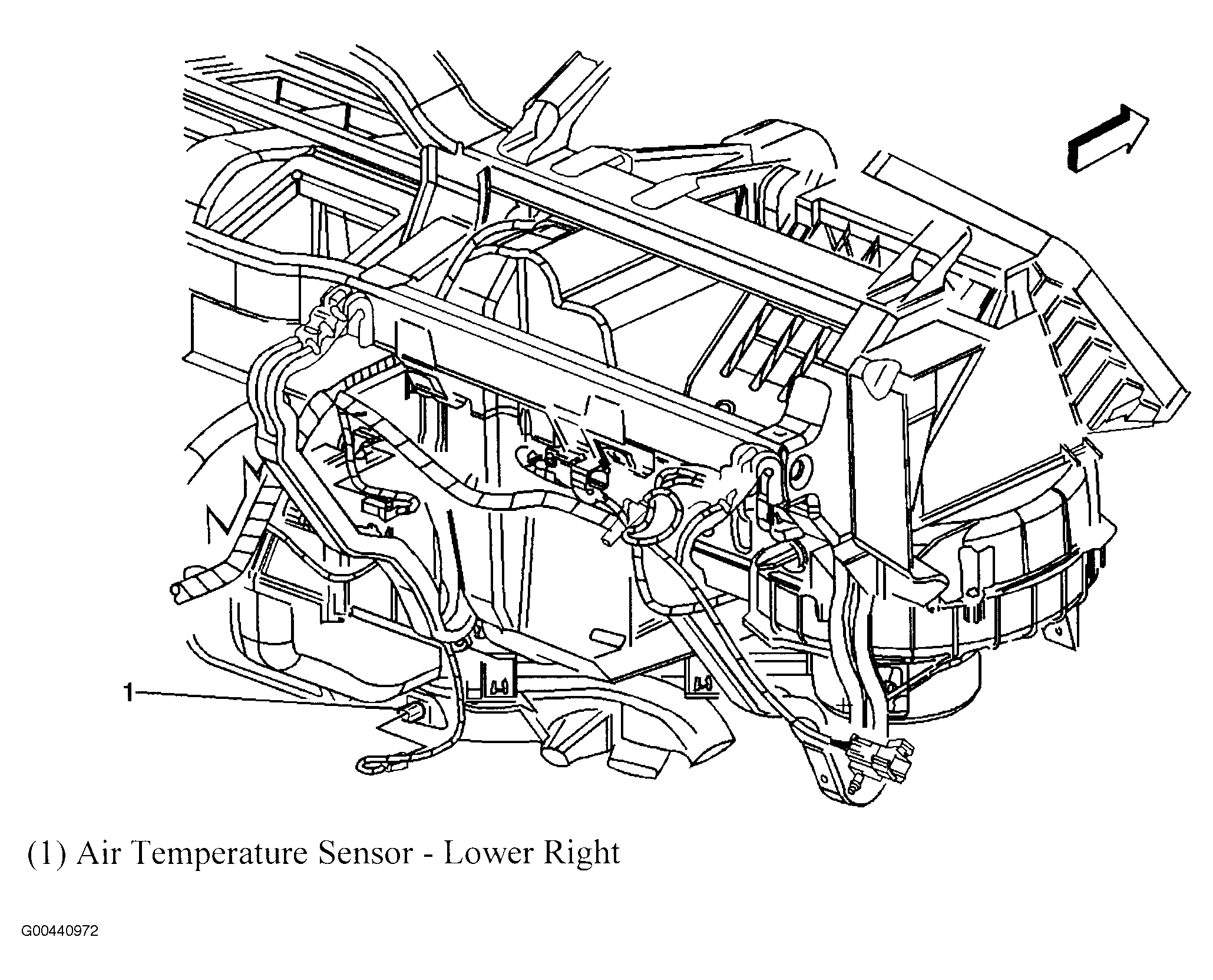

Fig 62: Behind Right Side Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

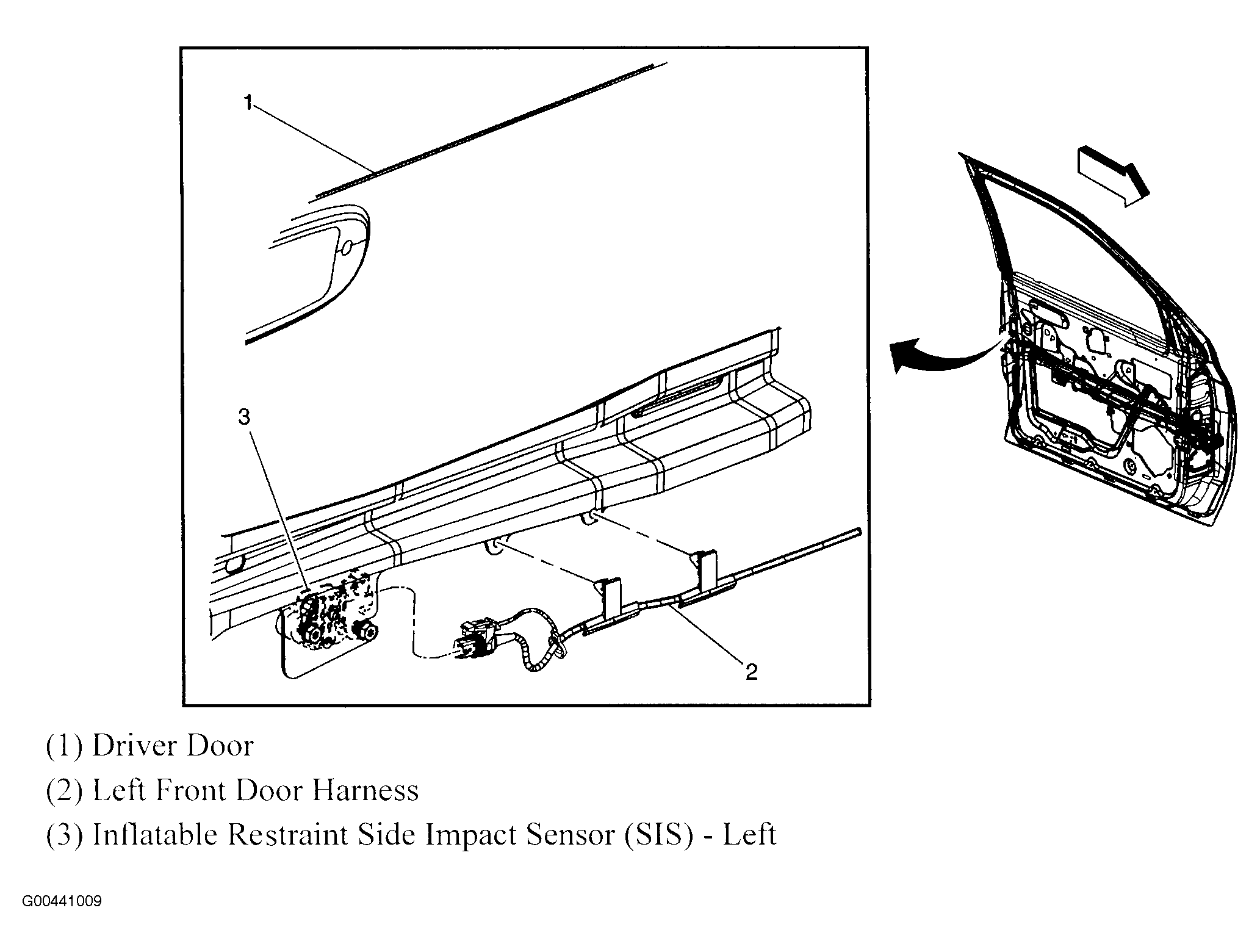

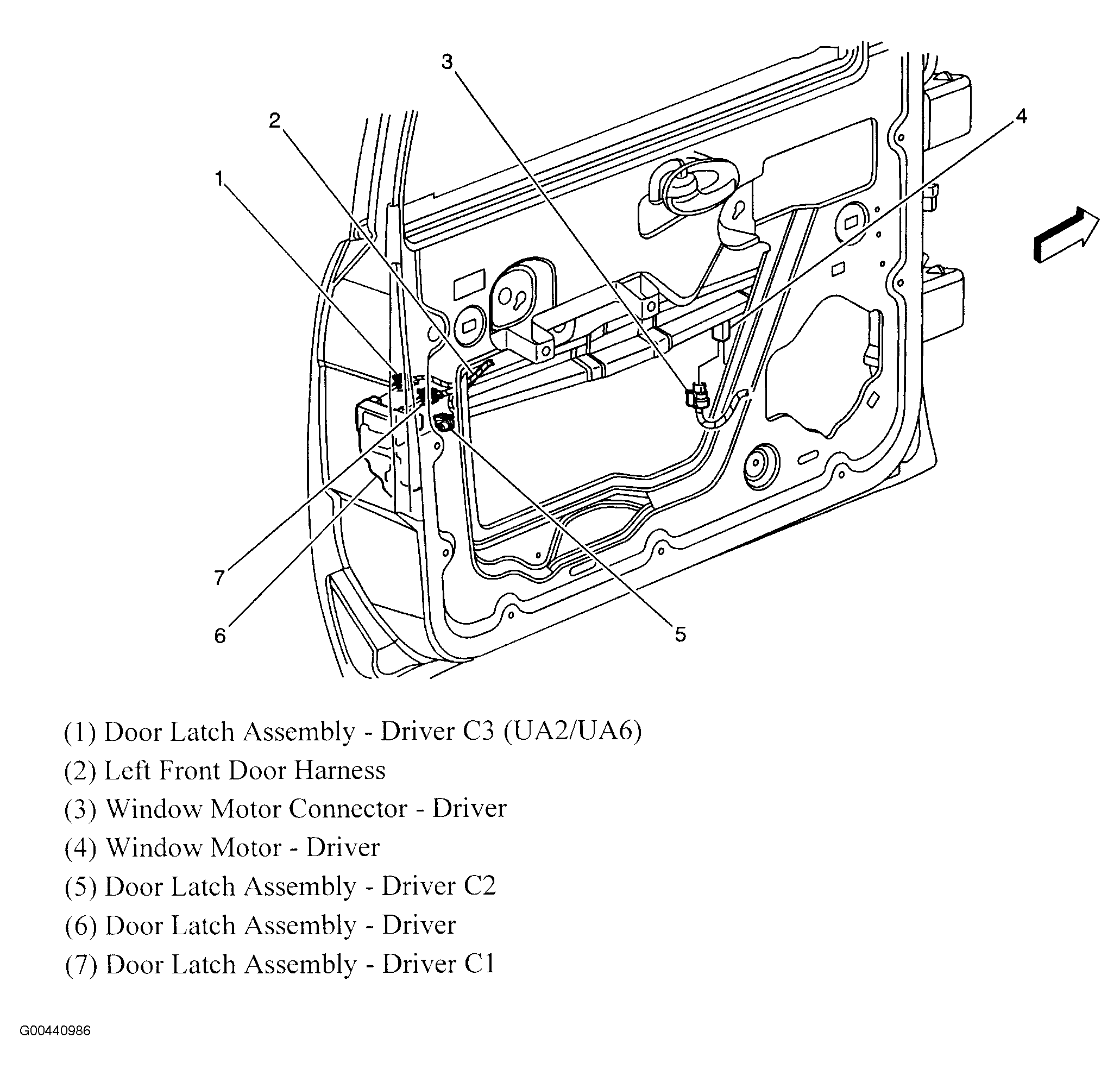

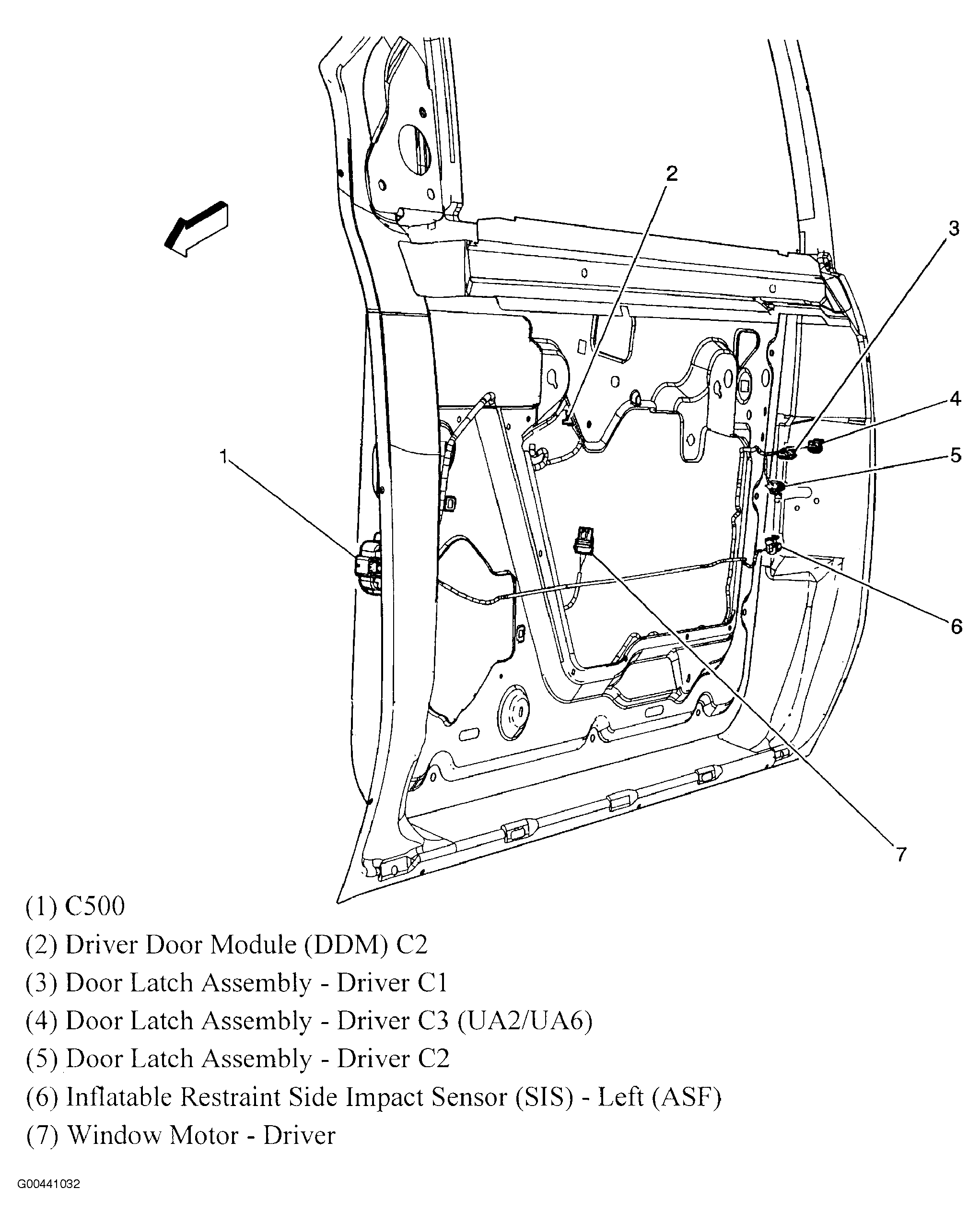

Fig 63: Driver Door
Courtesy of GENERAL MOTORS CORP.

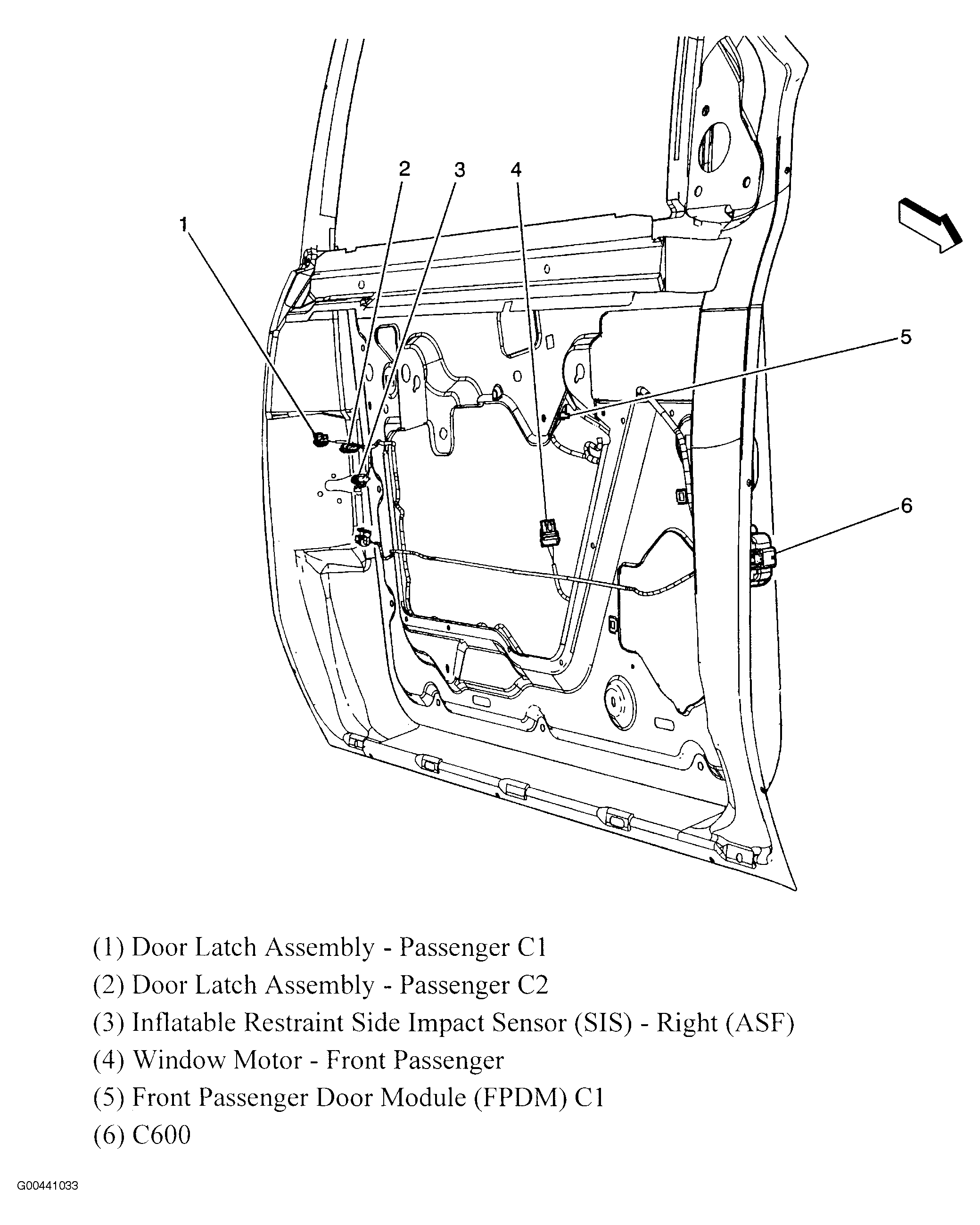

Fig 64: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.

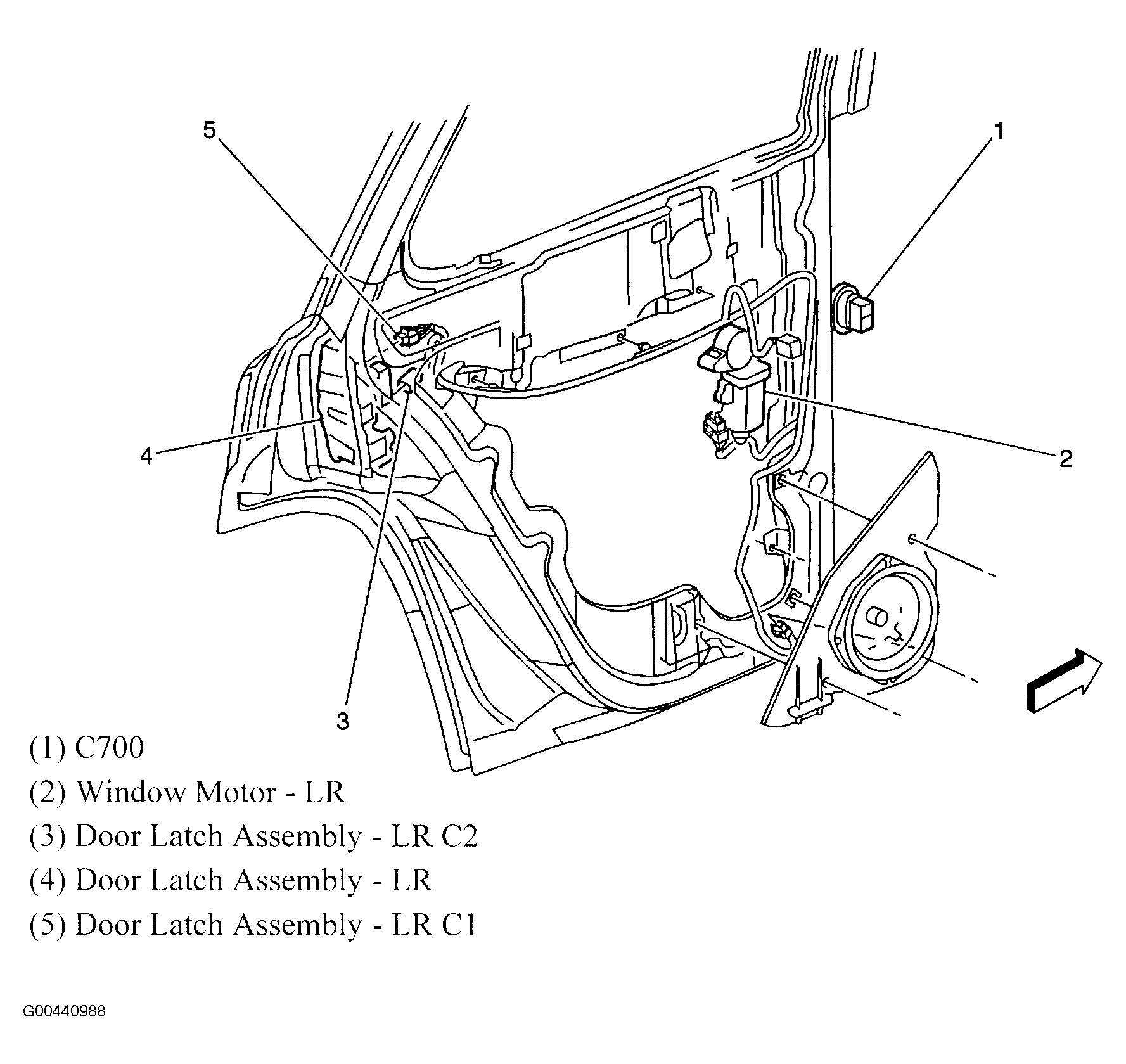

Fig 65: Left Rear Door
Courtesy of GENERAL MOTORS CORP.

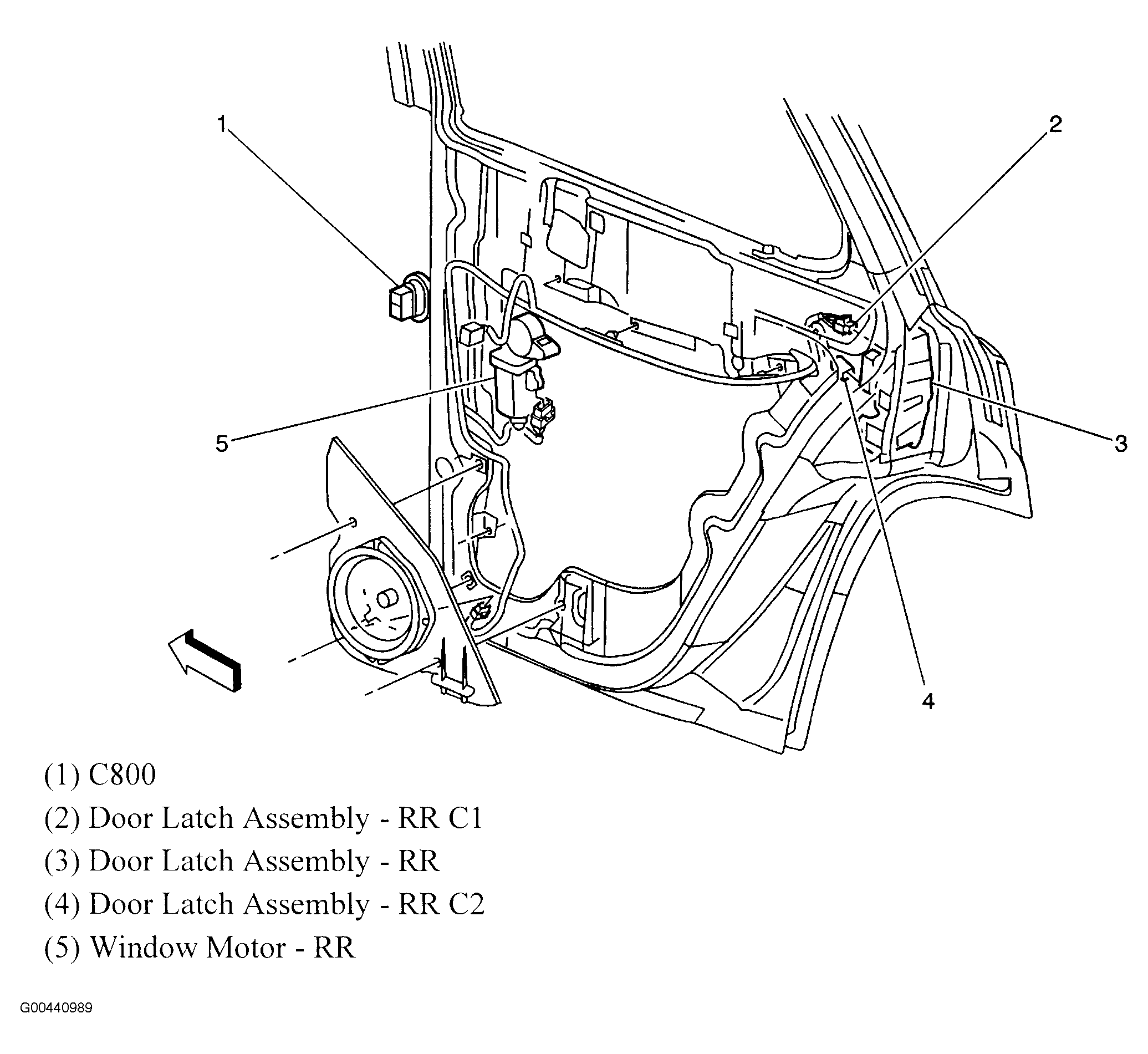

Fig 66: Right Rear Door
Courtesy of GENERAL MOTORS CORP.

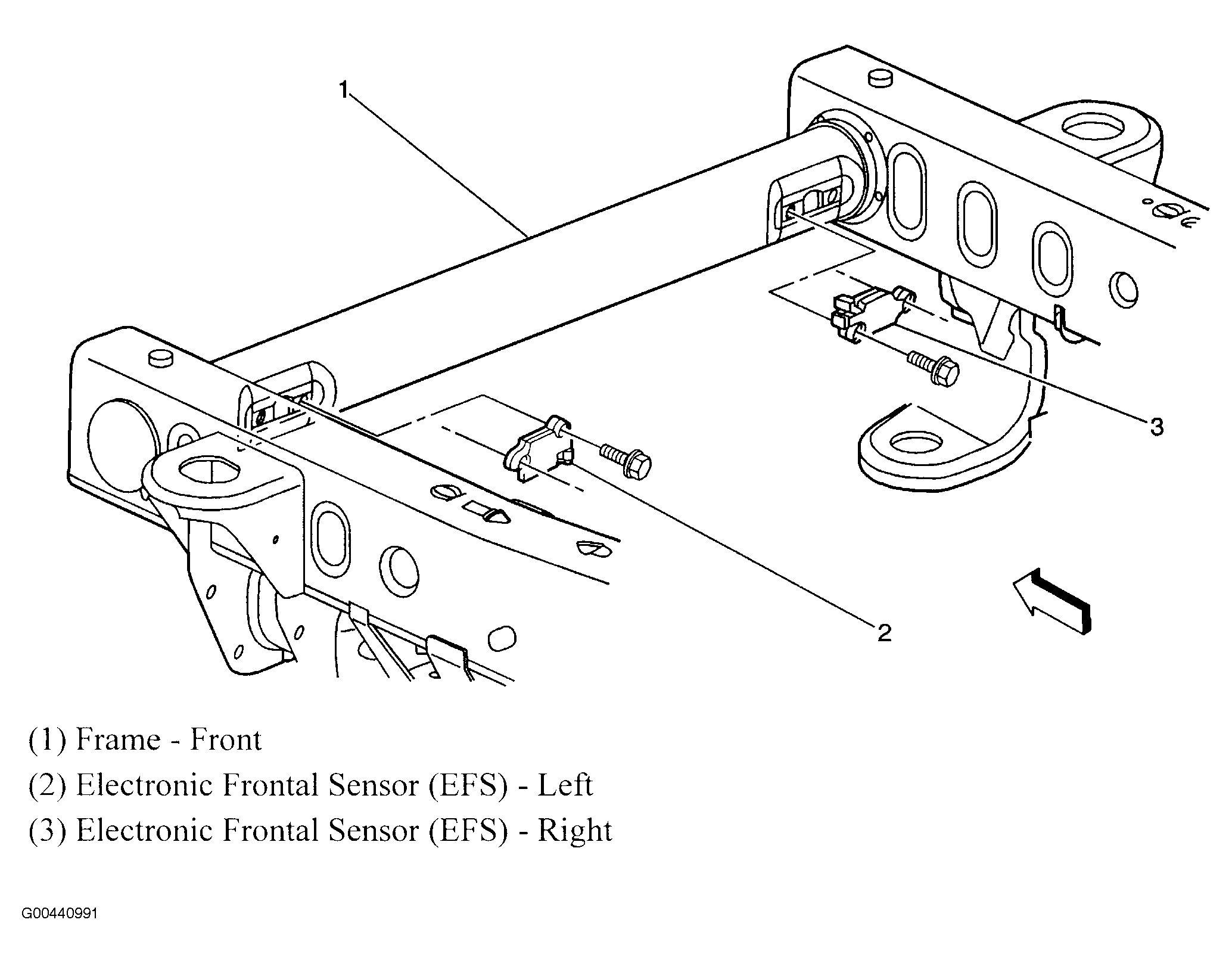

Fig 67: Electronic Frontal Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 68: Engine Control Module (ECM)
Courtesy of GENERAL MOTORS CORP.
Fig 69: Upper Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 70: Upper Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

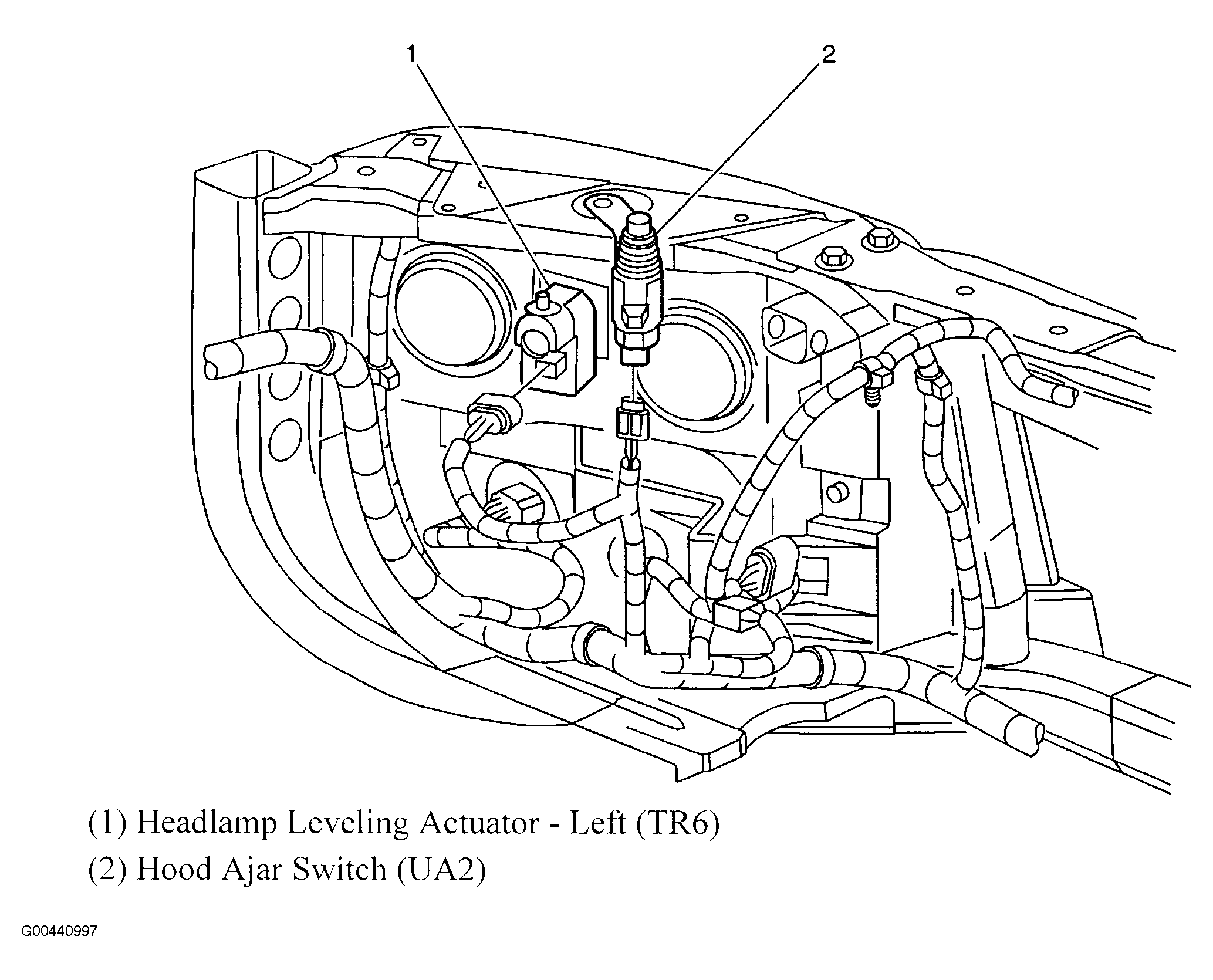

Fig 71: Behind Left Headlamp
Courtesy of GENERAL MOTORS CORP.

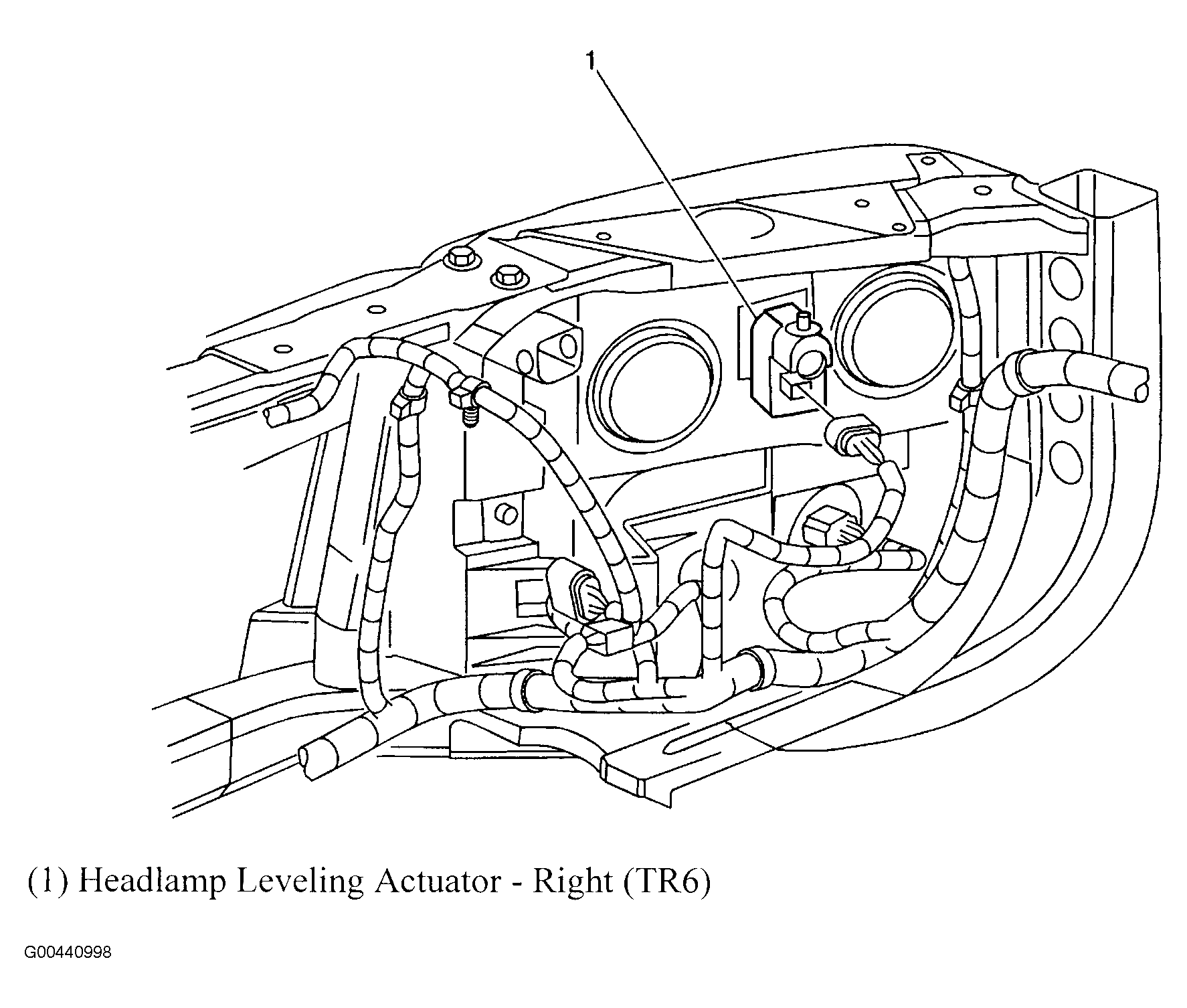

Fig 72: Behind Right Headlamp
Courtesy of GENERAL MOTORS CORP.

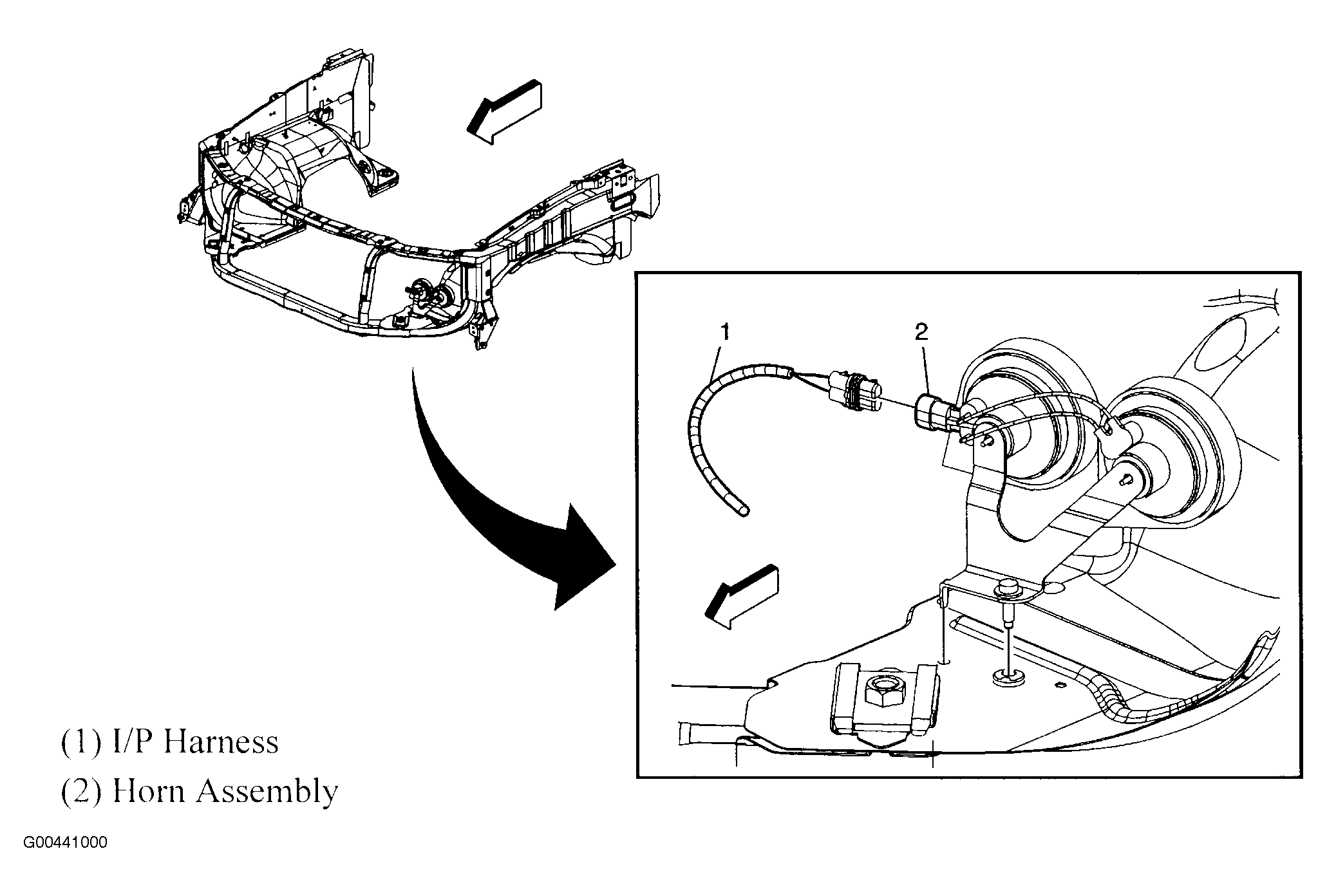

Fig 73: Horn Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 74: Center Of Instrument Panel
Courtesy of GENERAL MOTORS CORP.

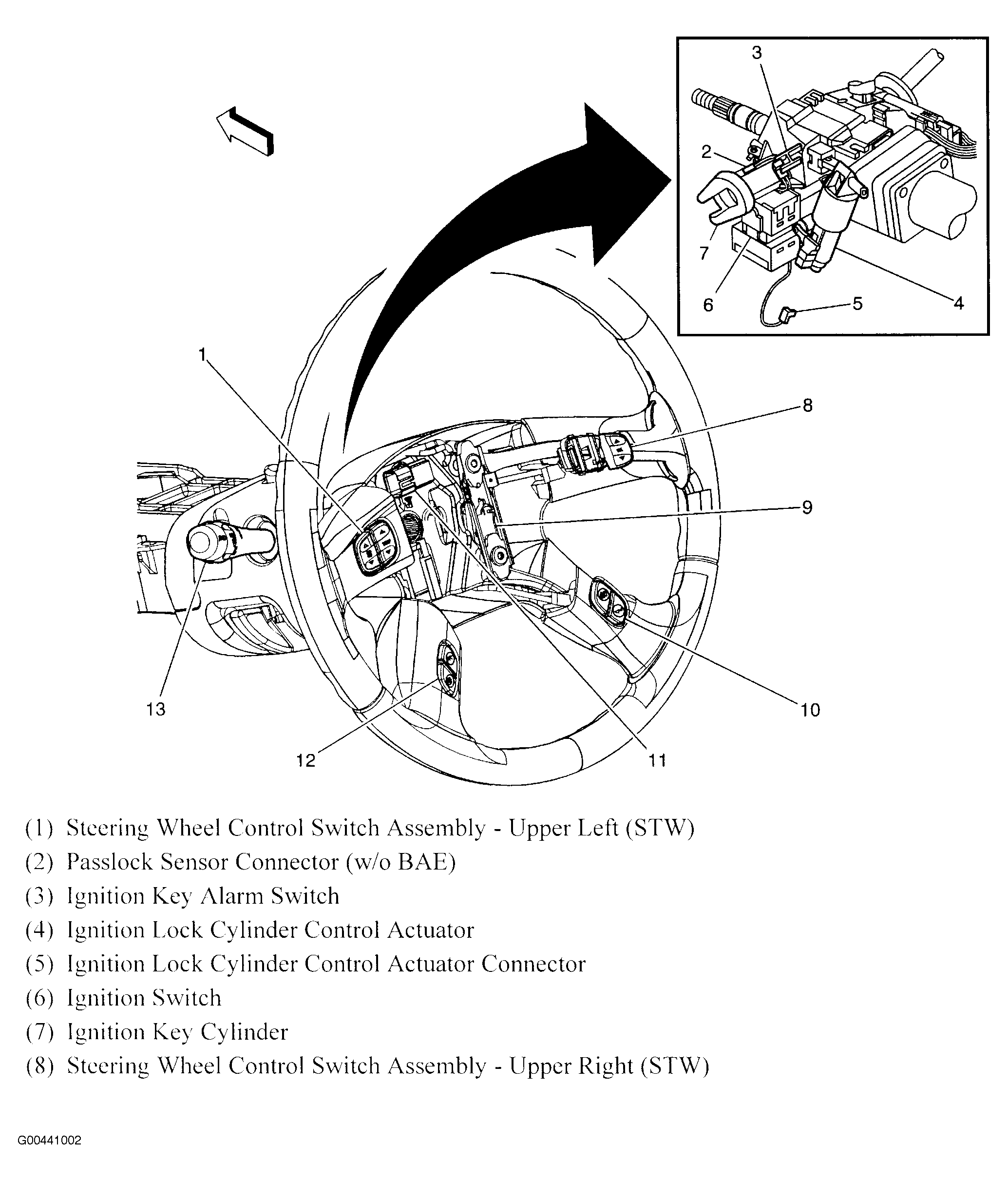

Fig 75: Steering Wheel Column (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 76: Steering Wheel Column (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 77: Rear Floor
Courtesy of GENERAL MOTORS CORP.

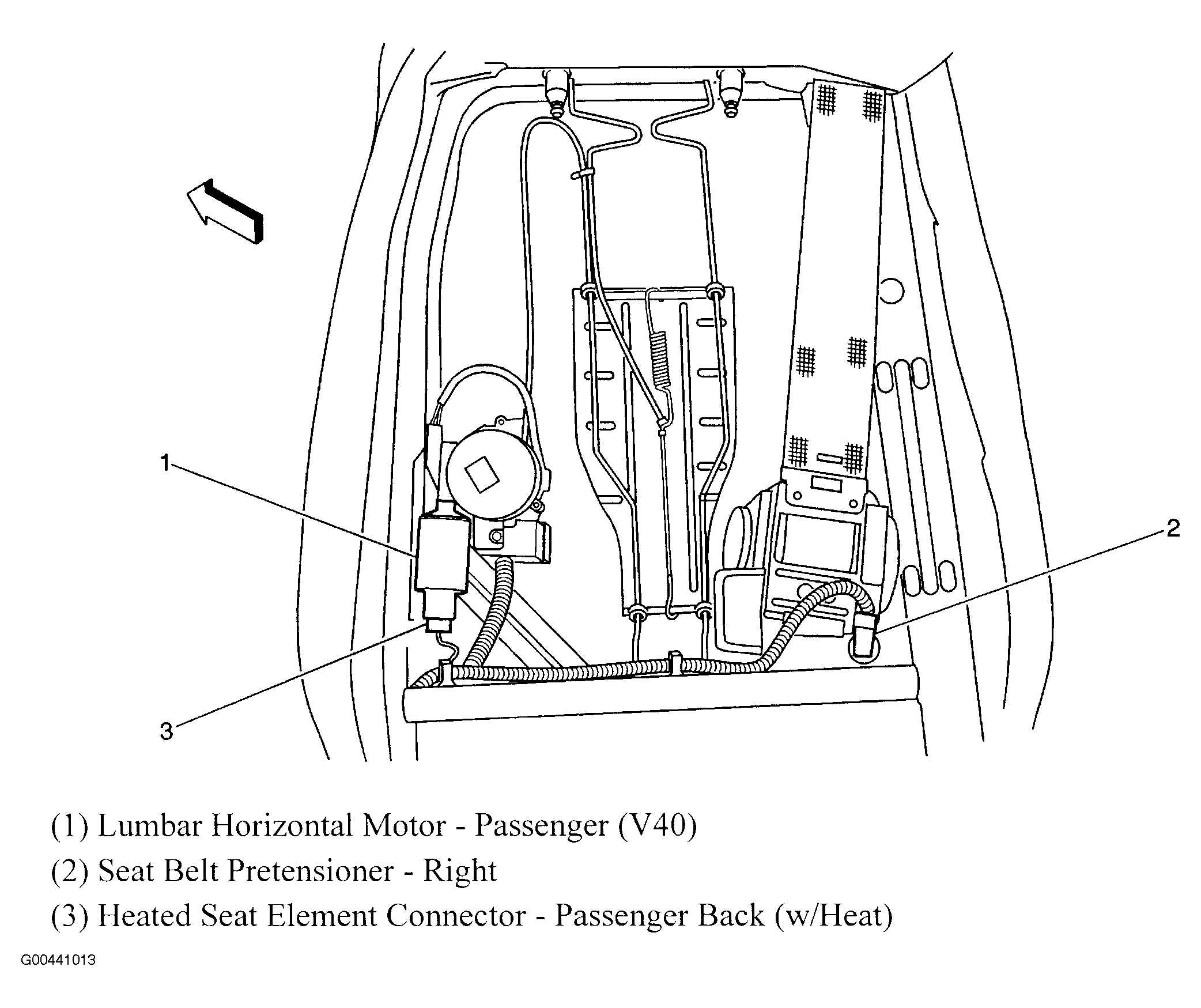

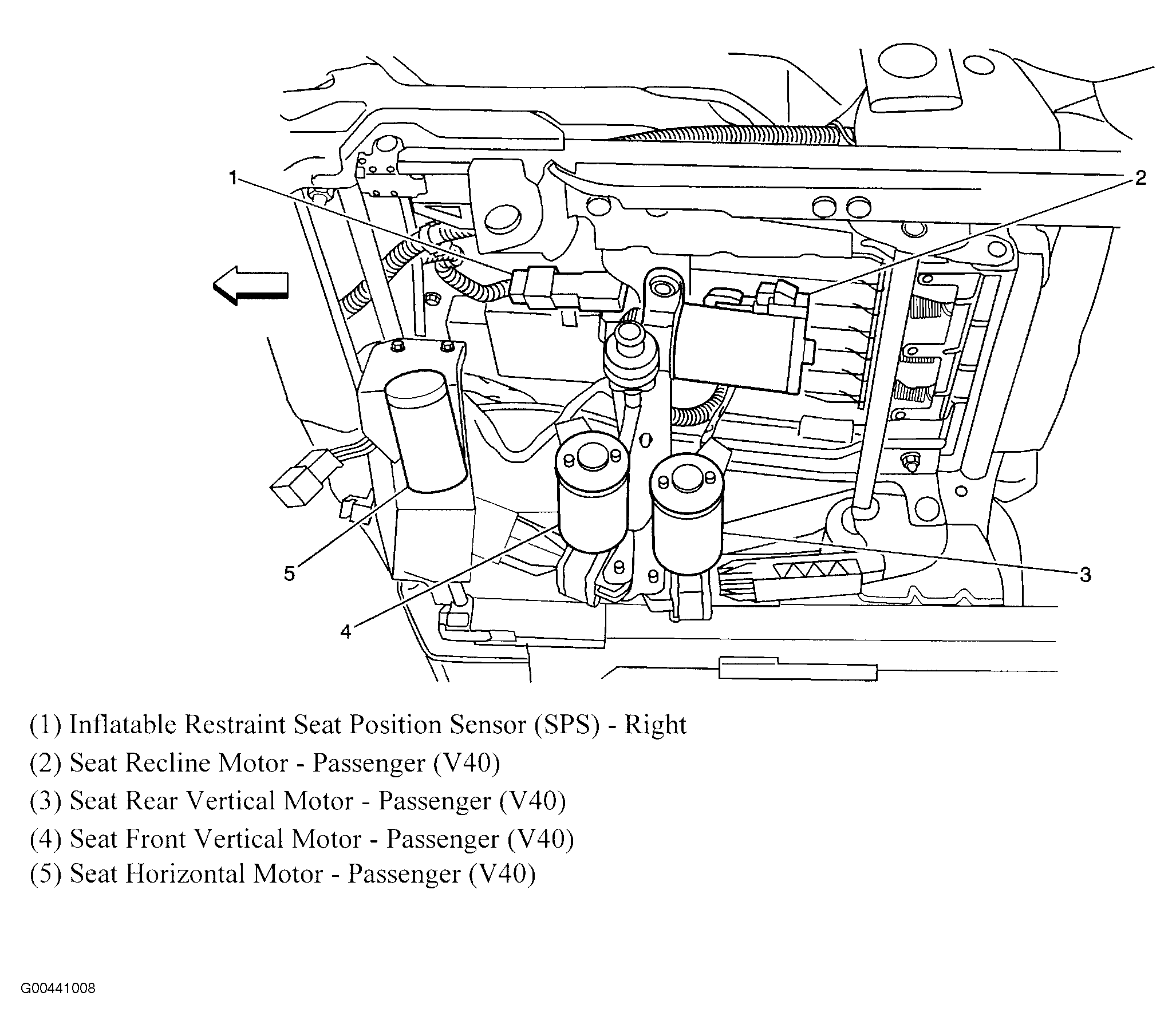

Fig 78: Beneath Passenger Seat Cushion
Courtesy of GENERAL MOTORS CORP.

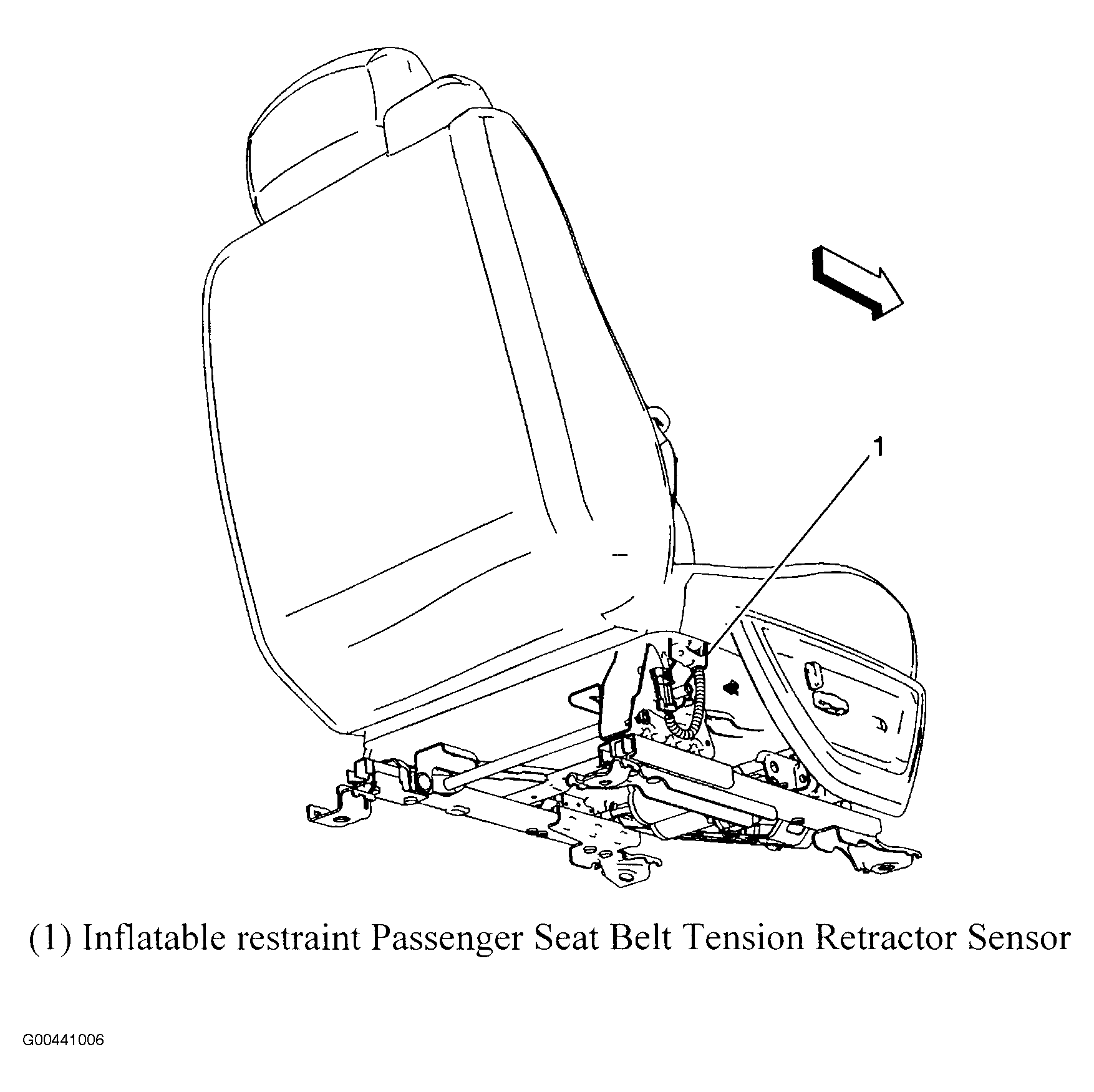

Fig 79: Right Rear Of Passenger Seat
Courtesy of GENERAL MOTORS CORP.

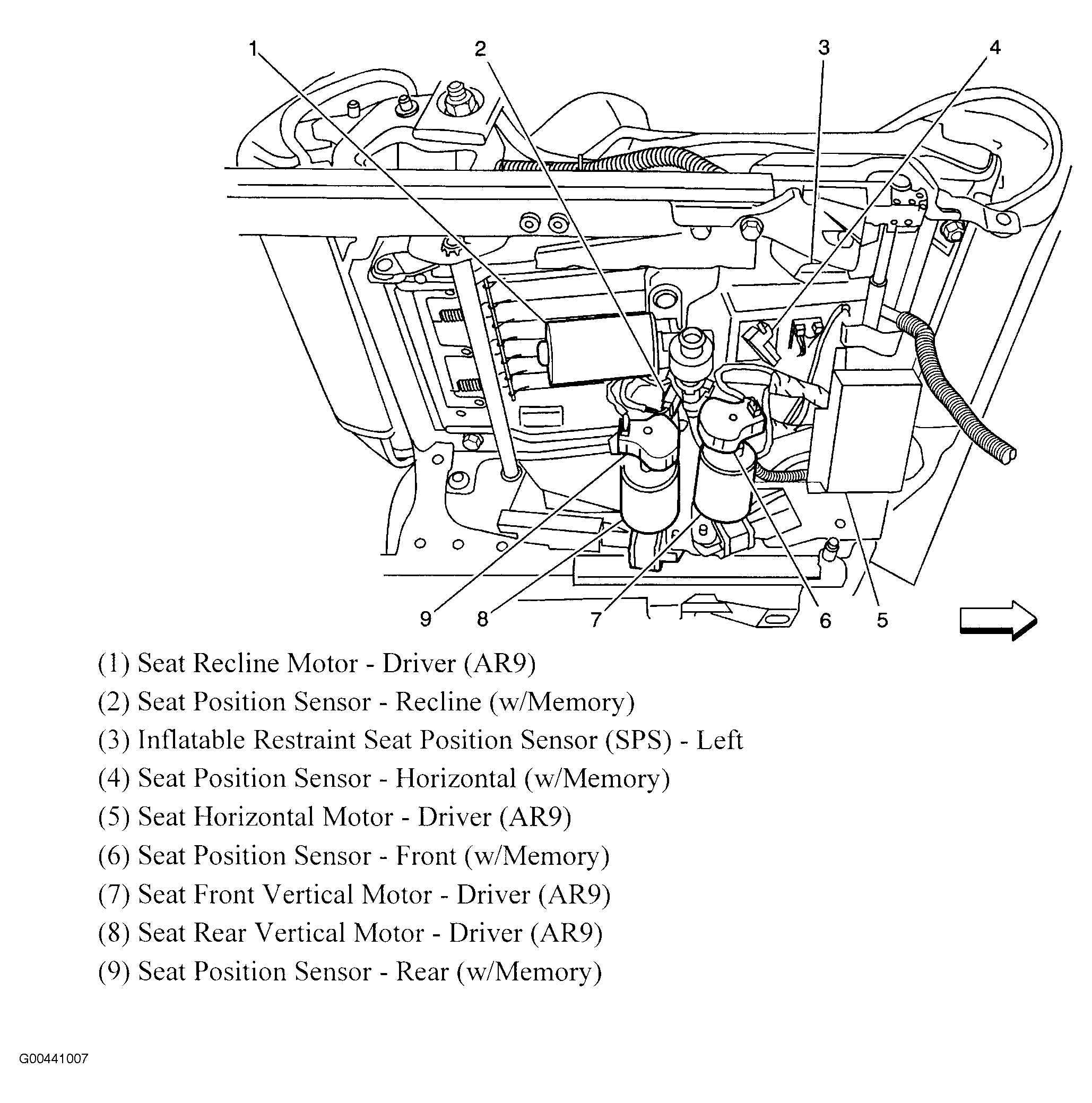

Fig 80: Under Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 81: Under Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 82: Left Inflatable Restraint Side Impact Sensor (SIS)
Courtesy of GENERAL MOTORS CORP.
Fig 83: Right Inflatable Restraint Side Impact Sensor (SIS)
Courtesy of GENERAL MOTORS CORP.
Fig 84: Lower Left Side Of Engine
Courtesy of GENERAL MOTORS CORP.

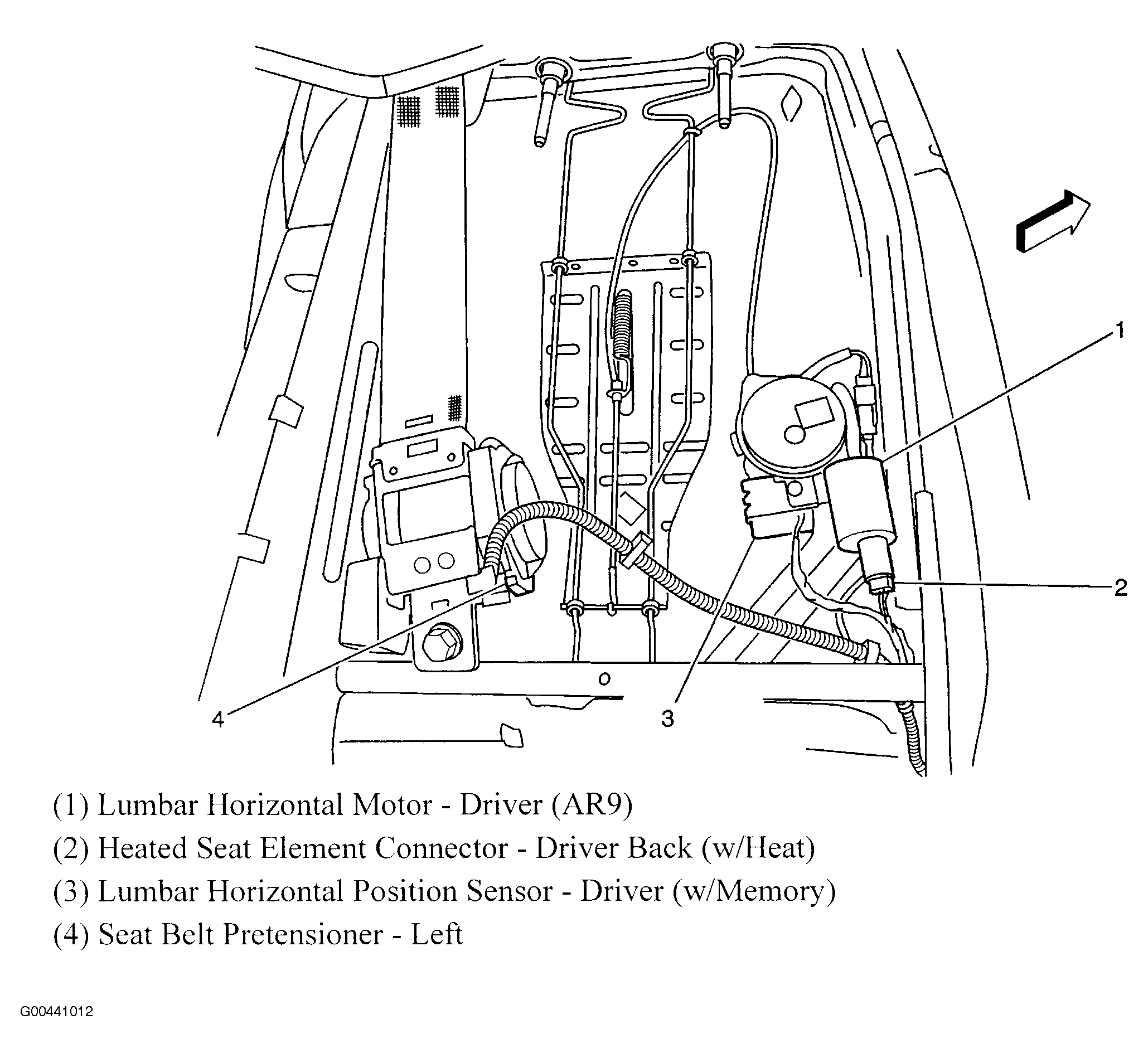

Fig 85: Behind Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 86: Behind Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 87: Beneath Driver Seat Cushion
Courtesy of GENERAL MOTORS CORP.
Fig 88: Park Neutral Position (PNP) Switch
Courtesy of GENERAL MOTORS CORP.
Fig 89: Transfer Case
Courtesy of GENERAL MOTORS CORP.

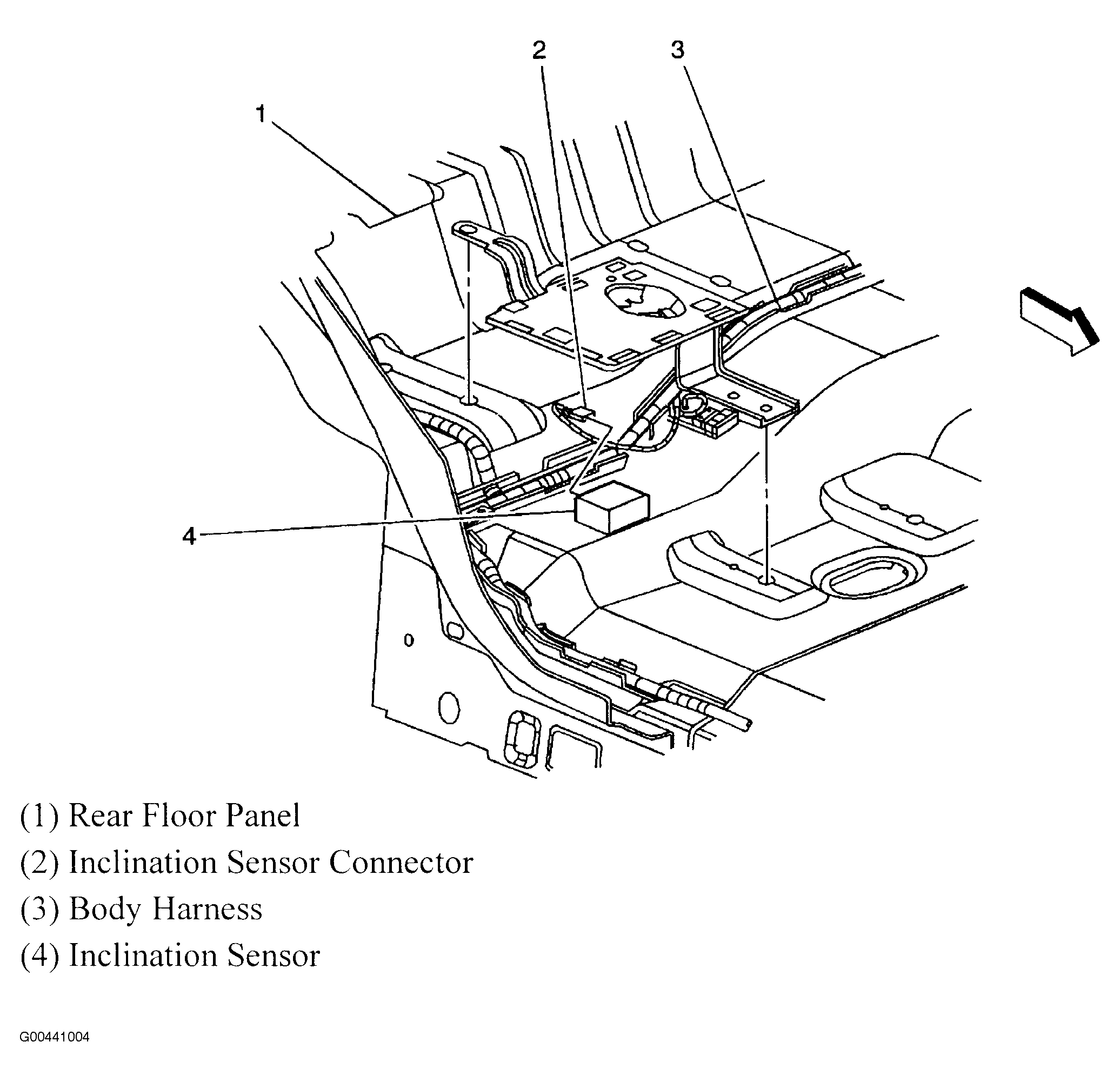

Fig 90: Rollover Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 91: Upper Right Side Of Engine
Courtesy of GENERAL MOTORS CORP.

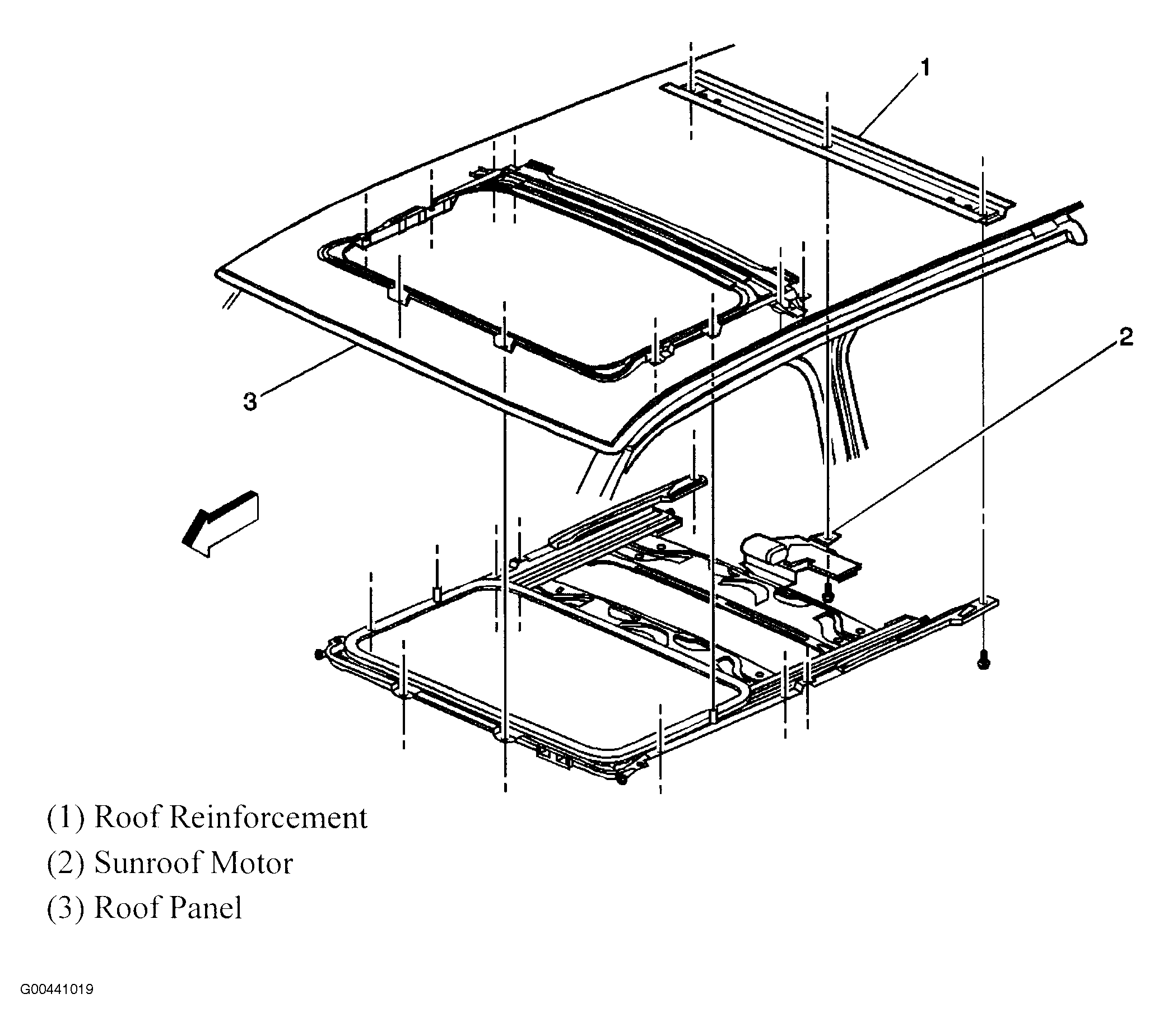

Fig 92: Sunroof Motor
Courtesy of GENERAL MOTORS CORP.
Fig 93: Rear Chassis
Courtesy of GENERAL MOTORS CORP.
Fig 94: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 95: Lower Left Side Of Instrument Carrier Support
Courtesy of GENERAL MOTORS CORP.
Fig 96: Transmission Control Module (TCM)
Courtesy of GENERAL MOTORS CORP.

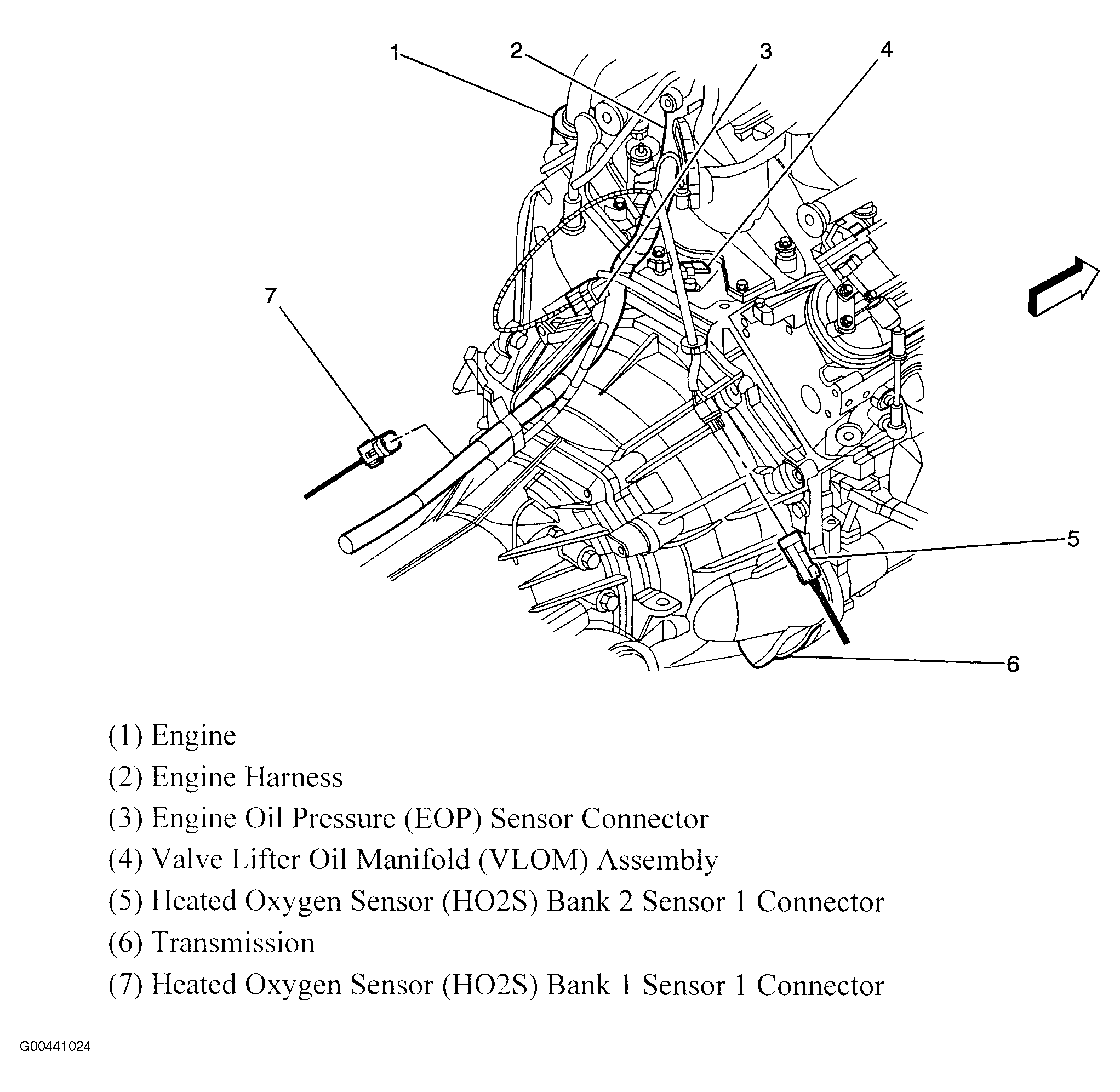

Fig 97: Rear Of Engine
Courtesy of GENERAL MOTORS CORP.
Fig 98: Under Front Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 99: Right Rear Of Engine Harness
Courtesy of GENERAL MOTORS CORP.
Fig 100: Front Of Dash
Courtesy of GENERAL MOTORS CORP.

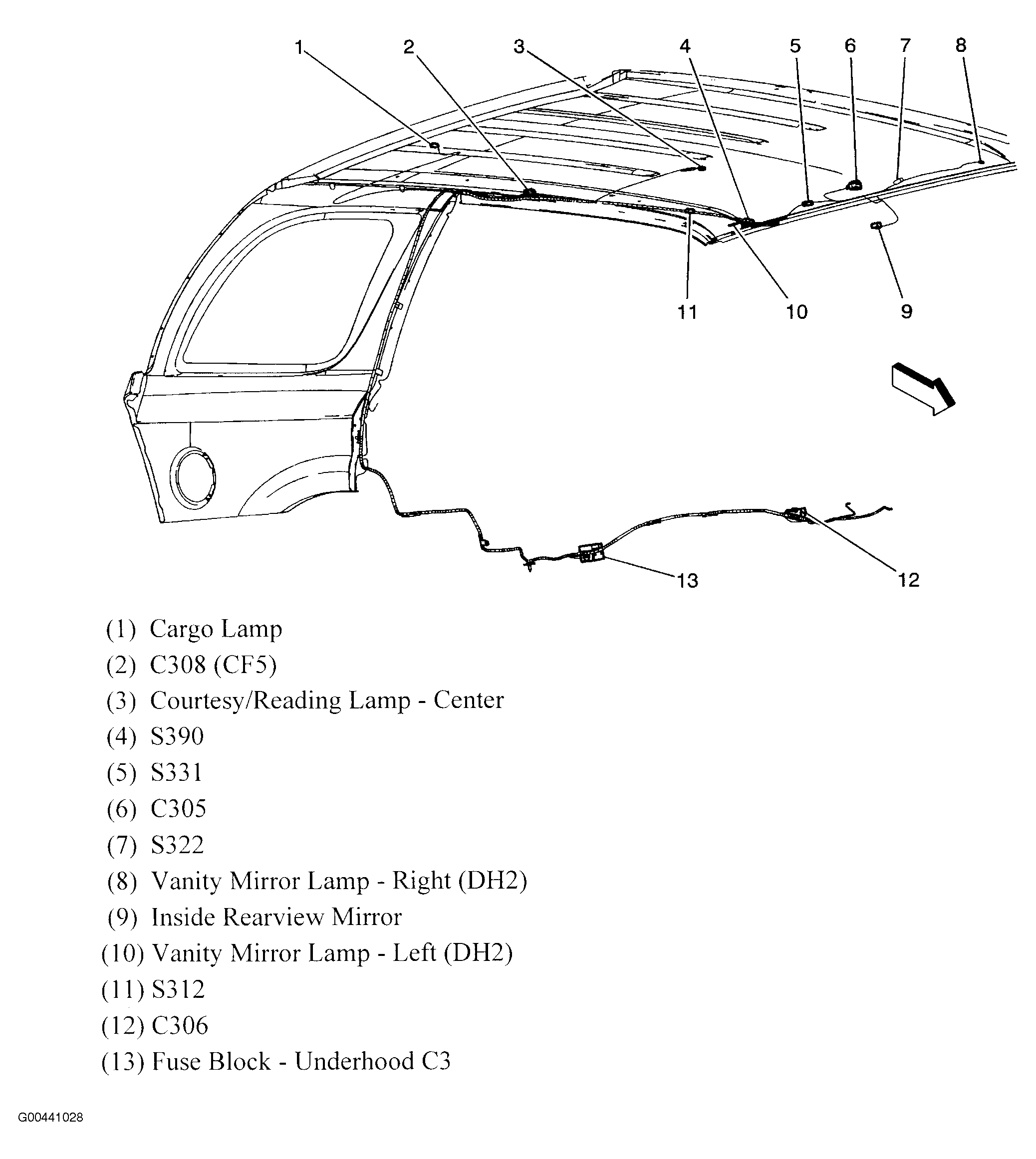

Fig 101: Headliner Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 102: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

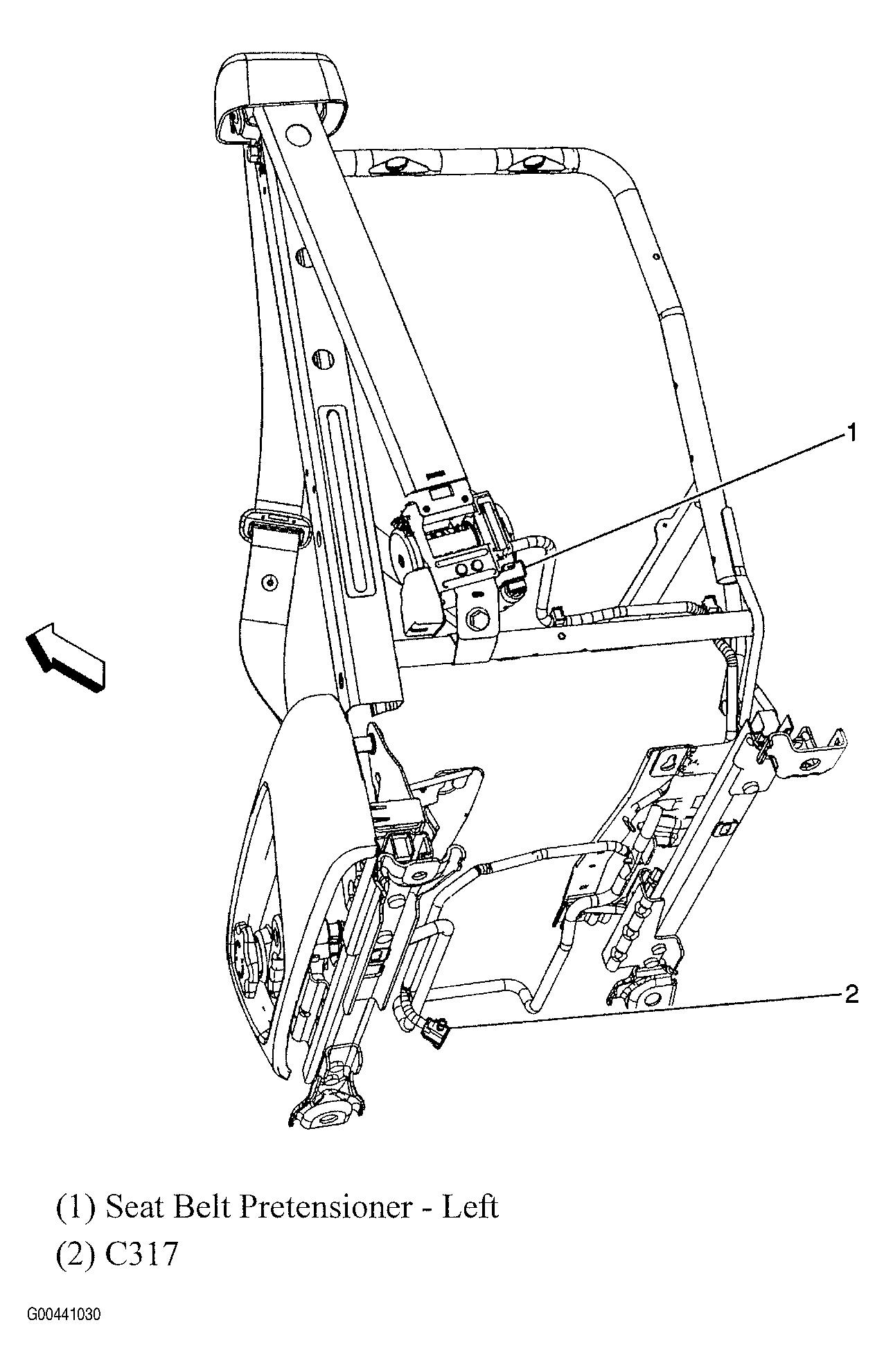

Fig 103: Left Seat Belt Pretensioner
Courtesy of GENERAL MOTORS CORP.

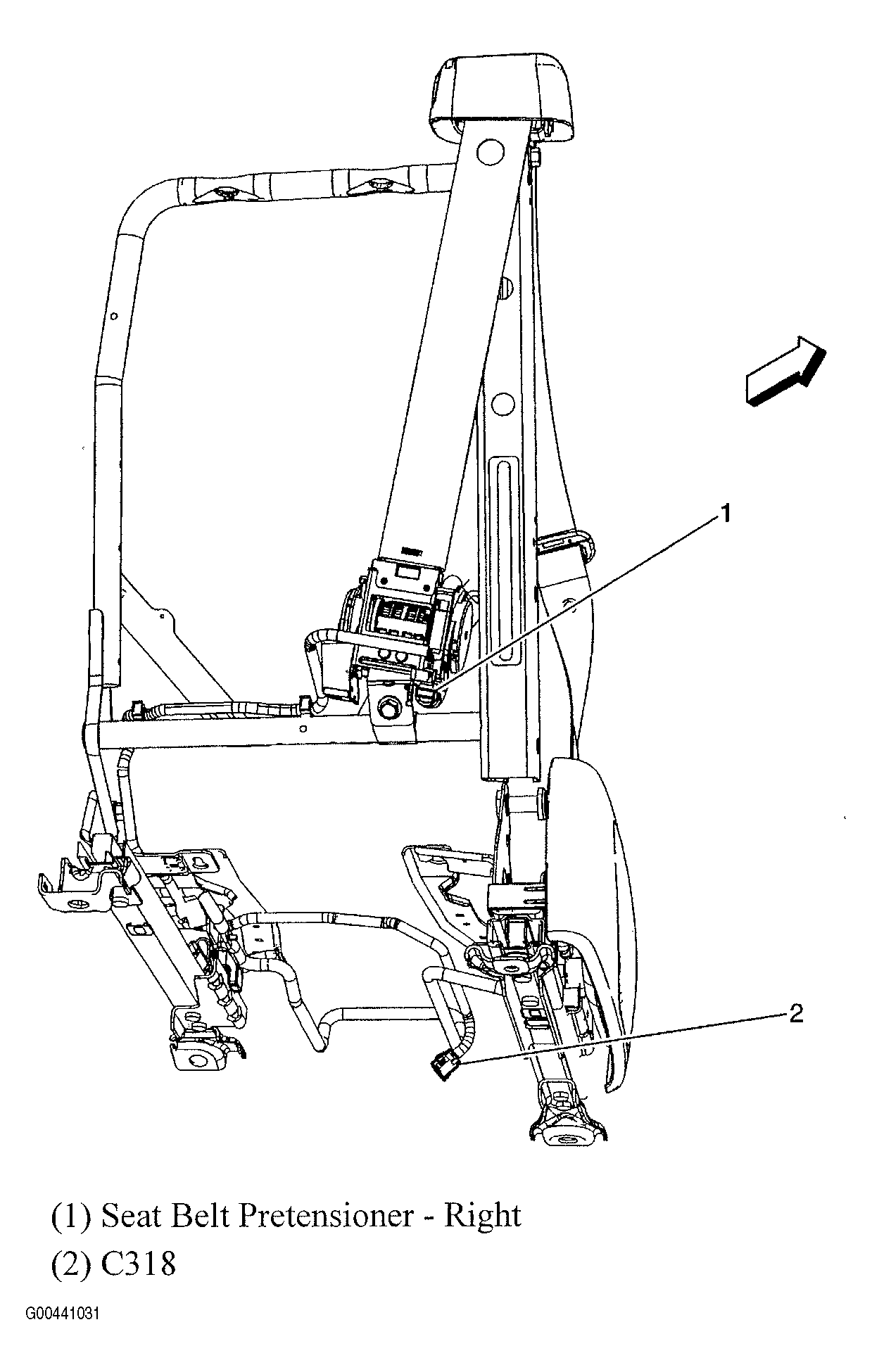

Fig 104: Right Seat Belt Pretensioner
Courtesy of GENERAL MOTORS CORP.
Fig 105: Front Door Harness Routing
Courtesy of GENERAL MOTORS CORP.

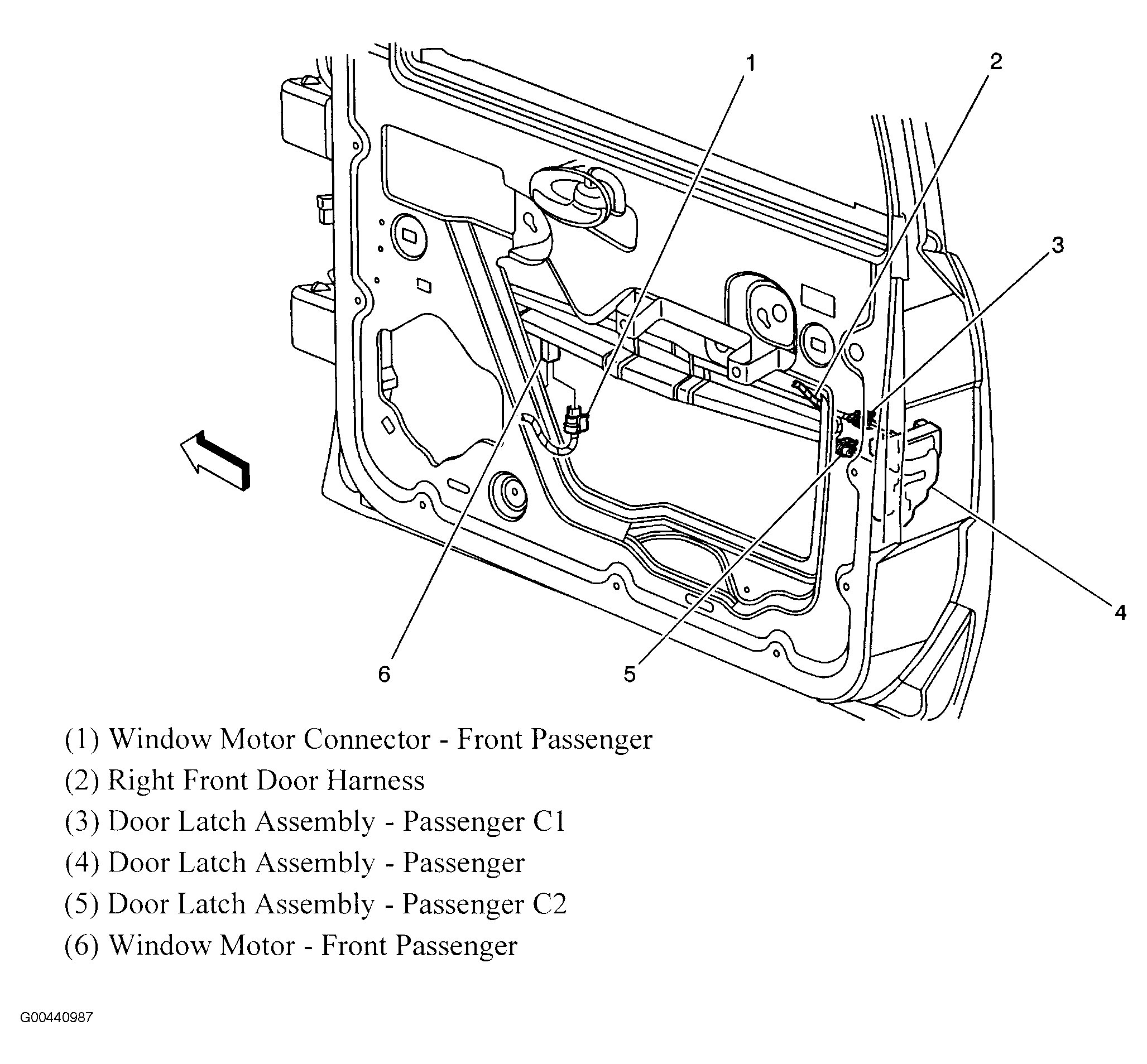

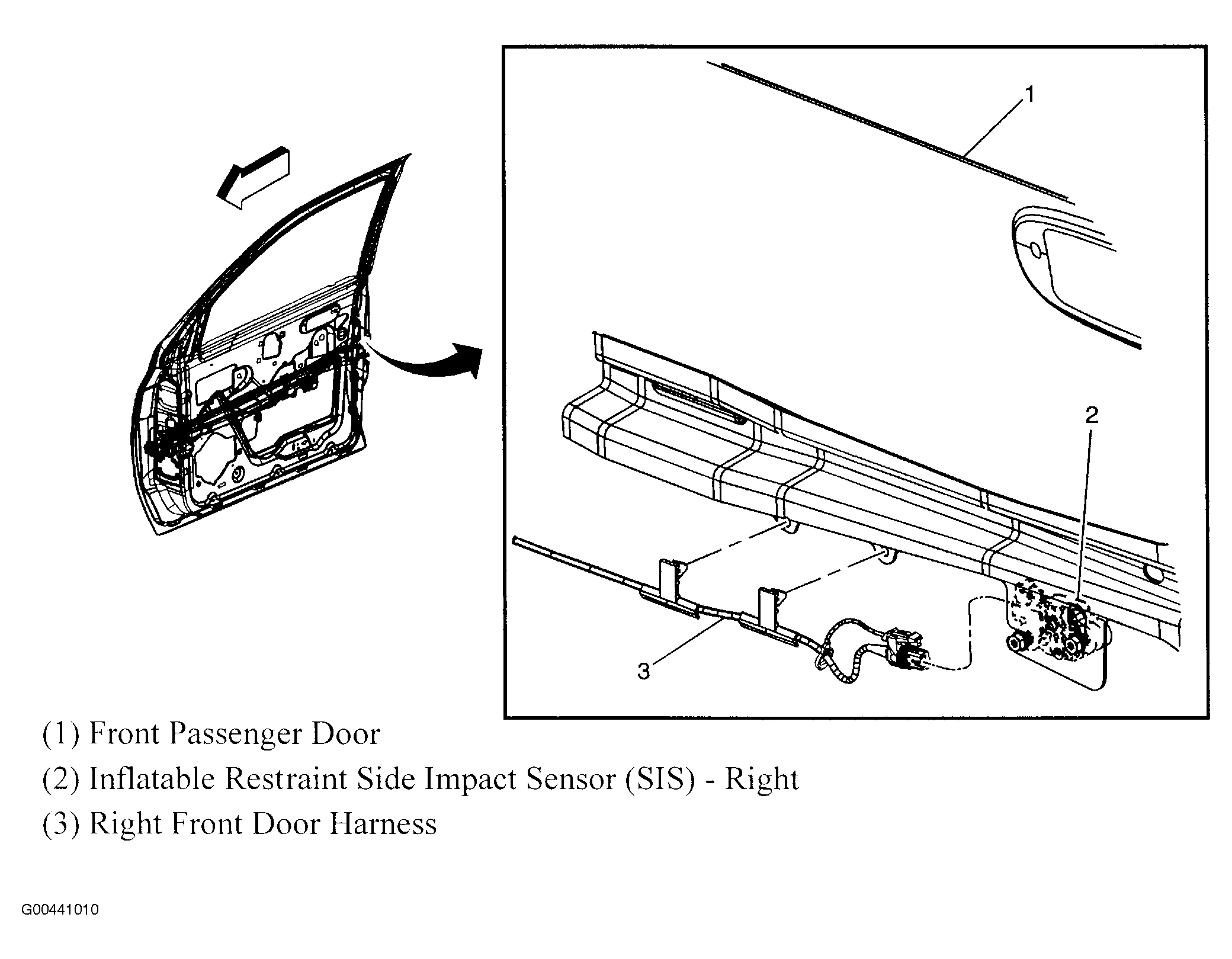

Fig 106: Right Front Door Harness Routing
Courtesy of GENERAL MOTORS CORP.

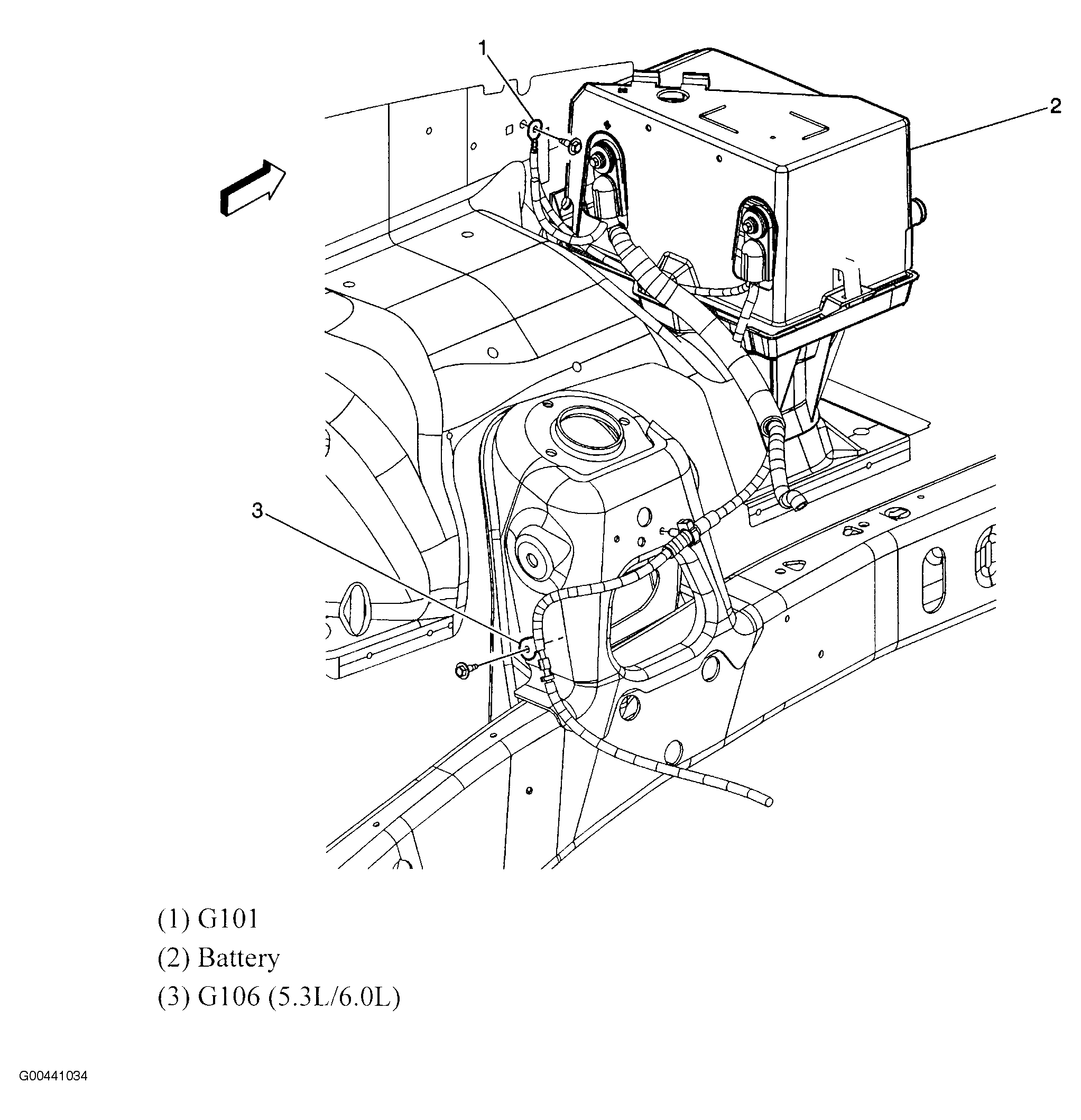

Fig 107: Grounds G101 & G106
Courtesy of GENERAL MOTORS CORP.

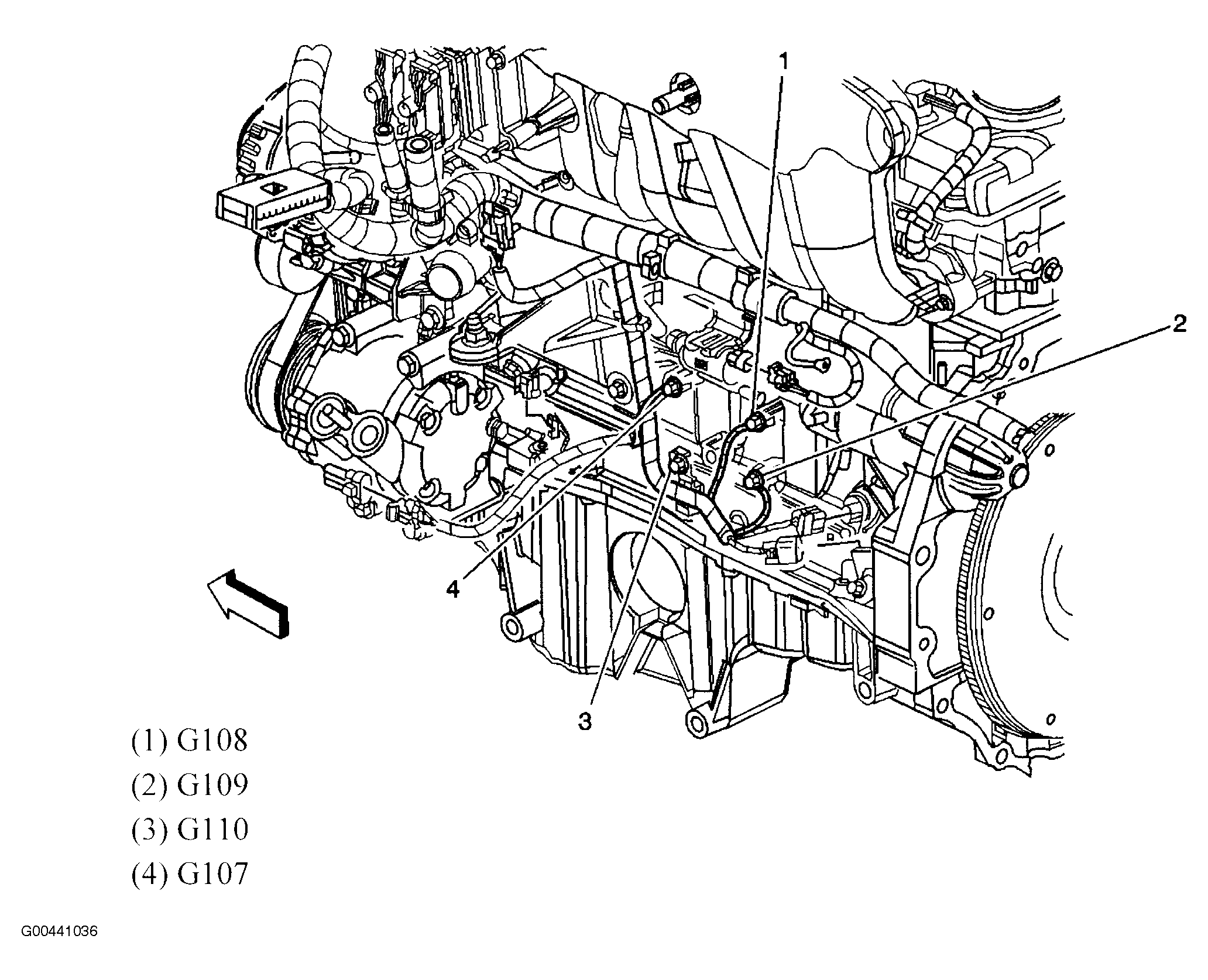

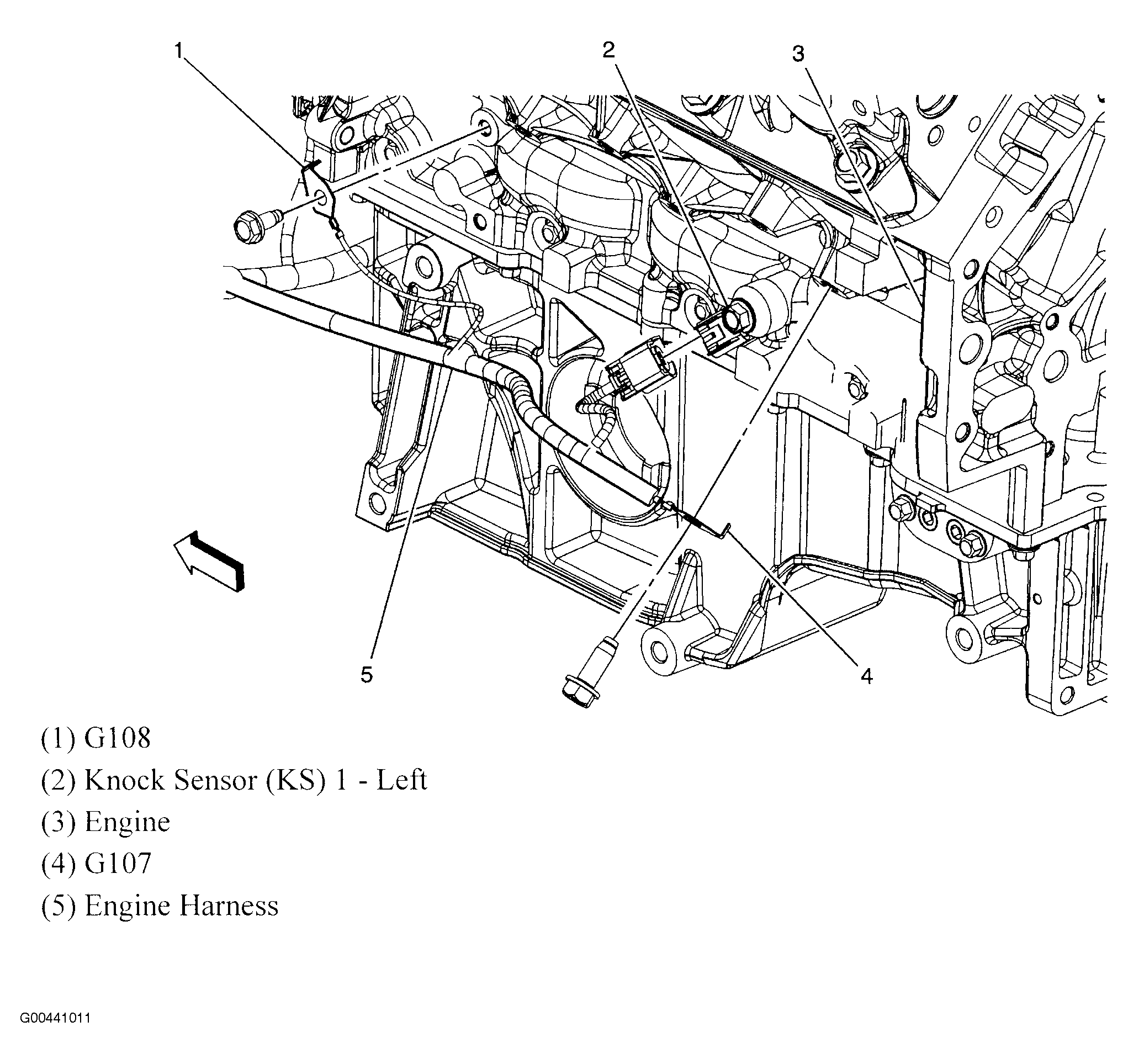

Fig 108: Engine Block Grounds G107, G108, G109 & G110
Courtesy of GENERAL MOTORS CORP.

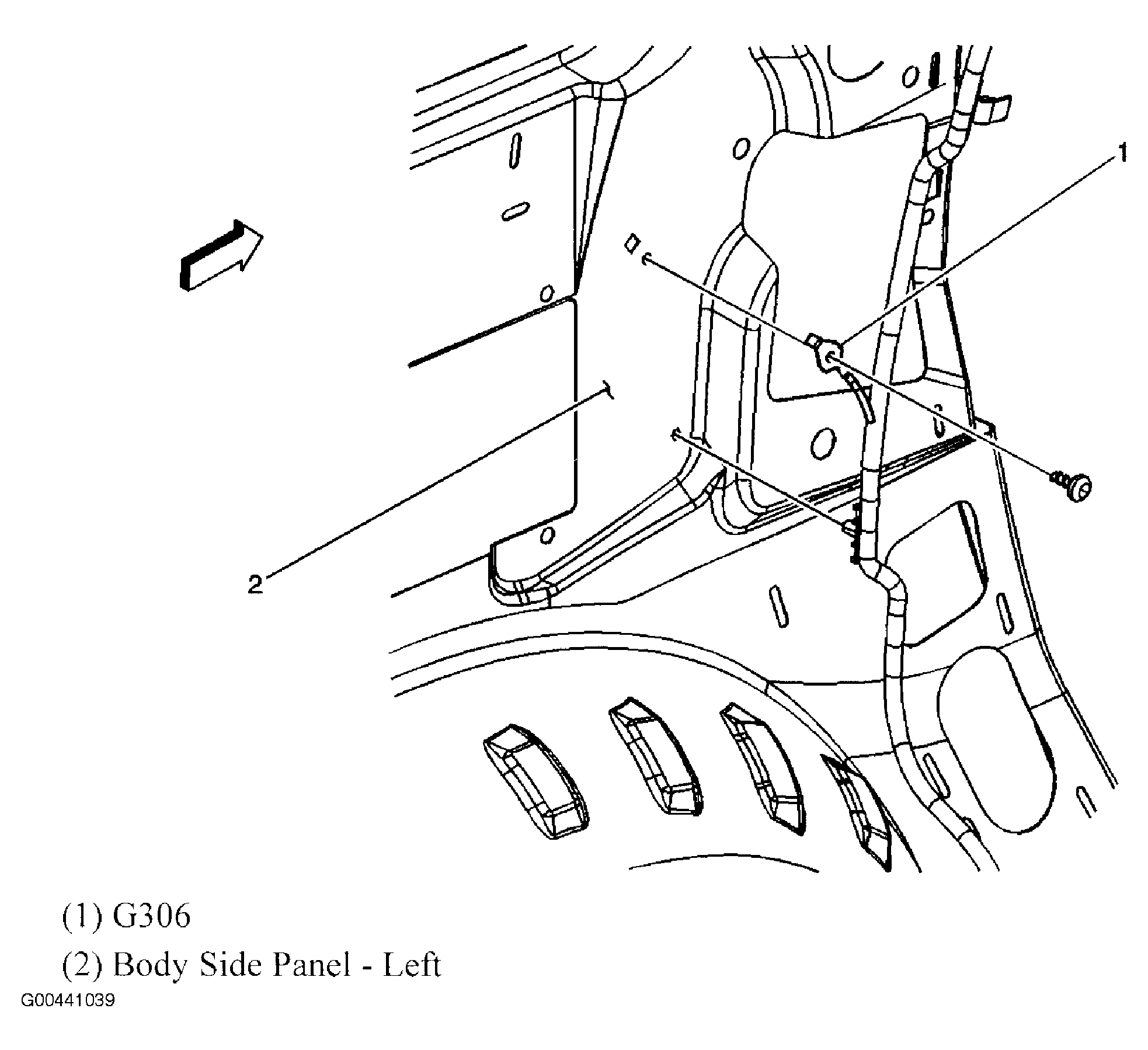

Fig 109: Ground G306
Courtesy of GENERAL MOTORS CORP.

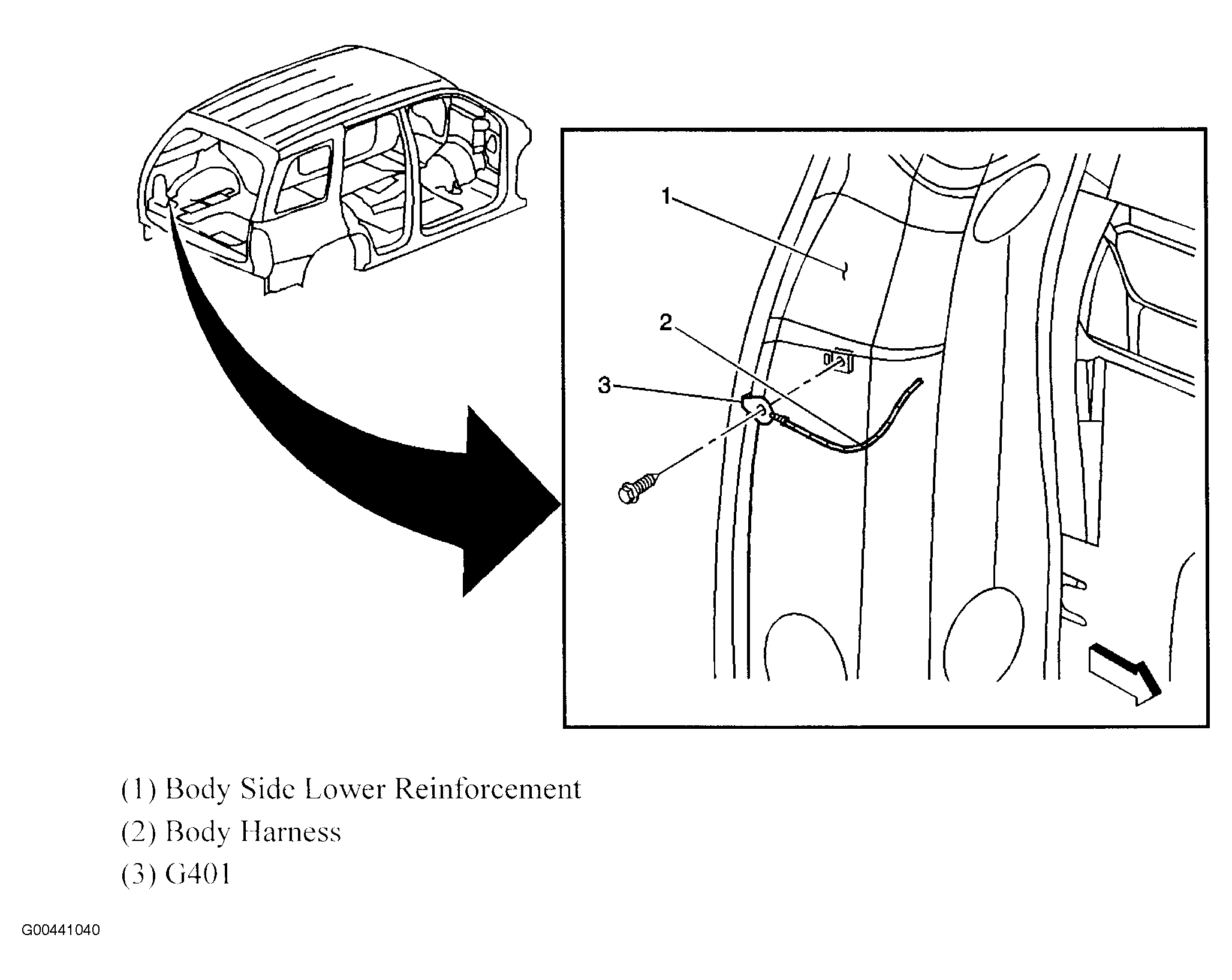

Fig 110: Ground G401
Courtesy of GENERAL MOTORS CORP.

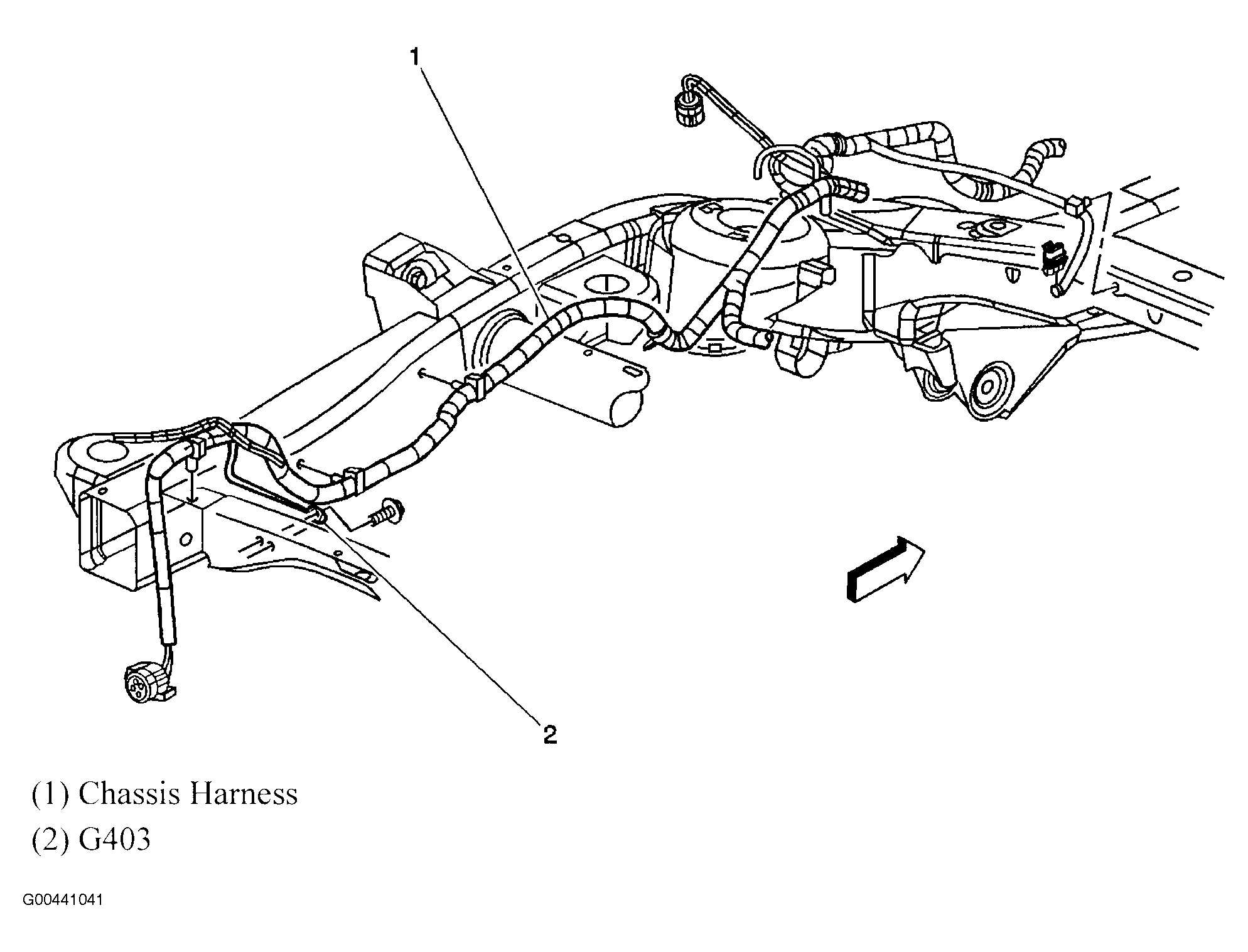

Fig 111: Ground G403
Courtesy of GENERAL MOTORS CORP.

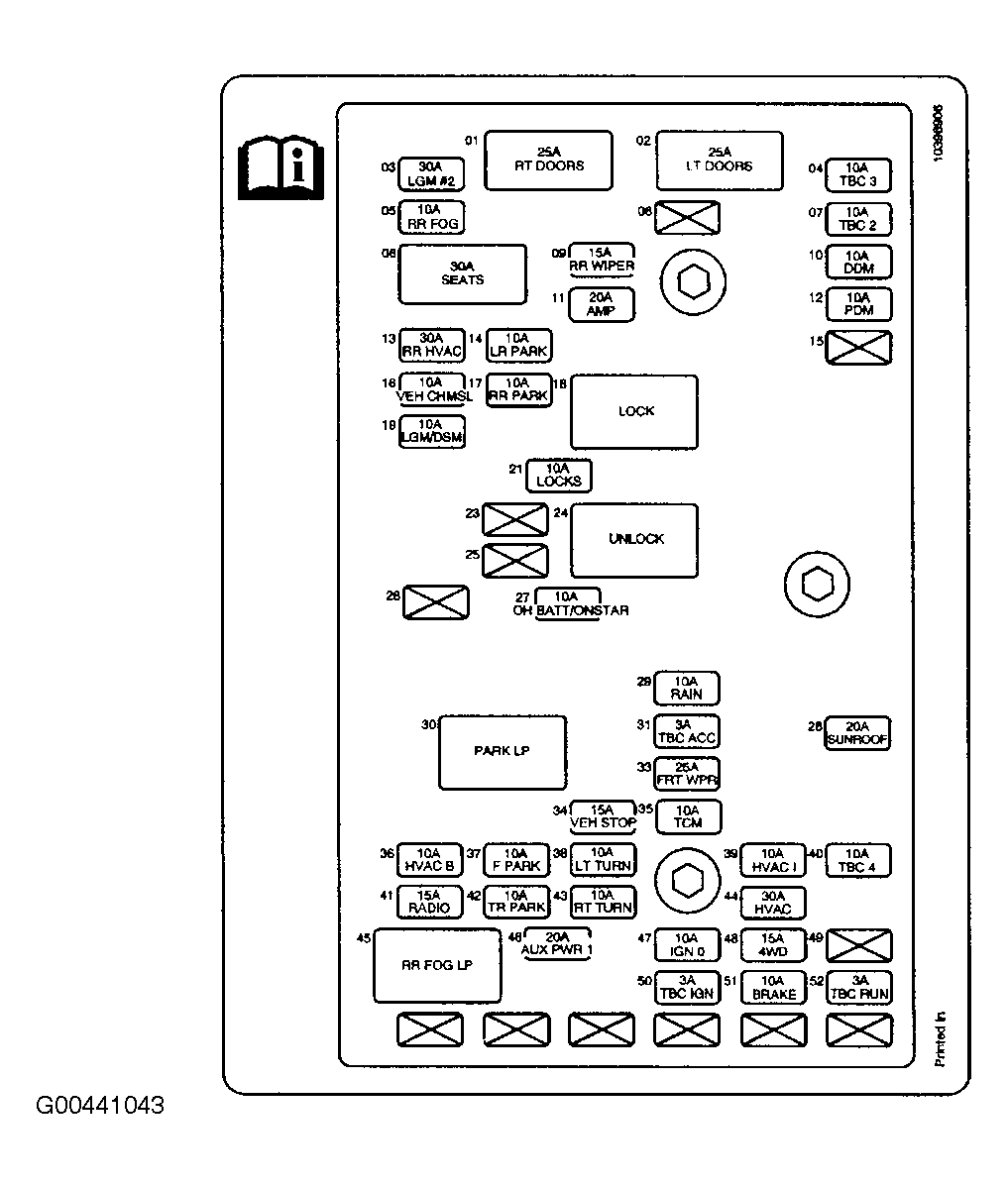

Fig 112: Rear Fuse Block
Courtesy of GENERAL MOTORS CORP.

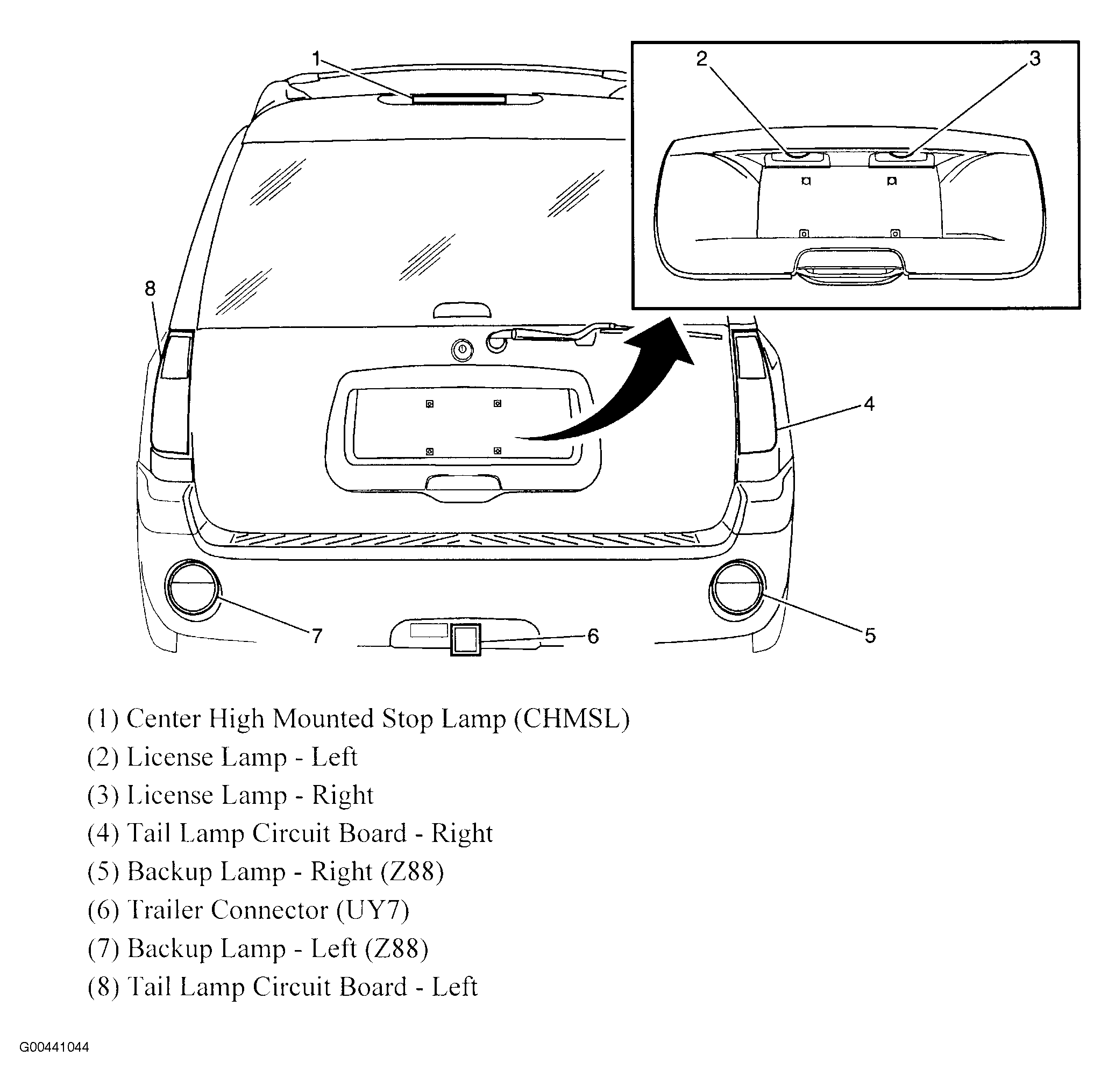

Fig 113: Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 114: Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 115: Electronic Brake Control Module
Courtesy of GENERAL MOTORS CORP.
