Mirror Component Views

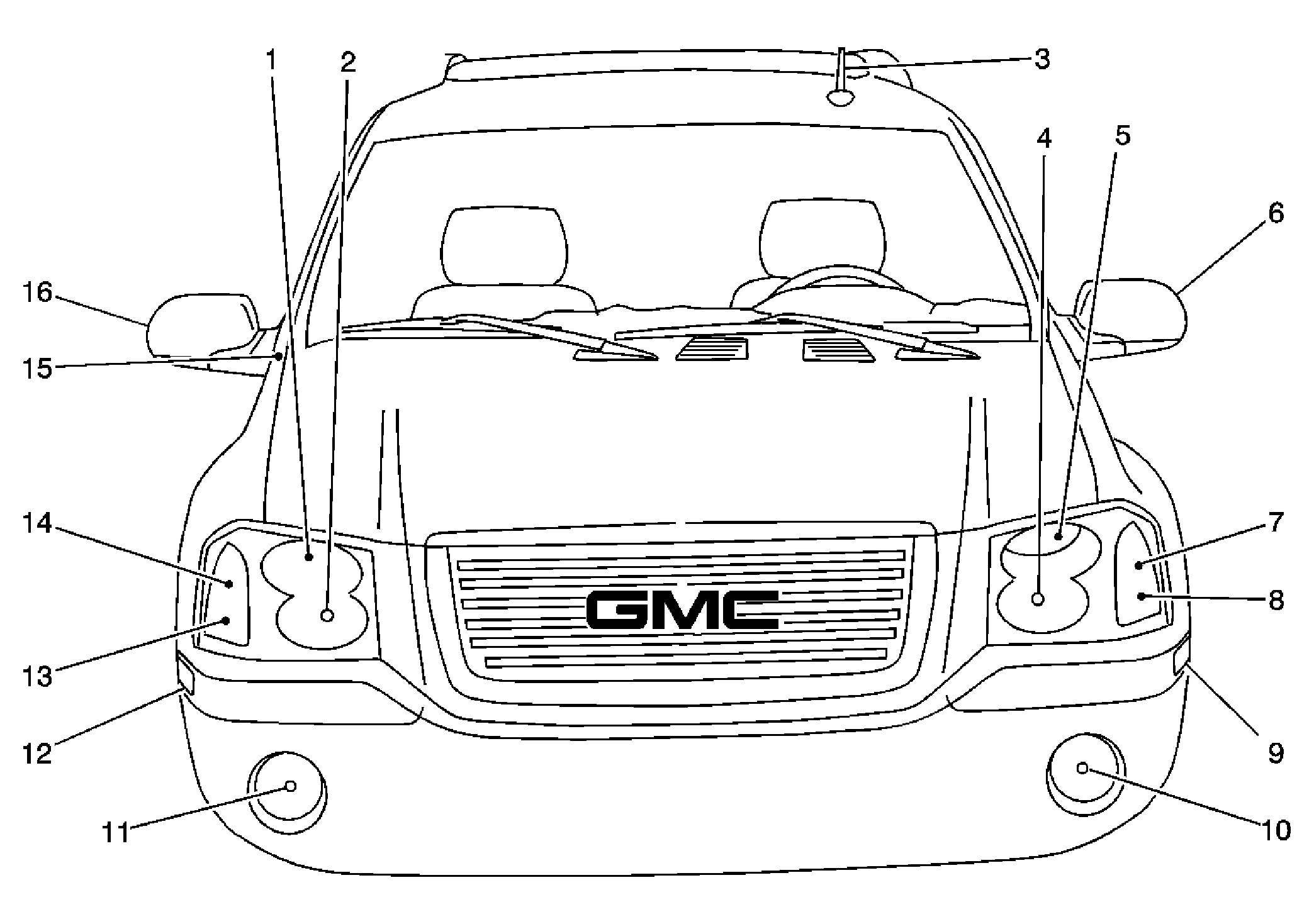

Fig 1: Front of Vehicle View (Z88/Z89)

GM1550918

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam - Right
2	Headlamp - High Beam - Right
3	Cellular Antenna (UE1)
4	Headlamp - High Beam - Left
5	Headlamp - Low Beam - Left
6	Outside Rearview Mirror - Driver
7	Marker Lamp - LF
8	Park/Turn Signal Lamp - LF
9	Cornering Lamp - Left (Z88)
10	Fog Lamp - LF (T96)
11	Fog Lamp - RF (T96)
12	Cornering Lamp - Right (Z88)
13	Park/Turn Signal Lamp - RF
14	Marker Lamp - RF
15	Radio Antenna
16	Outside Rearview Mirror - Passenger

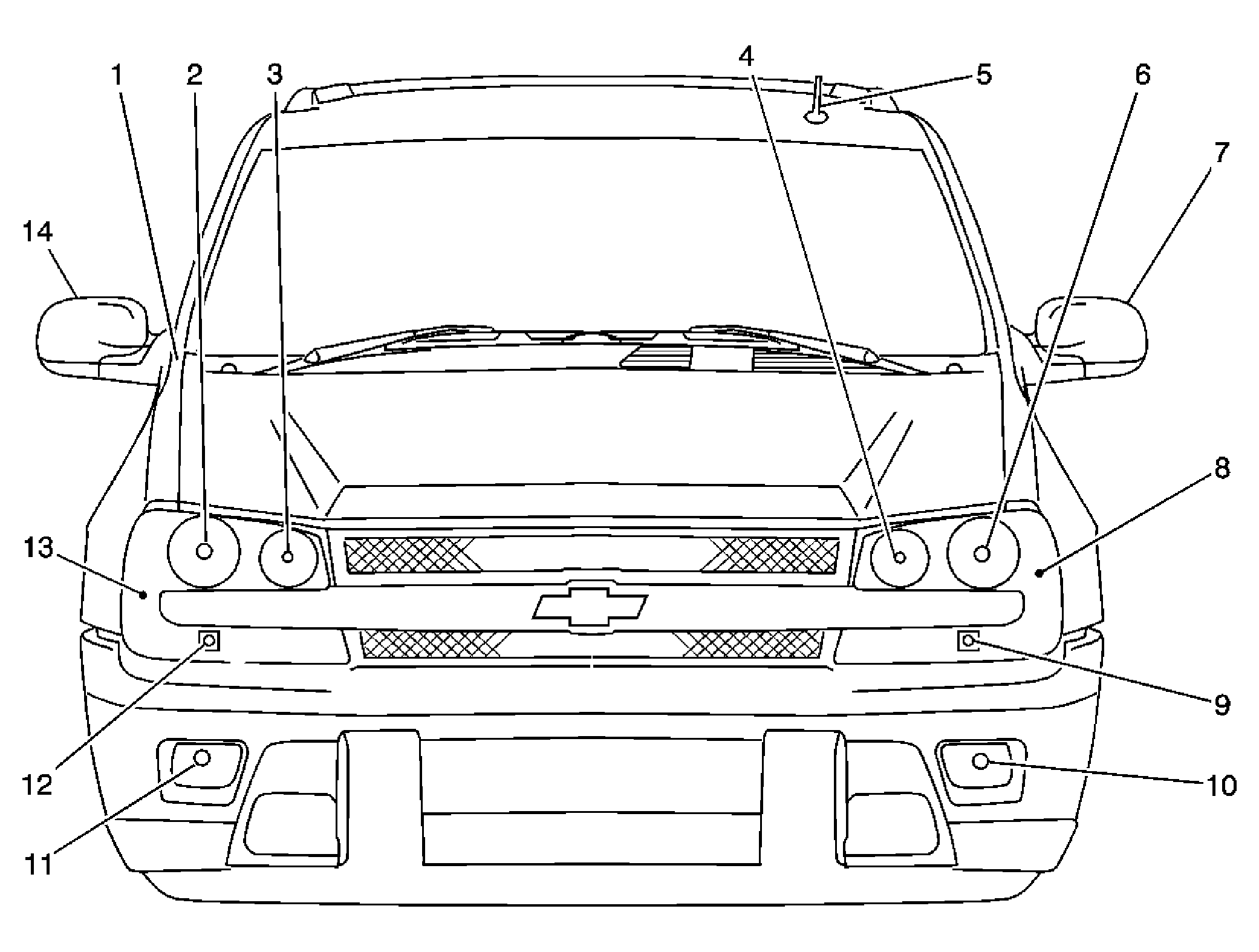

Fig 2: Front of Vehicle View (X88)

GM1550922

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Antenna
2	Headlamp - High Beam - Right
3	Headlamp - Low Beam - Right
4	Headlamp - Low Beam - Left
5	Cellular Antenna (UE1)
6	Headlamp - High Beam - Left
7	Outside Rearview Mirror - Driver
8	Marker Lamp - LF
9	Park/Turn Signal lamp - LF
10	Fog Lamp - LF (T96)
11	Fog Lamp - RF (T96)
12	Park/Turn Signal lamp - RF
13	Marker Lamp - RF
14	Outside Rearview Mirror - Passenger

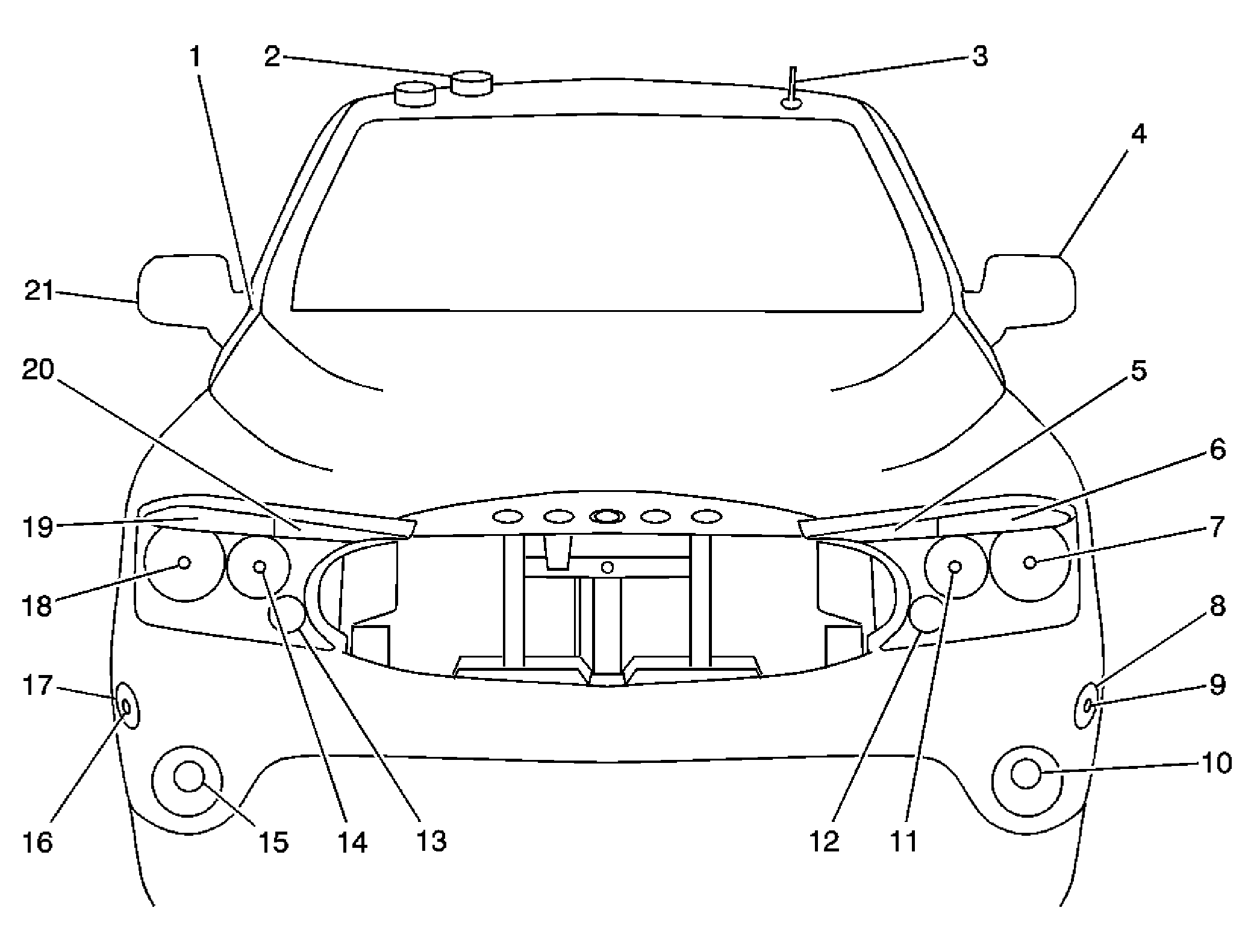

Fig 3: Front of Vehicle View (W49)

GM1550923

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Radio Antenna
2	Digital Radio Antenna
3	Cellular Antenna (UE1)
4	Outside Rearview Mirror - Driver
5	Park Lamp - LF
6	Park Lamp - LF
7	Headlamp - High Beam - Left
8	Marker Lamp - LF
9	Cornering Lamp - Left
10	Fog Lamp - LF (T96)
11	Headlamp - Low Beam - Left
12	Turn Signal Lamp - LF
13	Turn Signal Lamp - RF
14	Headlamp - Low Beam - Right
15	Fog Lamp - RF (T96)
16	Cornering Lamp - Right
17	Marker Lamp - RF
18	Headlamp - High Beam - Right
19	Park Lamp - RF
20	Park Lamp - RF
21	Outside Rearview Mirror - Passenger

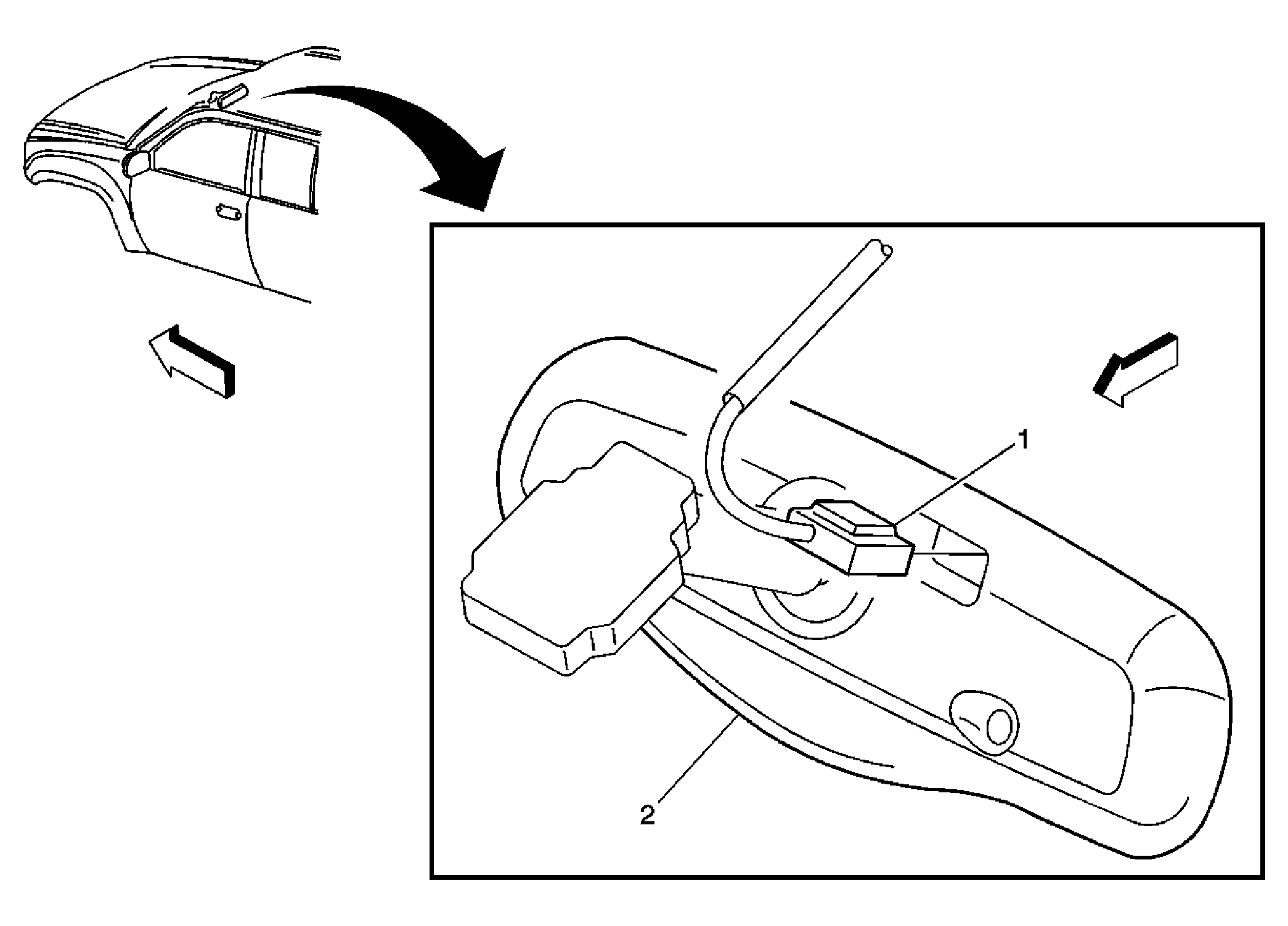

Fig 4: View Of Inside Rearview Mirror

GM1775167

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Connector (Headliner Harness)
2	Inside Rearview Mirror
