Power Outlet Component Views

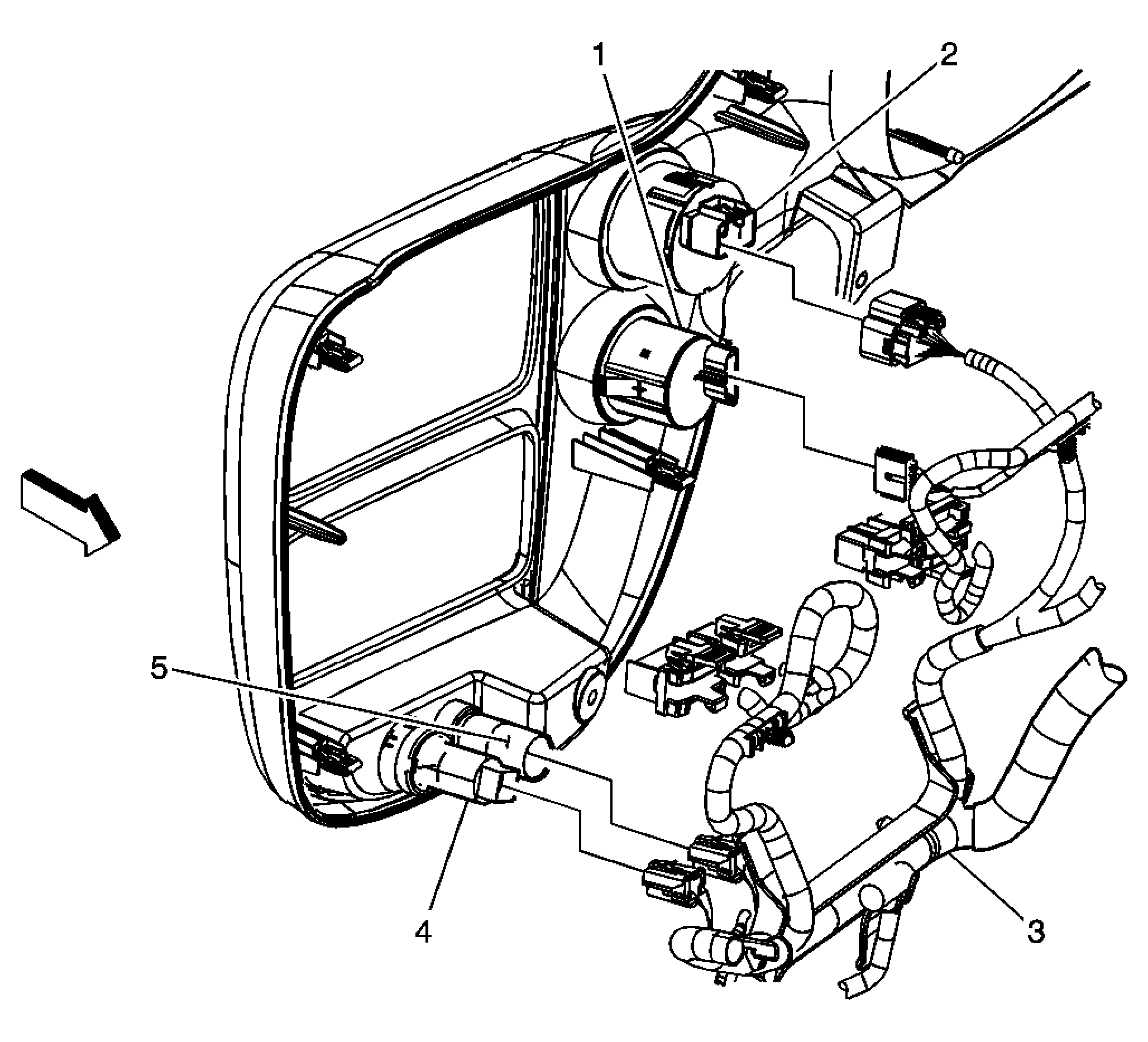

Fig 1: View Behind Center Of I/P (X88)

GM1489005

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Wiper/Washer Switch
2	Transfer Case Shift Control Switch (NP8)
3	Instrument Panel Harness
4	Auxiliary Power Outlet - Front
5	Cigar Lighter

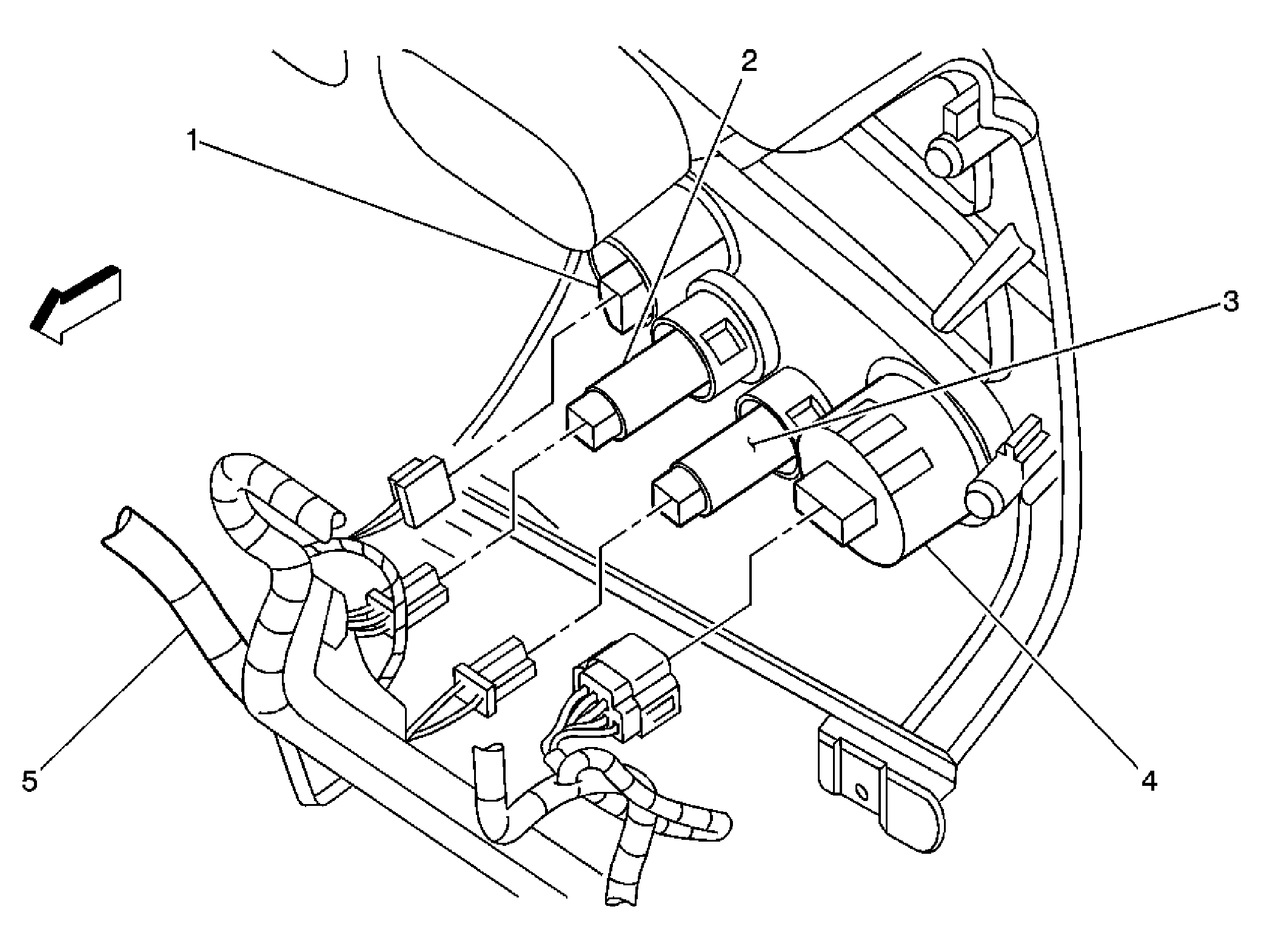

Fig 2: View Behind Center Of I/P (Z88/Z89)

GM1707997

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Rear Window Wiper/Washer Switch
2	Auxiliary Power Outlet - Front
3	Cigar Lighter
4	Transfer Case Shift Control Switch (NP8)
5	Instrument Panel Harness

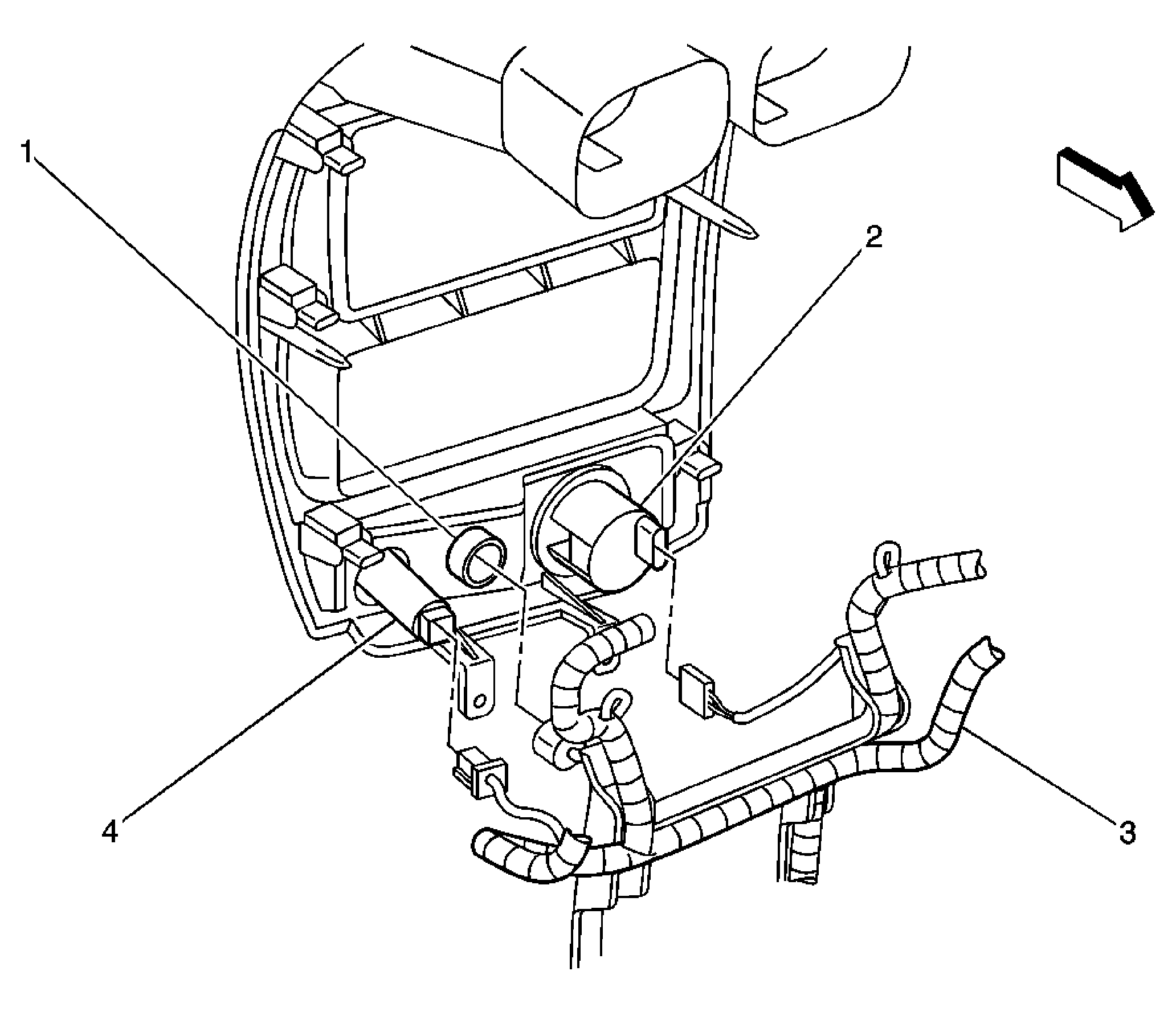

Fig 3: View Behind Center Of I/P (W49)

GM1489010

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cigar Lighter
2	Rear Window Wiper/Washer Switch
3	Instrument Panel Harness
4	Auxiliary Power Outlet - Front

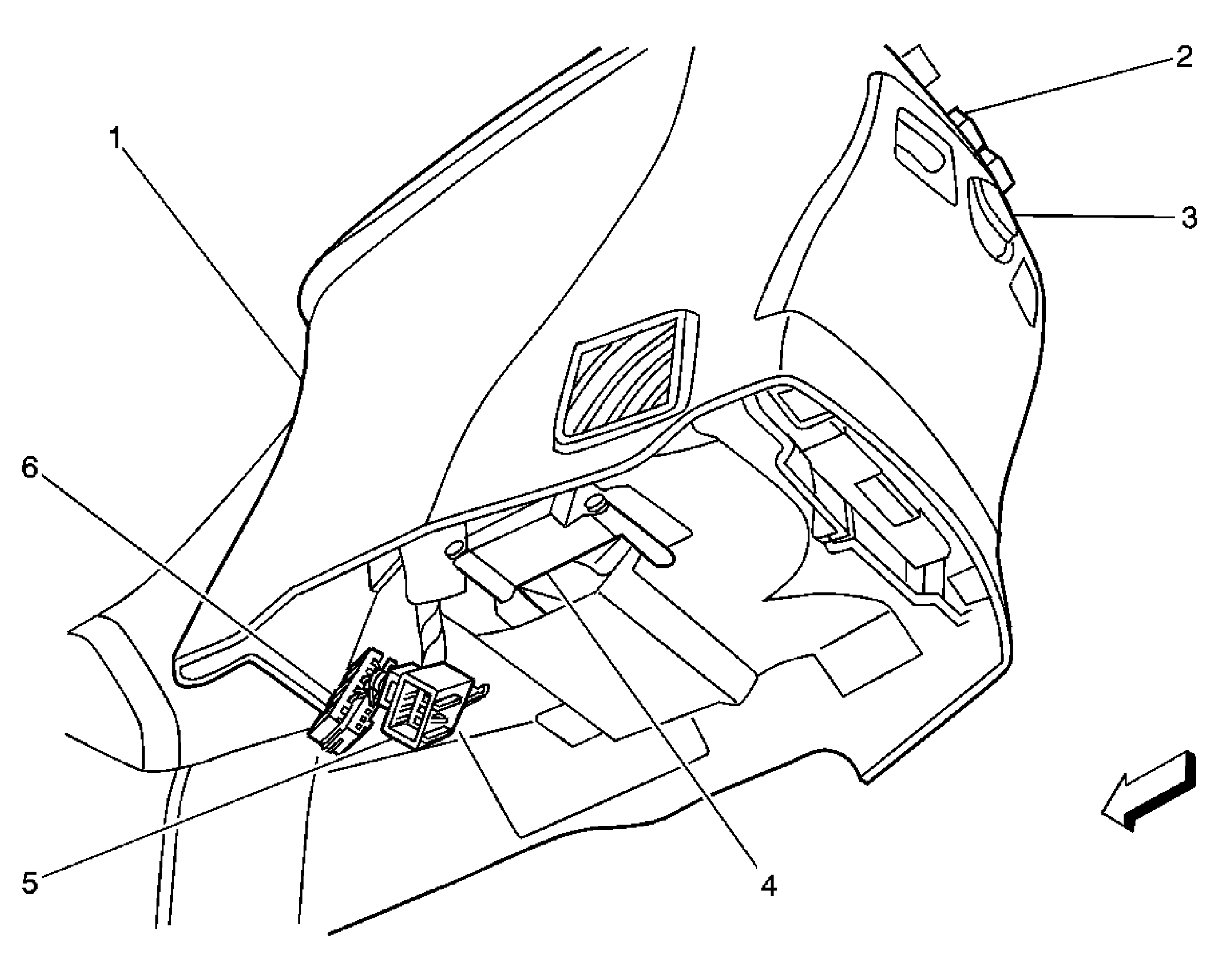

Fig 4: View Of Lower Console

GM1551512

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Lower Console
2	HVAC Control Module - Auxiliary
3	Auxiliary Power Outlet - Console
4	Console Mode Actuator - Auxiliary
5	C309
6	C307
