Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Front Axle
Courtesy of GENERAL MOTORS CORP.
Fig 2: Automatic Transmission Overview
Courtesy of GENERAL MOTORS CORP.
Fig 3: Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 4: Driver Seat
Courtesy of GENERAL MOTORS CORP.
Fig 5: SIR System Front/Roof Rail
Courtesy of GENERAL MOTORS CORP.
Fig 6: SIR System Side Sensor/Module
Courtesy of GENERAL MOTORS CORP.

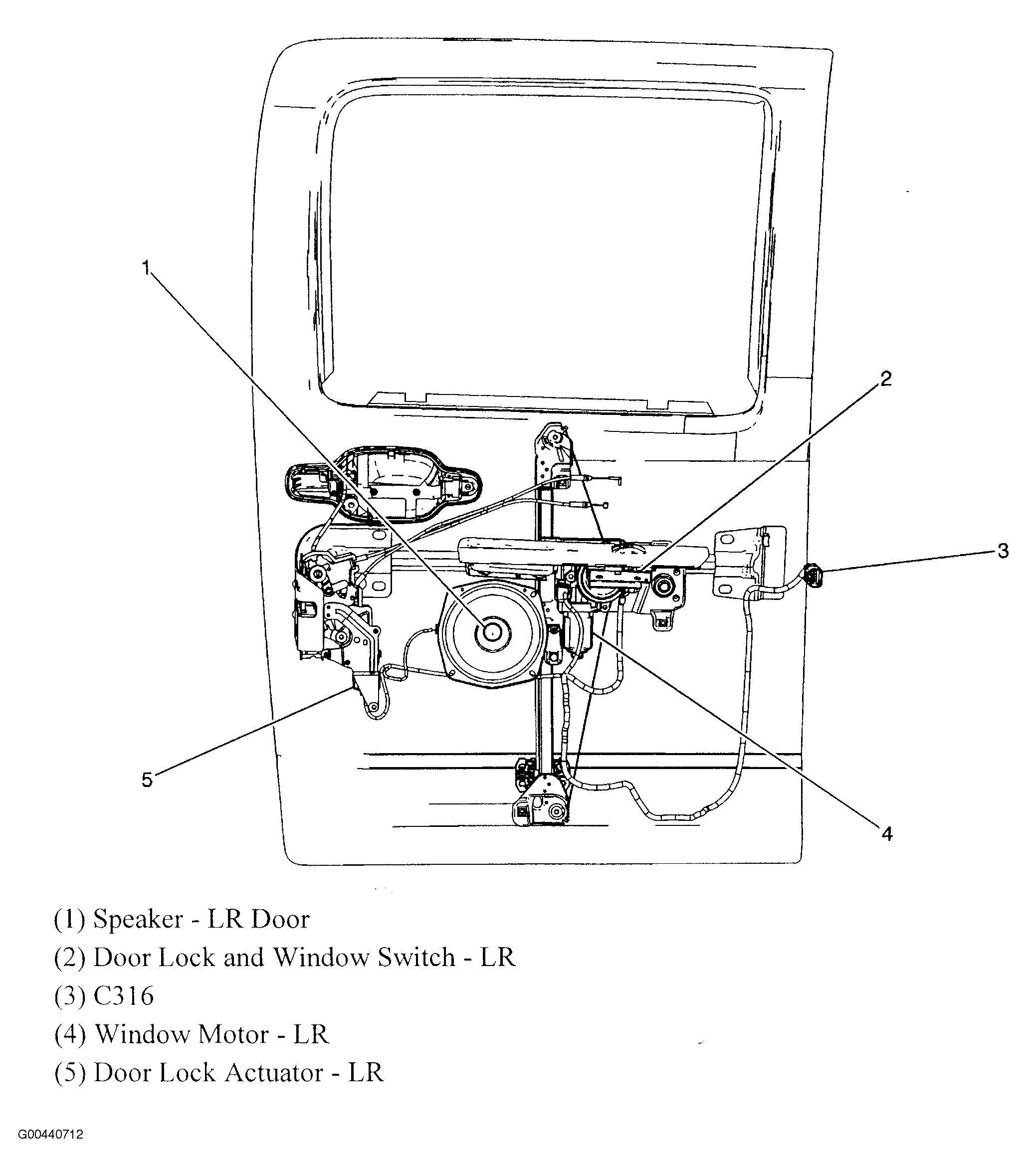

Fig 7: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 8: Lower Center Of Dash
Courtesy of GENERAL MOTORS CORP.

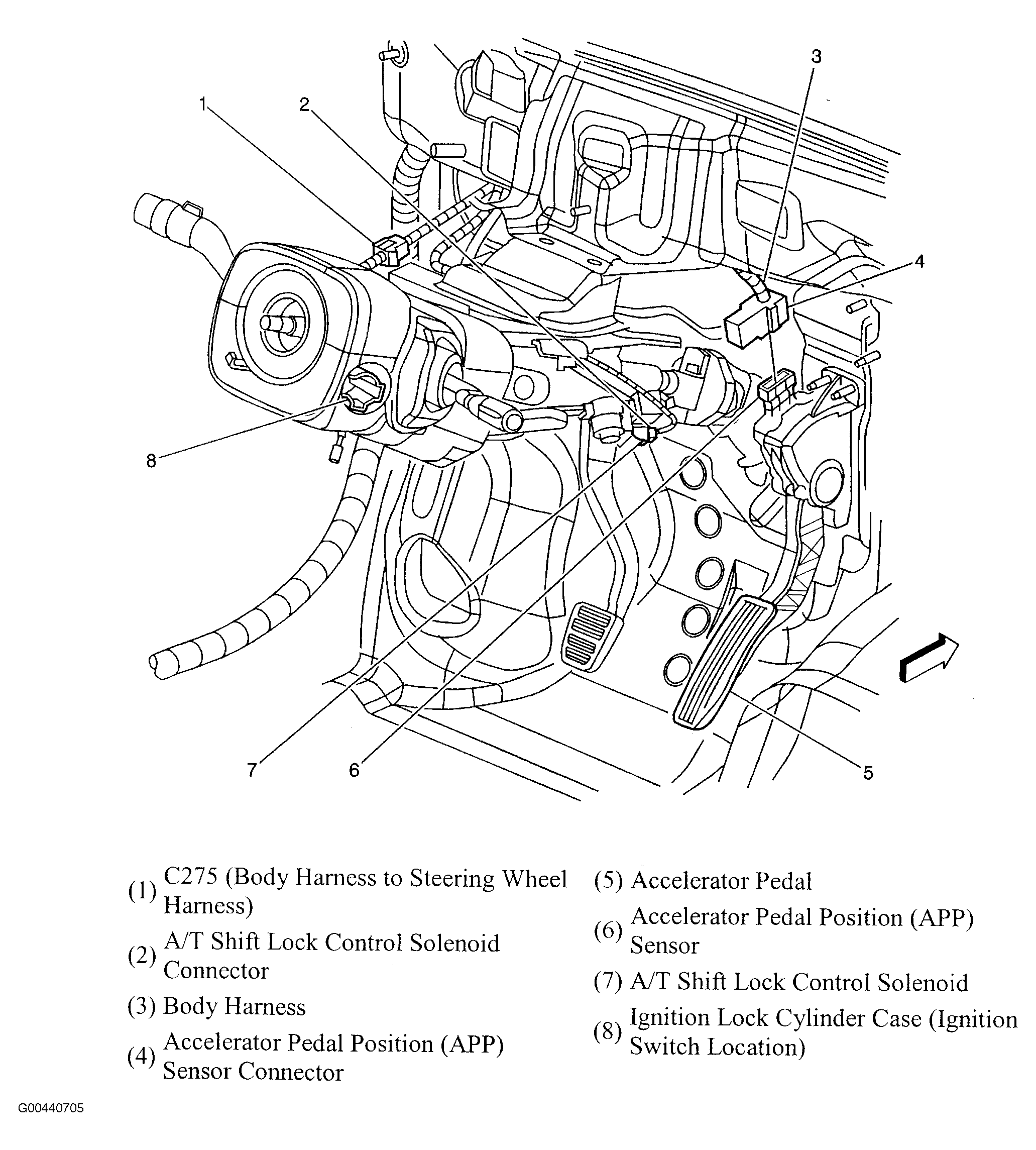

Fig 9: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 10: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 11: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 12: Front Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 13: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 14: Top View Of Engine (2.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Left Side Of Engine (2.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 16: Top/Front View Of Engine (2.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Chassis & Right Side Of Transfer Case
Courtesy of GENERAL MOTORS CORP.

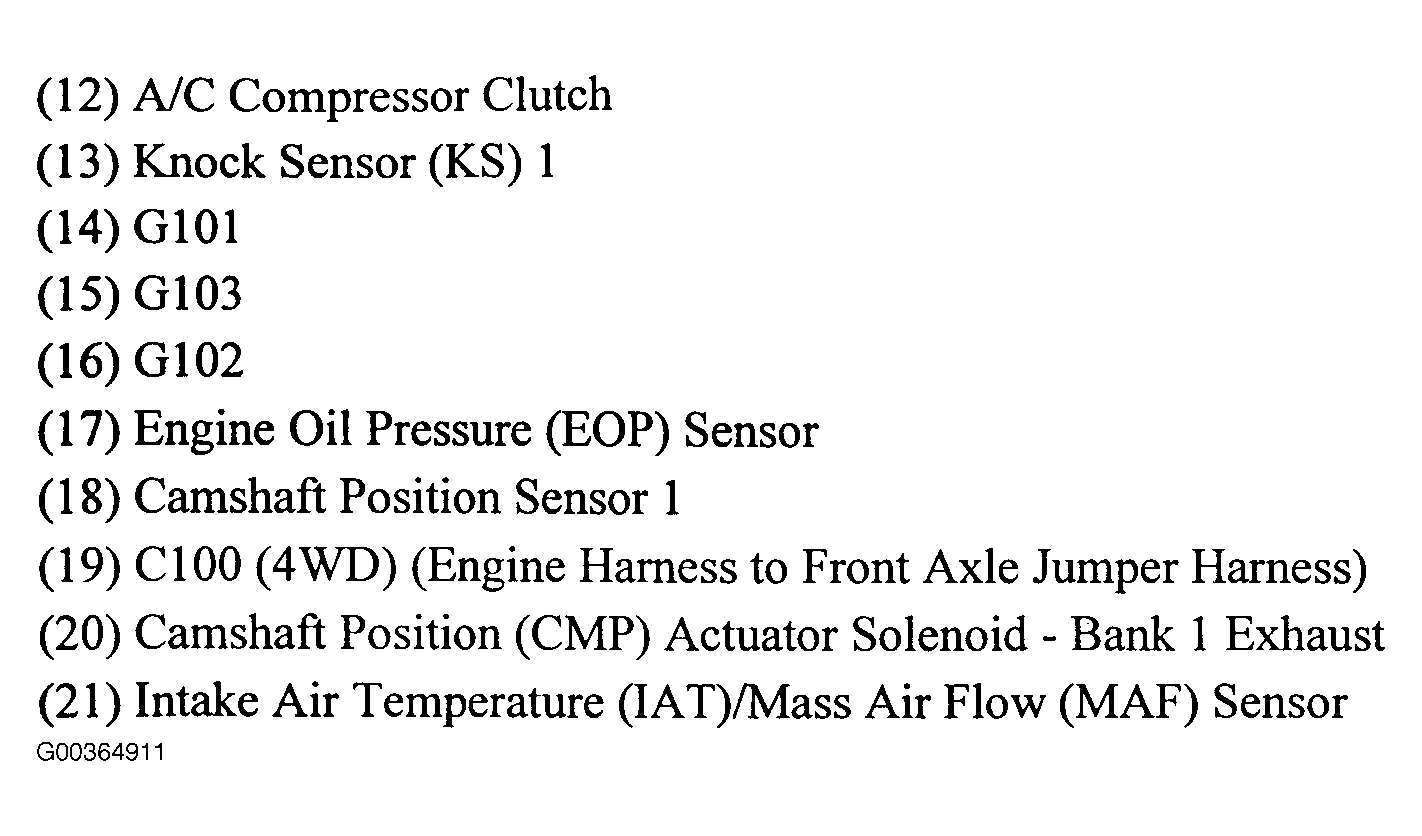

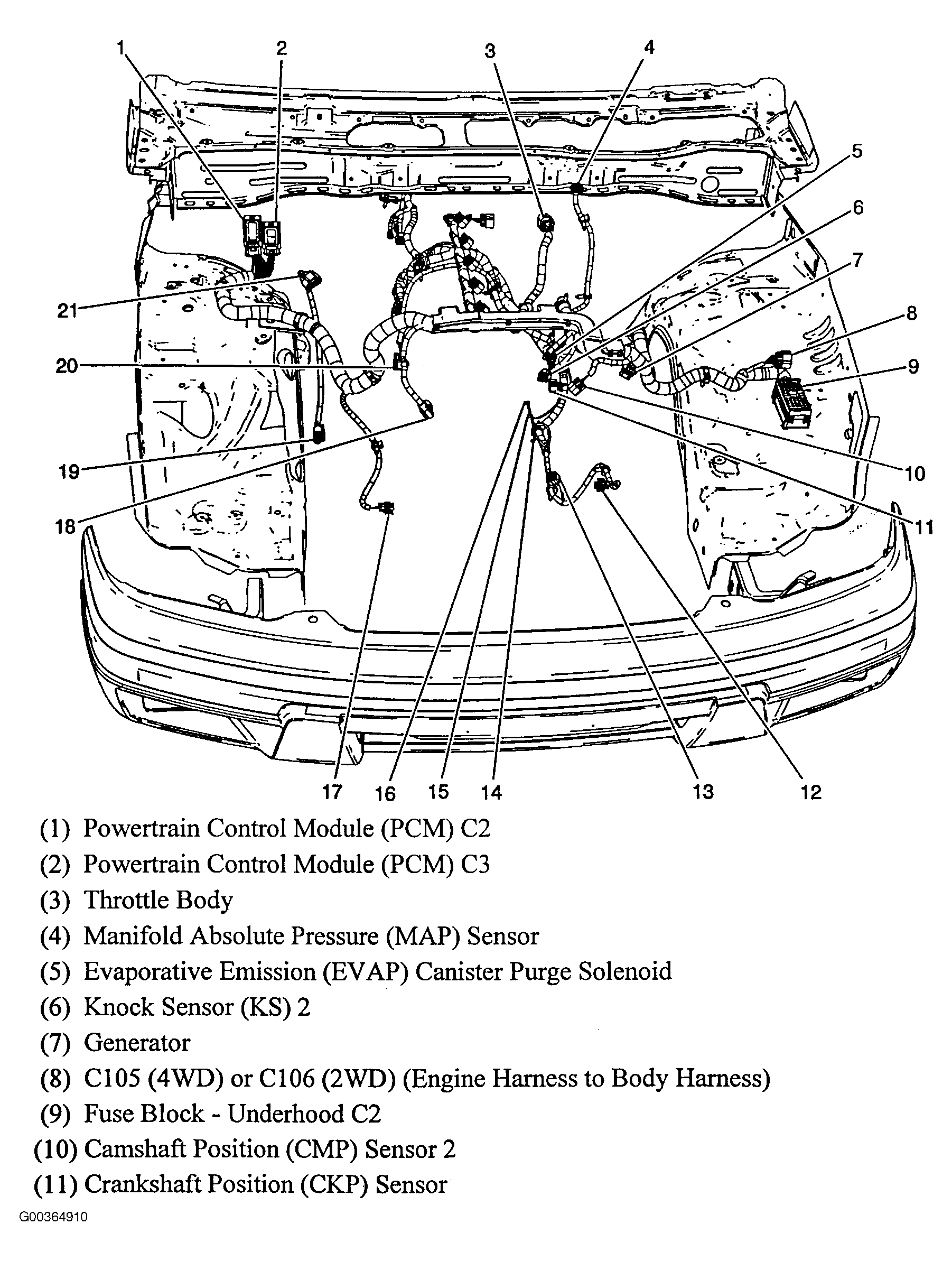

Fig 18: Top View Of Engine (3.7L)
Courtesy of GENERAL MOTORS CORP.

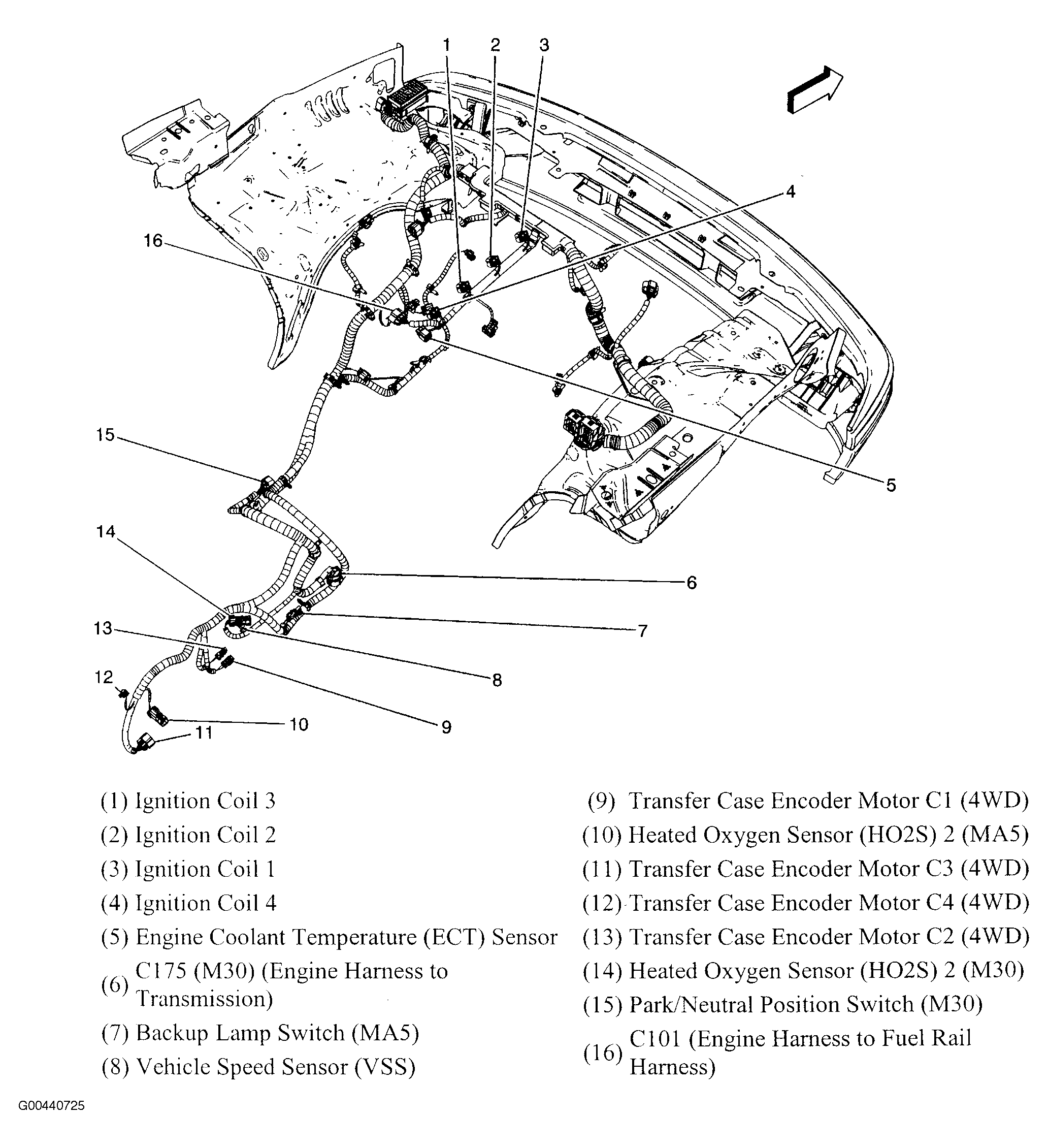

Fig 19: Right Front Of Engine (3.7L)
Courtesy of GENERAL MOTORS CORP.
Fig 20: Left & Right Sides Of Engine Compartment (Extended Cab)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Passenger Compartment (Regular Cab) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 22: Passenger Compartment (Regular Cab) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 23: Passenger Compartment (Crew Cab) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 24: Passenger Compartment (Crew Cab) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

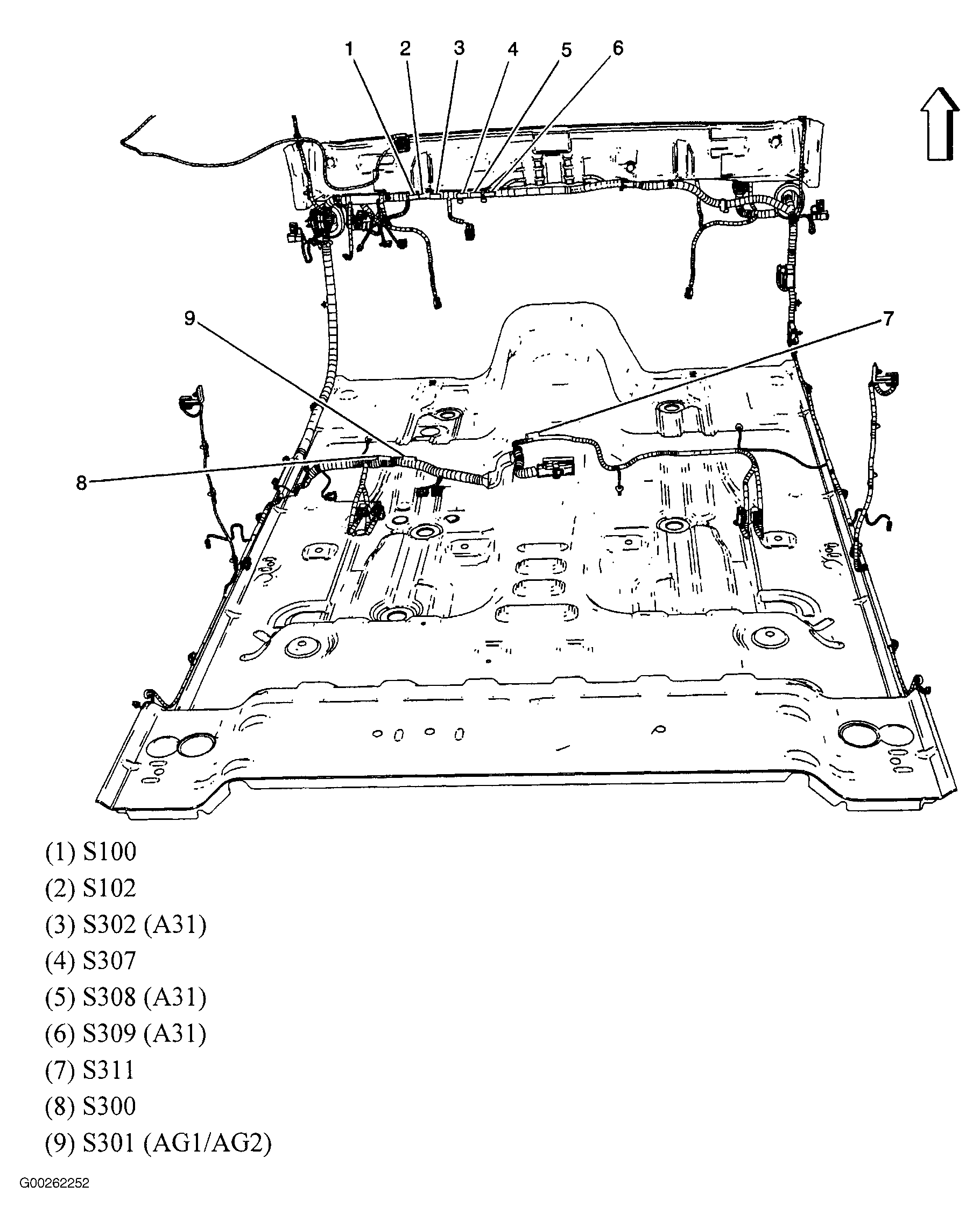

Fig 25: Body Harness Routing
Courtesy of GENERAL MOTORS CORP.

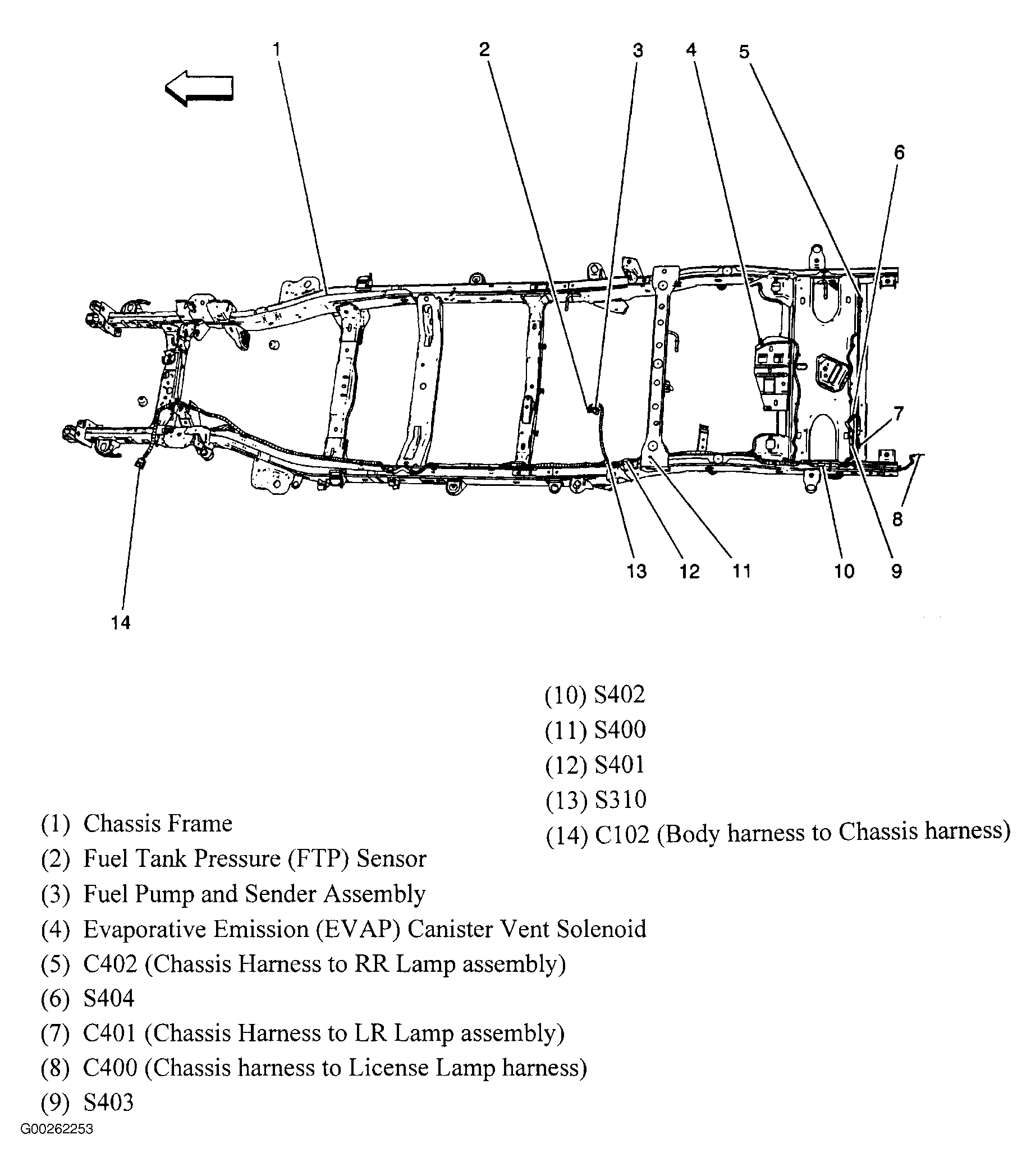

Fig 26: Chassis Harness Routing
Courtesy of GENERAL MOTORS CORP.

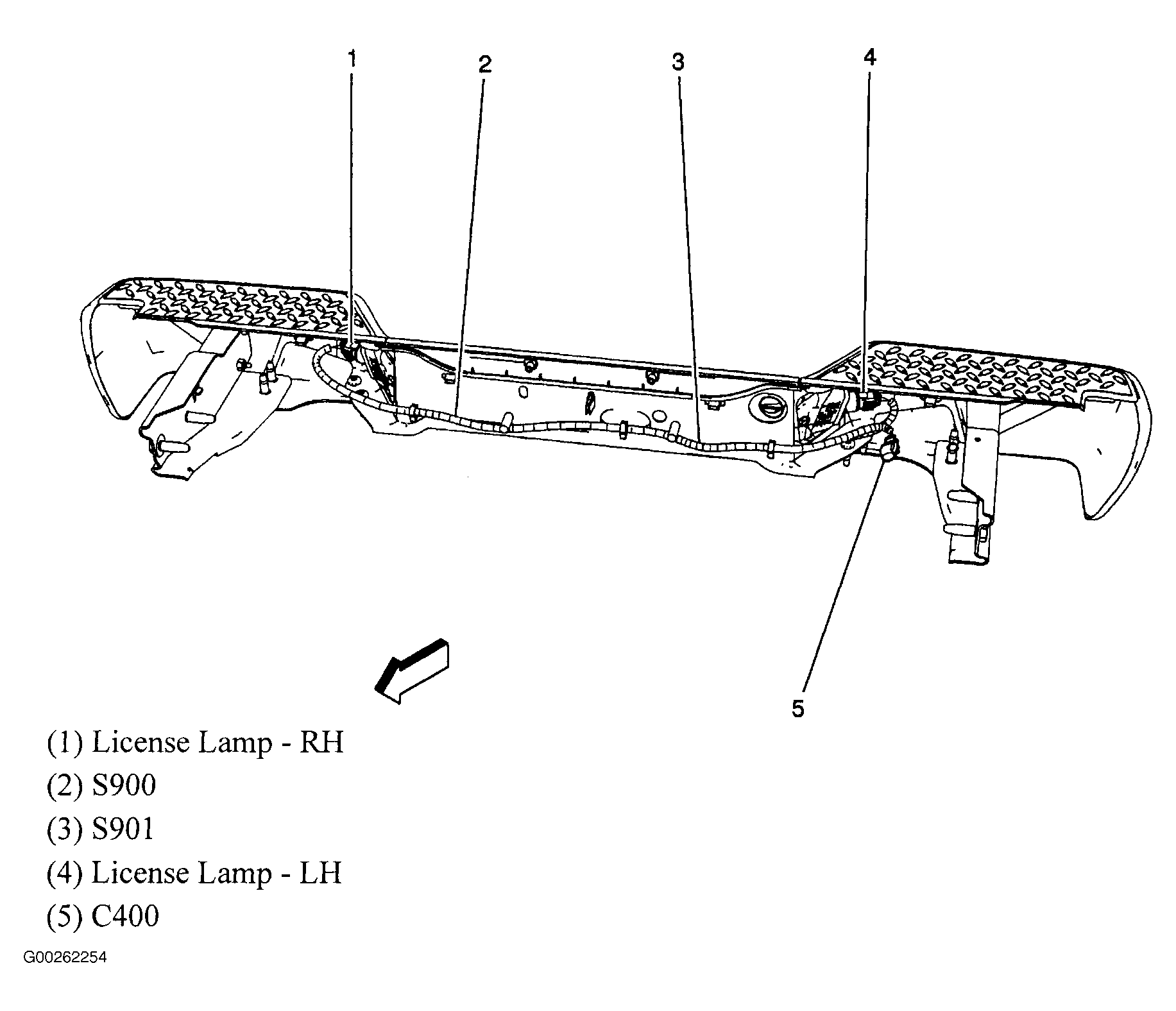

Fig 27: License Plate Lamp Harness Routing
Courtesy of GENERAL MOTORS CORP.

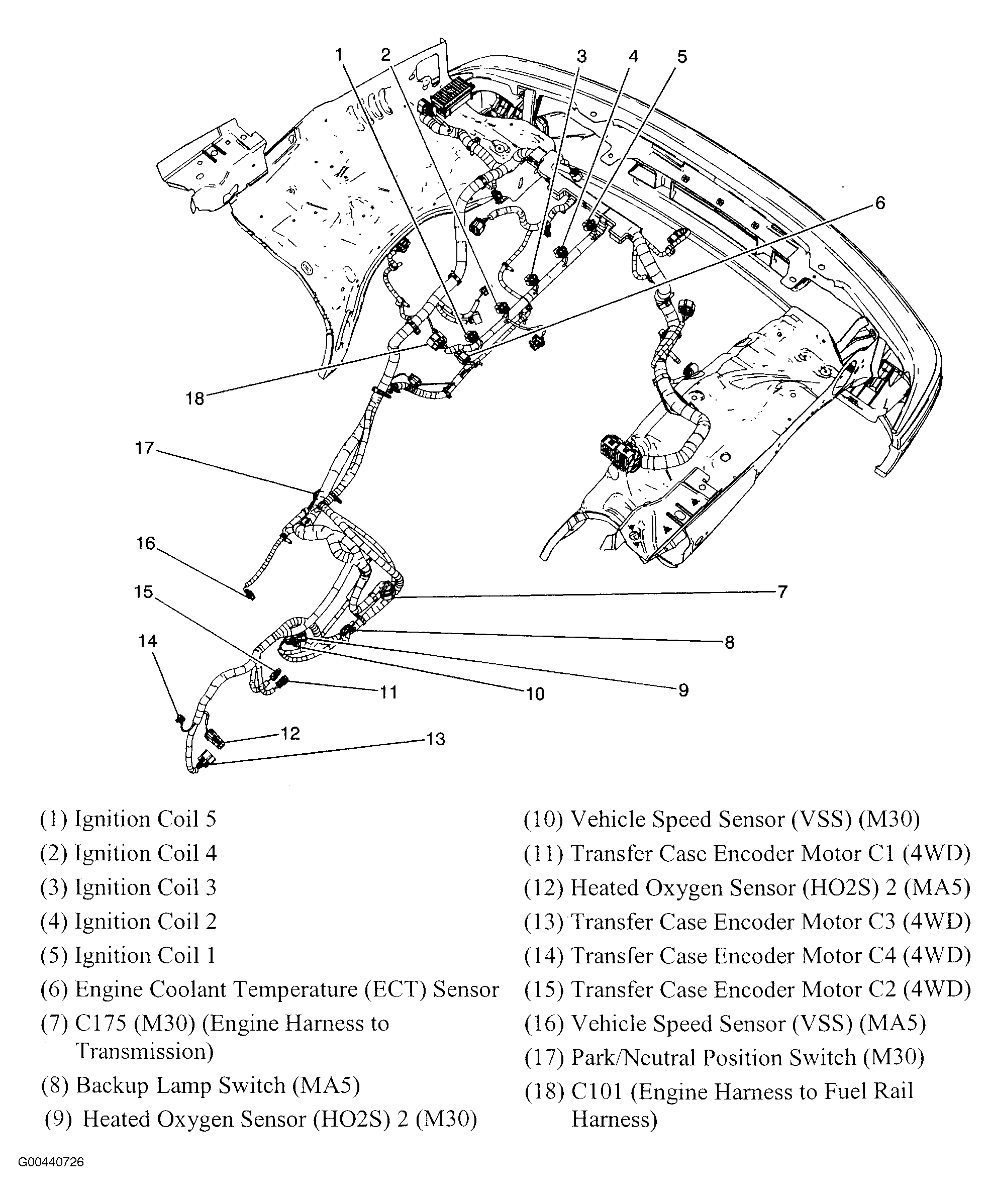

Fig 28: Engine Harness (3.7L) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 29: Engine Harness (3.7L) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.
Fig 30: Engine Controls Components - Left Side (3.7L)
Courtesy of GENERAL MOTORS CORP.

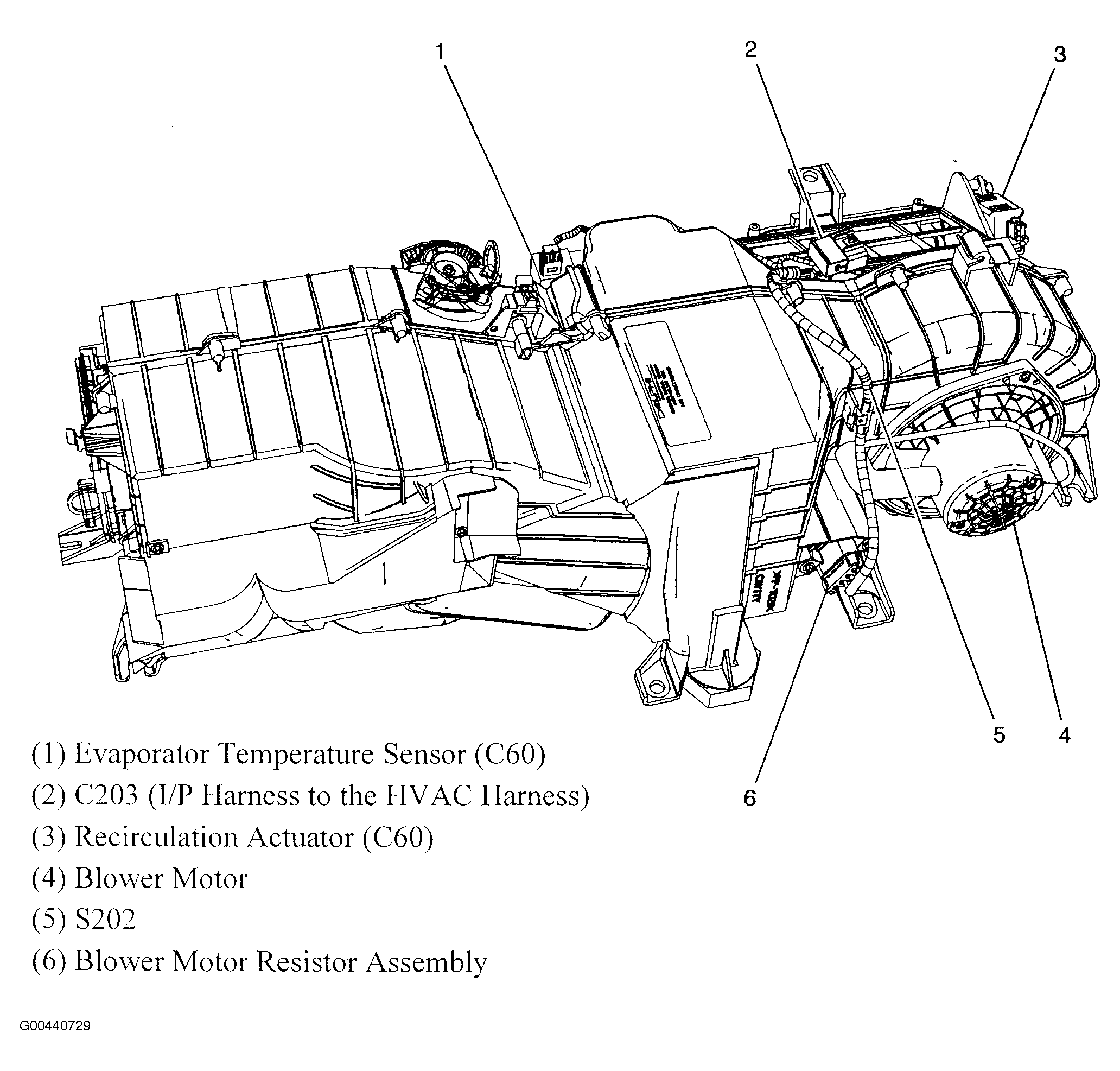

Fig 31: HVAC Components
Courtesy of GENERAL MOTORS CORP.
Fig 32: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 33: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 34: Backup Lamp Switch
Courtesy of GENERAL MOTORS CORP.

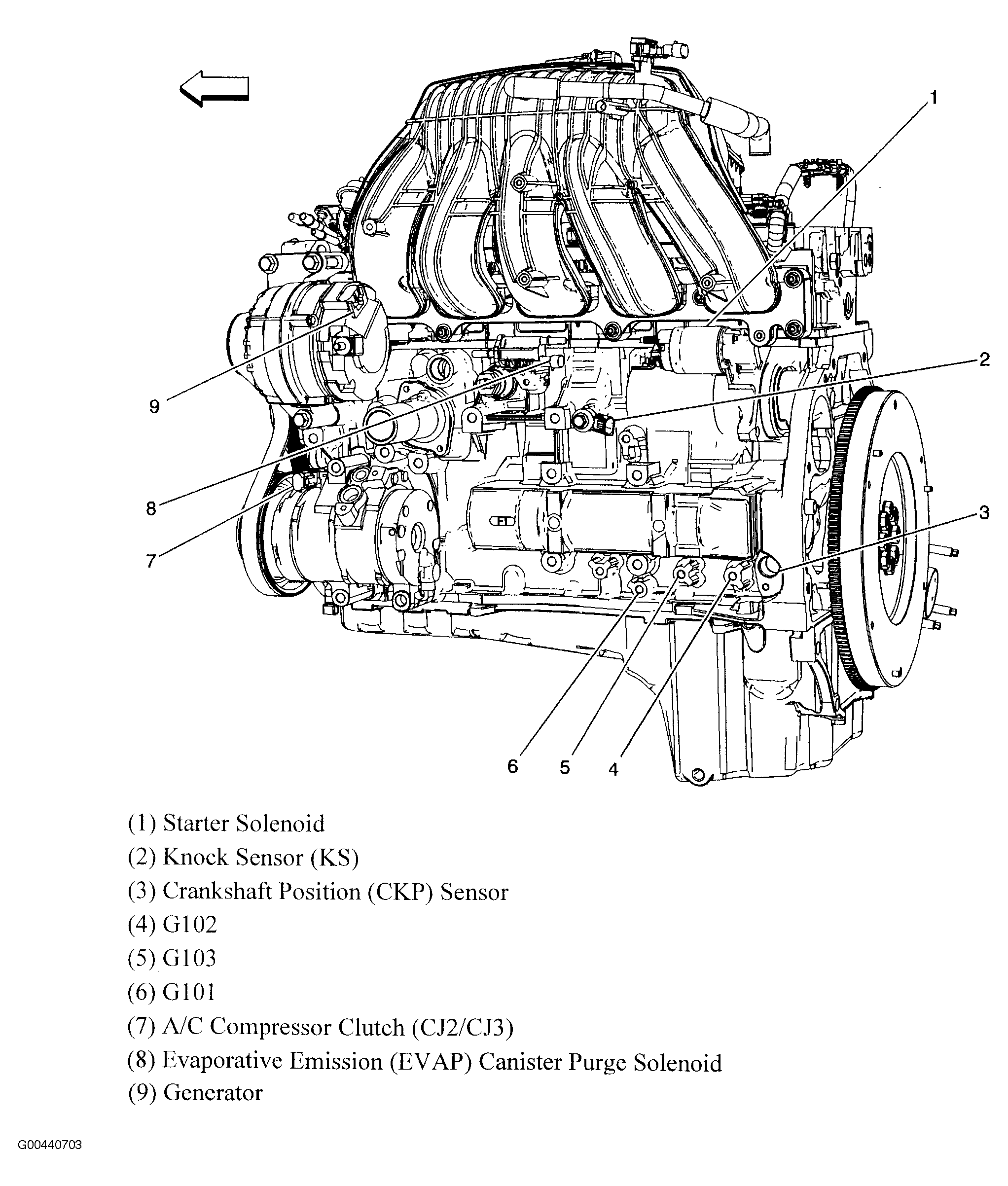

Fig 35: Engine Electrical Components
Courtesy of GENERAL MOTORS CORP.
Fig 36: Body Control Module (BCM)
Courtesy of GENERAL MOTORS CORP.
Fig 37: Brake Fluid Level Switch
Courtesy of GENERAL MOTORS CORP.

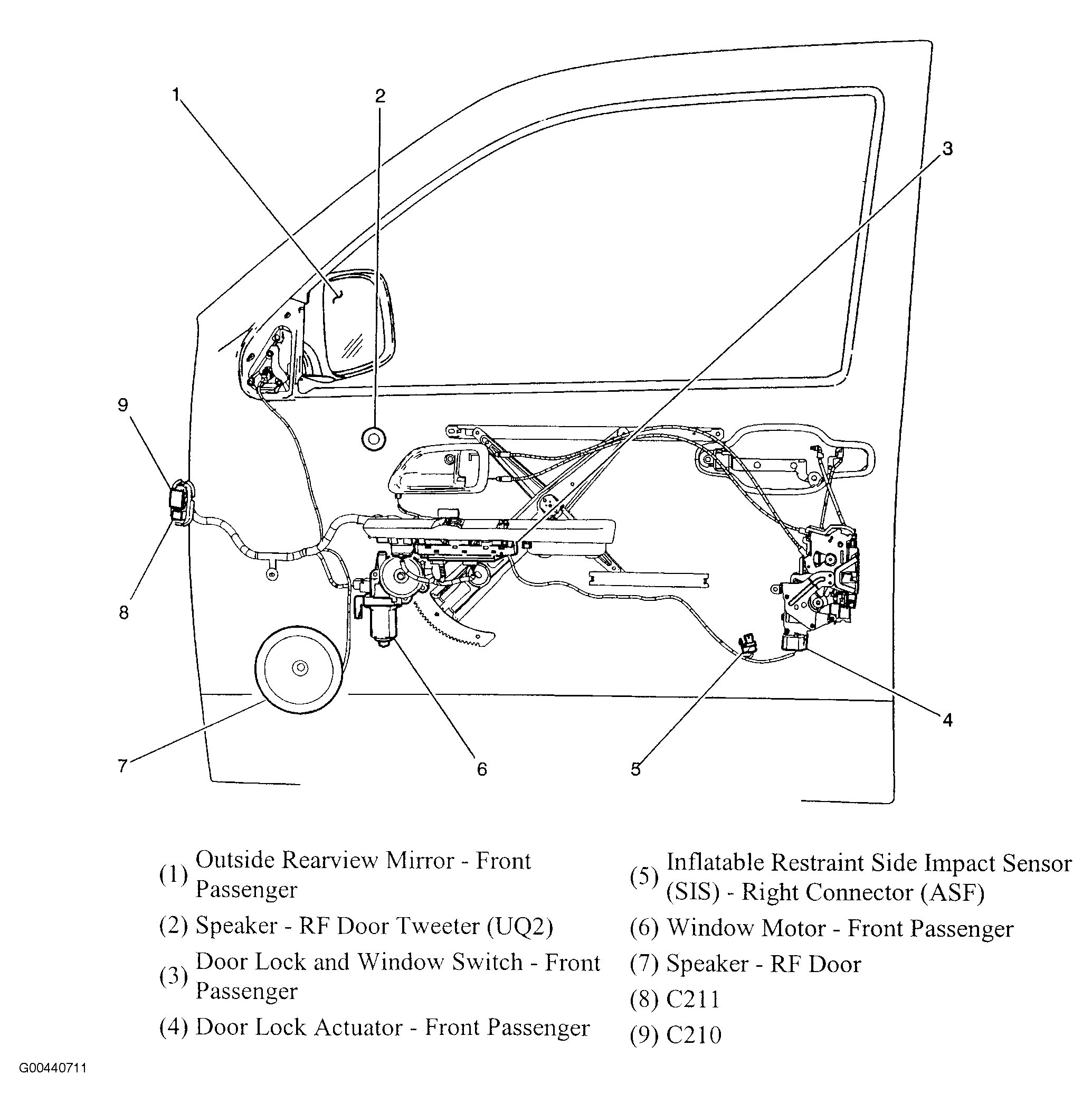

Fig 38: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.

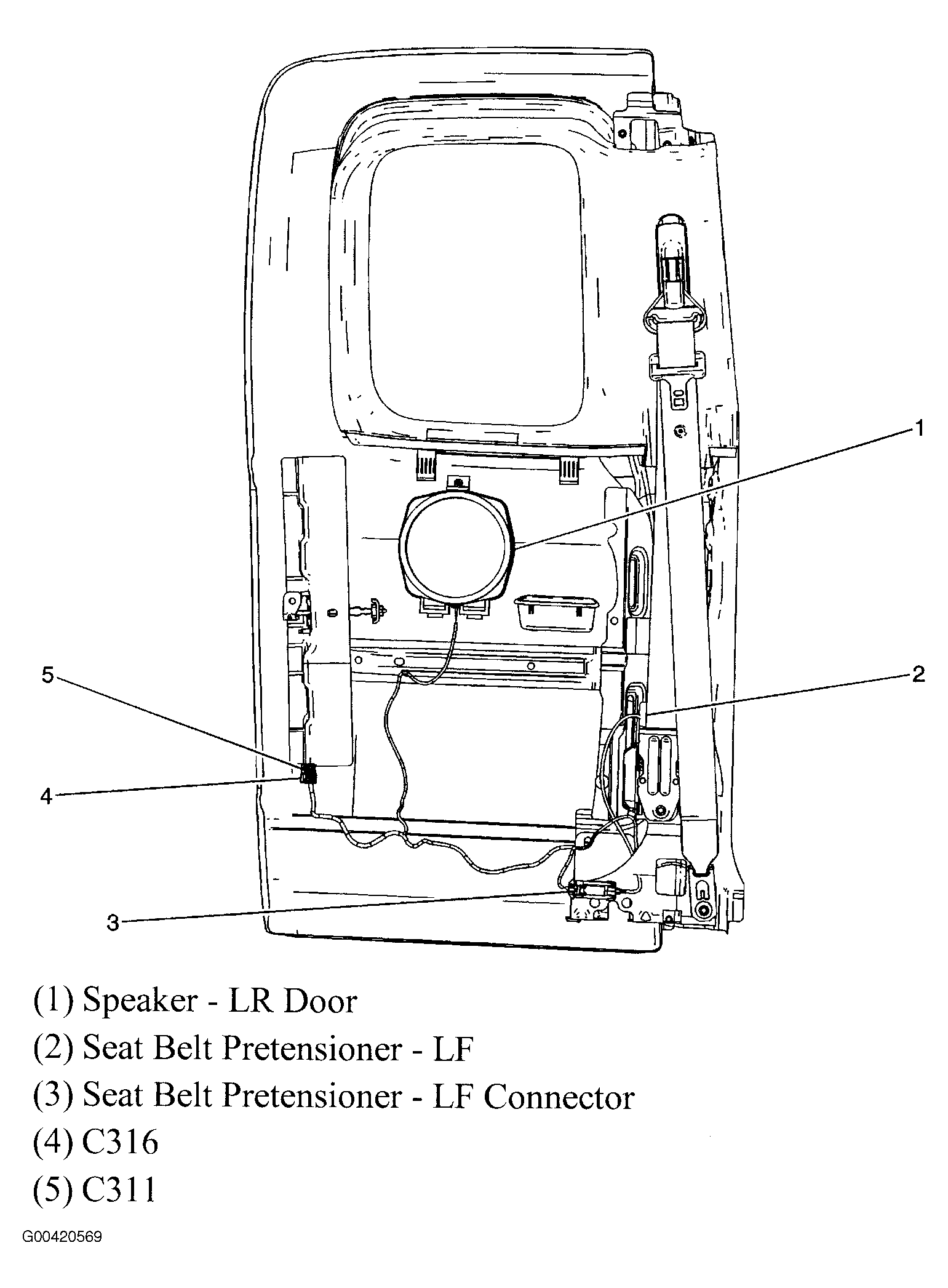

Fig 39: Left Rear Door (Crew Cab)
Courtesy of GENERAL MOTORS CORP.

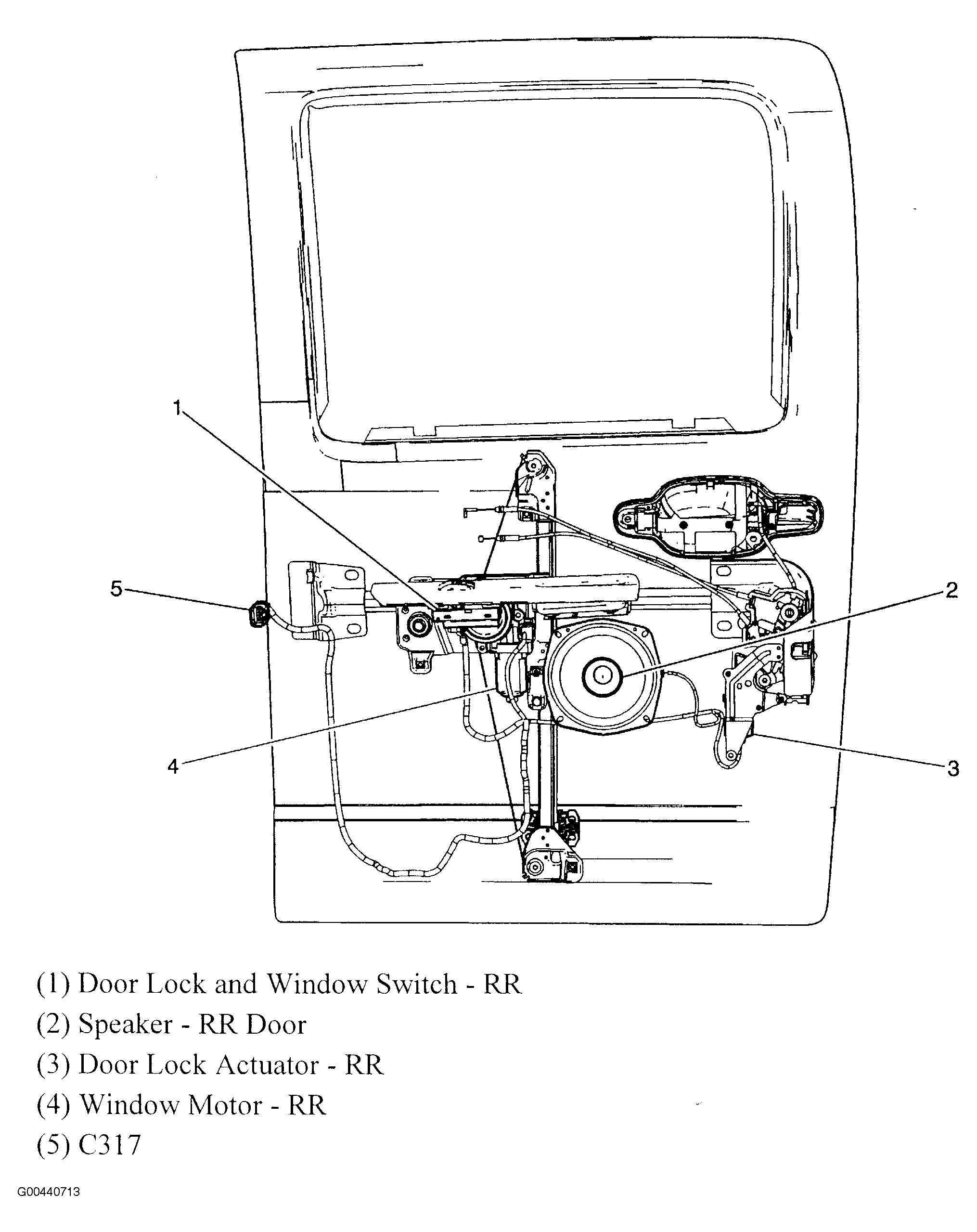

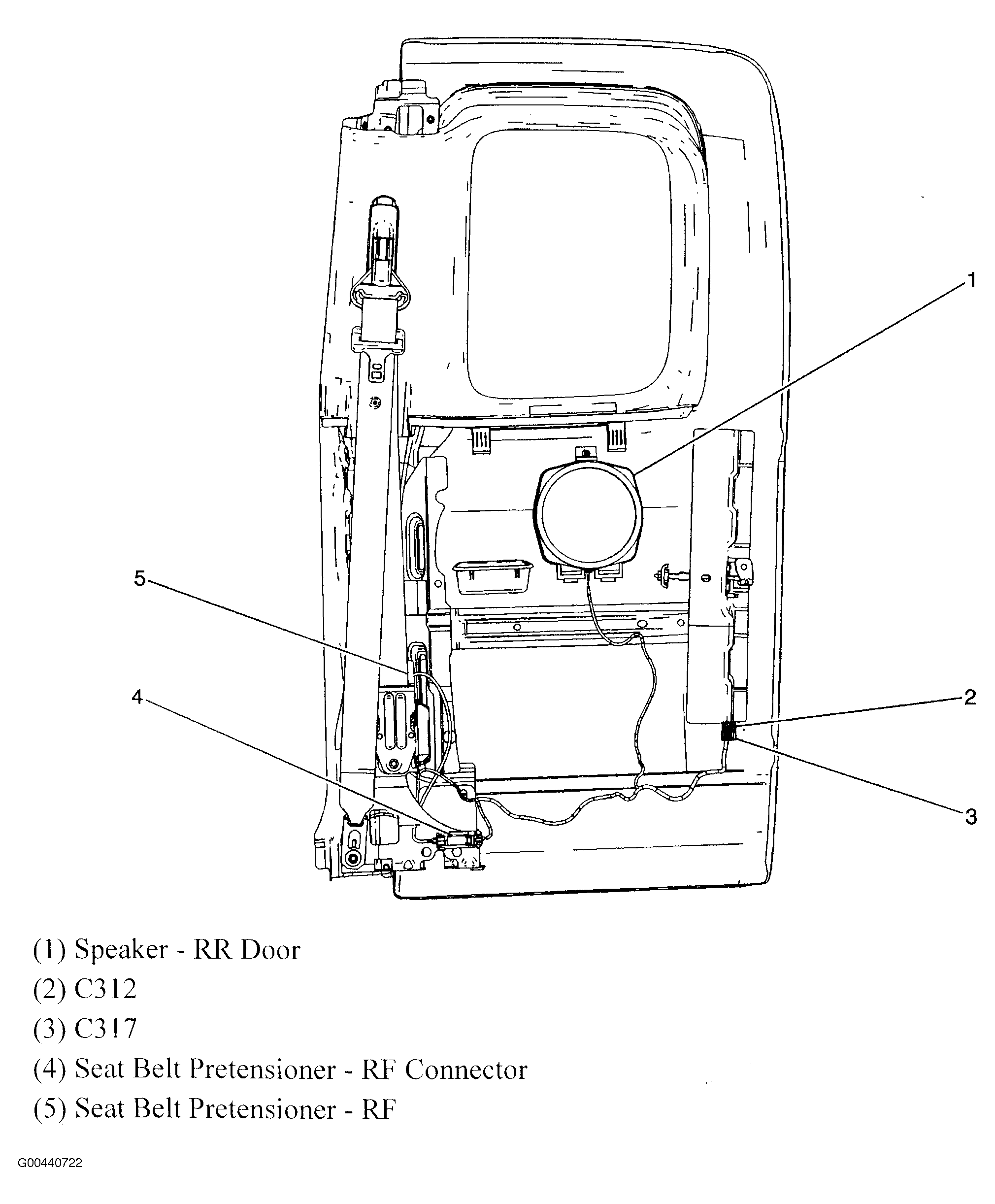

Fig 40: Right Rear Door (Crew Cab)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Passenger Seat Components
Courtesy of GENERAL MOTORS CORP.
Fig 42: Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 43: Longitudinal Accelerometer Sensor
Courtesy of GENERAL MOTORS CORP.
Fig 44: Park Neutral Position (PNP) Switch
Courtesy of GENERAL MOTORS CORP.
Fig 45: Engine Control Components
Courtesy of GENERAL MOTORS CORP.
Fig 46: SIR Components - Pretensioner/Dash
Courtesy of GENERAL MOTORS CORP.
Fig 47: Right Rear Door (EXT Cab)
Courtesy of GENERAL MOTORS CORP.
Fig 48: Wiper Components
Courtesy of GENERAL MOTORS CORP.

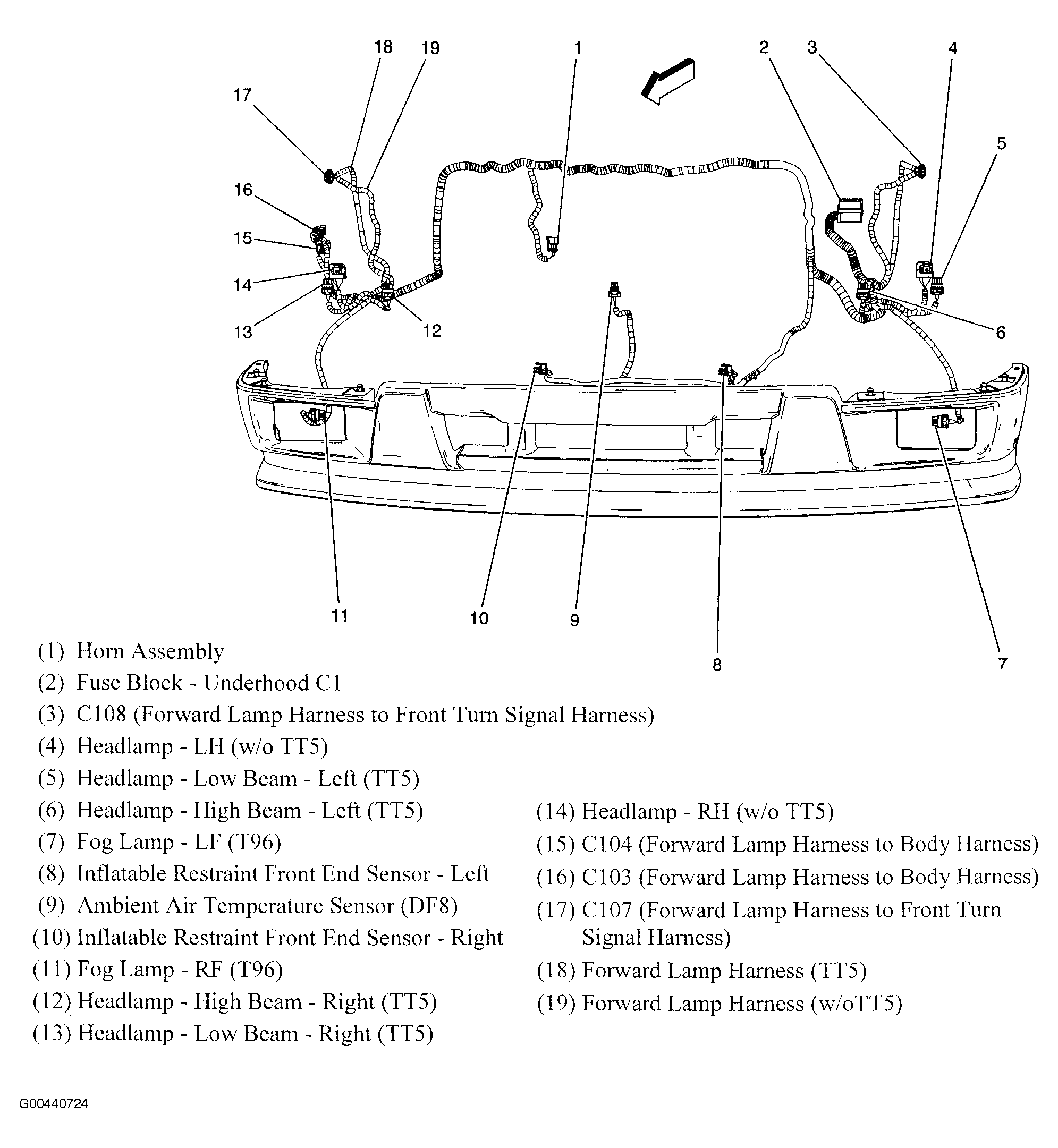

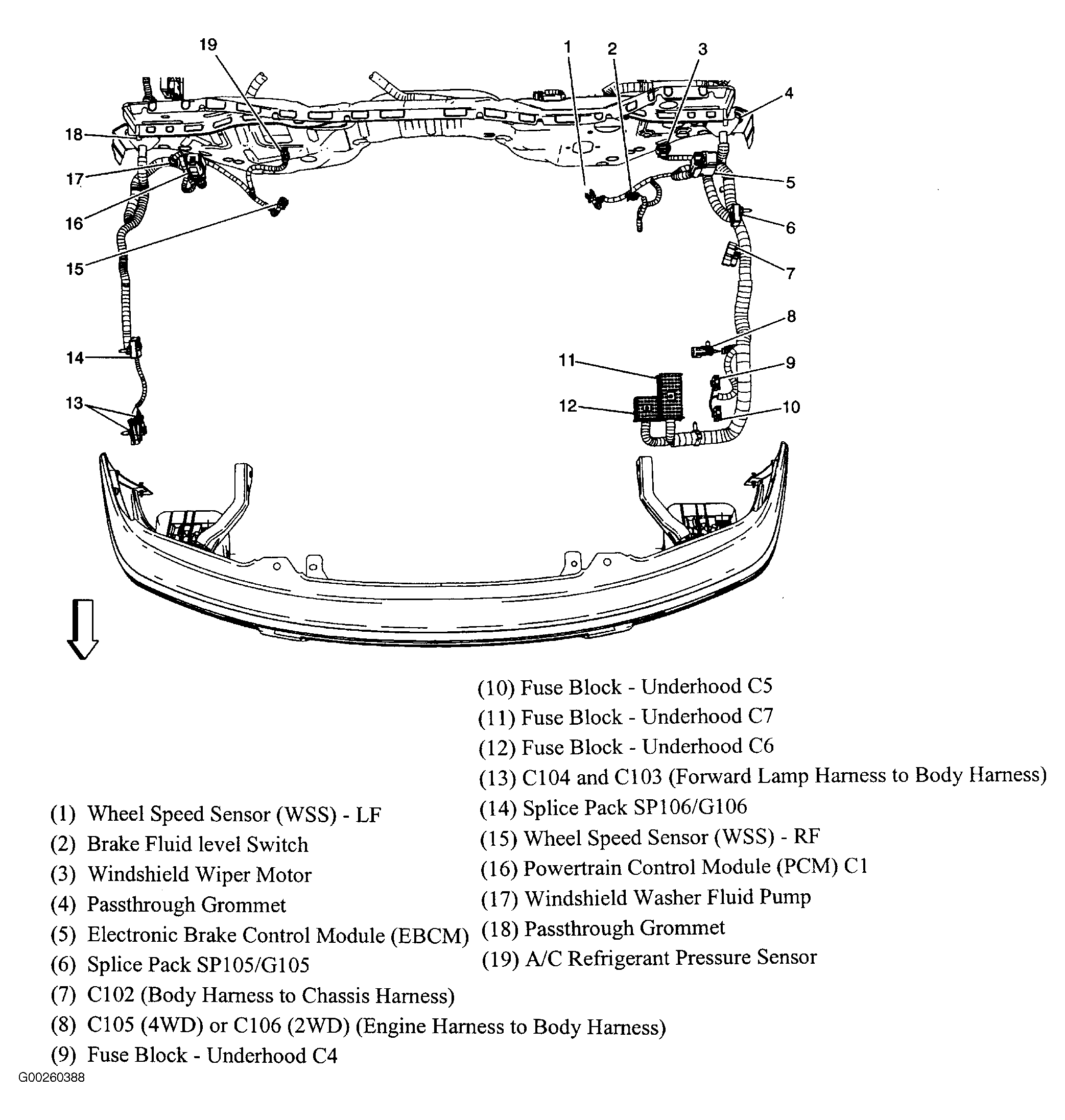

Fig 49: Forward Lamp Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 50: Engine Harness Routing (2.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 51: Engine Harness Routing (3.7L)
Courtesy of GENERAL MOTORS CORP.

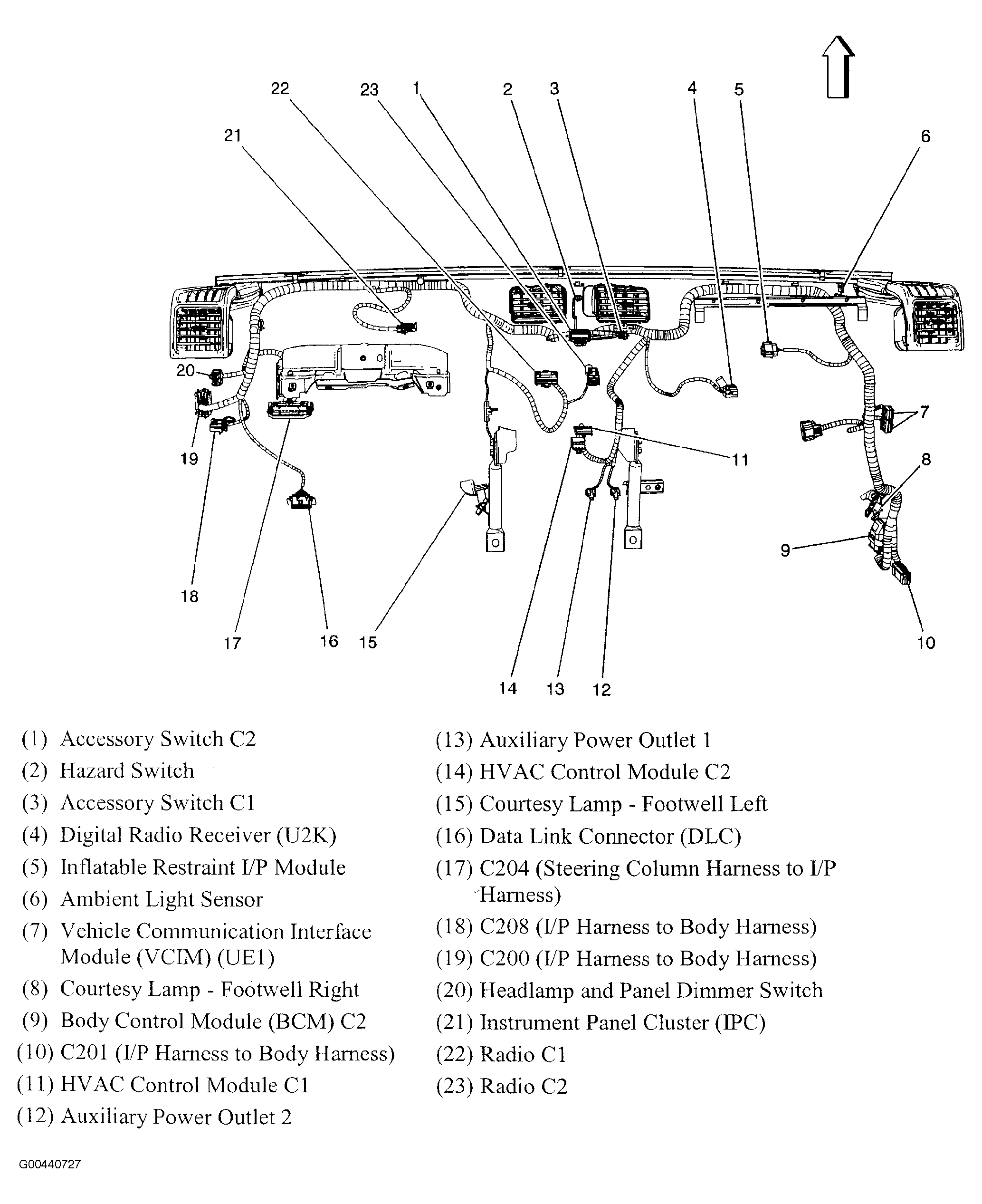

Fig 52: Dash Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 53: HVAC Harness Routing
Courtesy of GENERAL MOTORS CORP.

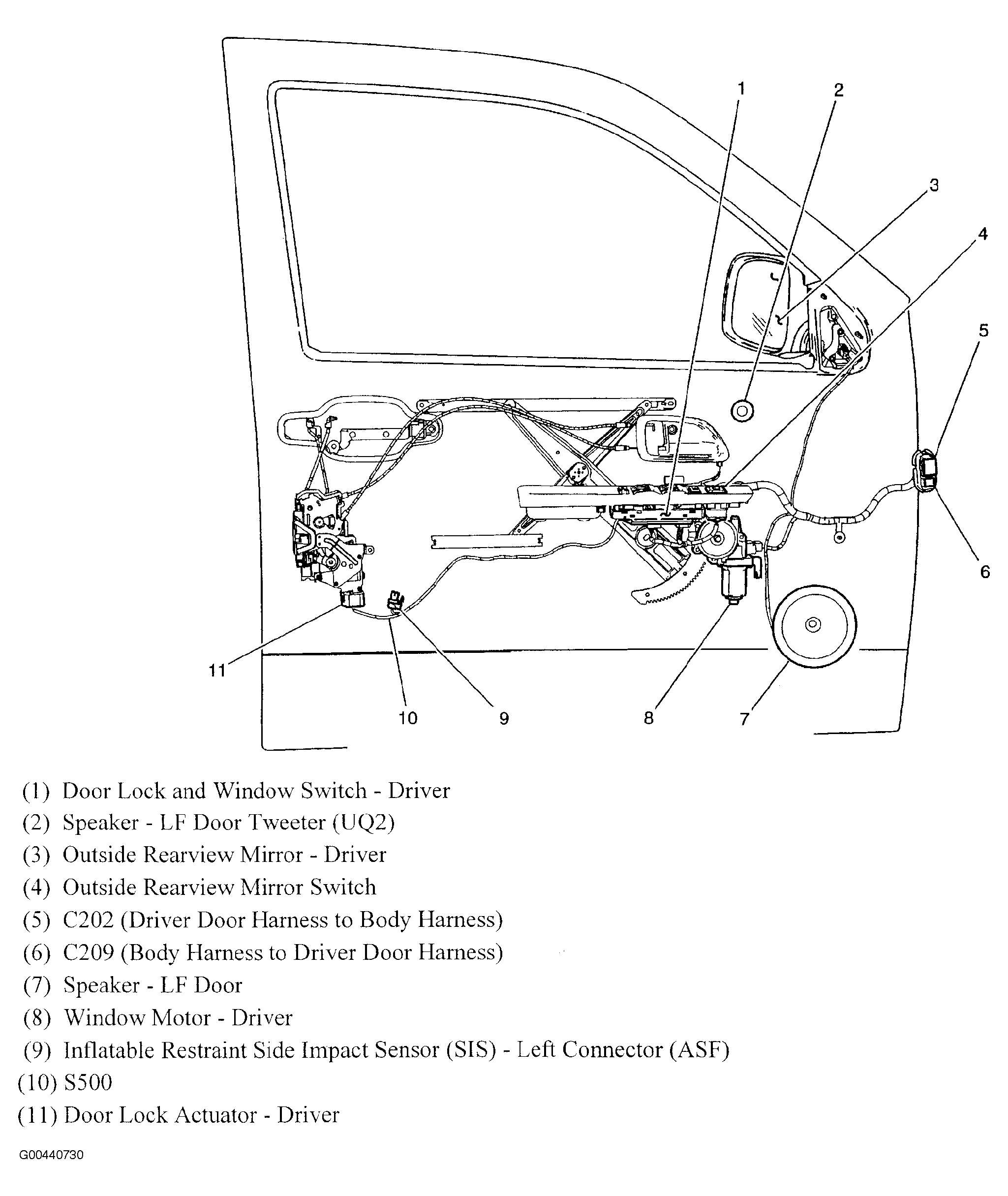

Fig 54: Driver Door Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 55: Underhood Fuse Block Label
Courtesy of GENERAL MOTORS CORP.
Fig 56: Underside Of Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 57: Under Passenger Seat
Courtesy of GENERAL MOTORS CORP.
