Instrument Panel/Center Console Component Views

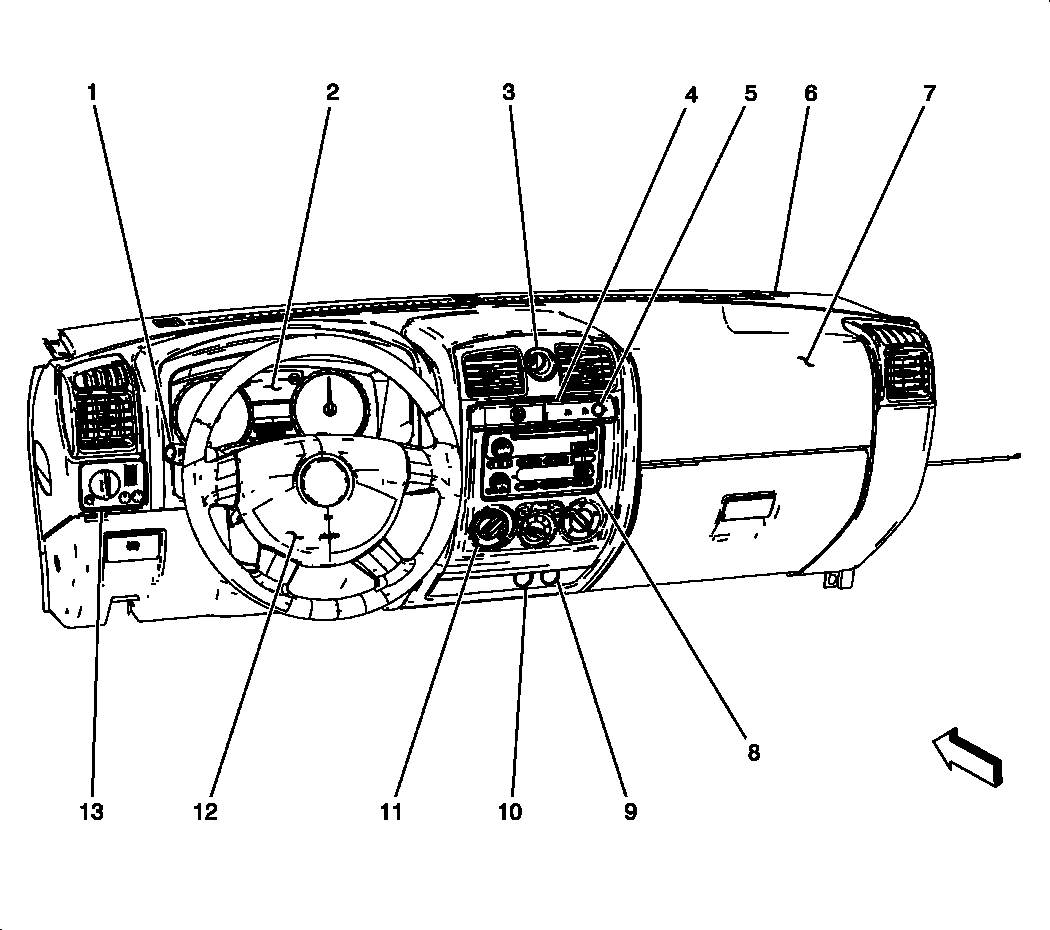

Fig 1: Front of the I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Turn Signal/Multifunction Switch
2	Instrument Panel Cluster (IPC)
3	Hazard Switch
4	Accessory Switch
5	Ambient Light Sensor
6	Inflatable Restraint I/P Module
7	Radio
8	Auxiliary Power Outlet 2
9	Auxiliary Power Outlet 1
10	HVAC Control Module
11	Inflatable Restraint Steering Wheel Module
12	Headlamp and Panel Dimmer Switch

Fig 2: Digital Radio Receiver Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Digital Radio Receiver

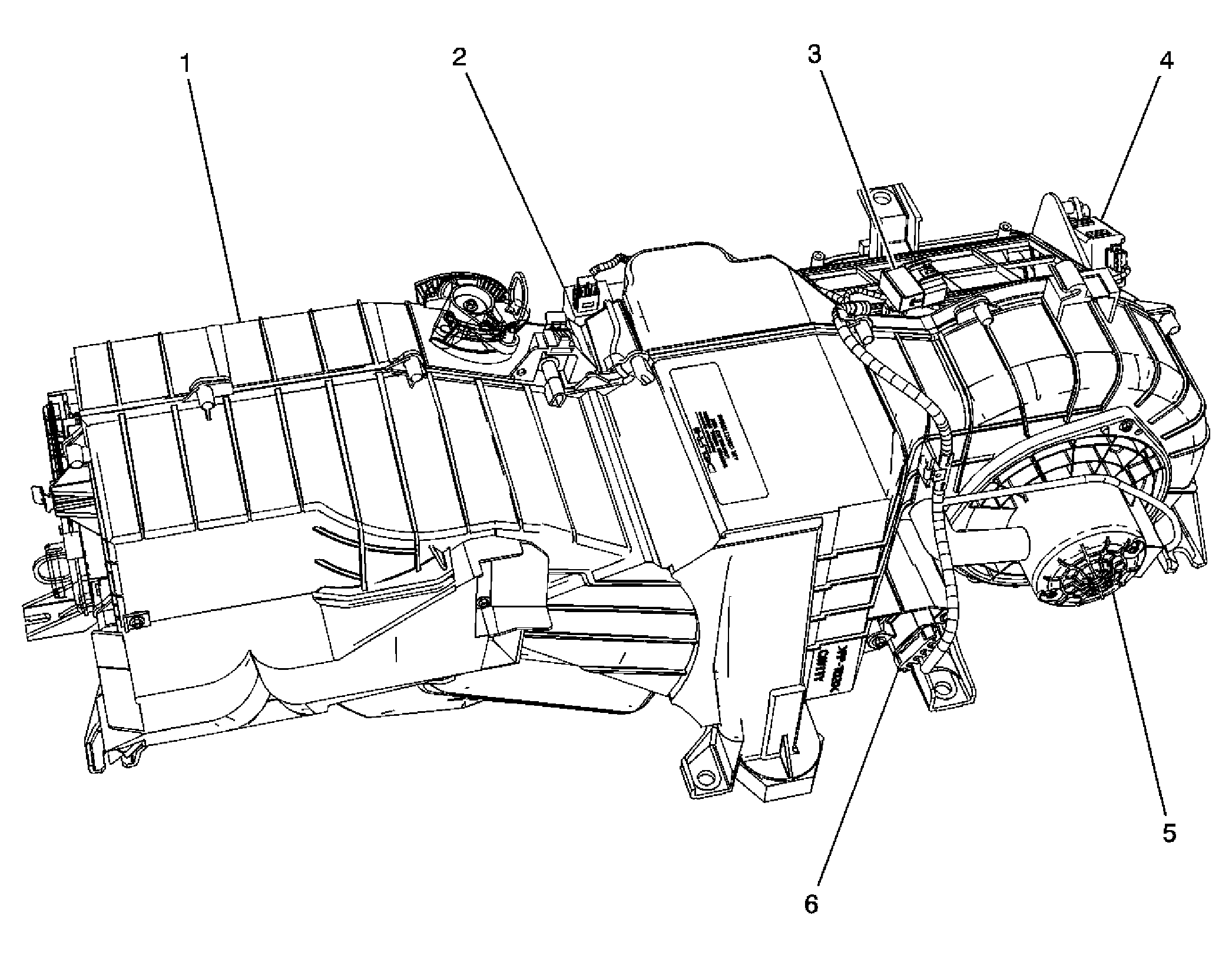

Fig 3: HVAC Module Assembly Subsystem Component View

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	HVAC Module Assembly
2	Evaporator Temperature Sensor (C60)
3	X203
4	Recirculation Actuator (C60)
5	Blower Motor
6	Blower Motor Resistor Assembly

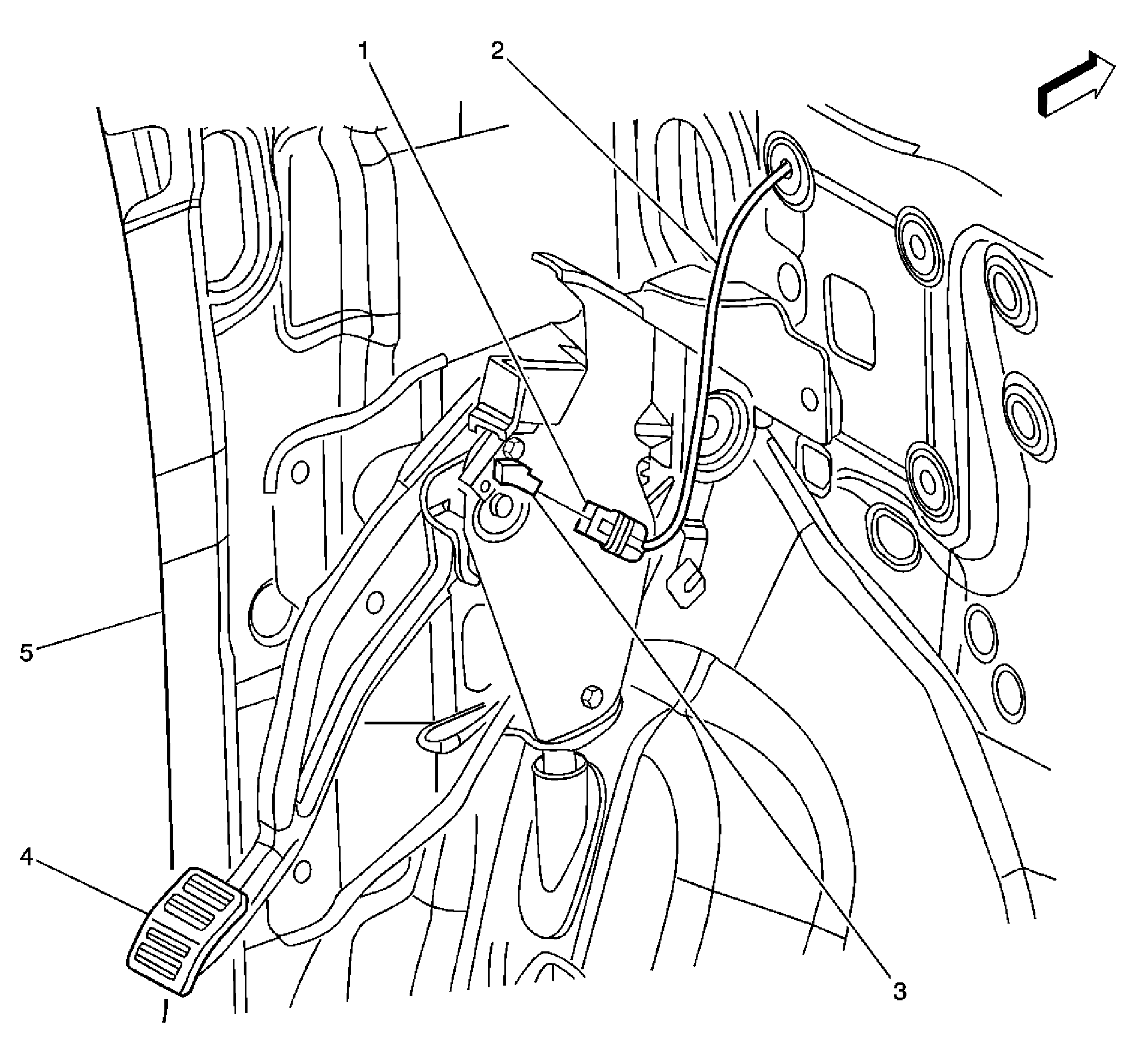

Fig 4: Identifying Behind Left Side Of I/P Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	X275
2	A/T Shift Lock Control Solenoid Connector
3	Body Harness
4	Accelerator Pedal Position (APP) Sensor Connector
5	Accelerator Pedal
6	Accelerator Pedal Position (APP) Sensor
7	A/T Shift Lock Control Solenoid
8	Ignition Switch

Fig 5: Identifying Below I/P Components - 1 of 2

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Vehicle Communications Interface Module (VCIM) X1 (UE1)
2	Vehicle Communications Interface Module (VCIM) X2 (UE1)
3	Vehicle Communications Interface Module (VCIM) (UE1)
4	Courtesy Lamp - Footwell Right
5	Courtesy Lamp - Footwell Left
6	Data Link Connector (DLC)

Fig 6: Identifying Below I/P Components - 2 of 2

Courtesy of GENERAL MOTORS CORP.

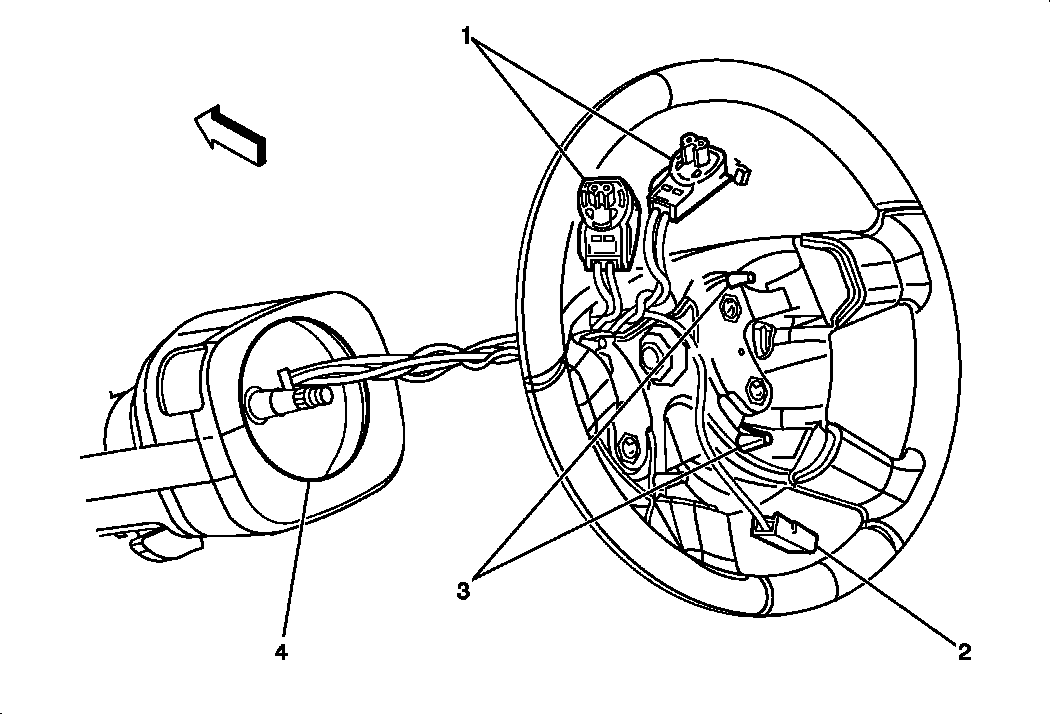

Fig 7: Identifying Steering Wheel Module Components

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Steering Wheel Module Connectors
2	Retainment Nut
3	Horn Switch Connector
4	Horn Contact

Fig 8: Identifying Body Control Module (BCM) Components

Courtesy of GENERAL MOTORS CORP.
