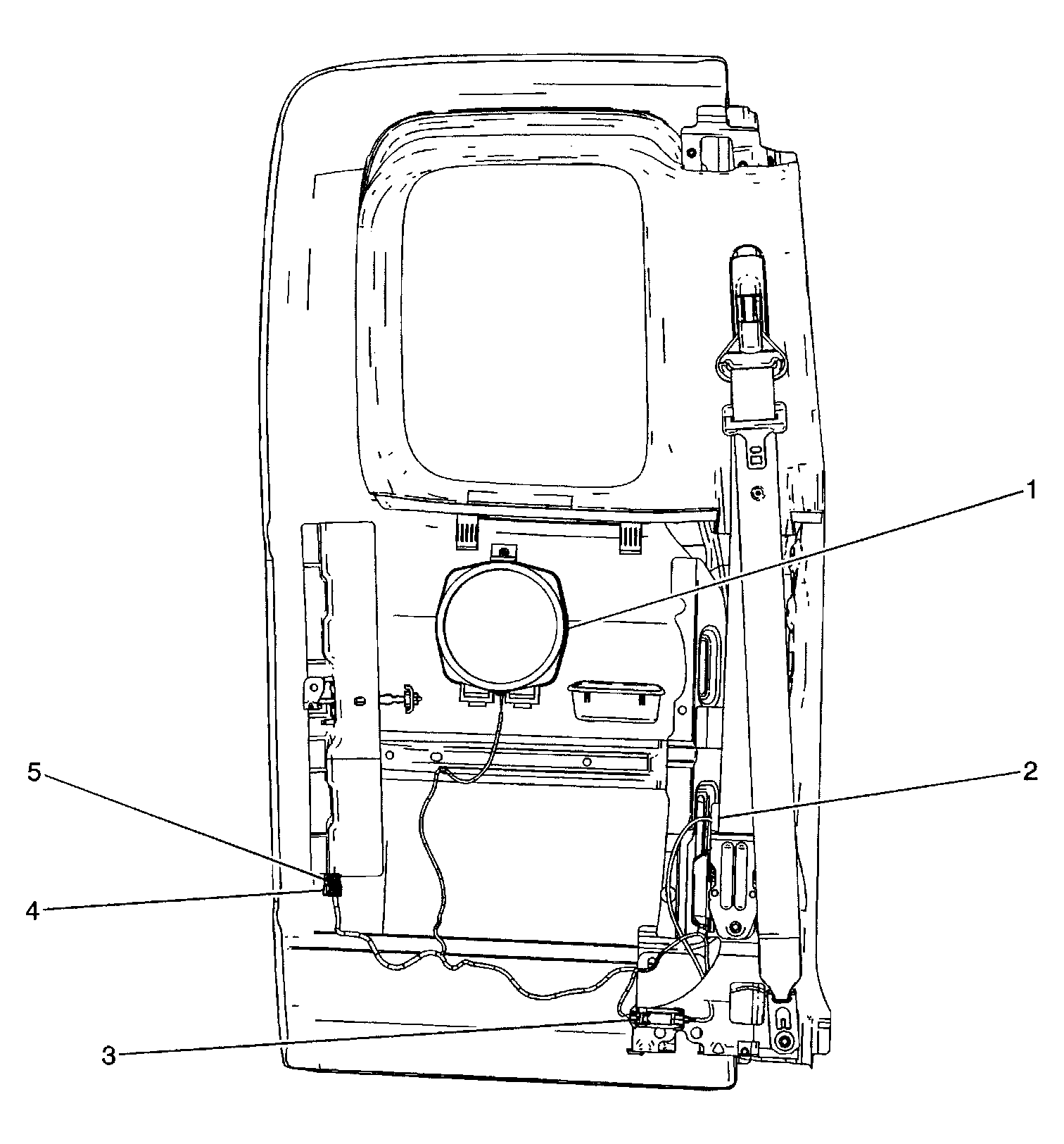

Electrical
>>
Component Locations
>>
Electrical Component Locator
>>
Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.

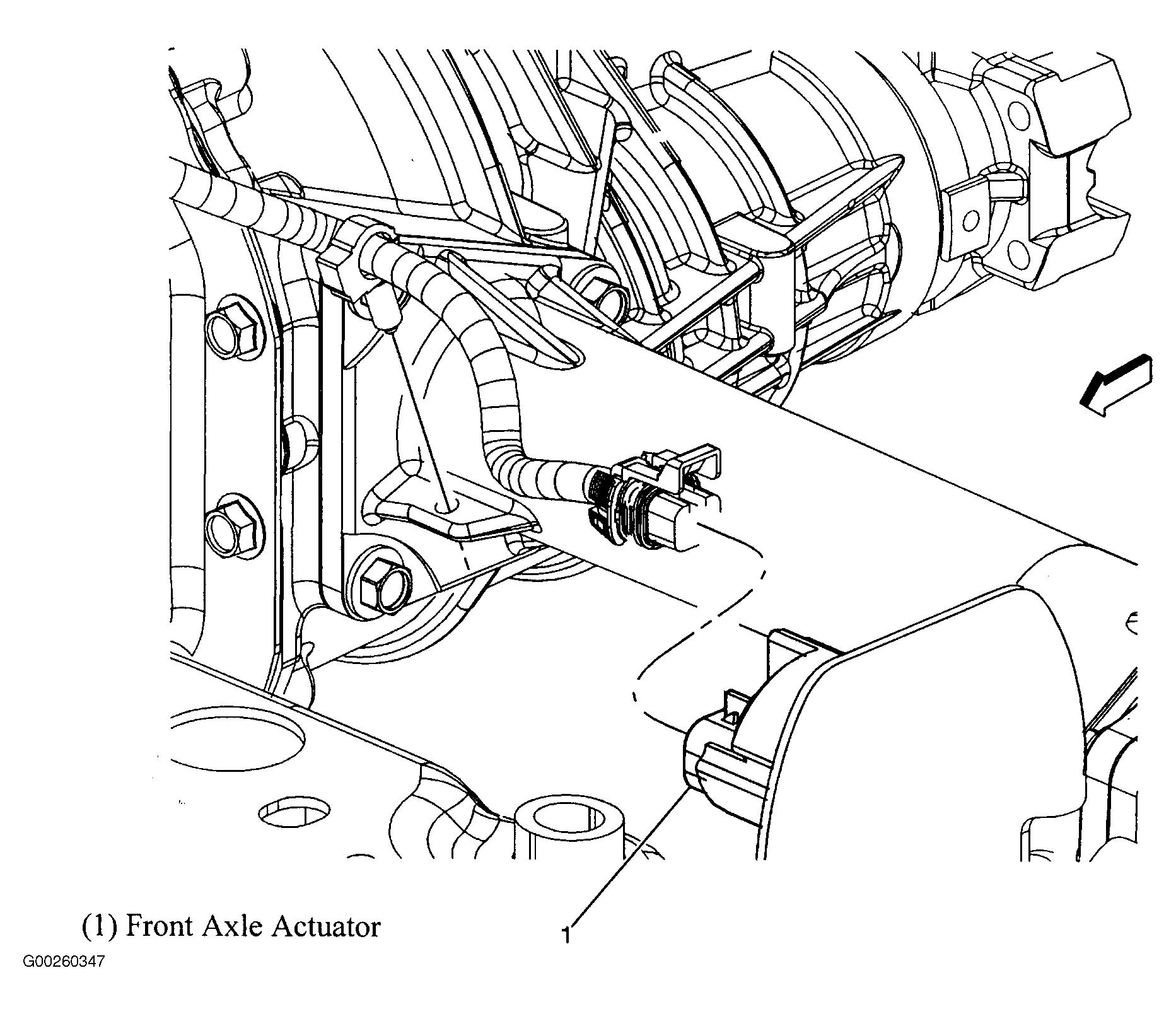

Fig 1: Front Axle
Courtesy of GENERAL MOTORS CORP.

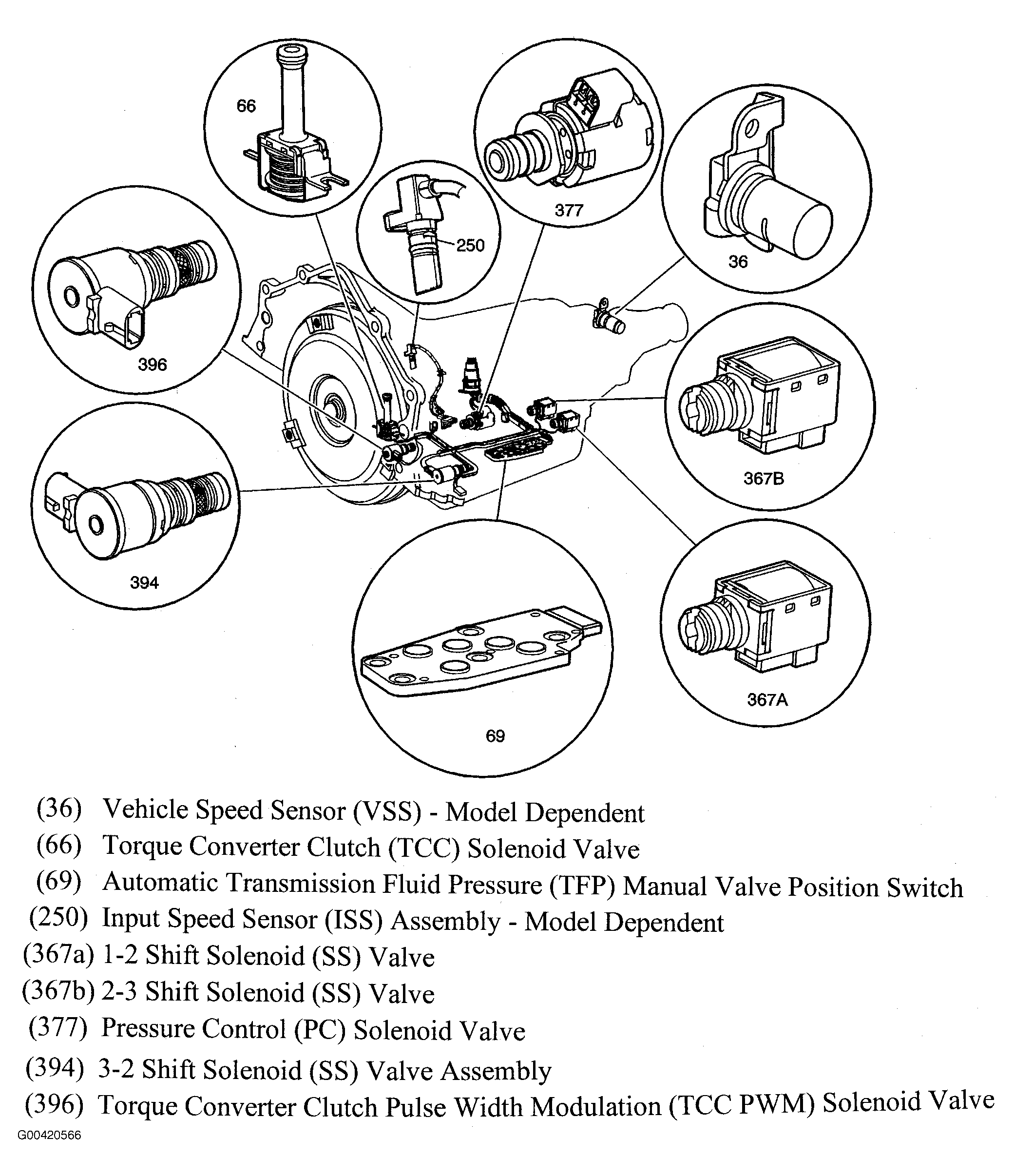

Fig 2: Automatic Transmission Overview

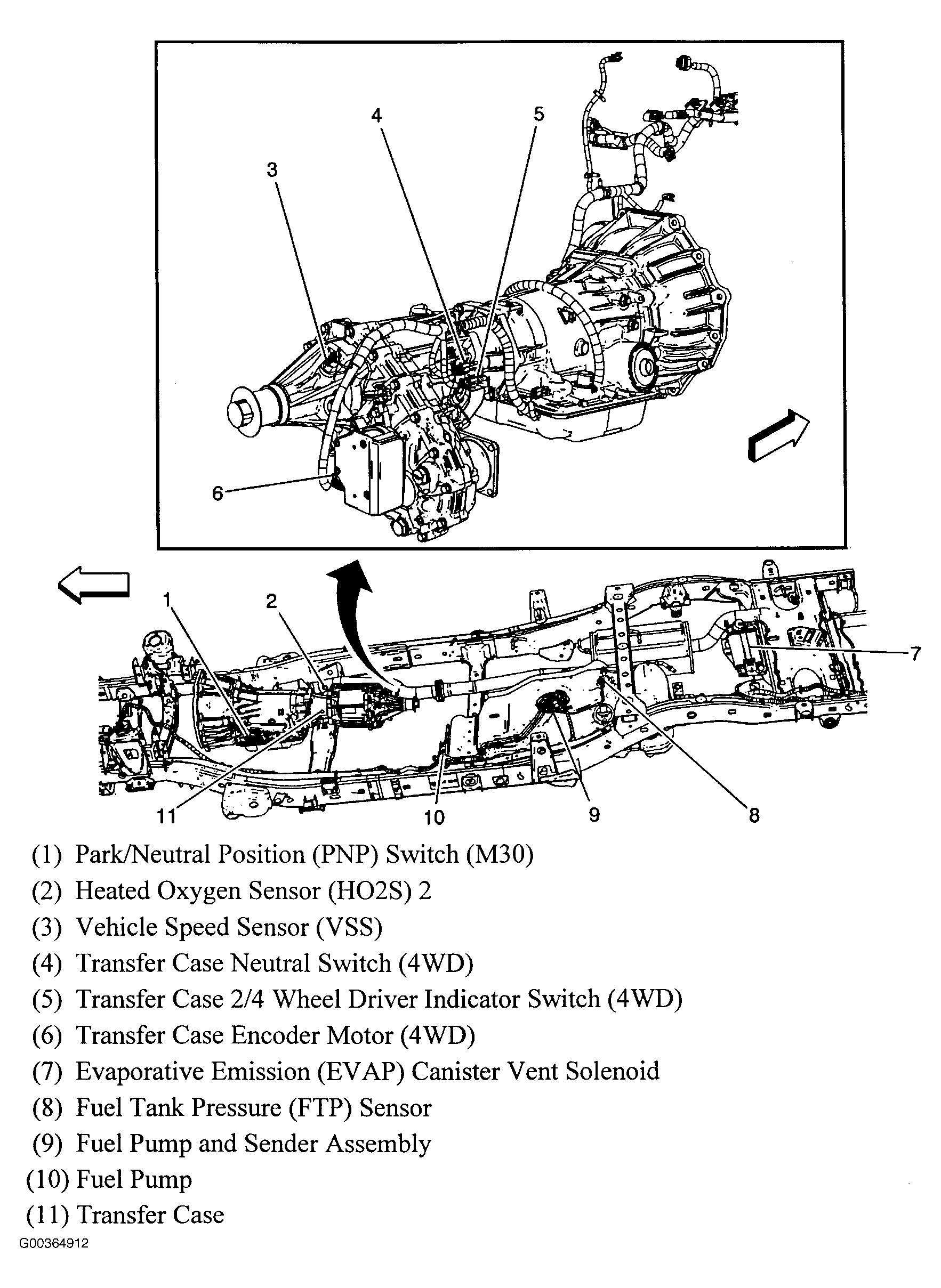

Courtesy of GENERAL MOTORS CORP.

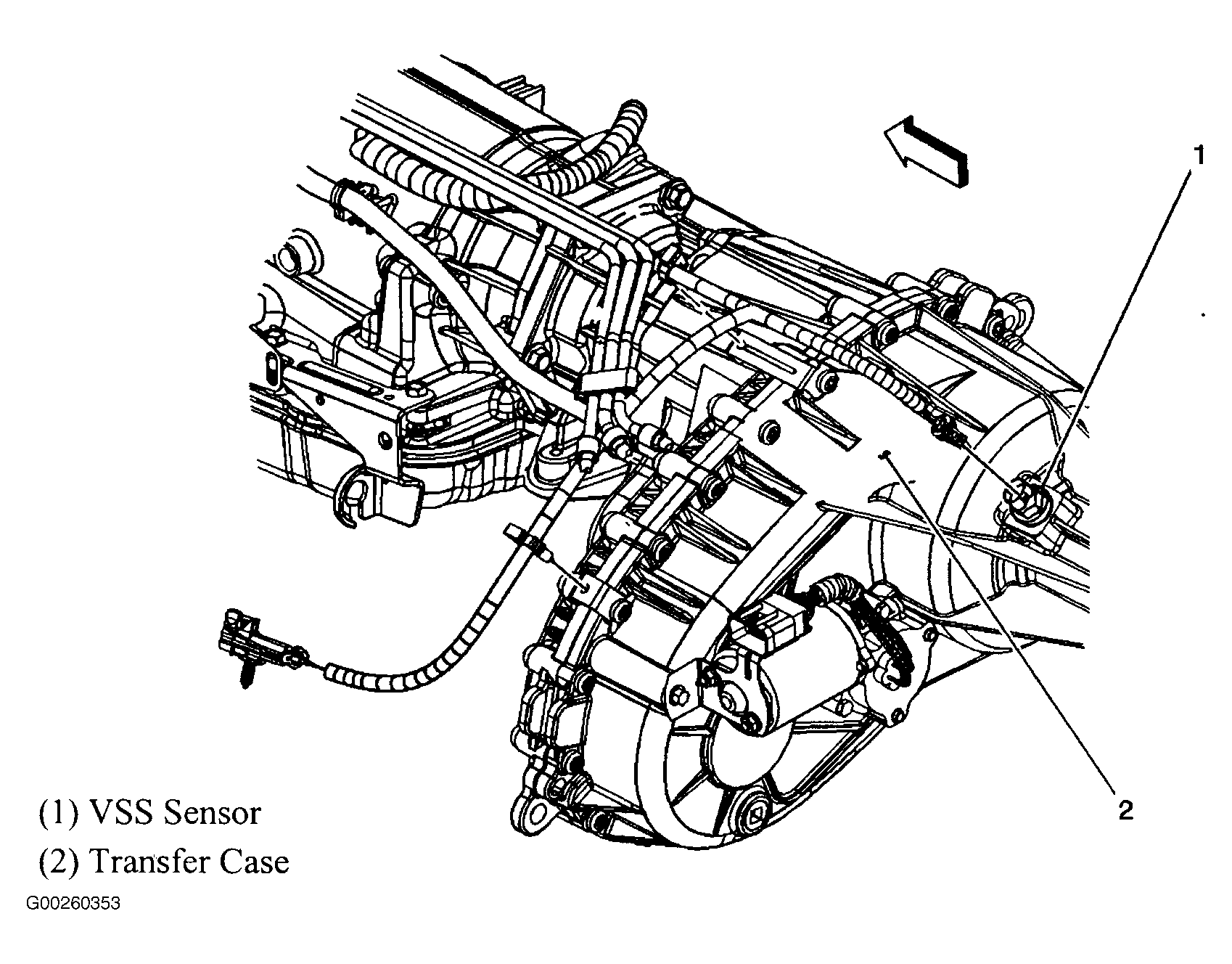

Fig 3: Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 4: Driver's Seat
Courtesy of GENERAL MOTORS CORP.

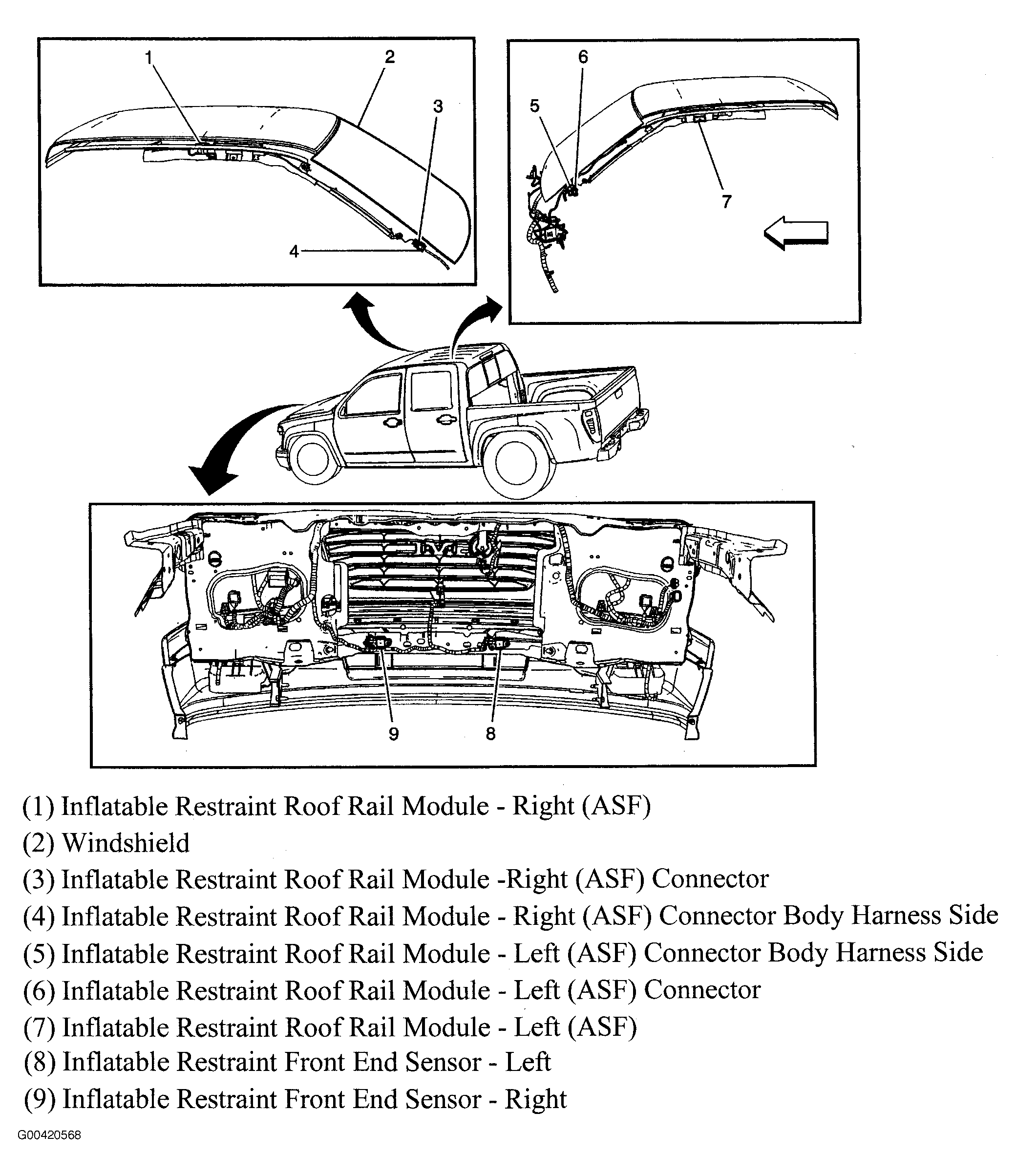

Fig 5: SIR System Front/Roof Rail
Courtesy of GENERAL MOTORS CORP.

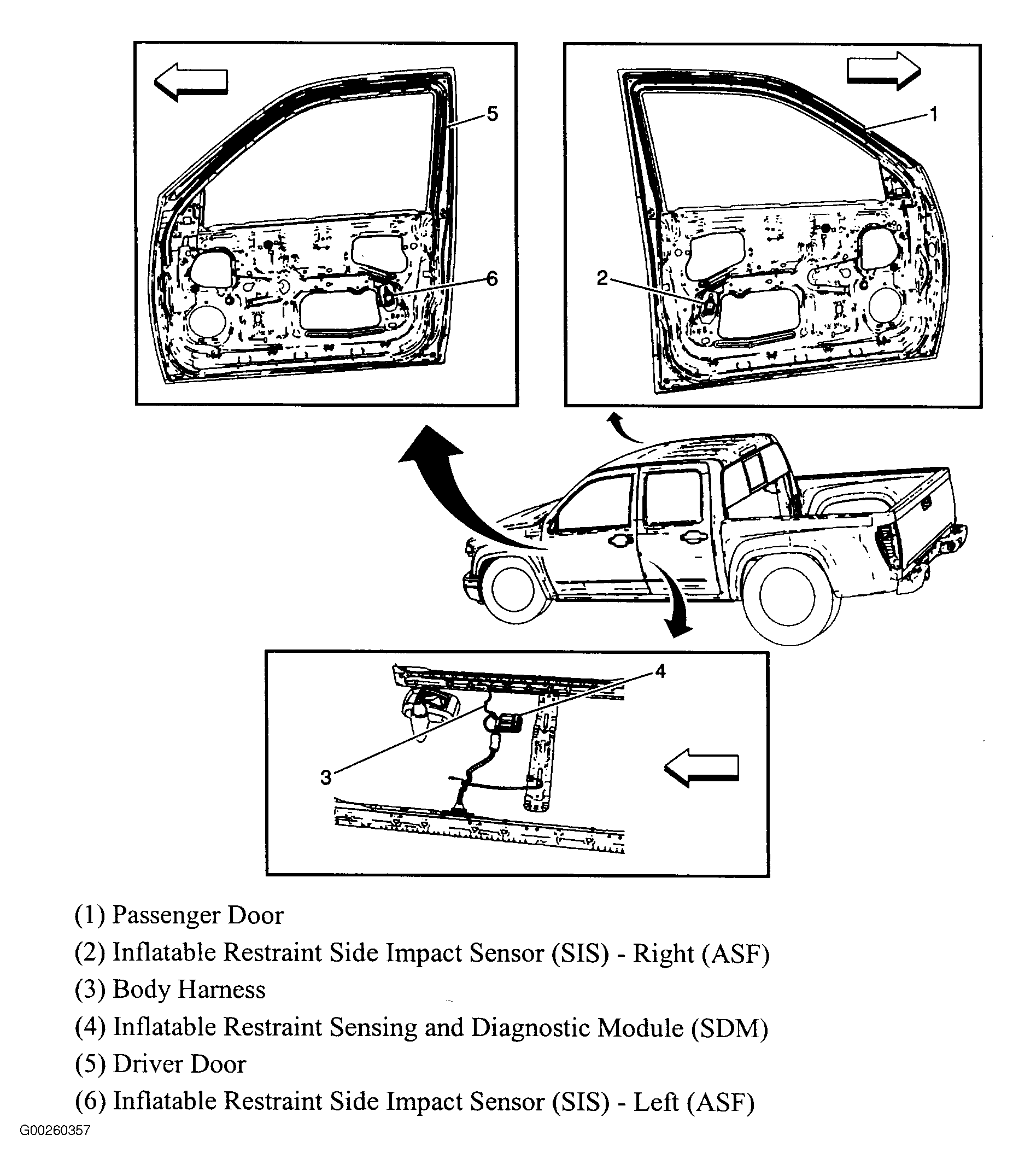

Fig 6: SIR System Side Sensor/Module
Courtesy of GENERAL MOTORS CORP.
Fig 7: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 8: Lower Center Of Dash
Courtesy of GENERAL MOTORS CORP.

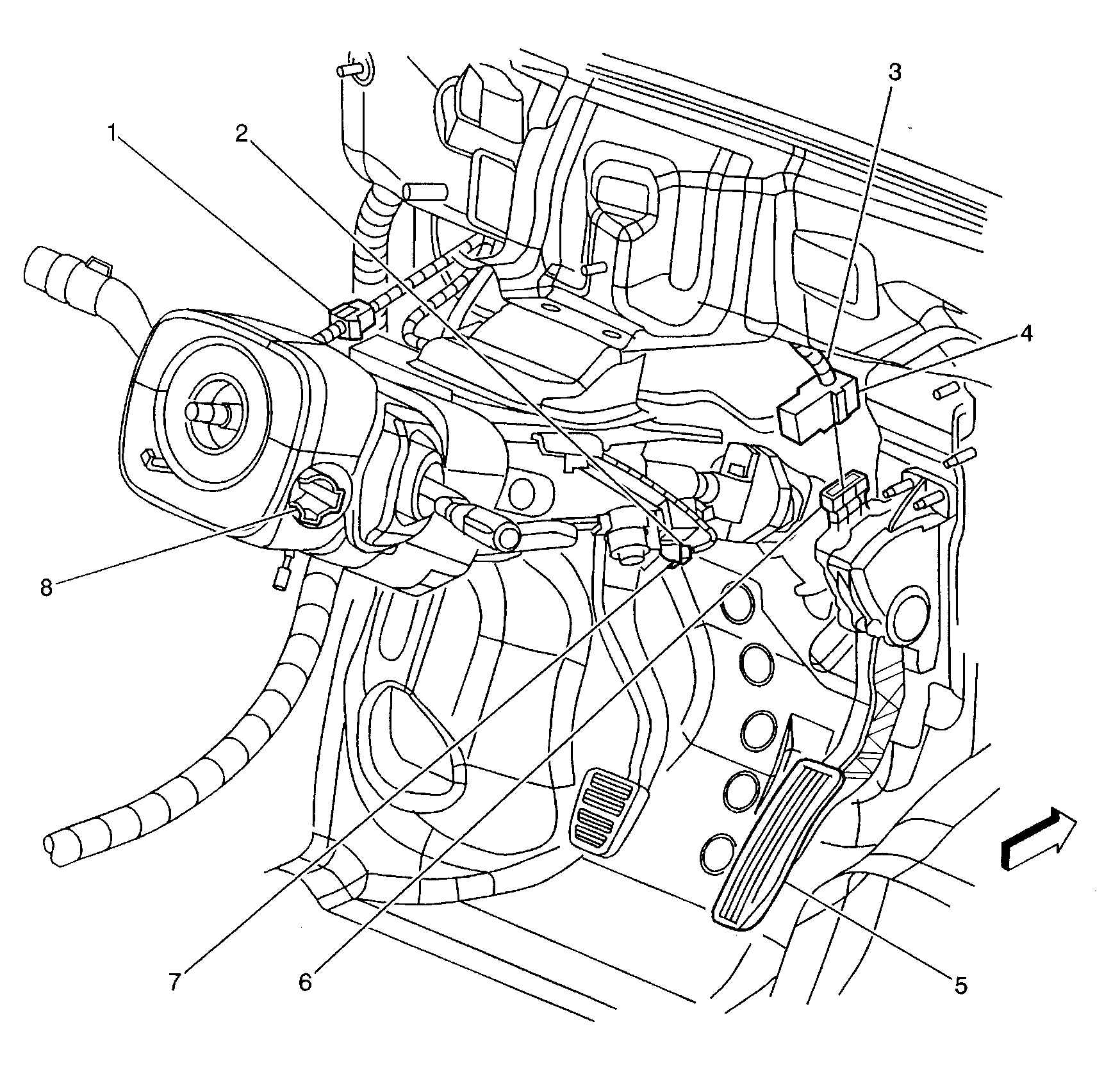

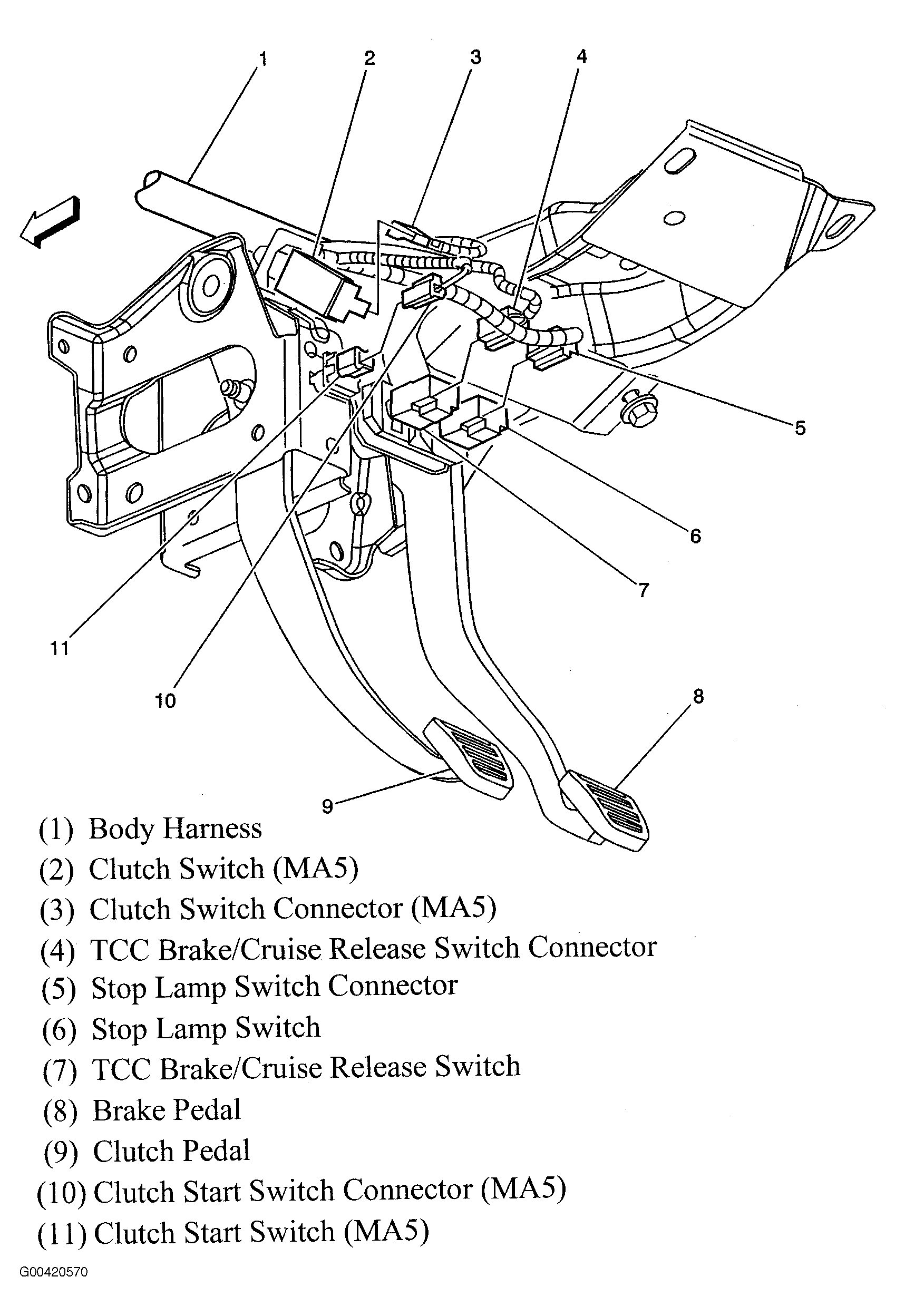

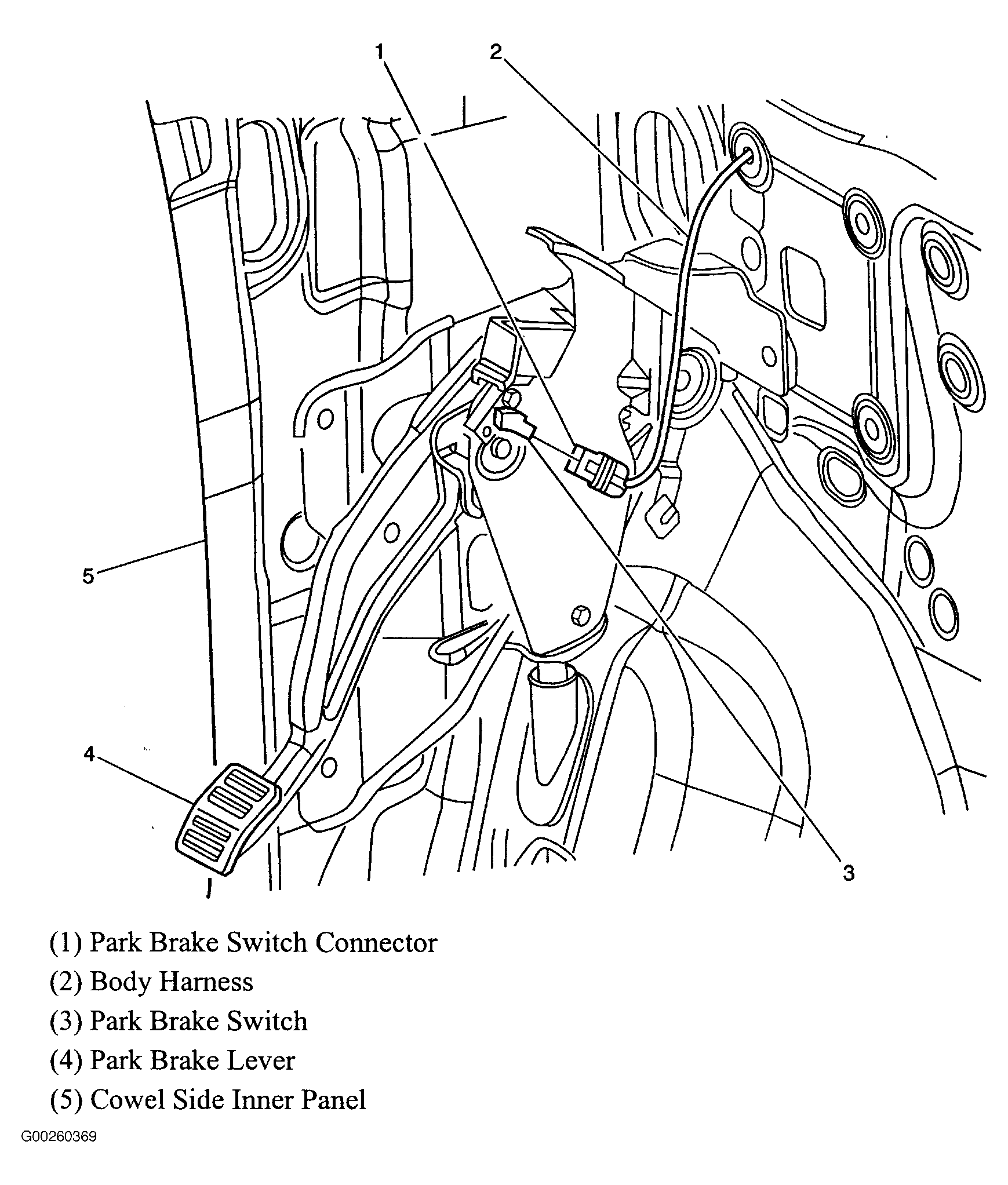

Fig 9: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

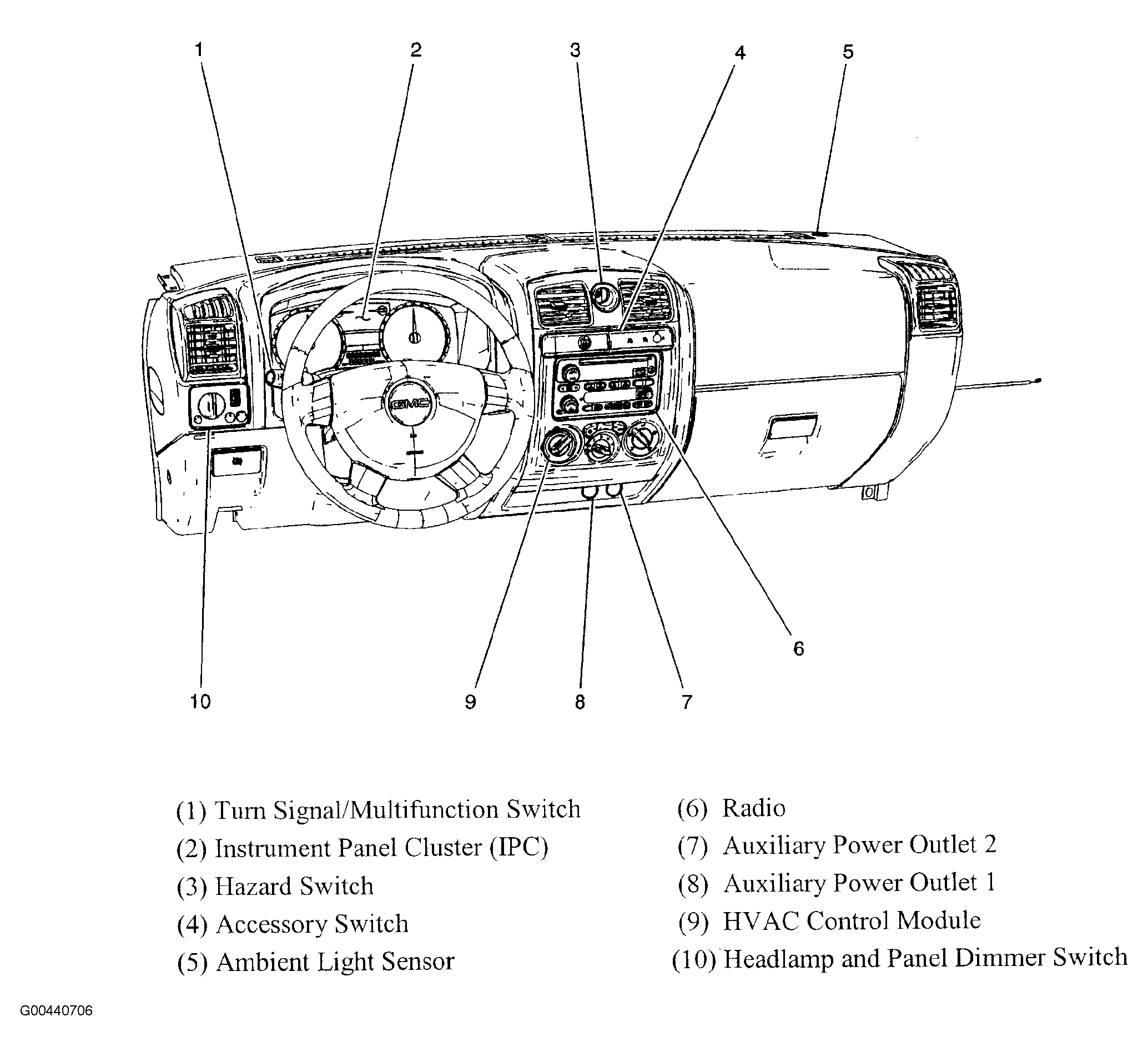

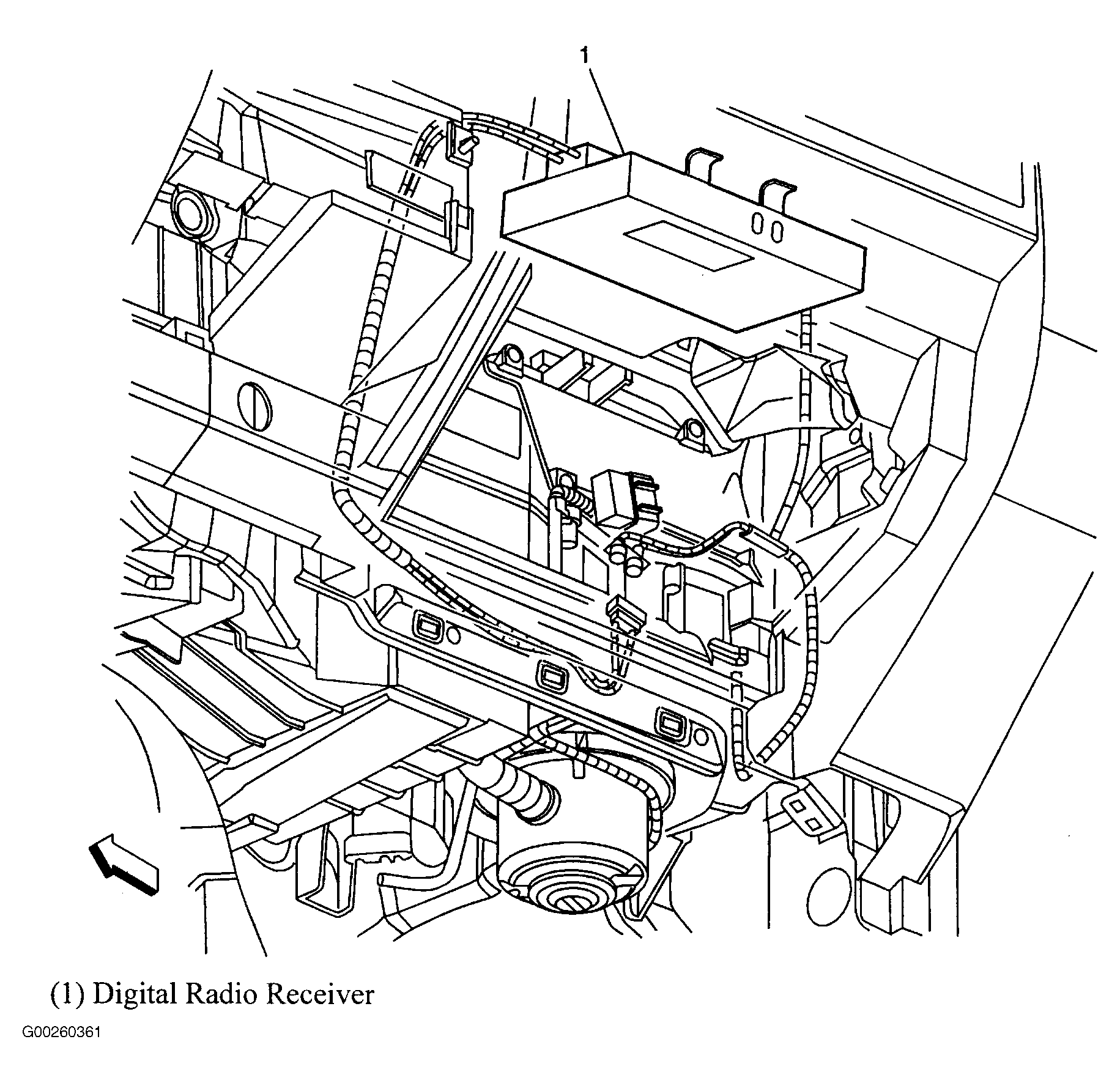

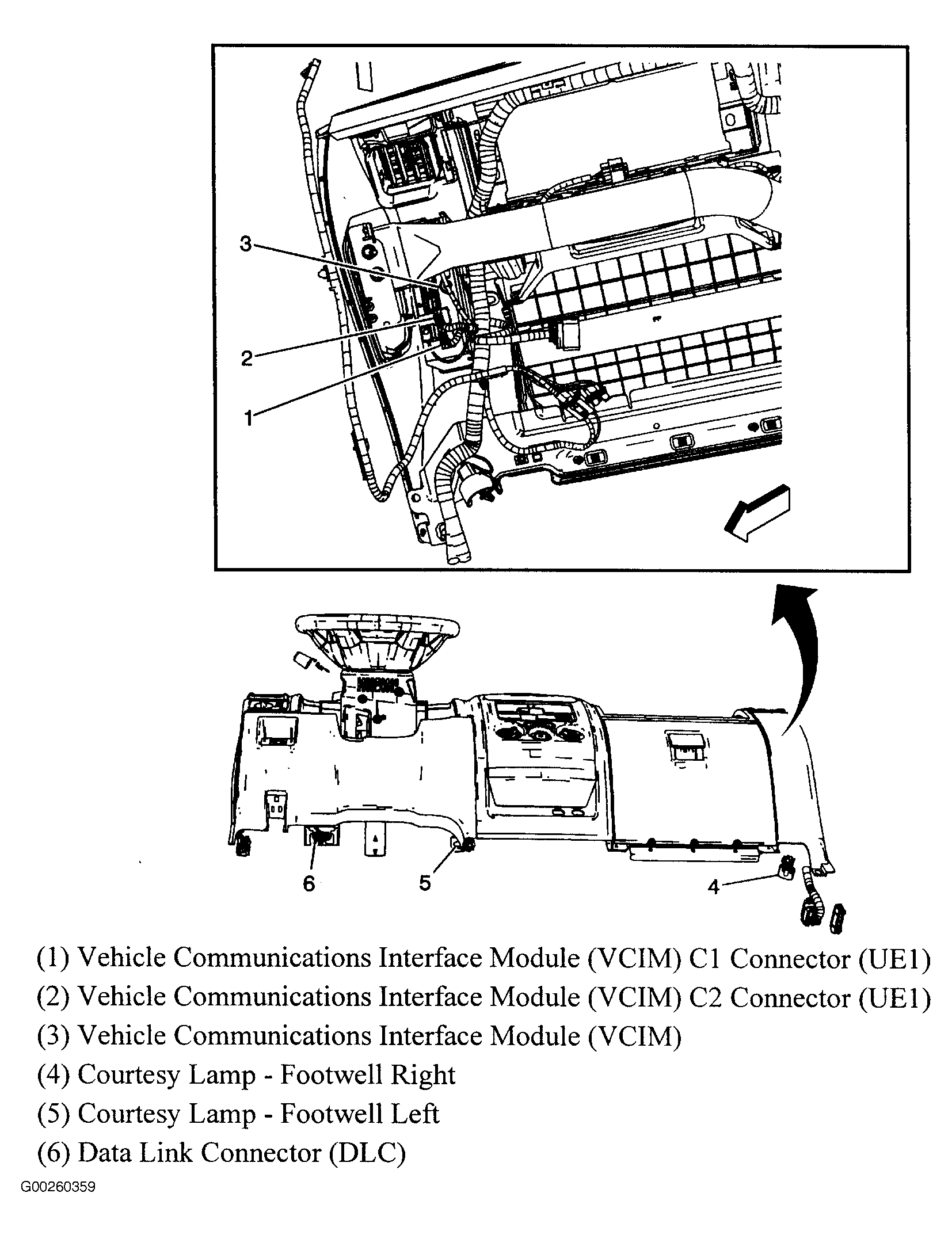

Fig 10: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

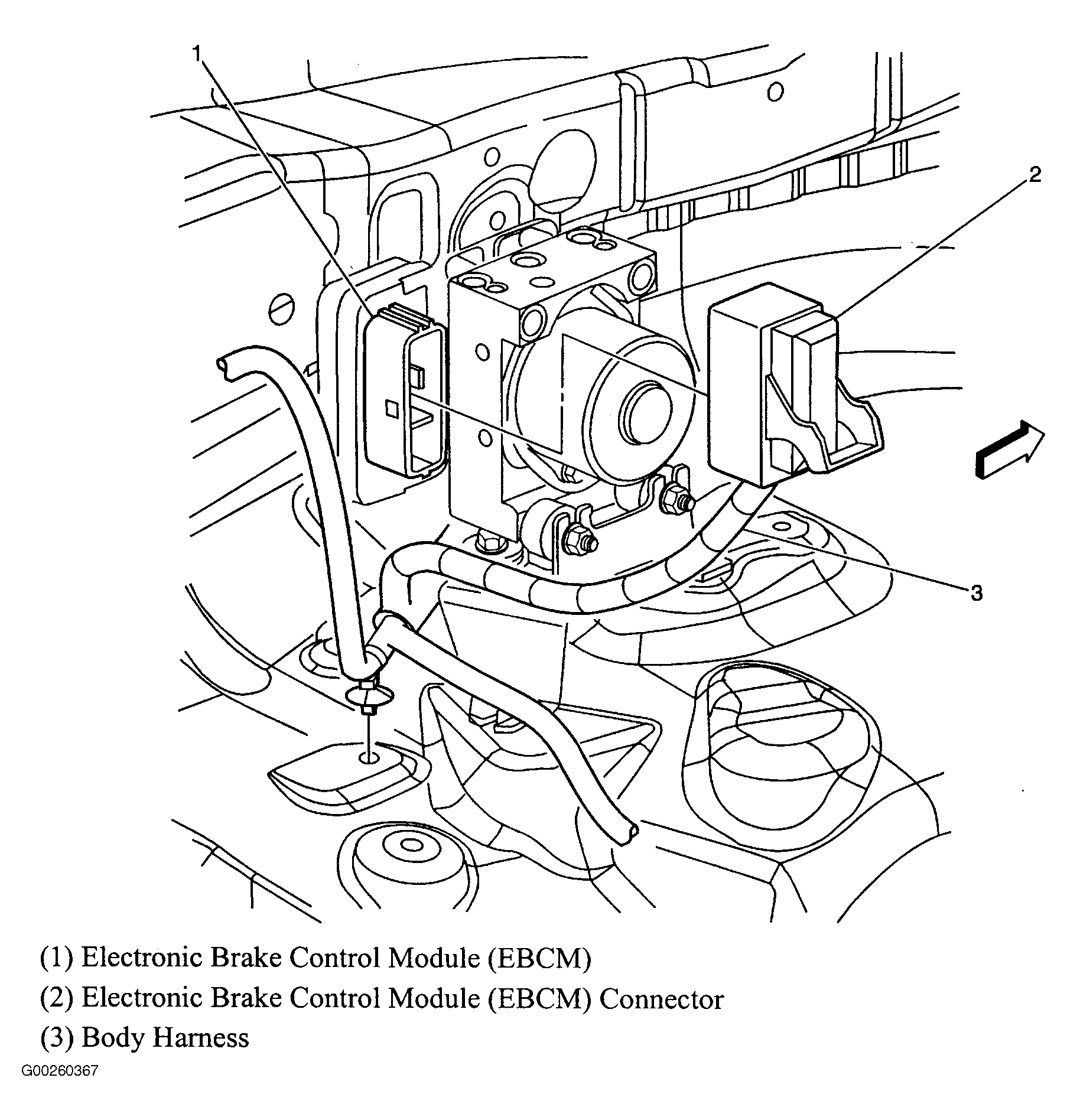

Fig 11: Lower Left Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.

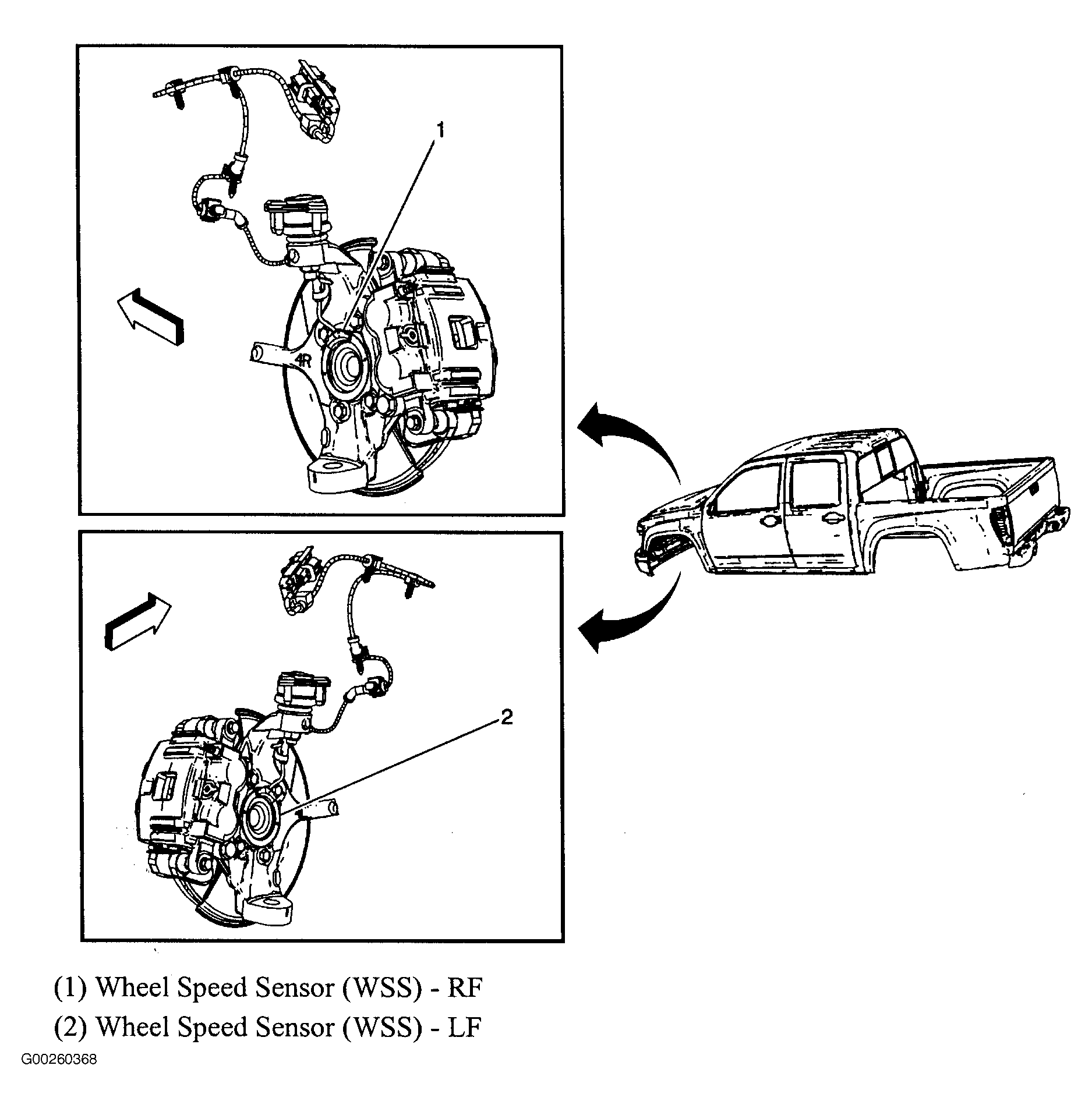

Fig 12: Front Wheel Speed Sensors
Courtesy of GENERAL MOTORS CORP.
Fig 13: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 14: Top View Of Engine (2.9L)
Courtesy of GENERAL MOTORS CORP.

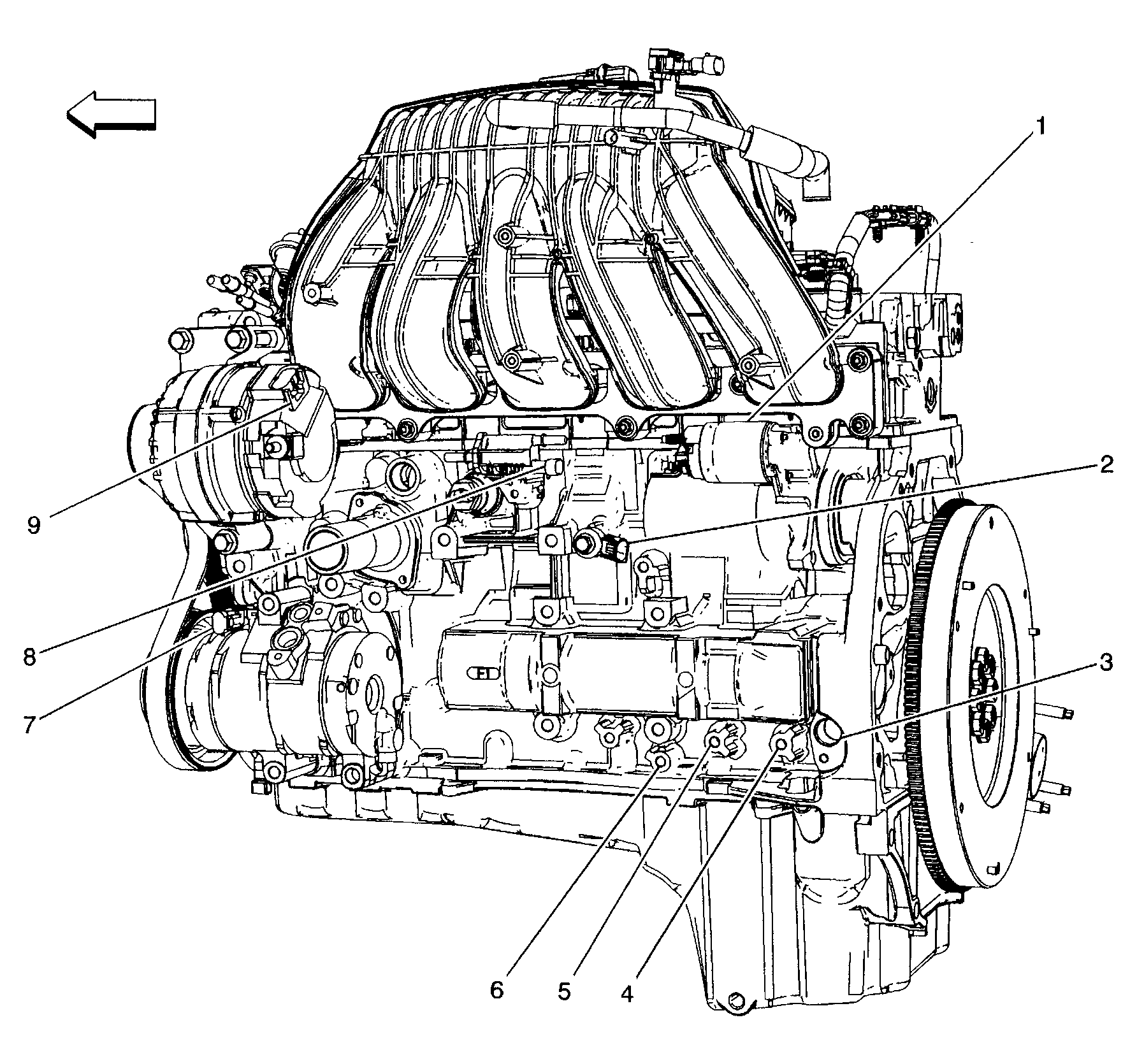

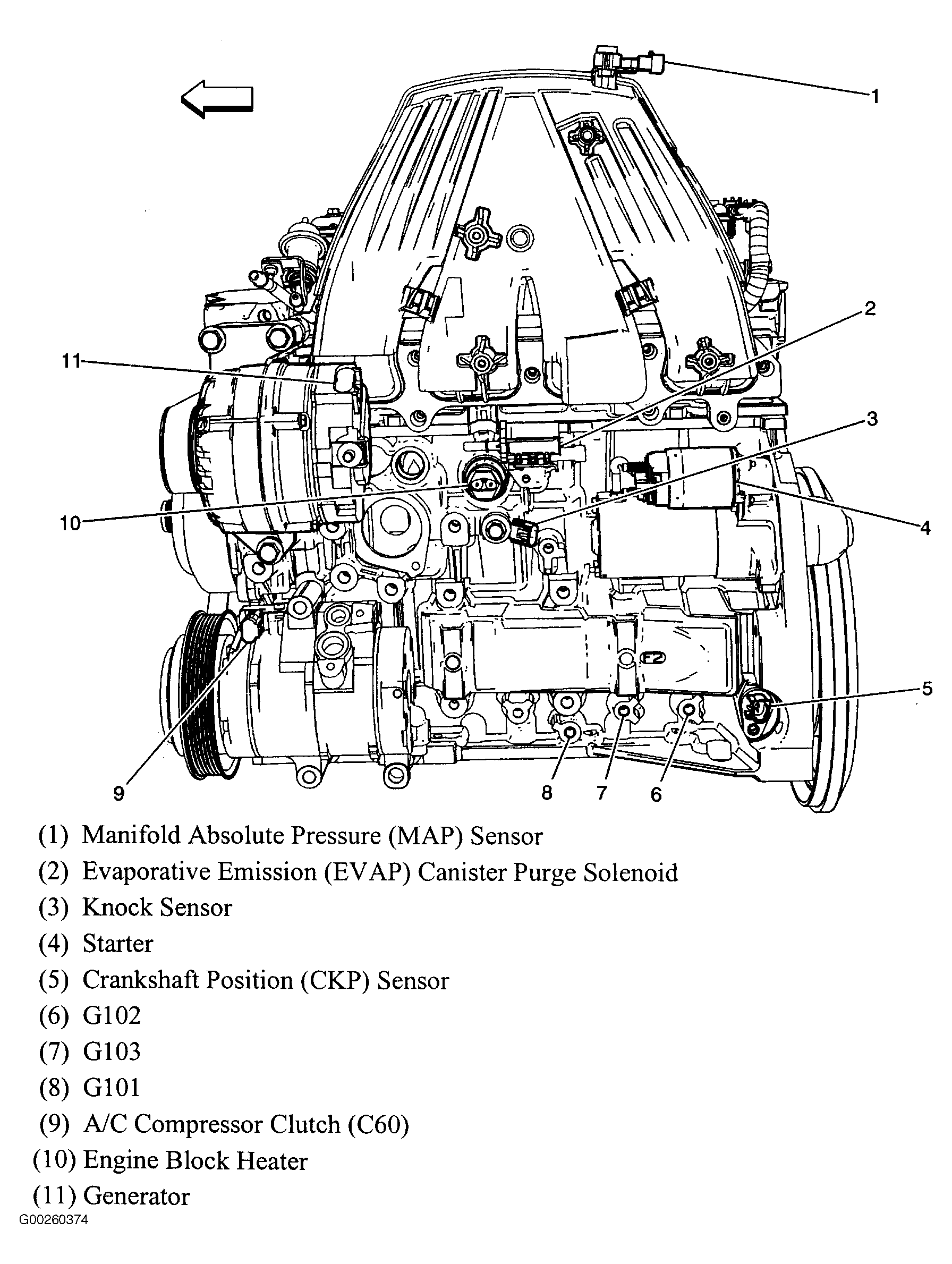

Fig 15: Left Side Of Engine (2.9L)
Courtesy of GENERAL MOTORS CORP.

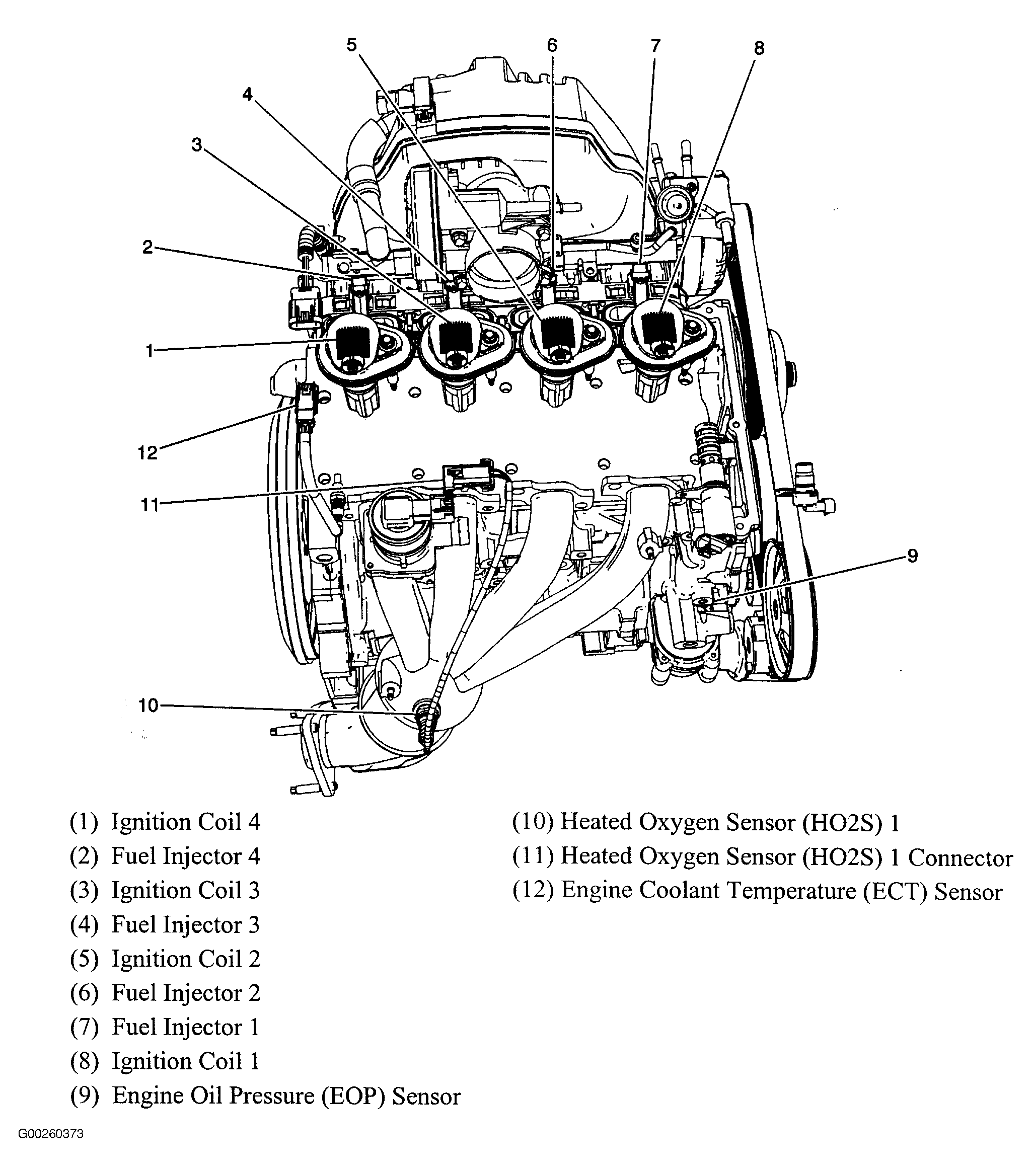

Fig 16: Top/Front View Of Engine (2.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 17: Chassis & Right Side Of Transfer Case
Courtesy of GENERAL MOTORS CORP.

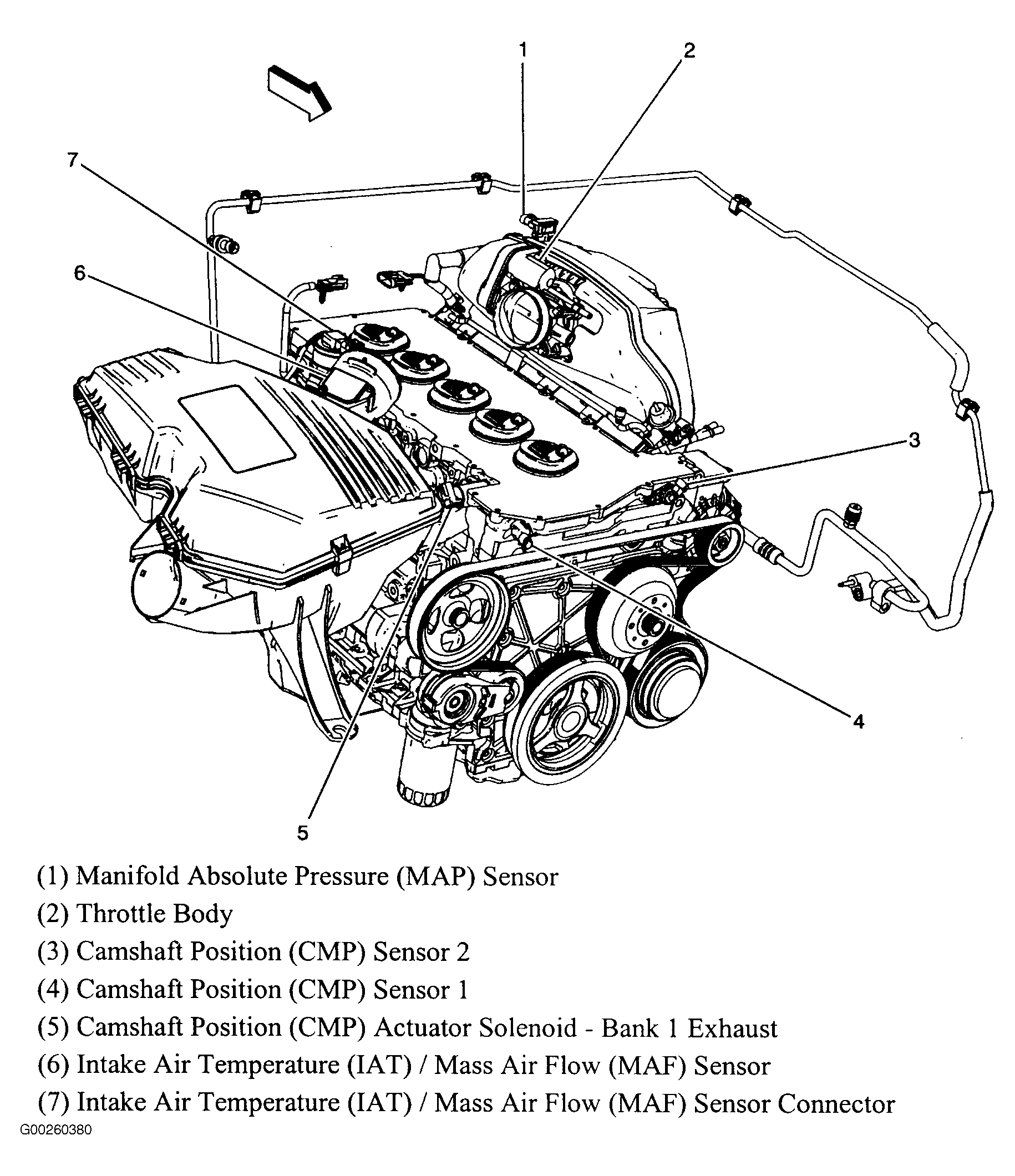

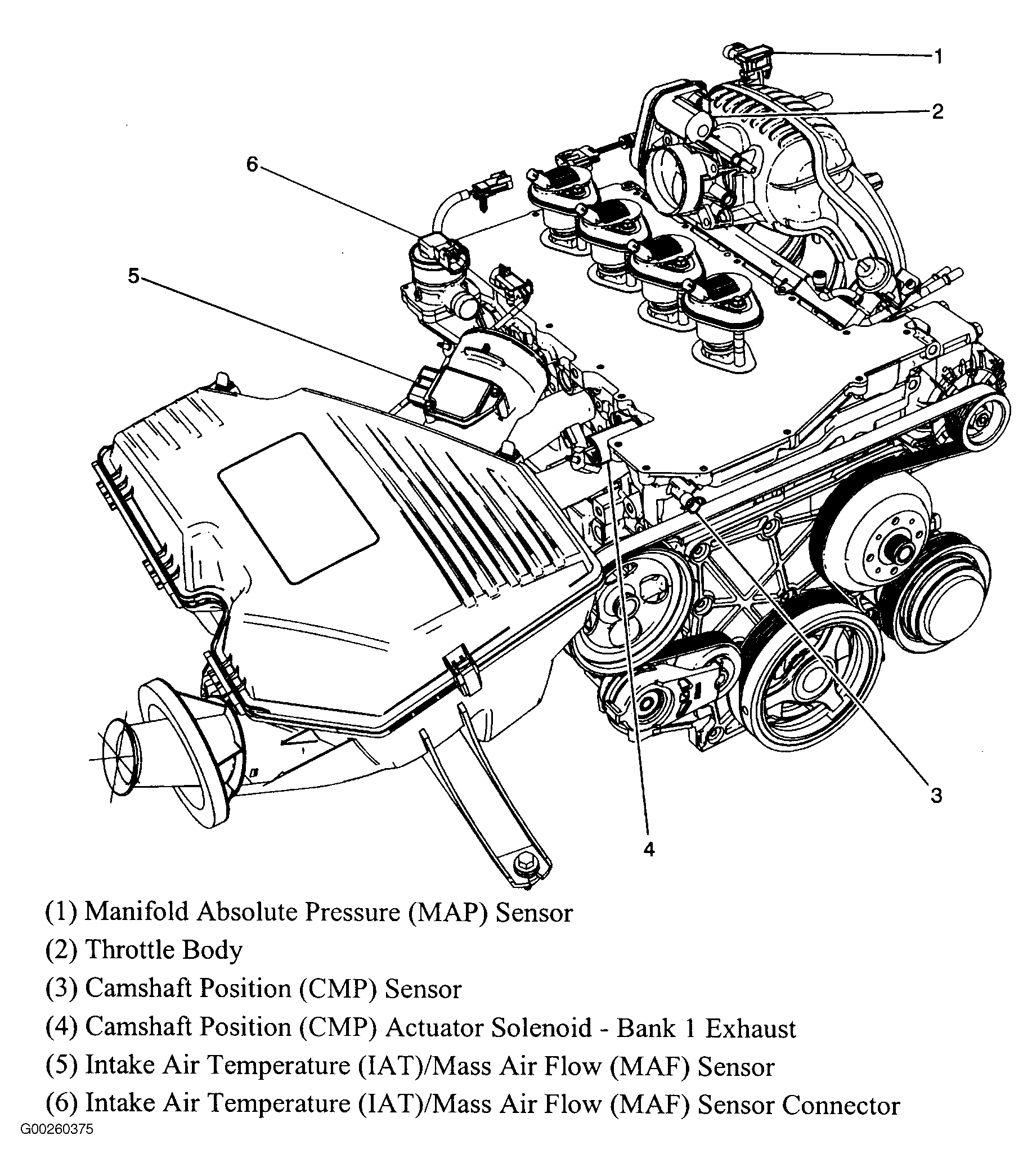

Fig 18: Top View Of Engine (3.7L)
Courtesy of GENERAL MOTORS CORP.
Fig 19: Right Front Of Engine (3.7L)

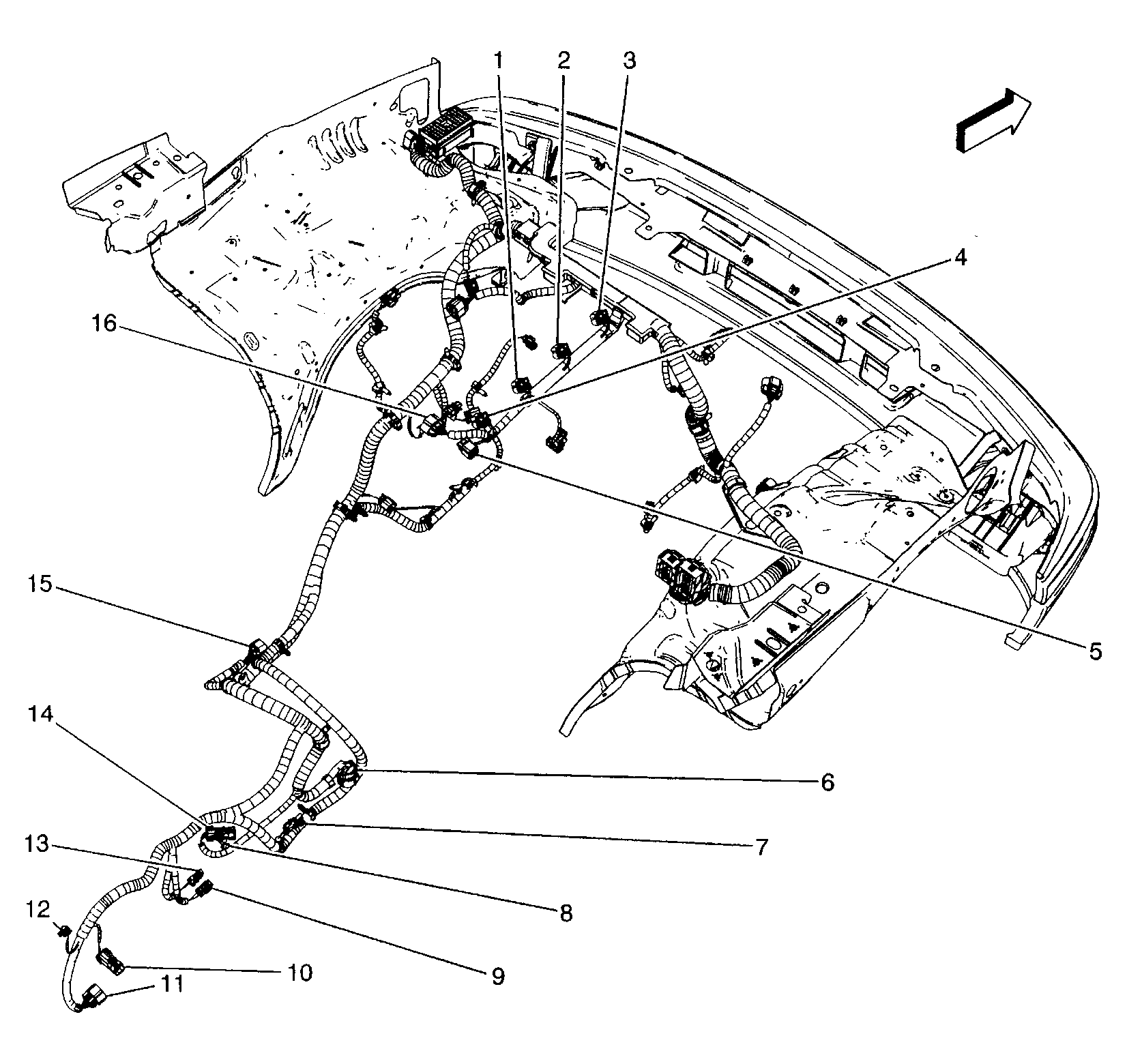

Courtesy of GENERAL MOTORS CORP.
Fig 20: Left & Right Sides Of Engine Compartment (Extended Cab)
Courtesy of GENERAL MOTORS CORP.
Fig 21: Passenger Compartment (Regular Cab) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

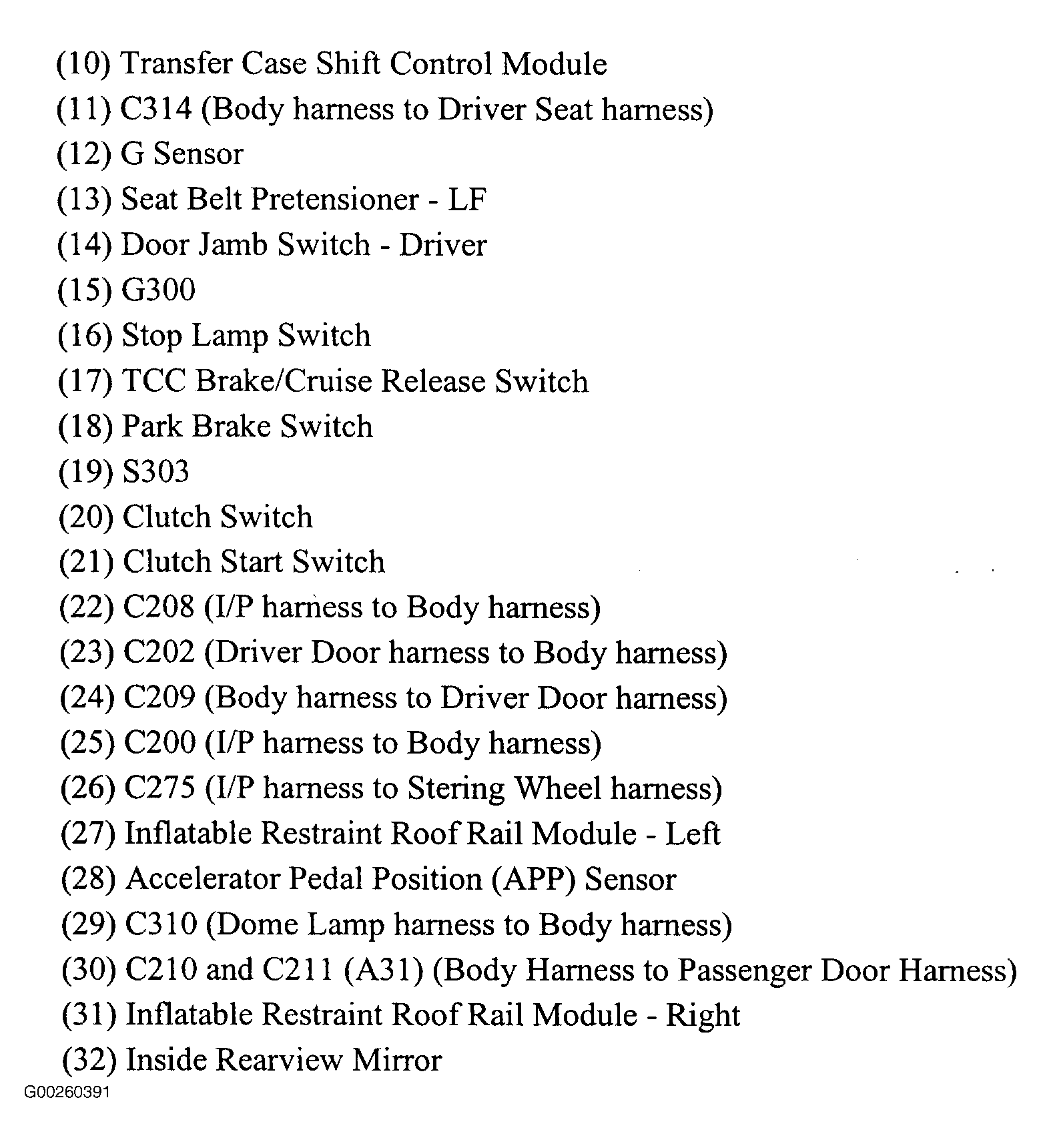

Fig 22: Passenger Compartment (Regular Cab) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

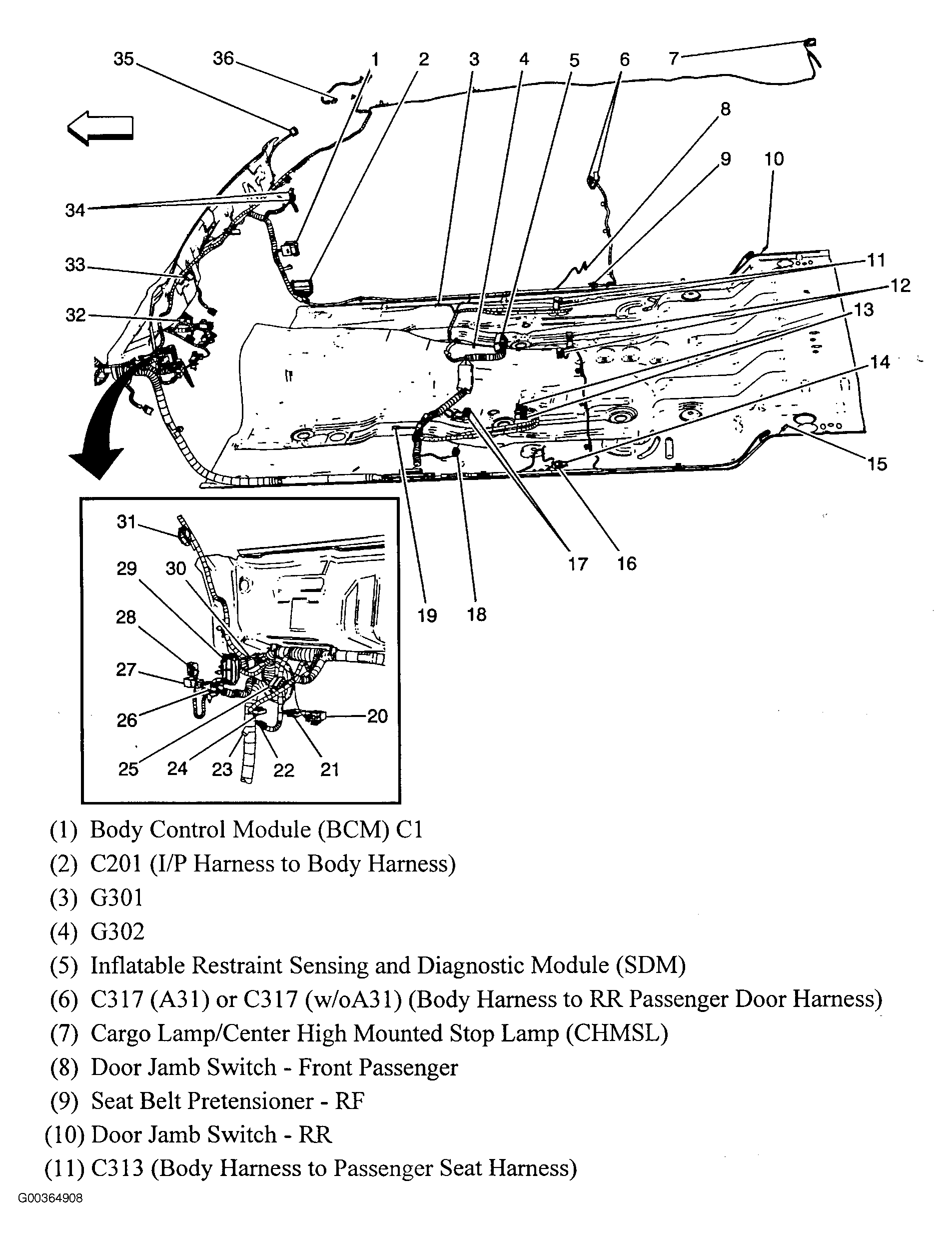

Fig 23: Passenger Compartment (Crew Cab) (1 Of 2)
Courtesy of GENERAL MOTORS CORP.

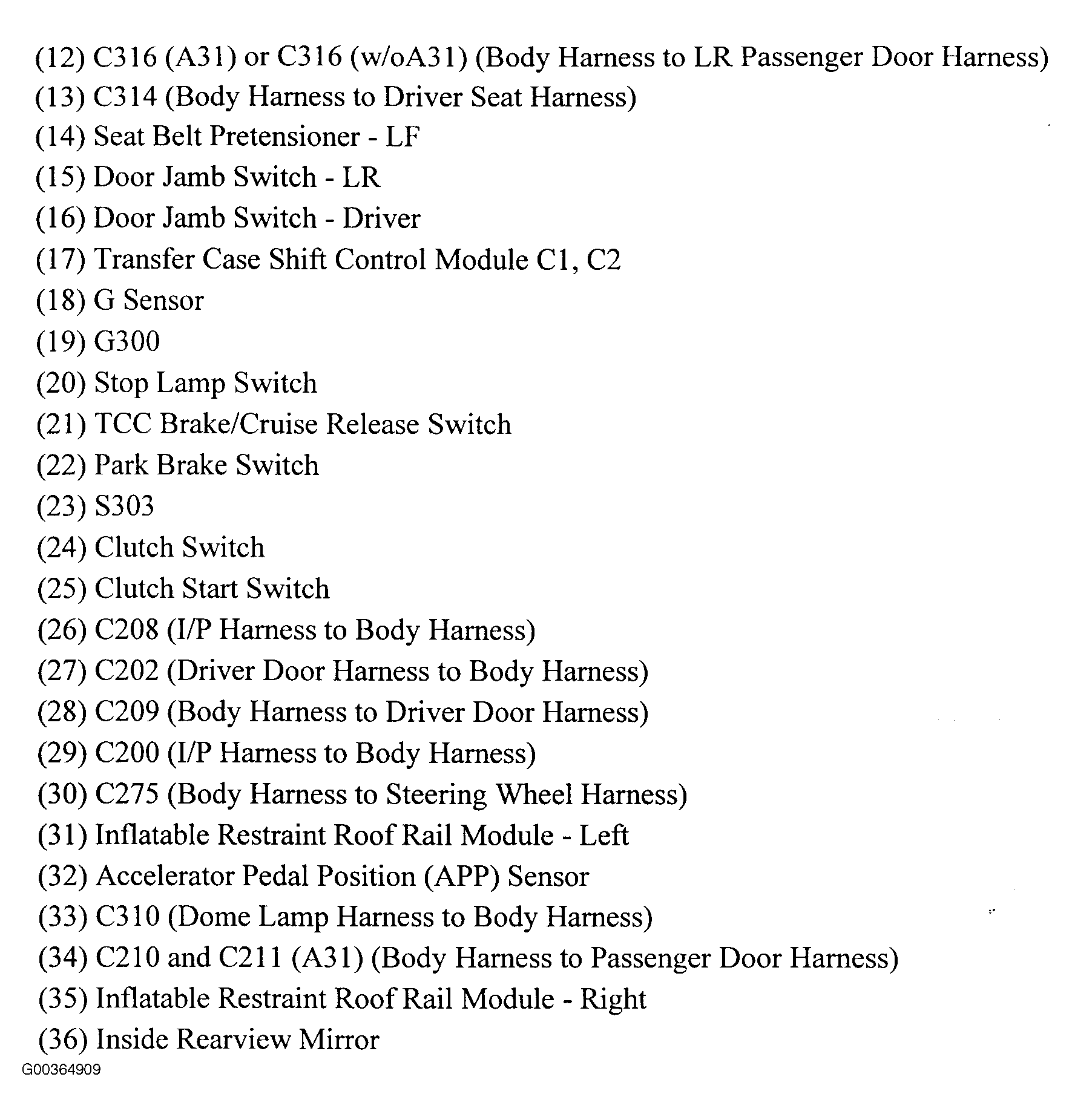

Fig 24: Passenger Compartment (Crew Cab) (2 Of 2)
Courtesy of GENERAL MOTORS CORP.

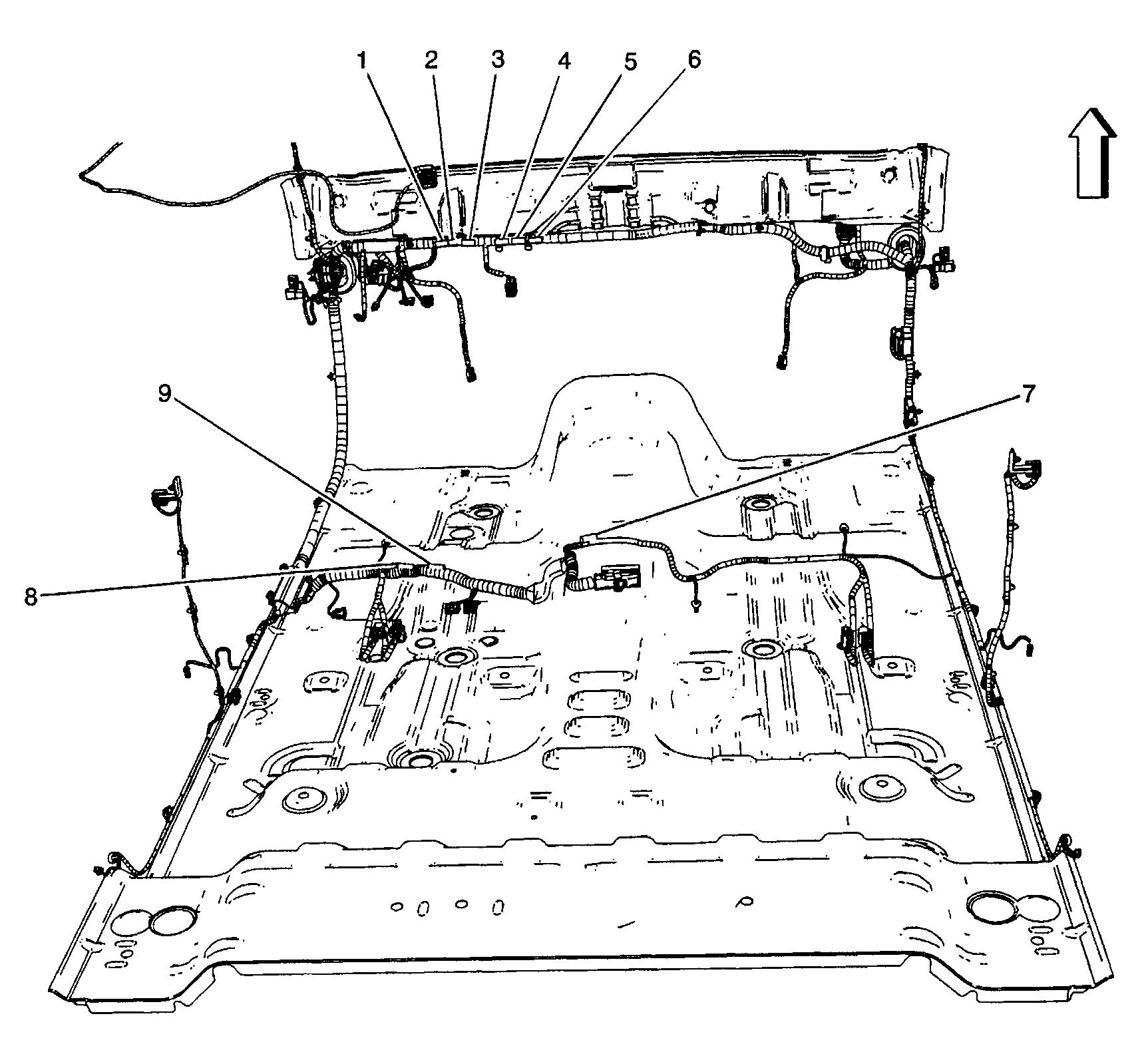

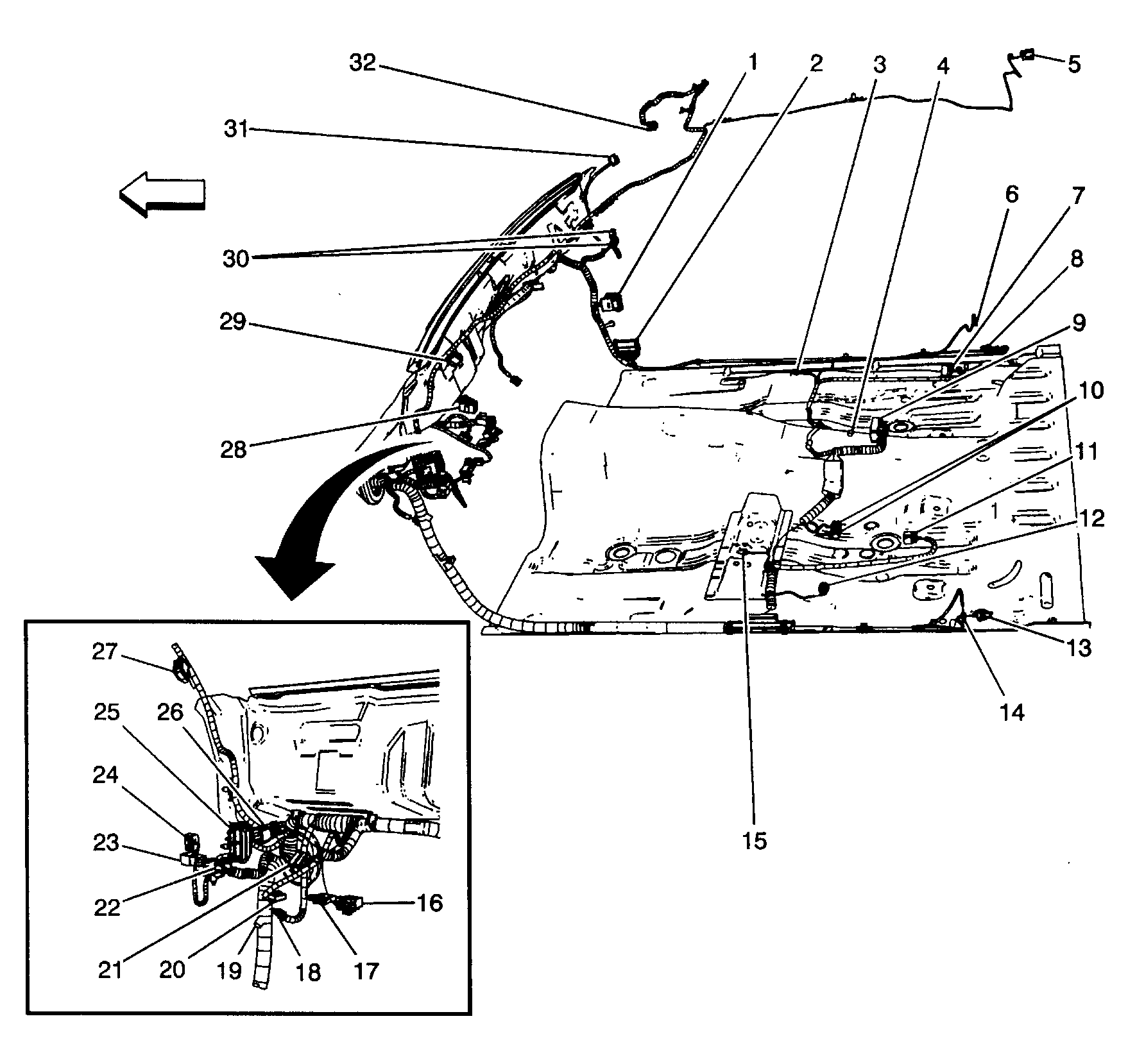

Fig 25: Body Harness Routing
Courtesy of GENERAL MOTORS CORP.

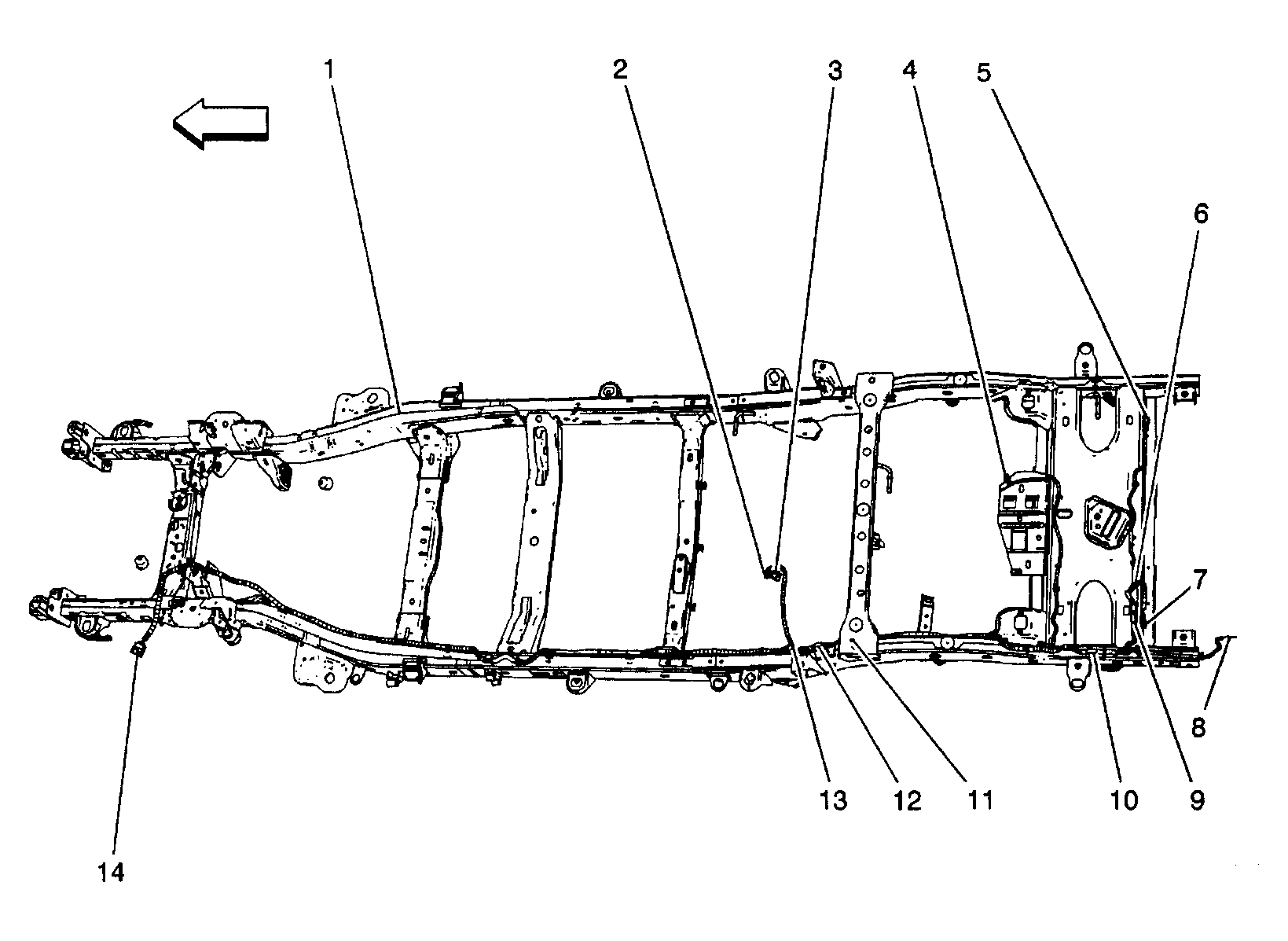

Fig 26: Chassis Harness Routing
Courtesy of GENERAL MOTORS CORP.

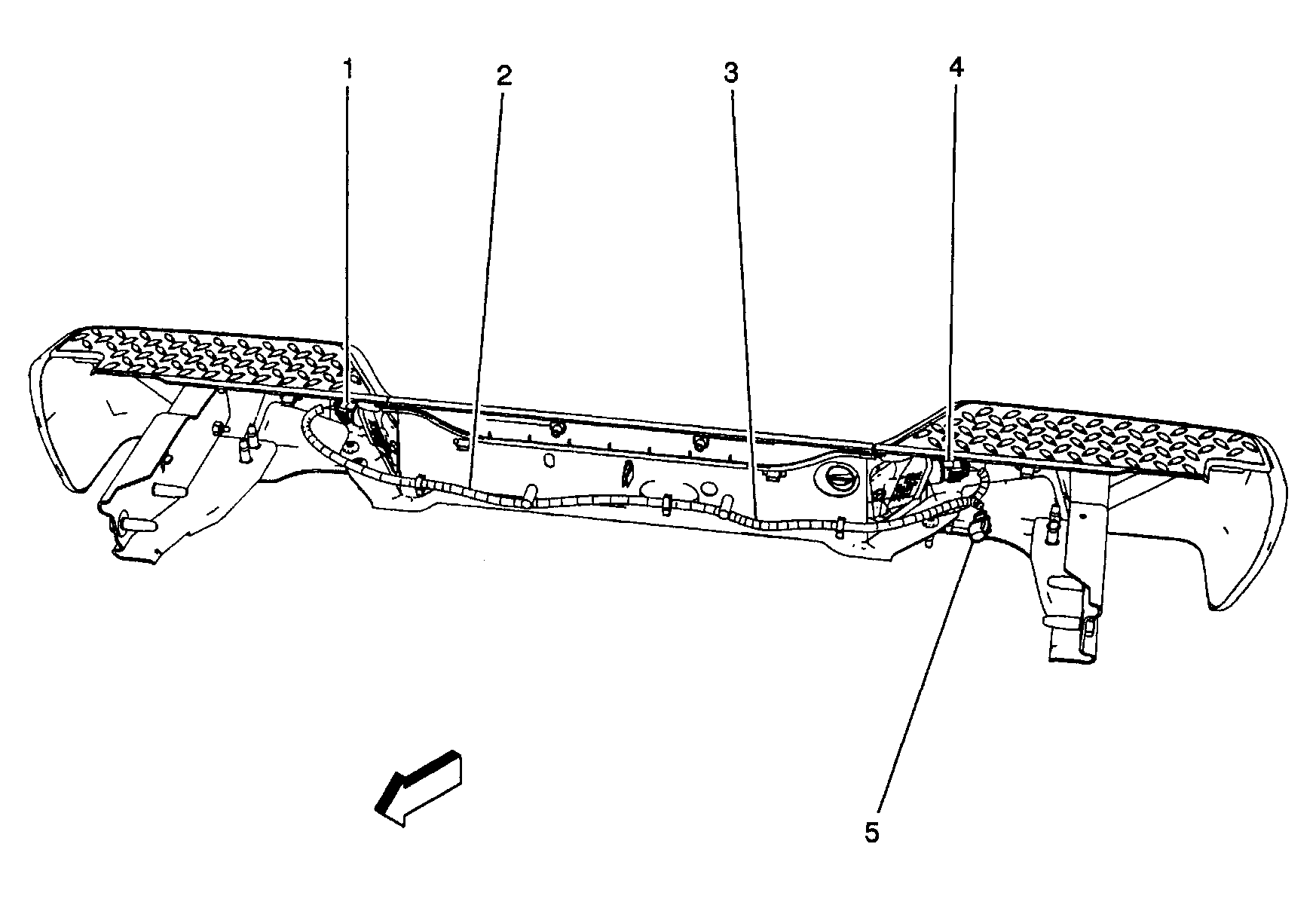

Fig 27: License Plate Lamp Harness Routing
Courtesy of GENERAL MOTORS CORP.

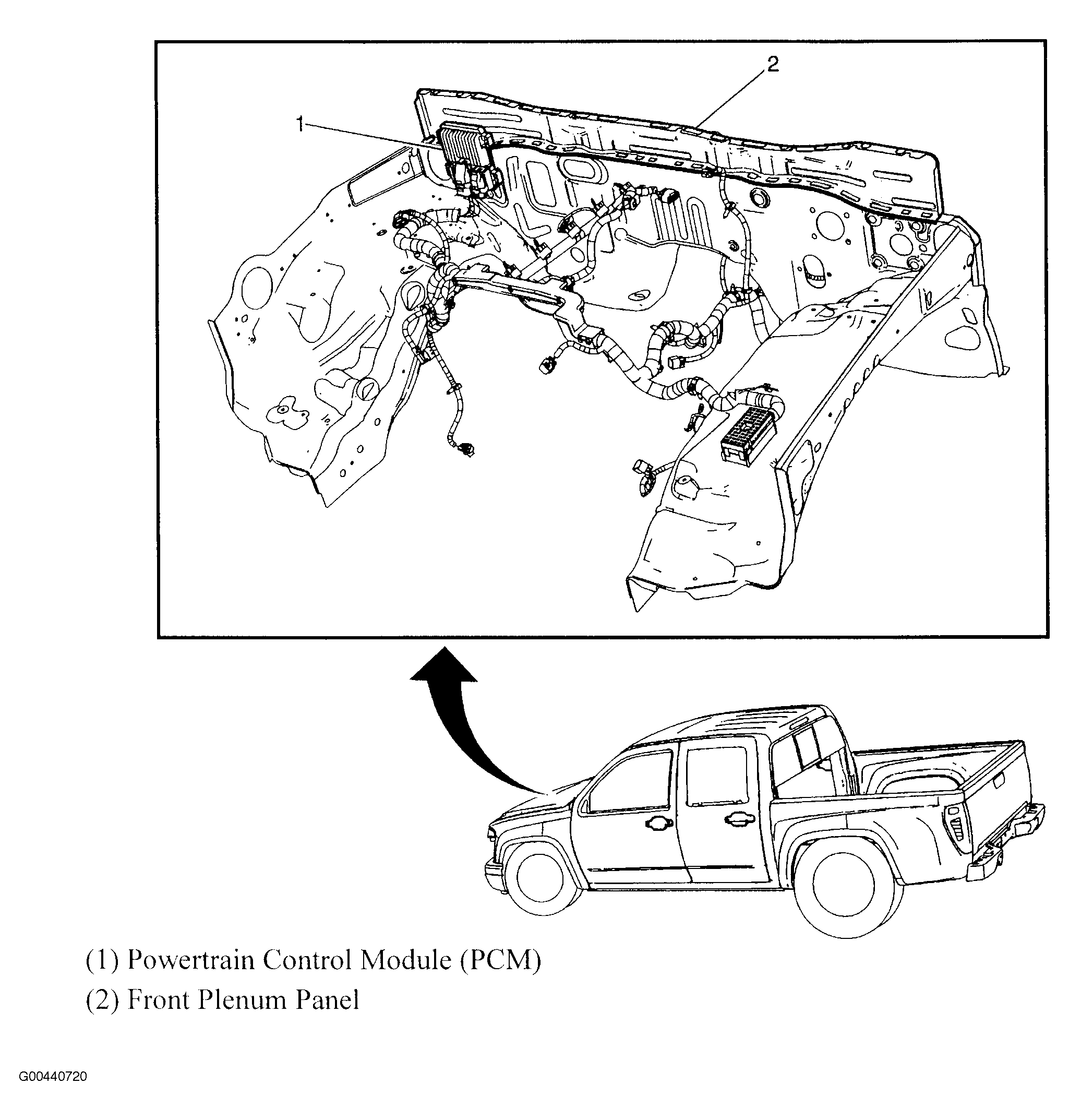

Fig 28: Engine Harness (3.7L)
Courtesy of GENERAL MOTORS CORP.

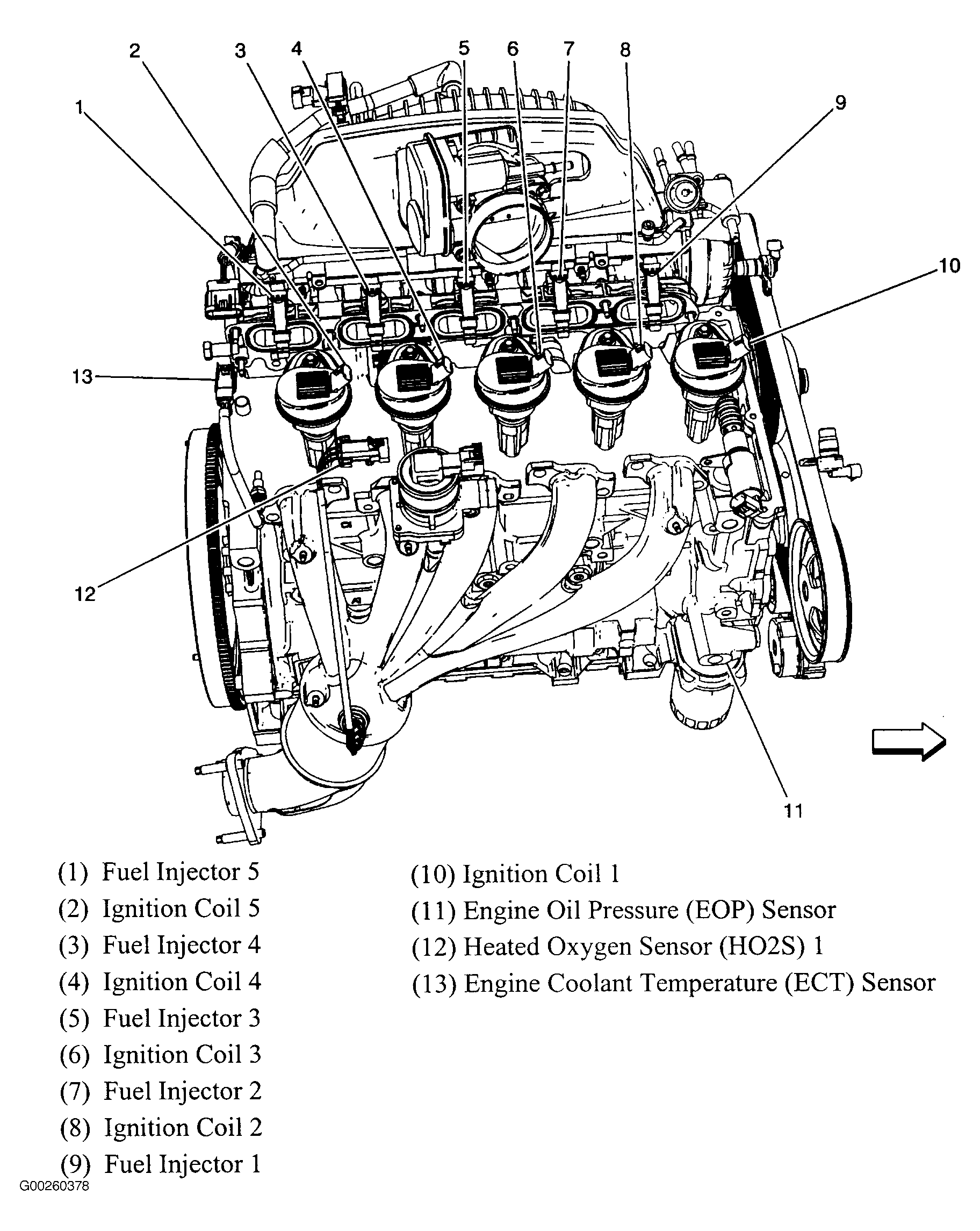

Fig 29: Engine Control Components - Left Side (3.7L)
Courtesy of GENERAL MOTORS CORP.

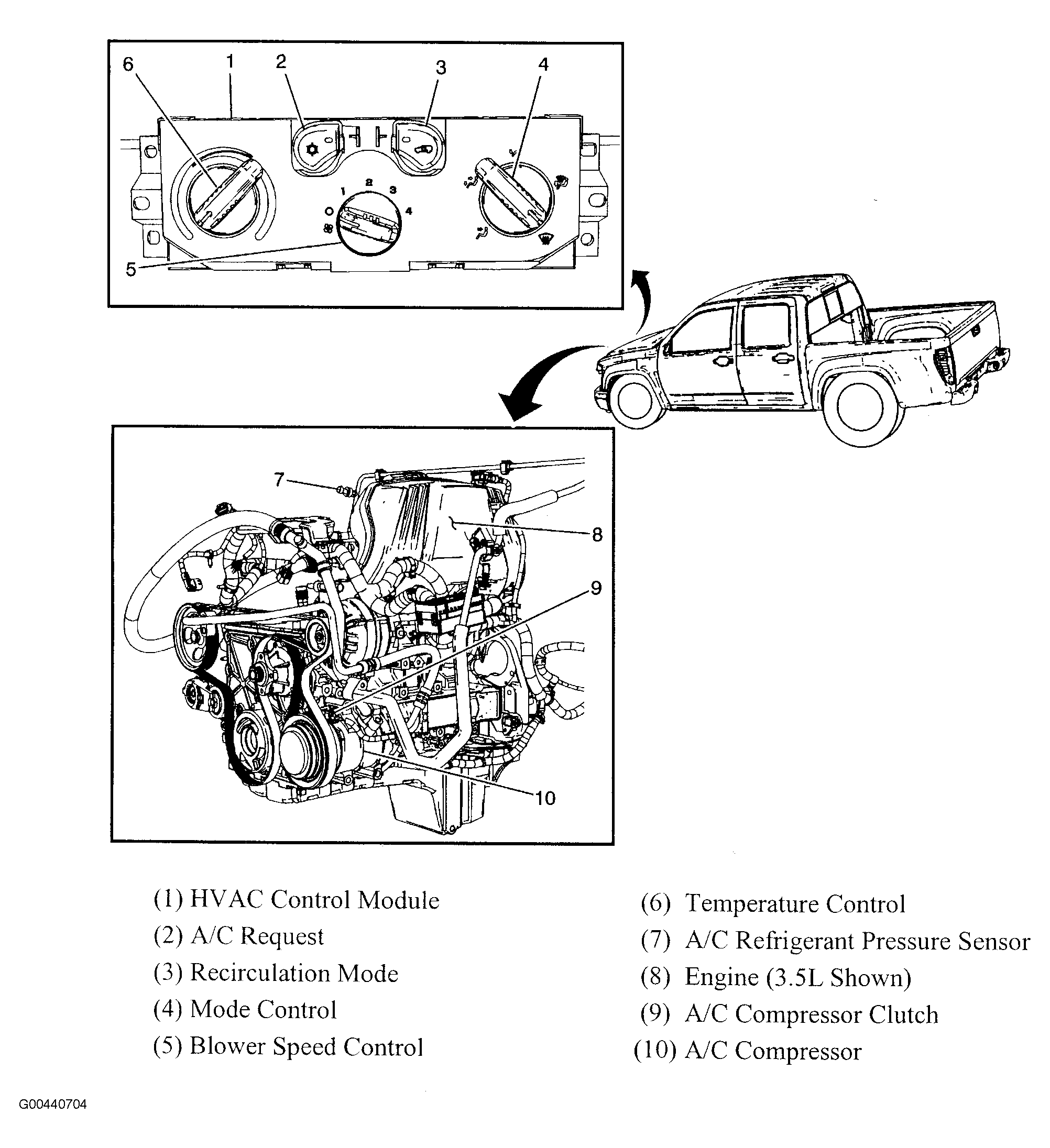

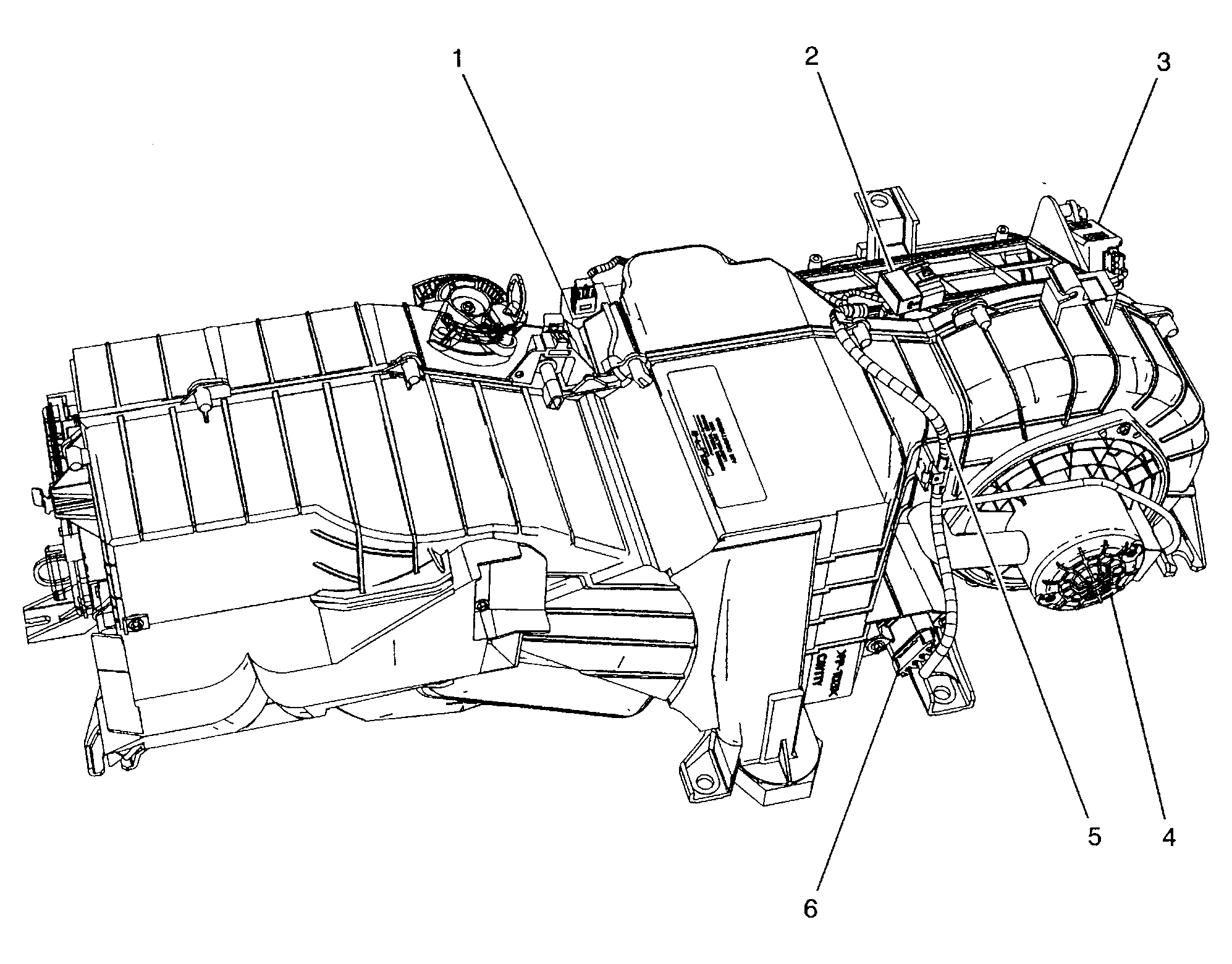

Fig 30: HVAC Components
Courtesy of GENERAL MOTORS CORP.
Fig 31: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 32: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

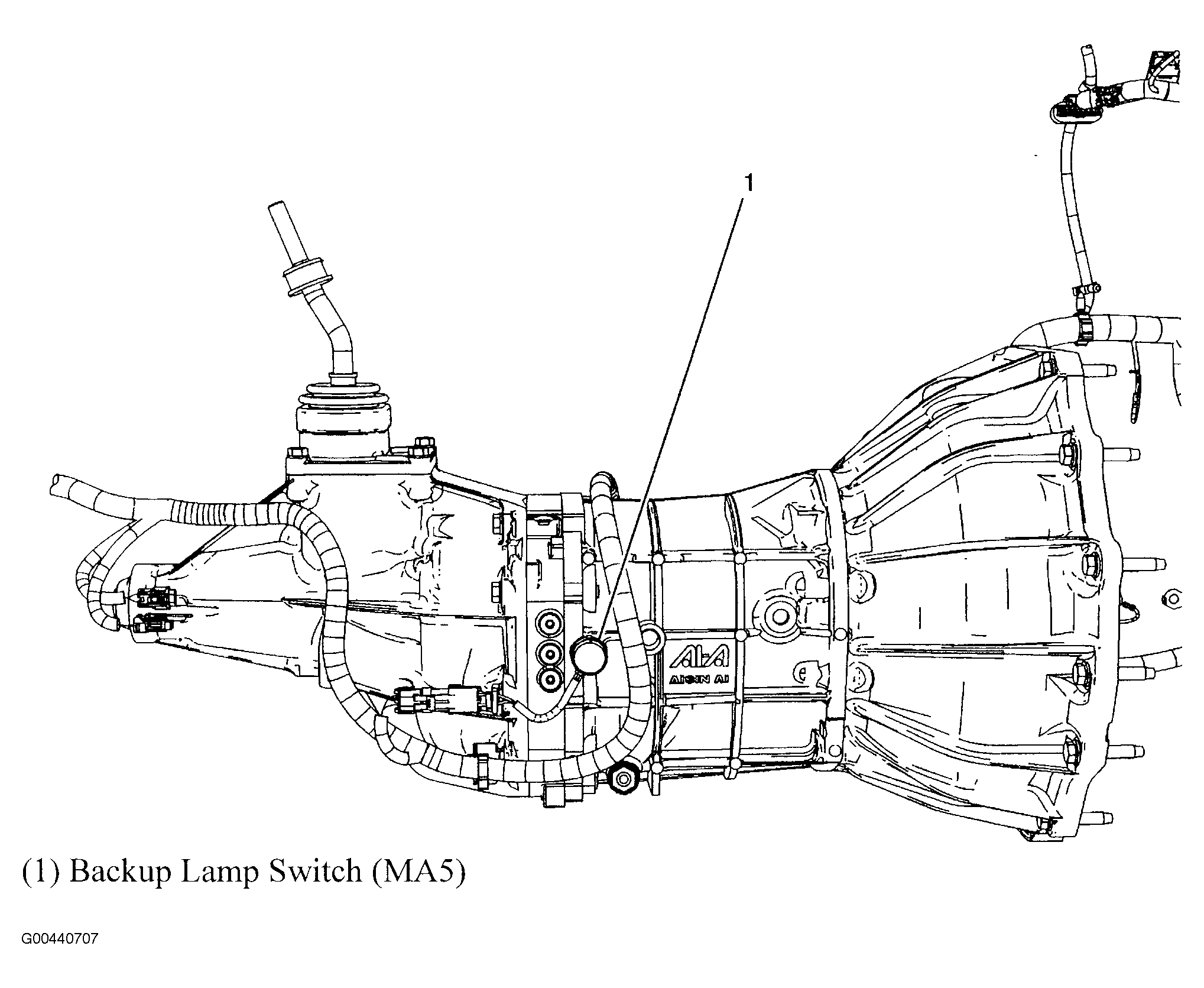

Fig 33: Backup Lamp Switch
Courtesy of GENERAL MOTORS CORP.
Fig 34: Engine Electrical Components
Courtesy of GENERAL MOTORS CORP.
Fig 35: Body Control Module (BCM)
Courtesy of GENERAL MOTORS CORP.

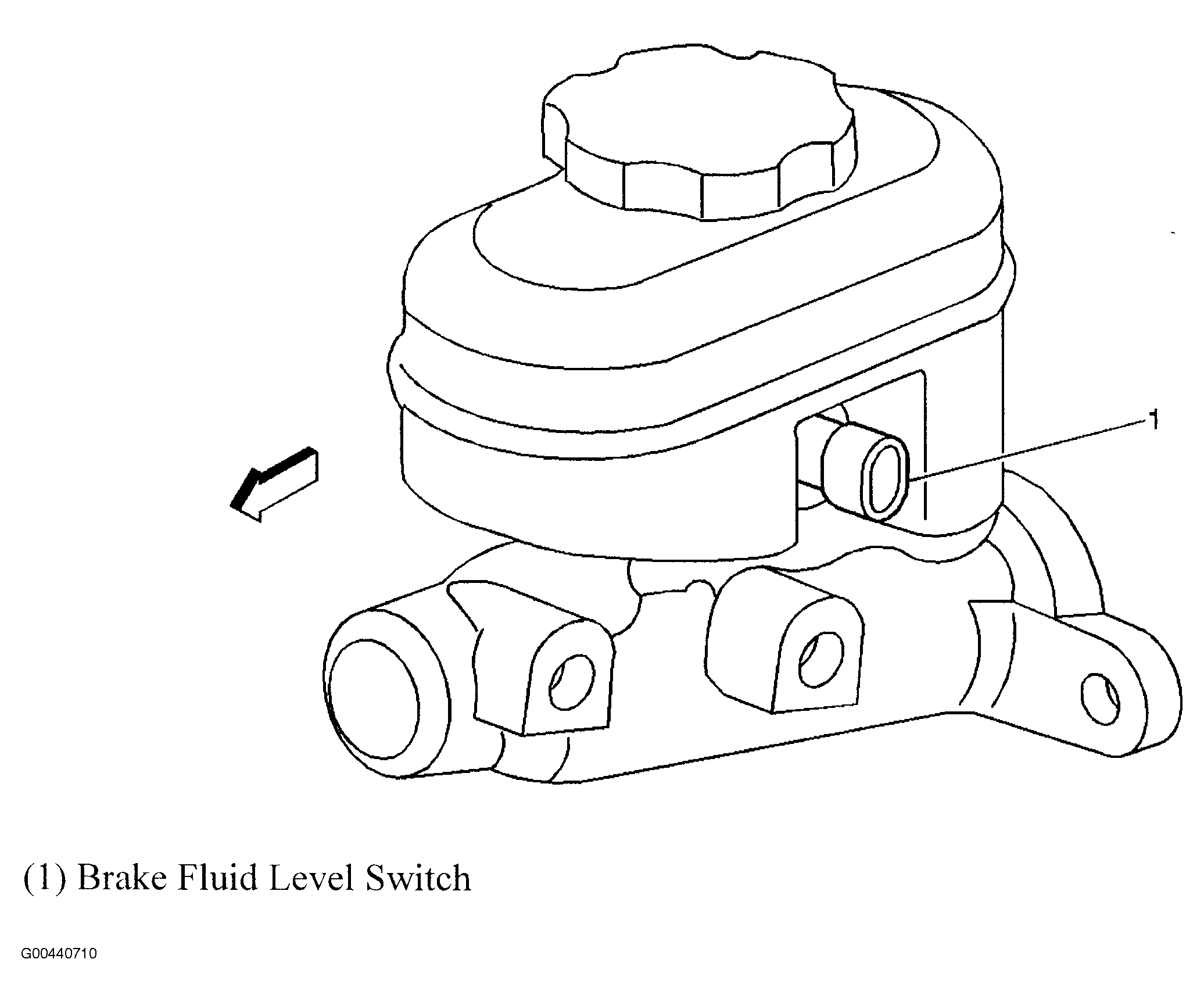

Fig 36: Brake Fluid Level Switch
Courtesy of GENERAL MOTORS CORP.

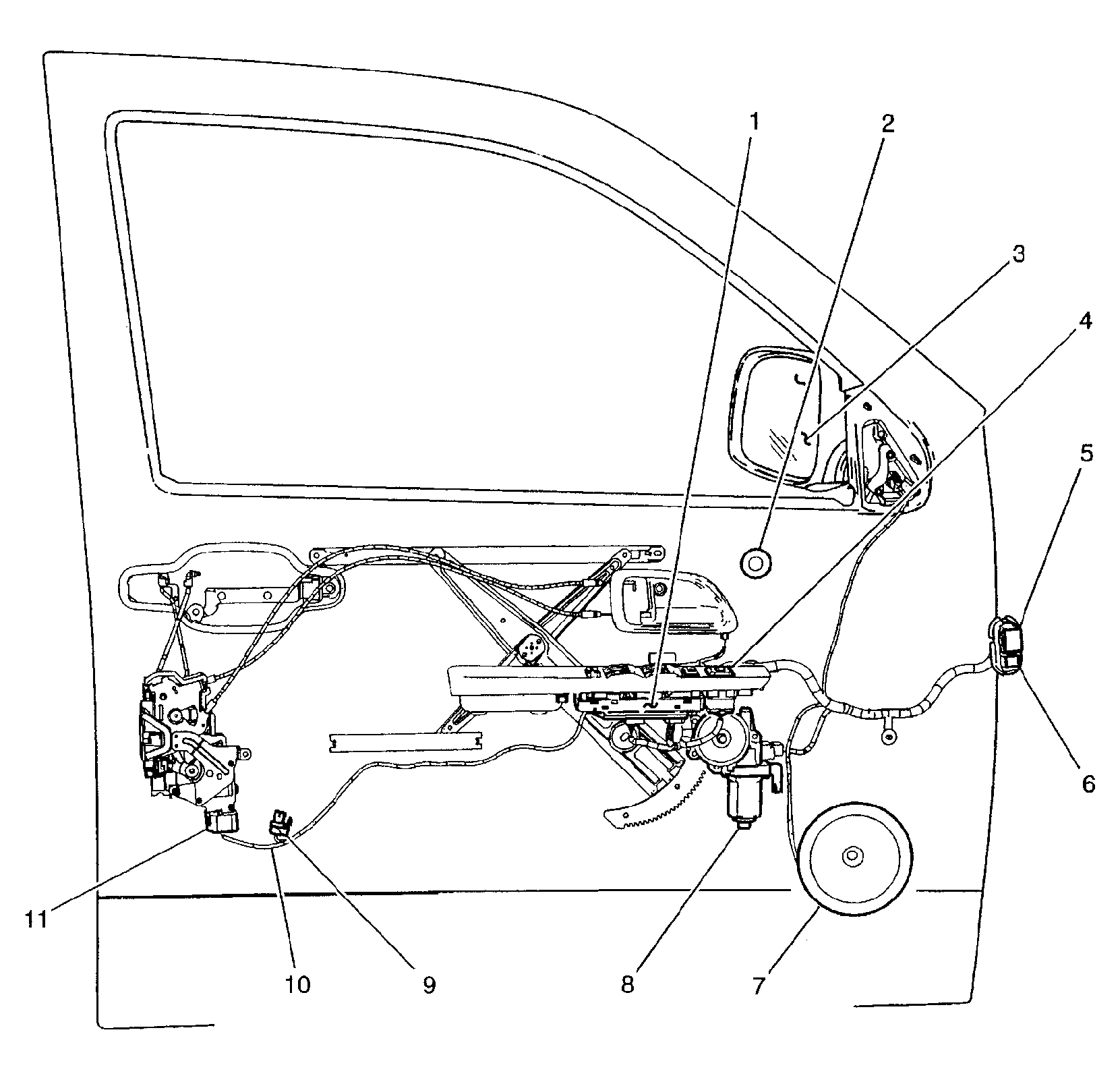

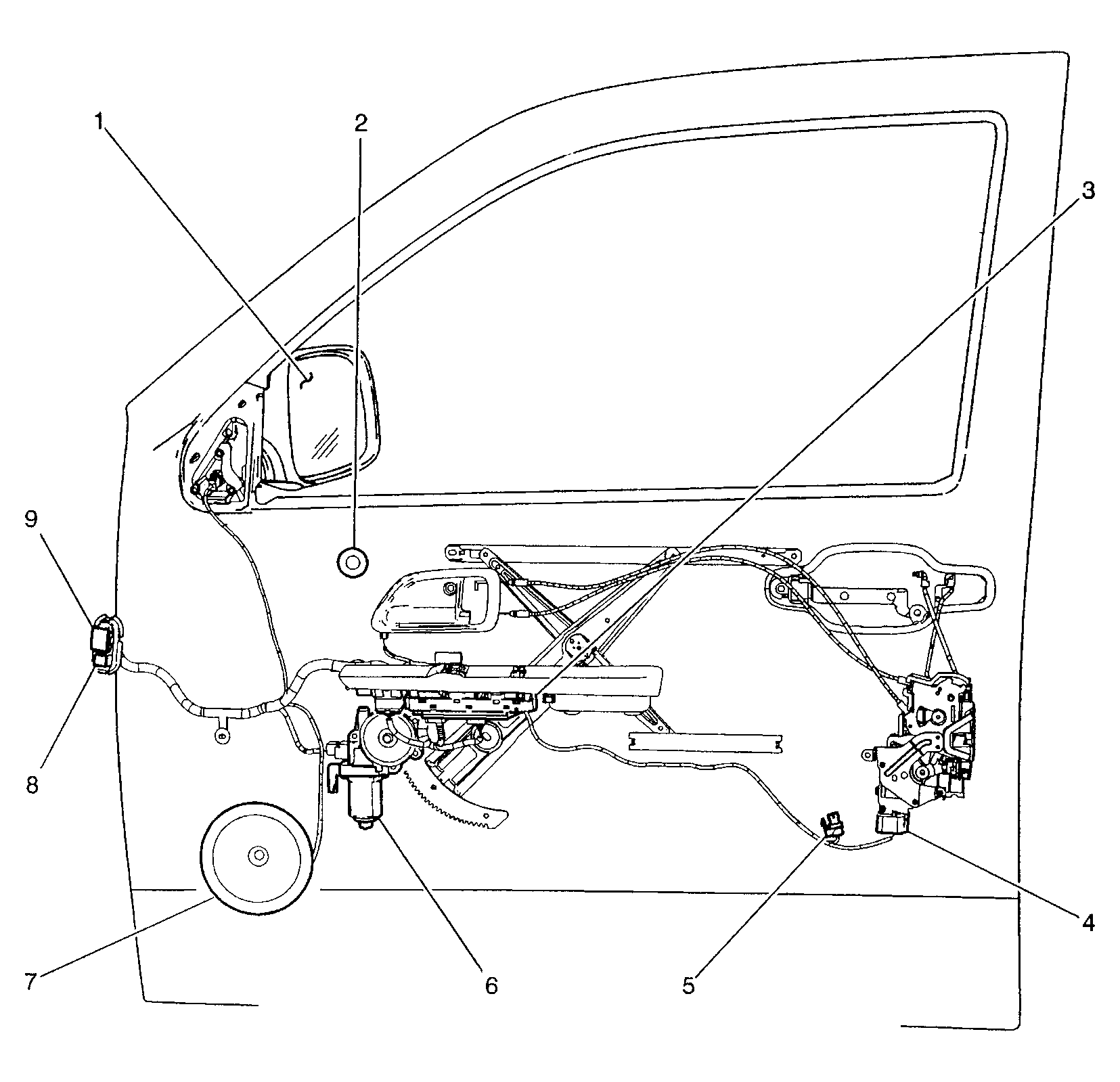

Fig 37: Front Passenger Door
Courtesy of GENERAL MOTORS CORP.

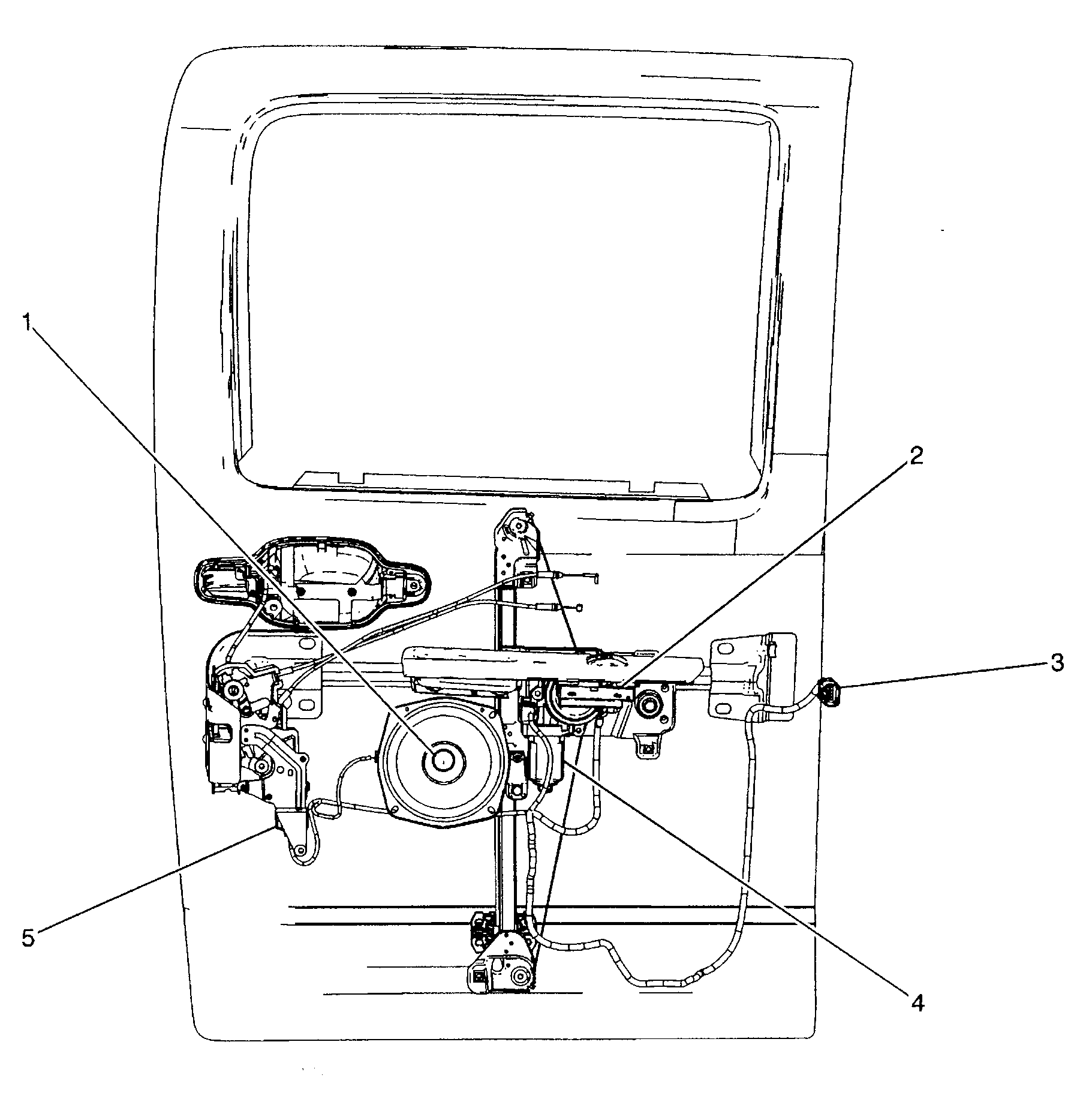

Fig 38: Left Rear Door (Crew Cab)
Courtesy of GENERAL MOTORS CORP.

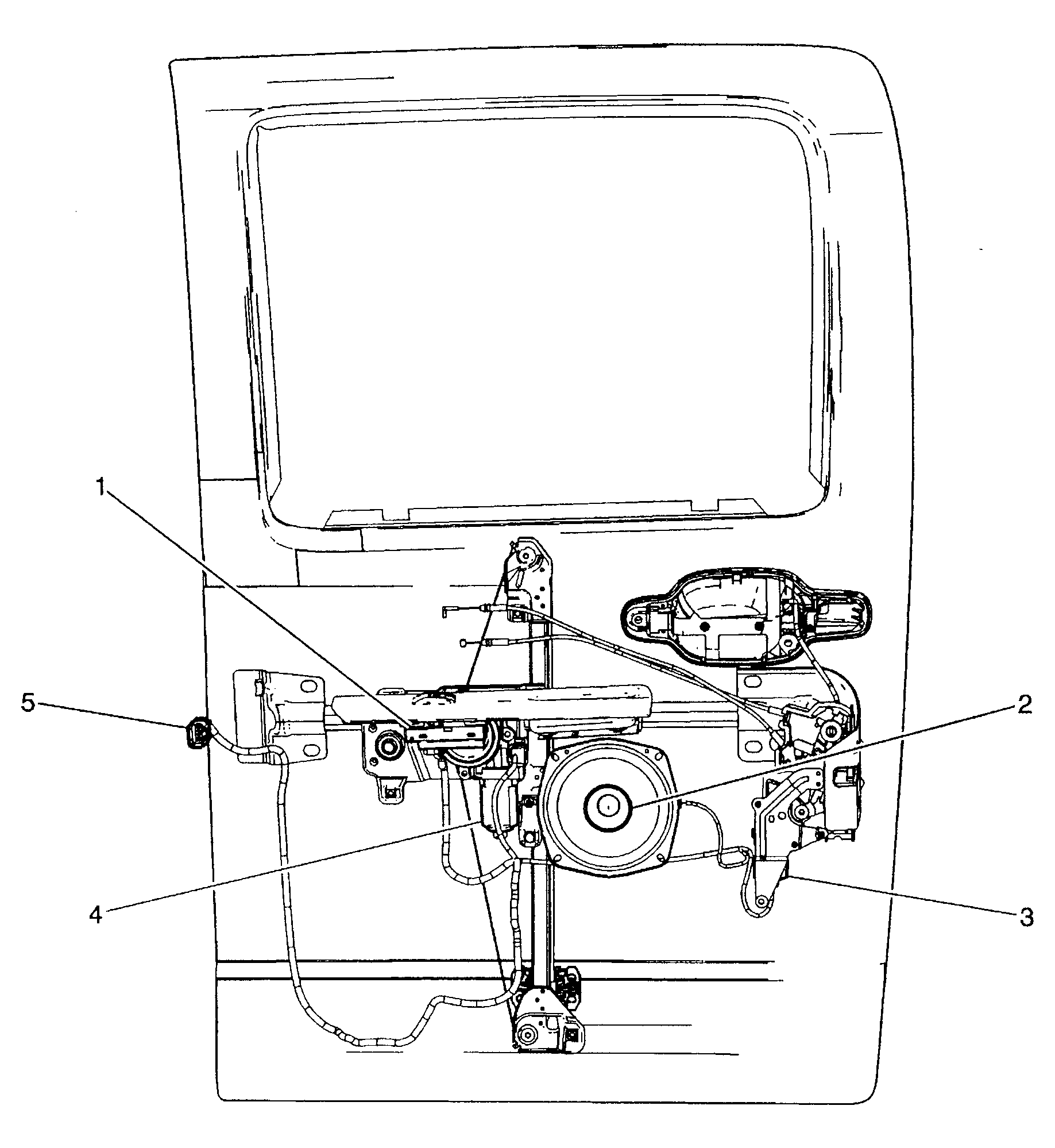

Fig 39: Right Rear Door (Crew Cab)
Courtesy of GENERAL MOTORS CORP.

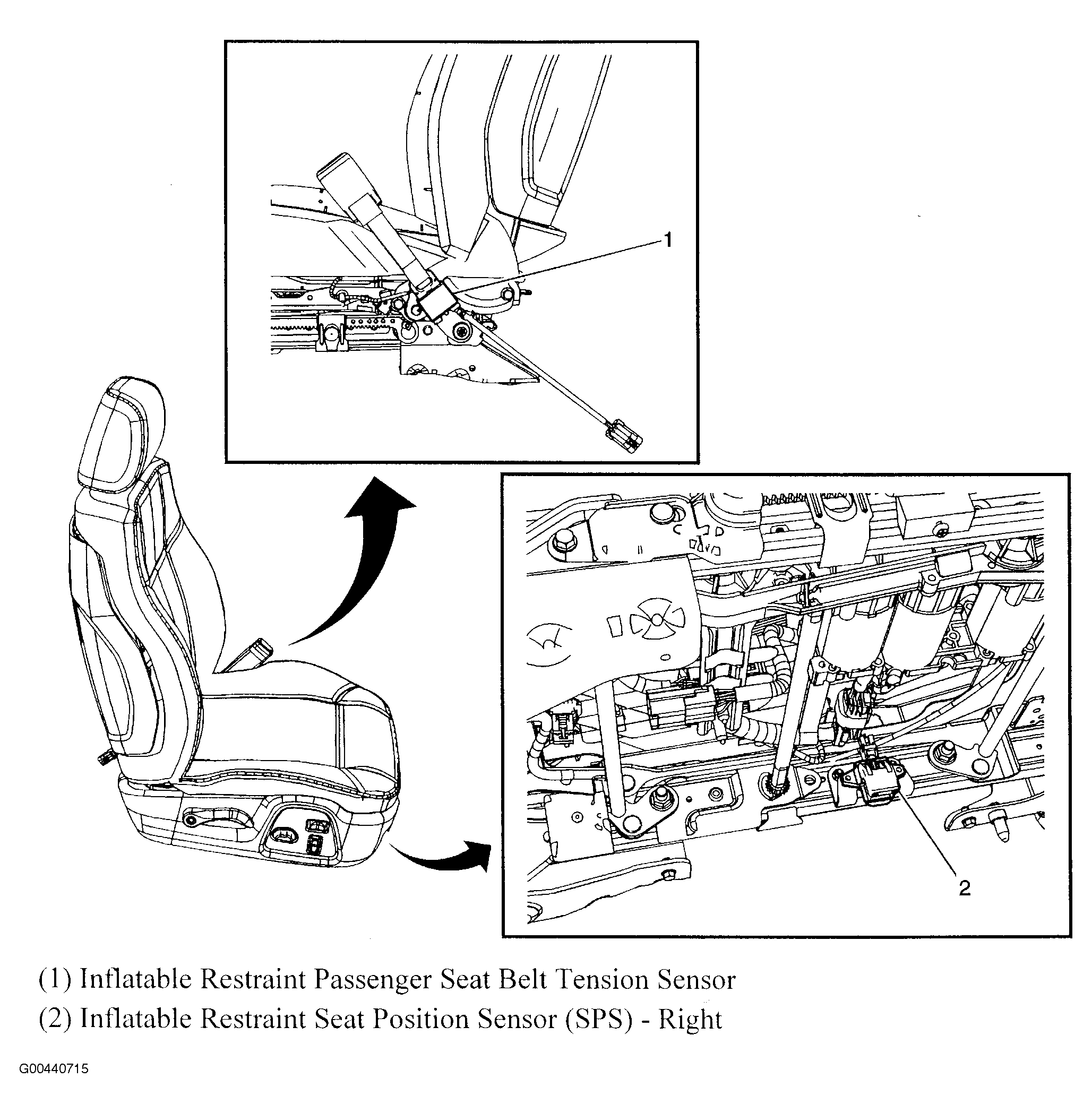

Fig 40: Passenger Seat Components
Courtesy of GENERAL MOTORS CORP.

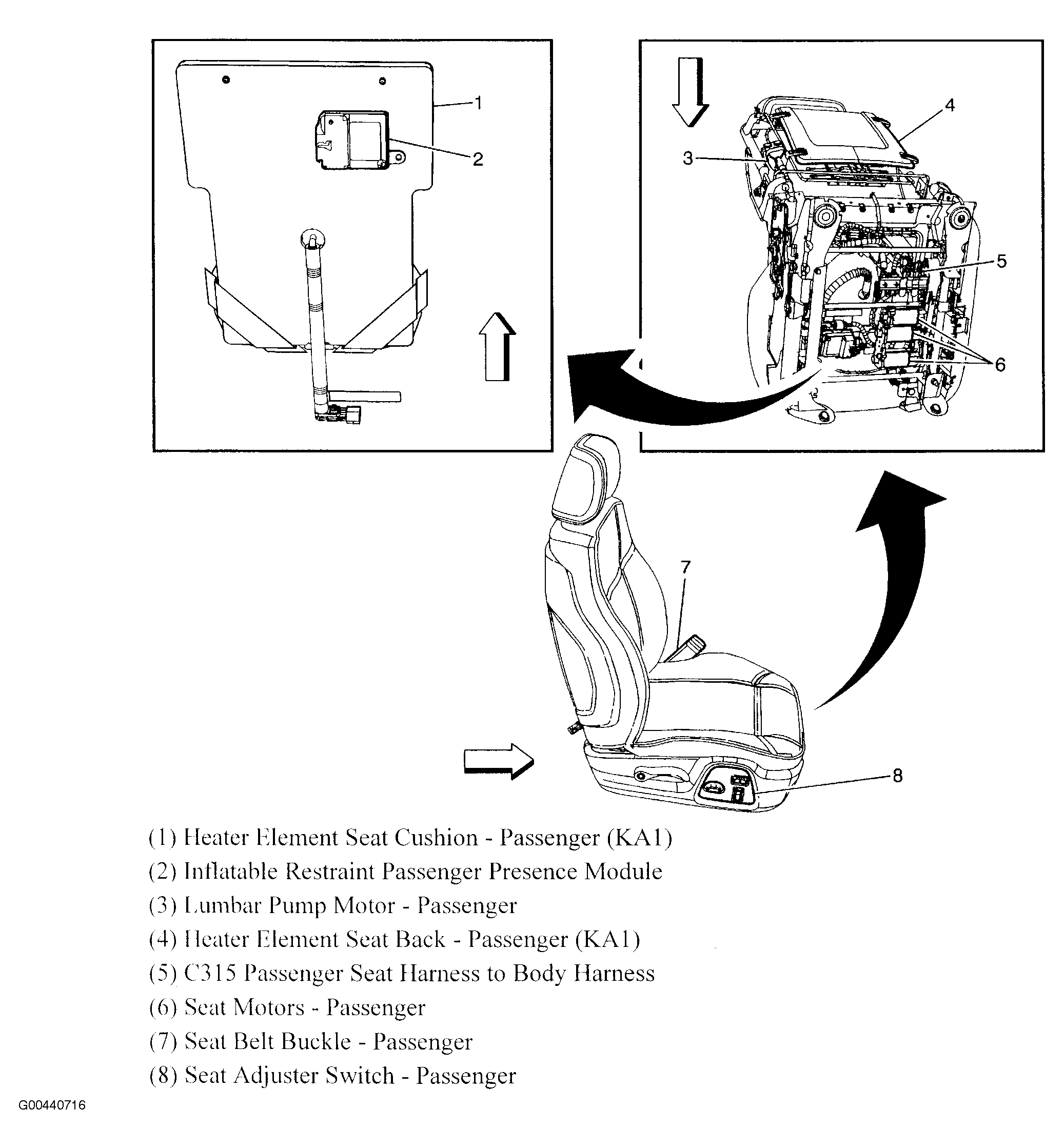

Fig 41: Passenger Seat
Courtesy of GENERAL MOTORS CORP.

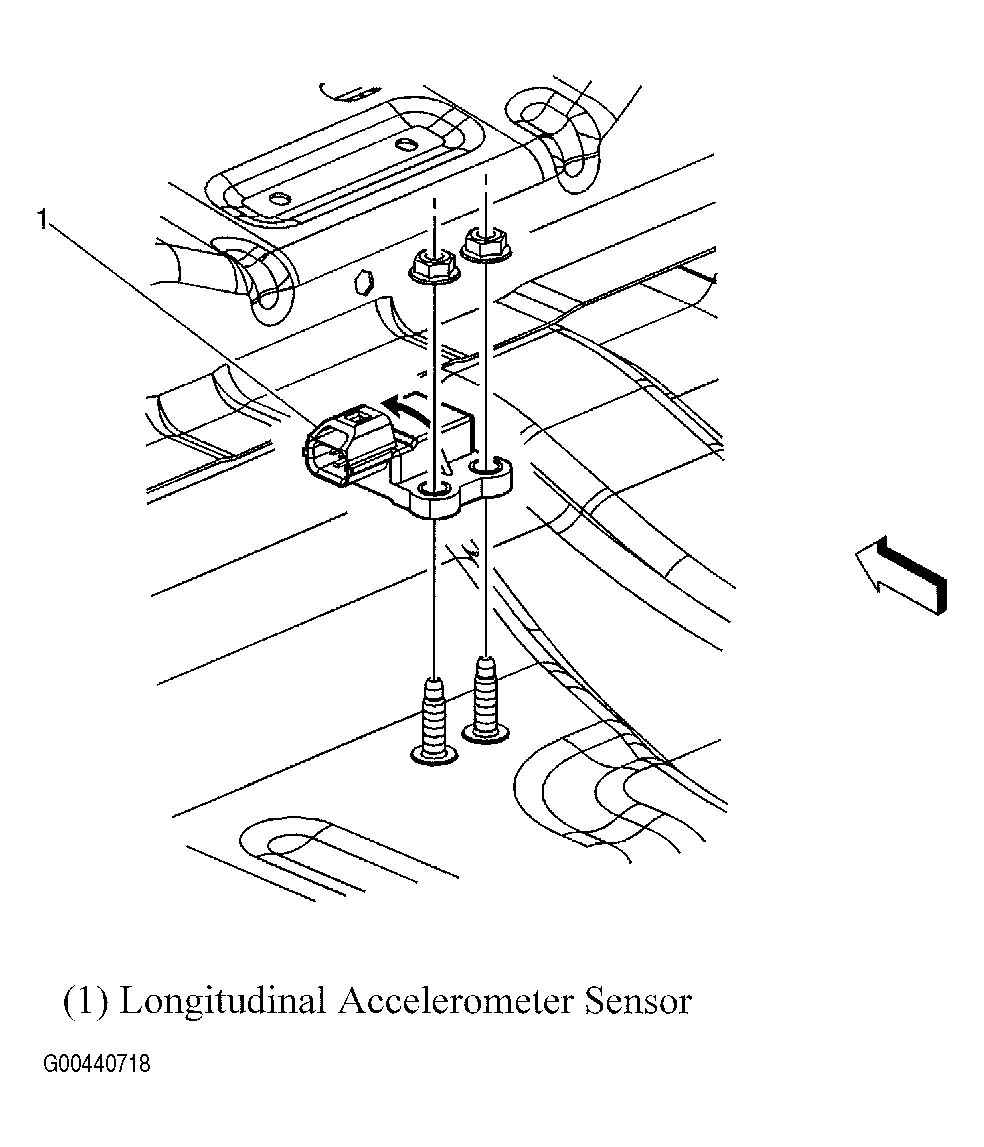

Fig 42: Longitudinal Accelerometer Sensor
Courtesy of GENERAL MOTORS CORP.

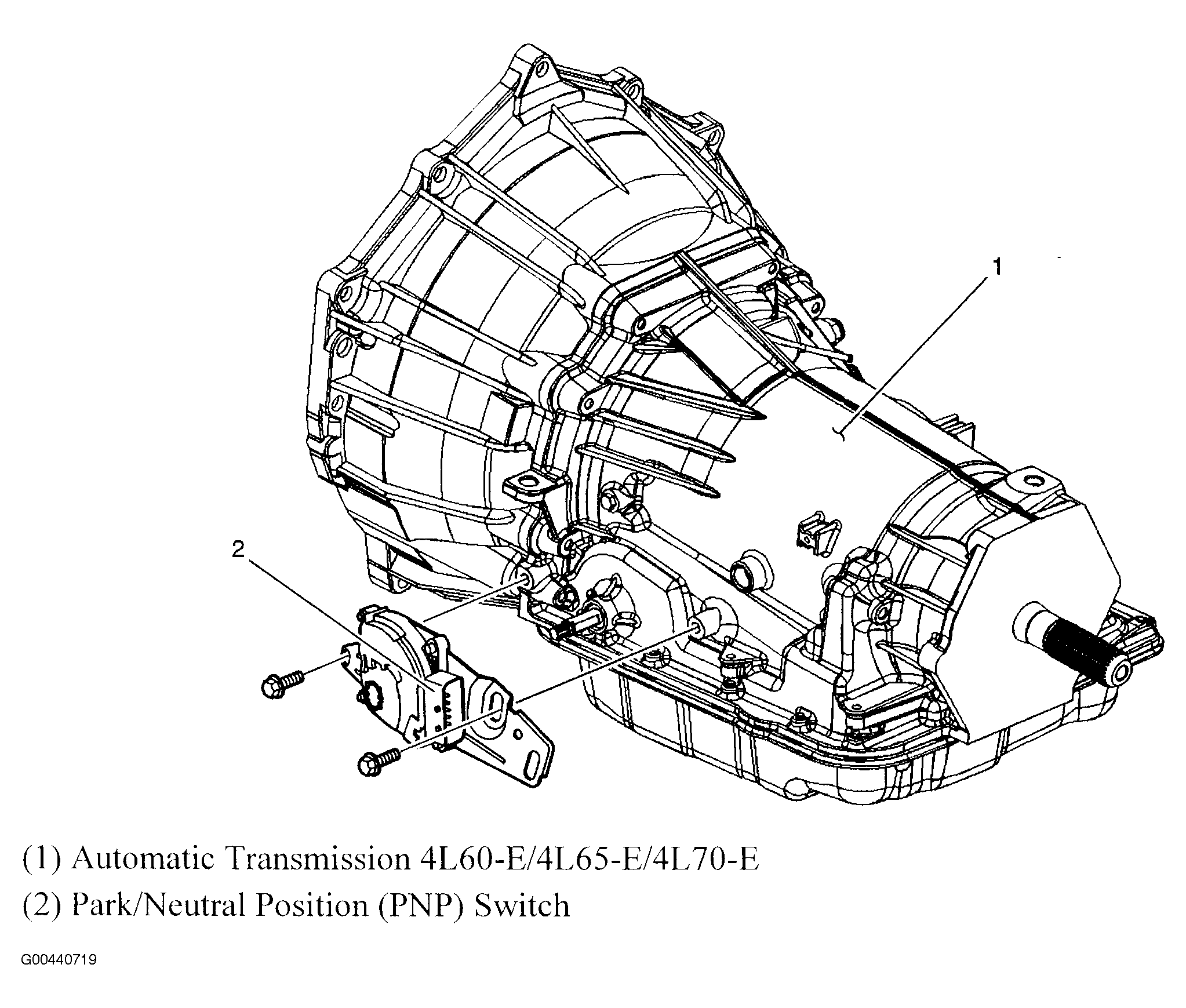

Fig 43: Park Neutral Position (PNP) Switch
Courtesy of GENERAL MOTORS CORP.
Fig 44: Engine Control Components
Courtesy of GENERAL MOTORS CORP.

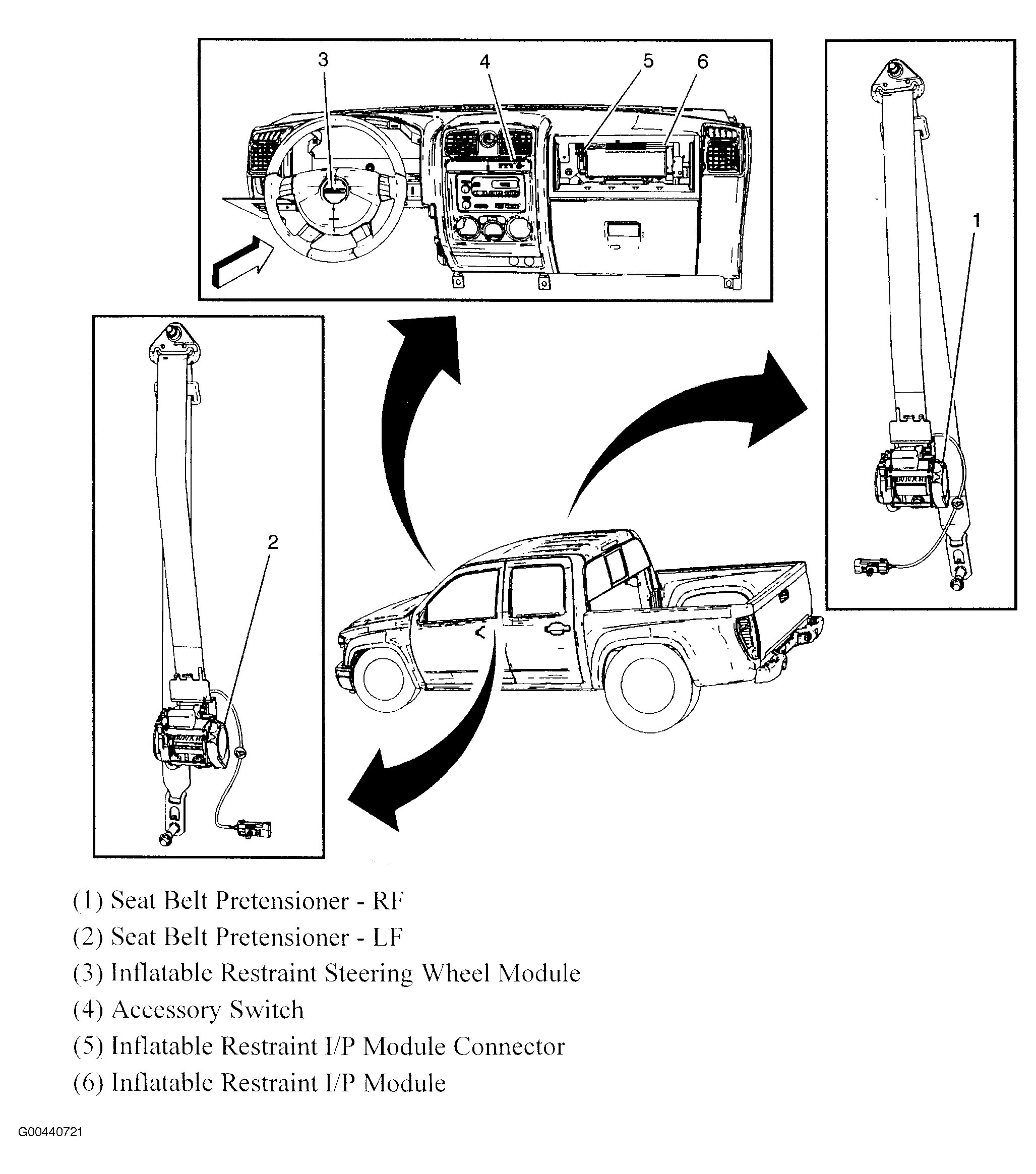

Fig 45: SIR Components - Pretensioner/Dash
Courtesy of GENERAL MOTORS CORP.

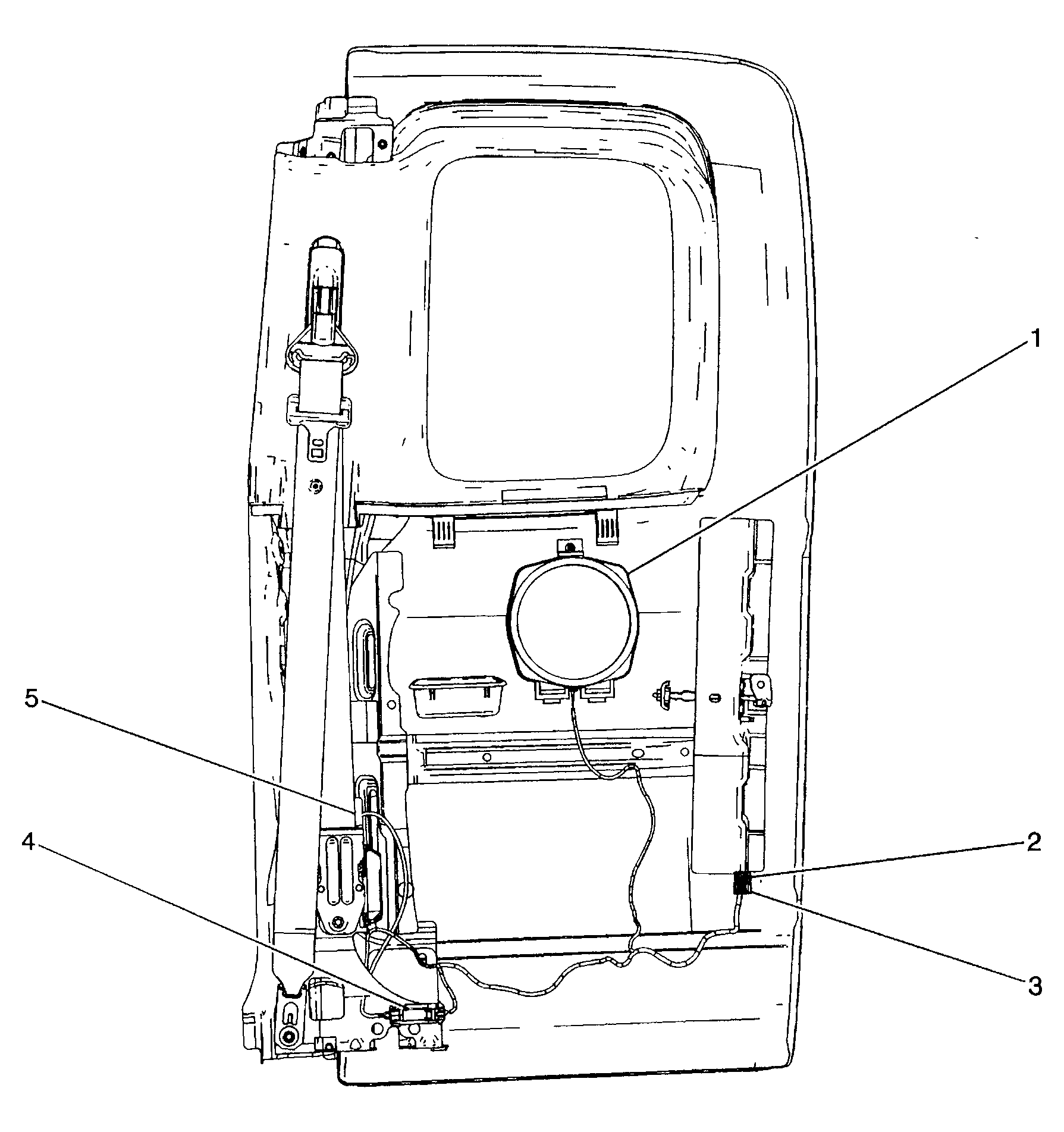

Fig 46: Right Rear Door (Extended Cab)
Courtesy of GENERAL MOTORS CORP.

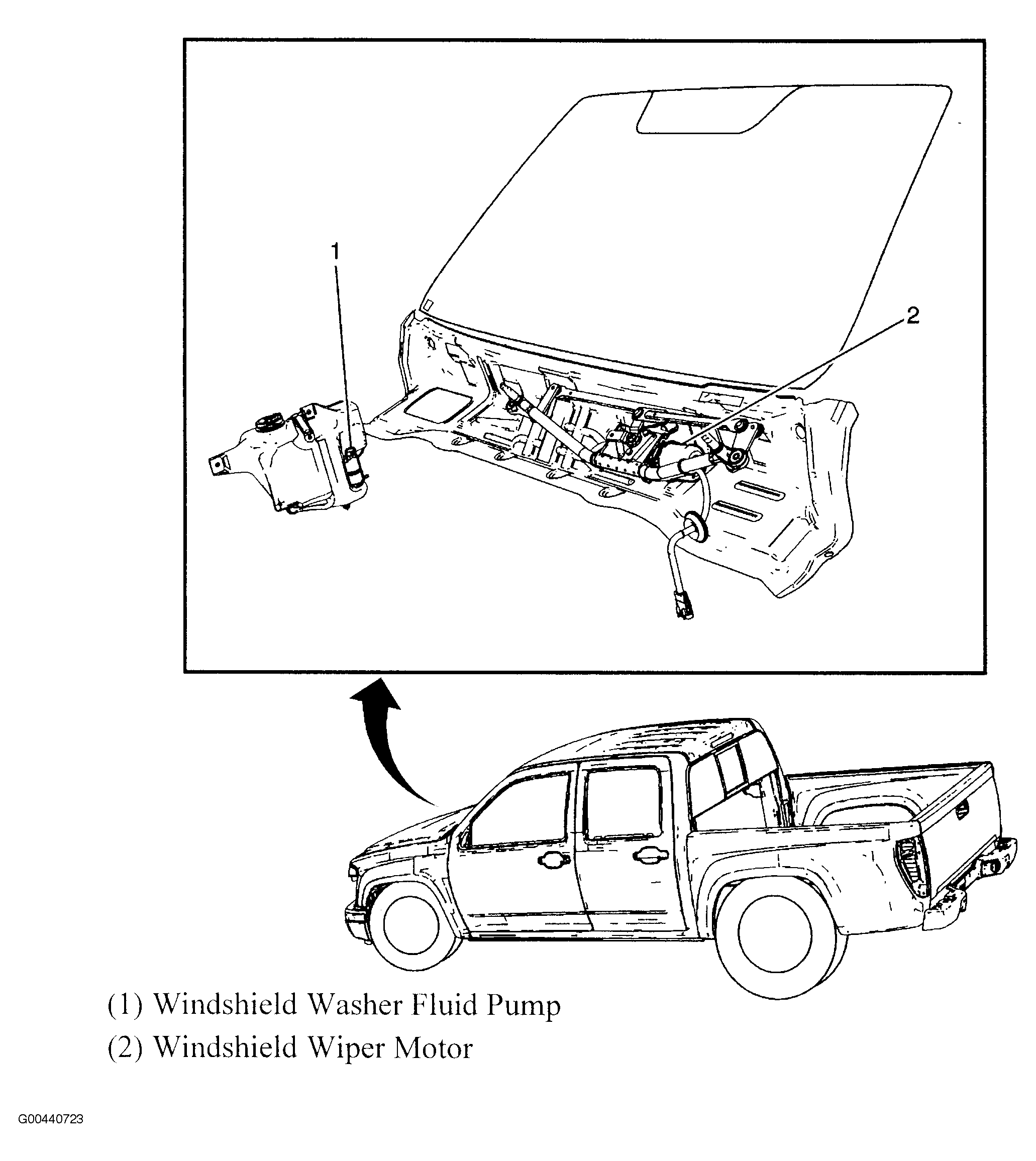

Fig 47: Wiper Components
Courtesy of GENERAL MOTORS CORP.

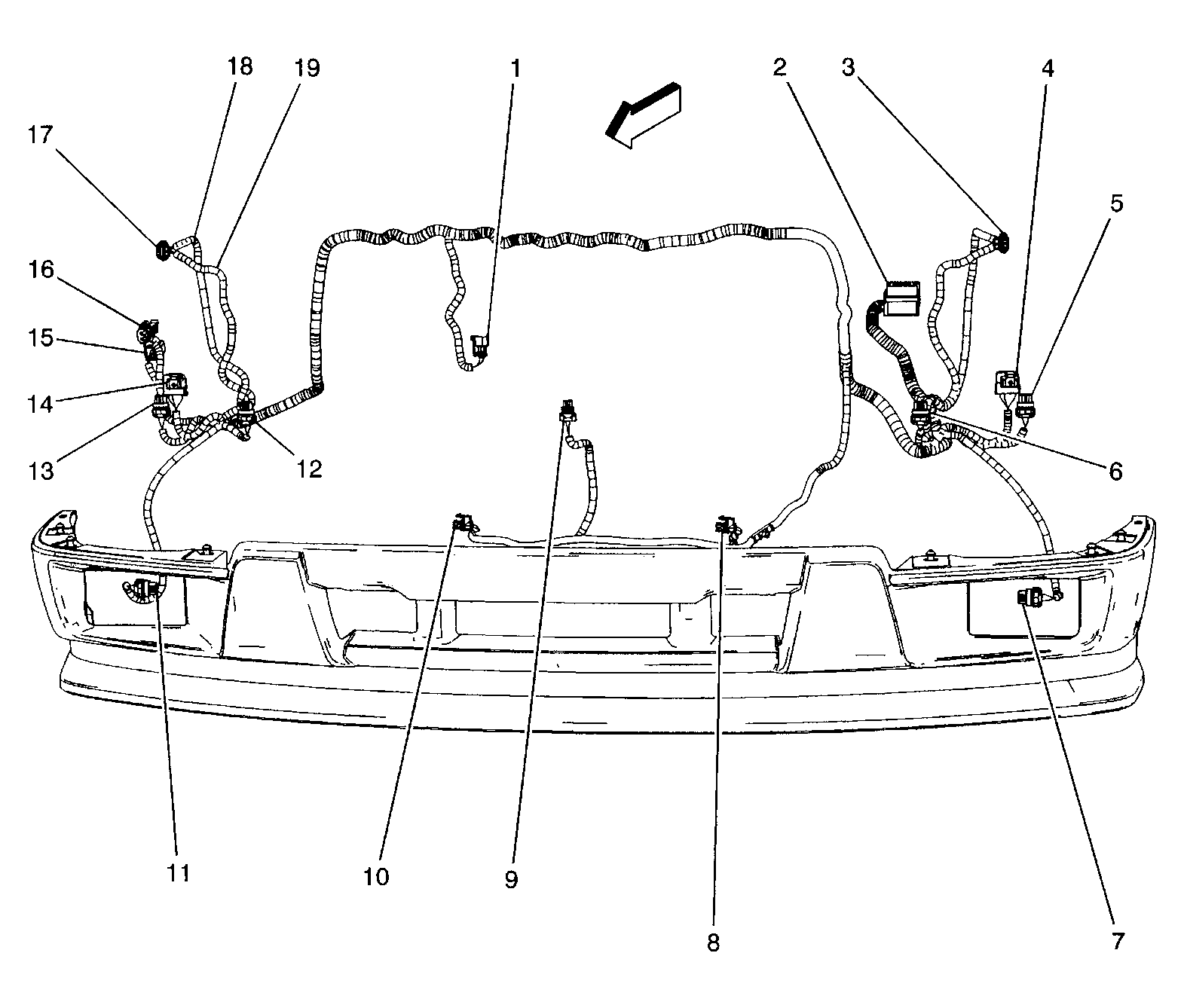

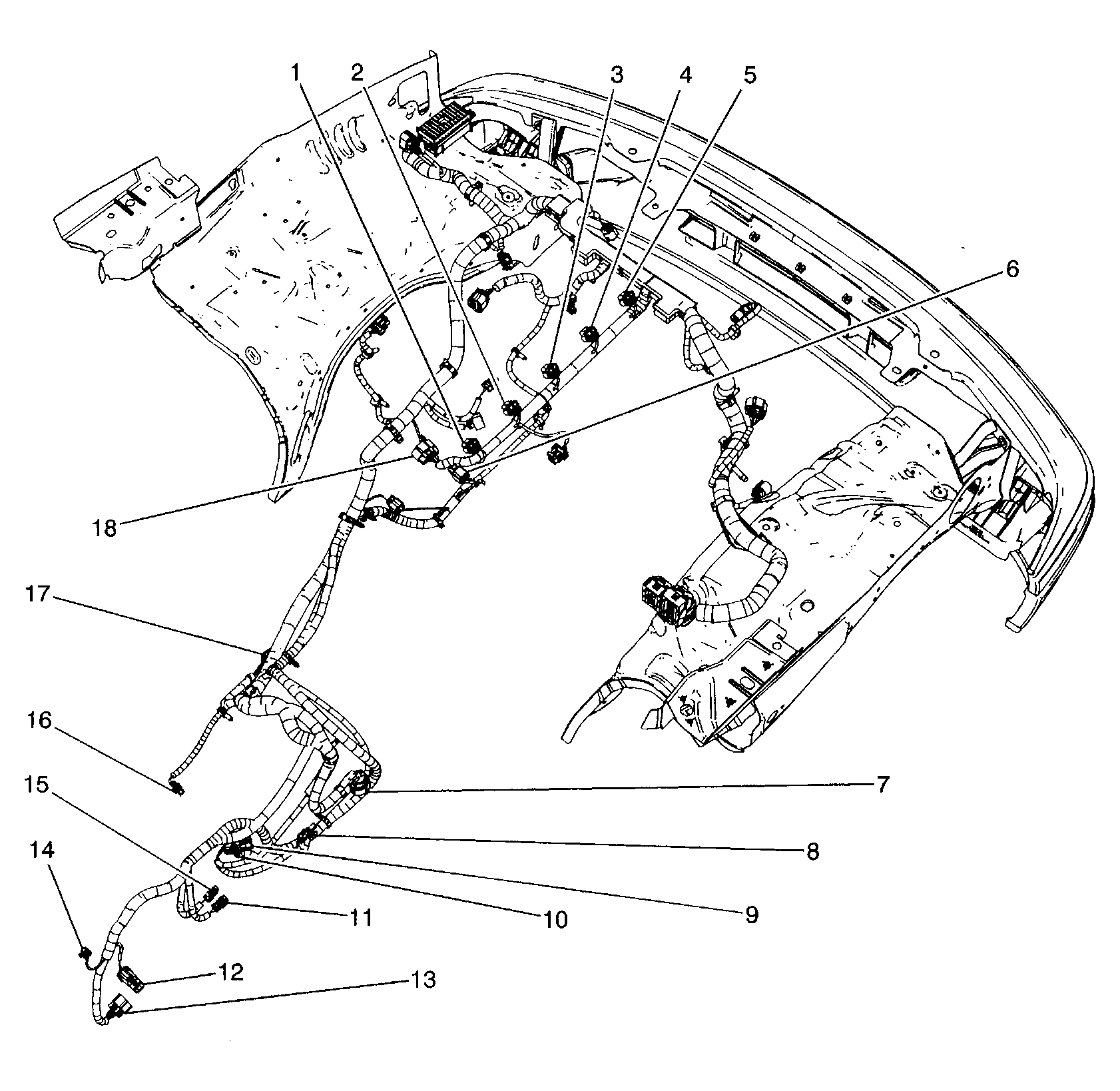

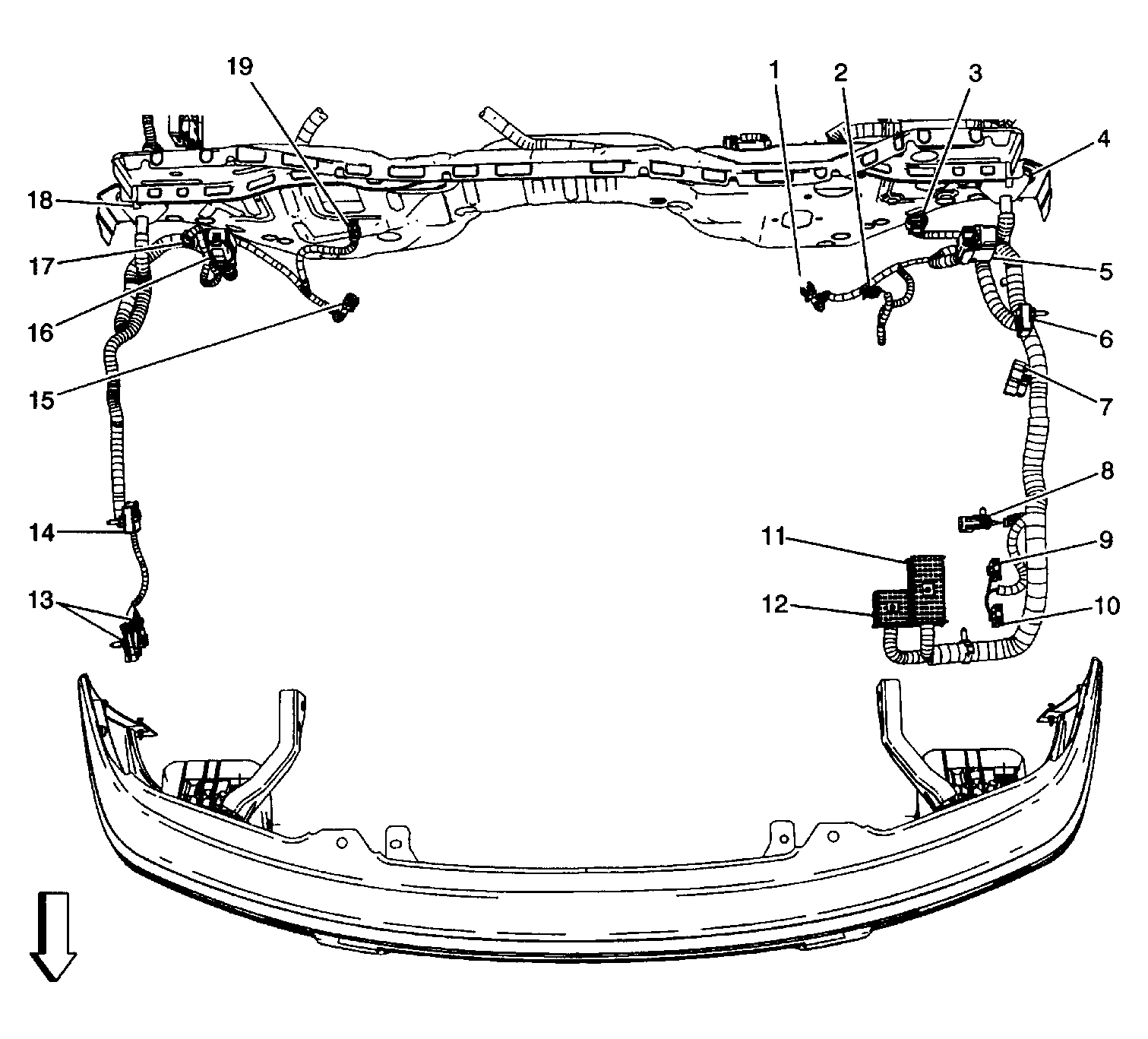

Fig 48: Forward Lamp Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 49: Engine Harness Routing - (2.9L)
Courtesy of GENERAL MOTORS CORP.
Fig 50: Engine Harness Routing - (3.7L)
Courtesy of GENERAL MOTORS CORP.

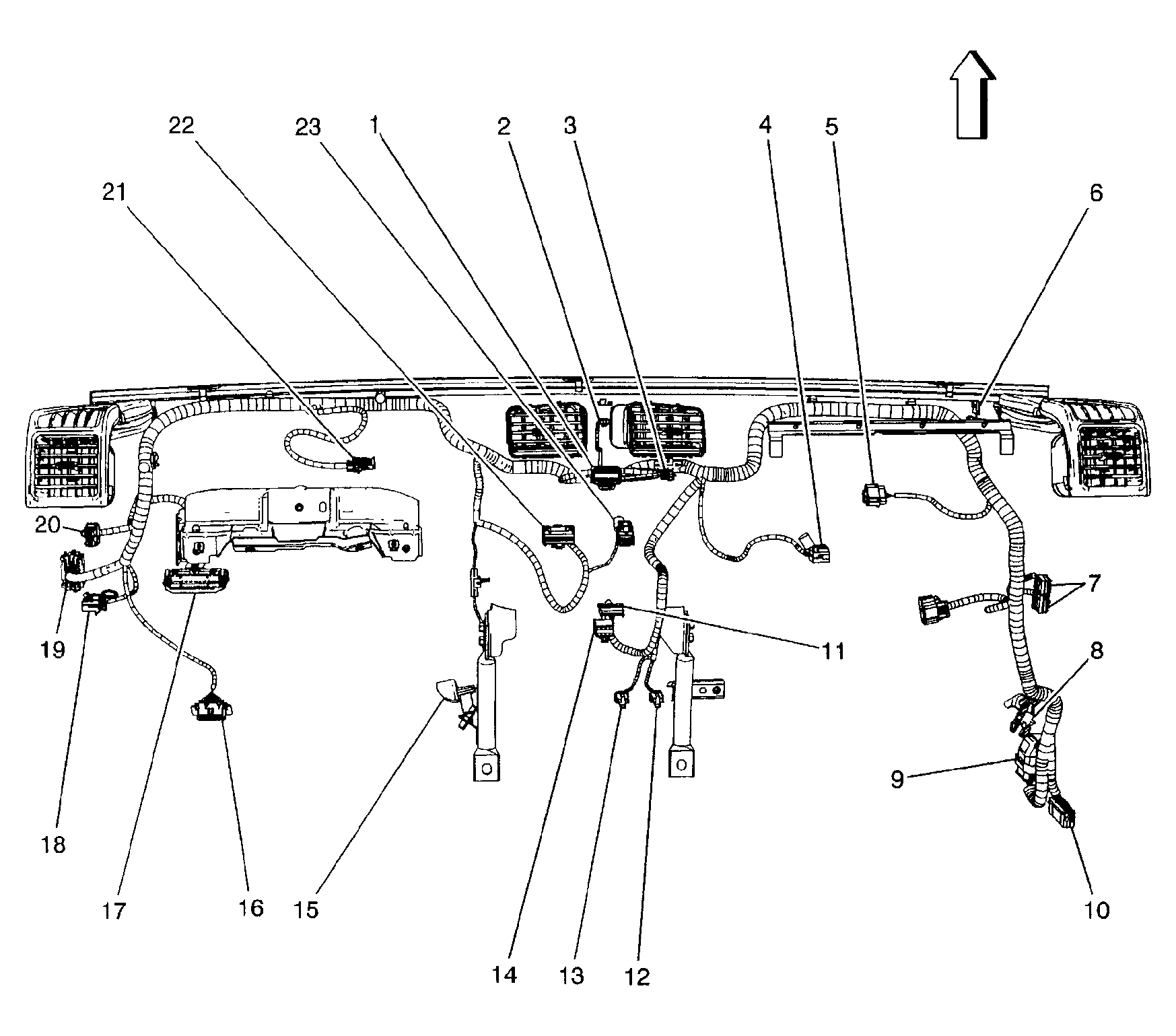

Fig 51: Dash Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 52: HVAC Harness Routing
Courtesy of GENERAL MOTORS CORP.
Fig 53: Driver Door Harness Routing
Courtesy of GENERAL MOTORS CORP.

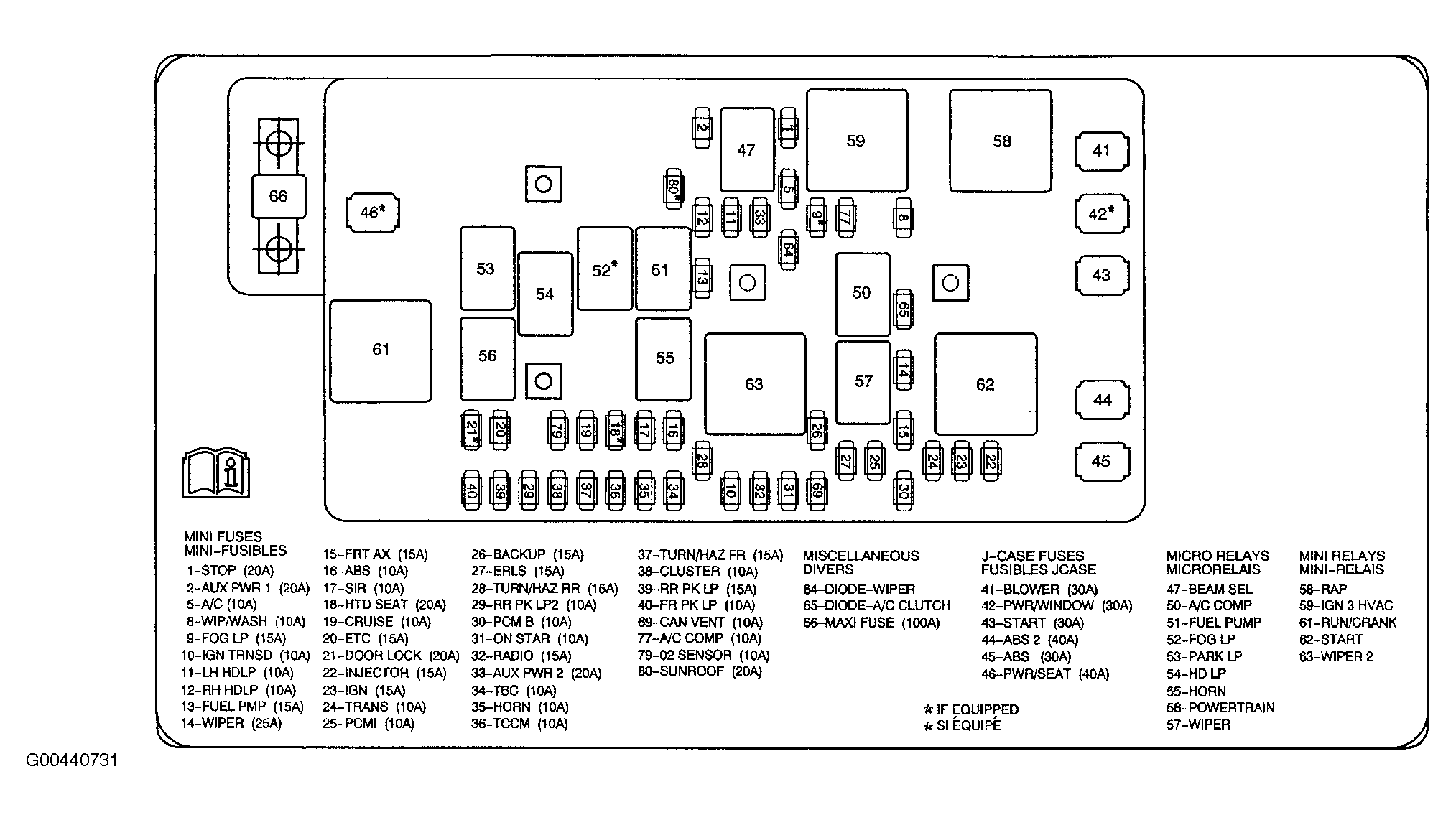

Fig 54: Underhood Fuse Block Label
Courtesy of GENERAL MOTORS CORP.

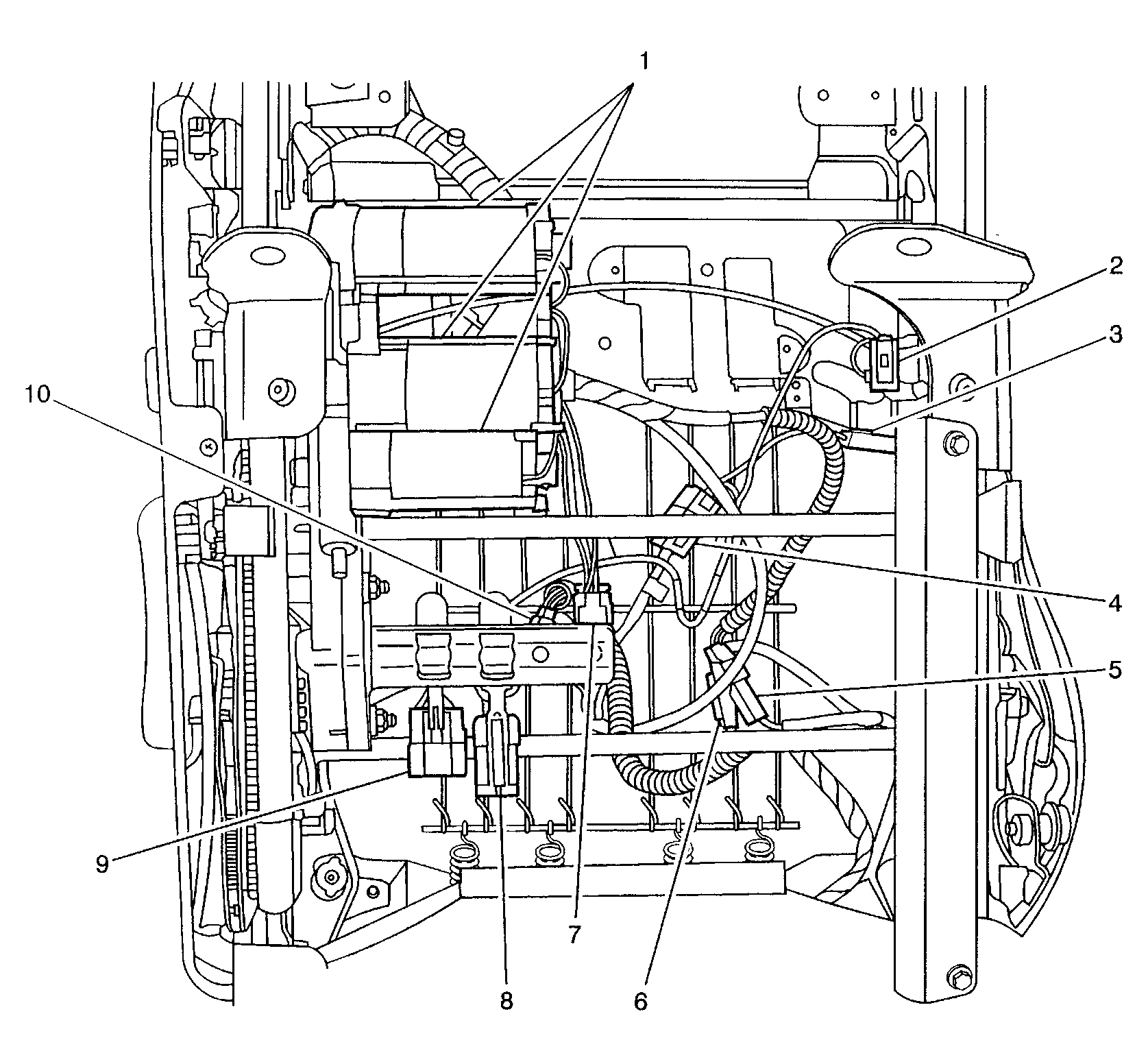

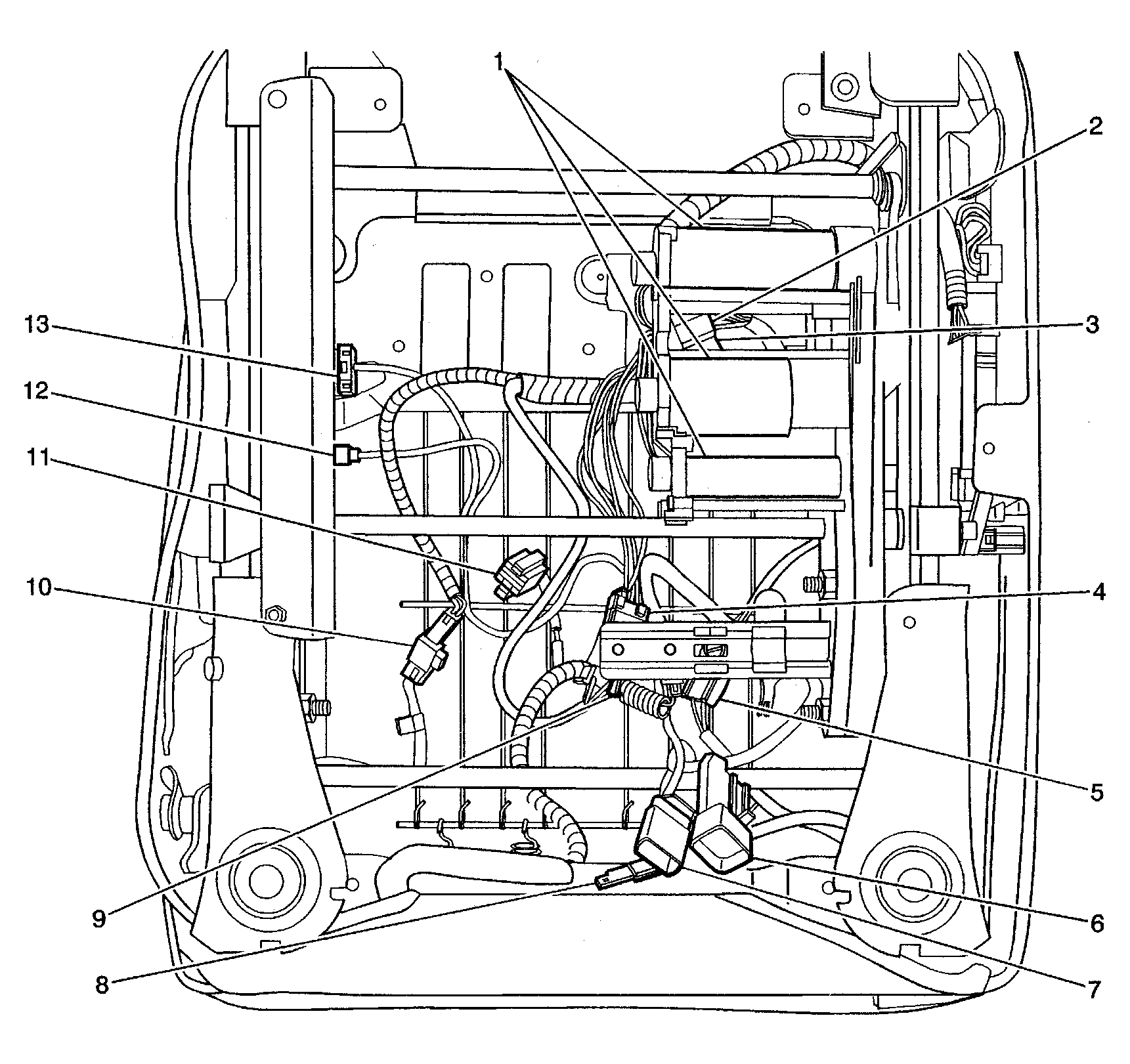

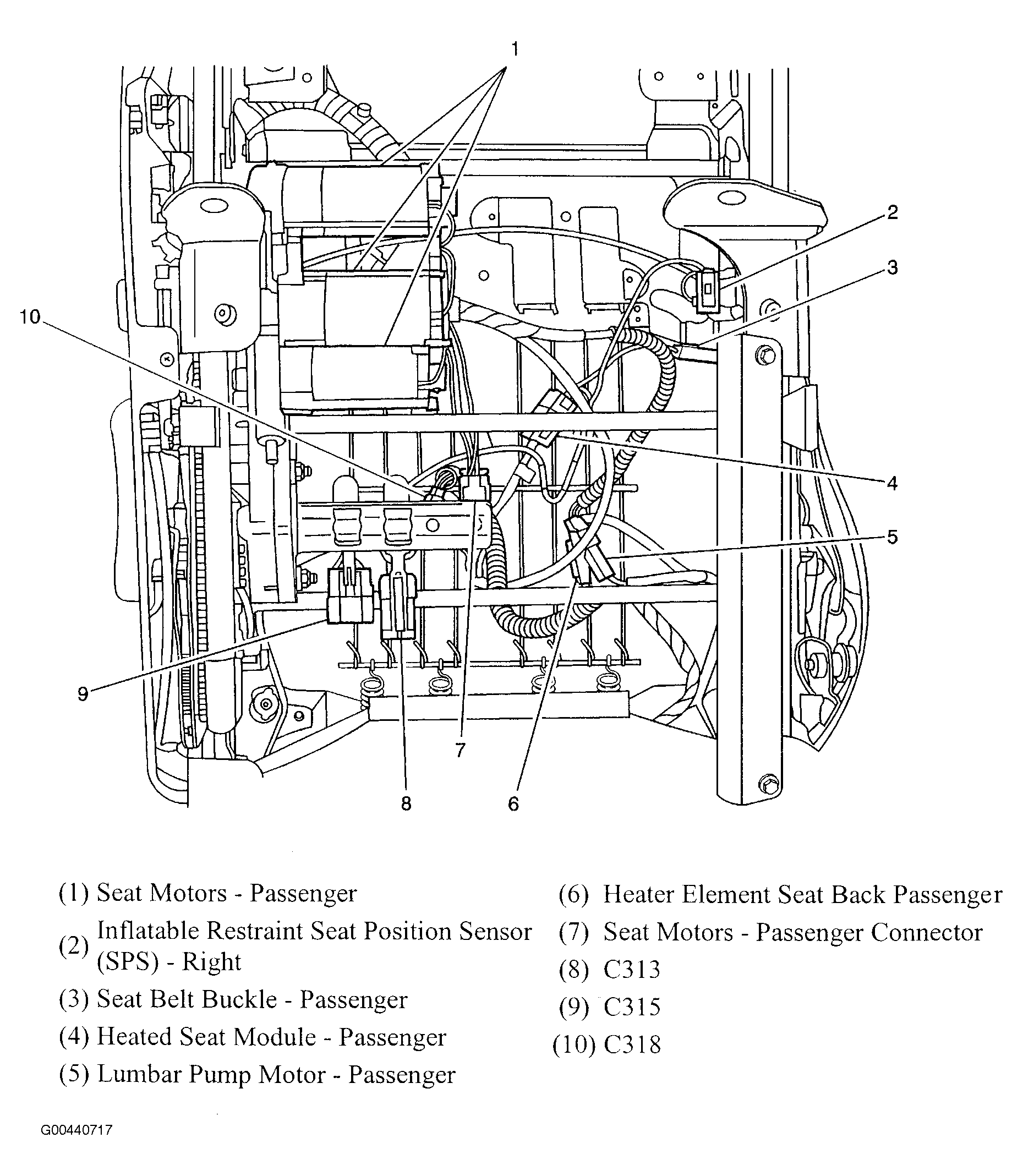

Fig 55: Underside Of Passenger Seat
Courtesy of GENERAL MOTORS CORP.
Fig 56: Under Passenger Seat
Courtesy of GENERAL MOTORS CORP.
