Ignition Timing

With engine at normal operating temperature, connect a timing light and tachometer to vehicle. Disconnect vacuum pipe. Start engine. Check and adjust timing as needed.

IGNITION TIMING (Degrees BTDC@RPM)

Application	Timing
All Models	26@3000

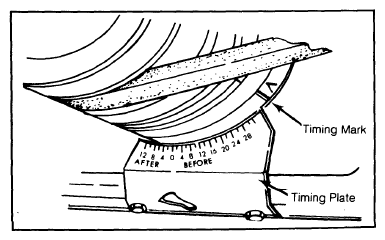

Fig 1: Ignition Timing Mark Location

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
