No Load Tests

Place starter on bench. Using a fully charged 12-volt battery, connect an ammeter in series to starter. Starter should rotate smoothly at 5, 000-6, 000 RPM and 100 amp. current flow.

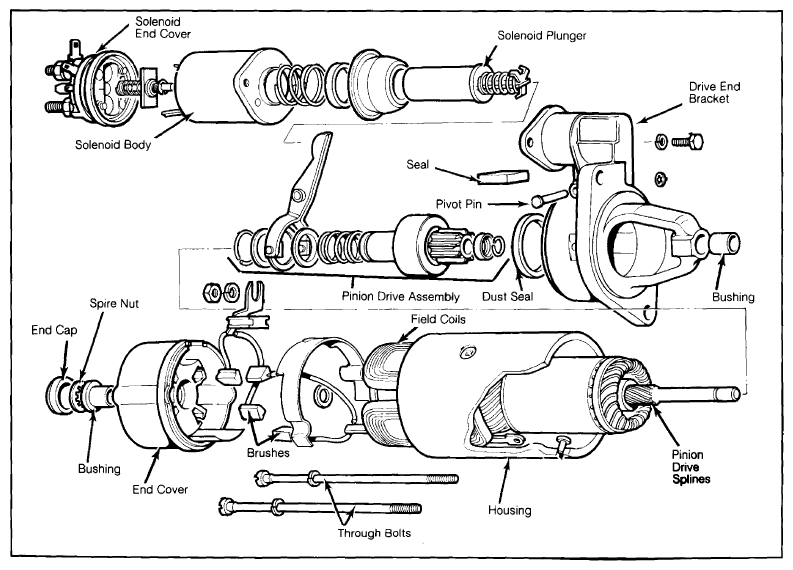

Fig 1: Exploded View of Lucas Starter

Courtesy of NOT AVAILABLE
