Tune-Up - 6 CYL: Distributor

All models are equipped with breakerless, electronic ignition systems. Under normal operating conditions, no adjustments are necessary. If distributor has been disassembled or parts have been replaced, check gap between the timing rotor and pick-up module and adjust as needed.

All models are equipped with breakerless, electronic ignition systems. Under normal operating conditions, no adjustments are necessary. Check the gap between the timing rotor and pick-up module. If gap is not.008-.014" (.20-.35 mm), it should be adjusted.

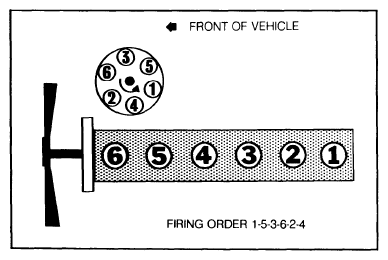

Fig 1: Firing Order and Distributor Rotation

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
