Air Temperature Sensor

The air temperature sensor is an integral component of the air flow meter which converts the temperature of incoming air into electrical signals. These electrical signals are received by the ECU and processed to adjust the amount of fuel injected by the injectors. The air temperature sensor is a non-serviceable device.

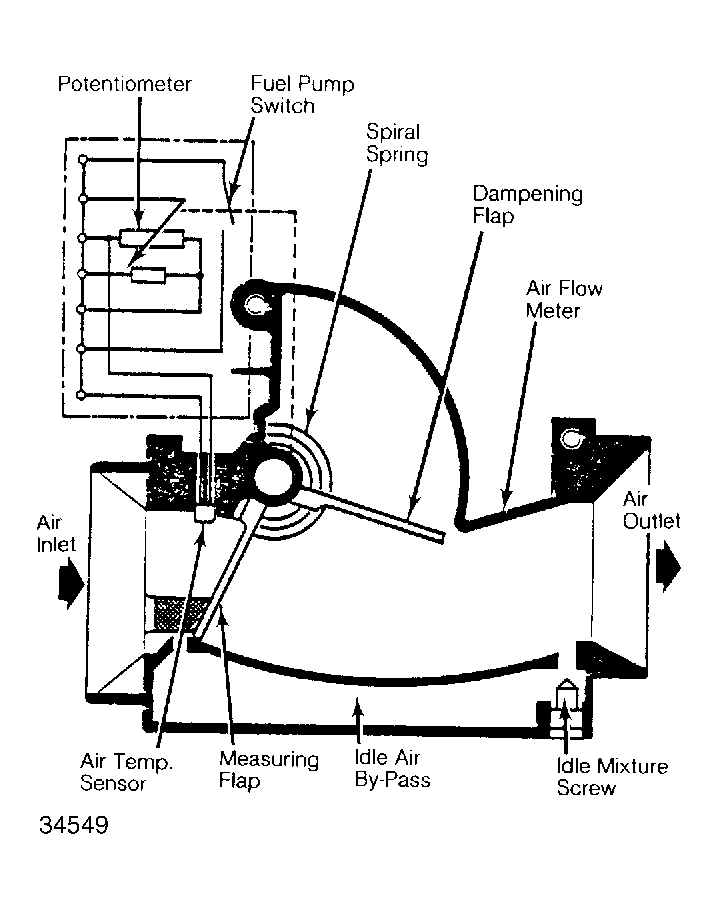

Fig 1: Lucas-Bosch AFC Air Flow Meter
G34549
