Fuel Evaporation System: Description

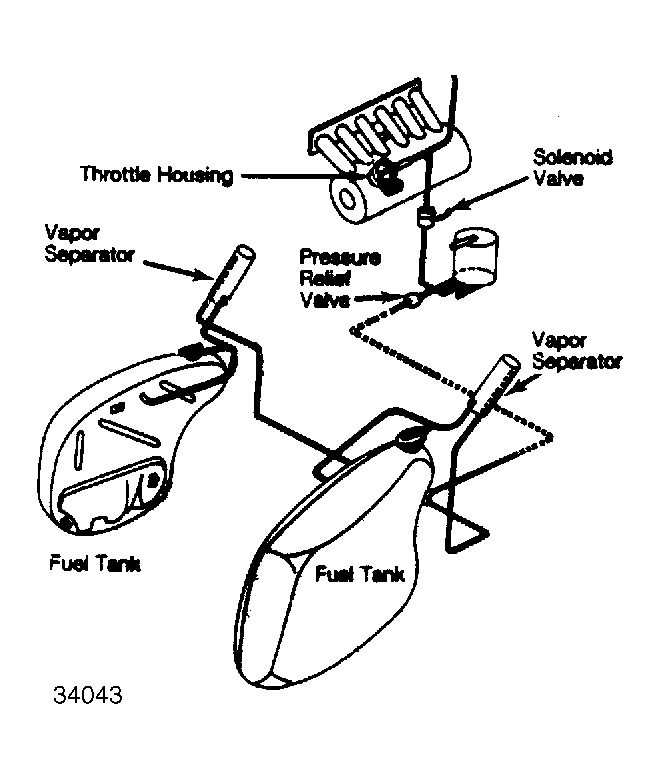

The fuel evaporation system is designed to keep fuel and crankcase vapors from escaping into the atmosphere. The system consists of a fuel tank (2 on XJ6) with expansion space, solenoid operated purge control valve, vapor separator(s), pressure relief valve, restrictor, canister, and connecting lines and hoses.
