Fuel Evaporation System: Description

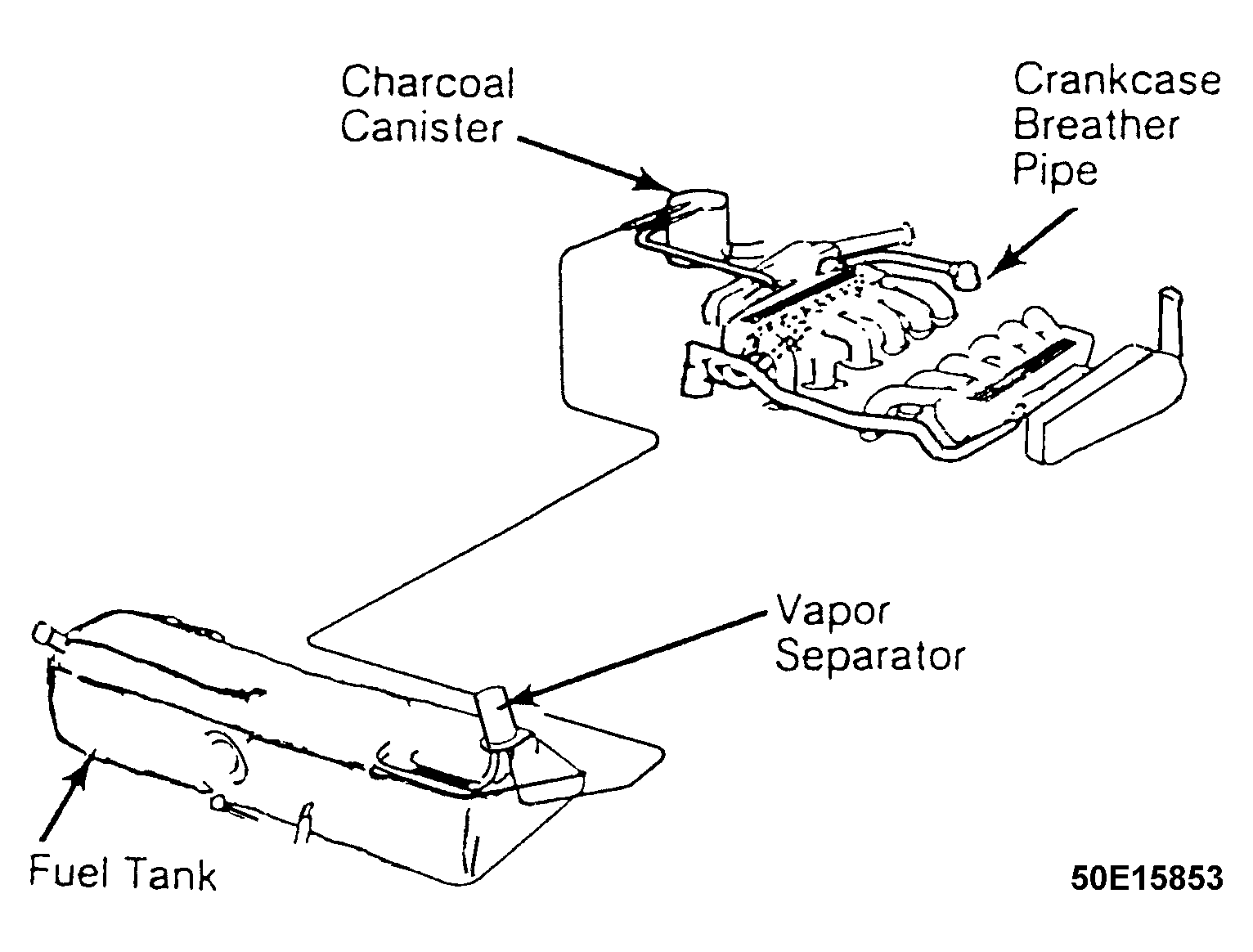

The fuel evaporation system is designed to keep fuel and crankcase vapor from escaping into the atmosphere. The system consists of a fuel tank (2 on XJ6) with expansion space, vapor separator(s), pressure relief valve (XJ6 III), restrictors, charcoal canister, and connecting lines and hoses.
