Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|
| ABS Electronic Control Unit | In trunk, behind left trunk trim panel. |
| Alternator Dump Module | In engine compartment, near air cleaner. See Figure . |

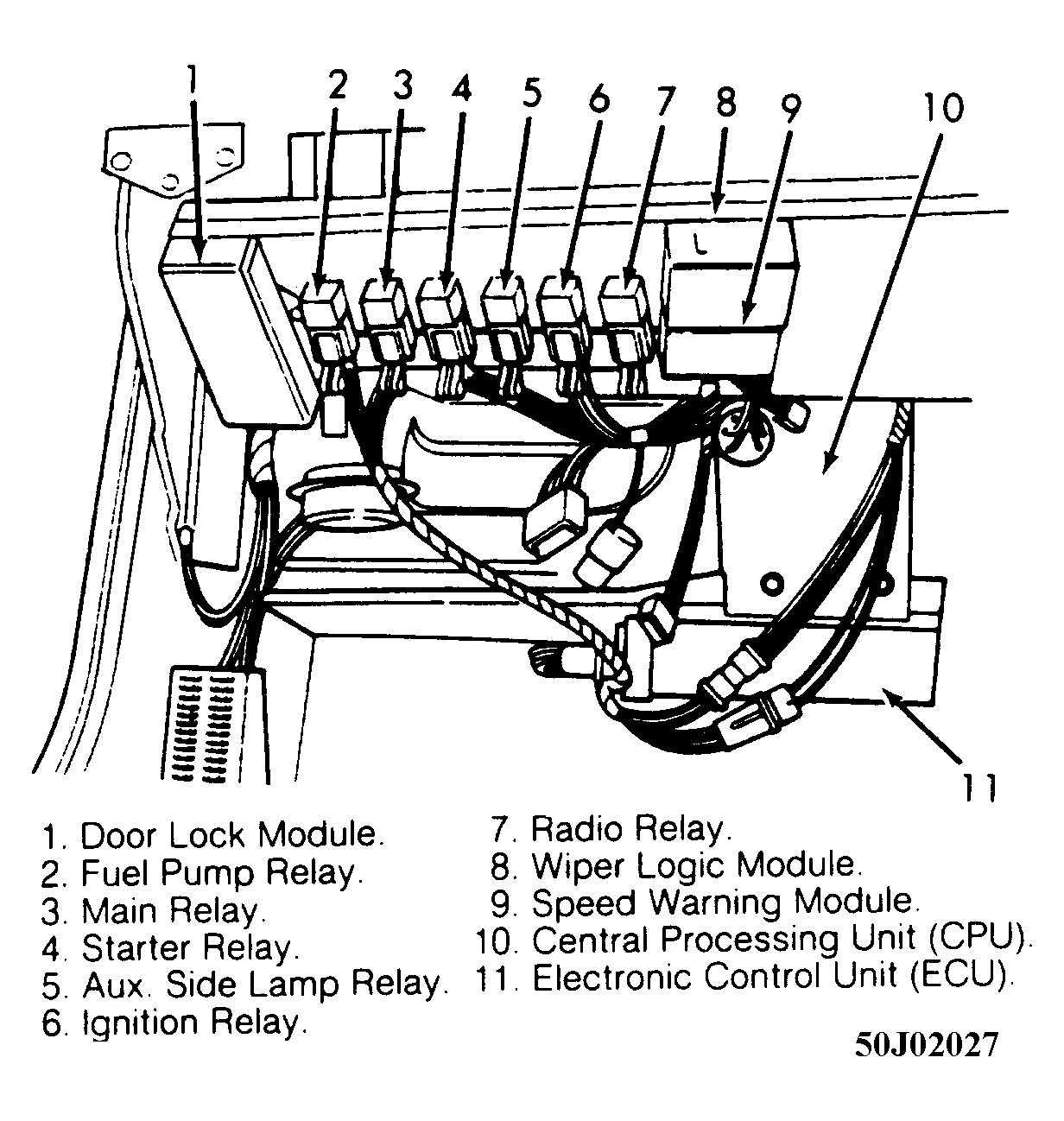

| Central Processing Unit (CPU) | Under left side of dash panel. See Figure . |
| Cruise Control Unit | Under right side of dash panel. |
| Door Lock Module | Under left side of dash panel. See Figure . |

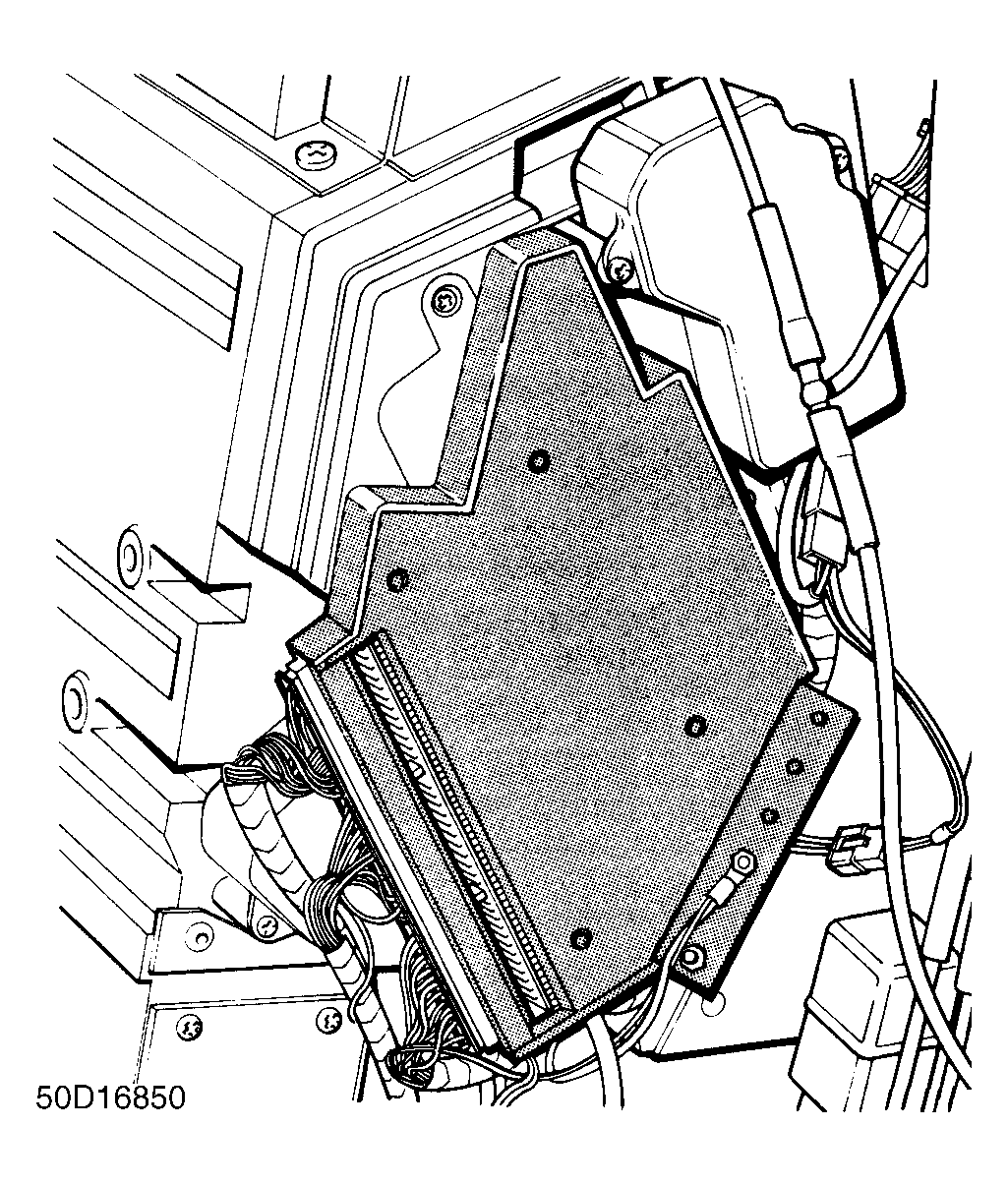

| Electronic Control Module | Behind passenger side dash panel, on lower right corner of A/C-heater assembly. See Figure . |
| Electronic Control Unit (ECU) | Under left side of dash panel. See Figure . |
| Headlight Failure Modules | Behind each headlight. |
| Lighting Logic Module | Behind left side of inst. panel. |
| Rear Light Failure Modules | Behind each rear light. |
| Speed Warning Module | Under left side of dash panel. See Figure . |
| Wiper Logic Module | Under left side of dash panel. See Figure . |
