Circuit Protection Devices

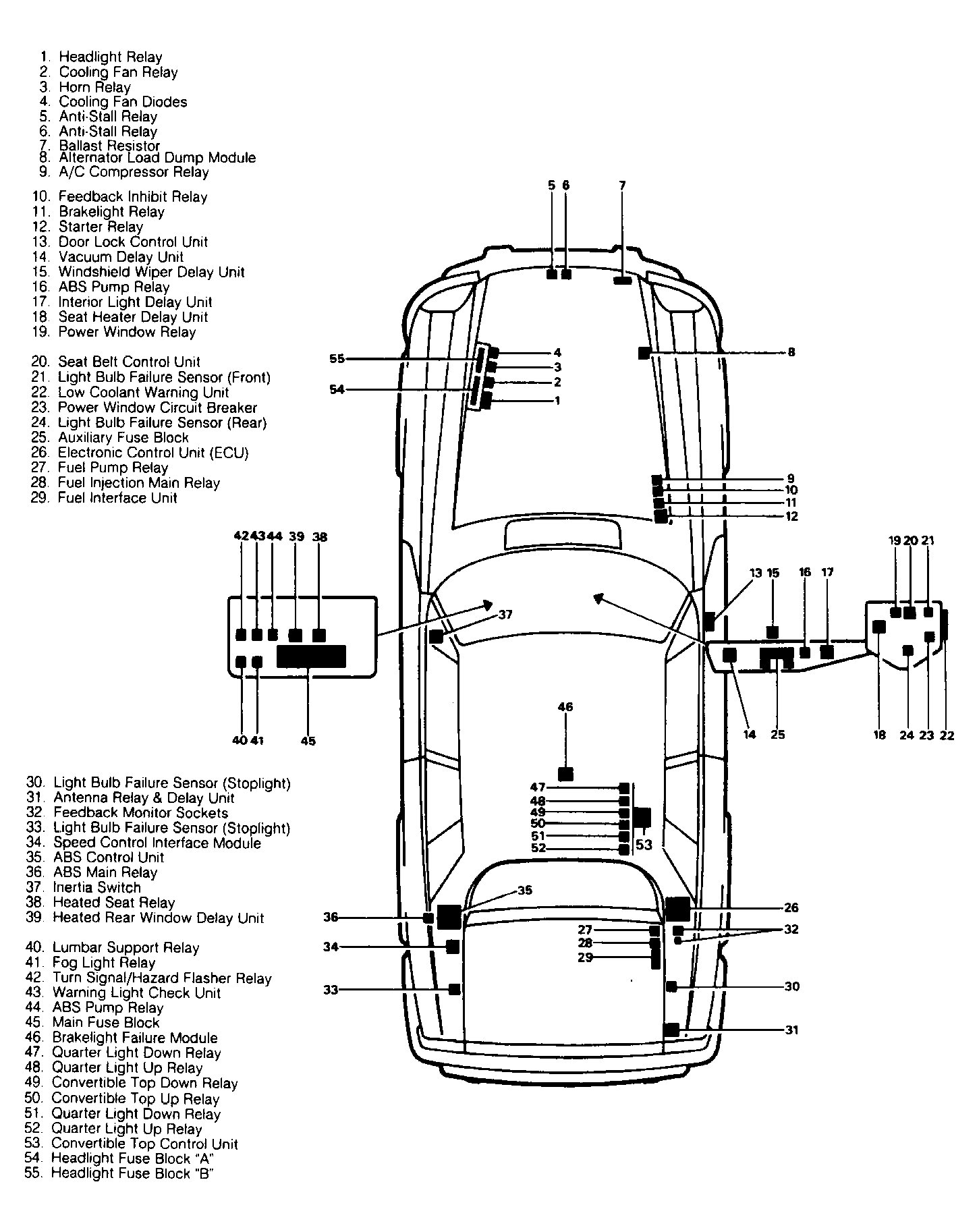

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Location | |
|---|---|---|
| A/C Thermal Fuse | Right rear of engine compartment. | |
| Circuit Breakers | ||
| Door Lock (2) | Behind right corner of dash. | |
| Power Window | Under right side of dash. See Figure . | |
| Fuse Blocks | ||
| Auxiliary | Under right side of dash. See Figure . | |
| Main | Under left side of dash. See Figure . | |
| Headlight Fuse Blocks "A" & "B" | On left side of engine compartment. See Figure . | |
