Control Units

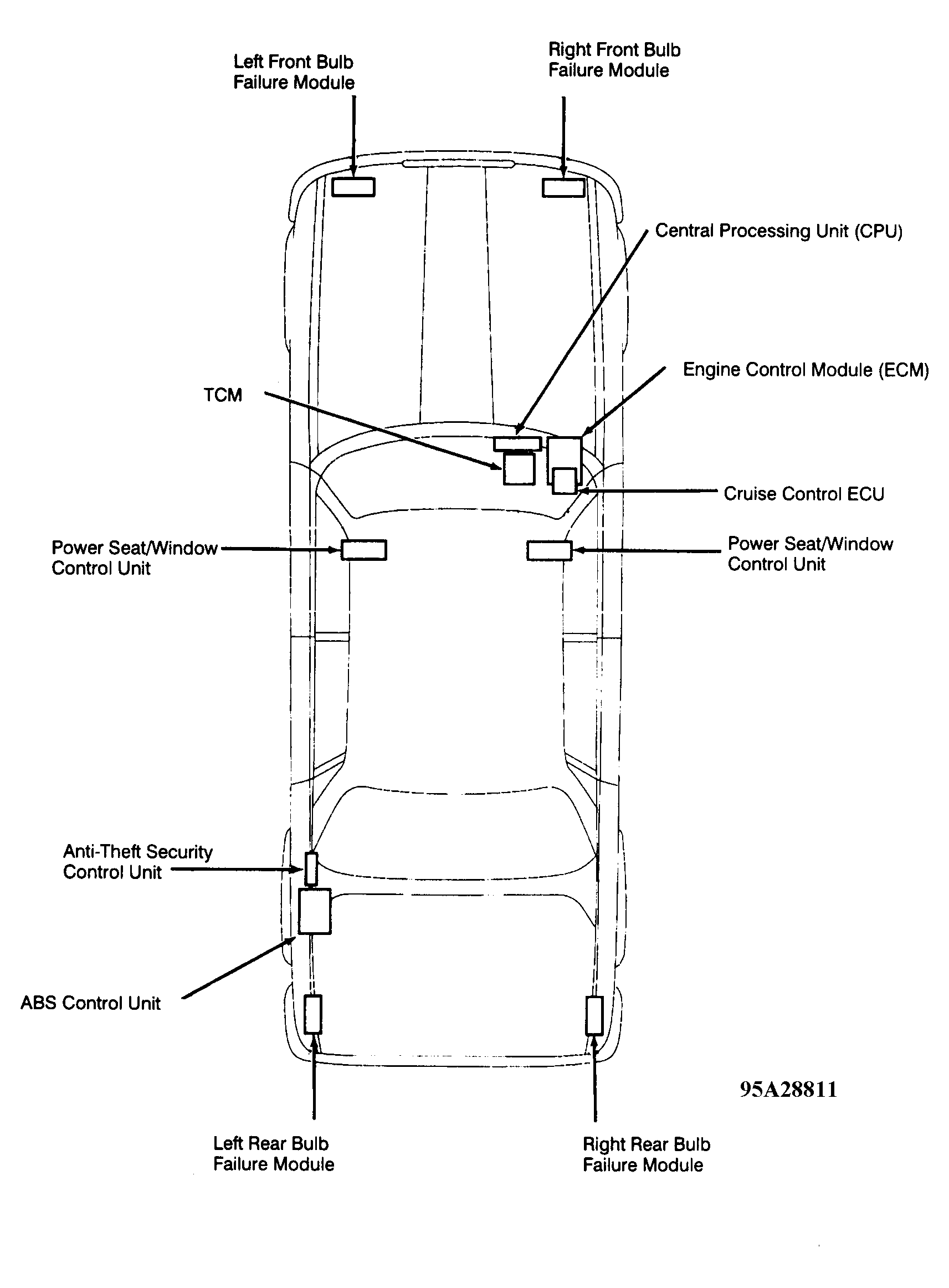

CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| ABS Control Unit | On left front of luggage compartment. See Figure . | |
| Anti-Theft System | ||
| Intrusion Control Unit | Under carpet, in front of driver's seat. | |
| Security Control Unit | On left front of luggage compartment. See Figure . | |
| Bulb Failure Module (Front) | Behind each front headlights. See Figure . | |
| Bulb Failure Module (Rear) | Behind each rear lights. See Figure . | |
| Central Processing Unit (CPU) | Behind glove box. See Figure . | |
| Climate Control ECU | On right side of evaporator case. | |
| Cruise Control ECU | Behind right kick panel. See Figure . | |
| Engine Control Module (ECM) | Behind right side of dash, behind glove box. See Figure . | |
| Power Seat/Window Control Unit | Under driver's and passenger's seat. See Figure . | |
| RFI Protection Module | On top of fuel tank. | |
| Suppression Module | On left front inner fender panel. | |
| Transmission Control Module (TCM) | Behind right side of dash. See Figure . | |
