Control Units
CONTROL UNITS

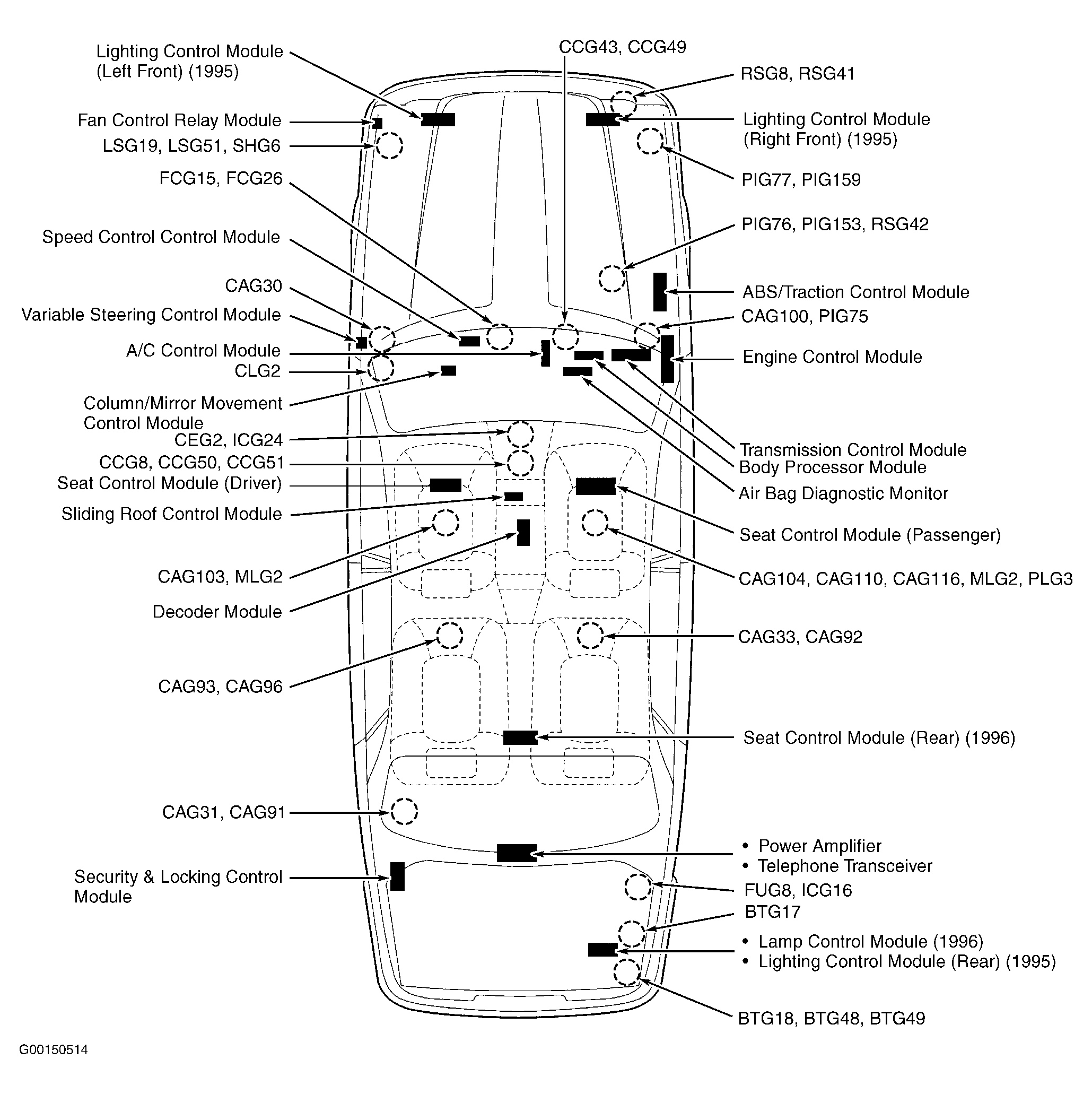

| Component | Component Location |
|---|---|
| ABS/Traction Control Module | On right rear side of engine compartment. See Figure . |
| A/C Control Module | On right side of A/C unit, behind right side of dash. See Figure . |
| Air Bag Diagnostic Monitor | Behind right side of dash. See Figure . |
| Body Processor Module | Behind glove box. See Figure . |
| Column/Mirror Movement Control Module | Behind left side of dash. See Figure . |
| Decoder Module | In center console, beside shift lever assembly. See Figure . |
| Dimmer Module | Behind steering column cover. |
| Engine Control Module | Behind right side footwell trim panel. See Figure . |
| Fan Control Relay Module | Below left headlamp. See Figure . |
| Ignition Modules (2) (XJ12) | In engine compartment, on right inner fender. |
| Lamp Control Module (1996) | On right rear side of luggage compartment. See Figure . |
| Lighting Control Module (Left Front) (1995) | Behind left headlamp. See Figure . |
| Lighting Control Module (Rear) (1995) | On right rear side of luggage compartment. See Figure . |
| Lighting Control Module (Right Front) (1995) | Behind right headlamp. See Figure . |
| Seat Control Module (Driver) | Under driver's seat. See Figure . |
| Seat Control Module (Passenger) | Under passenger's seat. See Figure . |
| Seat Control Module (Rear) (1996) | Behind center of rear seats. See Figure . |
| Security & Locking Control Module | On left front of luggage compartment. See Figure . |
| Sliding Roof Control Module | Behind roof console. See Figure . |
| Speed Control, Control Module | Behind left side of dash. See Figure . |
| Suppression Module | On left front of engine compartment. |
| Transmission Control Module | Behind right side of dash. See Figure . |
| Variable Steering Control Module | Behind left kick panel. See Figure . |
