Retrieving Codes

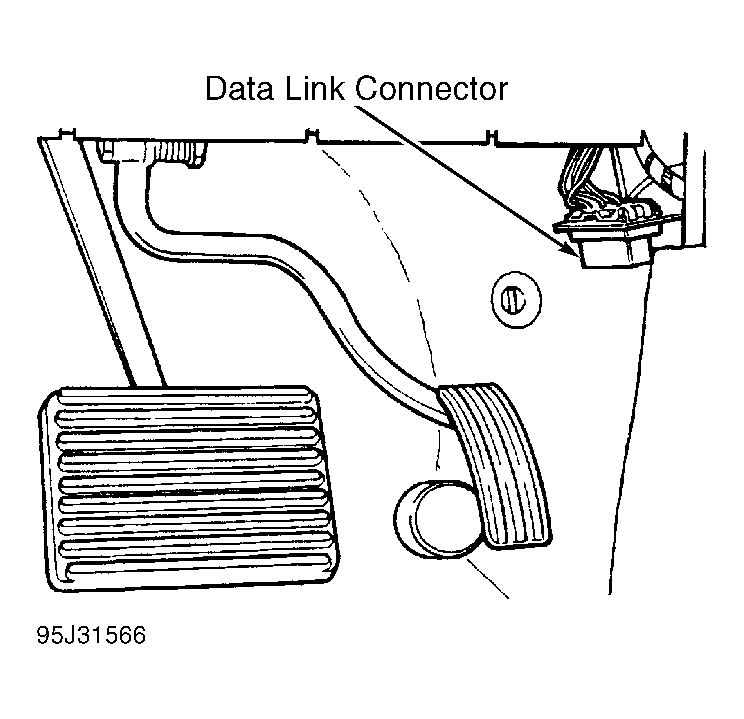

Turn ignition off. Connect Jaguar Portable Diagnostic Unit (PDU) scan tool or generic scan tool to 16-pin Data Link Connector (DLC). See Fig 1. Turn ignition on. If using PDU scan tool, follow PDU screen prompts. If using generic scan tool, follow scan tool manufacturer's operating instructions. Check for and note any DTCs. Also check for and note Freeze Frame Data. See appropriate DIAGNOSTIC TROUBLE CODE IDENTIFICATION table for probable cause.
