Control Units
CONTROL UNITS

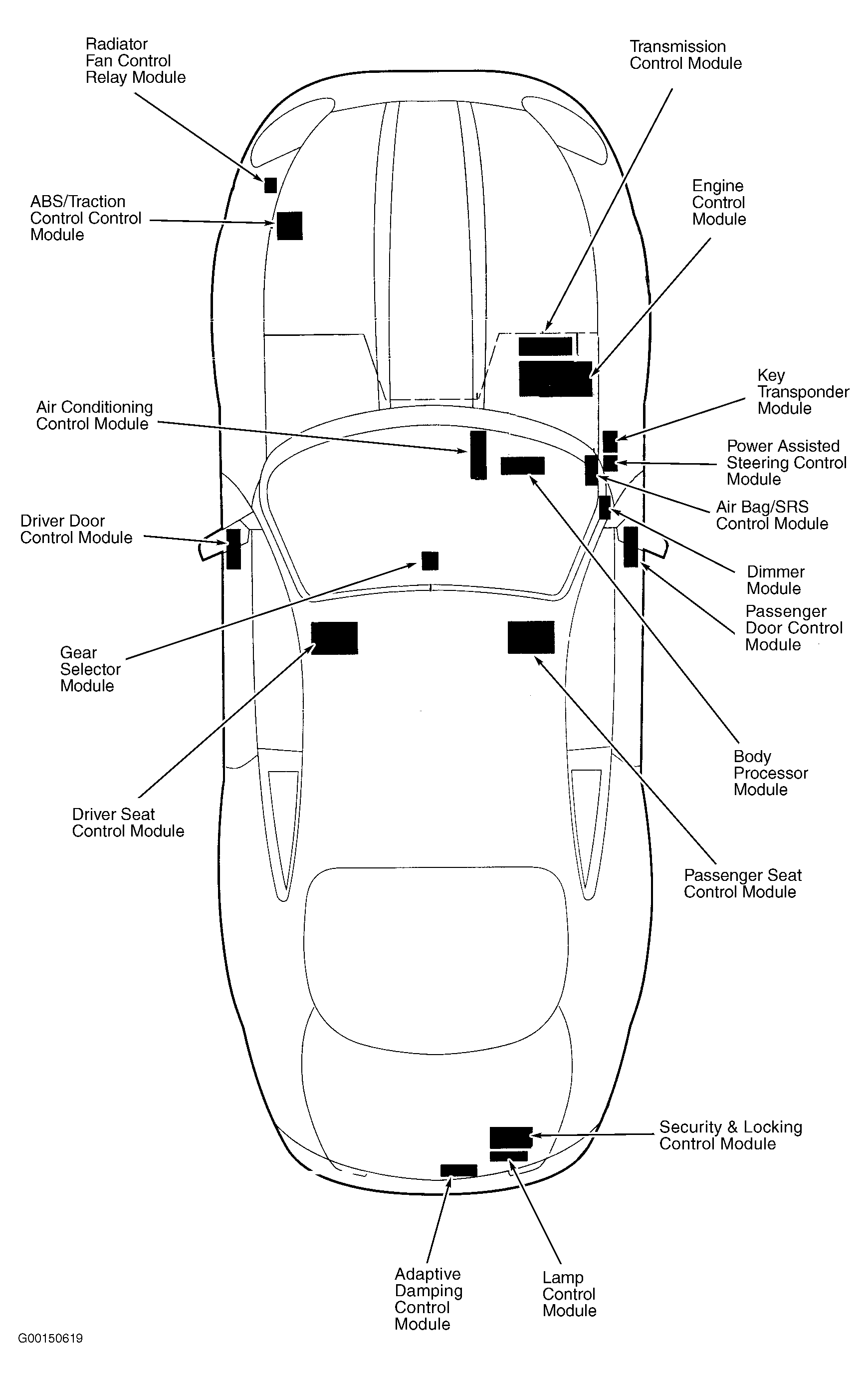

| Component | Component Location |
|---|---|
| ABS/Traction Control, Control Module | Left front of engine compartment. See Figure . |
| Adaptive Damping Control Module | Rear center of luggage compartment. See Figure . |
| Air Bag/SRS Control Module | Base of right "A" pillar. See Figure . |
| Air Conditioning Control Module | Behind right side of upper center console. See Figure . |
| Body Processor Module | Behind right side of dash, on air bag bracket. See Figure . |
| Dimmer Module | Behind right side of dash. See Figure . |
| Driver Door Control Module | In driver door. See Figure . |
| Driver Seat Control Module | Under driver seat cushion. See Figure . |
| Engine Control Module | In engine compartment control module enclosure. See Figure . |
| Gear Selector Module | Front of gear shift lever assembly. See Figure . |
| Ignition Module 1 | On right side of firewall. |
| Ignition Module 2 | On left side of firewall. |
| Key Transponder Module | Near passenger side fuse/relay box. See Figure . |
| Lamp Control Module | Right rear of luggage compartment. See Figure . |
| Passenger Door Control Module | In passenger door. See Figure . |
| Passenger Seat Control Module | Under passenger seat cushion. See Figure . |
| Power Assisted Steering Control Module | Behind right side of dash, between glove box & passenger side fuse/relay box. |
| Radiator Fan Control Relay Module | Near left side horn. See Figure . |
| Security & Locking Control Module | Right rear of luggage compartment. See Figure . |
| Transmission Control Module | In control module enclosure. See Figure . |
