Control Units
CONTROL UNITS

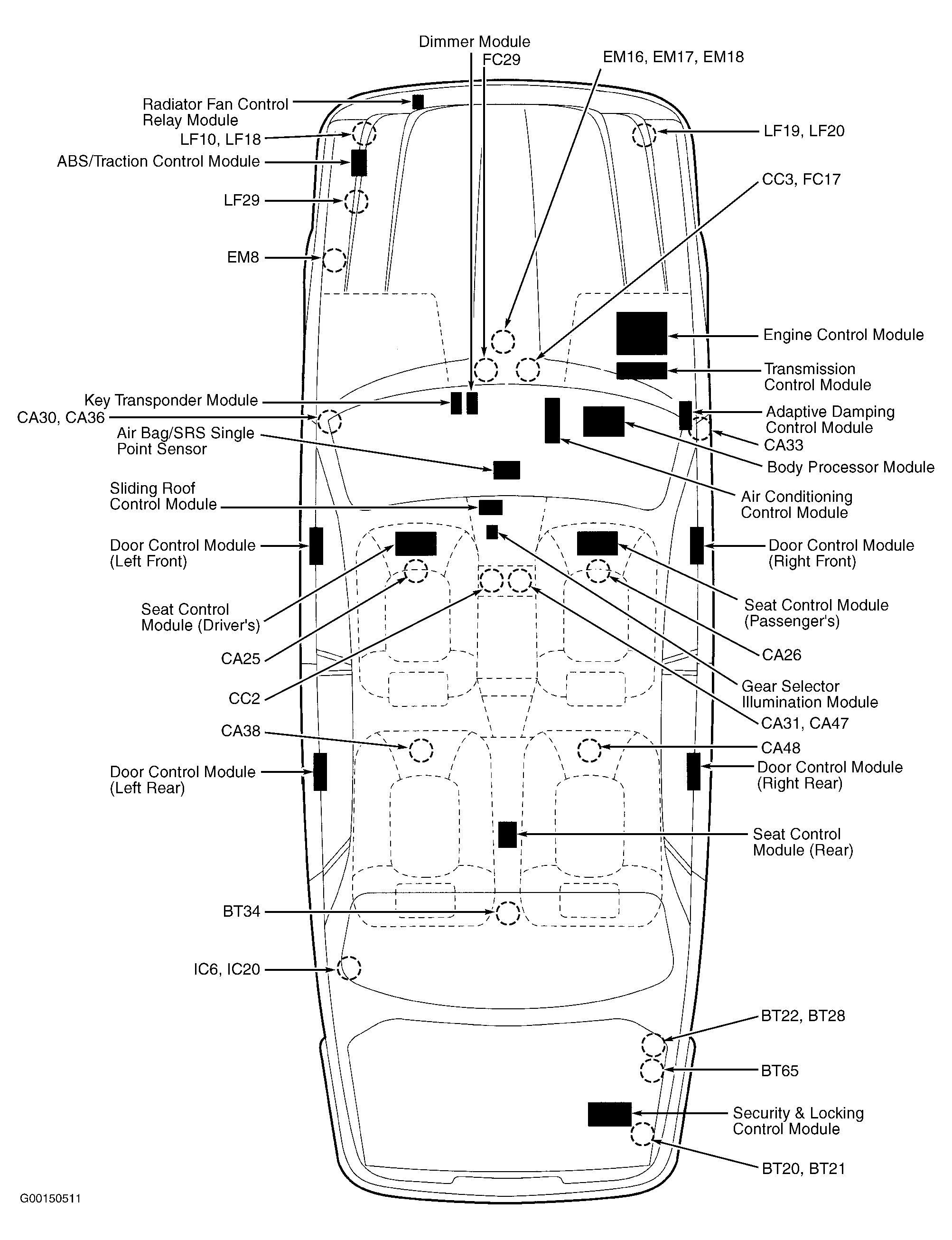

| Component | Component Location |
|---|---|
| ABS/Traction Control Module | Behind left headlight assembly. See Figure . |
| Adaptive Damping Control Module | Next to passenger side blower/glove box assembly. See Figure . |
| Airbag/SRS Single Point Sensor | Below center console. See Figure . |
| Air Conditioning Control Module | Right side of dash, on right side of transmission tunnel. See Figure . |
| Air Conditioning Control Panel | In center console. |
| Body Processor Module | Behind glove box. See Figure . |
| Door Control Module (Left Front) | In left front door. See Figure . |
| Door Control Module (Left Rear) | In left rear door. See Figure . |
| Door Control Module (Right Front) | In right front door. See Figure . |
| Door Control Module (Right Rear) | In right rear door. See Figure . |
| Dimmer Module | Below instrument cluster. See Figure . |
| Engine Control Module | In engine compartment, in control module enclosure. See Figure . |
| Gear Selector Illumination Module | In center console. See Figure . |
| High Power Protection Module | In luggage compartment, next to battery. |
| Ignition Modules (2) | In engine compartment, in control module enclosure. |
| Key Transponder Module | Below instrument cluster. See Figure . |
| Power Amplifier | In left side of luggage compartment. |
| Power Assisted Steering Control Module | Left kick panel. |
| Radiator Fan Control Relay Module | In engine compartment, next to left crush tube. See Figure . |
| Radio/Cassette Head Unit | In center console. |
| Seat Control Module (Driver) | Under driver's seat. See Figure . |
| Seat Control Module (Passenger) | Under passenger's seat. See Figure . |
| Seat Control Module (Rear) | Below rear center console. See Figure . |
| Security & Locking Control Module | Below trunk fuse box. See Figure . |
| Sliding Roof Control Module | In roof console. See Figure . |
| Suppression Module | In right front of engine compartment. |
| Telephone Transceiver | In center console. |
| Transmission Control Module | In engine compartment, in control module enclosure. See Figure . |
