Traction Control: Anti-Lock: Description

CAUTION: See ANTI-LOCK BRAKE SAFETY PRECAUTIONS article in GENERAL INFORMATION.

NOTE: For more information on brake system, see DISC article.

All models are equipped with an Anti-lock Brake System/Traction Control (ABS/TC) system. This system is standard equipment on vehicles equipped with 3.0L engine. Vehicles equipped with 4.0L engine are equipped with an Anti-lock Brake System/Traction Control (ABS/TC) system with Dynamic Stability Control (DSC). This system is also available on vehicles equipped with a 3.0L engine as an option.

ABS/TC system consists of ABS/traction control unit, instrument cluster, traction control switch and wheel speed sensors. See Fig 1. ABS/TC with DSC consists of brake pedal switch, instrument cluster, interactive vehicle dynamics module, lateral accelerometer sensor, master cylinder pressure sensors, Powertrain Control Module (PCM), steering wheel rotation sensor, wheel speed sensors and yaw rate sensor. See Fig 2.

Fig 1: Identifying ABS/Traction Control Components

Courtesy of JAGUAR CARS, INC.

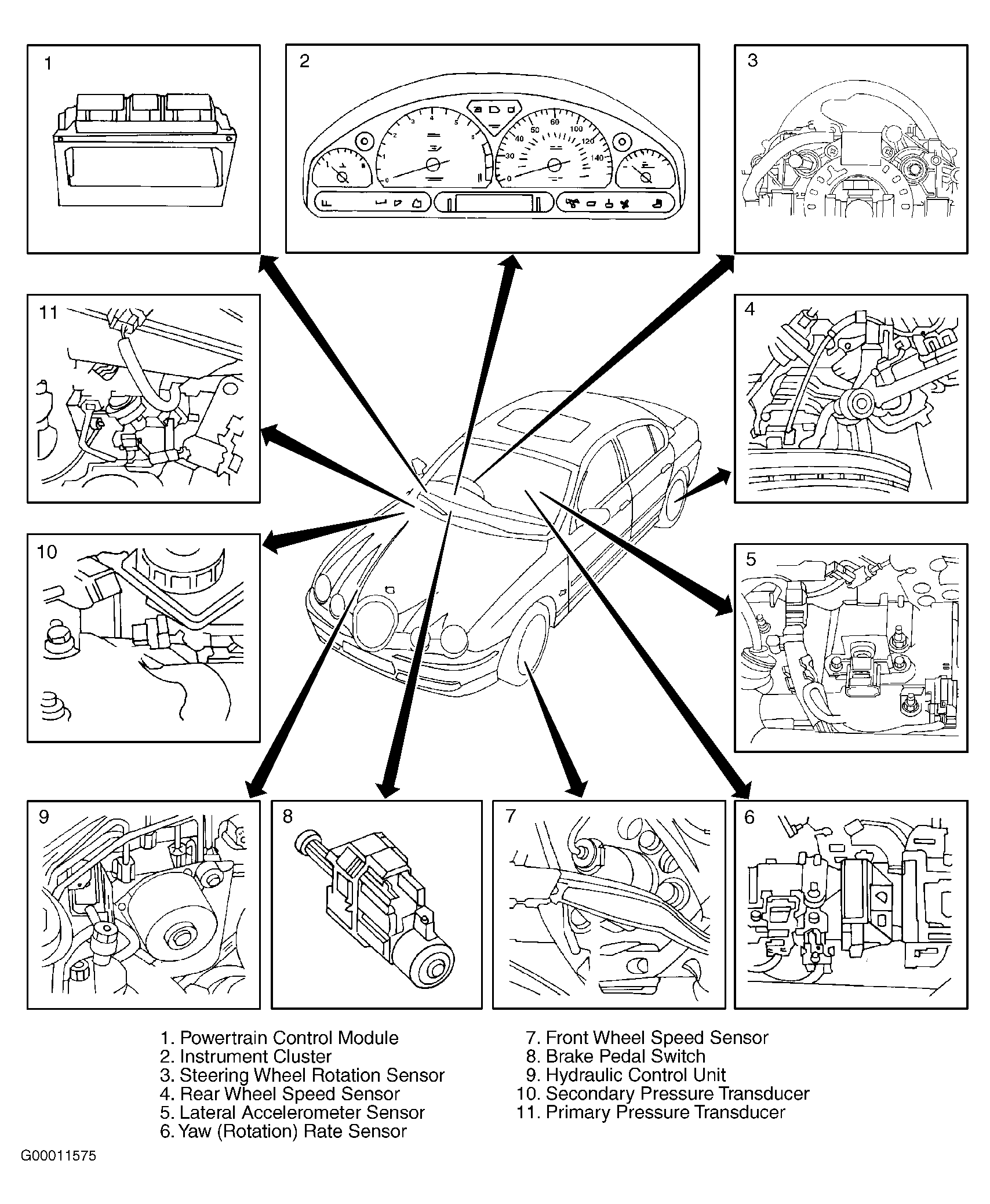

Fig 2: Identifying ABS/Traction Control With DSC Components

Courtesy of JAGUAR CARS, INC.
