Circuit Protection Devices

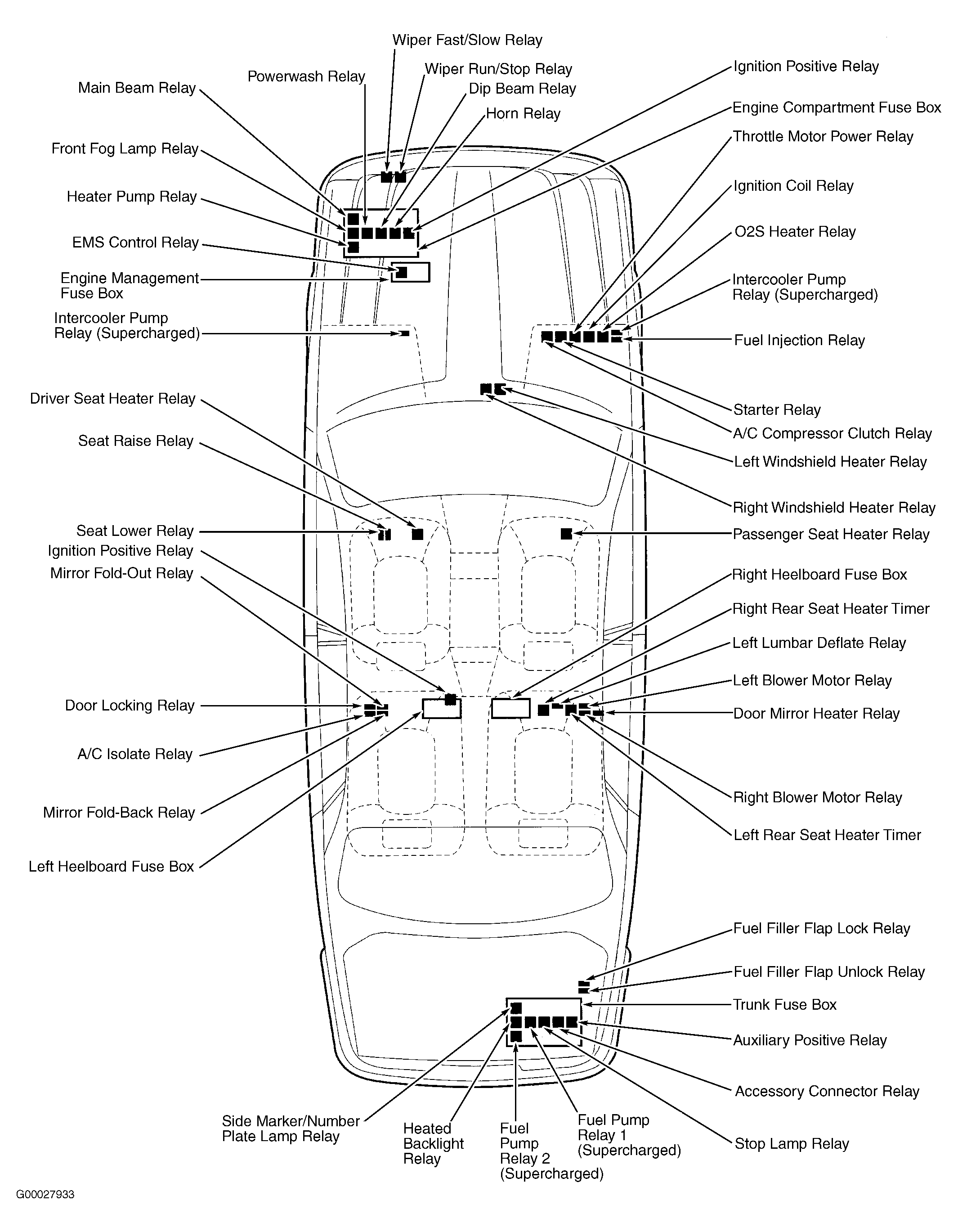

CIRCUIT PROTECTION DEVICES LOCATION
| Component | Component Location |
|---|---|
| Control Module Enclosure | At right rear of engine compartment. |
| Engine Compartment Fuse Box | At left front of engine compartment. See Figure . |
| Engine Management Fuse Box | At left side of engine compartment. See Figure . |
| Left Heelboard Fuse Box | Under front of left rear seat bottom. See Figure . |
| Right Heelboard Fuse Box | Under front of right rear seat bottom. See Figure . |
| Trunk Fuse Box | At right side of trunk. See Figure . |
