Speed Control Module - Removal and Installation: Removal

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2008 Jaguar S-Type, 2007 Jaguar S-Type, 2006 Jaguar S-Type, 2005 Jaguar S-Type, and 2004 Jaguar S-Type. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result.

NOTE: Make sure the audio unit keycode is available before disconnecting the battery ground cable.

Disconnect the battery ground cable. Refer to Battery Disconnect .

Courtesy of JAGUAR CARS, INC.
Remove the driver side instrument panel lower trim.

Courtesy of JAGUAR CARS, INC.

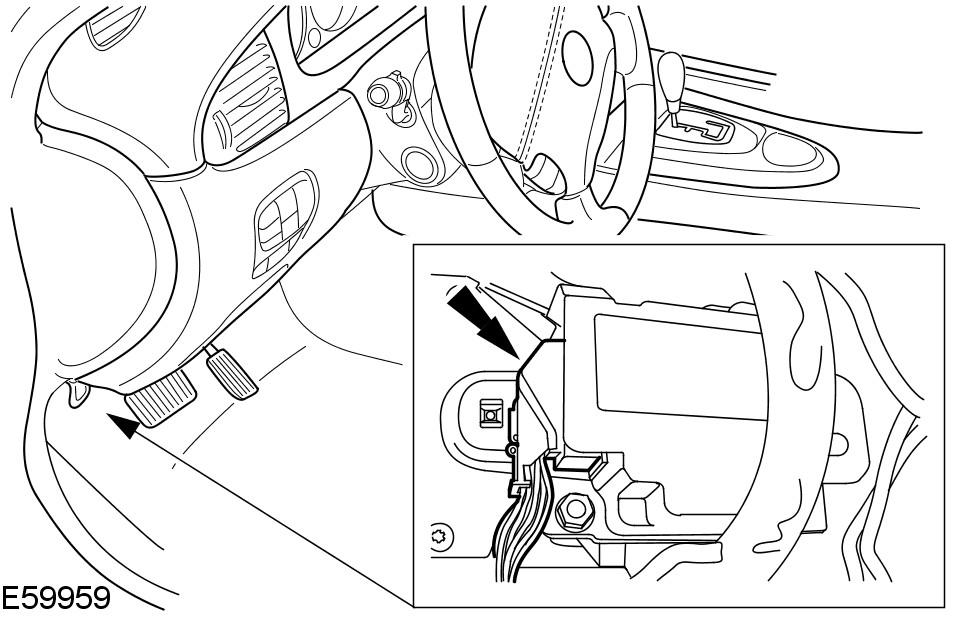

Disconnect the speed control module electrical connector.

Courtesy of JAGUAR CARS, INC.
Remove the speed control module.
- Remove the speed control module retaining nuts.
