Connector Identification

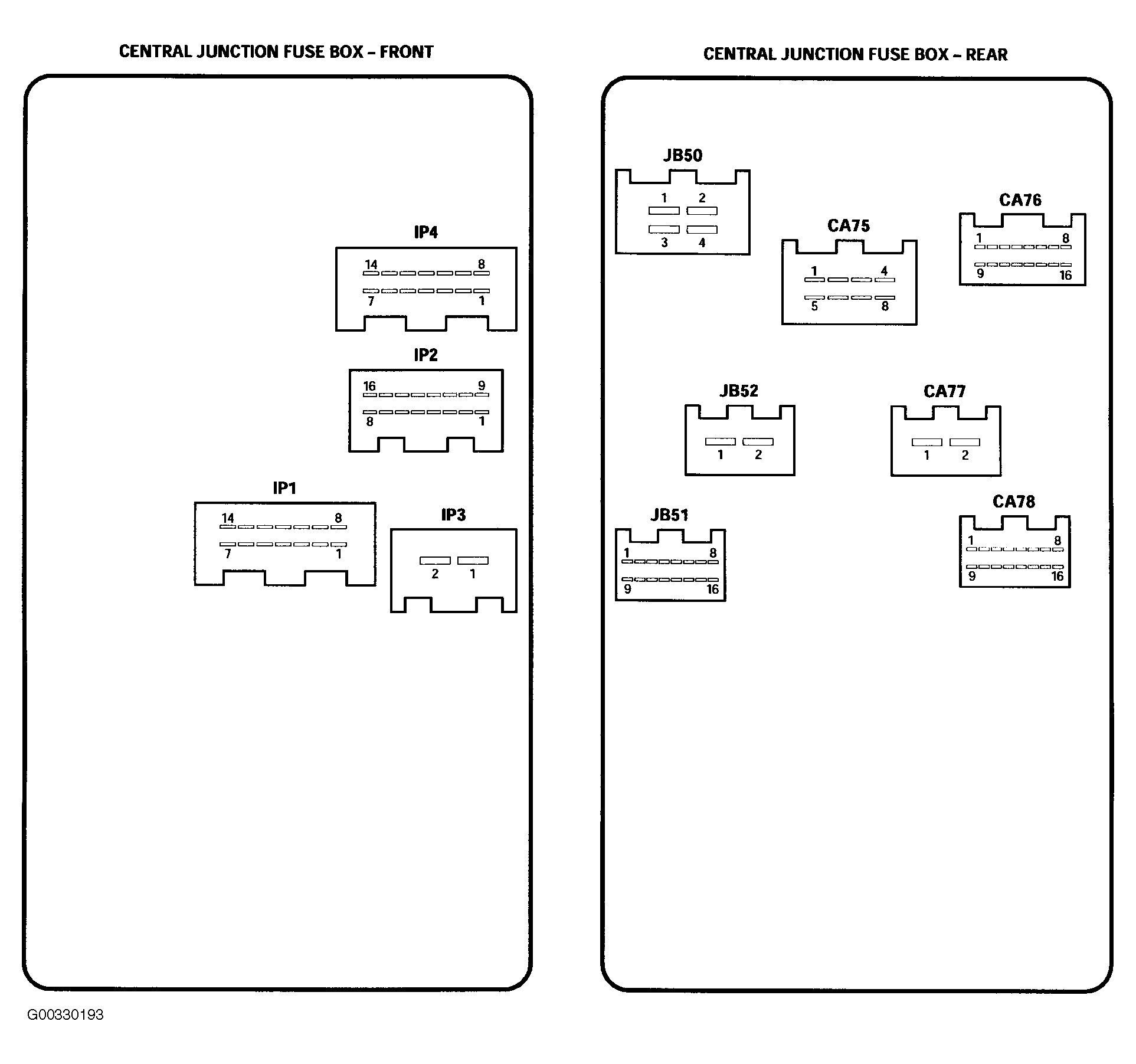

Fig 1: Identifying Central Junction Fuse Box Harness Connector Terminals (2002-03)
G00330193Courtesy of JAGUAR CARS, INC.

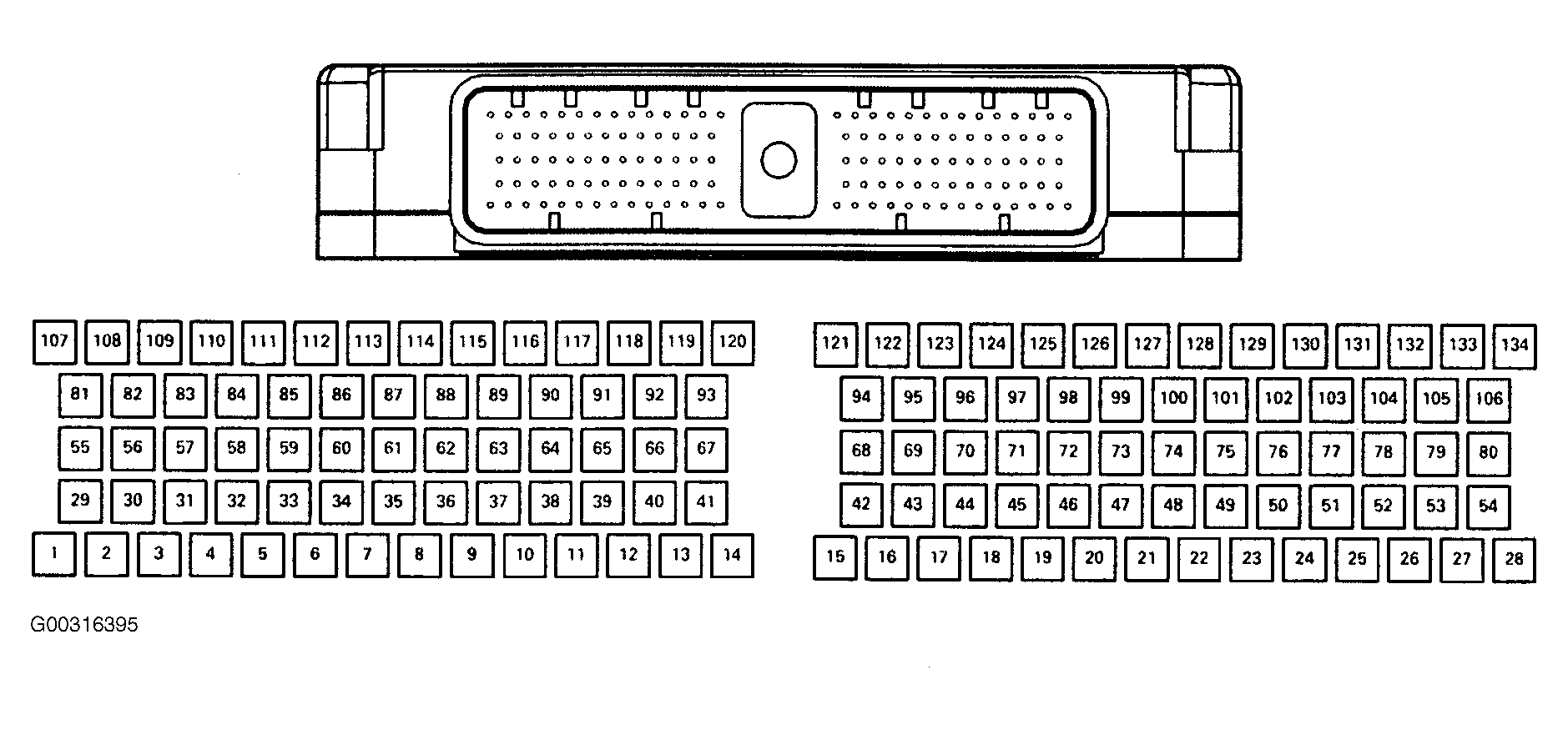

Fig 2: Identifying ECM Harness Connector Terminals
G00316395Courtesy of JAGUAR CARS, INC.

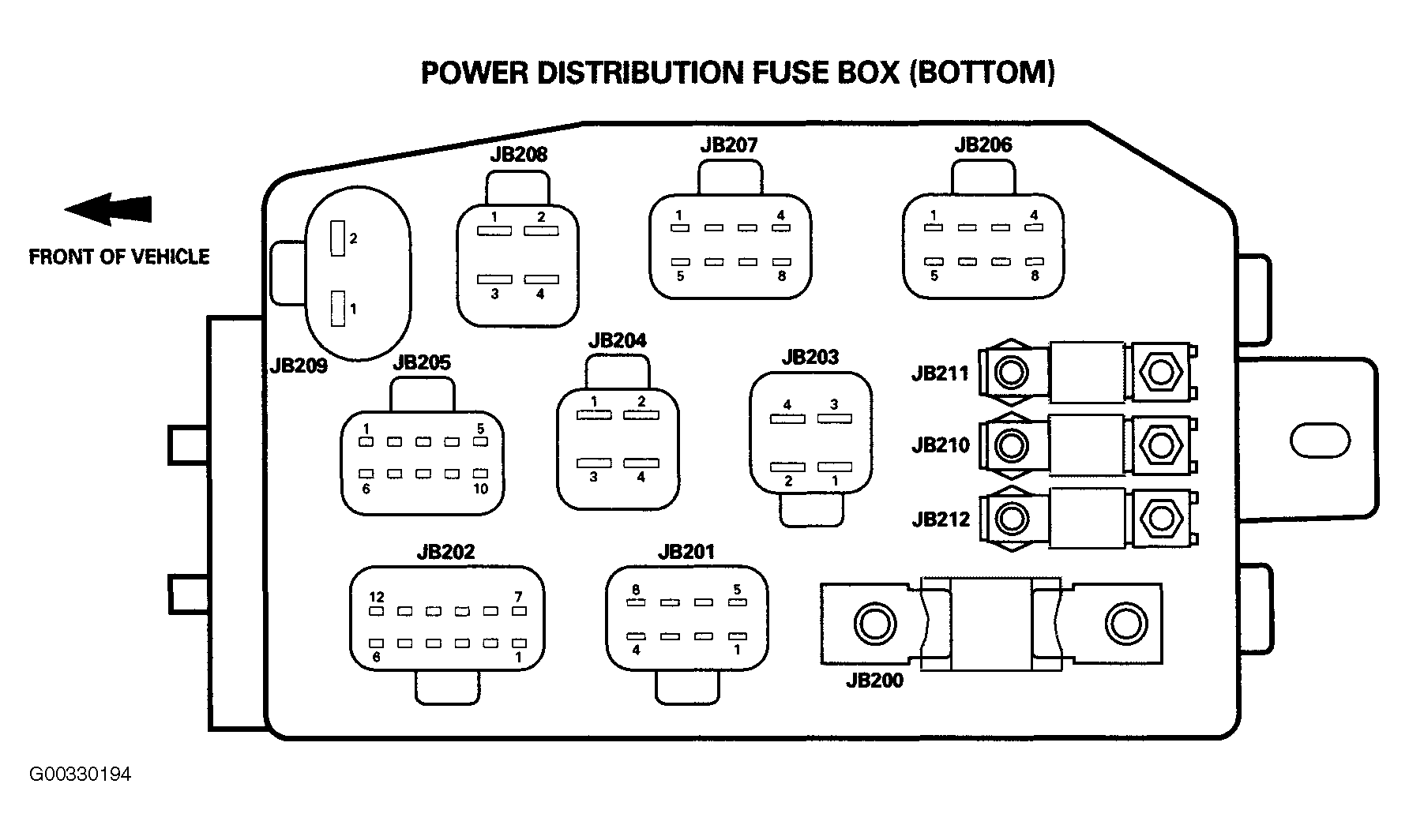

Fig 3: Identifying Front Power Distribution Fuse Box Harness Connector Terminals (2004-05)
G00330194Courtesy of JAGUAR CARS, INC.

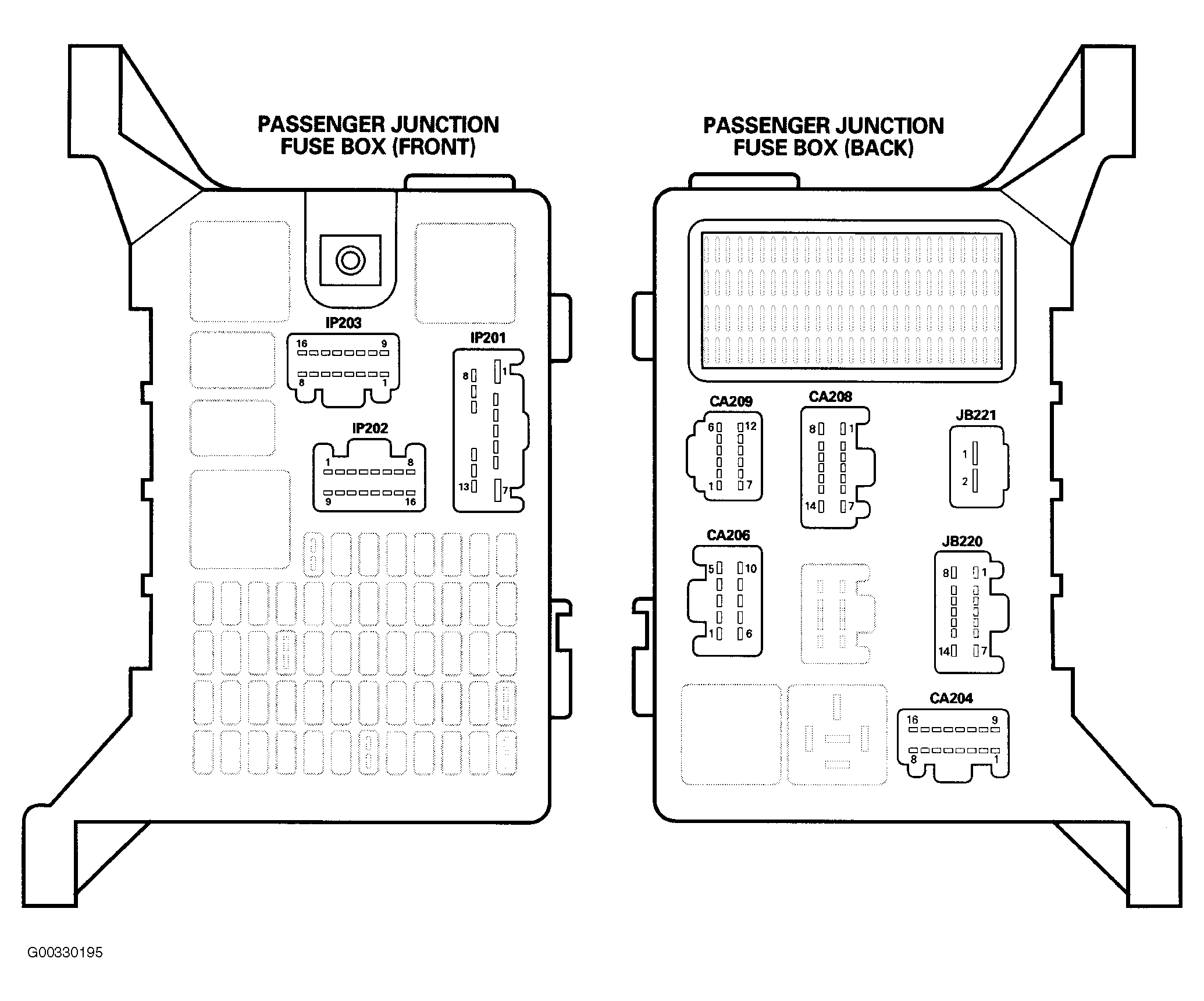

Fig 4: Identifying Passenger Junction Fuse Box Harness Connector Terminals (2004-05)
G00330195Courtesy of JAGUAR CARS, INC.
