Home >> Jaguar >> 2002 >> XJ8 Base >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Servicing >> General >> General Specifications

General Specifications

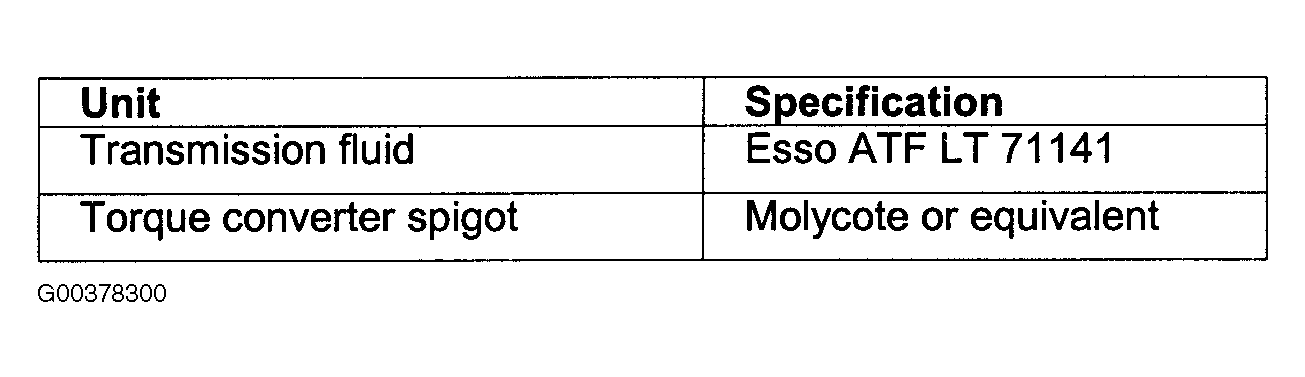

Fig 1: Fluid/Lubricant Specification Table
G00378300Courtesy of JAGUAR CARS, INC.

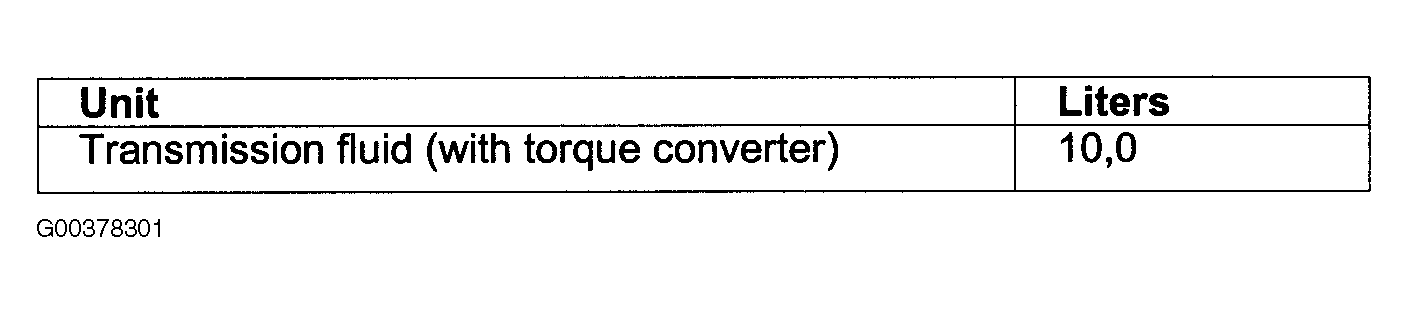

Fig 2: Fluid Capacity Table
G00378301Courtesy of JAGUAR CARS, INC.

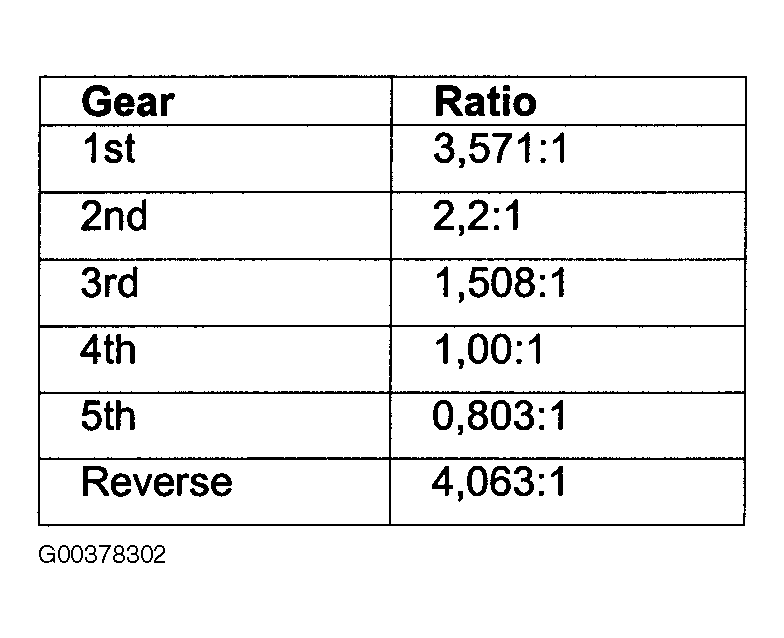

Fig 3: Internal Gear Ratio Table
G00378302Courtesy of JAGUAR CARS, INC.
