Removal and Installation: Spring: Installation

  1. Install spring pan, new spring and new spring rubber upper and lower seats on Special Tool 204-111.

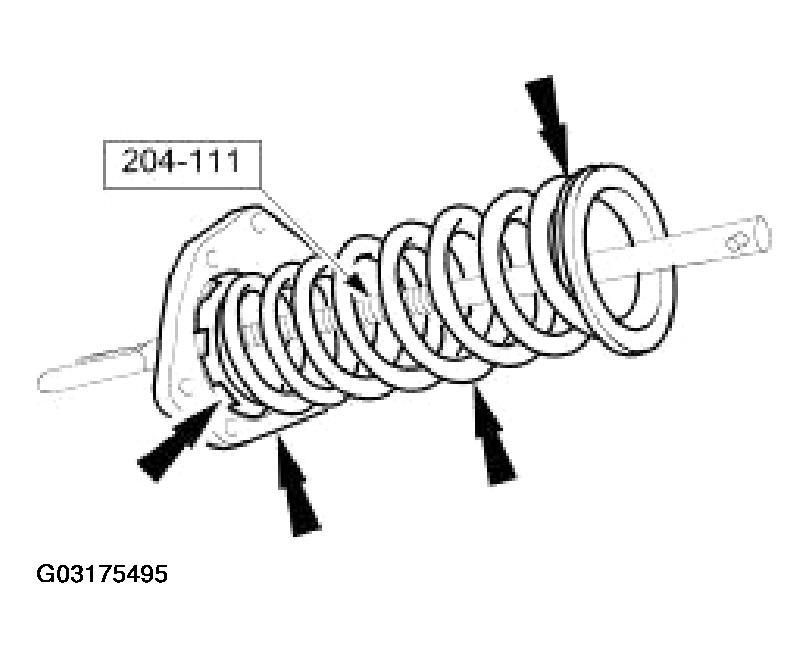

    Fig 1: Installing Spring Pan, Spring And Spring Rubber Upper And Lower Seats On Special Tool 204-111
    G03175495Courtesy of JAGUAR CARS, INC.
  2. Install Special Tool 204-111 and spring assembly in suspension turret.
    • Position spring assembly and Special Tool in suspension turret.
    • Ensure spring upper rubber seat is correctly positioned and fully seated.
    • Engage tool dowel in turret slot.

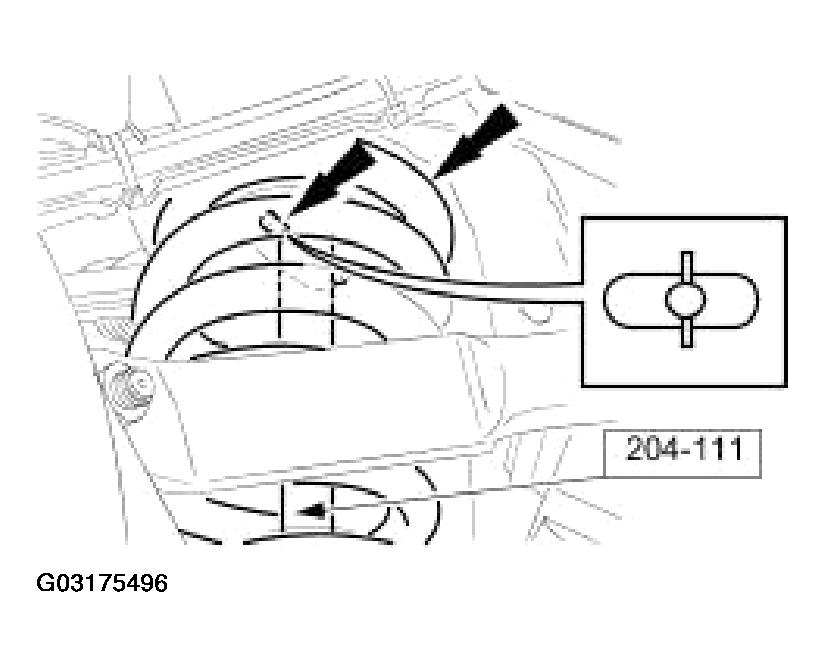

      Fig 2: Installing Special Tool 204-111 And Spring Assembly In Suspension Turret
      G03175496Courtesy of JAGUAR CARS, INC.
  3. Position spring pan on lower wishbone.
    • Rotate adjuster of Special Tool to lightly tension spring.
    • Align spring pan with lower wishbone bolt locations.

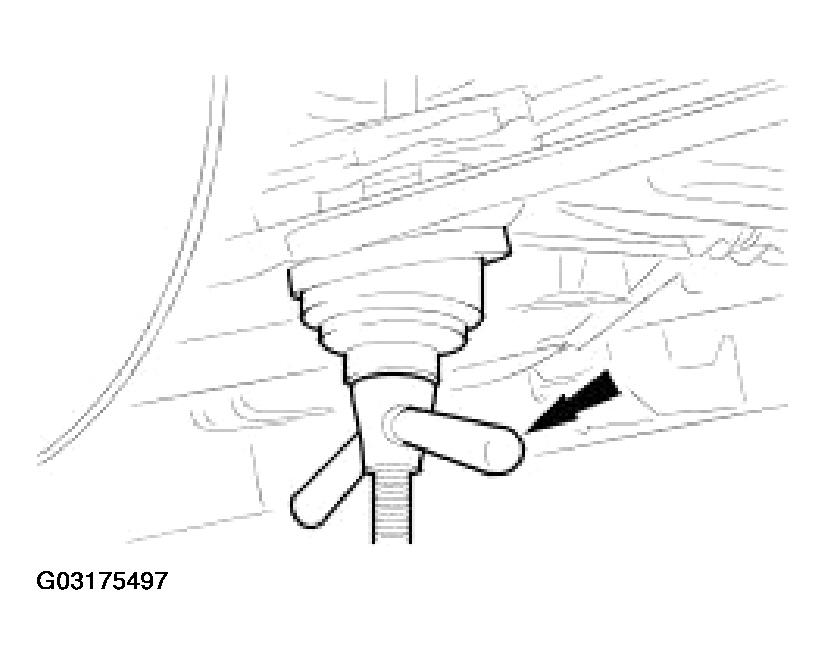

      Fig 3: Positioning Spring Pan On Lower Wishbone
      G03175497Courtesy of JAGUAR CARS, INC.
  4. Install suitable guide pins in spring pan/wishbone bolt locations.

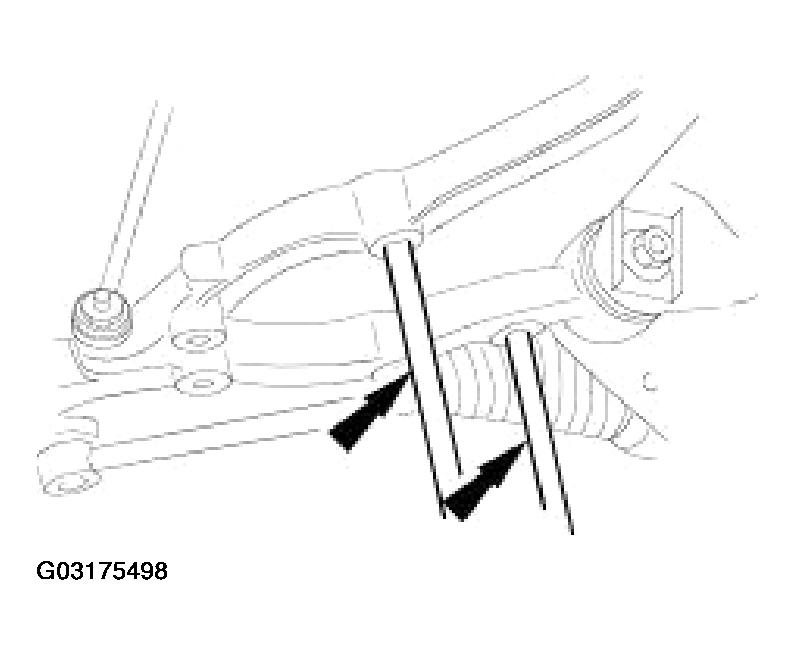

    Fig 4: Installing Suitable Guide Pins In Spring Pan/Wishbone Bolt Locations
    G03175498Courtesy of JAGUAR CARS, INC.
    5. WARNING: WHEN ROTATING TOOL ADJUSTER, ENSURE THAT TOOL STEM DOES NOT TURN AND DISTURB POSITION OF DOWEL IN SUSPENSION TURRET.
  5. Install spring pan to wishbone securing bolts.
    • Rotate tool adjuster to gradually increase spring tension.
    • Progressively substitute spring pan securing bolts for guide pins.
    • Tighten spring pan securing bolts to 70-90 Nm.

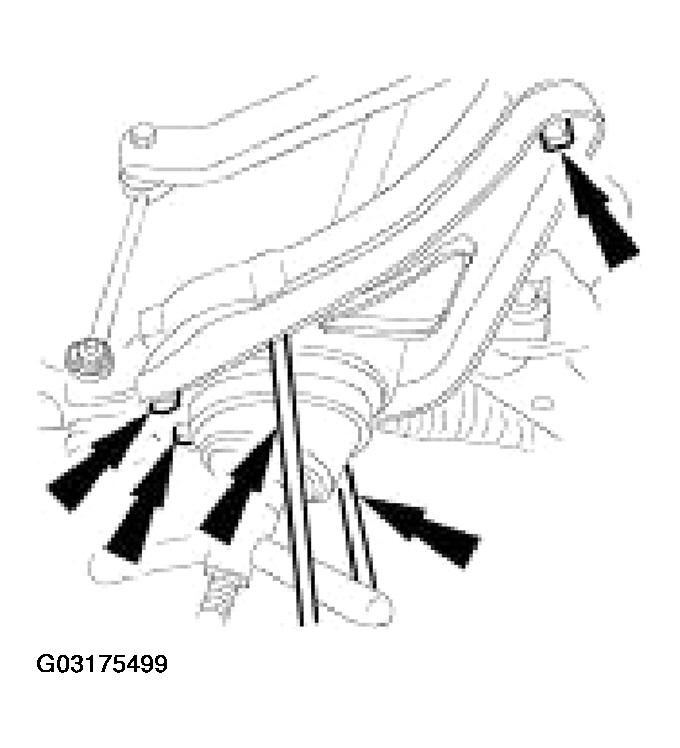

      Fig 5: Installing Spring Pan To Wishbone Securing Bolts
      G03175499Courtesy of JAGUAR CARS, INC.
    6. WARNING: WHEN ROTATING TOOL ADJUSTER, ENSURE THAT TOOL STEM DOES NOT TURN AND DISTURB POSITION OF DOWEL IN SUSPENSION TURRET.
  6. Remove Special Tool 204-111 from suspension.
    • Ensure spring lower rubber seat is correctly positioned and fully seated.
    • Rotate adjuster of Special Tool to release tension on spring.
      Fig 6: Removing Special Tool 204-111 From Suspension
      G03175500Courtesy of JAGUAR CARS, INC.
  7. Rotate tool stem to release dowel from turret and withdraw tool assembly.

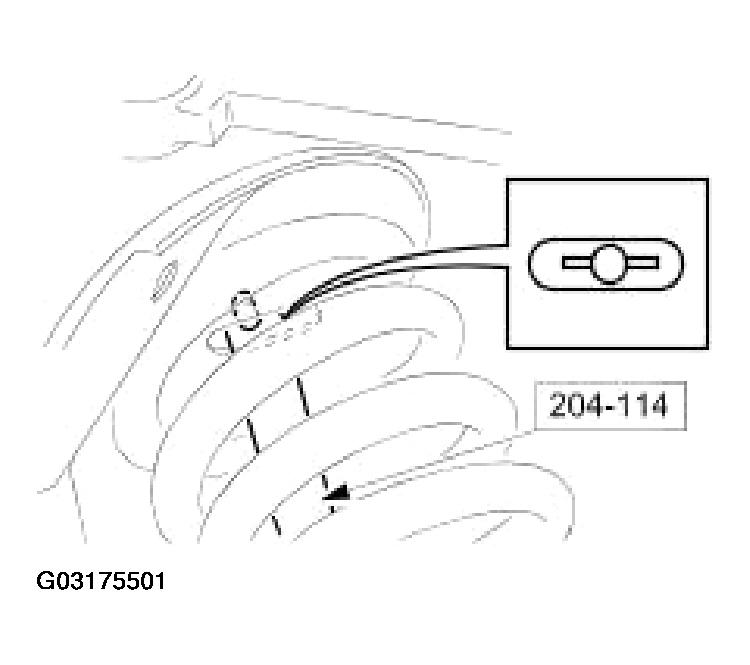

    Fig 7: Rotating Tool Stem To Release Dowel From Turret
    G03175501Courtesy of JAGUAR CARS, INC.
  8. Lower vehicle to working height and support on stands.
  9. Install road wheel.
  10. Raise vehicle, remove stands and lower vehicle onto road wheels.
