Connector Identification

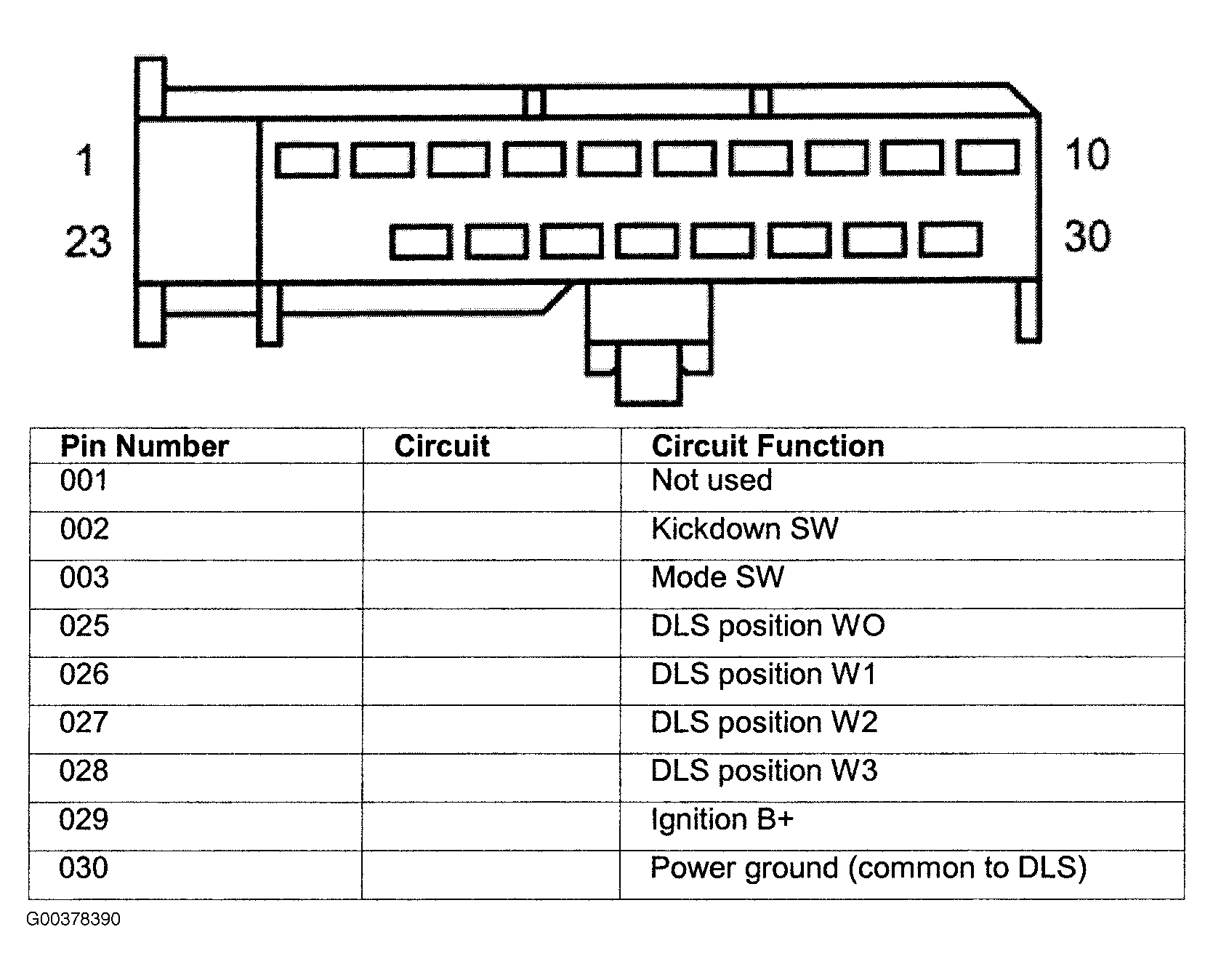

Fig 1: Identifying Connector EM061 Terminals
G00378390Courtesy of JAGUAR CARS, INC.

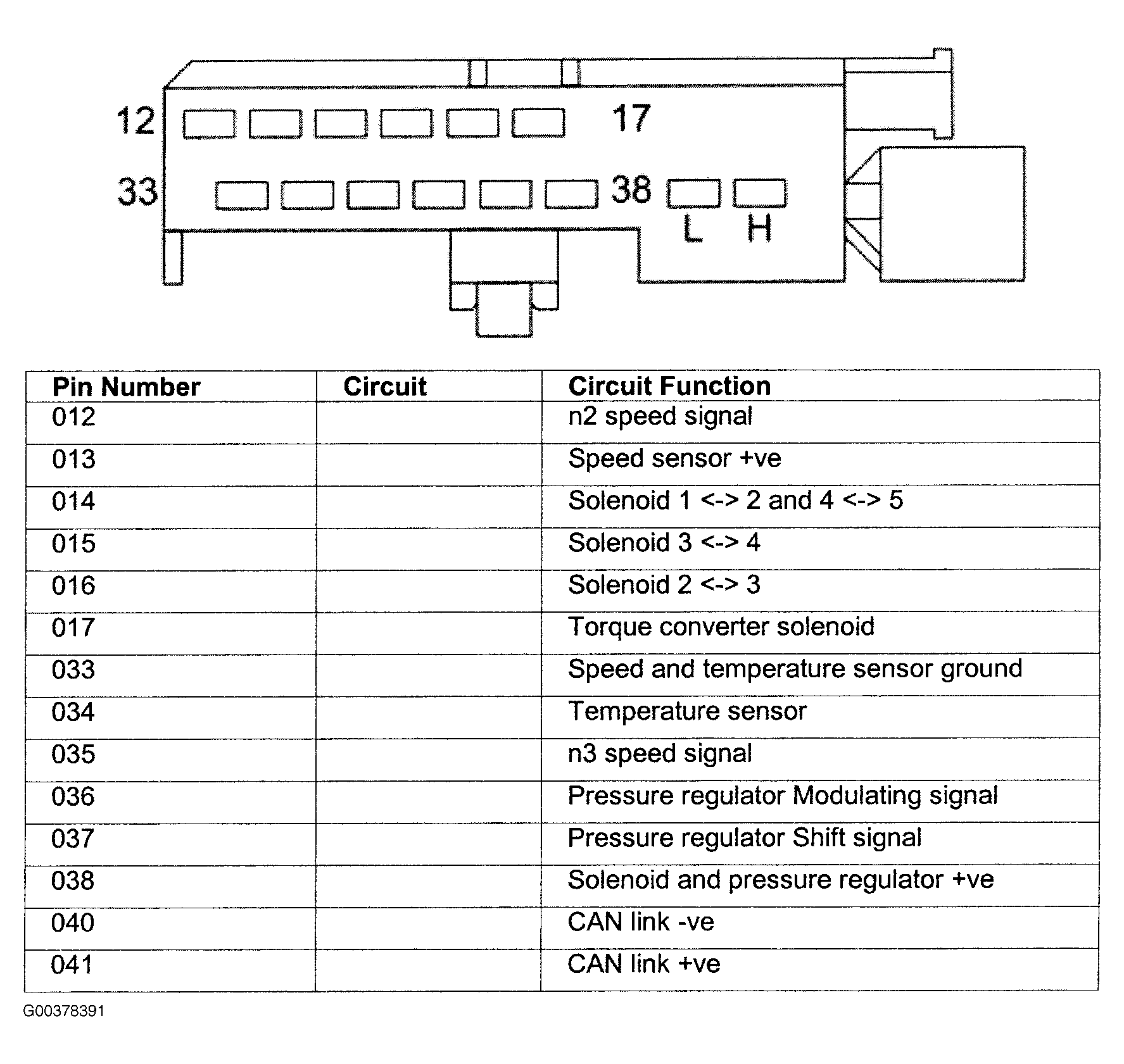

Fig 2: Identifying Connector EM062 Terminals
G00378391Courtesy of JAGUAR CARS, INC.

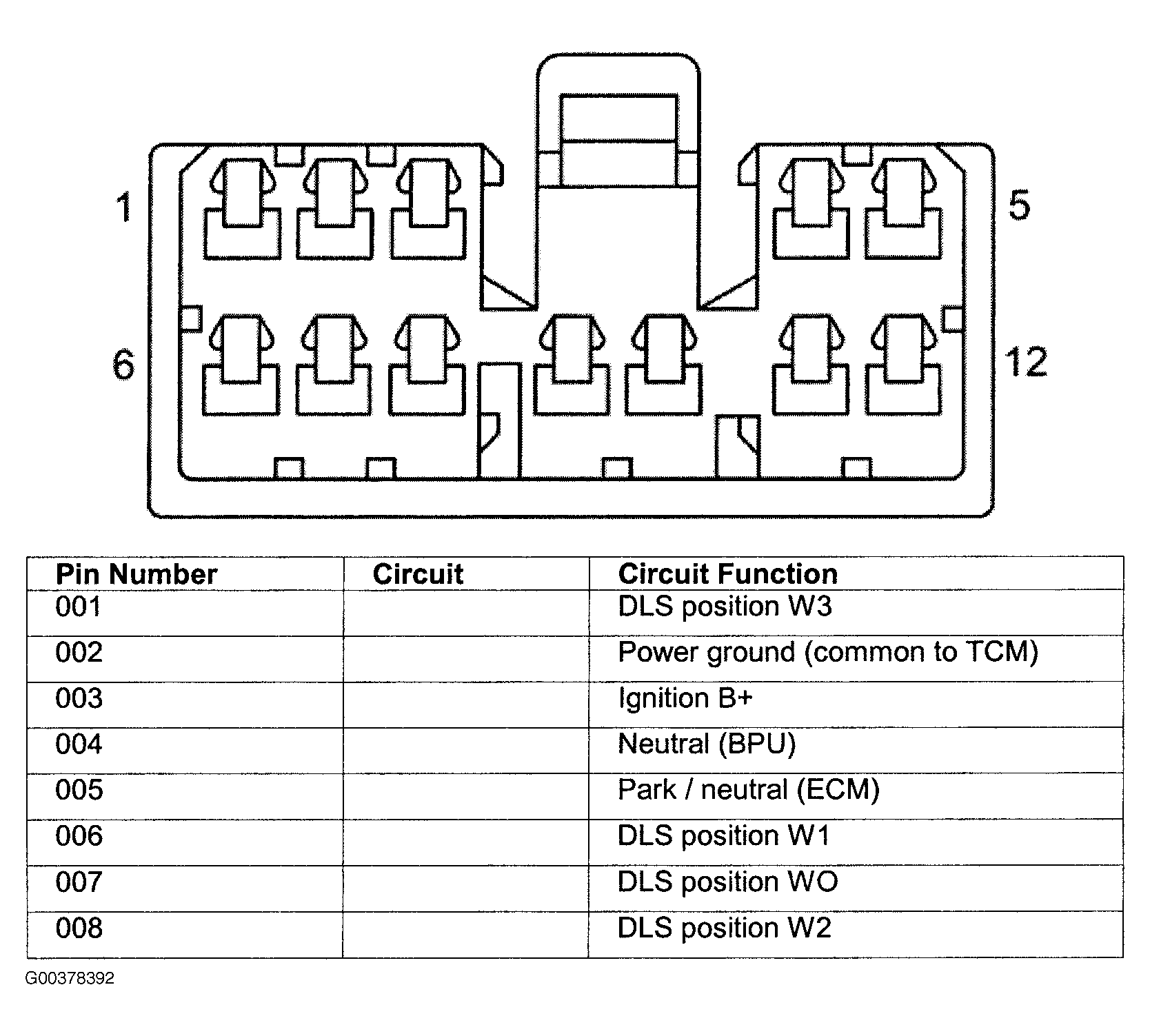

Fig 3: Identifying Connector CC008 Terminals
G00378392Courtesy of JAGUAR CARS, INC.

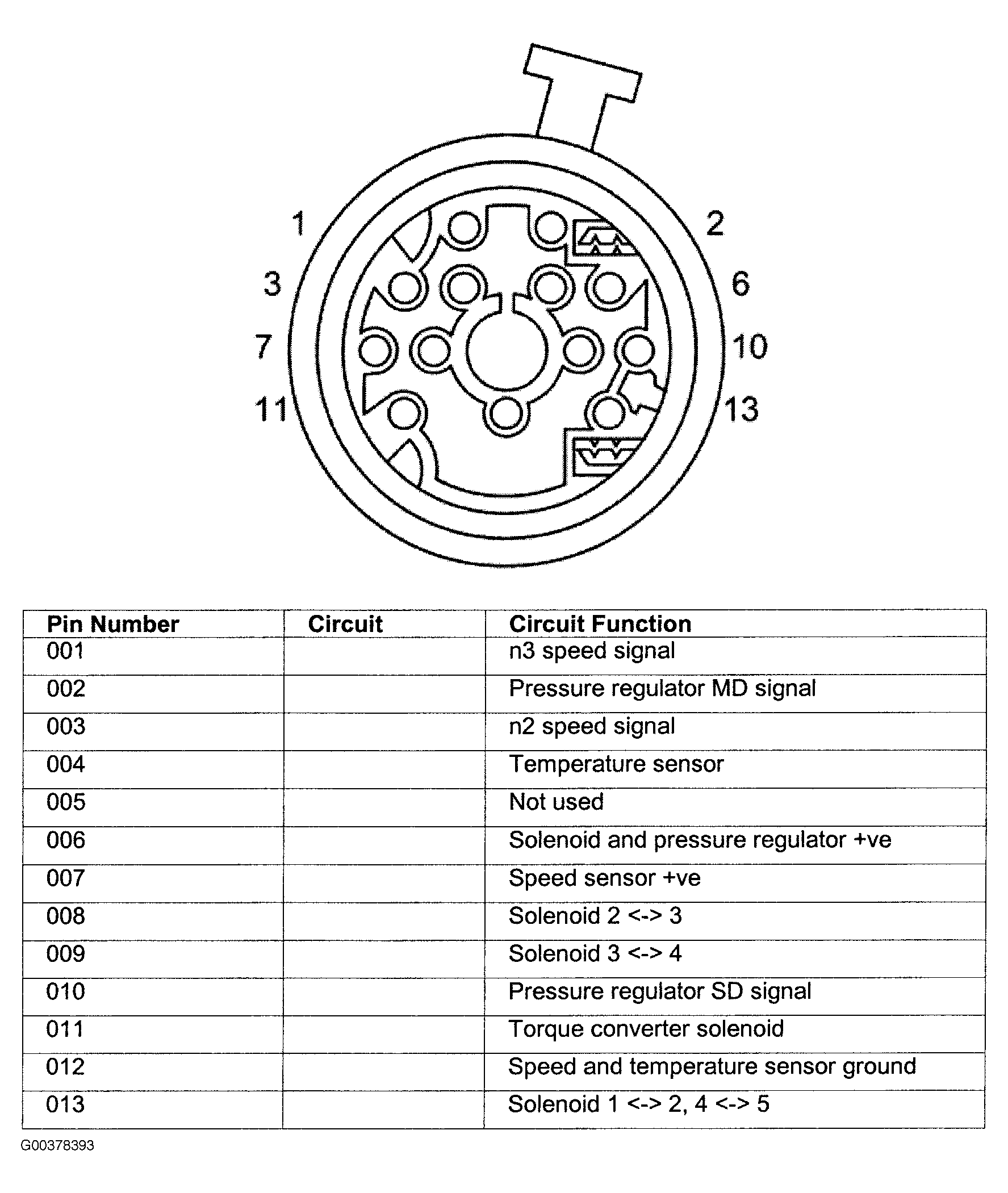

Fig 4: Identifying Connector GB001 Terminals
G00378393Courtesy of JAGUAR CARS, INC.

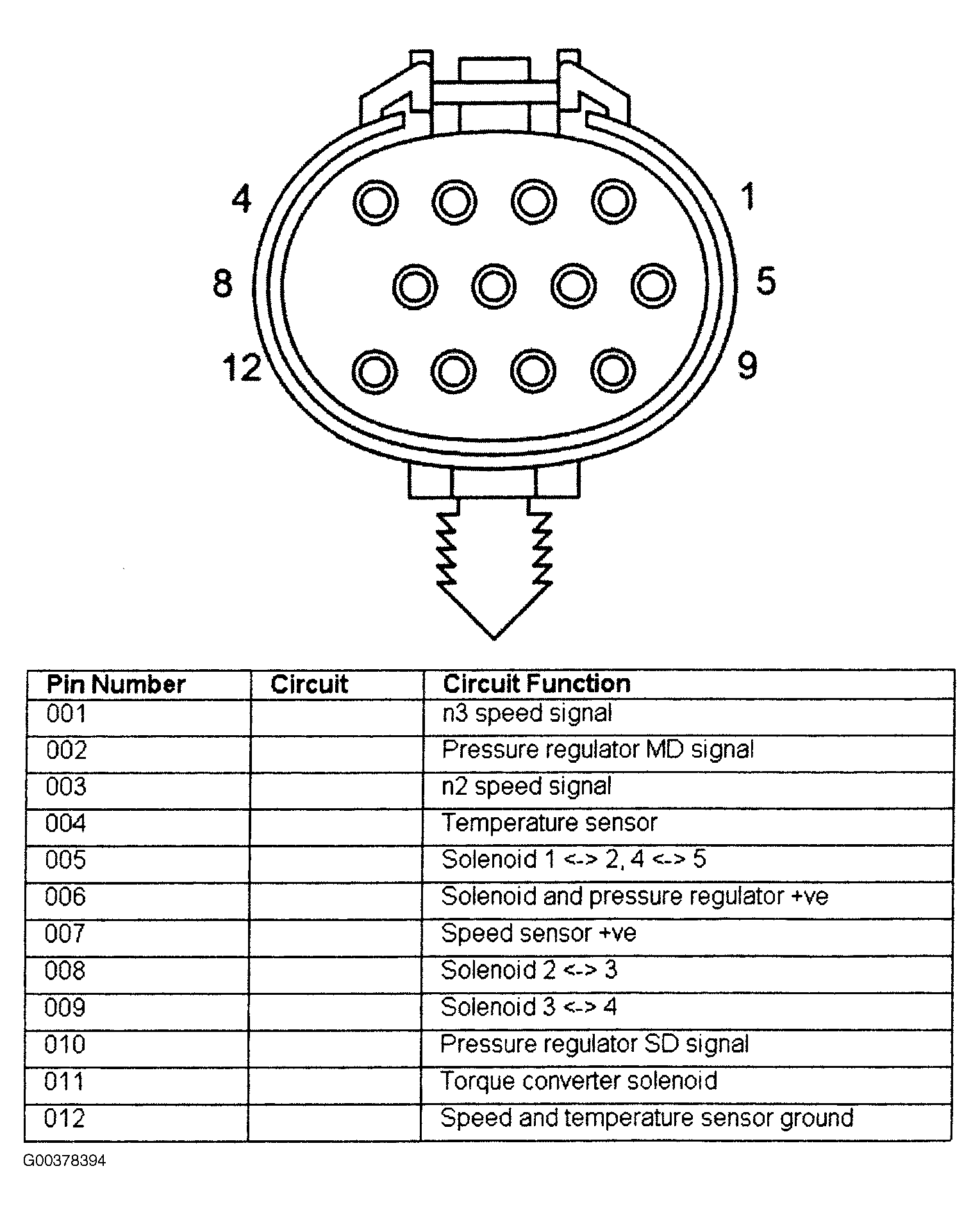

Fig 5: Identifying Connector EM044 Terminals
G00378394Courtesy of JAGUAR CARS, INC.
