General Specifications

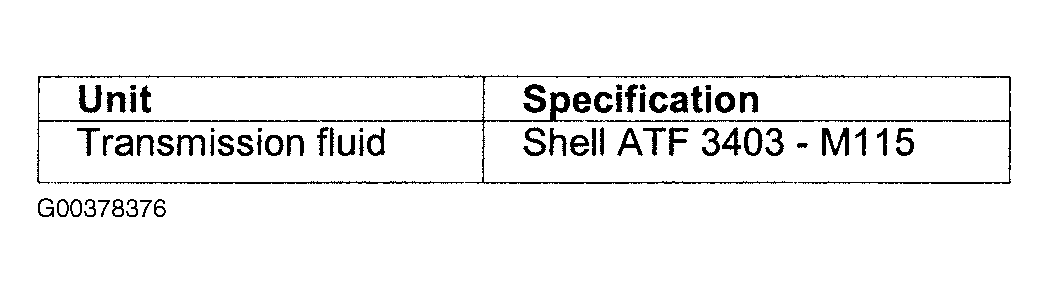

Fig 1: Fluid Specification Table
G00378376Courtesy of JAGUAR CARS, INC.

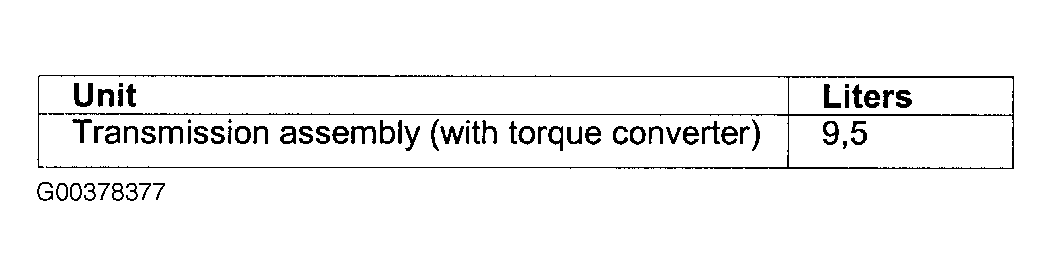

Fig 2: Fluid Capacity Specification Table
G00378377Courtesy of JAGUAR CARS, INC.

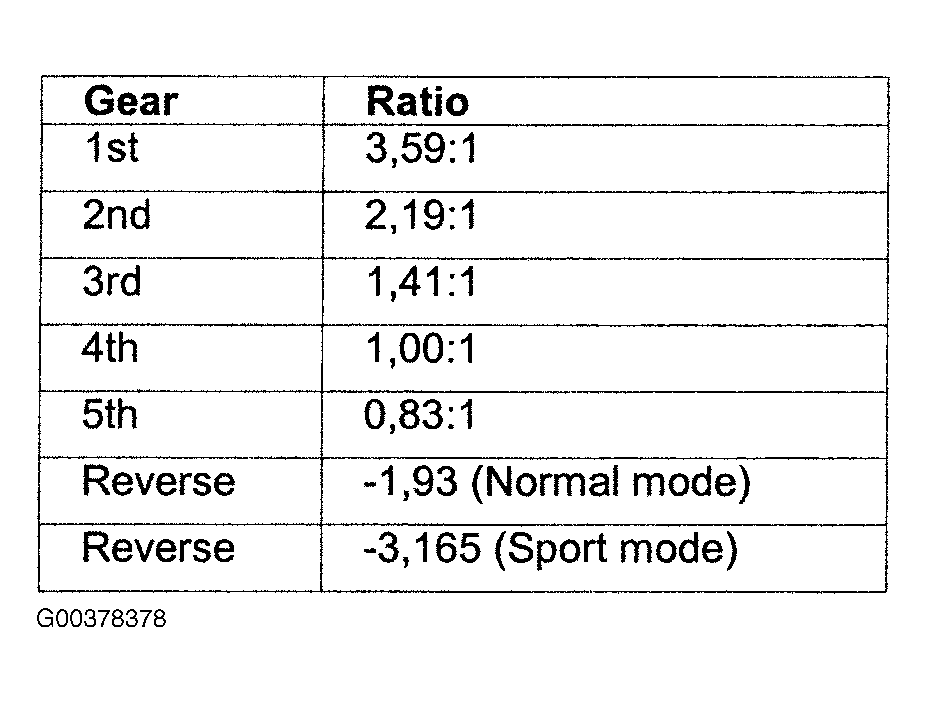

Fig 3: Internal Gear Ratio Table
G00378378Courtesy of JAGUAR CARS, INC.
