Front Wheel Speed Sensor: Installation

  1. Install wheel speed sensor.
    • Position sensor.
    • Install and tighten bolt to 8-10 Nm.
    • Connect harness connector.

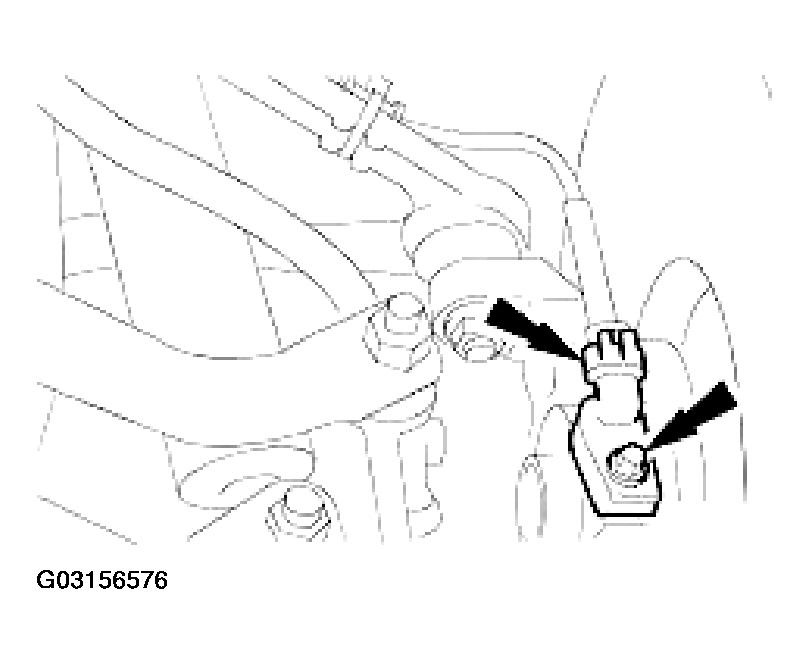

    Fig 1: Installing Wheel Speed Sensor
    G03156576Courtesy of JAGUAR CARS, INC.
  2. Remove stands and lower vehicle.
