Control Units

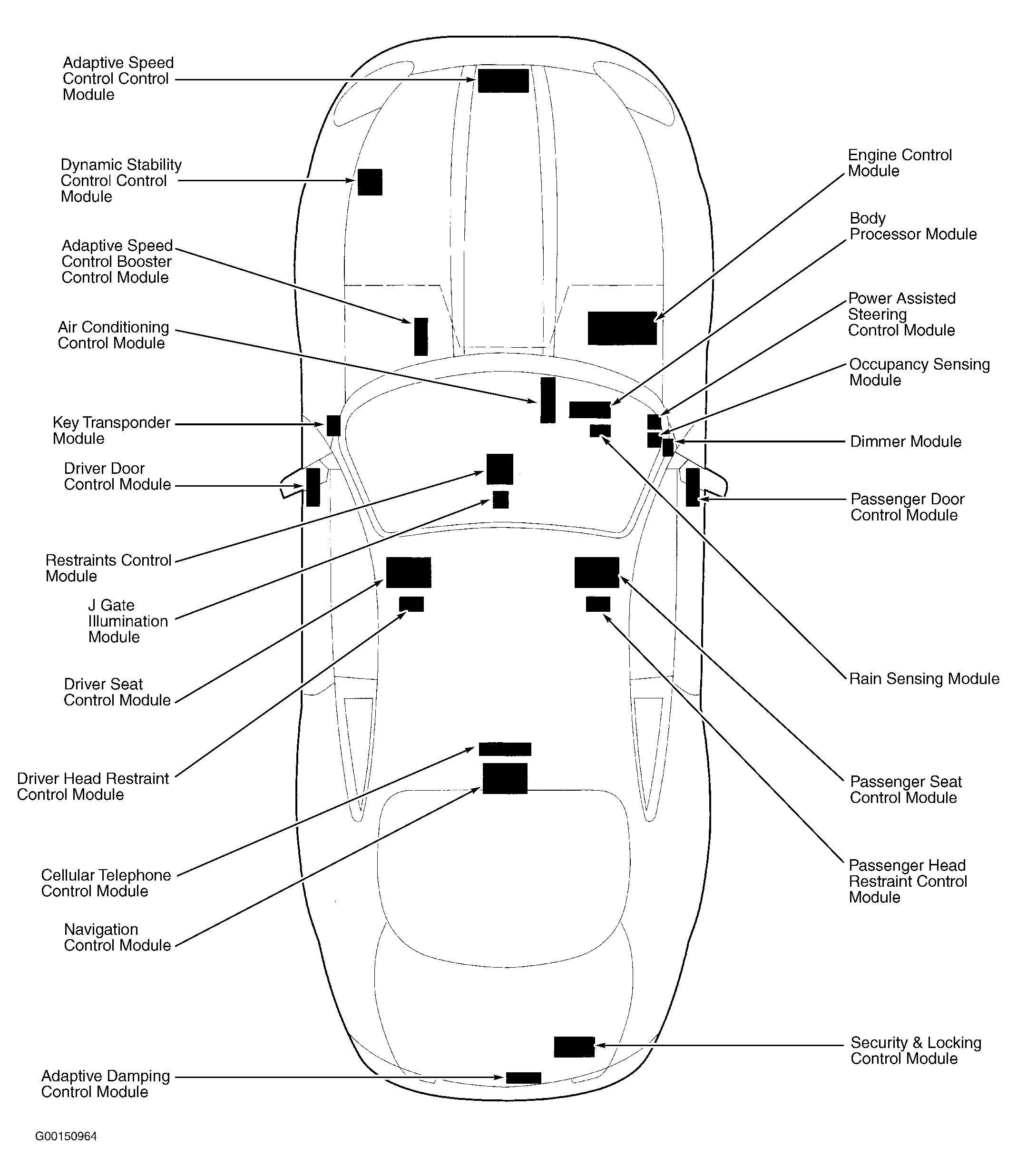

CONTROL UNITS LOCATION
| Component | Component Location |
|---|---|
| Adaptive Damping Control Module | At rear of trunk. See Figure . |
| Adaptive Speed Control Booster Control Module | At left rear of engine compartment, in control module enclosure. See Figure . |
| Adaptive Speed Control, Control Module | At front of engine compartment, forward of radiator. See Figure . |
| Air Conditioning Control Module | On right side of HVAC assembly. See Figure . |
| Body Processor Module | Behind right side of dash, on air bag bracket. See Figure . |
| Cellular Telephone Control Module | Behind rear seat. See Figure . |
| Dimmer Module | Behind right side of dash, near passenger side fuse box. See Figure . |
| Driver Door Control Module | In left door. See Figure . |
| Driver Head Restraint Control Module | Behind seat back cover. See Figure . |
| Driver Seat Control Module | Under driver's seat. See Figure . |
| Dynamic Stability Control, Control Module | At left front of engine compartment. See Figure . |
| Engine Control Module | At right rear of engine compartment, in control module enclosure. See Figure . |
| Fuel Pump Module | At right rear of trunk. |
| Garage Door Opener | In roof console. |
| High Power Protection Module | In trunk, next to battery. |
| J Gate Illumination Module | At front of gear selector assembly. See Figure . |
| Key Transponder Module | Behind left side of dash, near driver side fuse box. See Figure . |
| Linear Switch Module | At left side of gear selector, under center console. |
| Navigation Control Module | At front center of trunk. See Figure . |
| Occupancy Sensing Module | Behind right end of dash. See Figure . |
| Passenger Door Control Module | In right door. See Figure . |
| Passenger Head Restraint Control Module | Behind seat back cover. See Figure . |
| Passenger Seat Control Module | Under right front seat. See Figure . |
| Passenger Seat Weight Sensing Control Module | Under right front seat. |
| Power Assisted Steering Control Module | Behind right side of dash, near passenger side fuse box. See Figure . |
| Rain Sensing Module | Above passenger's footwell. See Figure . |
| Restraints Control Module | In center console. See Figure . |
| Security & Locking Control Module | In trunk. See Figure . |
| Television Module | On trunk fuse box housing. |
| Transmission Control Module | Integral to transmission control valve assembly. |
| Vehicle Information Control Beacon Module | In spare tire wheelwell. |
| Vehicle Information Control Module | In spare tire wheelwell. |
