Accelerator Pedal - Removal and Installation: Removal

All vehicles

Courtesy of JAGUAR CARS, INC.

1. Remove and discard the accelerator cable retaining sleeve split pin.

   Courtesy of JAGUAR CARS, INC.

2. Detach the accelerator cable.
   1. Remove the accelerator cable retaining sleeve.
   2. Detach the accelerator cable.

Right-hand drive vehicles

Courtesy of JAGUAR CARS, INC.

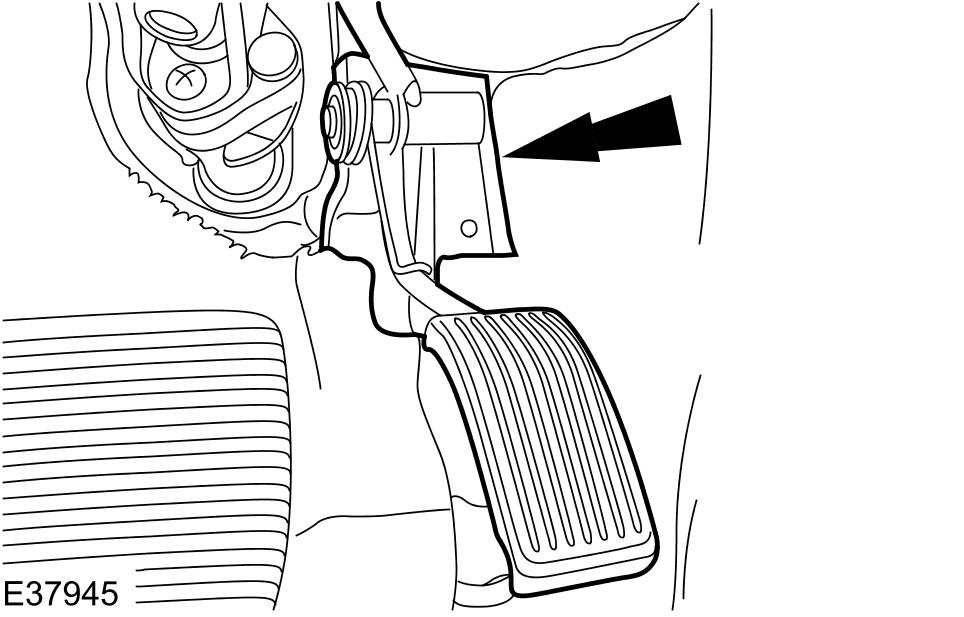

1. Remove the accelerator pedal.

Left-hand drive vehicles

Courtesy of JAGUAR CARS, INC.

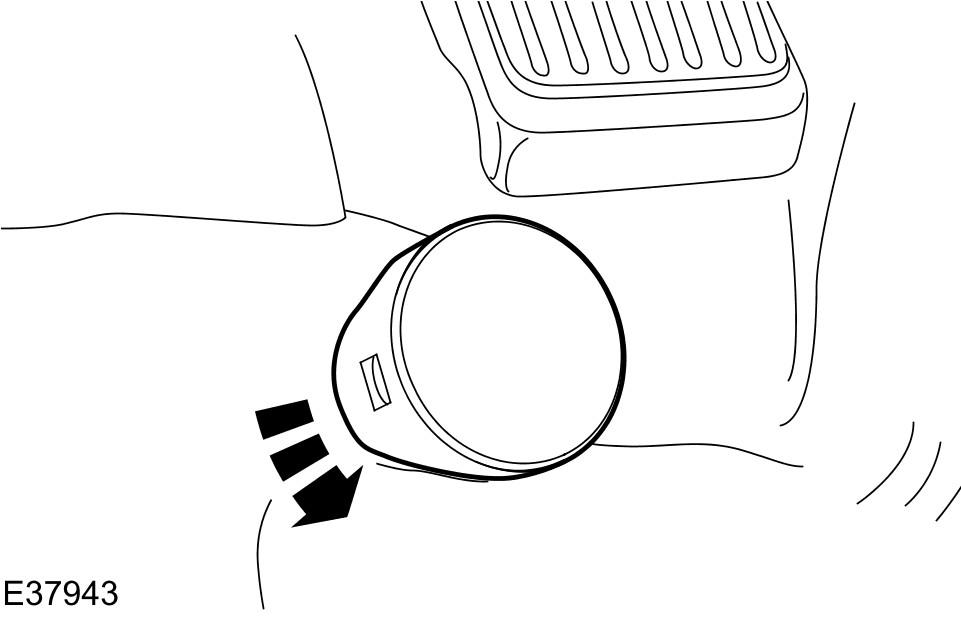

1. Remove the kickdown plunger.

   Courtesy of JAGUAR CARS, INC.

CAUTION: Make sure damage does not occur to the floor covering.
2. Remove the accelerator pedal retaining bolts.
   • Reposition the floor covering to gain access to the accelerator pedal lower retaining bolt.

   Courtesy of JAGUAR CARS, INC.

CAUTION: Make sure damage does not occur to the floor covering.
3. Remove the accelerator pedal.
   • Reposition the floor covering to gain access to the accelerator pedal.
