Accelerator Pedal - Removal and Installation: Installation

All vehicles

1. To install, reverse the removal procedure.

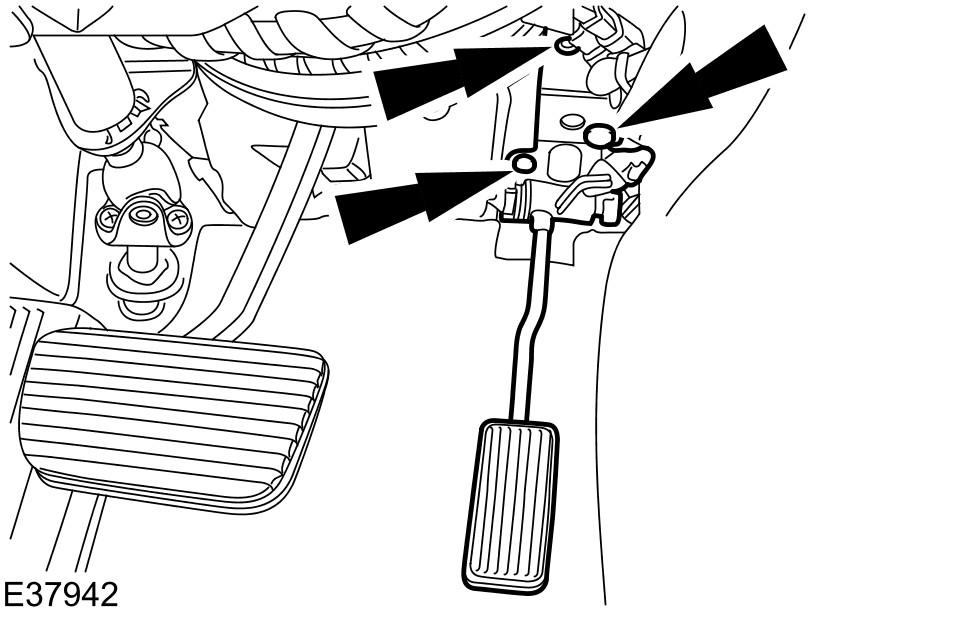

Right-hand drive vehicles

Courtesy of JAGUAR CARS, INC.

NOTE: Make sure the accelerator pedal return spring is correctly located.
1. Tighten to 9 Nm.

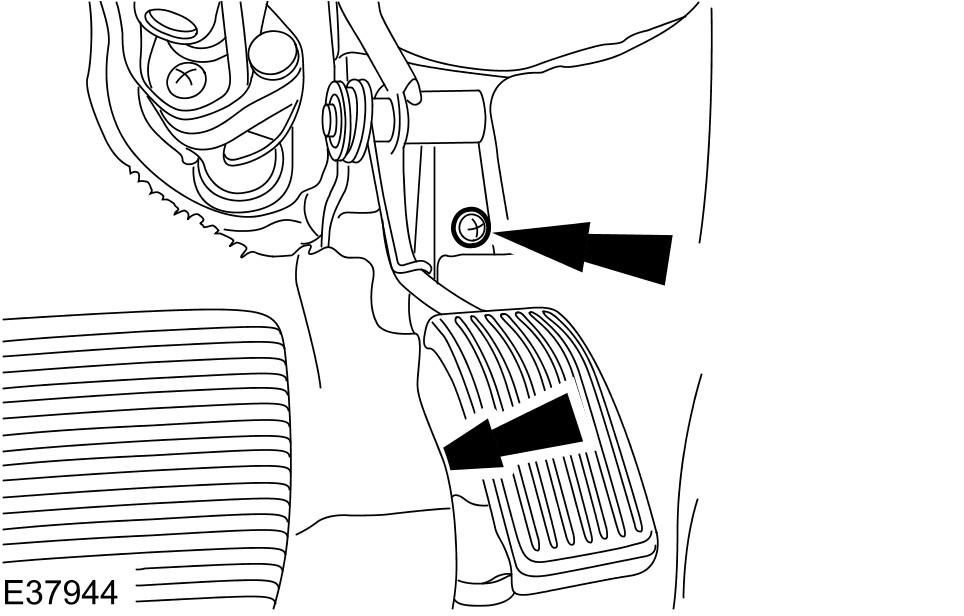

Left-hand drive vehicles

Courtesy of JAGUAR CARS, INC.

CAUTION: Make sure damage does not occur to the floor covering.
NOTE: Make sure the accelerator pedal return spring is correctly located.
1. Tighten to 9 Nm.

All vehicles

1. Adjust the accelerator cable. Refer to Accelerator Cable Adjustment - General Procedures .
