4.1.2 Monitoring Structure

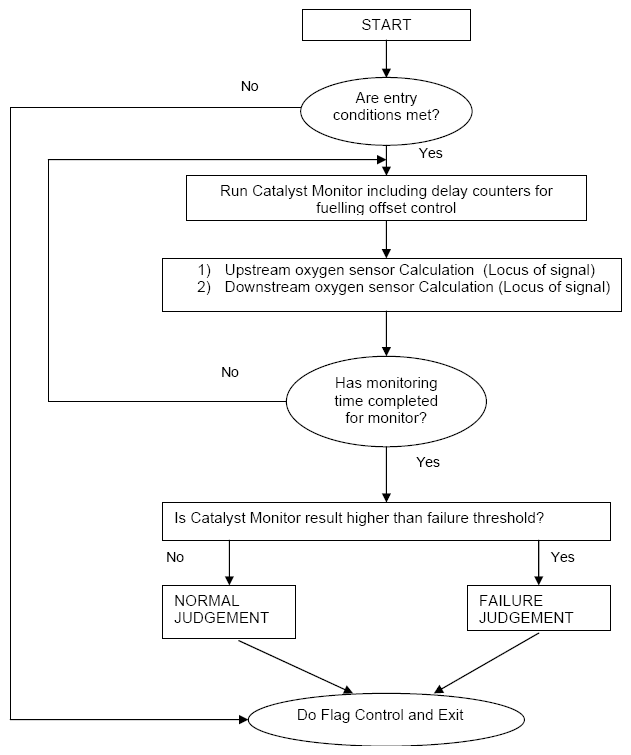

Fig 1: Monitoring Structure
G06421541Courtesy of JAGUAR CARS, INC.

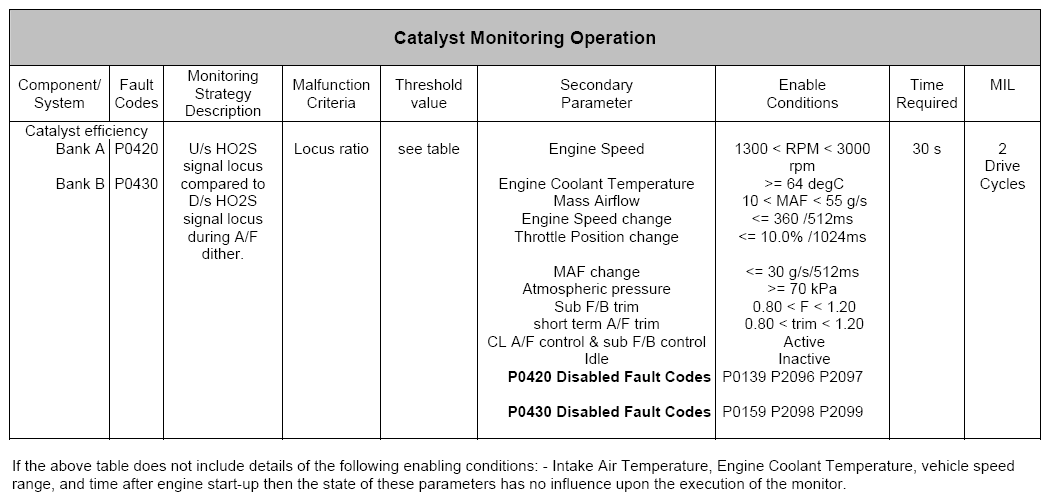

Fig 2: Catalyst Monitoring Operation (P0420, P0430)
G06421542Courtesy of JAGUAR CARS, INC.

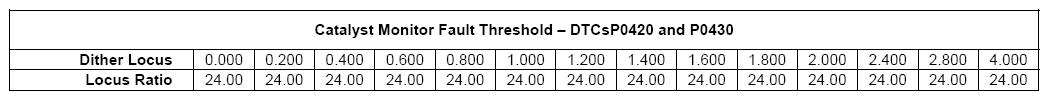

Fig 3: Catalyst Monitor Fault Threshold - DTCs P0420 And P0430
G06421543Courtesy of JAGUAR CARS, INC.
