Introduction
>>
2.1 Inputs and Outputs
2.1 Inputs and Outputs

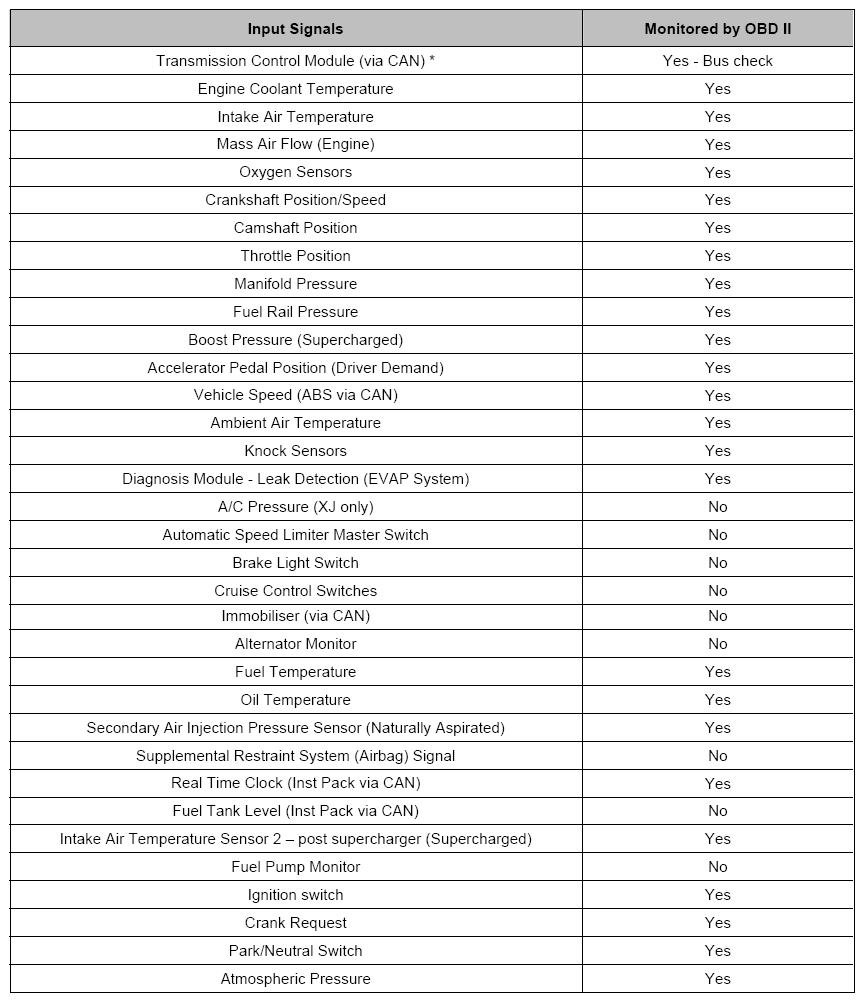

Fig 1: Input Signals Chart
Courtesy of JAGUAR CARS, INC.

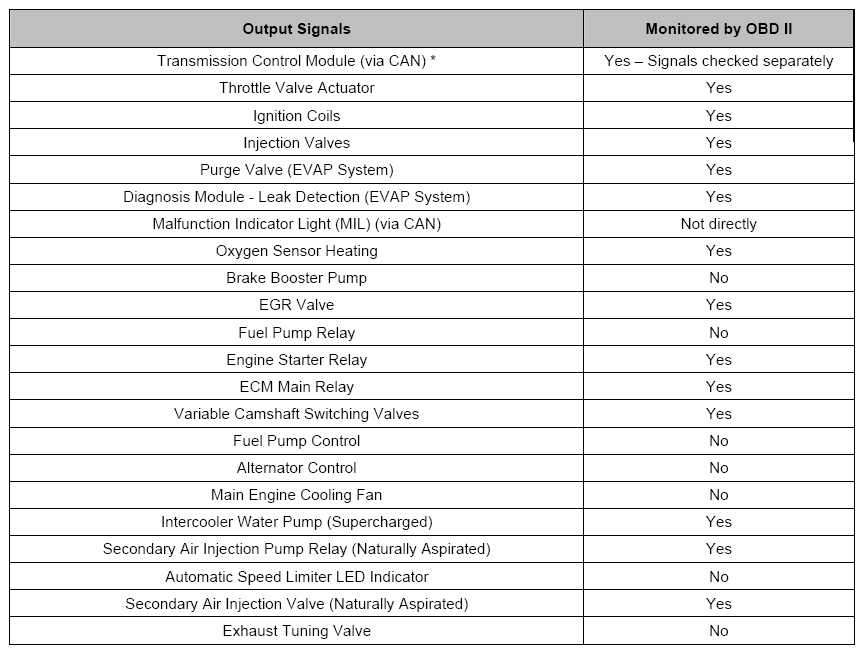

Fig 2: Output Signals Chart
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
Courtesy of JAGUAR CARS, INC.
