4.1.2 Monitoring Structure

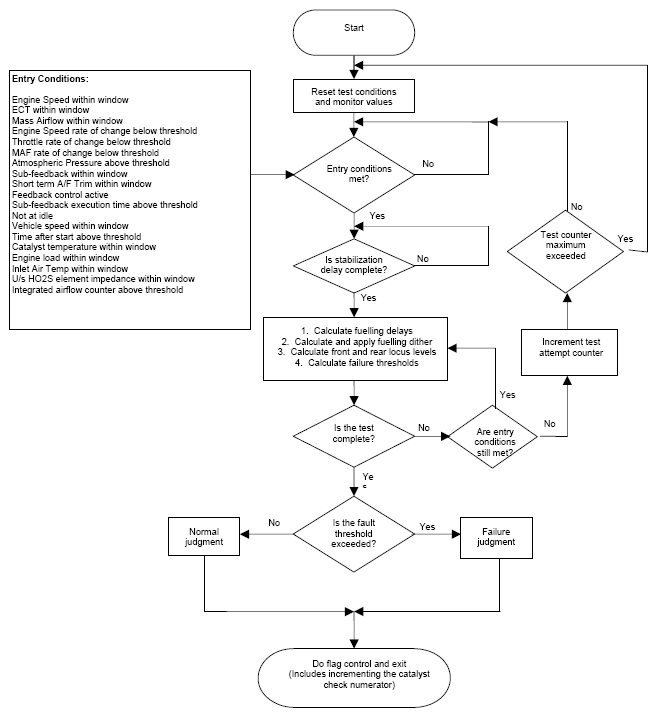

Fig 1: Monitoring Structure
G06421647Courtesy of JAGUAR CARS, INC.

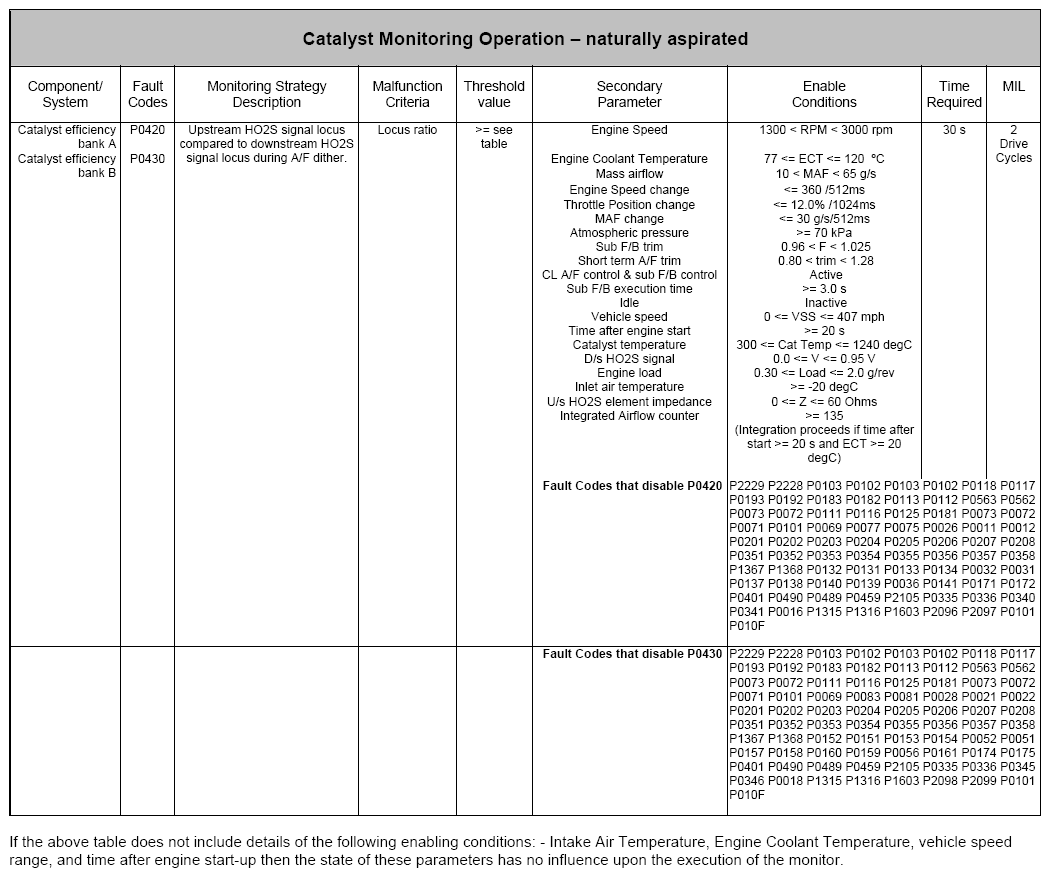

Fig 2: Catalyst Monitoring Operation - Naturally Aspirated (P0420, P0430)
G06421648Courtesy of JAGUAR CARS, INC.

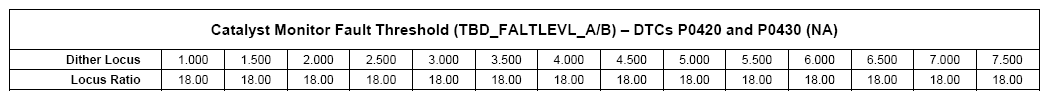

Fig 3: Catalyst Monitoring Fault Chart
G06421649Courtesy of JAGUAR CARS, INC.

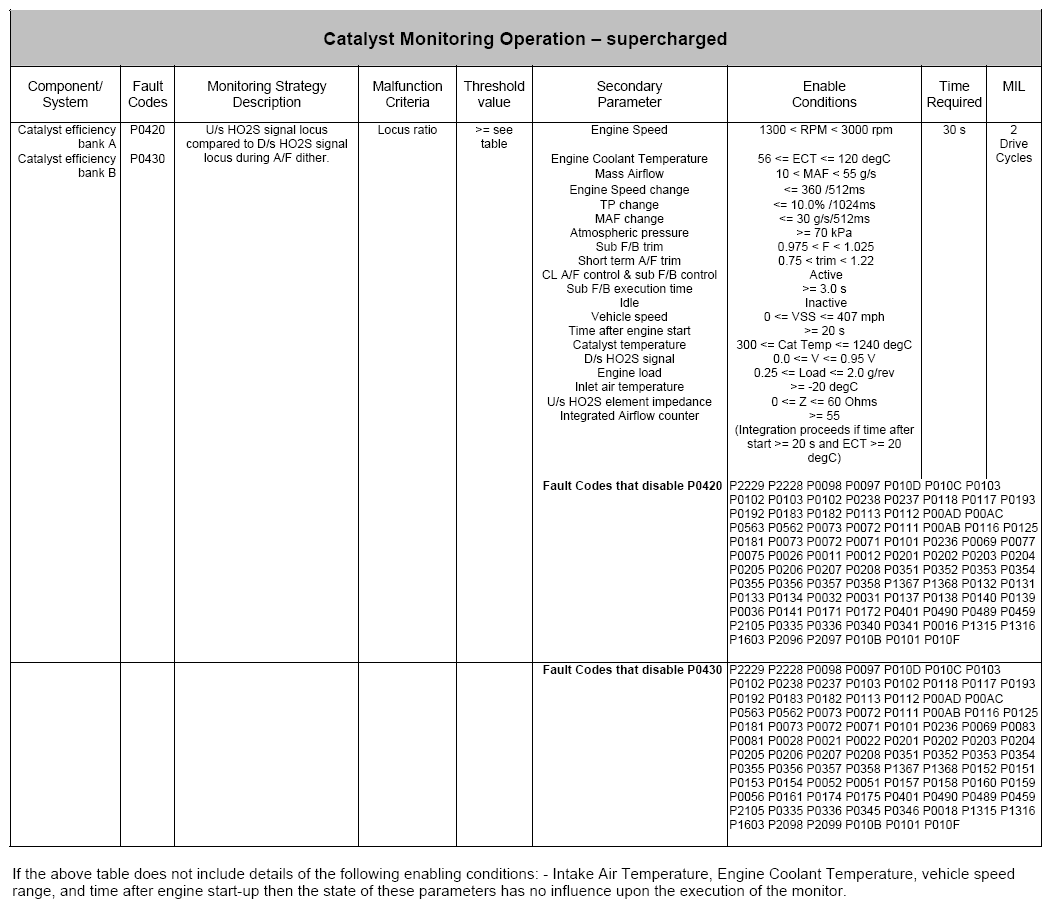

Fig 4: Catalyst Monitoring Operation - Supercharged (P0420, P0430)
G06421650Courtesy of JAGUAR CARS, INC.

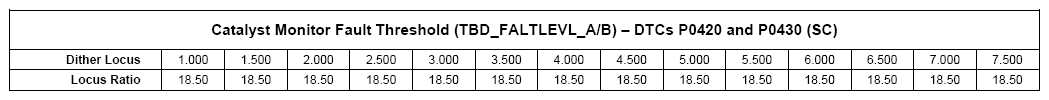

Fig 5: Catalyst Monitoring Fault Chart
G06421651Courtesy of JAGUAR CARS, INC.
