Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

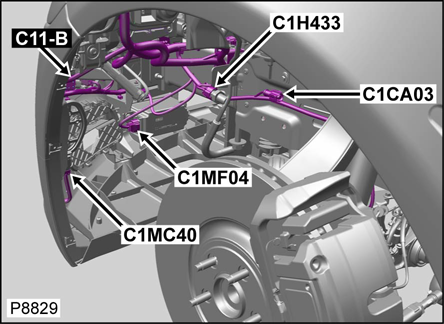

Fig 1: Left Front Wheel Opening

G00476850

Courtesy of JAGUAR CARS, INC.

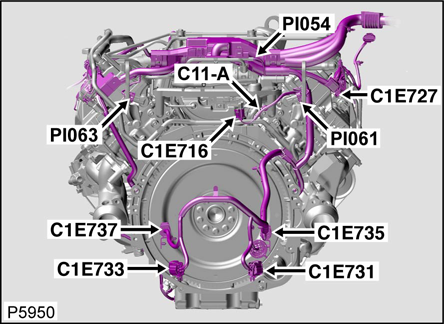

Fig 2: Rear Of Engine

G00476851

Courtesy of JAGUAR CARS, INC.

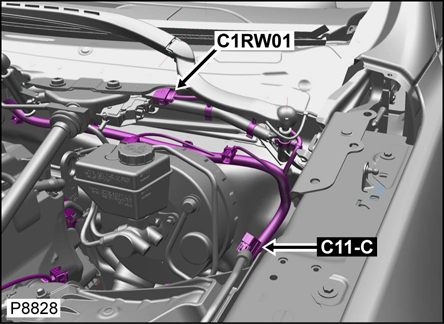

Fig 3: Left Rear Of Engine Compartment

G00476852

Courtesy of JAGUAR CARS, INC.

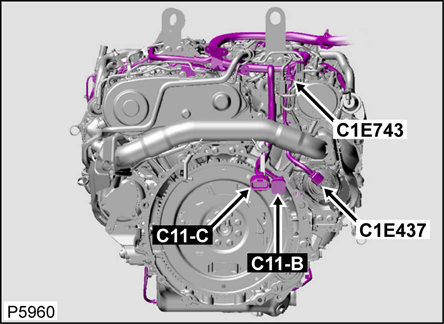

Fig 4: Rear Of Engine

G00476853

Courtesy of JAGUAR CARS, INC.

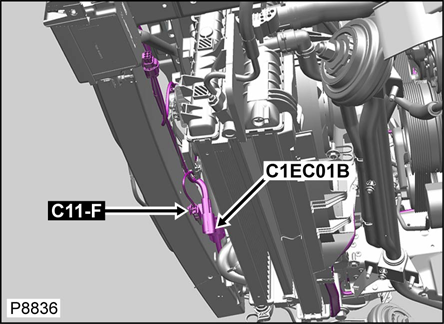

Fig 5: Front Lower Engine Compartment

G00476854

Courtesy of JAGUAR CARS, INC.

Fig 6: Front Lower Engine Compartment

G00476855

Courtesy of JAGUAR CARS, INC.

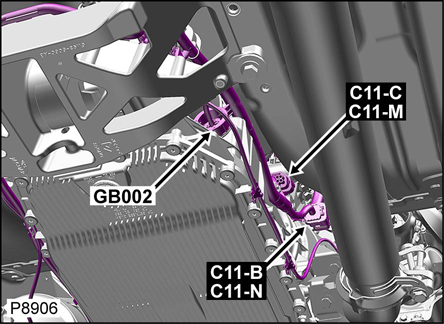

Fig 7: Lower Side Of Transmission

G00476856

Courtesy of JAGUAR CARS, INC.

Fig 8: Right Rear Of Engine Compartment

G00476857

Courtesy of JAGUAR CARS, INC.

Fig 9: Top Of Engine

G00476858

Courtesy of JAGUAR CARS, INC.

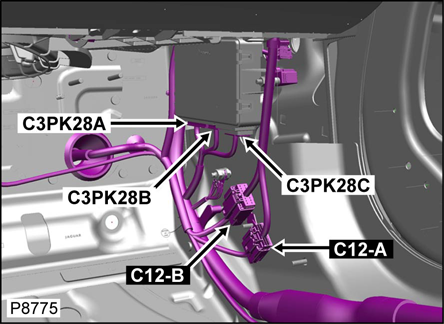

Fig 10: Right Kick Panel

G00476859

Courtesy of JAGUAR CARS, INC.

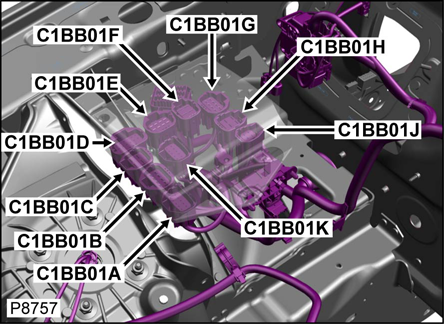

Fig 11: Under Engine Compartment Fuse Box

G00476860

Courtesy of JAGUAR CARS, INC.

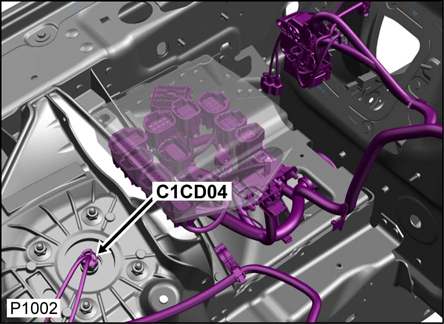

Fig 12: Suspension Turret

G00476861

Courtesy of JAGUAR CARS, INC.

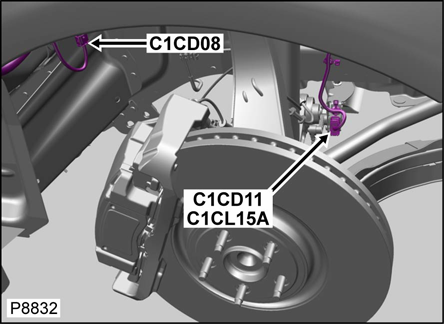

Fig 13: Right Front Wheel Opening

G00476862

Courtesy of JAGUAR CARS, INC.

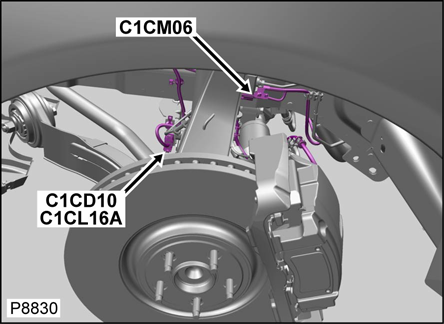

Fig 14: Left Front Wheel Opening

G00476863

Courtesy of JAGUAR CARS, INC.

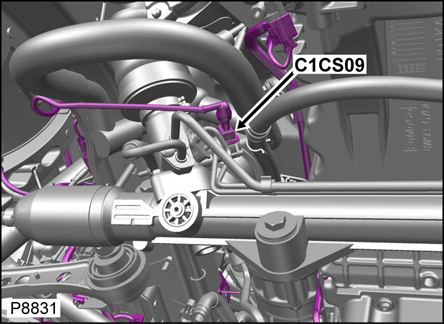

Fig 15: Steering Gear

G00476864

Courtesy of JAGUAR CARS, INC.

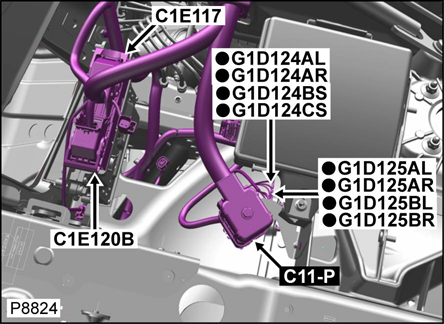

Fig 16: Right Side Of Engine Compartment

G00476865

Courtesy of JAGUAR CARS, INC.

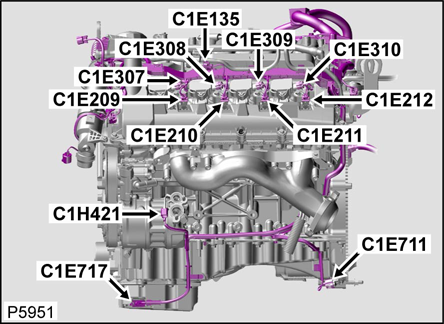

Fig 17: Left Side Of Engine

G00476866

Courtesy of JAGUAR CARS, INC.

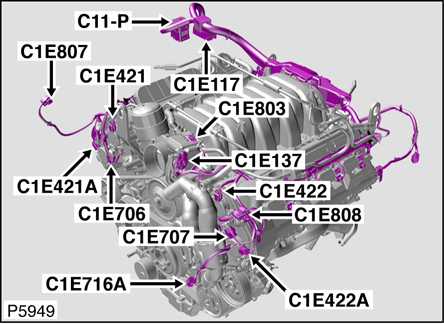

Fig 18: Front Center Of Engine

G00476867

Courtesy of JAGUAR CARS, INC.

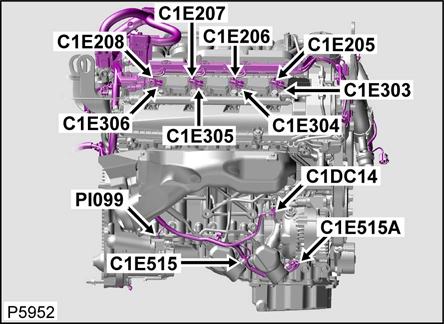

Fig 19: Right Side Of Engine

G00476868

Courtesy of JAGUAR CARS, INC.

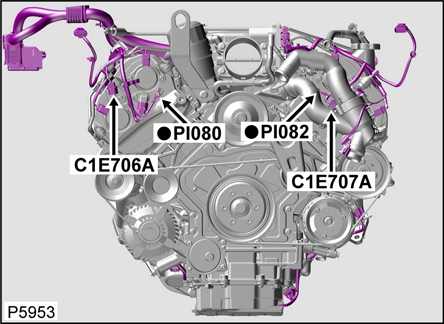

Fig 20: Front Of Engine

G00476869

Courtesy of JAGUAR CARS, INC.

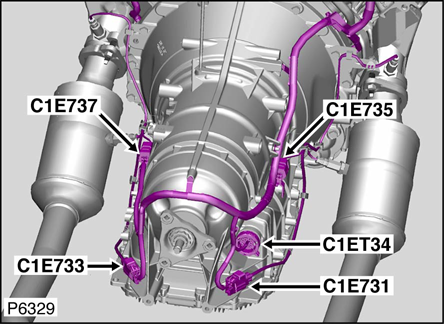

Fig 21: Transmission

G00476870

Courtesy of JAGUAR CARS, INC.

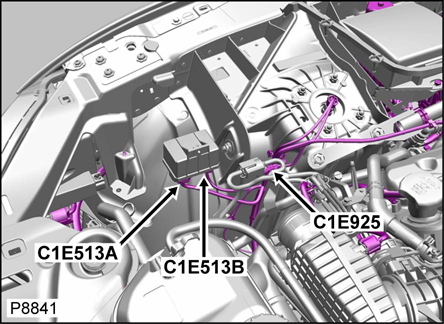

Fig 22: Right Front Of Engine Compartment

G00476871

Courtesy of JAGUAR CARS, INC.

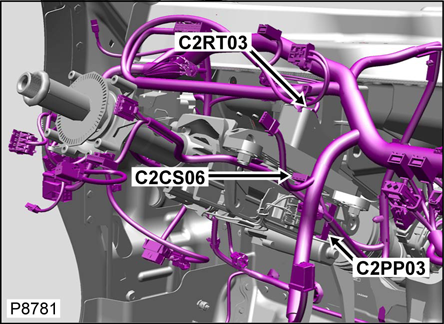

Fig 23: Steering Column

G00476872

Courtesy of JAGUAR CARS, INC.

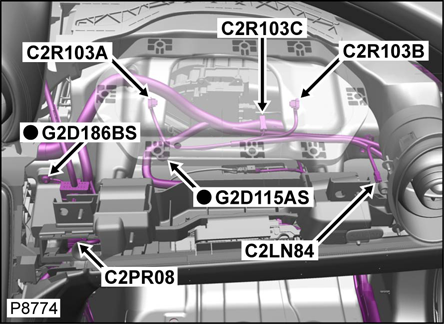

Fig 24: Right Side Of Dash

G00476873

Courtesy of JAGUAR CARS, INC.

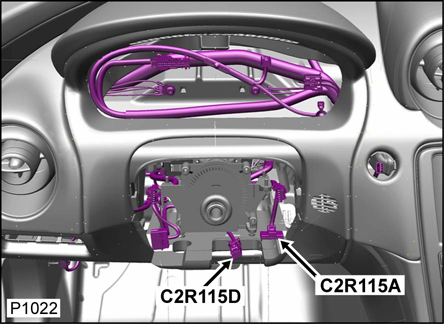

Fig 25: Center Of Dash

G00476874

Courtesy of JAGUAR CARS, INC.

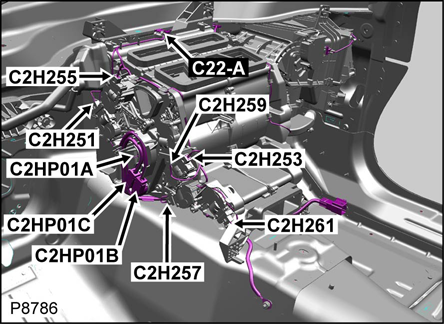

Fig 26: Center Of Dash

G00476875

Courtesy of JAGUAR CARS, INC.

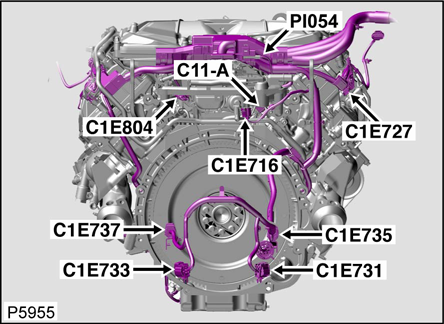

Fig 27: Rear Of Engine

G00476876

Courtesy of JAGUAR CARS, INC.

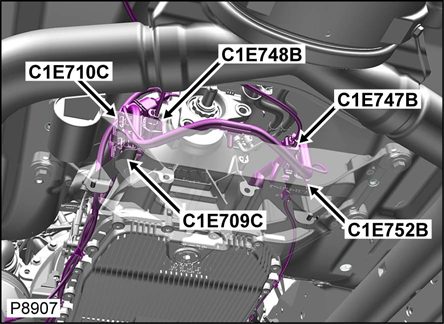

Fig 28: Side Of Transmission

G00476877

Courtesy of JAGUAR CARS, INC.

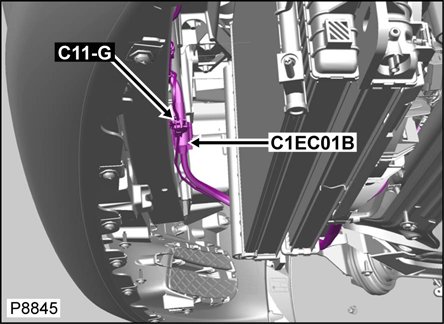

Fig 29: Front Bumper

G00476878

Courtesy of JAGUAR CARS, INC.

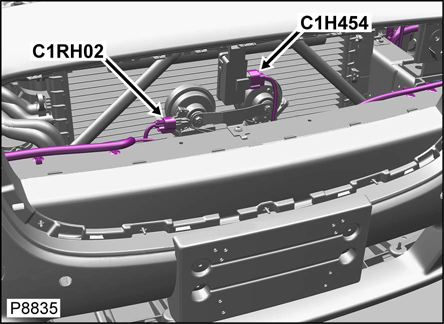

Fig 30: Front Of Engine Compartment

G00476879

Courtesy of JAGUAR CARS, INC.

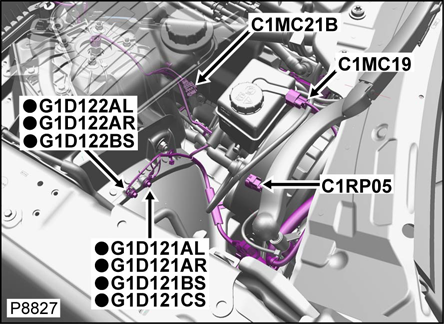

Fig 31: Engine Compartment - Left Side

G00476880

Courtesy of JAGUAR CARS, INC.

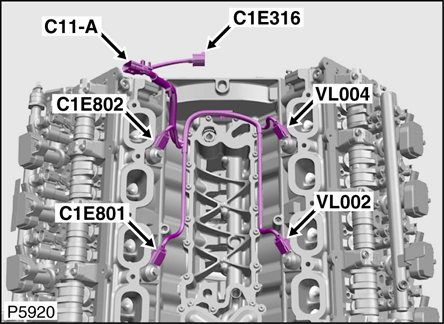

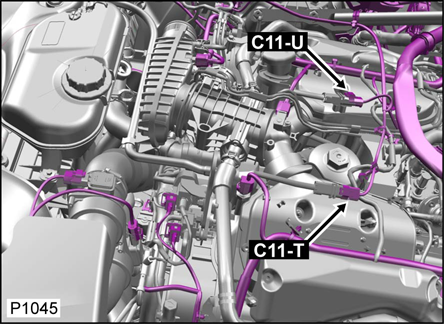

Fig 32: Engine - Top

G00476881

Courtesy of JAGUAR CARS, INC.

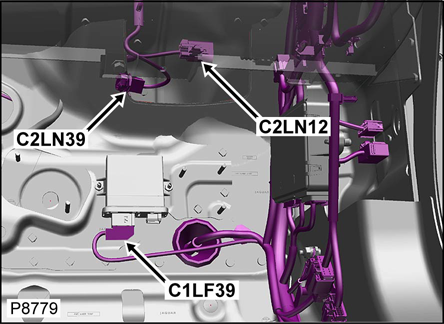

Fig 33: Right Front Passenger Compartment

G00476882

Courtesy of JAGUAR CARS, INC.

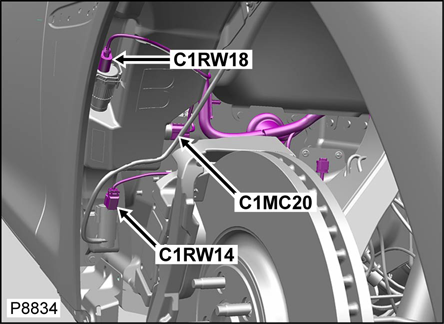

Fig 34: Right Front Wheelwell

G00476883

Courtesy of JAGUAR CARS, INC.

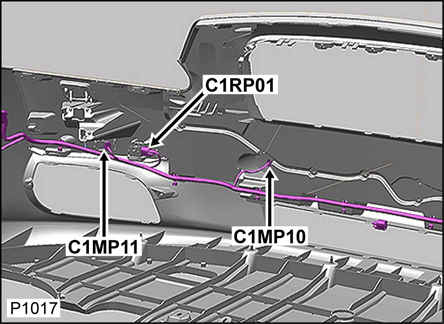

Fig 35: Front Bumper

G00476884

Courtesy of JAGUAR CARS, INC.

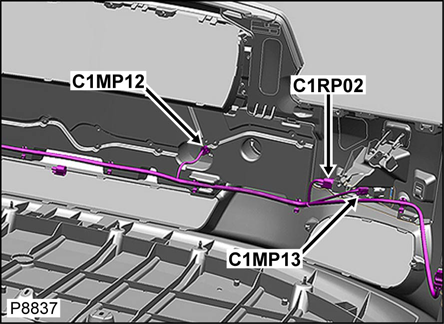

Fig 36: Front Bumper

G00476885

Courtesy of JAGUAR CARS, INC.

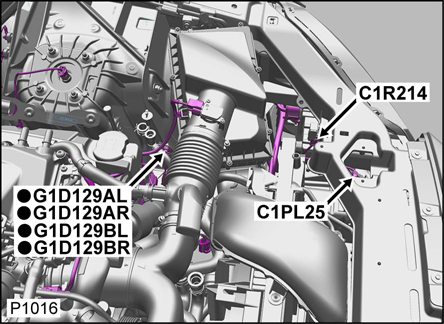

Fig 37: Left Side Of Engine Compartment

G00476886

Courtesy of JAGUAR CARS, INC.

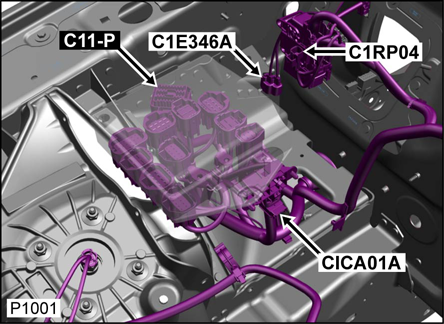

Fig 38: Right Side Of Engine Compartment

G00476887

Courtesy of JAGUAR CARS, INC.

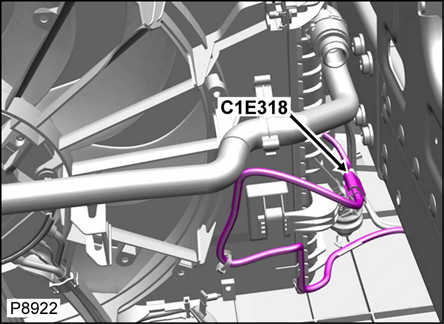

Fig 39: Right Front Of Engine Compartment

G00476888

Courtesy of JAGUAR CARS, INC.

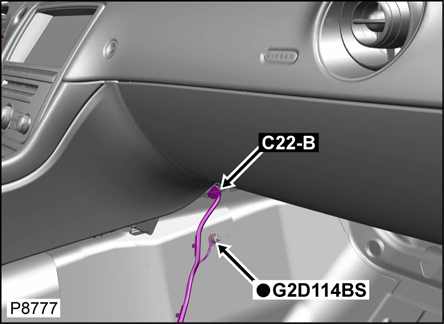

Fig 40: Right Side Of Dash & Console

G00476889

Courtesy of JAGUAR CARS, INC.

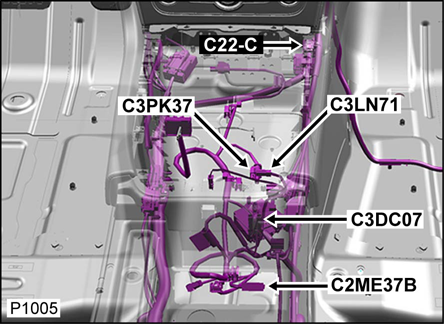

Fig 41: Console

G00476890

Courtesy of JAGUAR CARS, INC.

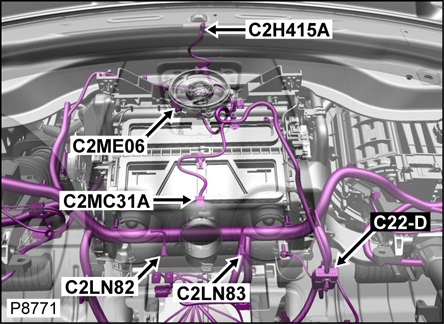

Fig 42: Center Instrument Panel

G00476891

Courtesy of JAGUAR CARS, INC.

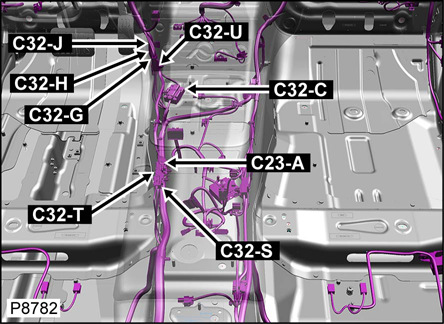

Fig 43: Center Console

G00476892

Courtesy of JAGUAR CARS, INC.

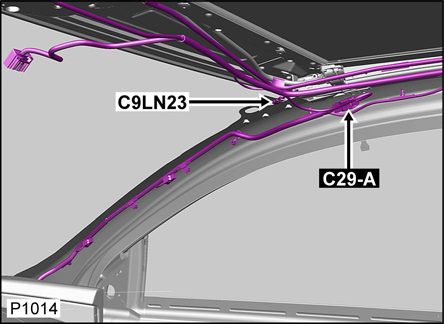

Fig 44: Right Front Roof

G00476893

Courtesy of JAGUAR CARS, INC.

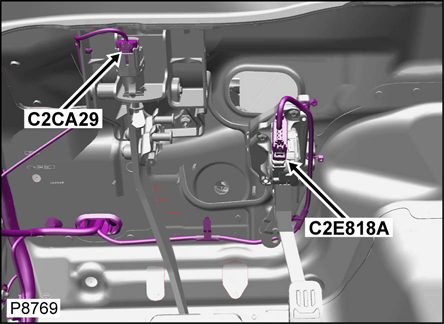

Fig 45: Driver Footwell

G00476894

Courtesy of JAGUAR CARS, INC.

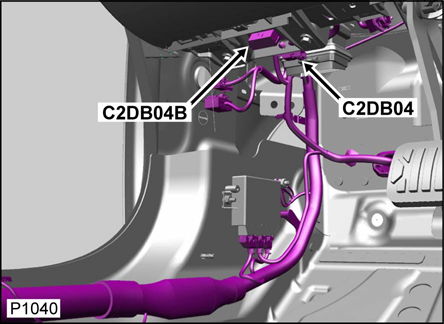

Fig 46: Driver Footwell

G00476895

Courtesy of JAGUAR CARS, INC.

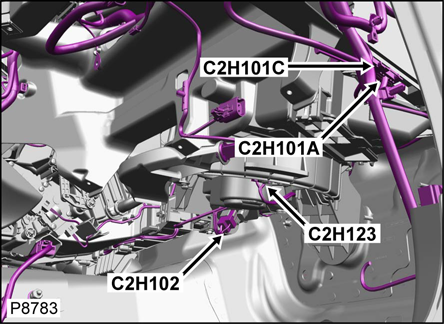

Fig 47: Right Side Of Dash

G00476896

Courtesy of JAGUAR CARS, INC.

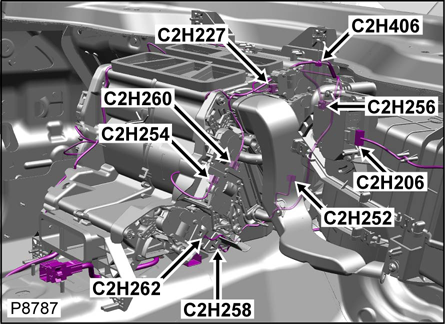

Fig 48: HVAC Housing

G00476897

Courtesy of JAGUAR CARS, INC.

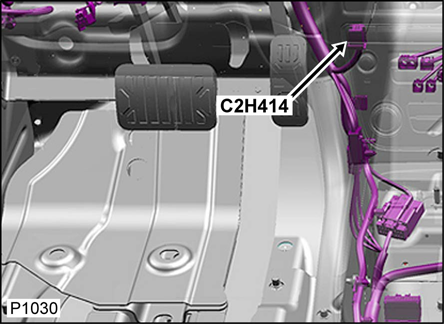

Fig 49: Left Side Of Dash

G00476898

Courtesy of JAGUAR CARS, INC.

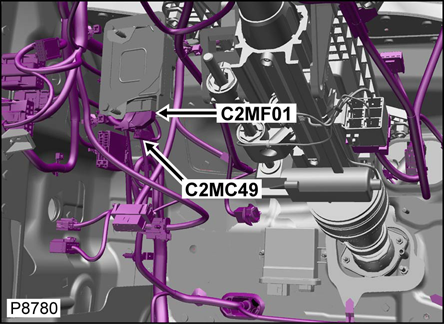

Fig 50: Left Side Of Dash

G00476899

Courtesy of JAGUAR CARS, INC.

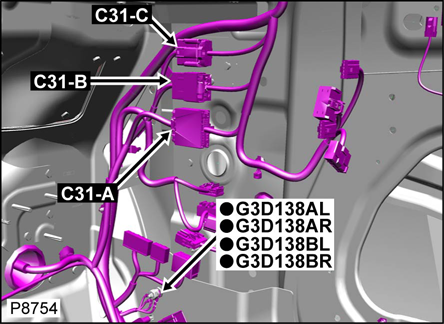

Fig 51: Right Kick Panel

G00476900

Courtesy of JAGUAR CARS, INC.

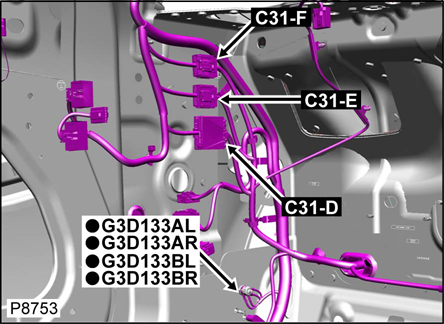

Fig 52: Left Kick Panel

G00476901

Courtesy of JAGUAR CARS, INC.

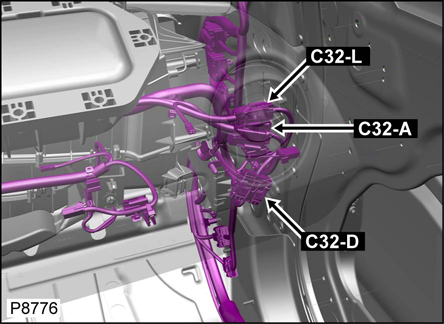

Fig 53: Right Side Of Dash

G00476902

Courtesy of JAGUAR CARS, INC.

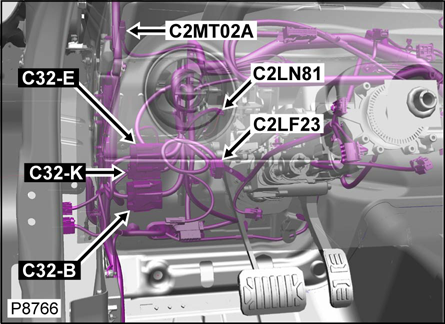

Fig 54: Left Side Of Dash

G00476903

Courtesy of JAGUAR CARS, INC.

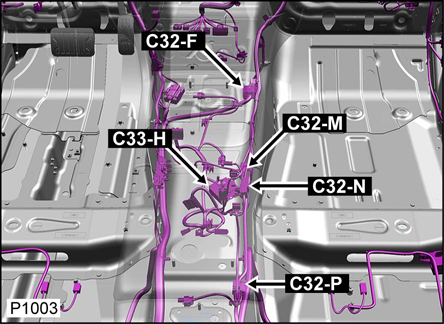

Fig 55: Center Console

G00476904

Courtesy of JAGUAR CARS, INC.

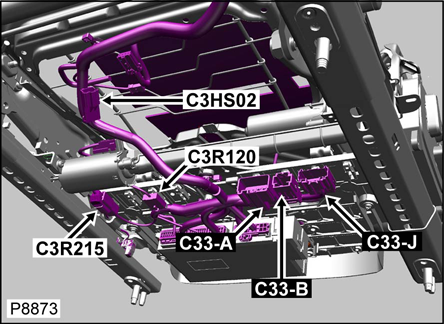

Fig 56: Driver Seat

G00476905

Courtesy of JAGUAR CARS, INC.

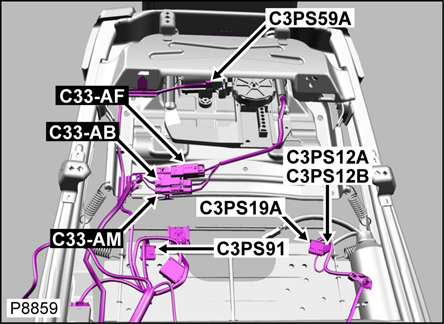

Fig 57: Front Seat Backrest

G00476906

Courtesy of JAGUAR CARS, INC.

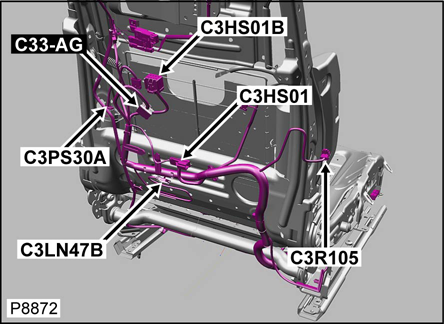

Fig 58: Driver Seat Backrest

G00476907

Courtesy of JAGUAR CARS, INC.

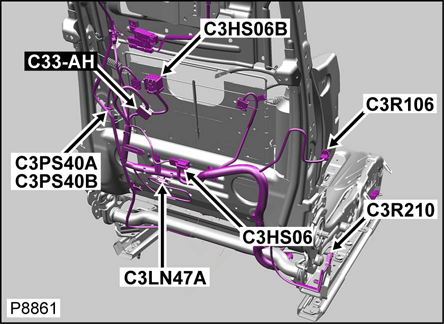

Fig 59: Passenger Seat Backrest

G00476908

Courtesy of JAGUAR CARS, INC.

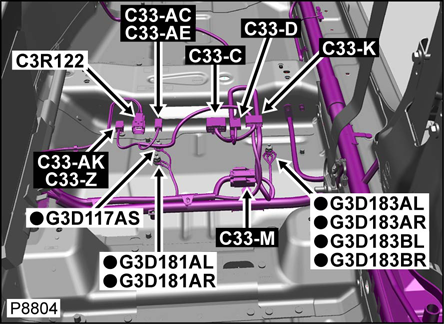

Fig 60: Front Passenger Seat Well

G00476909

Courtesy of JAGUAR CARS, INC.

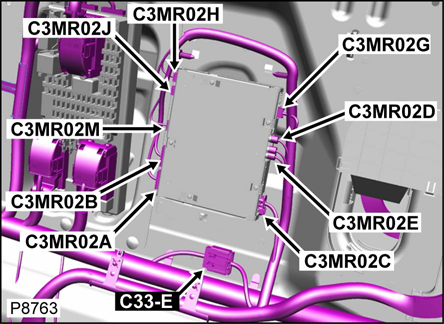

Fig 61: Left Rear Seat Backrest

G00476910

Courtesy of JAGUAR CARS, INC.

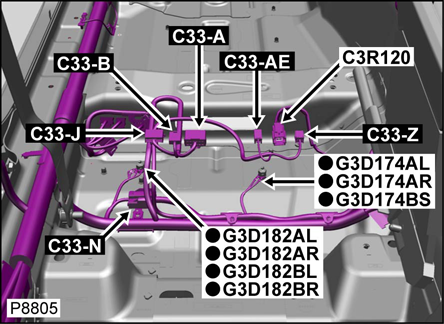

Fig 62: Driver Seat Well

G00476911

Courtesy of JAGUAR CARS, INC.

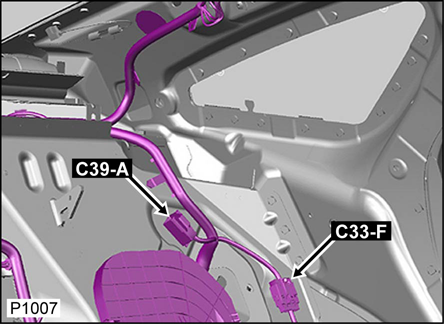

Fig 63: Left Quarter Panel

G00476912

Courtesy of JAGUAR CARS, INC.

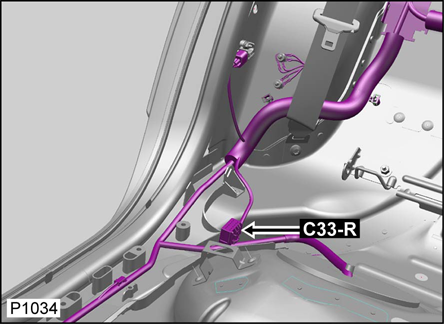

Fig 64: Right Door Sill

G00476913

Courtesy of JAGUAR CARS, INC.

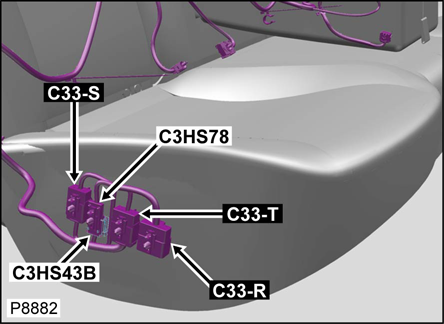

Fig 65: Right Rear Seat

G00476914

Courtesy of JAGUAR CARS, INC.

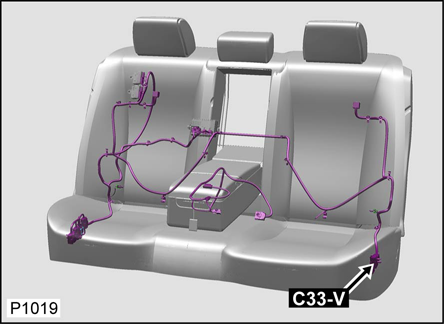

Fig 66: Left Rear Seat

G00476915

Courtesy of JAGUAR CARS, INC.

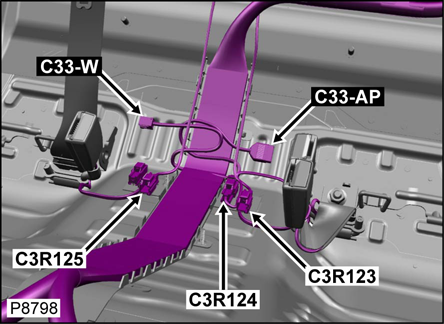

Fig 67: Rear Floor Tunnel

G00476916

Courtesy of JAGUAR CARS, INC.

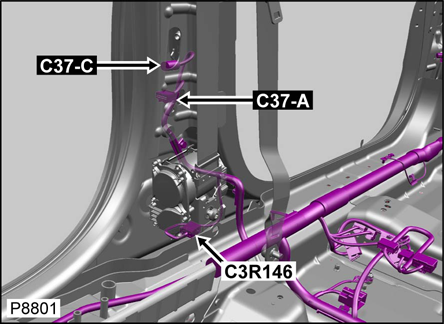

Fig 68: Left "B" Pillar

G00476917

Courtesy of JAGUAR CARS, INC.

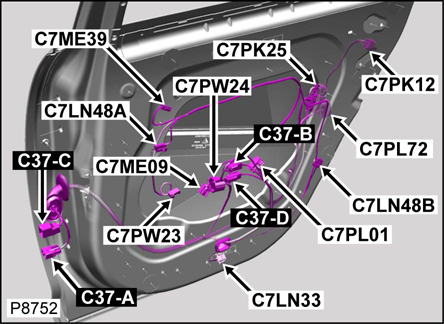

Fig 69: Right Rear Door

G00476918

Courtesy of JAGUAR CARS, INC.

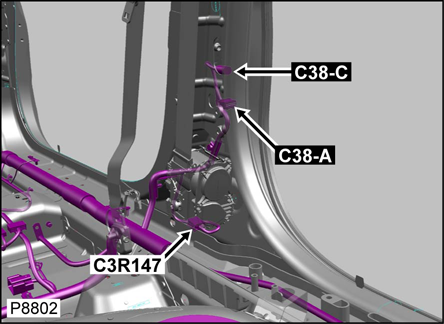

Fig 70: Right "B" Pillar

G00476919

Courtesy of JAGUAR CARS, INC.

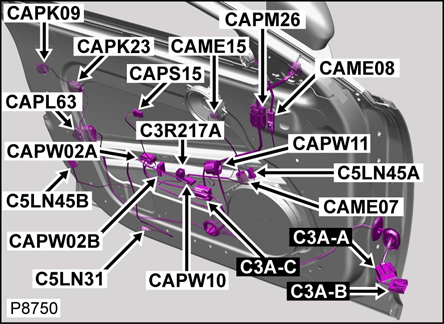

Fig 71: Driver Door

G00476920

Courtesy of JAGUAR CARS, INC.

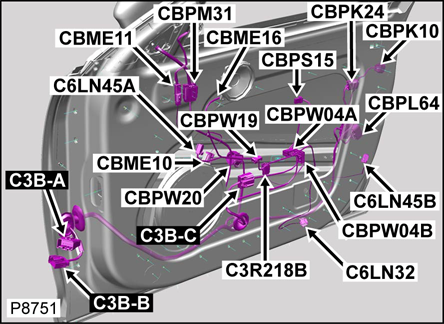

Fig 72: Right Front Door

G00476921

Courtesy of JAGUAR CARS, INC.

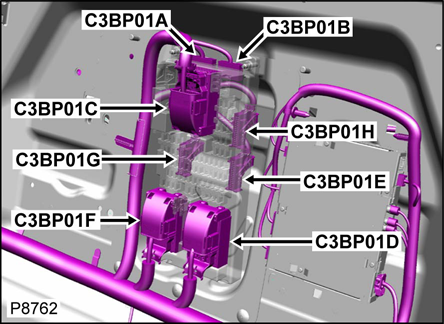

Fig 73: Left Rear Seat Backrest

G00476922

Courtesy of JAGUAR CARS, INC.

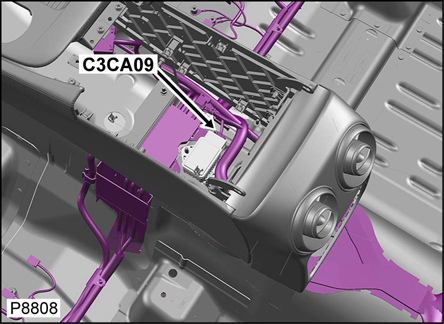

Fig 74: Center Console

G00476923

Courtesy of JAGUAR CARS, INC.

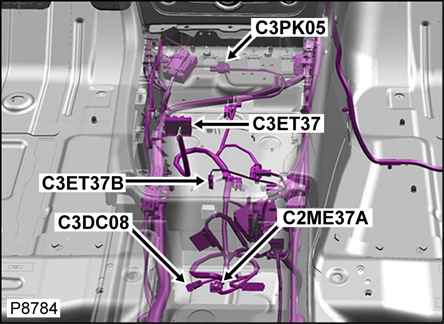

Fig 75: Center Console

G00476924

Courtesy of JAGUAR CARS, INC.

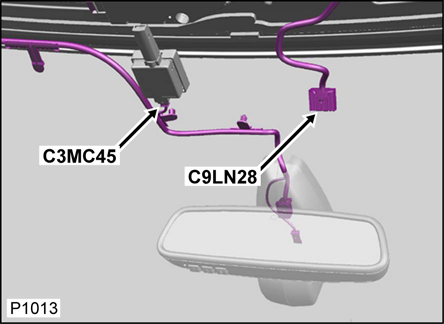

Fig 76: Roof Front

G00476925

Courtesy of JAGUAR CARS, INC.

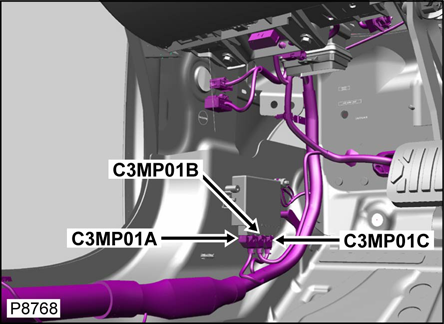

Fig 77: Left Kick Panel

G00476926

Courtesy of JAGUAR CARS, INC.

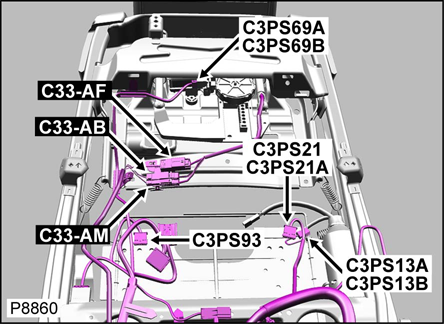

Fig 78: Front Passenger Seat Backrest

G00476927

Courtesy of JAGUAR CARS, INC.

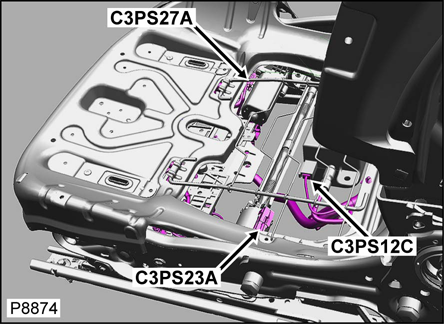

Fig 79: Driver Seat Frame

G00476928

Courtesy of JAGUAR CARS, INC.

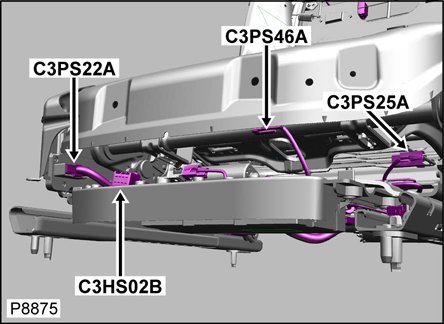

Fig 80: Driver Seat Front Frame

G00476929

Courtesy of JAGUAR CARS, INC.

Fig 81: Front Passenger Seat Frame

G00476930

Courtesy of JAGUAR CARS, INC.

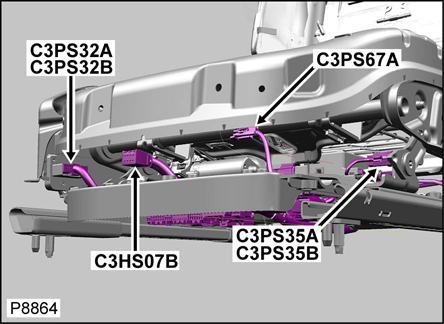

Fig 82: Front Passenger Seat Frame Front

G00476931

Courtesy of JAGUAR CARS, INC.

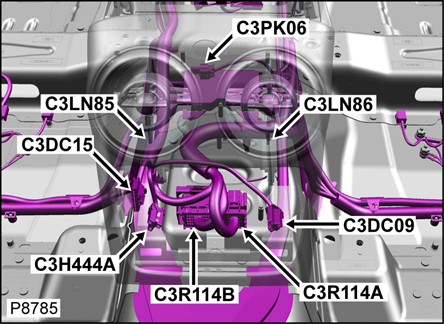

Fig 83: Center Console

G00476932

Courtesy of JAGUAR CARS, INC.

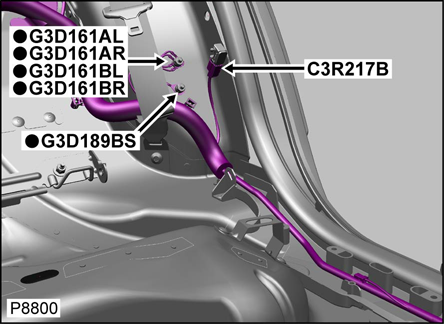

Fig 84: Left "C" Pillar

G00476933

Courtesy of JAGUAR CARS, INC.

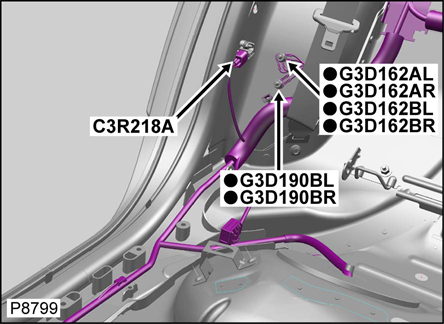

Fig 85: Right "C" Pillar

G00476934

Courtesy of JAGUAR CARS, INC.

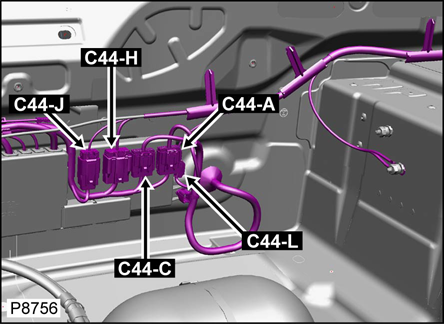

Fig 86: Left Rear Of Trunk

G00476935

Courtesy of JAGUAR CARS, INC.

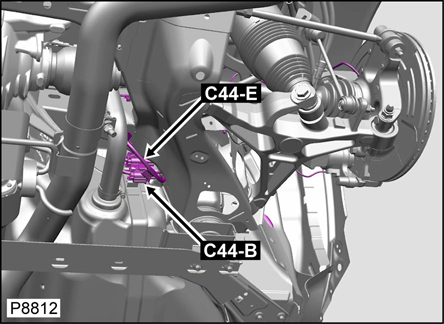

Fig 87: Under Right Side Of Vehicle

G00476936

Courtesy of JAGUAR CARS, INC.

Fig 88: Right Side Package Tray

G00476937

Courtesy of JAGUAR CARS, INC.

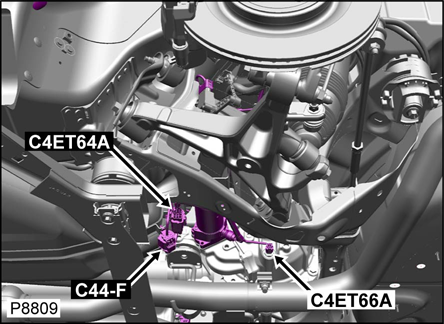

Fig 89: Under Vehicle - Center Rear

G00476938

Courtesy of JAGUAR CARS, INC.

Fig 90: Trunk Lid

G00476939

Courtesy of JAGUAR CARS, INC.

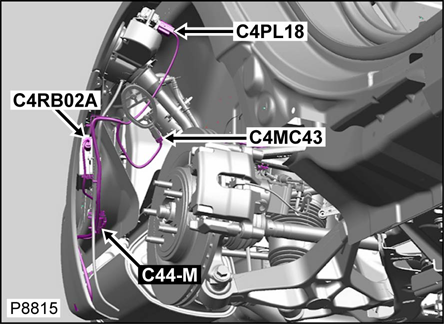

Fig 91: Right Rear Wheel Opening

G00476940

Courtesy of JAGUAR CARS, INC.

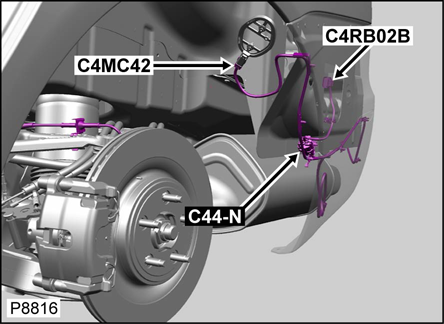

Fig 92: Left Rear Wheel Opening

G00476941

Courtesy of JAGUAR CARS, INC.

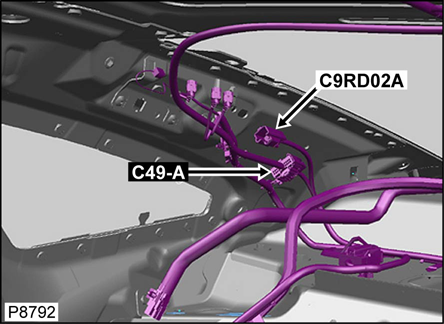

Fig 93: Right Rear Window Support Beam

G00476942

Courtesy of JAGUAR CARS, INC.

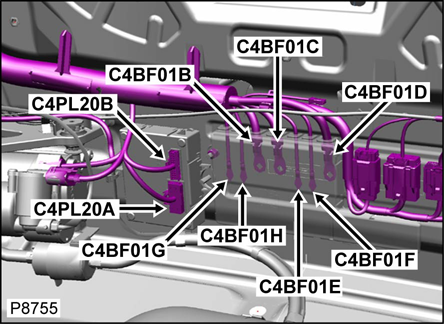

Fig 94: Trunk

G00476943

Courtesy of JAGUAR CARS, INC.

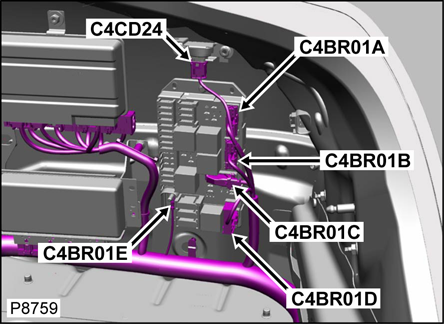

Fig 95: Right Side Of Trunk

G00476944

Courtesy of JAGUAR CARS, INC.

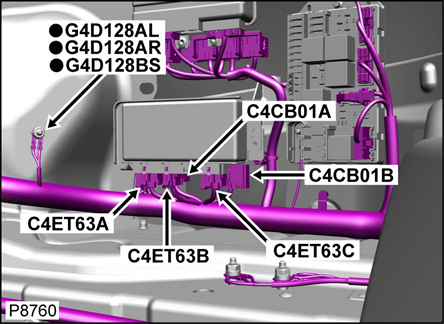

Fig 96: Right Side Of Trunk

G00476945

Courtesy of JAGUAR CARS, INC.

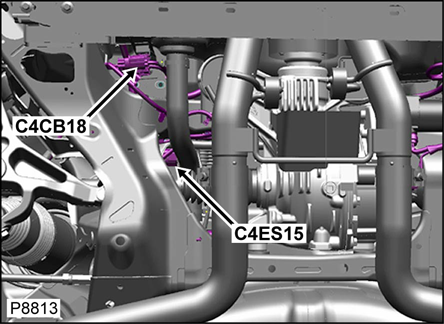

Fig 97: Under Vehicle - Right Rear

G00476946

Courtesy of JAGUAR CARS, INC.

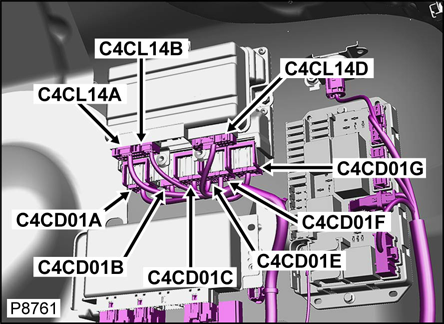

Fig 98: Right Side Of Trunk

G00476947

Courtesy of JAGUAR CARS, INC.

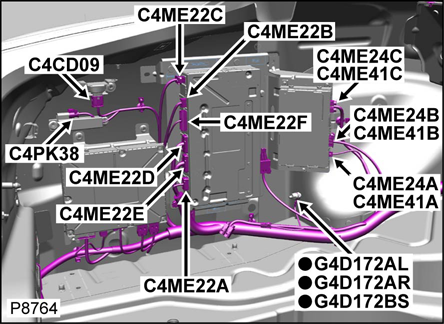

Fig 99: Left Side Of Trunk

G00476948

Courtesy of JAGUAR CARS, INC.

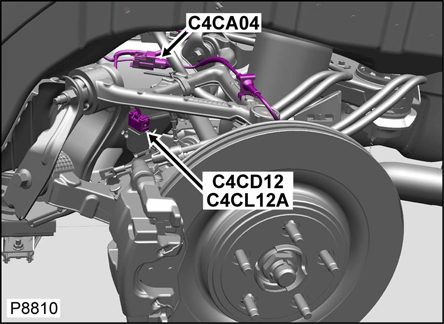

Fig 100: Left Rear Wheel Opening

G00476949

Courtesy of JAGUAR CARS, INC.

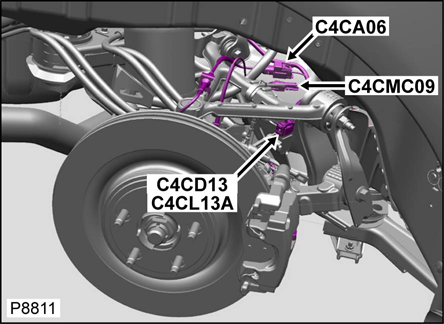

Fig 101: Right Rear Wheel Opening

G00476950

Courtesy of JAGUAR CARS, INC.

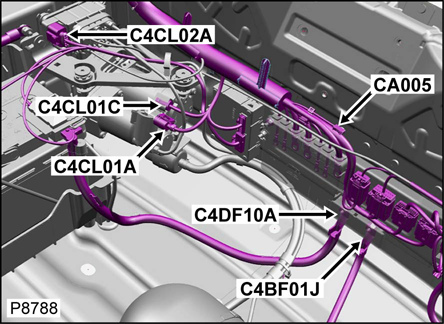

Fig 102: Right Side Of Trunk

G00476951

Courtesy of JAGUAR CARS, INC.

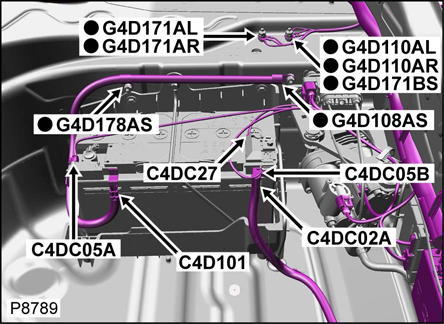

Fig 103: Right Side Of Trunk

G00476952

Courtesy of JAGUAR CARS, INC.

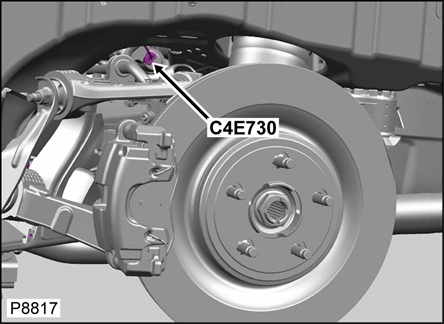

Fig 104: Left Wheel Opening

G00476953

Courtesy of JAGUAR CARS, INC.

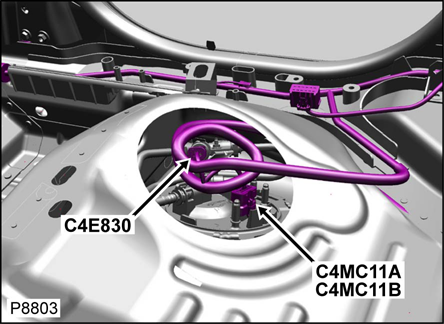

Fig 105: Right Rear Seat Floor Pan

G00476954

Courtesy of JAGUAR CARS, INC.

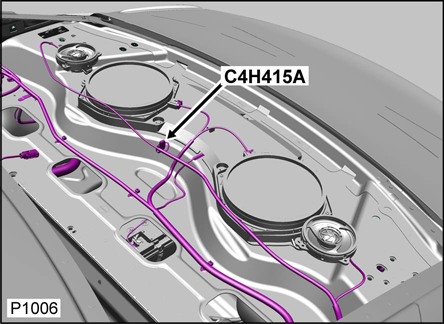

Fig 106: Rear Package Tray

G00476955

Courtesy of JAGUAR CARS, INC.

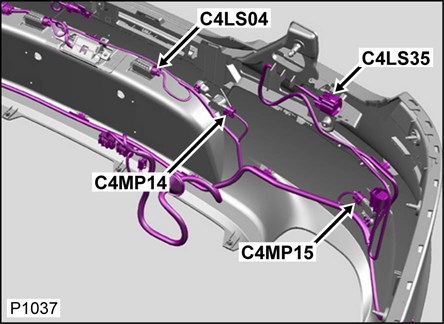

Fig 107: Left Side Of Rear Bumper

G00476956

Courtesy of JAGUAR CARS, INC.

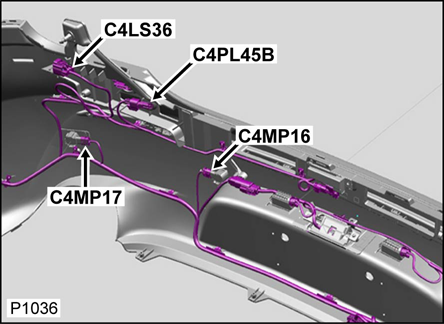

Fig 108: Right Side Of Rear Bumper

G00476957

Courtesy of JAGUAR CARS, INC.

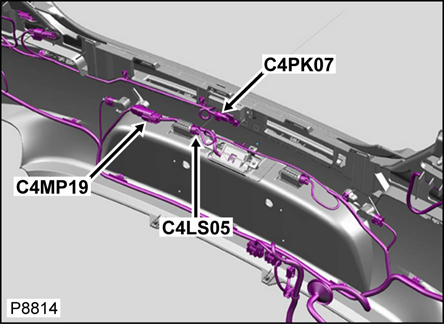

Fig 109: Center Rear Of Bumper

G00476958

Courtesy of JAGUAR CARS, INC.

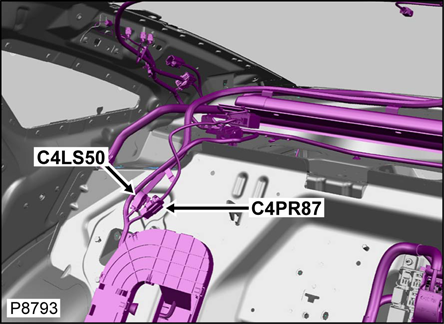

Fig 110: Right Rear Seat Panel

G00476959

Courtesy of JAGUAR CARS, INC.

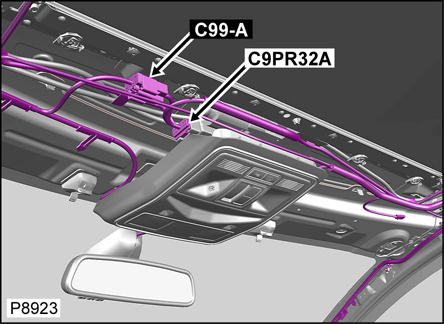

Fig 111: Front Roof

G00476960

Courtesy of JAGUAR CARS, INC.

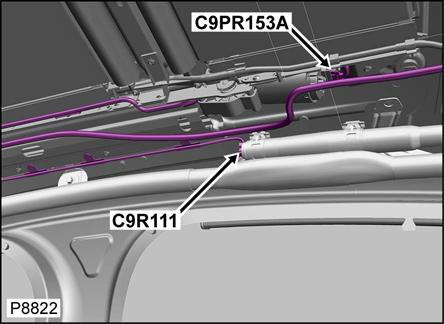

Fig 112: Right Side Roof

G00476961

Courtesy of JAGUAR CARS, INC.

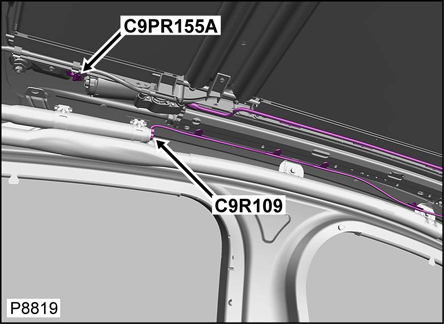

Fig 113: Left Side Roof

G00476962

Courtesy of JAGUAR CARS, INC.

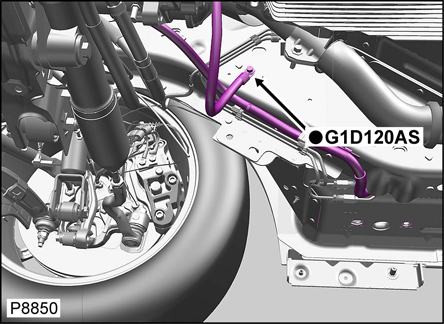

Fig 114: Right Rear Of Engine Compartment

G00476963

Courtesy of JAGUAR CARS, INC.

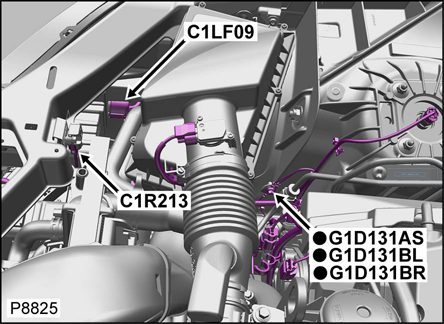

Fig 115: Right Side Of Engine Compartment

G00476964

Courtesy of JAGUAR CARS, INC.

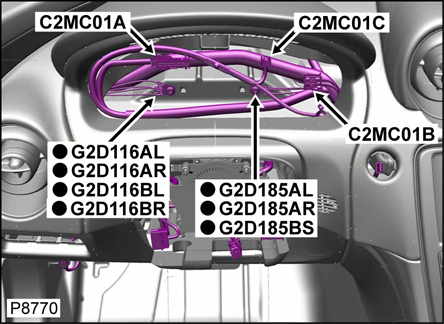

Fig 116: Center Of Dash

G00476965

Courtesy of JAGUAR CARS, INC.

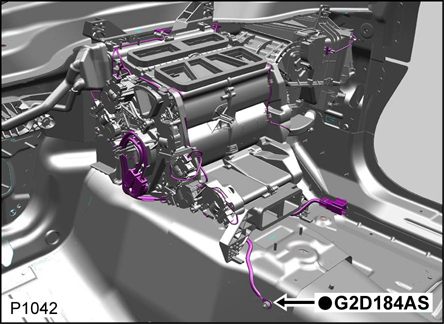

Fig 117: Center Console

G00476966

Courtesy of JAGUAR CARS, INC.

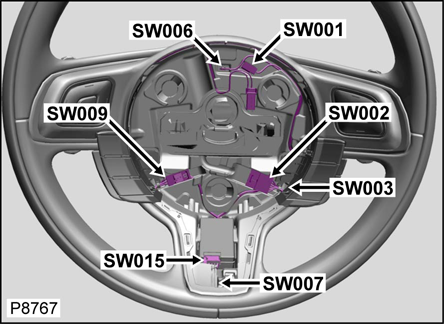

Fig 118: Steering Wheel

G00476967

Courtesy of JAGUAR CARS, INC.

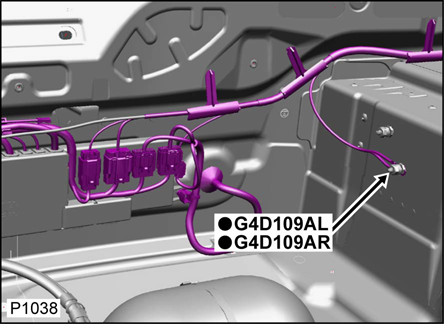

Fig 119: Left Rear Of Trunk

G00476968

Courtesy of JAGUAR CARS, INC.

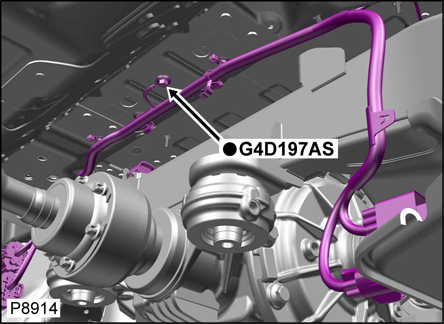

Fig 120: Under Vehicle - Center Rear

G00476969

Courtesy of JAGUAR CARS, INC.

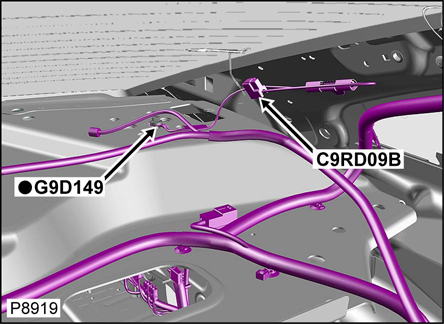

Fig 121: Left Side Package Tray

G00476970

Courtesy of JAGUAR CARS, INC.
