Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Under Right Side Of Dash

G00454430

Courtesy of JAGUAR CARS, INC.

Fig 2: Behind Right Side Of Dash

G00454429

Courtesy of JAGUAR CARS, INC.

Fig 3: Under Right Side Of Dash

G00454431

Courtesy of JAGUAR CARS, INC.

Fig 4: Behind Center Of Dash

G00454432

Courtesy of JAGUAR CARS, INC.

Fig 5: Behind Right Side Of Dash

G00454433

Courtesy of JAGUAR CARS, INC.

Fig 6: Left Side Of Luggage Compartment

G00454434

Courtesy of JAGUAR CARS, INC.

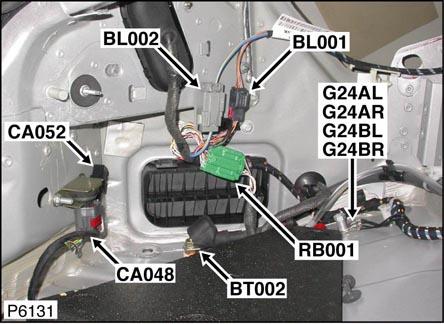

Fig 7: Left Rear Of Luggage Compartment

G00476801

Courtesy of JAGUAR CARS, INC.

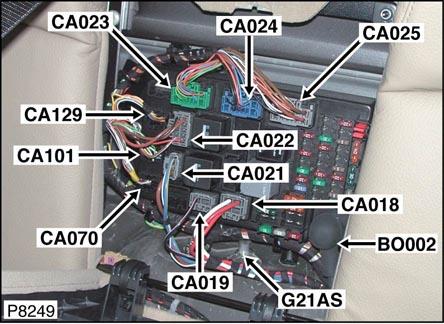

Fig 8: Behind Rear Seat Backrest

G00476802

Courtesy of JAGUAR CARS, INC.

Fig 9: Left Rear Of Vehicle

G00454440

Courtesy of JAGUAR CARS, INC.

Fig 10: Behind Right Rear Trim Panel

G00454442

Courtesy of JAGUAR CARS, INC.

Fig 11: Behind Rear Seat Backrest

G00454443

Courtesy of JAGUAR CARS, INC.

Fig 12: Behind Rear Seat Backrest

G00454445

Courtesy of JAGUAR CARS, INC.

Fig 13: Behind Rear Seat Backrest

G00454446

Courtesy of JAGUAR CARS, INC.

Fig 14: Behind Left Rear Trim Panel

G00454447

Courtesy of JAGUAR CARS, INC.

Fig 15: Under Rear Of Center Console

G00454449

Courtesy of JAGUAR CARS, INC.

Fig 16: Behind Right Kick Panel

G00454450

Courtesy of JAGUAR CARS, INC.

Fig 17: Luggage Compartment

G00454451

Courtesy of JAGUAR CARS, INC.

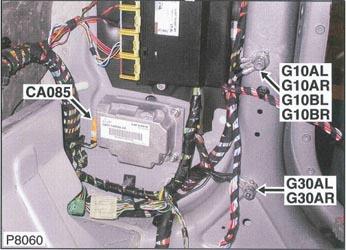

Fig 18: Behind Right Kick Panel

G00476810

Courtesy of JAGUAR CARS, INC.

Fig 19: Center Front Of Headliner

G00454453

Courtesy of JAGUAR CARS, INC.

Fig 20: Behind Rear Seat Backrest

G00454454

Courtesy of JAGUAR CARS, INC.

Fig 21: Behind Right Rear Trim Panel

G00454455

Courtesy of JAGUAR CARS, INC.

Fig 22: Behind Left Rear Trim Panel

G00454456

Courtesy of JAGUAR CARS, INC.

Fig 23: Right Side Of Luggage Compartment

G00454457

Courtesy of JAGUAR CARS, INC.

Fig 24: Left Side Of Luggage Compartment

G00454458

Courtesy of JAGUAR CARS, INC.

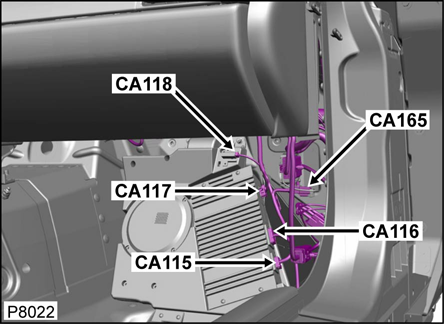

Fig 25: Passenger's Footwell

G00476812

Courtesy of JAGUAR CARS, INC.

Fig 26: Right Front Of Headliner

G00454462

Courtesy of JAGUAR CARS, INC.

Fig 27: Under Right Side Of Right Seat

G00454464

Courtesy of JAGUAR CARS, INC.

Fig 28: Behind Rear Seat Backrest

G00454465

Courtesy of JAGUAR CARS, INC.

Fig 29: Under Rear Seat

G00454467

Courtesy of JAGUAR CARS, INC.

Fig 30: Right "A" Pillar

G00454468

Courtesy of JAGUAR CARS, INC.

Fig 31: Under Center Console

G00454471

Courtesy of JAGUAR CARS, INC.

Fig 32: Lower Right Front Of Engine Compartment

G00454475

Courtesy of JAGUAR CARS, INC.

Fig 33: Left "A" Pillar

G00454476

Courtesy of JAGUAR CARS, INC.

Fig 34: Driver's Door

G00454477

Courtesy of JAGUAR CARS, INC.

Fig 35: Driver's Door

G00454478

Courtesy of JAGUAR CARS, INC.

Fig 36: Driver's Door

G00454479

Courtesy of JAGUAR CARS, INC.

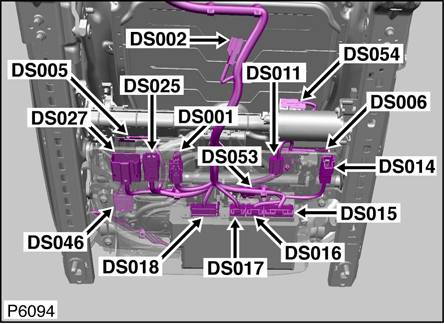

Fig 37: Under Driver's Seat

G00476828

Courtesy of JAGUAR CARS, INC.

Fig 38: Behind Left Front Fender Liner

G00454486

Courtesy of JAGUAR CARS, INC.

Fig 39: Left Side Of Front Bumper

G00454487

Courtesy of JAGUAR CARS, INC.

Fig 40: Right Side Of Front Bumper

G00454488

Courtesy of JAGUAR CARS, INC.

Fig 41: Behind Left Kick Panel

G00454489

Courtesy of JAGUAR CARS, INC.

Fig 42: Under Right Front Of Vehicle

G00454490

Courtesy of JAGUAR CARS, INC.

Fig 43: Rear Of Engine Compartment

G00454493

Courtesy of JAGUAR CARS, INC.

Fig 44: Left Rear Of Engine Compartment

G00454494

Courtesy of JAGUAR CARS, INC.

Fig 45: Forward Of Radiator

G00454495

Courtesy of JAGUAR CARS, INC.

Fig 46: Left Side Of Engine Compartment

G00454496

Courtesy of JAGUAR CARS, INC.

Fig 47: Lower Left Rear Of Engine Compartment

G00454497

Courtesy of JAGUAR CARS, INC.

Fig 48: Left Rear Of Engine Compartment

G00454498

Courtesy of JAGUAR CARS, INC.

Fig 49: Behind Left Kick Panel

G00454502

Courtesy of JAGUAR CARS, INC.

Fig 50: Forward Of Radiator

G00454503

Courtesy of JAGUAR CARS, INC.

Fig 51: Behind Left Side Of Radiator

G00454504

Courtesy of JAGUAR CARS, INC.

Fig 52: Under Right Front Of Vehicle

G00454505

Courtesy of JAGUAR CARS, INC.

Fig 53: Right Side Of Engine Compartment

G00454506

Courtesy of JAGUAR CARS, INC.

Fig 54: Behind Right Kick Panel

G00454510

Courtesy of JAGUAR CARS, INC.

Fig 55: Left Rear Of Engine Compartment

G00454513

Courtesy of JAGUAR CARS, INC.

Fig 56: Behind Left Side Of Dash

G00454515

Courtesy of JAGUAR CARS, INC.

Fig 57: Behind Instrument Cluster

G00454516

Courtesy of JAGUAR CARS, INC.

Fig 58: Under Center Console

G00454517

Courtesy of JAGUAR CARS, INC.

Fig 59: Under Driver's Seat

G00454518

Courtesy of JAGUAR CARS, INC.

Fig 60: Under Front Passenger's Seat

G00454519

Courtesy of JAGUAR CARS, INC.

Fig 61: Right Side Of Luggage Compartment

G00454520

Courtesy of JAGUAR CARS, INC.

Fig 62: Under Front Of Center Console

G00454521

Courtesy of JAGUAR CARS, INC.

Fig 63: Behind Glove Box

G00454523

Courtesy of JAGUAR CARS, INC.

Fig 64: Behind Right End Of Dash

G00454525

Courtesy of JAGUAR CARS, INC.

Fig 65: Behind Right Side Of Dash

G00454526

Courtesy of JAGUAR CARS, INC.

Fig 66: Driver's Footwell

G00454528

Courtesy of JAGUAR CARS, INC.

Fig 67: Behind Right Side Of Dash

G00454529

Courtesy of JAGUAR CARS, INC.

Fig 68: Under Left Side Of Dash

G00454530

Courtesy of JAGUAR CARS, INC.

Fig 69: Top Center Of Dash

G00454531

Courtesy of JAGUAR CARS, INC.

Fig 70: Under Left Side Of Dash

G00454533

Courtesy of JAGUAR CARS, INC.

Fig 71: Under Left Side Of Dash

G00454534

Courtesy of JAGUAR CARS, INC.

Fig 72: Steering Wheel

G00454535

Courtesy of JAGUAR CARS, INC.

Fig 73: Top Of Steering Column

G00454536

Courtesy of JAGUAR CARS, INC.

Fig 74: Under Left Side Of Dash

G00454537

Courtesy of JAGUAR CARS, INC.

Fig 75: Passenger's Door

G00454540

Courtesy of JAGUAR CARS, INC.

Fig 76: Passenger's Door

G00454542

Courtesy of JAGUAR CARS, INC.

Fig 77: Right Rear Of Luggage Compartment

G00454543

Courtesy of JAGUAR CARS, INC.

Fig 78: Right Side Of Luggage Compartment

G00454544

Courtesy of JAGUAR CARS, INC.

Fig 79: Right Rear Of Luggage Compartment

G00454545

Courtesy of JAGUAR CARS, INC.

Fig 80: Passenger's Door

G00454568

Courtesy of JAGUAR CARS, INC.

Fig 81: Center Of Rear Bumper

G00454569

Courtesy of JAGUAR CARS, INC.

Fig 82: Left Rear Wheelwell

G00454572

Courtesy of JAGUAR CARS, INC.

Fig 83: Steering Wheel

G00454573

Courtesy of JAGUAR CARS, INC.

Fig 84: Behind Rear Seat Backrest

G00454577

Courtesy of JAGUAR CARS, INC.

Fig 85: Right Side Of Luggage Compartment

G00454578

Courtesy of JAGUAR CARS, INC.

Fig 86: Right Side Of Luggage Compartment

G00454579

Courtesy of JAGUAR CARS, INC.

Fig 87: Under Front Of Center Console

G00454580

Courtesy of JAGUAR CARS, INC.

Fig 88: Right Rear Of Luggage Compartment

G00454581

Courtesy of JAGUAR CARS, INC.

Fig 89: Driver's Door

G00462849

Courtesy of JAGUAR CARS, INC.

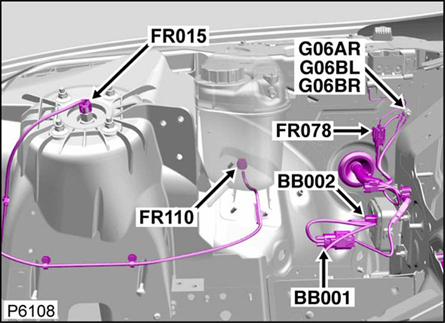

Fig 90: Right Side Of Engine Compartment

G00476800

Courtesy of JAGUAR CARS, INC.

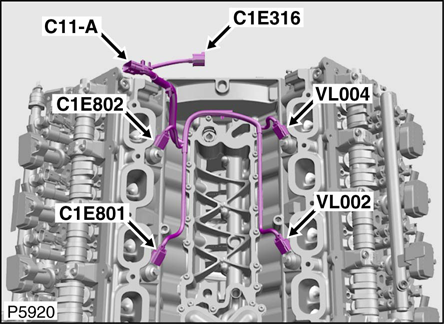

Fig 91: Top Of Engine

G00476803

Courtesy of JAGUAR CARS, INC.

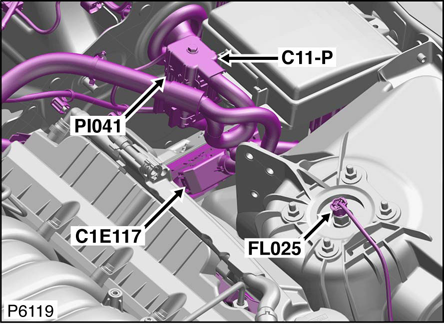

Fig 92: Left Rear Of Engine Compartment

G00476804

Courtesy of JAGUAR CARS, INC.

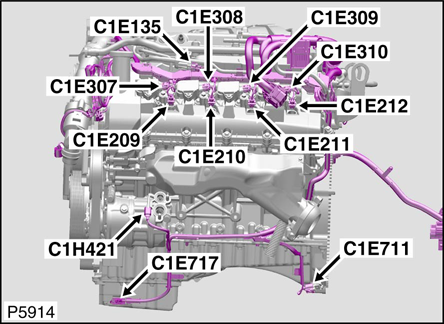

Fig 93: Left Side Of Engine (SC Engine Shown, NA Similar)

G00476805

Courtesy of JAGUAR CARS, INC.

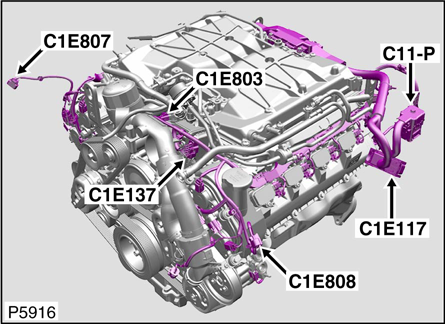

Fig 94: Front Left Side Engine Overview (SC Engine Shown, NA Similar)

G00476806

Courtesy of JAGUAR CARS, INC.

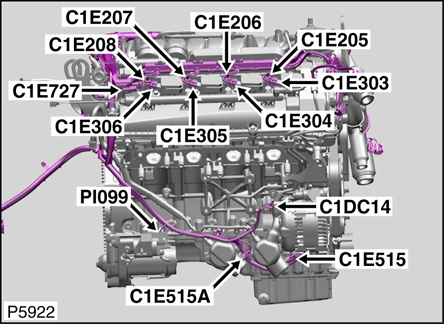

Fig 95: Right Side Of Engine (SC Engine Shown, NA Similar)

G00476807

Courtesy of JAGUAR CARS, INC.

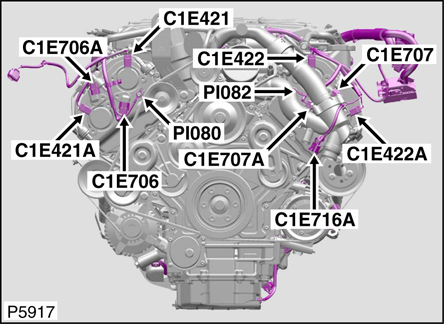

Fig 96: Front Of Engine

G00476808

Courtesy of JAGUAR CARS, INC.

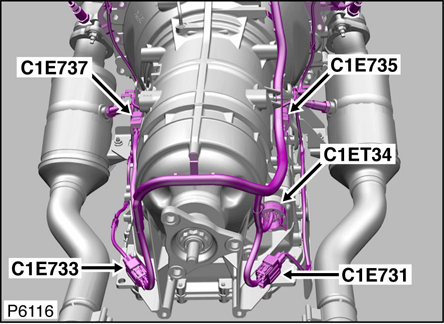

Fig 97: Transmission Housing

G00476809

Courtesy of JAGUAR CARS, INC.

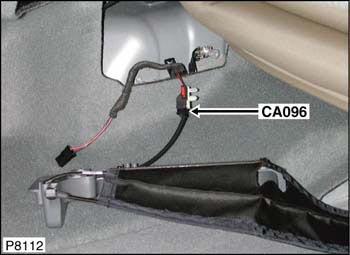

Fig 98: Luggage Compartment

G00476811

Courtesy of JAGUAR CARS, INC.

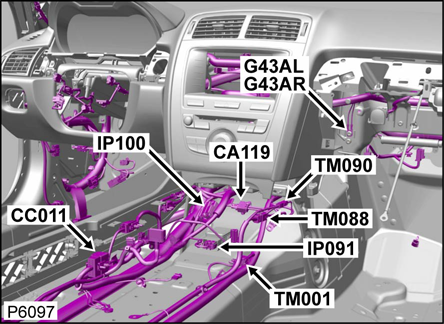

Fig 99: Dash & Console

G00476813

Courtesy of JAGUAR CARS, INC.

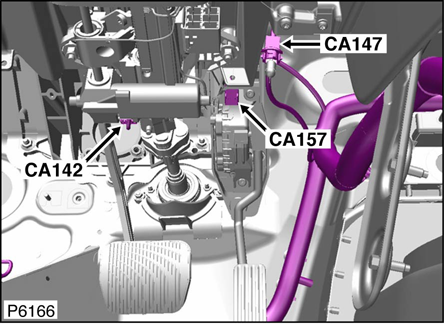

Fig 100: Under Left Side Of Dash

G00476815

Courtesy of JAGUAR CARS, INC.

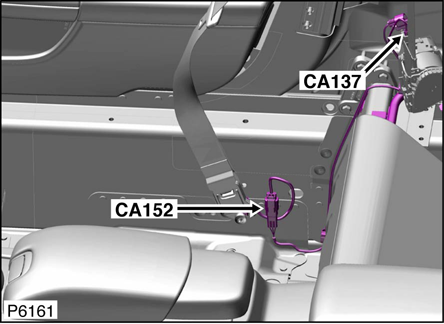

Fig 101: Right Rear Of Vehicle

G00476814

Courtesy of JAGUAR CARS, INC.

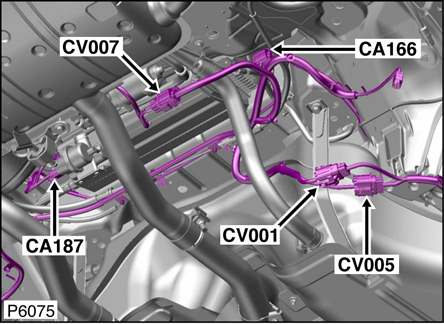

Fig 102: Under Right Rear Of Vehicle

G00476816

Courtesy of JAGUAR CARS, INC.

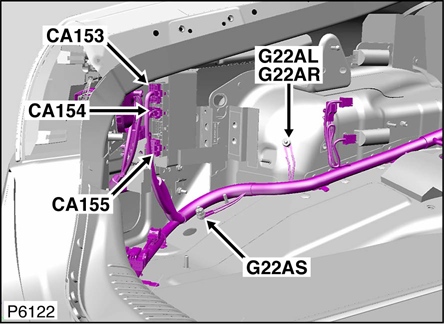

Fig 103: Left Rear Of Luggage Compartment

G00476818

Courtesy of JAGUAR CARS, INC.

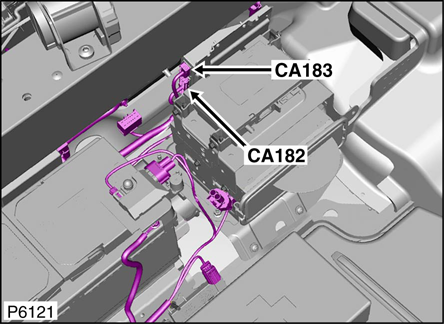

Fig 104: Luggage Compartment

G00476817

Courtesy of JAGUAR CARS, INC.

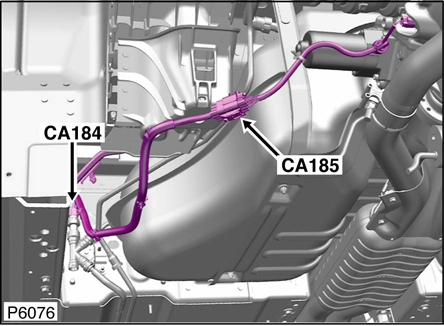

Fig 105: Under Rear Of Vehicle

G00476819

Courtesy of JAGUAR CARS, INC.

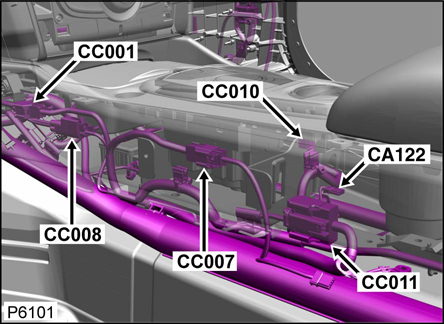

Fig 106: Center Console

G00476820

Courtesy of JAGUAR CARS, INC.

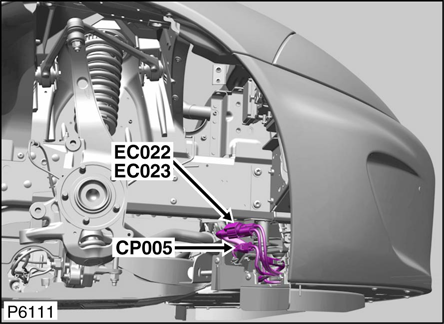

Fig 107: Right Front Wheelwell

G00476821

Courtesy of JAGUAR CARS, INC.

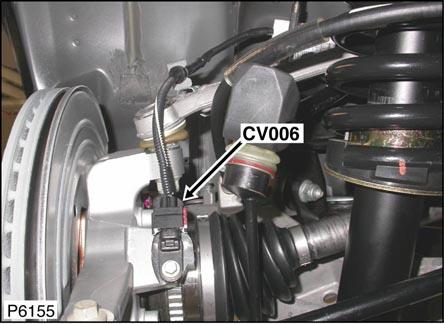

Fig 108: Left Rear Wheel Opening

G00476822

Courtesy of JAGUAR CARS, INC.

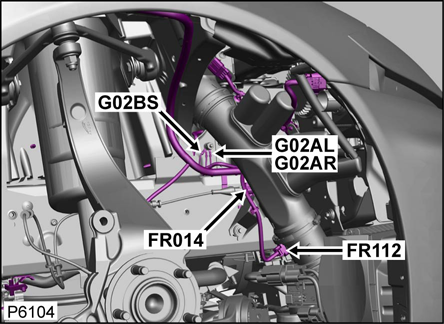

Fig 109: Right Front Wheel Opening

G00476823

Courtesy of JAGUAR CARS, INC.

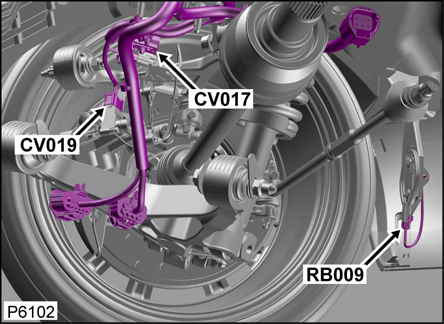

Fig 110: Under Right Rear Of Vehicle

G00476824

Courtesy of JAGUAR CARS, INC.

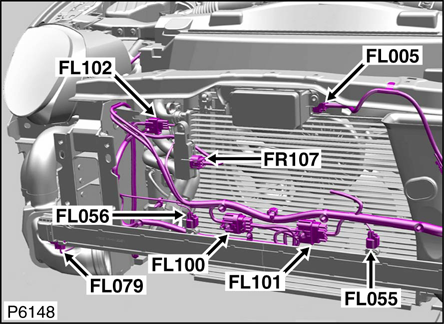

Fig 111: Front Of Radiator Support

G00476825

Courtesy of JAGUAR CARS, INC.

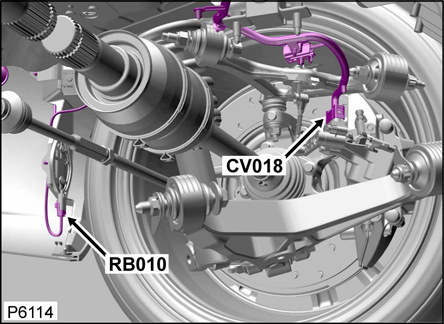

Fig 112: Under Right Rear Of Vehicle

G00476826

Courtesy of JAGUAR CARS, INC.

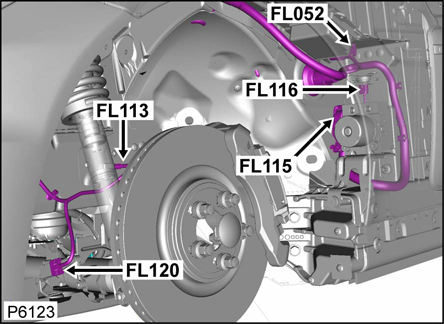

Fig 113: Left Front Wheel Opening

G00476827

Courtesy of JAGUAR CARS, INC.

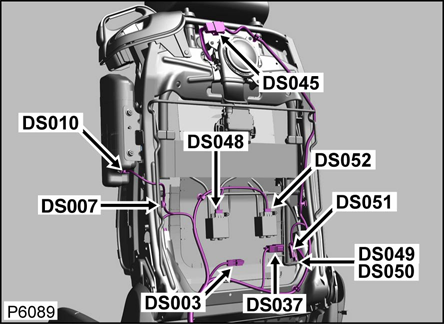

Fig 114: Driver Seat Back

G00476829

Courtesy of JAGUAR CARS, INC.

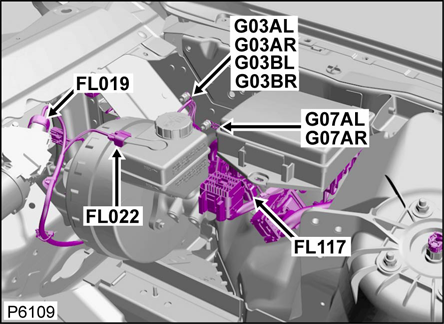

Fig 115: Right Rear Of Engine Compartment

G00476830

Courtesy of JAGUAR CARS, INC.

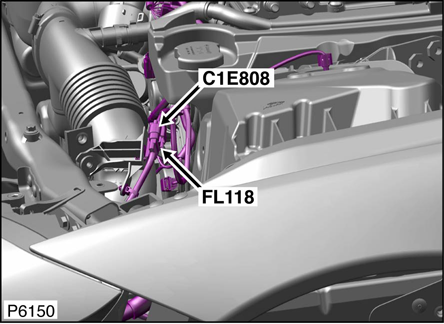

Fig 116: Left Front Of Engine Compartment

G00476831

Courtesy of JAGUAR CARS, INC.

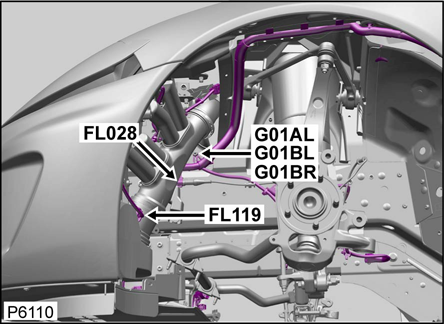

Fig 117: Left Front Wheel Opening

G00476832

Courtesy of JAGUAR CARS, INC.

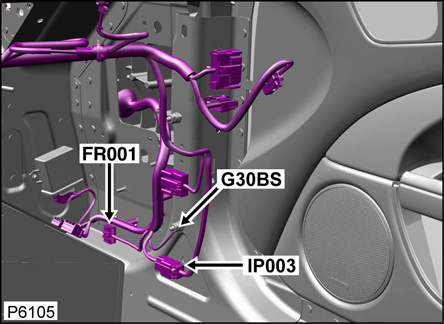

Fig 118: Lower Right "A" Pillar

G00476833

Courtesy of JAGUAR CARS, INC.

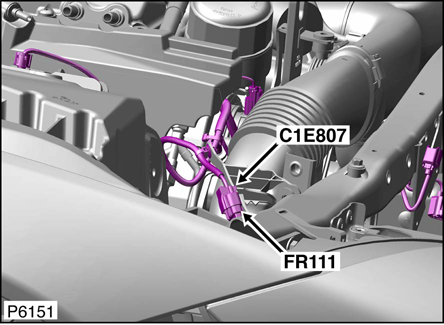

Fig 119: Right Front Of Engine Compartment

G00476834

Courtesy of JAGUAR CARS, INC.

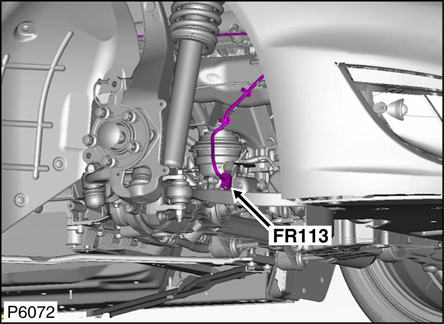

Fig 120: Right Front Wheelwell

G00476835

Courtesy of JAGUAR CARS, INC.

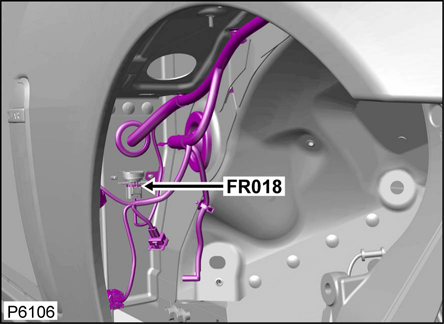

Fig 121: Right Front Wheelwell

G00476836

Courtesy of JAGUAR CARS, INC.

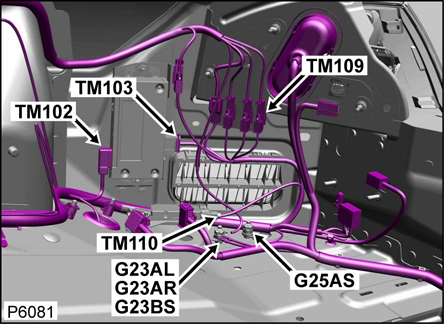

Fig 122: Right Side Of Luggage Compartment

G00476837

Courtesy of JAGUAR CARS, INC.

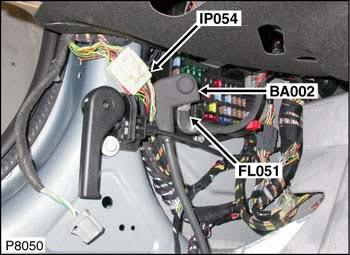

Fig 123: Lower Left Side Of Dash

G00476838

Courtesy of JAGUAR CARS, INC.

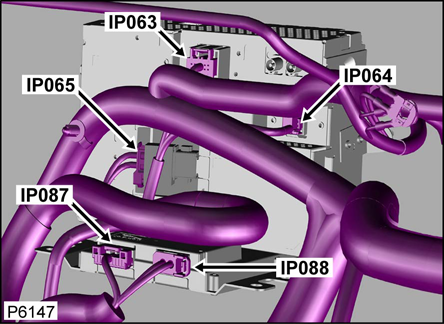

Fig 124: Center Of Dash

G00476839

Courtesy of JAGUAR CARS, INC.

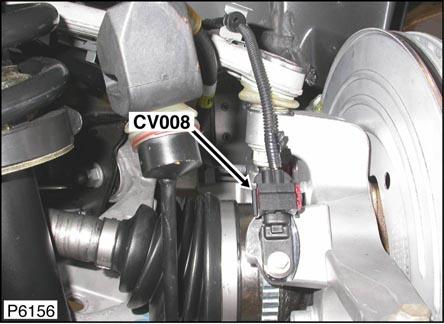

Fig 125: Right Rear Wheel Opening

G00476840

Courtesy of JAGUAR CARS, INC.

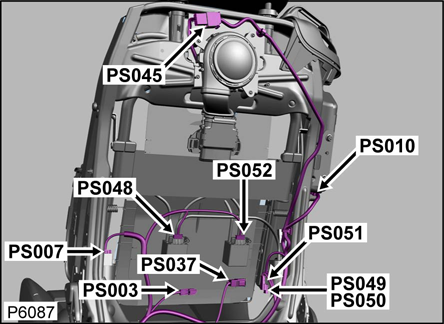

Fig 126: Rear Of Passenger Seat Backrest

G00476841

Courtesy of JAGUAR CARS, INC.

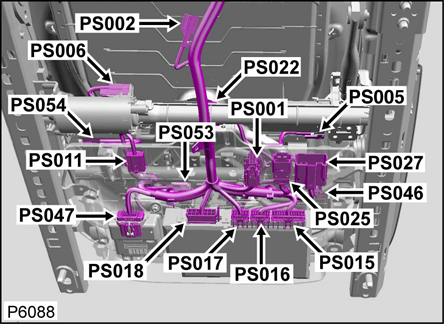

Fig 127: Under Passenger Seat

G00476842

Courtesy of JAGUAR CARS, INC.

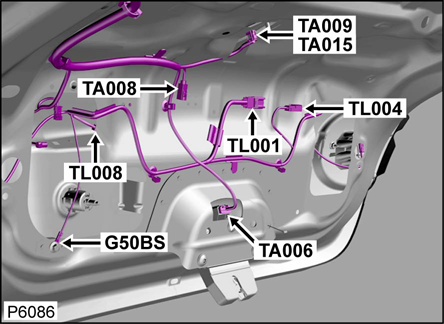

Fig 128: Under Luggage Compartment Lid

G00476843

Courtesy of JAGUAR CARS, INC.

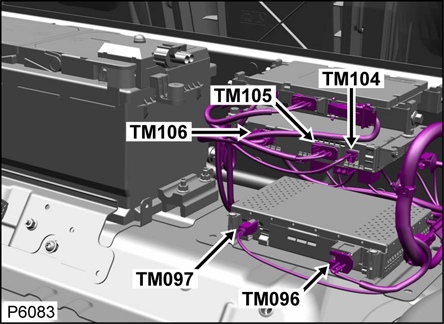

Fig 129: Rear Of Luggage Compartment

G00476844

Courtesy of JAGUAR CARS, INC.

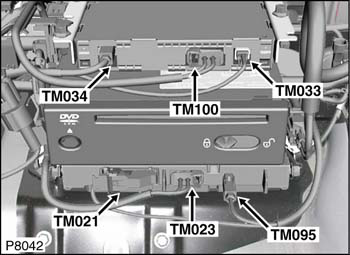

Fig 130: Right Rear Of Luggage Compartment

G00476845

Courtesy of JAGUAR CARS, INC.

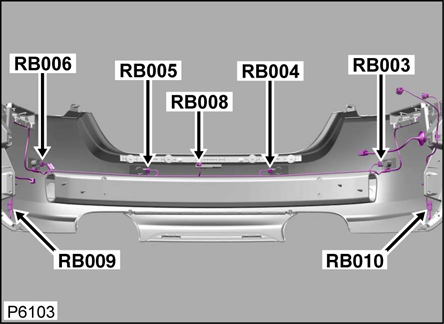

Fig 131: Rear Bumper

G00476846

Courtesy of JAGUAR CARS, INC.
