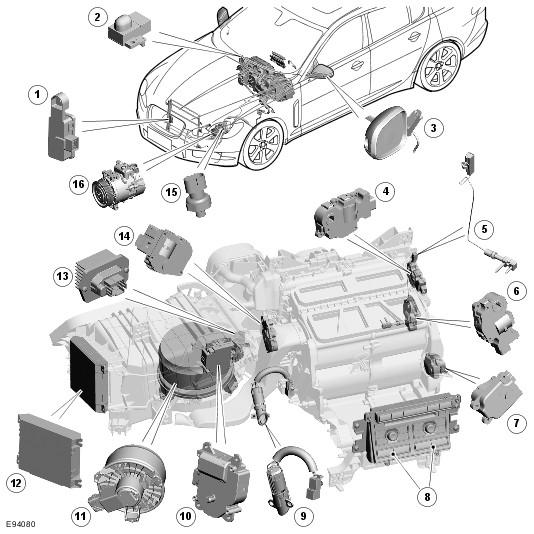

Component Location
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 Jaguar XFR, 2012 Jaguar XF, 2011 Jaguar XFR, 2011 Jaguar XF, and 2010 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
right-hand drive (RHD) vehicle shown, left-hand drive (LHD) vehicle similar.
| Item Number | Description |
|---|---|
| 1 | Pollution sensor Comments: where fitted |
| 2 | Unload sensor |
| 3 | Ambient air temperature sensor |
| 4 | Windshield (Defrost) distribution stepper motor |
| 5 | Evaporator temperature sensor |
| 6 | right-hand (RH) temperature blend stepper motor |
| 7 | left-hand (LH) temperature blend stepper motor |
| 8 | Control switches |
| 9 | Humidity and temperature sensor |
| 10 | Air inlet servo motor |
| 11 | Blower |
| 12 | automatic temperature control (ATC) module |
| 13 | Blower control module |
| 14 | Face/Feet distribution stepper motor |
| 15 | Refrigerant pressure sensor |
| 16 | air conditioning (A/C) compressor solenoid valve |
