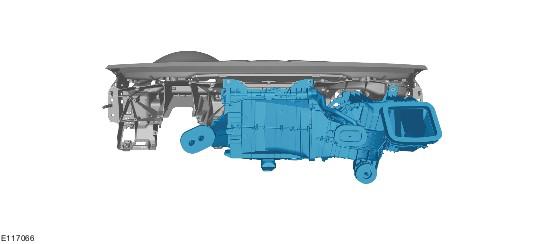

Climate Control Assembly: Removal
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2012 Jaguar XFR, 2012 Jaguar XF, 2011 Jaguar XFR, 2011 Jaguar XF, and 2010 Jaguar XFR. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
NOTE:
RHD illustration shown, LHD is similar.
- Refer to Battery Disconnect and Connect information.
- Raise and support the vehicle.
- Refer to INSTRUMENT PANEL CONSOLE (G1448158) information.
- See figure.
- Torque: 9 Nm.
- Torque: 9 Nm.
- See figure.
WARNING:
Make sure to support the vehicle with axle stands.
CAUTION:
Be prepared to collect escaping coolant.
