Home >> Jeep >> 1983 >> Cherokee Base, 4.2 C, Automatic >> Repair and Diagnosis >> Engine Performance >> System >> 4.2L Feedback Carburetor System >> Component Testing >> Test No. 4 - Closed Loop Operational Test

Test No. 4 - Closed Loop Operational Test

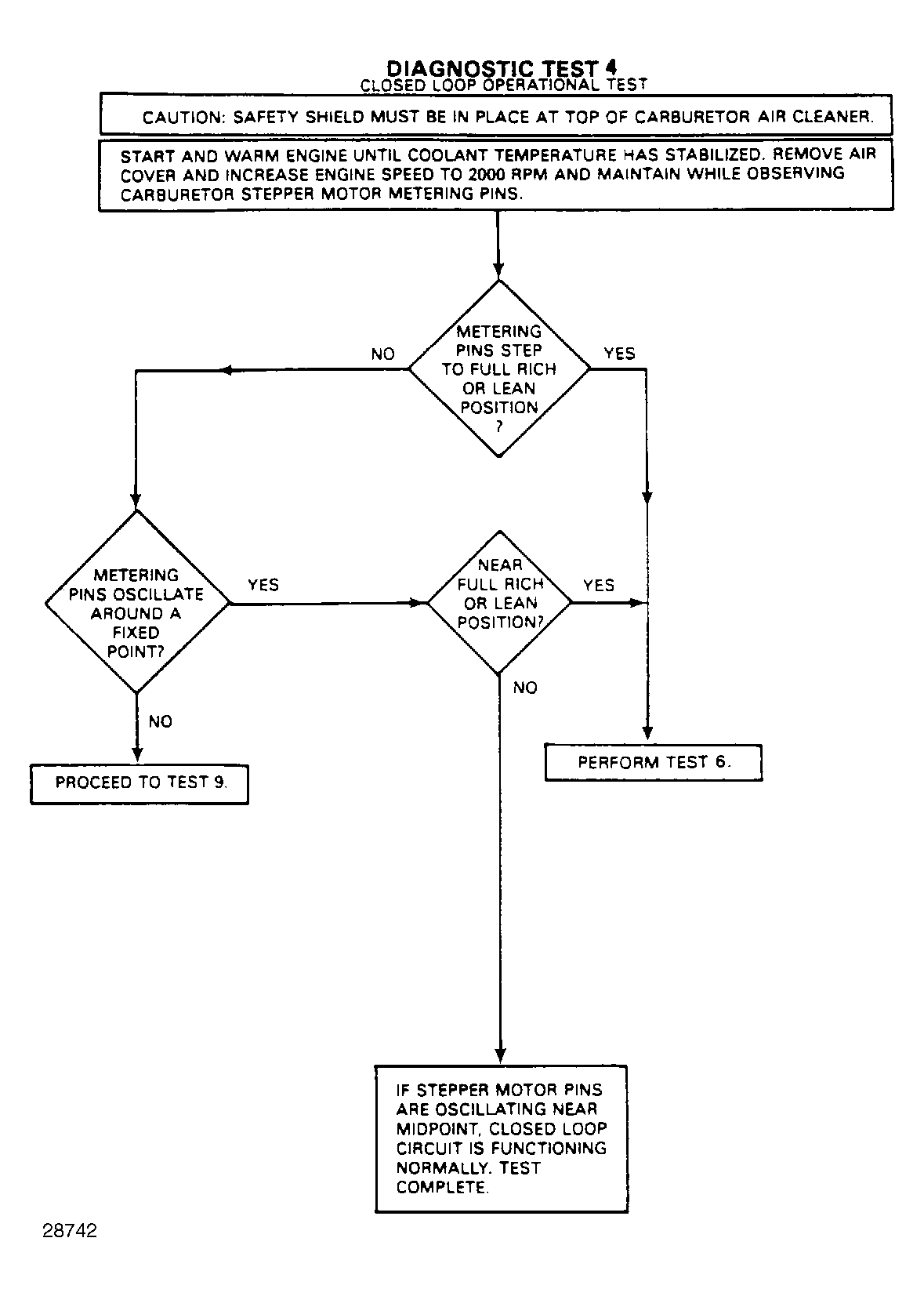

Fig 1: Test No. 4, Closed Loop Operational Test

G28742
