Home >> Jeep >> 1985 >> Pickup J20 >> Repair and Diagnosis >> Engine Performance >> System >> 2.5L Feedback Carburetor Testing >> Testing >> Test No. 1 - Operational Test

Test No. 1 - Operational Test

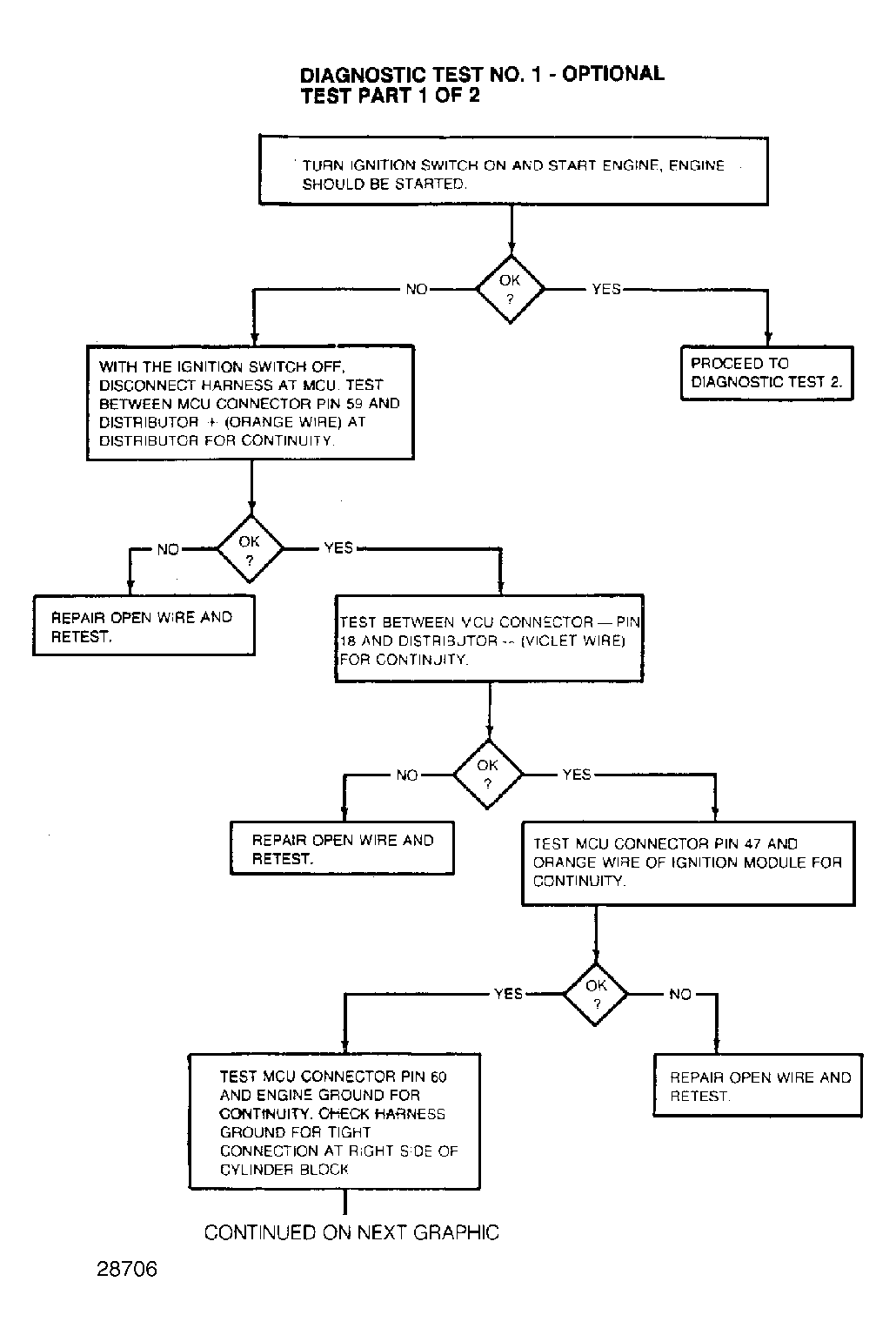

Fig 1: Test No. 1, Operational Test (1 of 2)

G28706

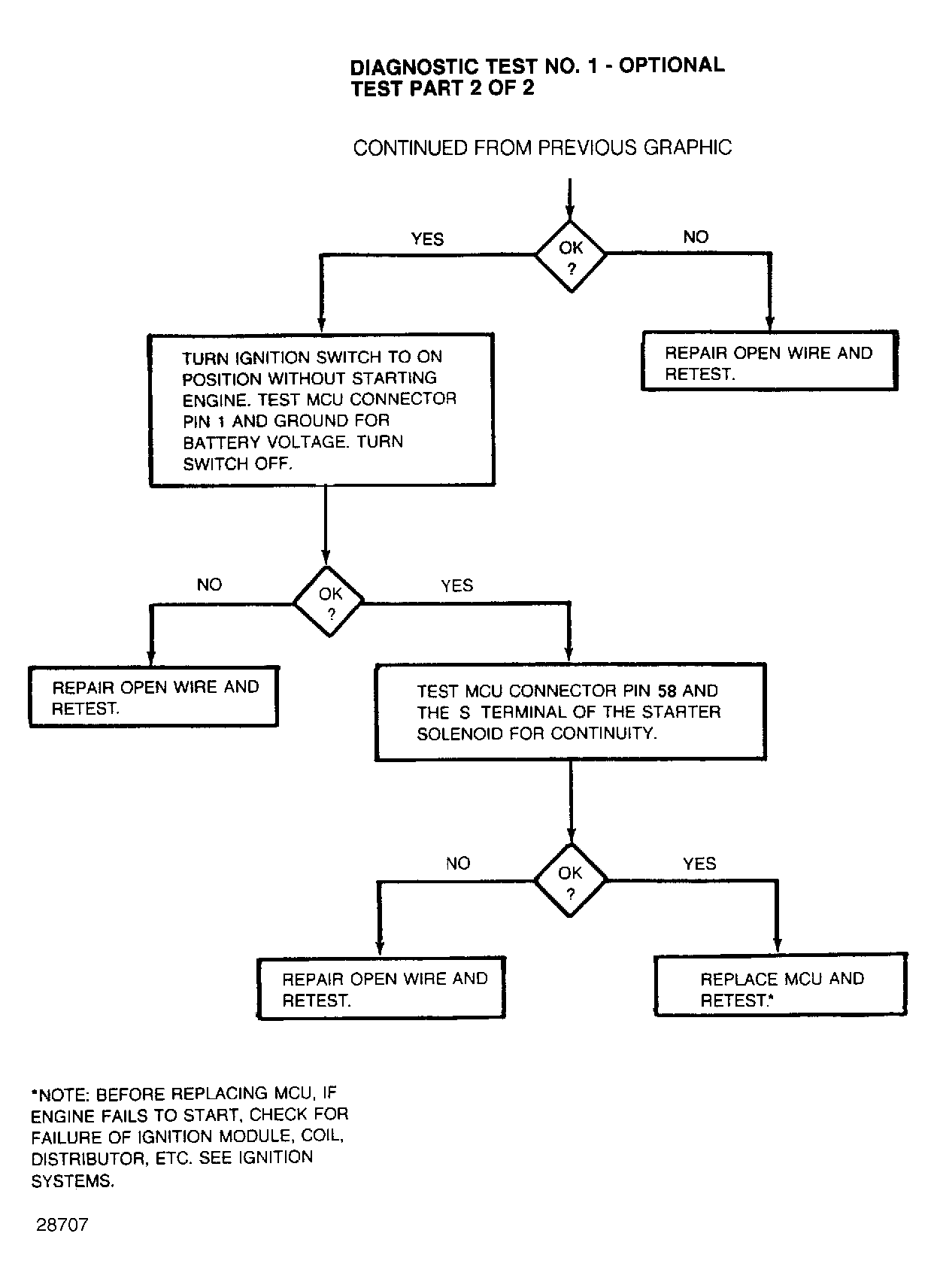

Fig 2: Test No. 1, Operational Test (2 of 2)

G28707
