Test No. 2 - Switch Test

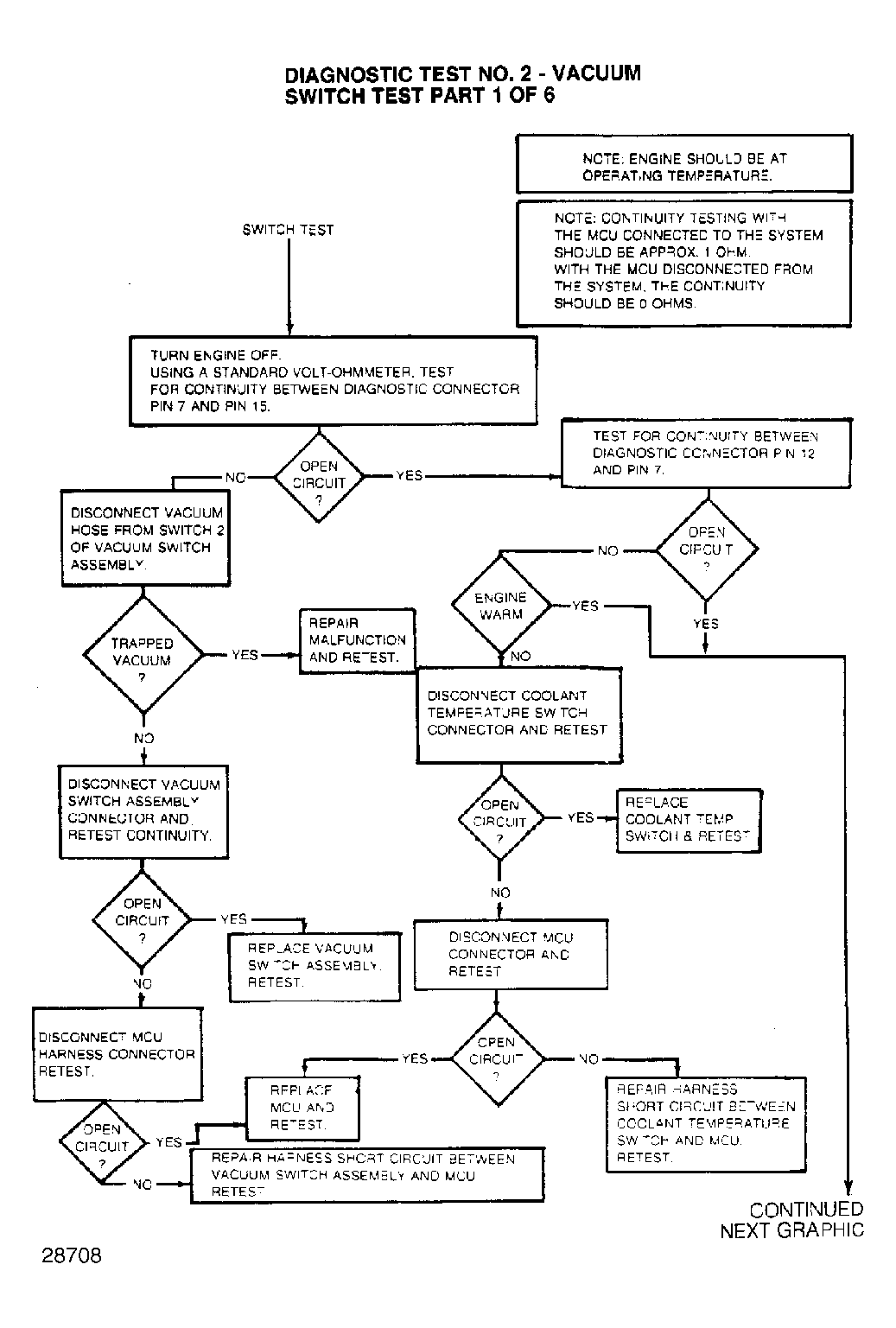

Fig 1: Test No. 2, Switch Test (1 of 6)

G28708

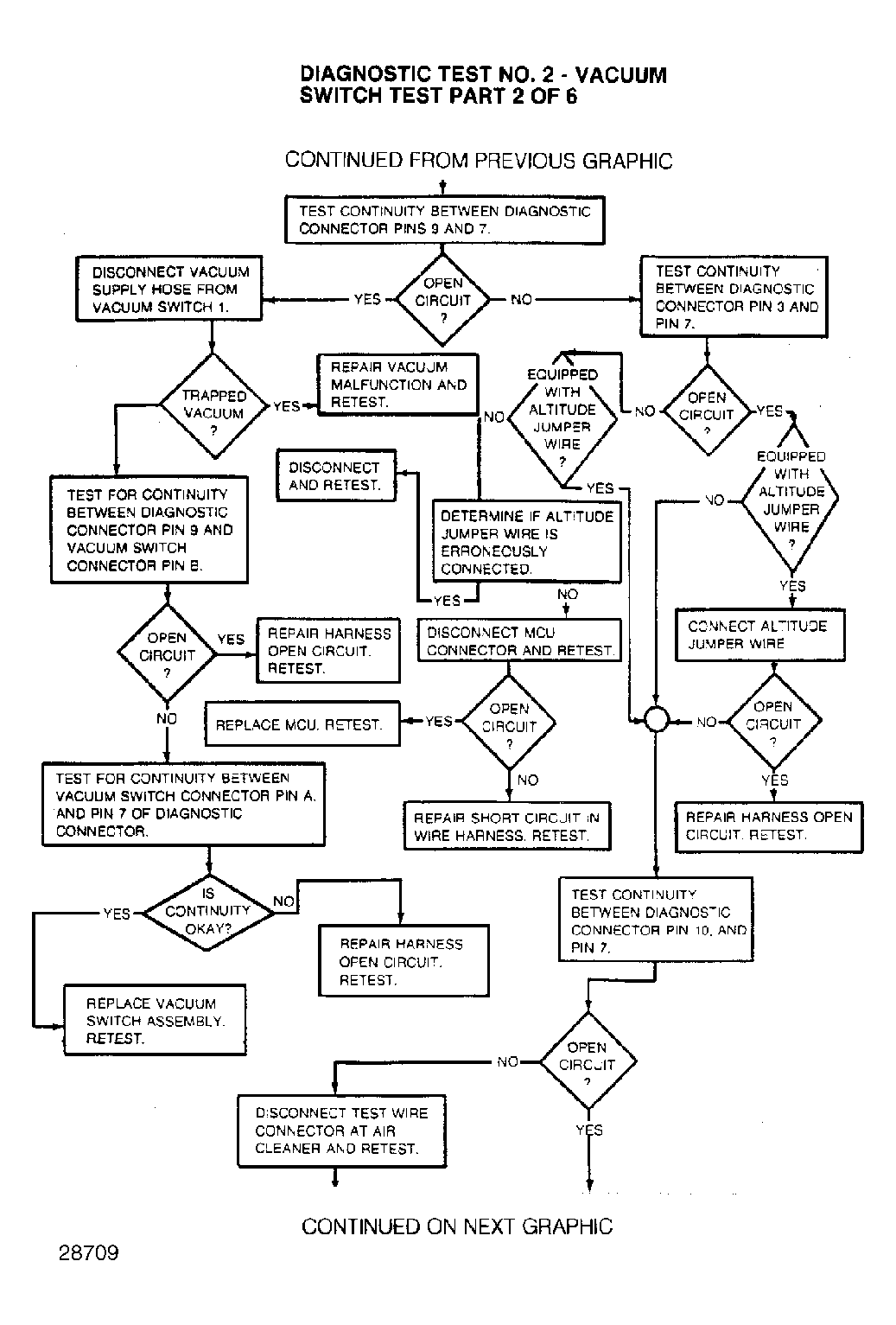

Fig 2: Test No. 2, Switch Test (2 of 6)

G28709

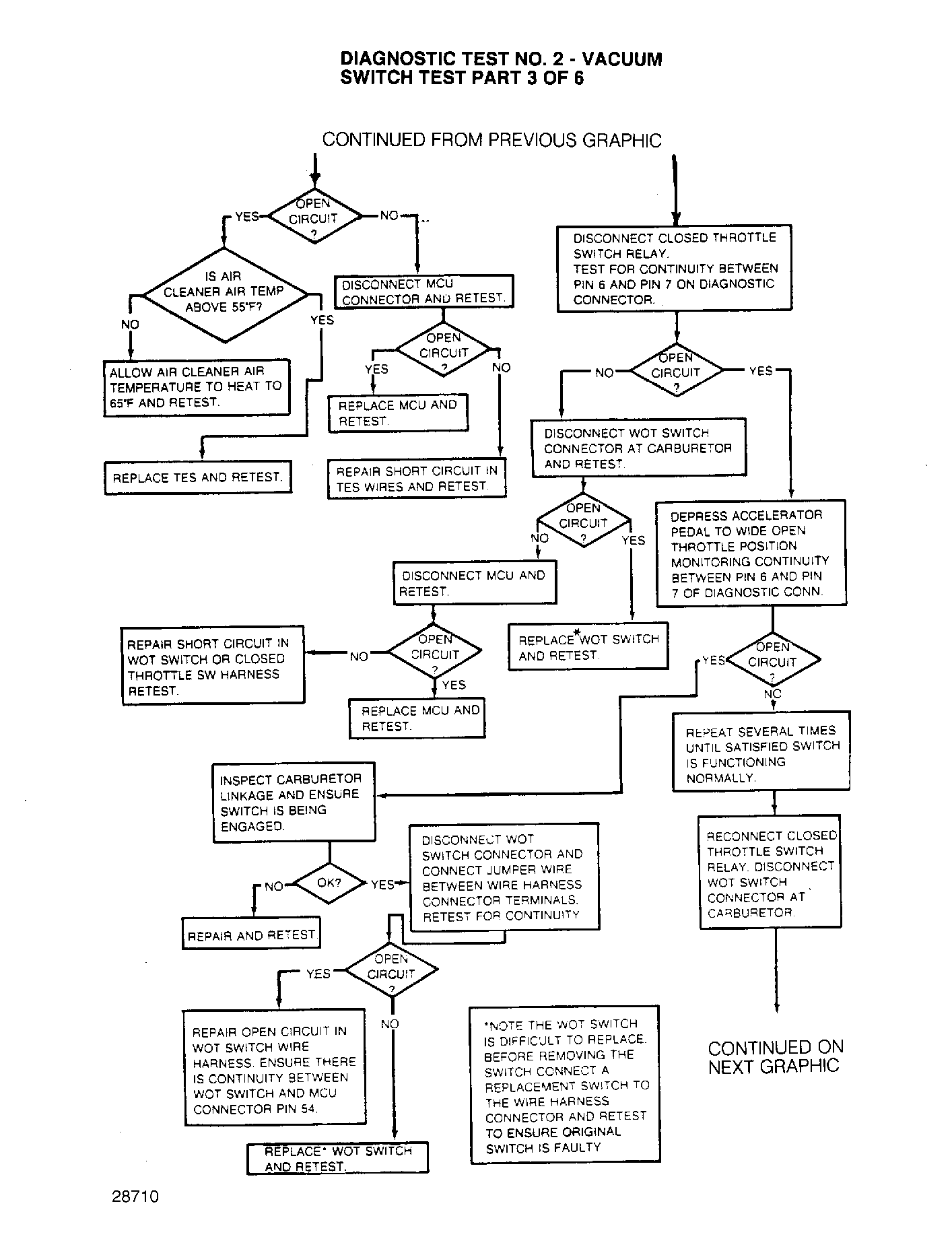

Fig 3: Test No. 2, Switch Test (3 of 6)

G28710

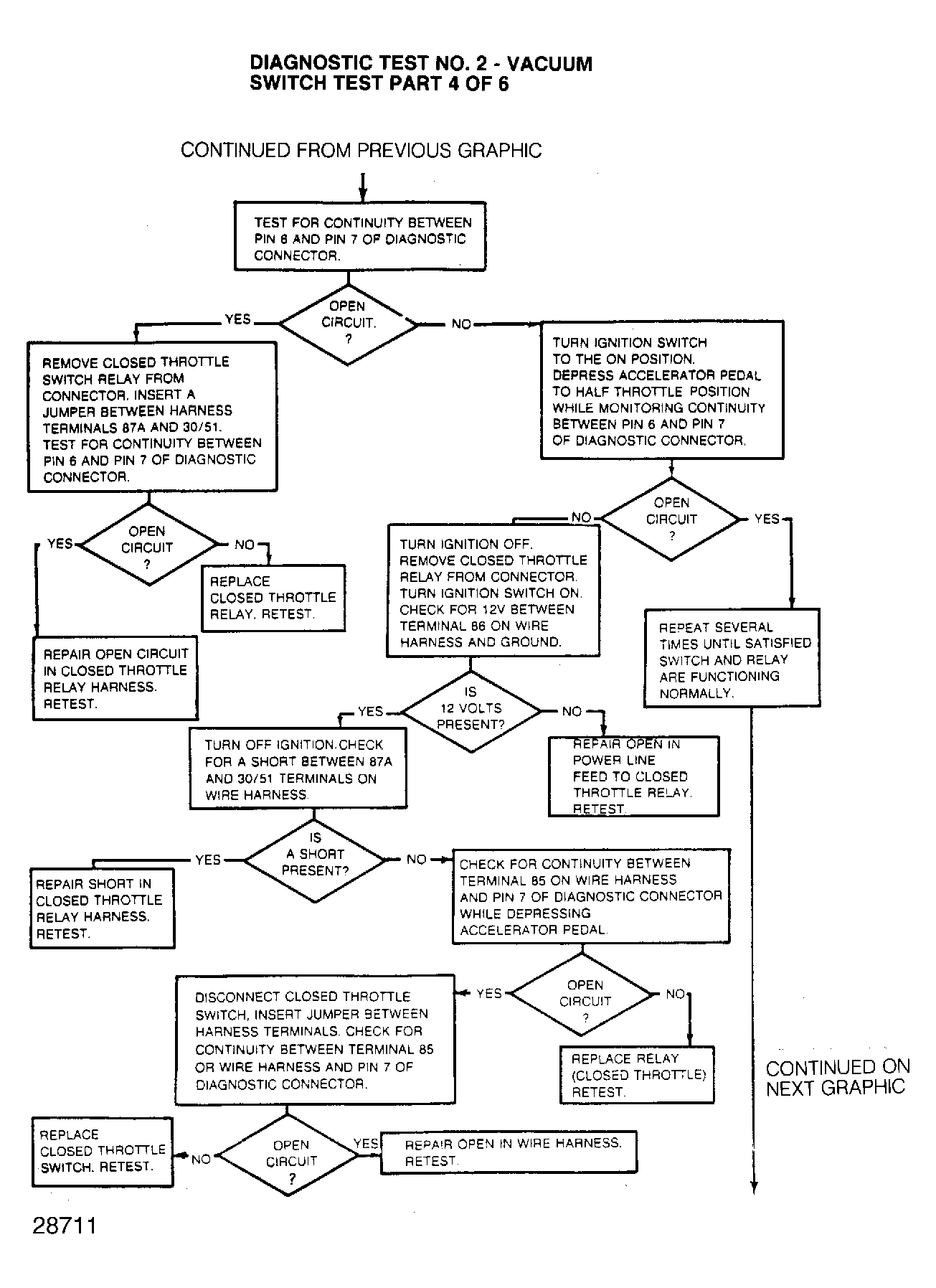

Fig 4: Test No. 2, Switch Test (4 of 6)

G28711

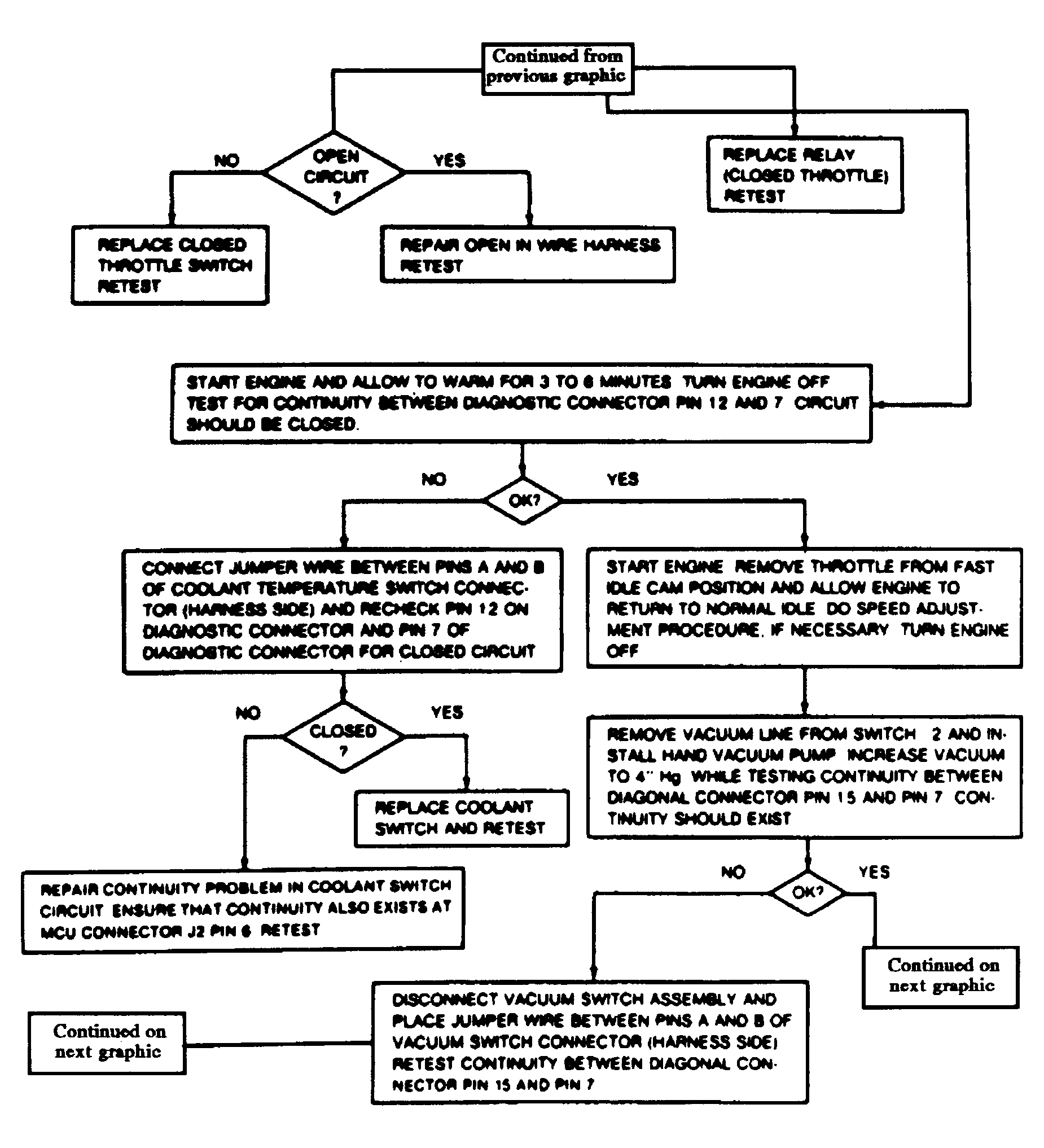

Fig 5: Test No. 2, Switch Test (5 of 6)

G200142

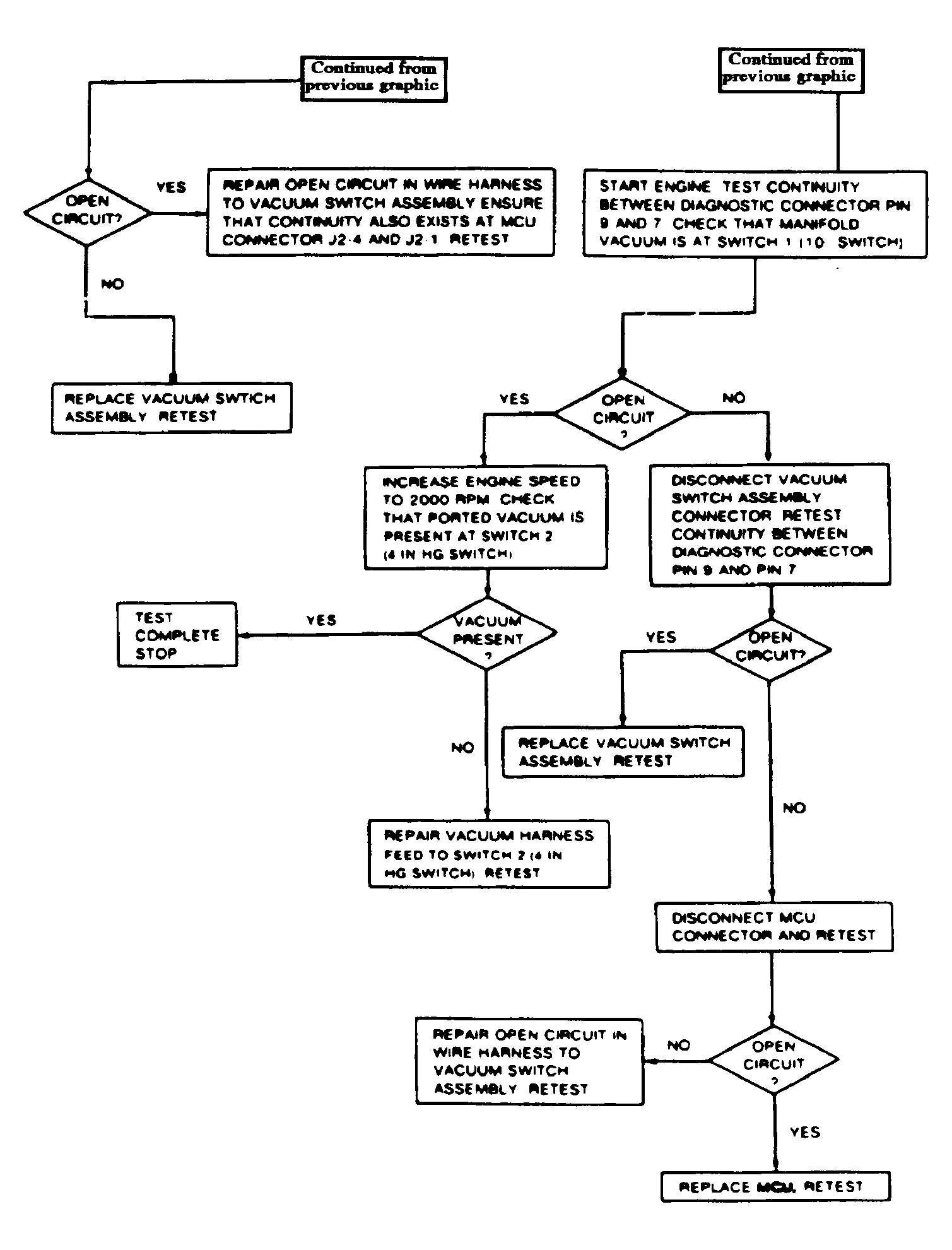

Fig 6: Test No. 2, Switch Test (6 of 6)

G200143
