Home >> Jeep >> 1985 >> Pickup J20 >> Repair and Diagnosis >> Engine Performance >> System >> 2.5L Feedback Carburetor Testing >> Testing >> Test No. 3 - Closed Loop Test

Test No. 3 - Closed Loop Test

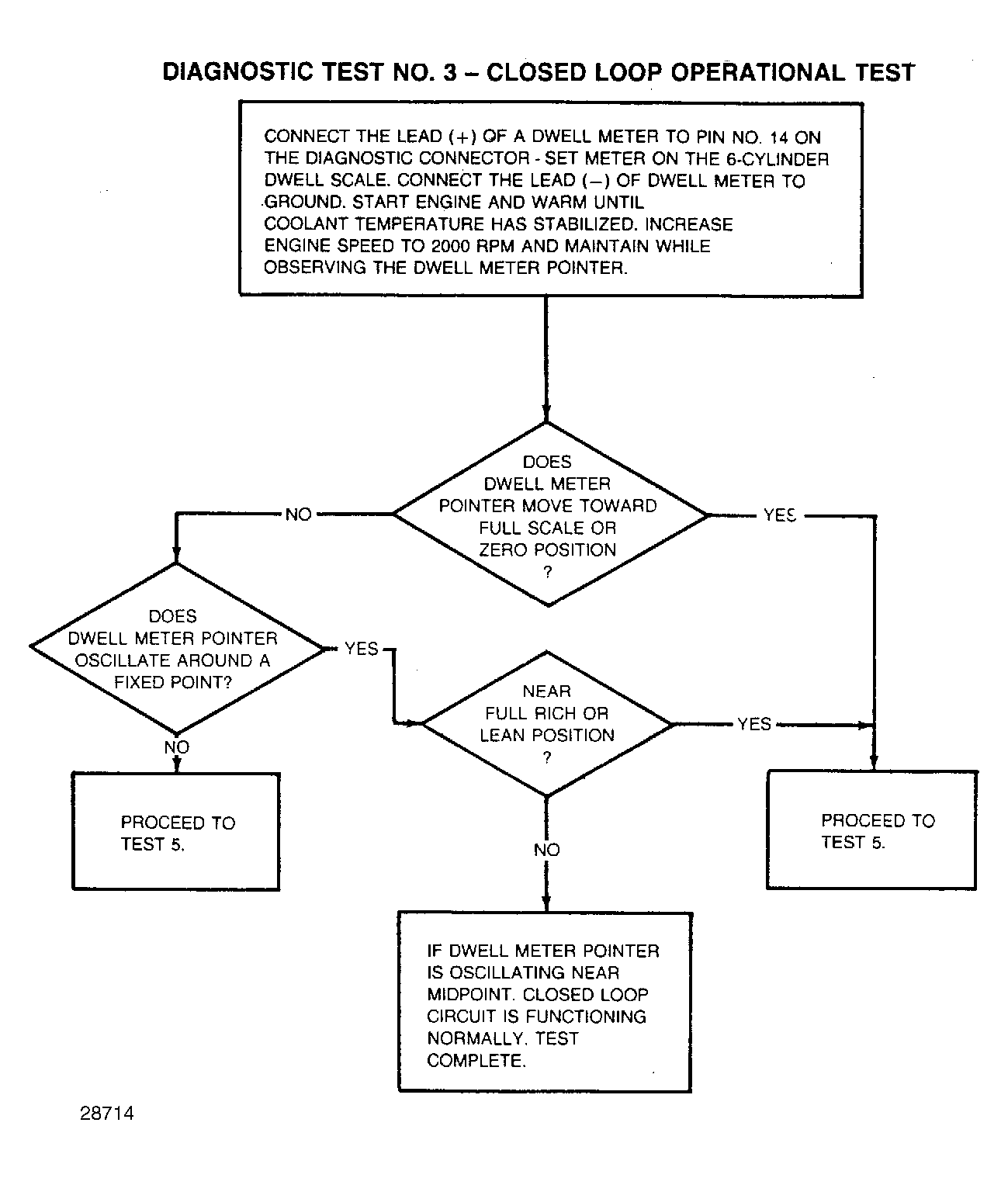

Fig 1: Test No. 3, Closed Loop Test

G28714
